EclPar IPSFC

EclPar IPSFC

PROECLPARIPLFC

Key Features:

  • 60W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
  • IP65 & fan-free for exterior application
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclPar IPSFC

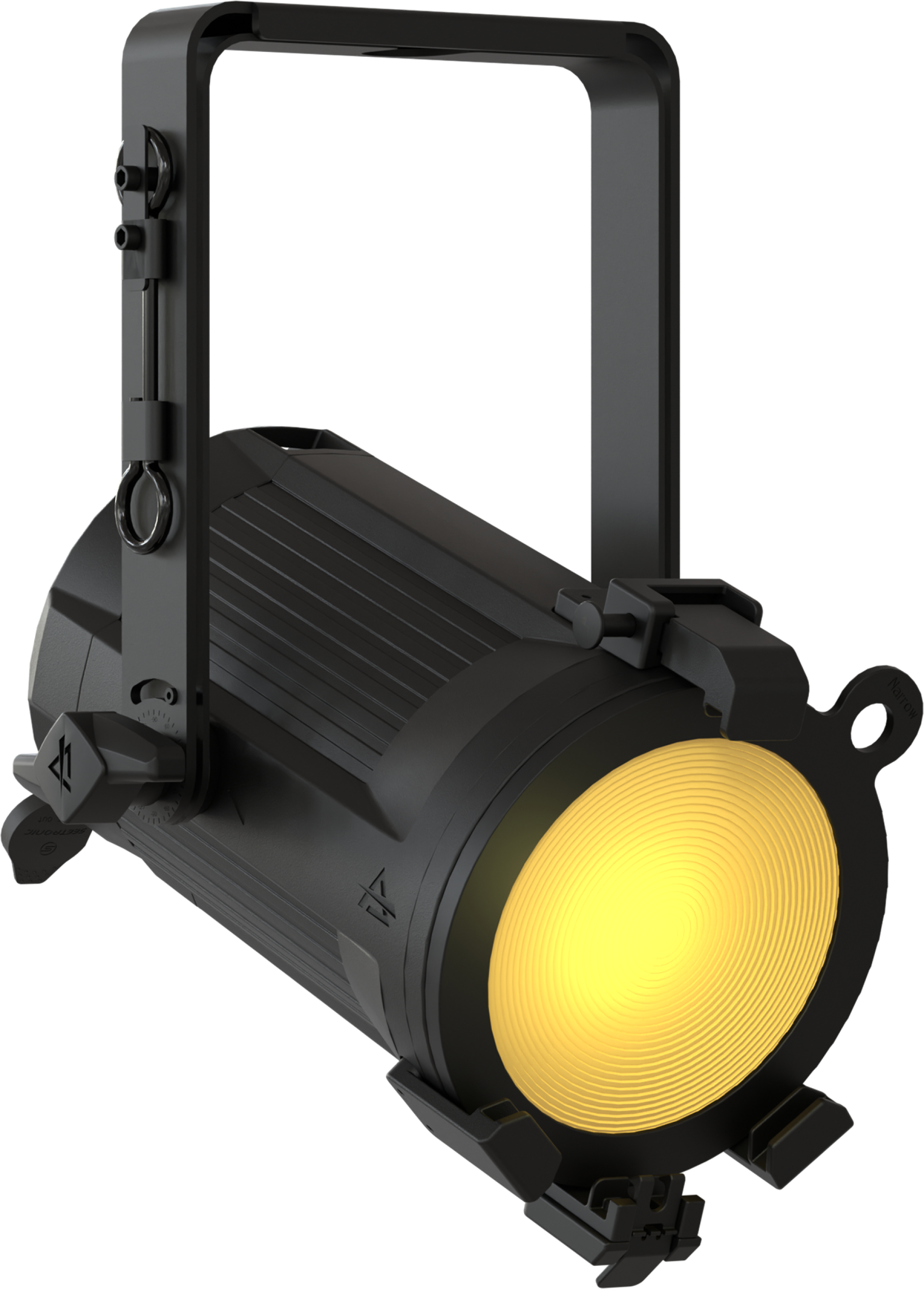

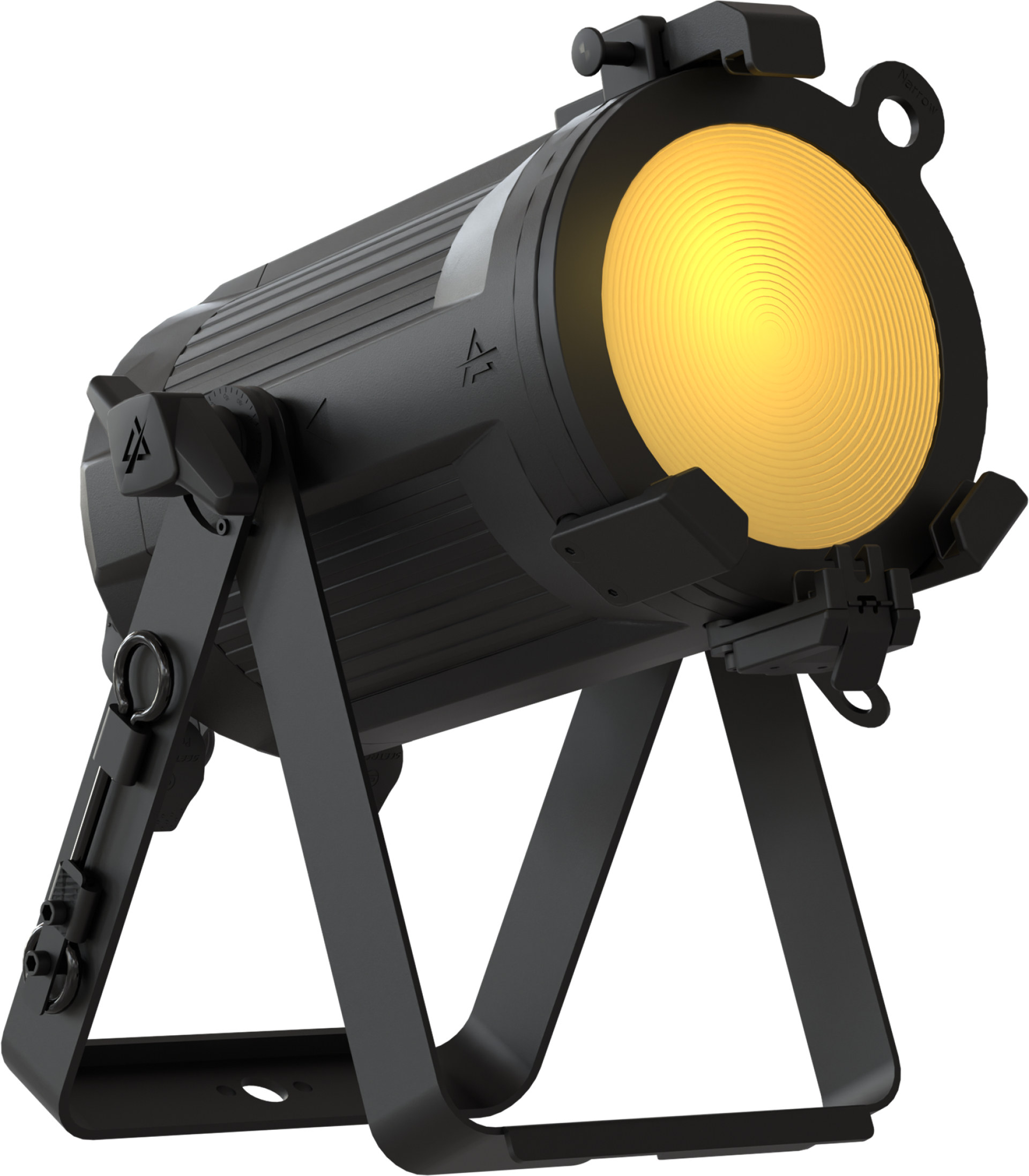

The EclPar IPSFC is an ultra compact and fan free IP-rated single source LED spotlight, tailored for accent lighting and nearfield projection which seamlessly integrates anywhere,

This fixture is powered by a 60W RGB+WarmWhite light source, capable of producing up to 2,500 fixture lumens with high efficiency and advanced colour control.

Integrated with the PROLIGHTS Spektra OS, the EclPar IPSFC excels in delivering superior white light reproduction, boasting high CRI and TM30 values. This system ensures advanced color control, maintaining consistency across all fixtures.

Its compact and fan-free design renders the EclPar IPSFC an indispensable tool for both indoor and outdoor venues, blending seamlessly into various environments. The fixture's versatility is further enhanced by its flexible optical system, accommodating a broad range of lenses. These include a narrow 15° lens (onboard), medium 30°, and a wide 60° flood option. Additionally, it supports asymmetric filters and optical modifiers, all swiftly attachable via dedicated accessory holders, allowing for swift adaptation to diverse lighting requirements.

  • Source: 60W RGB+WW LED array

    Luminous flux: (15°) 2'426 @3.200 K

    Lux: 1'617lx @5 m 3.200 K

    CRI: 94 @3'200K; 90,4 @5'600K

    R9: 97,5 @3'200K; 97,1 @5'600K

    TLCI: 84 @3'200K; 84 @5'600K

    TM30 Rf: 92,7 @3'200K; 89,0 @5'600K

    TM30 Rg: 106,0 @3'200K; 108,3 @5'600K

    Source life expectancy: > 50.000 h

    Beam angle: (on-board) 15° - (opt) 30°, 60°

    Field angle: (on-board) 21°

    Lens diameter: 100mm / 3.94''

    Lens type: parabolic reflector in combination with HD fresnel lens

    Additional optics: (opt) 30°, 60°

    Other: possible to mount lens both on the internal side and on the external side

  • Colour mixing: RGB + Warm White

    CCT: CCT control, + / - green correction, tungsten emulation

    White presets: 2.700 K ~ 10.000K

    Macros: Gels library on-board

    Static mode: selection of static dimmer, colours and colour temperature

    Manual mode: manual adjustment of colour

    Auto mode: built-in programs with execution speed adjustment

    Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

  • Protocols: DMX512, RDM, CRMX

    DMX channels: 1 / 2 / 5 / 9 / 10 / 12 / 18channel

    Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

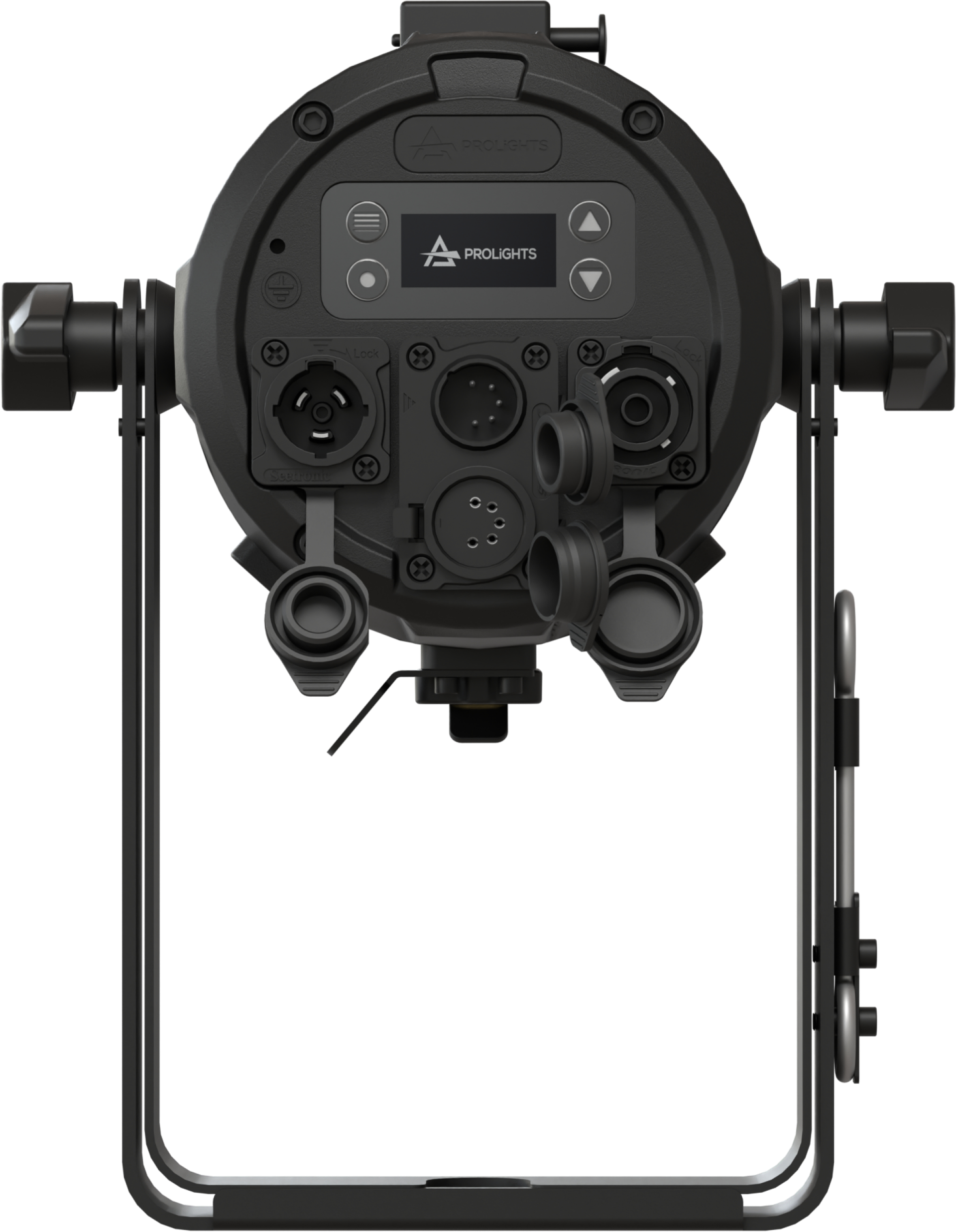

    Display: Graphic User Interface

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

    Master/Slave: for synchronised operation of more units linked in a chain

EclPar IPSFC - Downloads
Download

You might like...

PROLIGHTS EclPar IPMFC LED PAR
Product - LIGHTING
EclPar IPMFC
    • 100W Spektra calibrated RGB + Warm White LED
    • Flex lens system: 15° on-board - 30° and 60°
    • IP65 for exterior application
Find out more
Product - LIGHTING
EclPar IPLFC
    • 300W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
    • Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
    • IP65 for exterior application
Find out more
EclPar IPSVW
Product - LIGHTING
EclPar IPSVW
    • 50W Variable White LED delivering high CRI, TLCI, TM30 values
    • Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
    • IP65 & fan-free for exterior application
Find out more

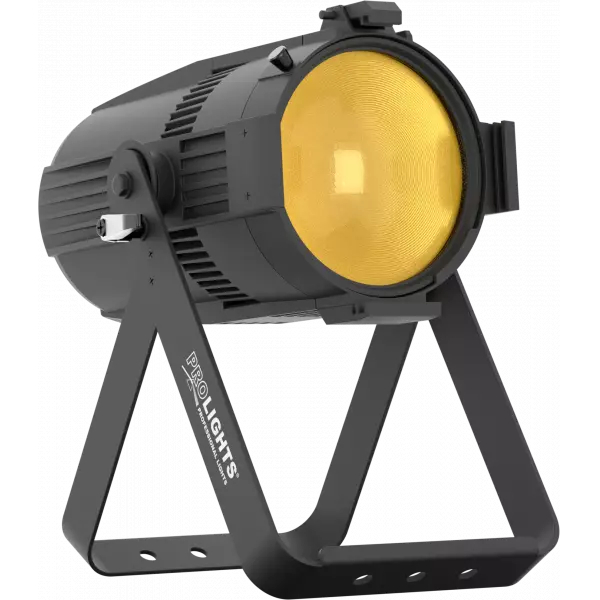

PROLIGHTS EclPar FC
