EclPar IPLVW

PROECLPARIPLVW

Key Features:

  • 300W Variable White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
  • IP65 for exterior application
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclPar IPLVW

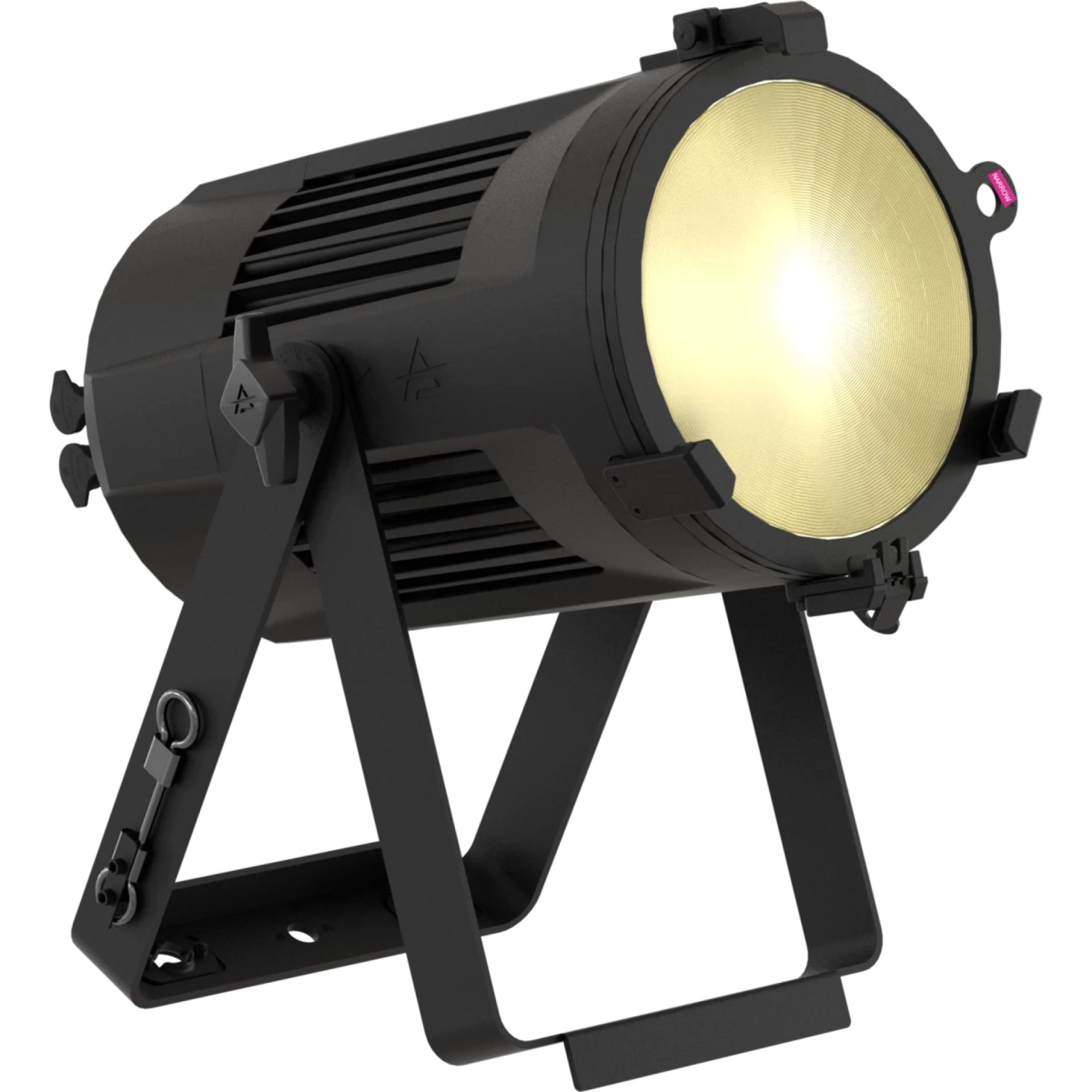

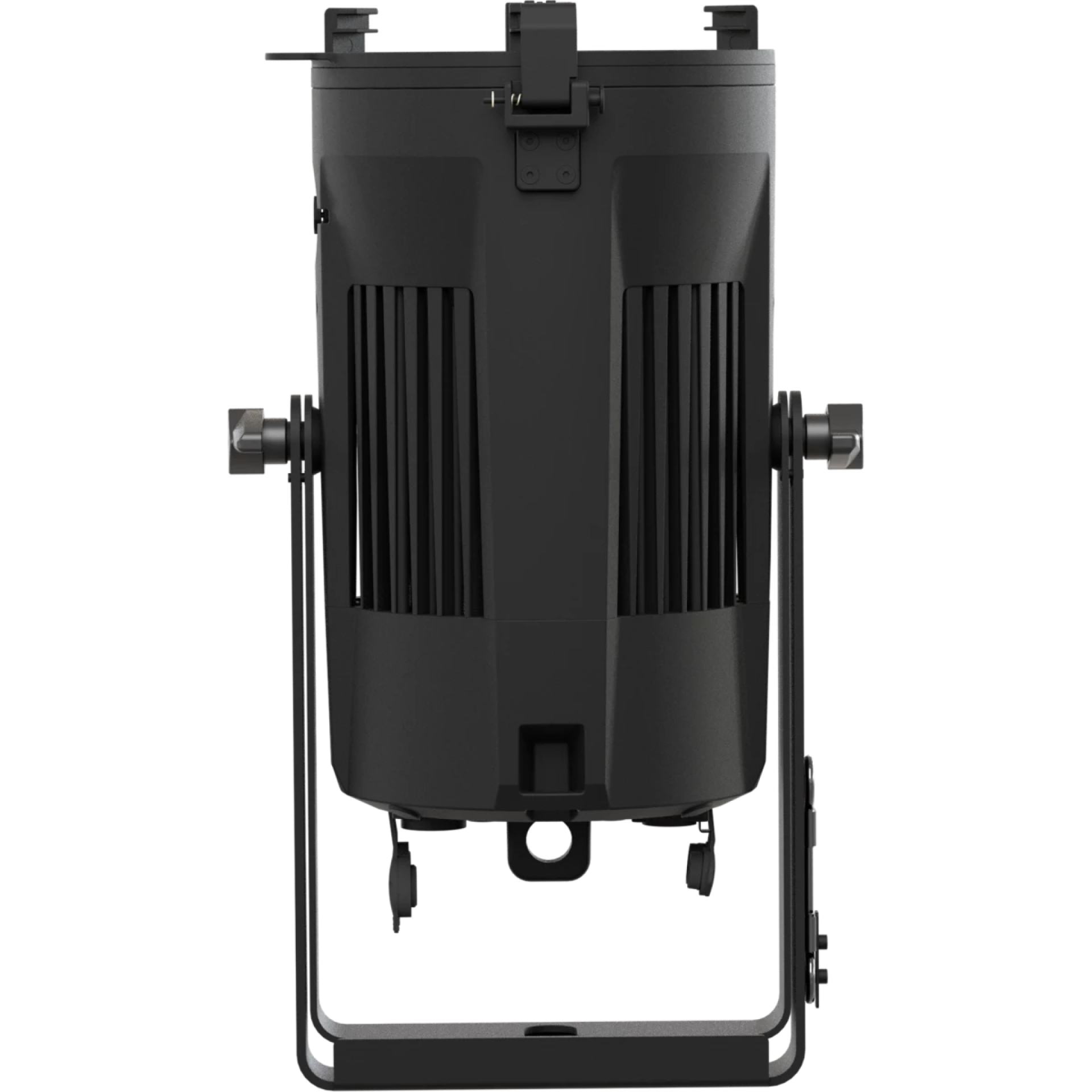

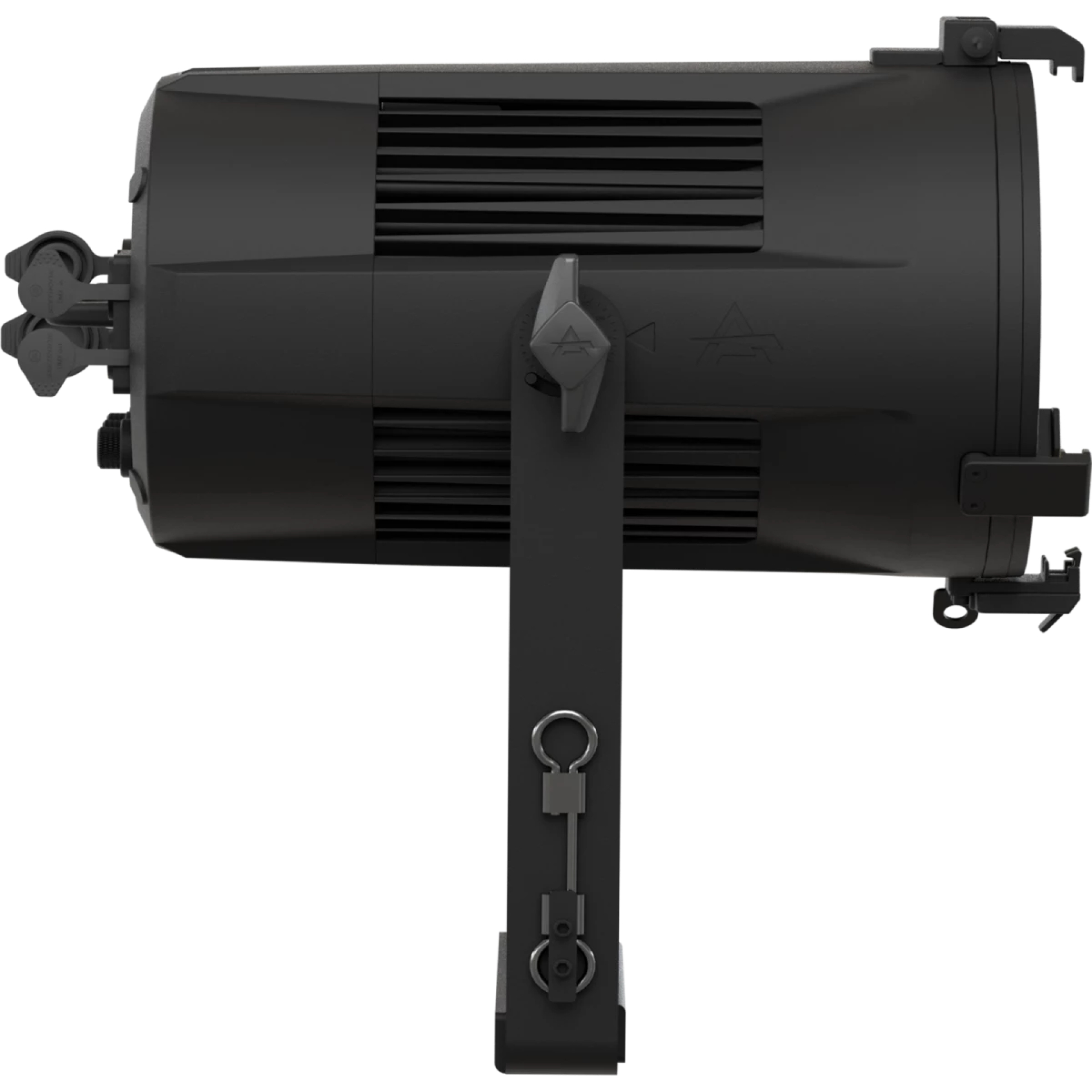

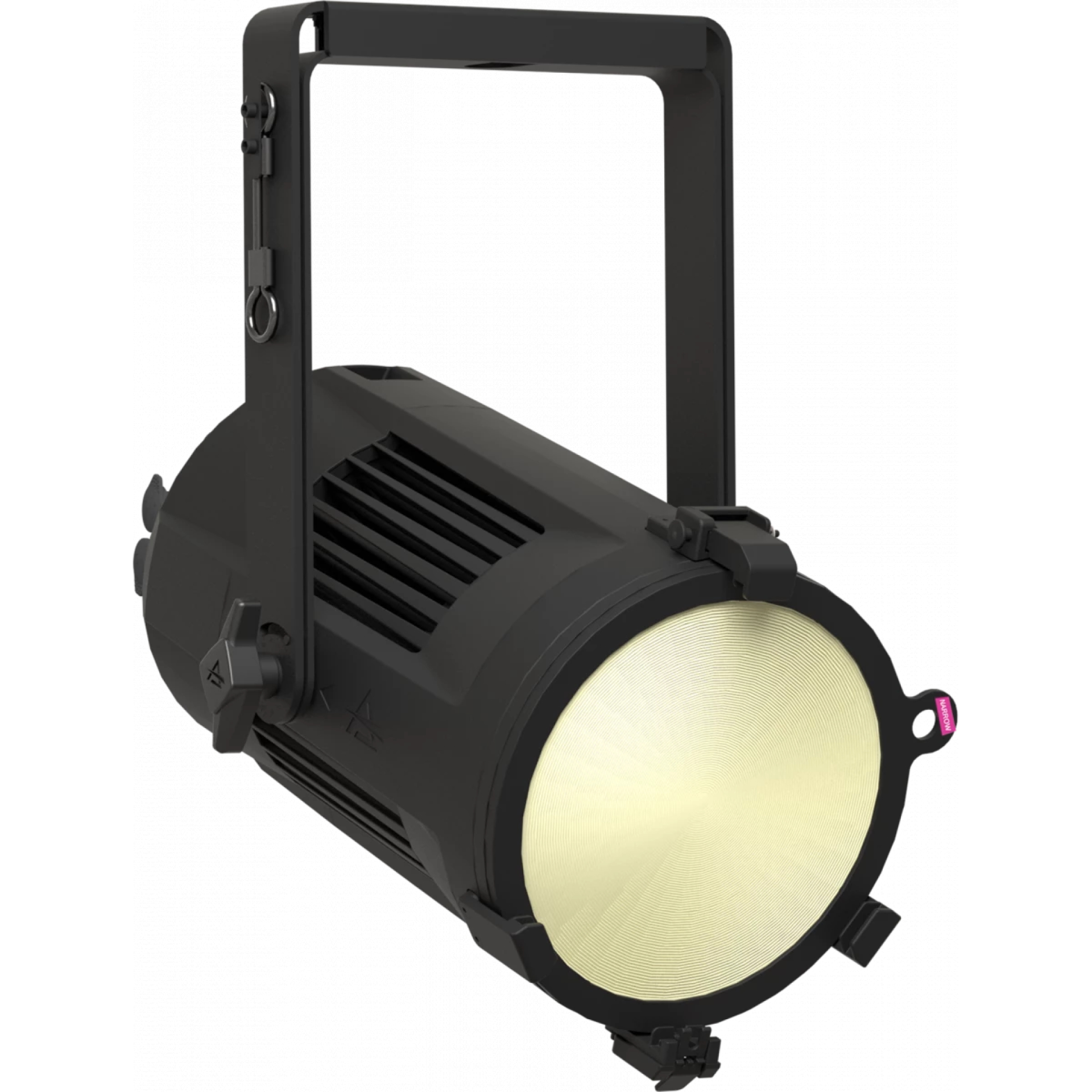

The EclPar IPLVW stands as a high-performance, IP-rated single-source LED spotlight, designed for grand-scale events such as large shows, exhibitions, and high-ceiling studio applications.

This robust fixture is powered by a 300W Variable White light source, capable of producing up to 20,000 fixture lumens with remarkable efficiency and advanced control.

EclPar IPLVW excels in delivering superior white light reproduction with variable CCT, boasting high output and high CRI and TM30 values.

Its compact and silent design renders the EclPar IPLVW an indispensable tool for both indoor and outdoor stages, blending seamlessly into various environments. The fixture's versatility is further enhanced by its flexible optical system, accommodating a broad range of lenses. These include a narrow 15° lens (onboard), a medium 30° lens, and a wide 60° flood option. Additionally, it supports asymmetric filters and optical modifiers, all swiftly attachable via dedicated accessory holders, allowing for swift adaptation to diverse lighting requirements.

  • Source: 300W Variable White LED

    Luminous flux: (15°) 20'098, (30°) 20'803, (60°) 21'867 @Full

    Lux: (15°) 5'032, (30°) 2'999, (60°) 1'286lx @5 m full

    CRI: 97,1 @full; 97,6 @3.200K; 98,7 @5.600K

    R9: 98,1 @3.200K; 99 @5.600K

    TLCI: 99 @full; 98 @3.200K; 99 @5.600K

    TM30 Rf: 95,5 @full; 96,3 @3.200K; 95,4 @5.600K

    TM30 Rg: 101,9 @full; 102,3 @3.200K; 100,9 @5.600K

    Source life expectancy: > 50.000 h

    Beam angle: (on-board) 15° - (opt) 30°, 60°

    Field angle: (on-board) 35°

    Lens diameter: 172mm / 6.77''

    Lens type: parabolic reflector in combination with HD fresnel lens

    Additional optics: (opt) 30°, 60°

    Other: possible to mount lens both on the internal side and on the external side

  • Colour mixing: tunable white

    CCT: CCT control through dedicated DMX channel

    White presets: 2.700 K ~ 6.500K

    Macros: built-in white presets

    Static mode: selection of static dimmer and color temperature

    Manual mode: manual adjustment of colour

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: DMX512, RDM, CRMX (optional)

    Stand Alone: 3 RGB backlight push-encoders

    DMX channels: 1 / 2 / 4 / 5 / 9 / 11channel

    Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

    Master/Slave: for synchronised operation of more units linked in a chain

EclPar IPLVW - Downloads
ECLPARIPLVWBK datasheet
Download
