EclPar DotFC

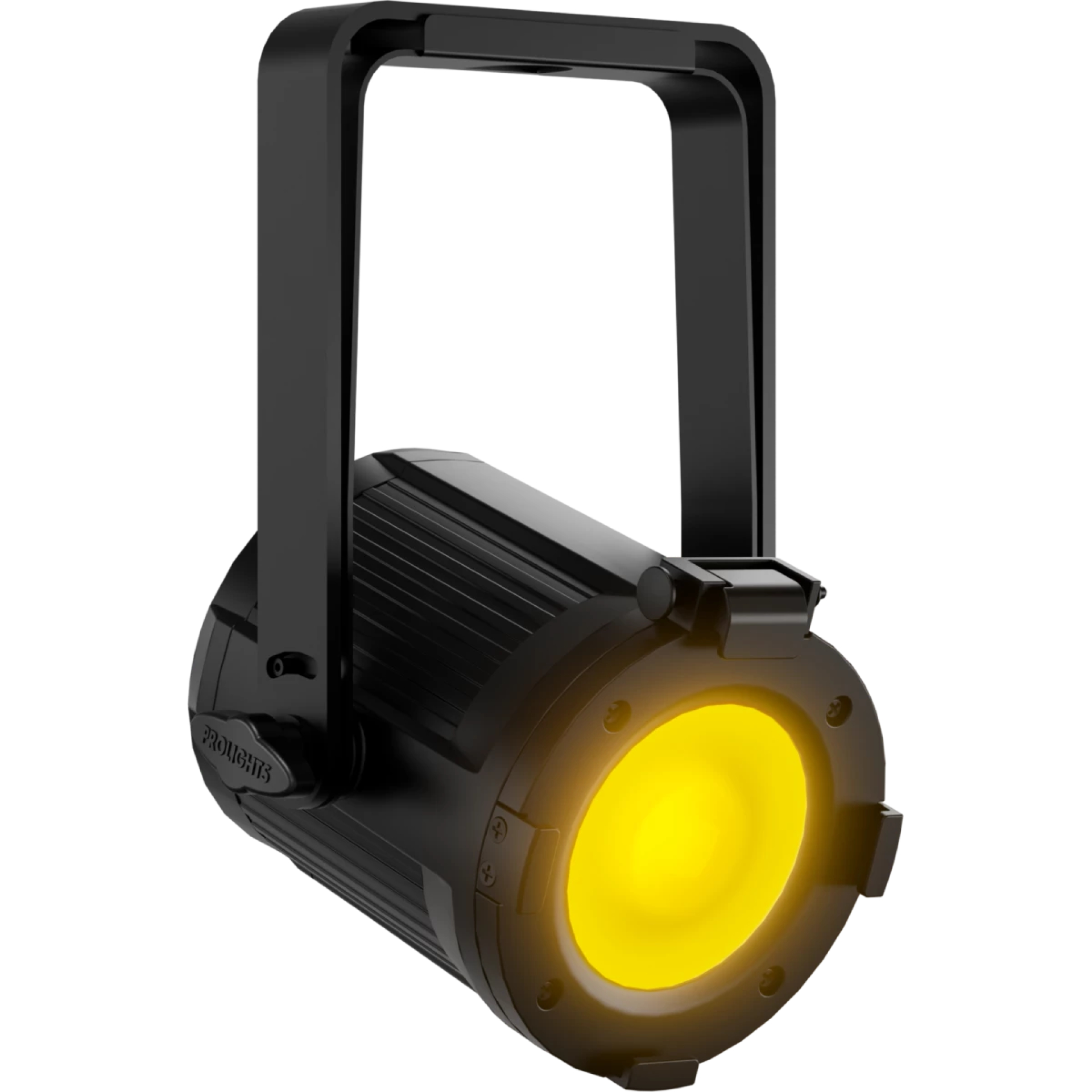

PROLIGHTS EclPar DotFC - front yoke mount

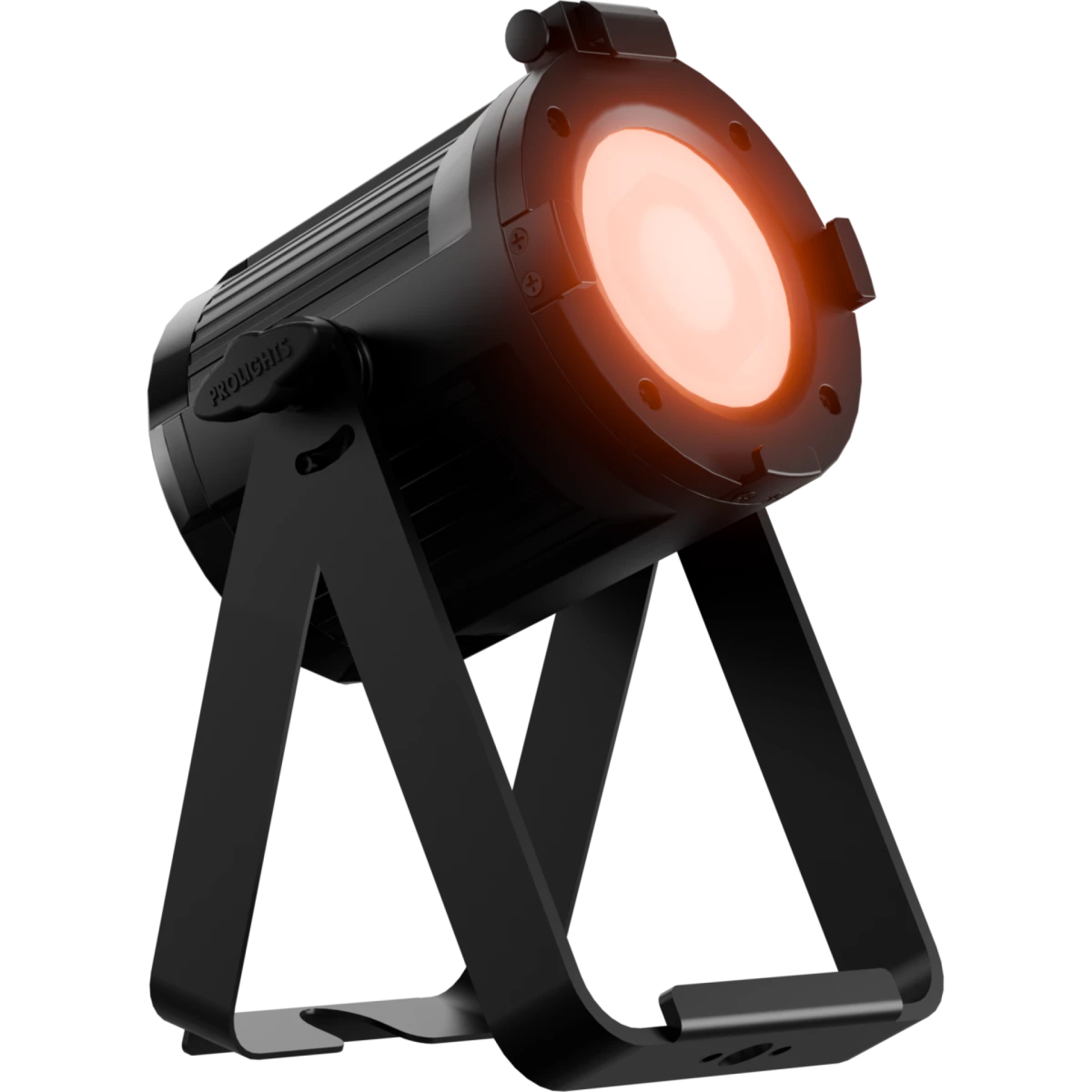

PROLIGHTS EclPar DotFC - front ground

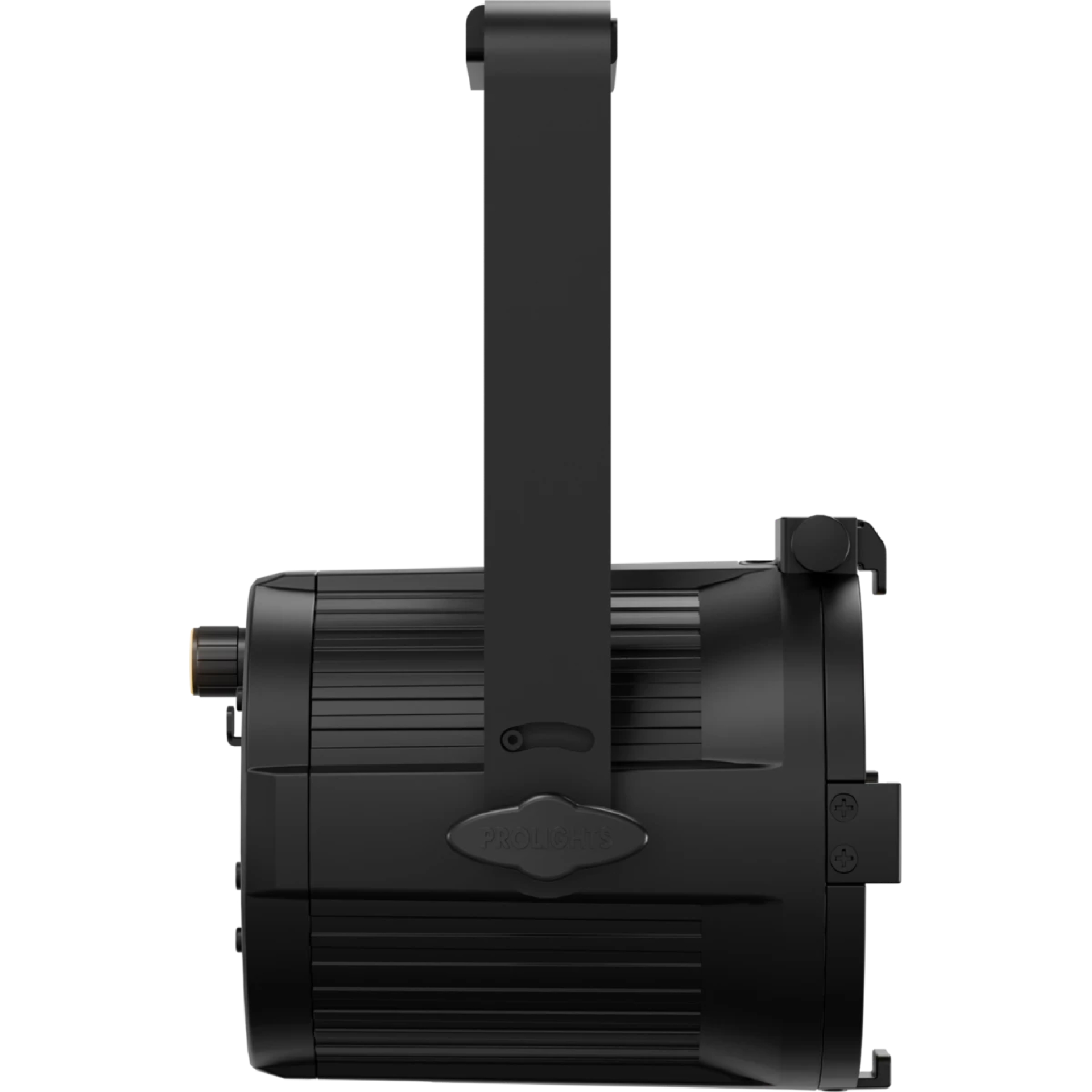

PROLIGHTS EclPar DotFC - side

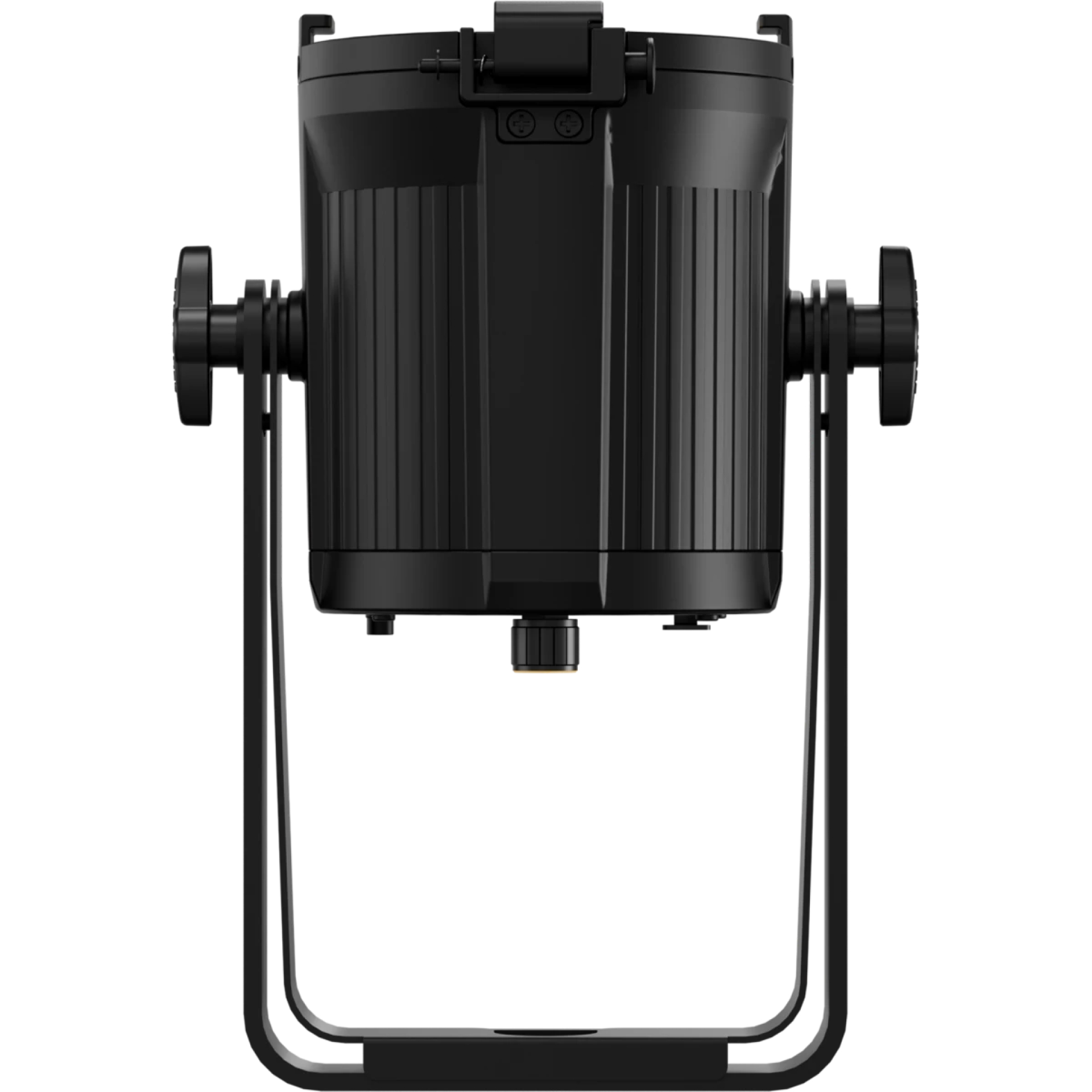

PROLIGHTS EclPar DotFC - top

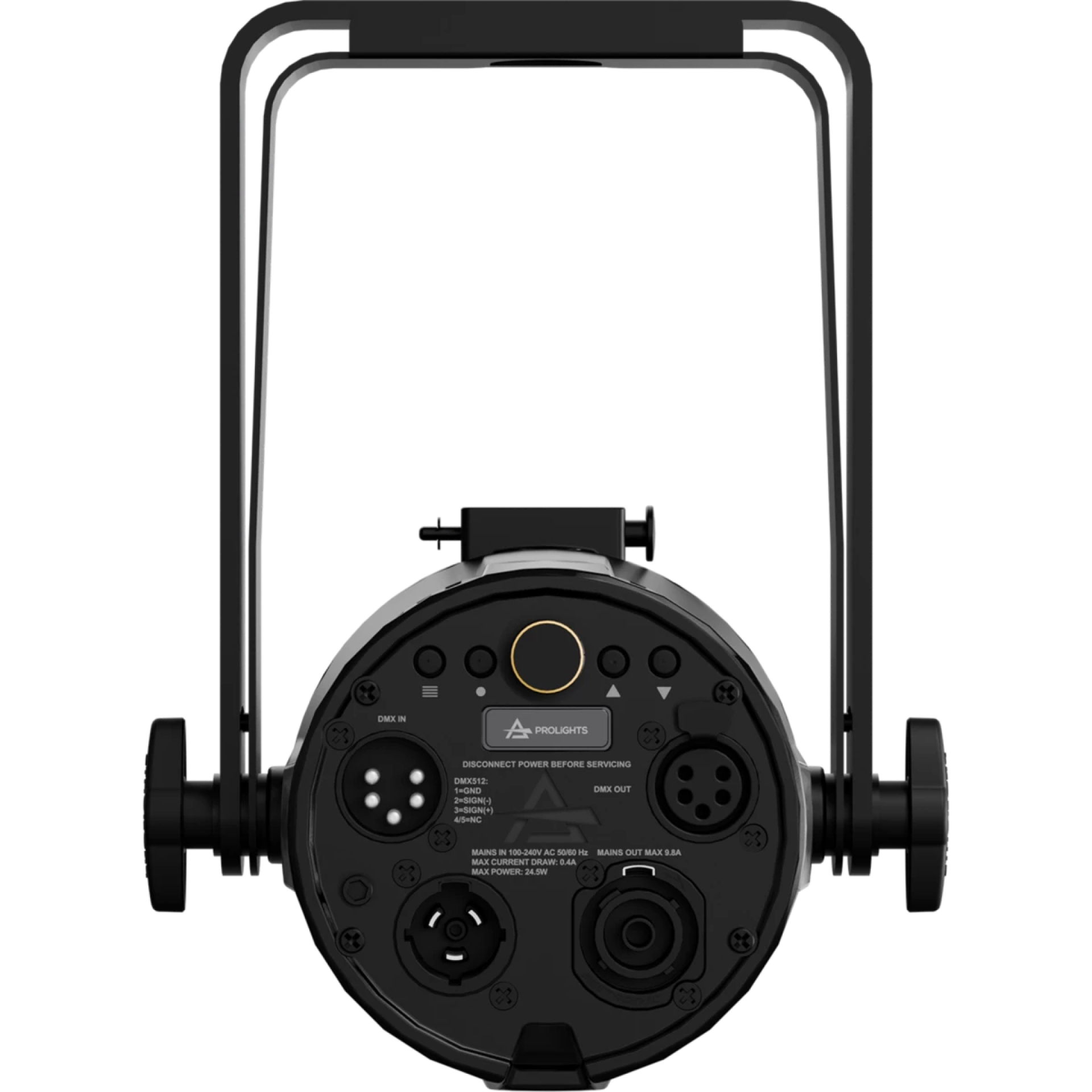

PROLIGHTS EclPar DotFC - back
PROLIGHTS EclPar DotFC - front ground
PROLIGHTS EclPar DotFC - side
PROLIGHTS EclPar DotFC - top
PROLIGHTS EclPar DotFC - back

EclPar DotFC

PROECLPARDOTFC

Key Features:

  • 20W RGB + Warm White LED, 2800K - 10000K
  • Tight 6° beam with 60 mm lens, halo-free projection
  • SpektraOs for advanced colour control and high-fidelity white reproduction
  • Fan-free, 1.2 kg, with chassis-mounted DMX in/out and power in/out for easy daisy-chain wiring
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclPar DotFC

EclPar DotFC is an ultra-compact, fan-free pinspot featuring a larger front lens and enhanced output. It delivers a bright, narrow projection with smooth colour mixing and advanced colour control.

A 20W RGB + Warm White LED paired with a 60mm lens produces a halo-free 6° beam, staying tight and bright even over long throws ideal for highlights, accents, scenic elements, set pieces, and discreet stage lighting.

EclPar DotFC combines an RGB+WW LED source with the advantages of SpektraOs, providing advanced colour control, consistent colour reproduction, and high-fidelity whites with excellent colour rendering.

The fixture is passively cooled and completely silent. With a weight of only 1.2kg and an ultra-compact form factor, it can be placed virtually anywhere. On-board DMX (XLR) in/out and power in/out connections make installation fast and enable easy daisy-chaining. The integrated push encoder also allows intuitive standalone operation without a control signal, ensuring quick setup and ease of use.

  • Source: 1 x 20W RGB + Warm White LED

    CCT: 2800K - 10000K

    Luminous flux: 627 @ full

    Lux: 1352lx @5 m full

    CRI: 94.2 @ 3200K; 91.1 @ 5600K

    R9: 97.2 @ 3200K; 96.6 @ 5600K

    TM30 Rf: 91.7 @ 3200K; 90.3 @ 5600K

    TM30 Rg: 105.9 @ 3200K; 108.2 @ 5600K

    Source life expectancy: > 90,000 hrs (L70B10 @Ta 25° C / 77° F)

    Beam angle: 6°

    Field angle: 11,5°

    Lens diameter: 60mm / 2.36"

  • Colour mixing: RGB + Warm White

    CCT: CCT control range from 2800K to 10000K, + / - green correction, tungsten emulation

    White presets: 2800K ~ 10000K

    Colour wheel: gel filters included

    Static mode: selection of static dimmer, colors and color temperature

    Manual mode: manual adjustment of colour

    Auto mode: built-in programs with execution speed adjustment

    Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

  • Supported Protocols: DMX512, RDM

    DMX channels: 1 / 2 / 5 / 6 / 9 / 12 / 13 channels

    RDM: for remote addressing and parameter configuration

    Display: LED display user interface

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

    Stand Alone: push encoder

    Master/Slave: for synchronised operation of more units linked in a chain

You might like...

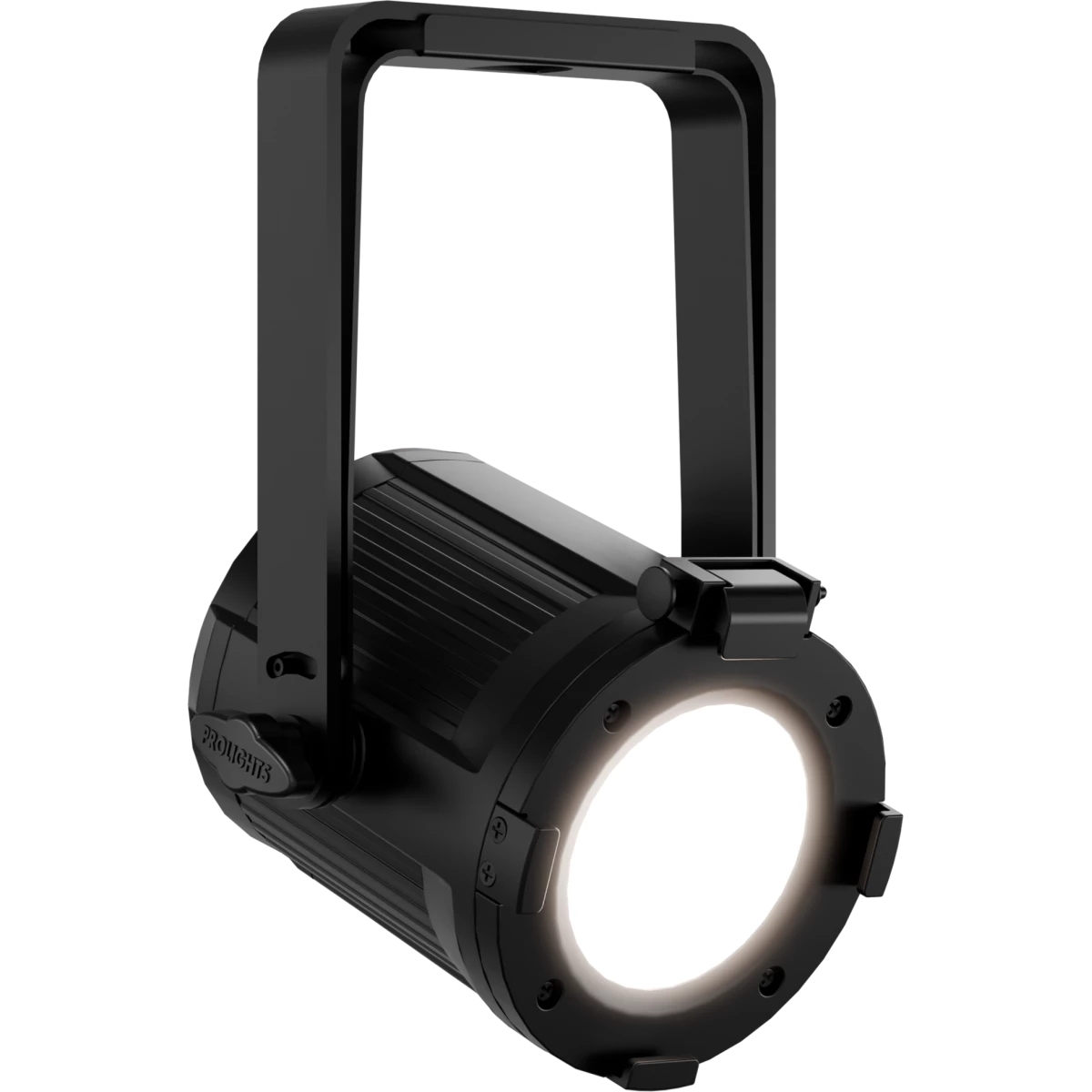

PROLIGHTS EclPar DotVW - front yoke mount PROLIGHTS LIGHTING
