EclPar IPLFC

EclPar IPLFC

PROECLPARIPLFC

Key Features:

  • 300W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
  • IP65 for exterior application
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclPar IPLFC

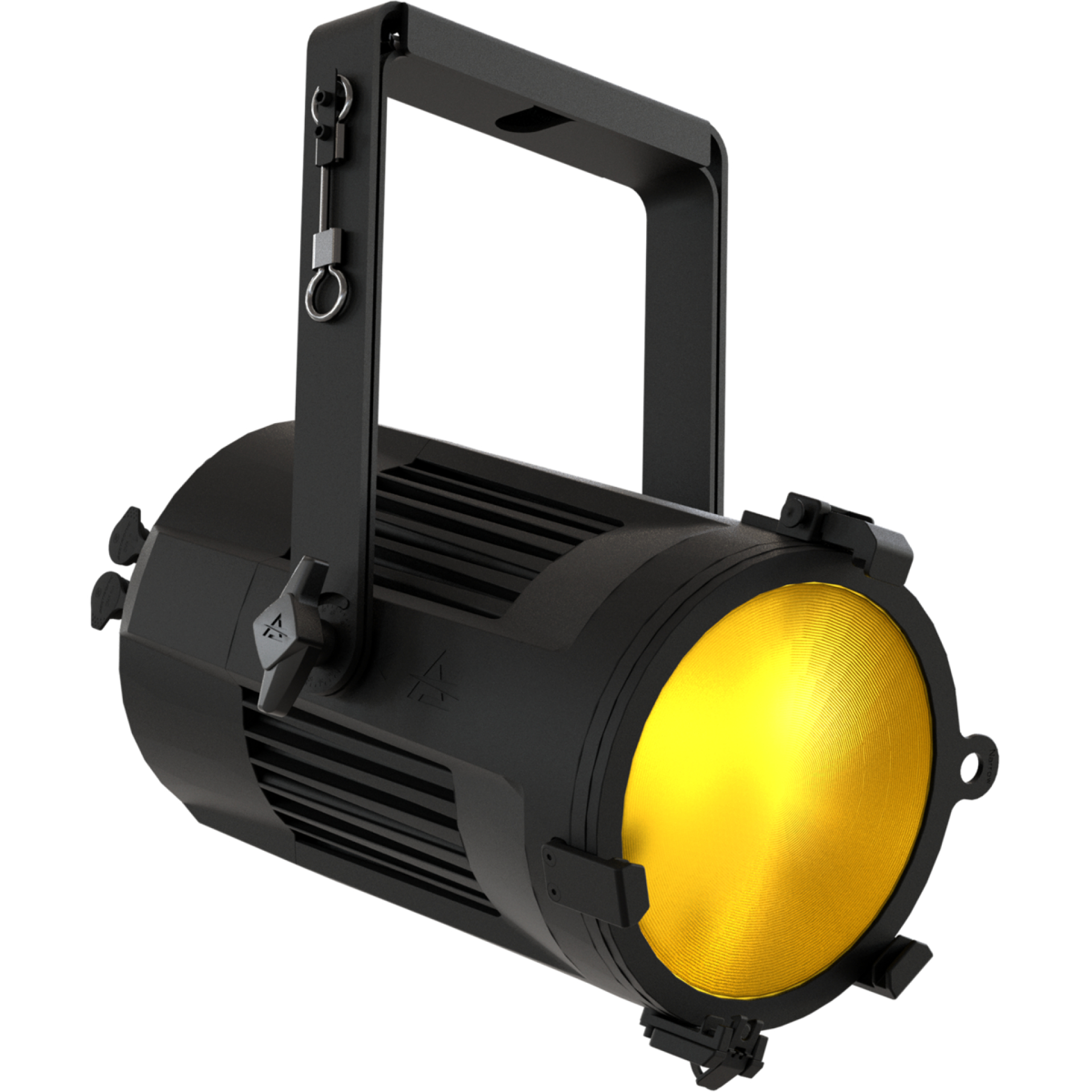

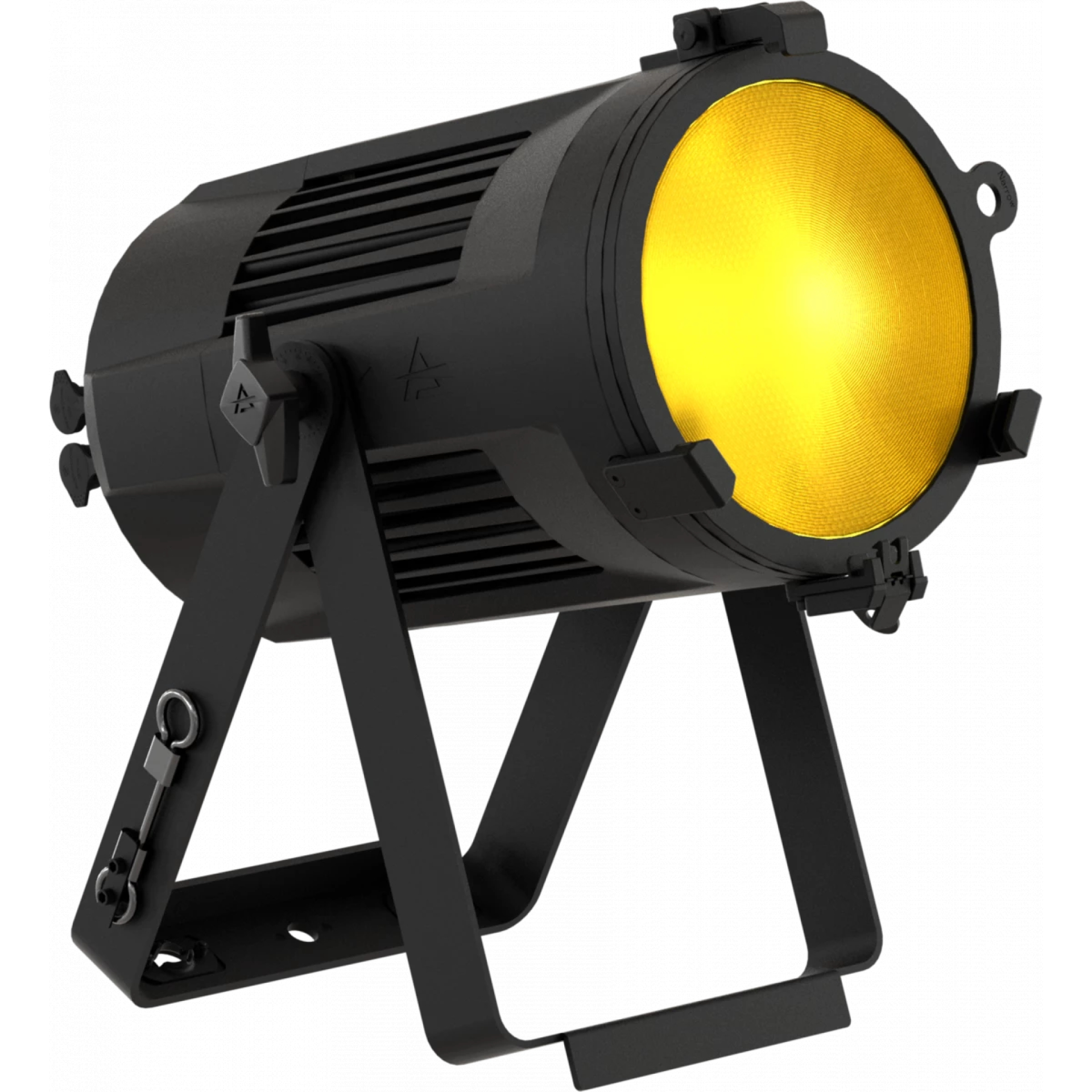

The EclPar IPLFC stands as a high-performance, IP-rated single source LED spotlight, tailored for grand-scale events such big shows, large exhibitions, and high-ceiling studio applications.

This robust fixture is powered by a 300W RGB+WarmWhite light source, capable of producing up to 11,500 fixture lumens with remarkable efficiency and advanced colour control.

Integrated with the PROLIGHTS Spektra OS, the EclPar IPLFC excels in delivering superior white light reproduction, boasting high CRI and TM30 values. This system ensures advanced colour control, maintaining consistency across all fixtures.

Its compact and silent design renders the EclPar IPLFC an indispensable tool for both indoor and outdoor stages, blending seamlessly into various environments. The fixture's versatility is further enhanced by its flexible optical system, accommodating a broad range of lenses. These include a narrow 15° lens (onboard), medium 30°, and a wide 60° flood option. Additionally, it supports asymmetric filters and optical modifiers, all swiftly attachable via dedicated accessory holders, allowing for swift adaptation to diverse lighting requirements.

  • Source: 300W RGB+WW LED array

    Luminous flux: (15°) 11'429 @Full

    Lux: (15°) 5'962lx @5 m full

    CRI: 93,9 @3'200K; 92,7 @5'600K

    R9: 91,8 @3'200K; 93,3 @5'600K

    TLCI: 87 @3'200K; 92 @5'600K

    TM30 Rf: 93 @3'200K; 91 @5'600K

    TM30 Rg: 107 @3'200K; 106 @5'600K

    Source life expectancy: > 50.000 h

    Beam angle: (on-board) 15° - (opt) 30°, 60°

    Field angle: (on-board) 23°

    Lens diameter: 172mm / 6.77''

    Lens type: parabolic reflector in combination with HD fresnel lens

    Additional optics: (opt) 30°, 60°

    Other: possible to mount lens both on the internal side and on the external side

  • Colour mixing: RGB + Warm White

    CCT: CCT control, + / - green correction, tungsten emulation

    White presets: 2.700 K ~ 10.000K

    Macros: Gels library on-board

    Static mode: selection of static dimmer, colours and colour temperature

    Manual mode: manual adjustment of colour

    Auto mode: built-in programs with execution speed adjustment

    Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

  • Protocols: DMX512, RDM, CRMX

    DMX channels: 1 / 2 / 5 / 9 / 10 / 12 / 18channel

    Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

    Master/Slave: for synchronised operation of more units linked in a chain

EclPar IPLFC - Downloads
Download
