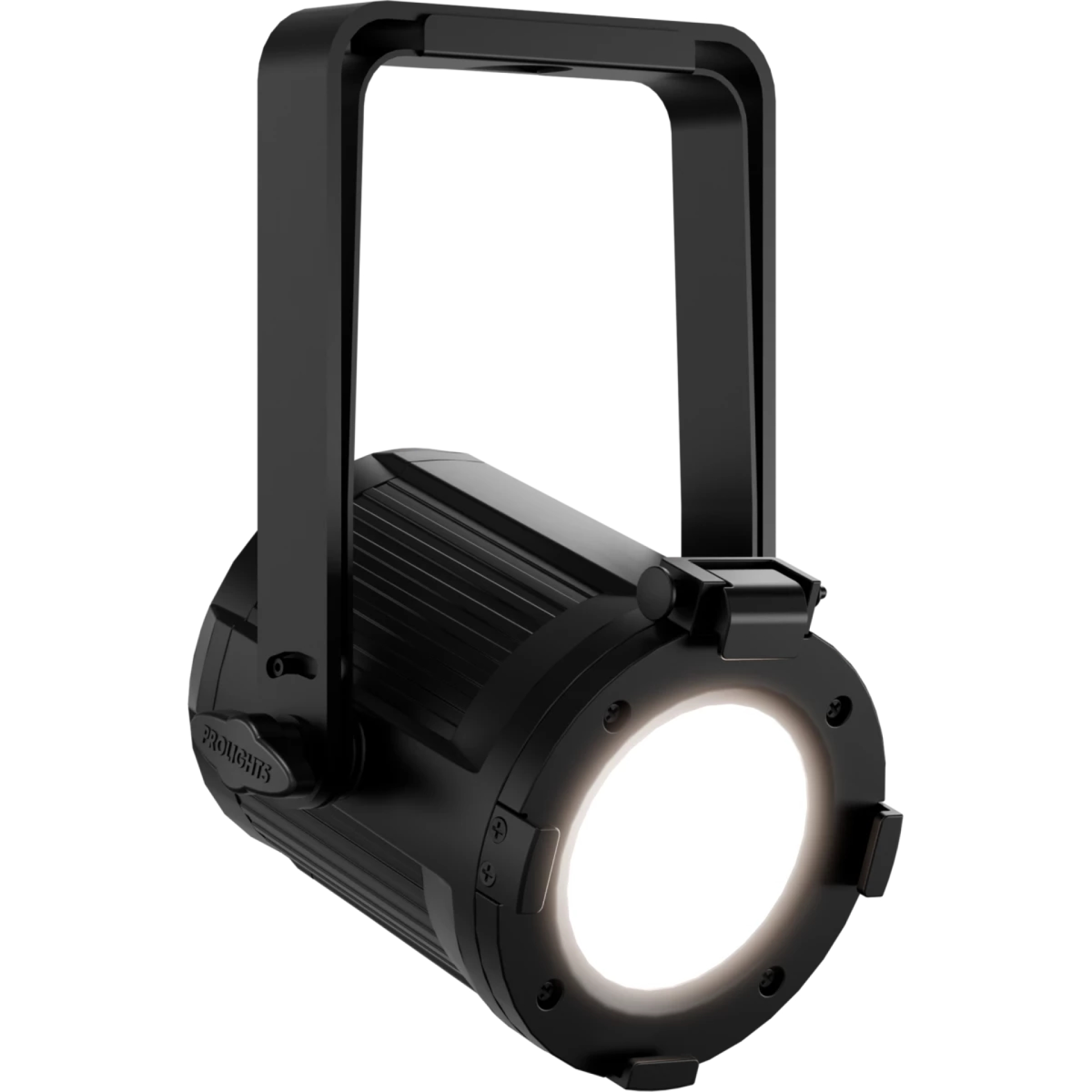

PROLIGHTS EclPar DotVW - front yoke mount

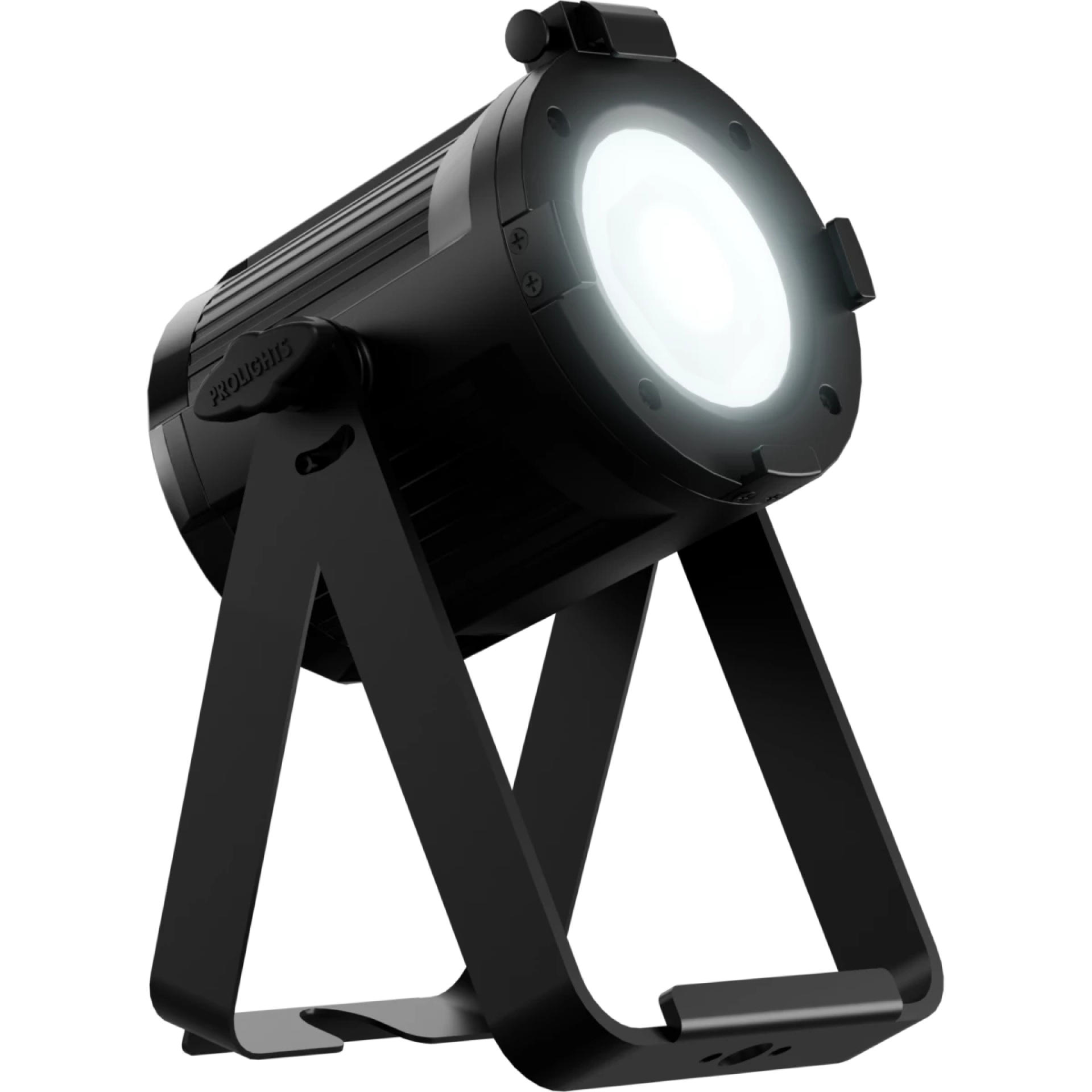

PROLIGHTS EclPar DotVW - front ground

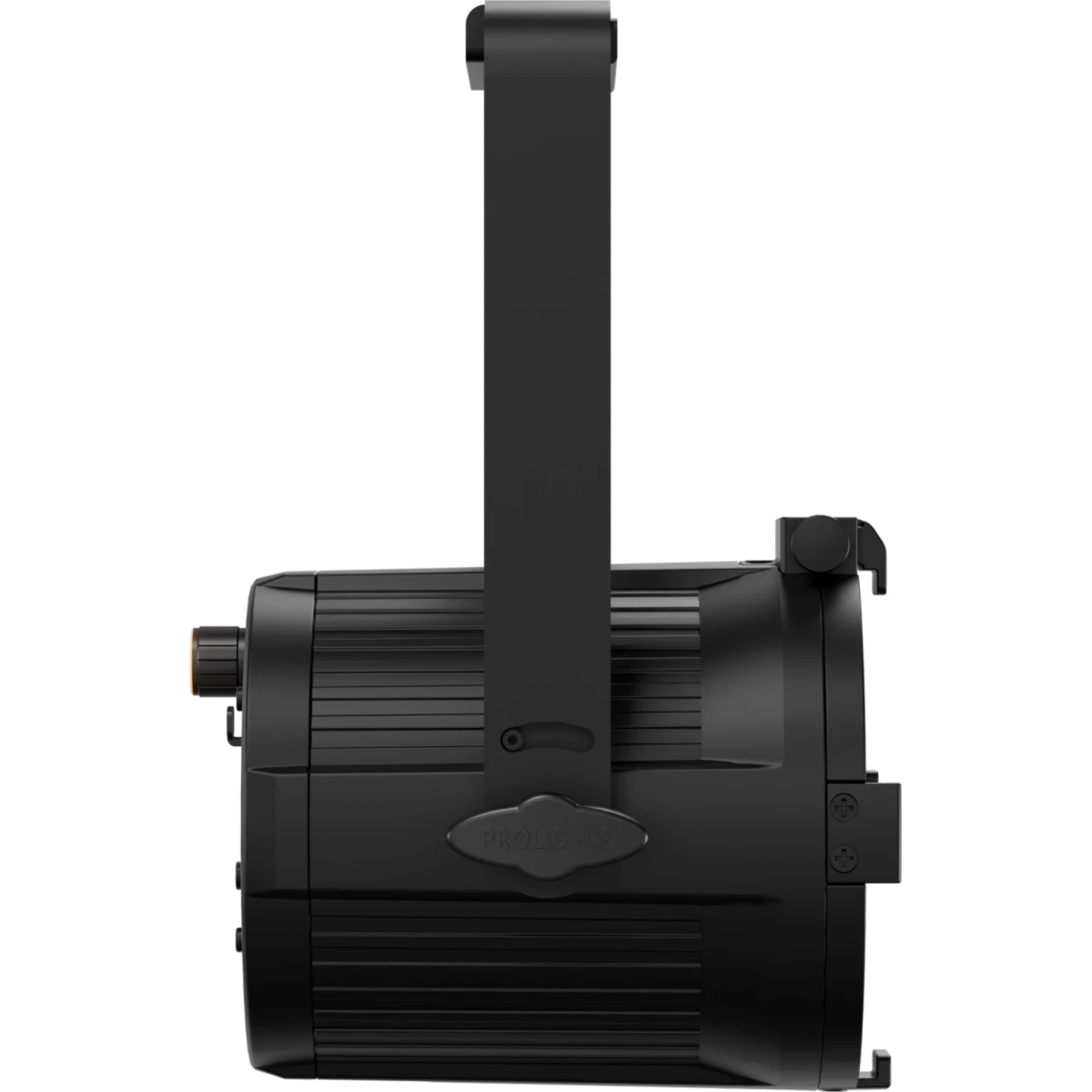

PROLIGHTS EclPar DotVW - side

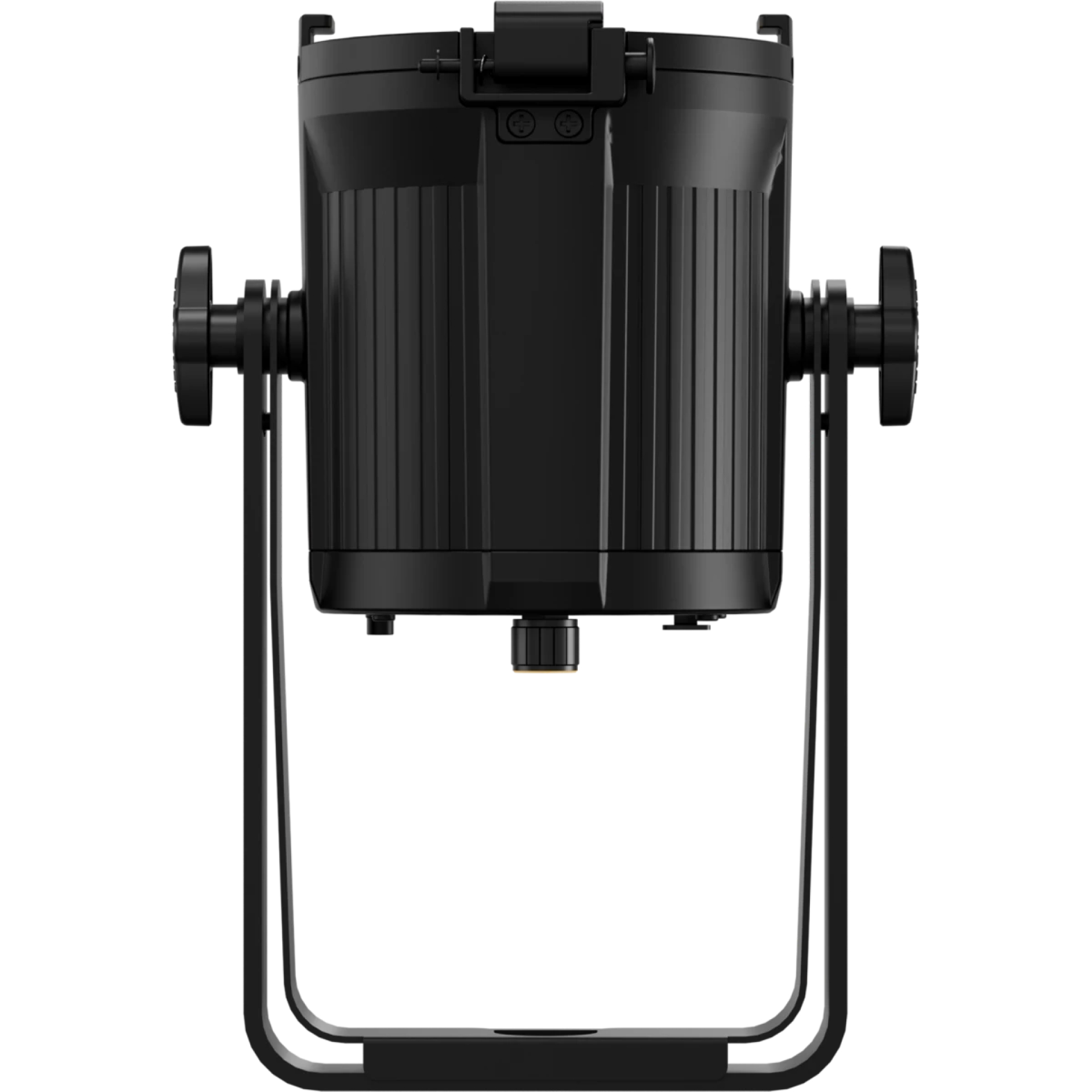

PROLIGHTS EclPar DotVW - top

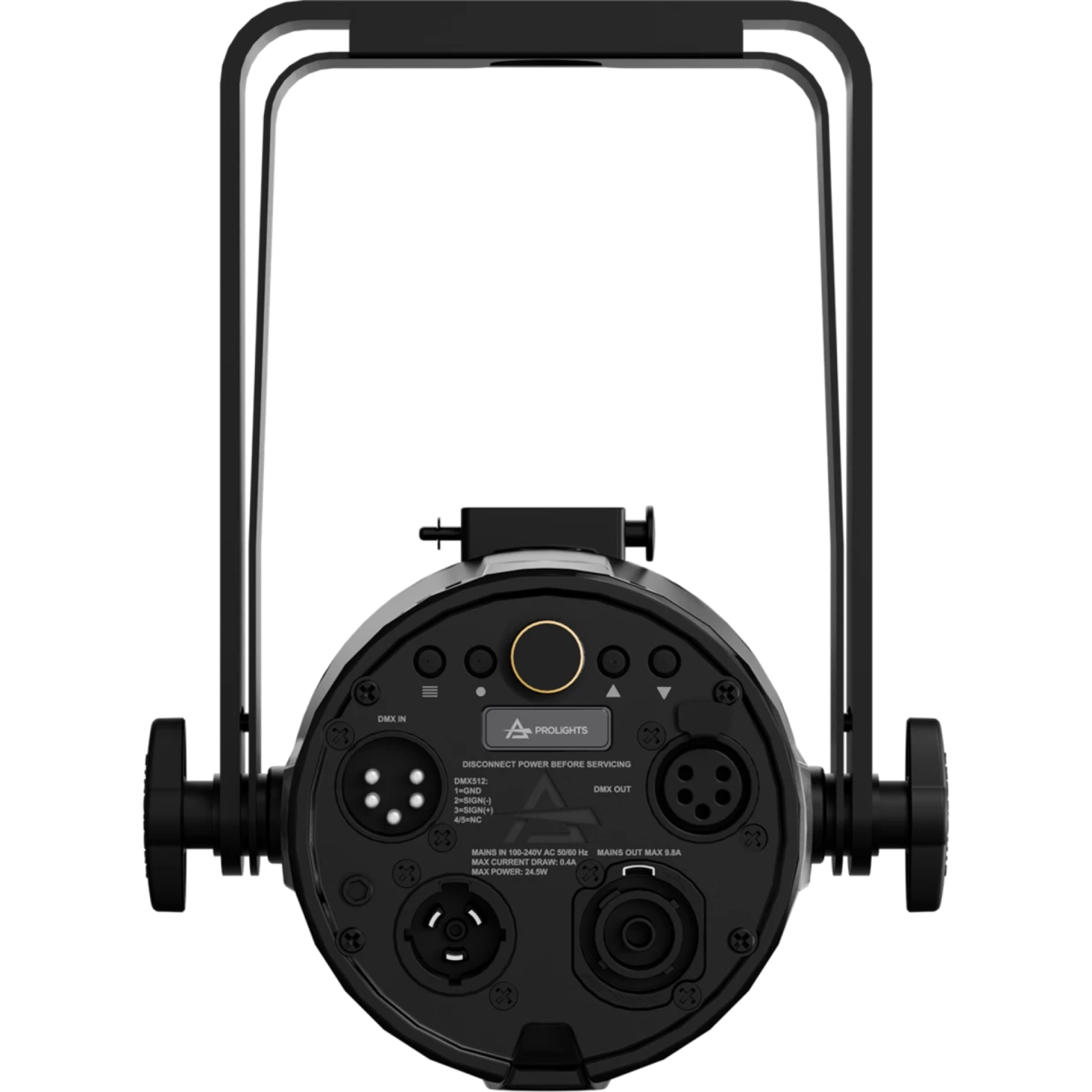

PROLIGHTS EclPar DotVW - back
PROLIGHTS EclPar DotVW - front ground
PROLIGHTS EclPar DotVW - side
PROLIGHTS EclPar DotVW - top
PROLIGHTS EclPar DotVW - back

EclPar DotVW

PROECLPARDOTVW

Key Features:

  • 20W RGB + Warm White LED, 2800K - 10000K
  • Tight 6° beam with 60 mm lens, halo-free projection
  • SpektraOs for advanced colour control and high-fidelity white reproduction
  • Fan-free, 1.2 kg, with chassis-mounted DMX in/out and power in/out for easy daisy-chain wiring
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclPar DotVW

EclPar DotVW is an ultra-compact, fan-free pinspot featuring a larger front lens and enhanced output. It delivers a bright, narrow projection with smooth white mixing and high quality white reproduction.

A 20W Variable White LED paired with a 60 mm lens produces a halo-free 5° beam, staying tight and bright even over long throws ideal for highlights, accents, scenic elements, set pieces, and discreet stage lighting.

EclPar DotVW combines a Variable White LED source with precise CCT control, delivering consistent behaviour and high-fidelity whites with excellent colour rendering.

The fixture is passively cooled and completely silent. With a weight of only 1.2kg and an ultra-compact form factor, it can be placed virtually anywhere. On-board DMX (XLR) in/out and power in/out connections make installation fast and enable easy daisy-chaining. The integrated push encoder also allows intuitive standalone operation without a control signal, ensuring quick setup and ease of use.

  • Source: 1 x 20W Warm White + Cold White LEDs

    CCT: 2800K - 6500K

    Luminous flux: 844 lm @ full

    Luminous flux: 753 lm @ 3200K; 889 lm @ 5600K

    Lux: 3,702lx @ 5m full

    Lux: 3,349lx @ 5m 3200K; 3,811lx @ 5m 5600K

    CRI: 96.7 @ 3200K; 96.1 @ 5600K

    R9: 91.7 @ 3200K; 98.6 @ 5600K

    TLCI: 95 @ 3200K; 99 @ 5600K

    TM30 Rf: 936 @ 3200K; 94.1 @ 5600K

    TM30 Rg: 104.4 @ 3200K; 102.9 @ 5600K

    Source life expectancy: > 90,000 hrs (L70B10 @Ta 25° C / 77° F)

  • Colour mixing: tunable white

    CCT: CCT control through dedicated DMX channel

    Macros: built-in white presets

    Static mode: selection of static dimmer, colors and color temperature

    Manual mode: manual adjustment of dimmer and strobe

    Auto mode: built-in programs with execution speed adjustment

  • Supported Protocols: DMX512, RDM

    DMX channels: 1 / 2 / 3 / 4 / 9 channels

    RDM: for remote addressing and parameter configuration

    Display: LED display user interface

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

    Stand Alone: push encoder

    Master/Slave: for synchronised operation of more units linked in a chain
