EclPar IPSVW
EclPar IPSVW
EclPar IPSVW

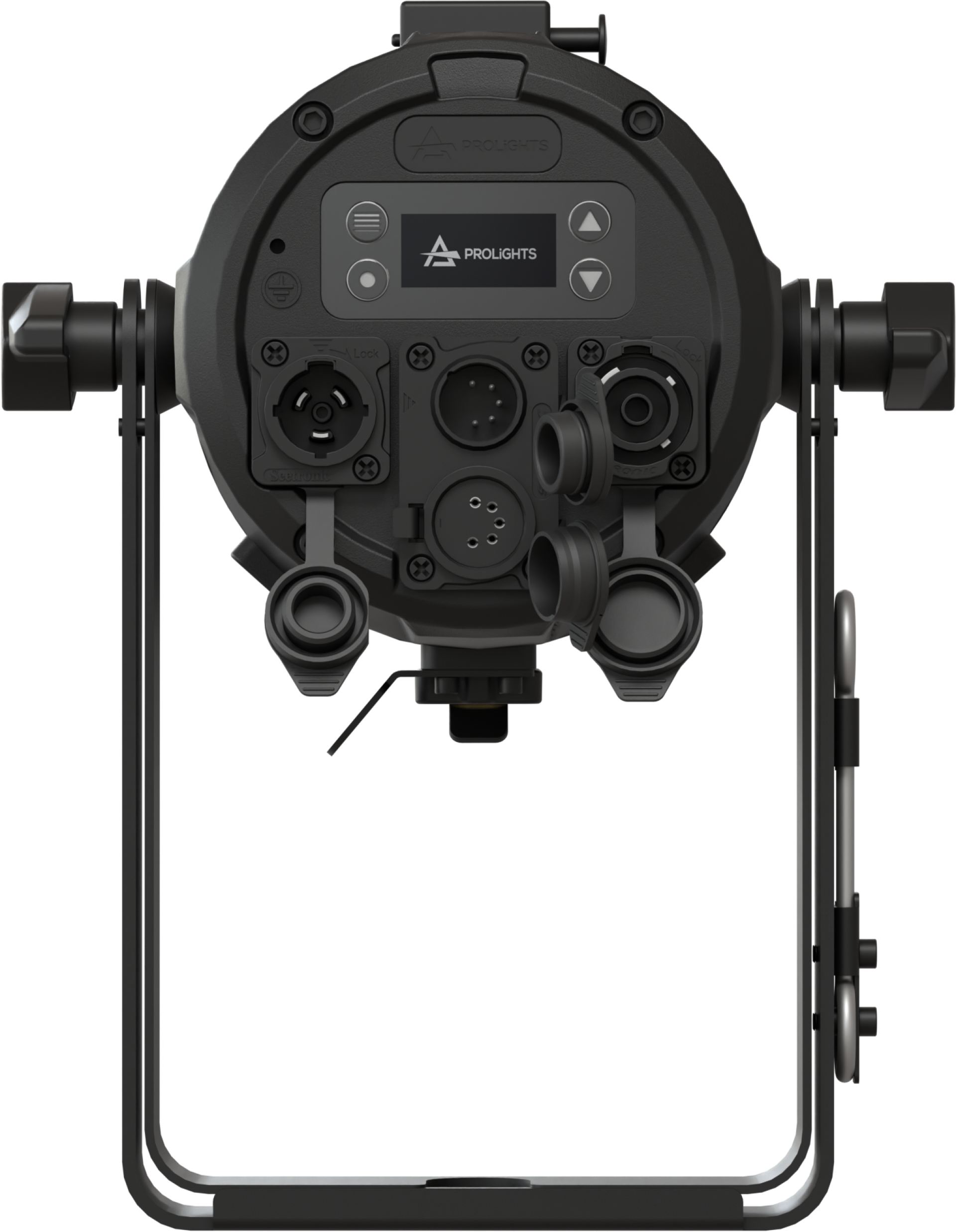

EclPar IPSVW - rear
EclPar IPSVW
EclPar IPSVW - rear

EclPar IPSVW

PROECLPARIPLFC

Key Features:

  • 50W Variable White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
  • IP65 & fan-free for exterior application
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

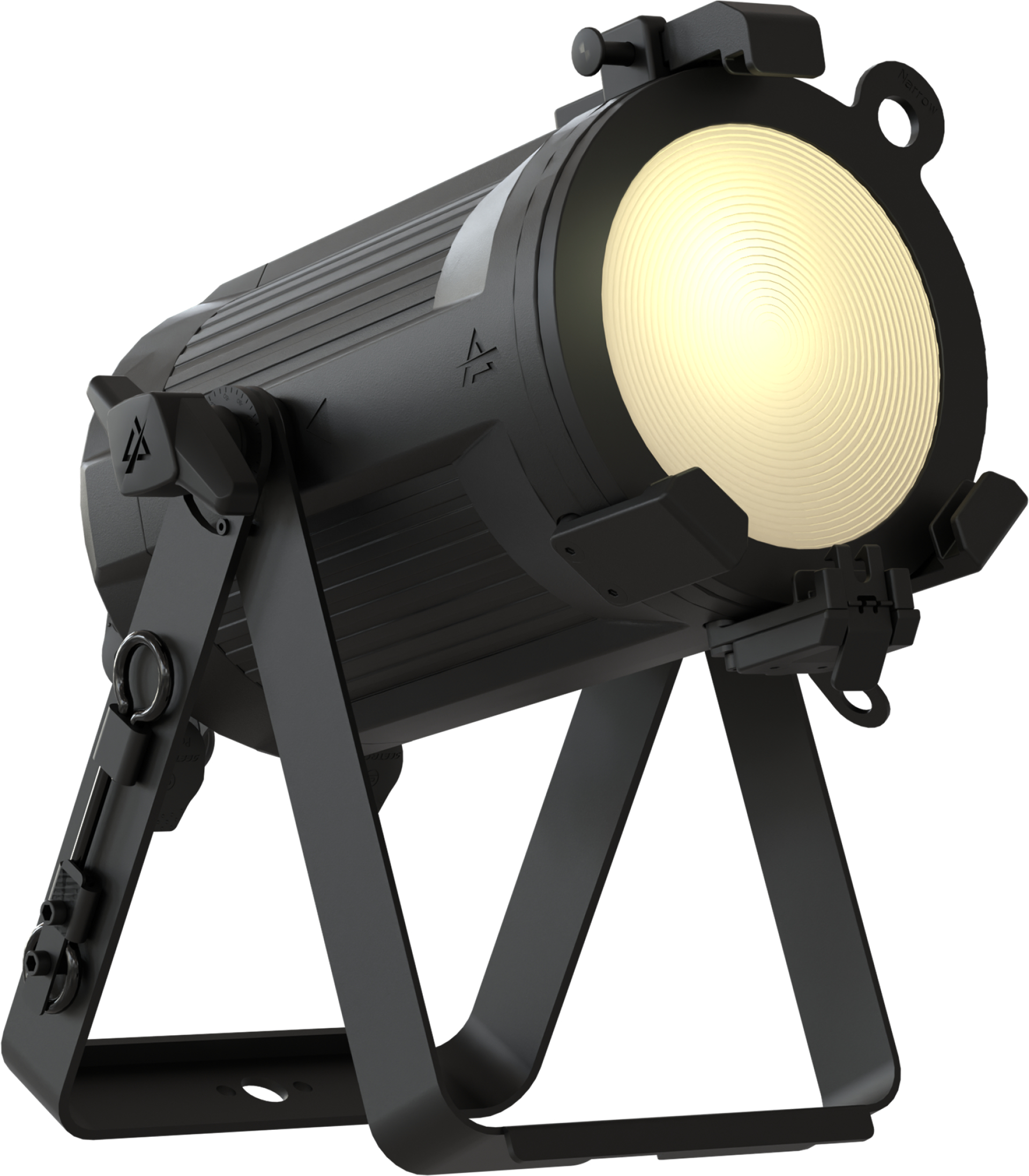

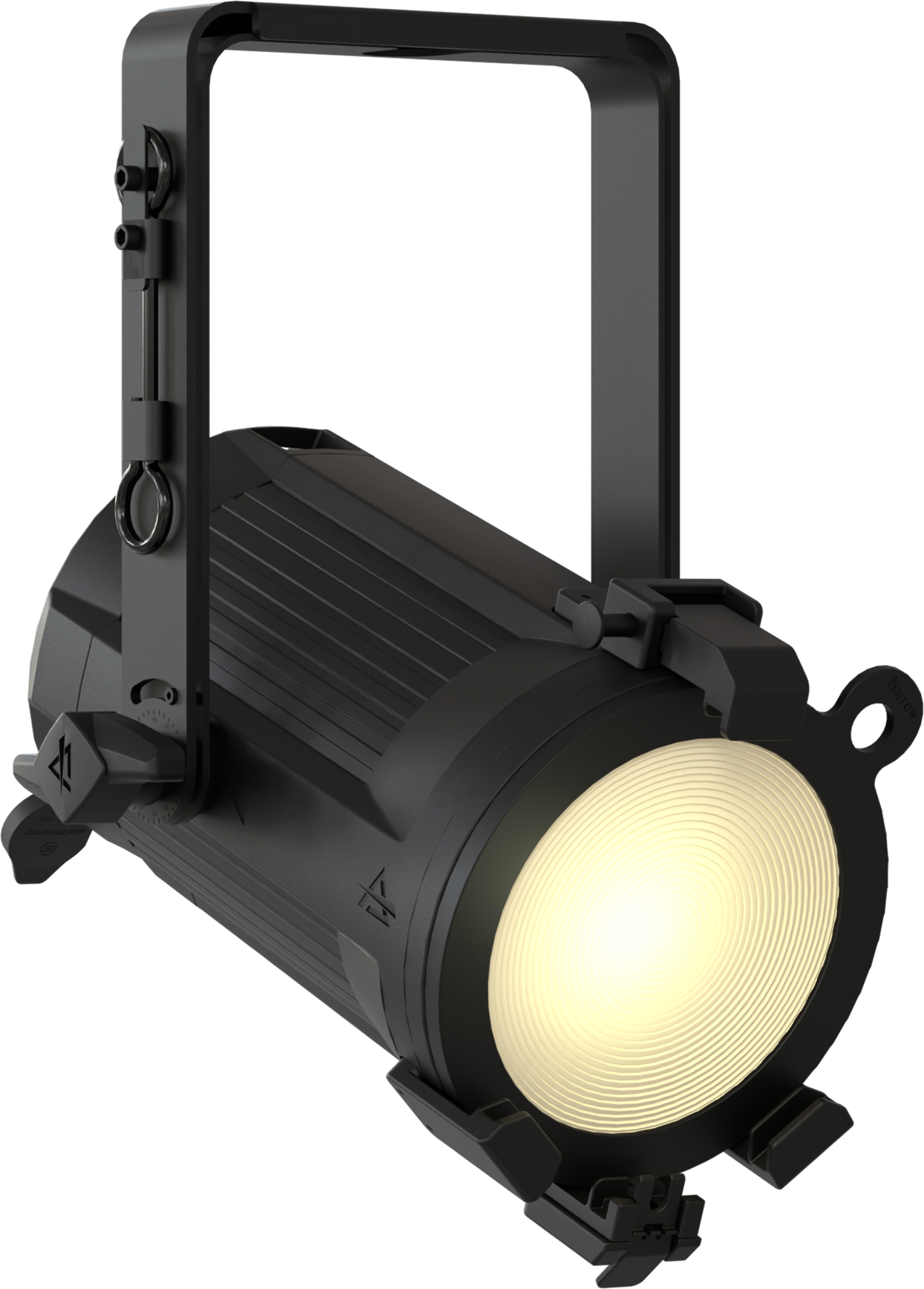

EclPar IPSVW

The EclPar IPSVW is an ultra compact and fan free IP-rated single source LED spotlight, tailored for accent lighting and nearfield projection which seamlessly integrates anywhere.

This fixture is powered by a 50W Variable White LED source, capable of producing up to 1,500 fixture lumens with high efficiency and advanced control.

EclPar IPSVW excels in delivering superior white light reproduction, boasting high CRI and TM30 values. Its compact and fan-free design renders the EclPar IPSVW an indispensable tool for both indoor and outdoor venues, blending seamlessly into various environments. The fixture's versatility is further enhanced by its flexible optical system, accommodating a broad range of lenses. These include a narrow 15° lens (onboard), medium 30°, and a wide 60° flood option. Additionally, it supports asymmetric filters and optical modifiers, all swiftly attachable via dedicated accessory holders, allowing for swift adaptation to diverse lighting requirements.

  • Source: 50W Variable White LED

    Luminous flux: (15°) 3'280 @Full

    Lux: 1'851lx @5 m full

    CRI: 94,9 @full; 96,1 @WW; 96 @CW

    R9: 97,9 @WW; 95,6 @CW

    TLCI: 98 @full; 98 @WW; 97 @CW

    TM30 Rf: 92,4 @full; 95,2 @WW; 90,5 @CW

    TM30 Rg: 101,8 @full; 102 @WW; 98,3 @CW

    Source life expectancy: > 50.000 h

    Beam angle: (on-board) 15° - (opt) 30°, 60°

    Field angle: (on-board) 24°

    Lens type: parabolic reflector in combination with HD fresnel lens

    Additional optics: (opt) 30°, 60°

    Other: possible to mount lens both on the internal side and on the external side

  • Colour mixing: tunable white

    CCT: CCT control through dedicated DMX channel

    White presets: 2.700 K ~ 6.500K

    Macros: built-in white presets

    Static mode: selection of static dimmer and colour temperature

    Manual mode: manual adjustment of colour

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: DMX512, RDM, CRMX

    DMX channels: 1 / 2 / 4 / 5 / 9 / 11channel

    Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

    Master/Slave: for synchronised operation of more units linked in a chain

EclPar IPSVW - Downloads
Download
