EclPar IPMUV

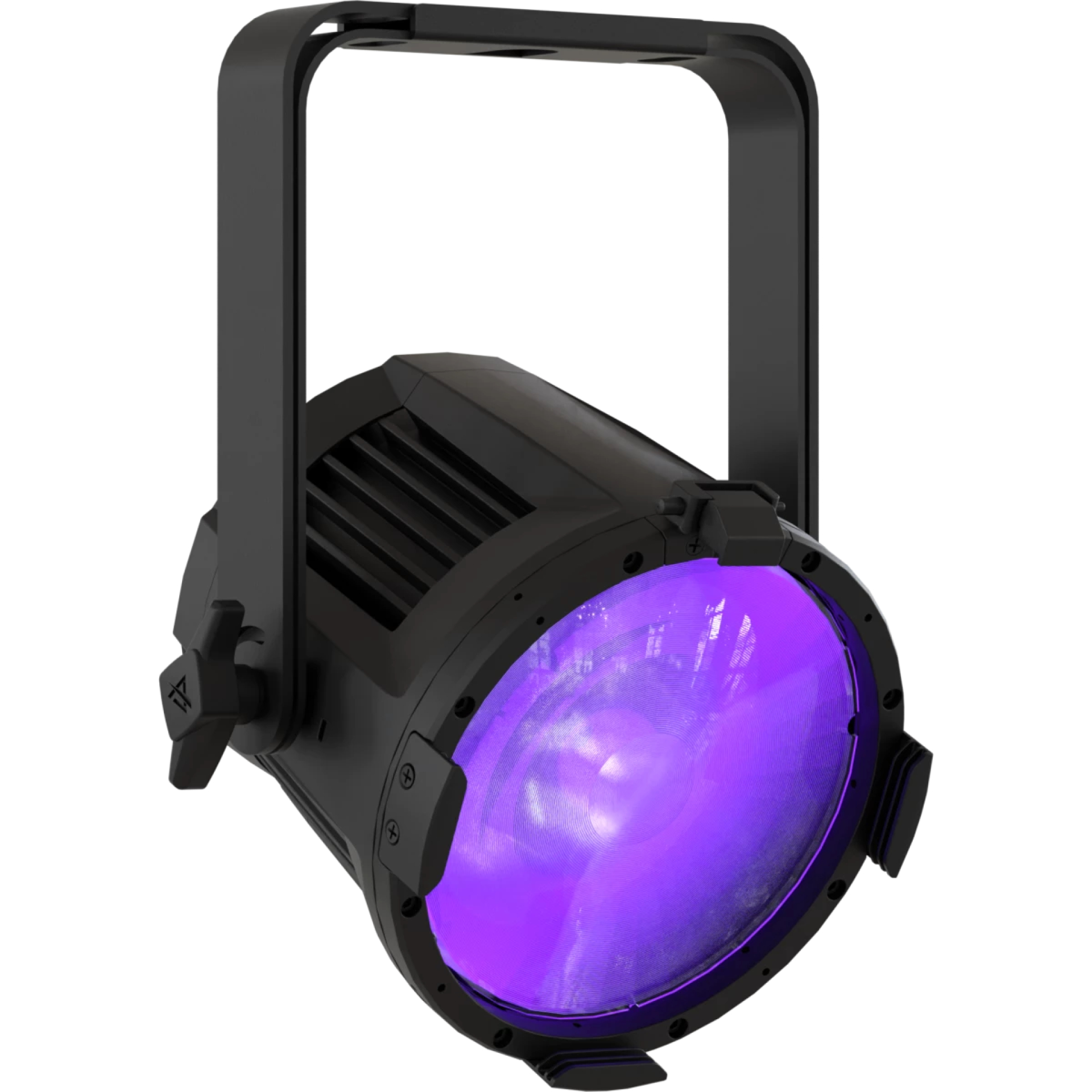

PROLIGHTS EclPar IPMUV - hung with yoke

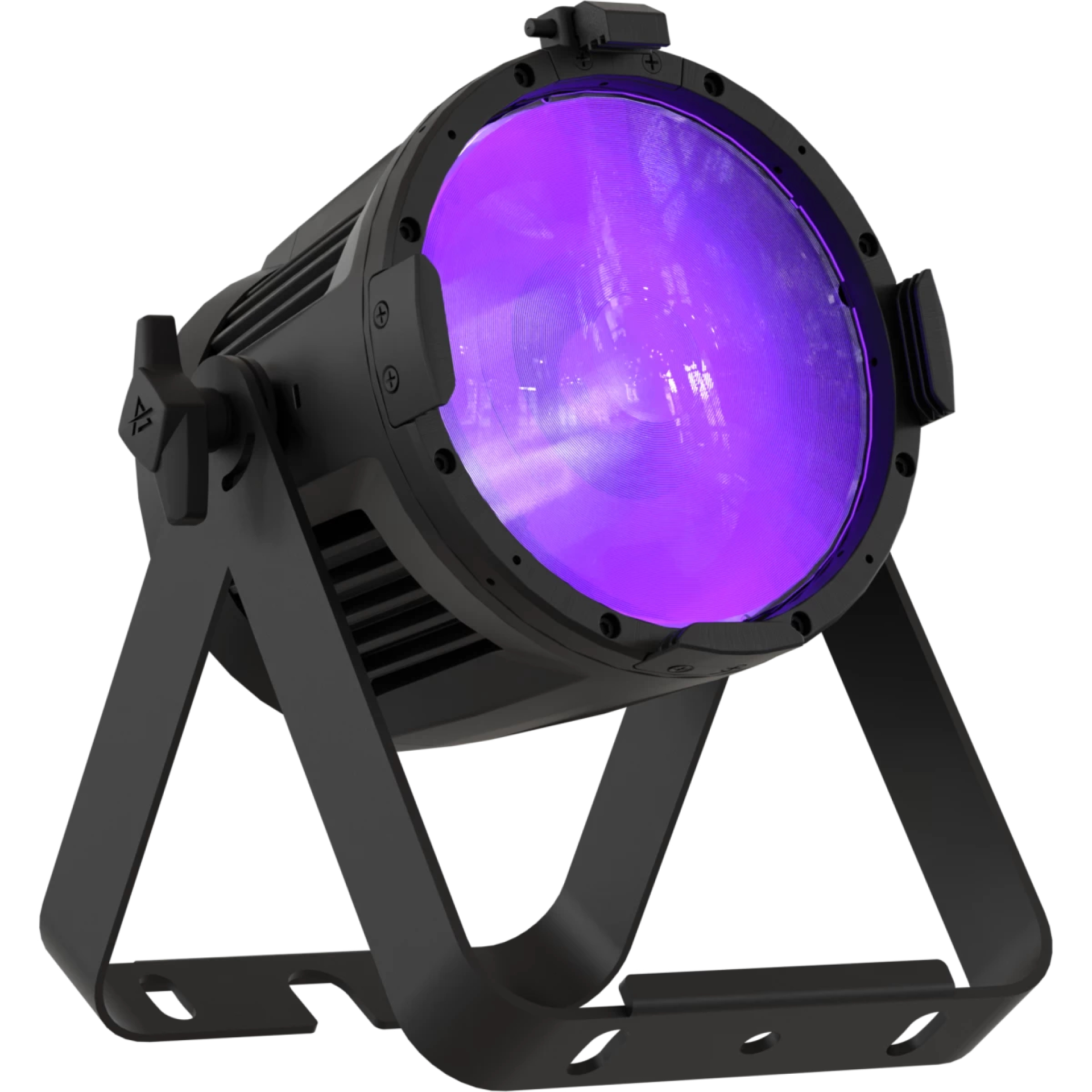

PROLIGHTS EclPar IPMUV - yoke on ground

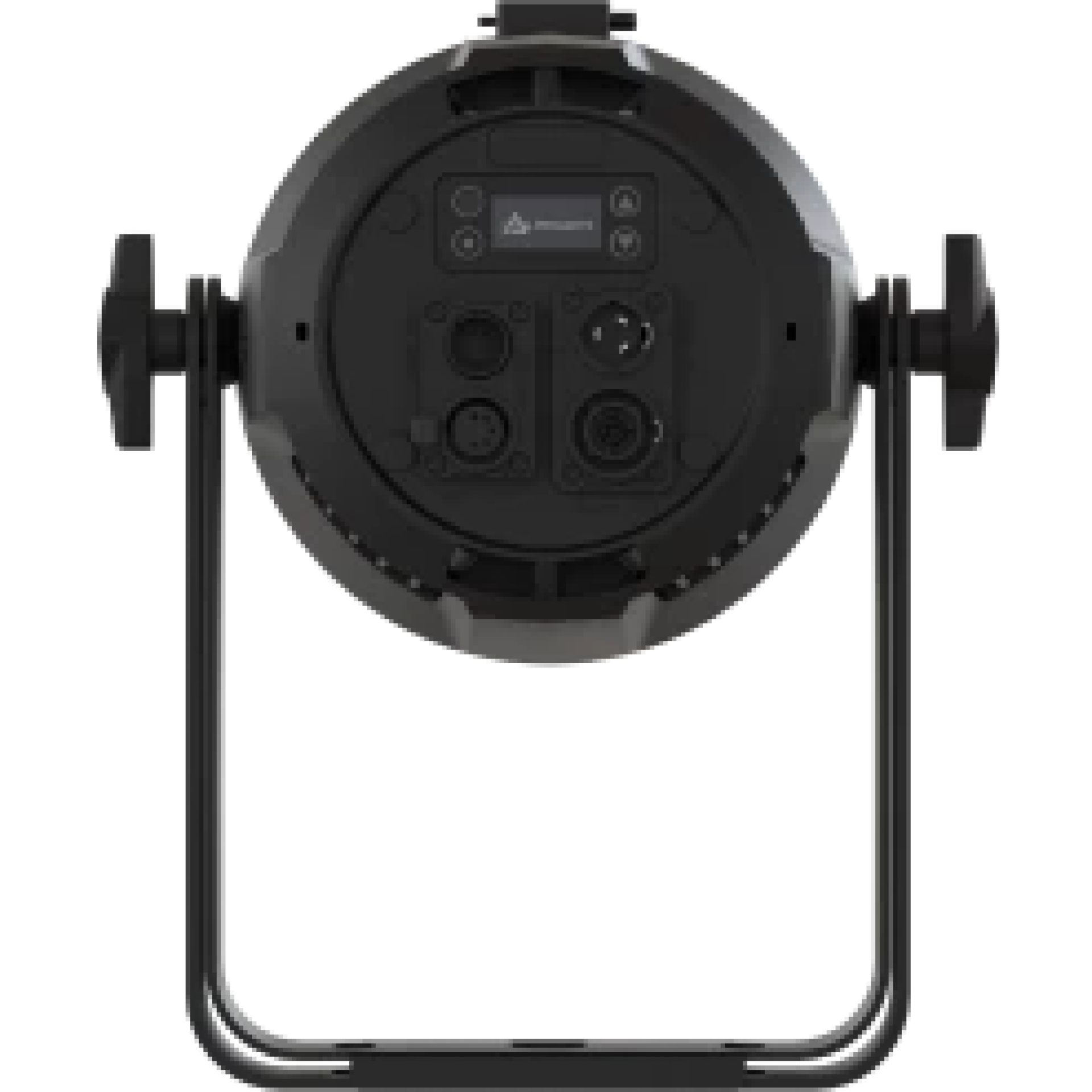

PROLIGHTS EclPar IPMUV - back view

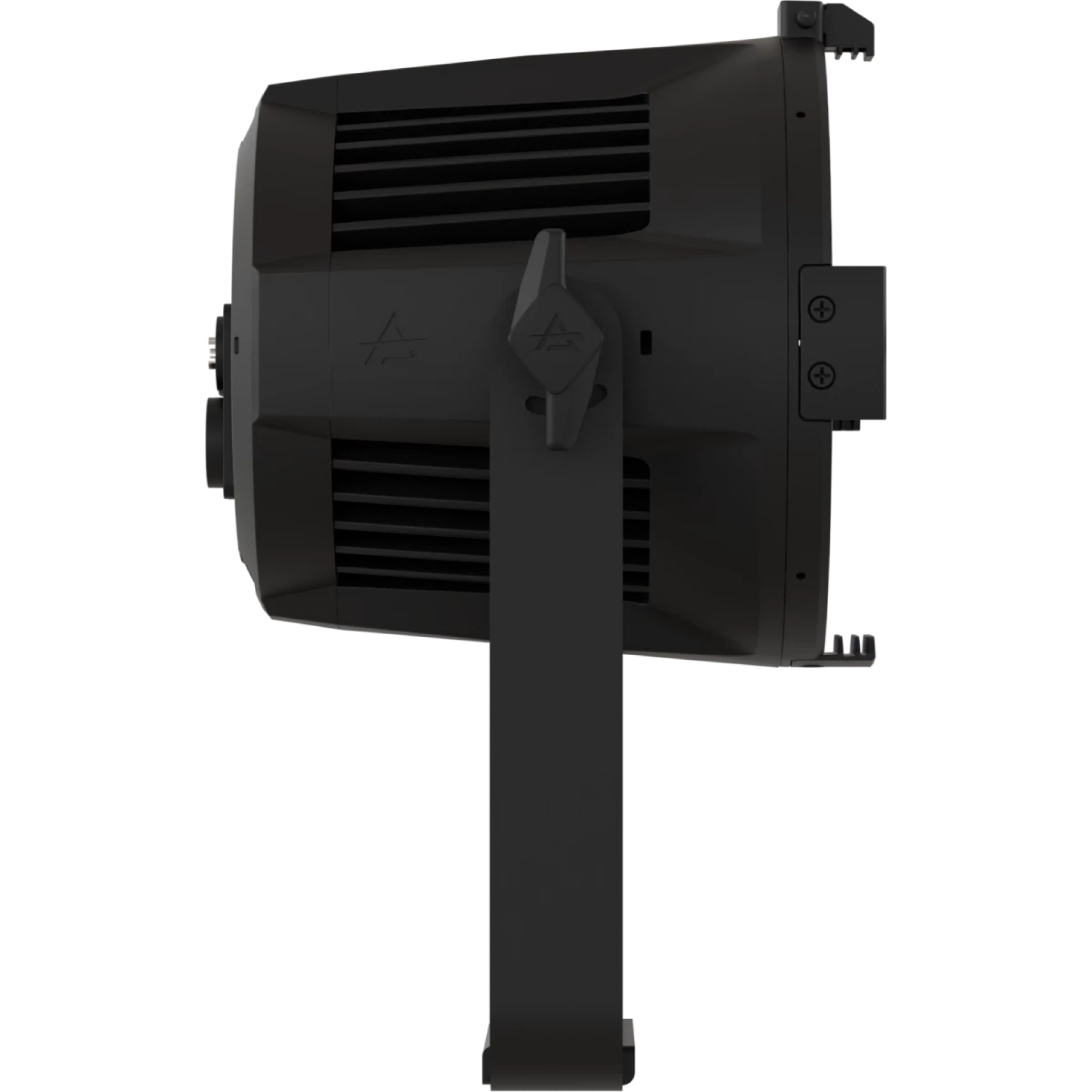

PROLIGHTS EclPar IPMUV - side view

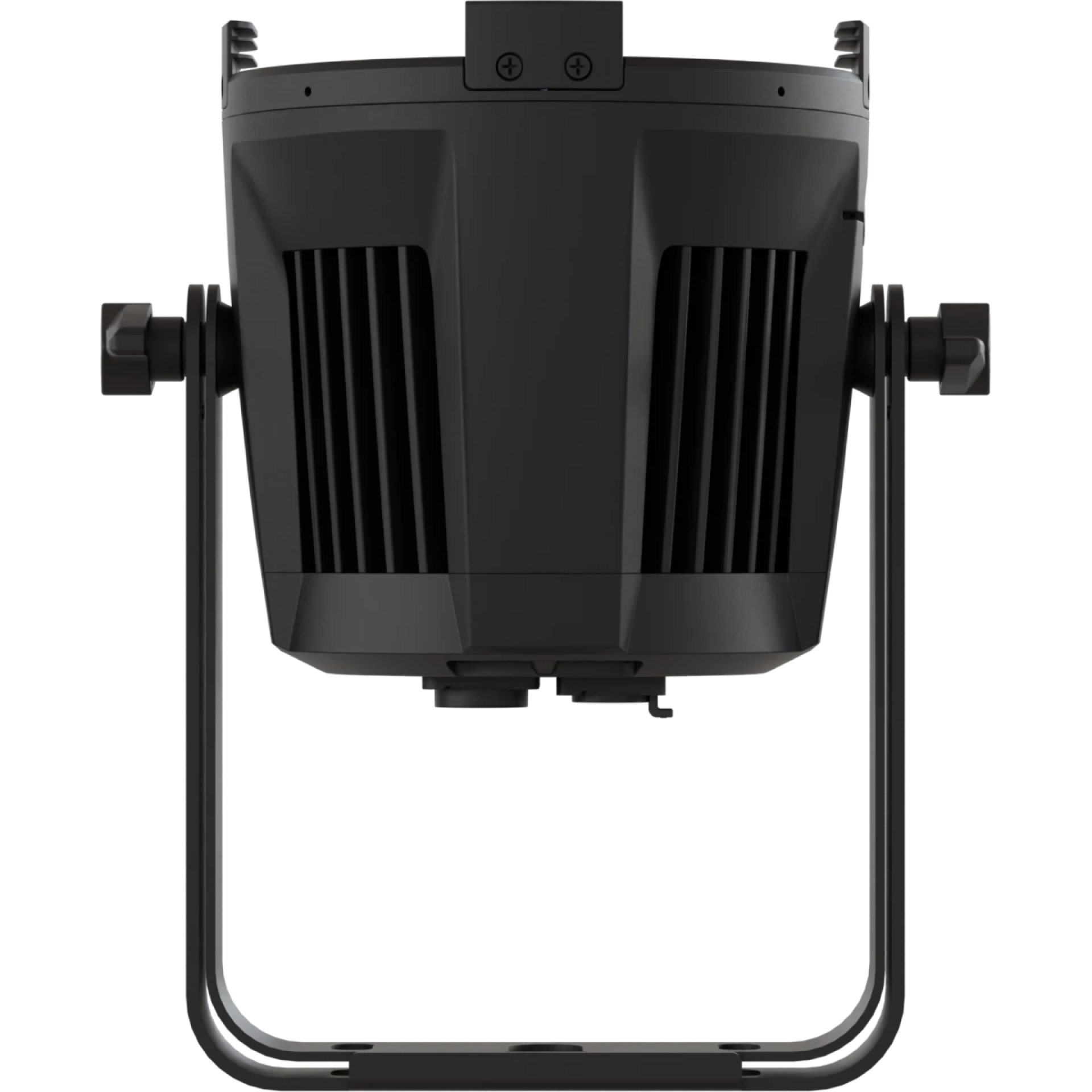

PROLIGHTS EclPar IPMUV - topp view
PROLIGHTS EclPar IPMUV - yoke on ground
PROLIGHTS EclPar IPMUV - back view
PROLIGHTS EclPar IPMUV - side view
PROLIGHTS EclPar IPMUV - topp view

EclPar IPMUV

PROECLPARIPMUVBK

Key Features:

  • 80W UV LED source (365nm) without visible light spectrum
  • Flex-Lens optics: 40° lens fitted, 15° lens optional
  • DMX, RDM, optional CRMX signal
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclPar IPMUV

EclPar IPMUV is an all-weather, IP65-rated, single-source UV LED spotlight engineered for professional use. It features a 80W ultraviolet LED at a 365nm wavelength, delivering true UV output with no visible light spectrum.

Its rugged construction makes the EclPar IPMUV a reliable workhorse for outdoor and dusty environments, while the IP silent fan is ideal for indoor venues where quiet operation and true UV performance are required.

Its flexible optical system supports interchangeable lenses ranging from an optional 15° narrow beam to a 40° wide beam (included). These lenses can be quickly mounted on the front of the fixture for fast beam adjustments, or installed behind its tempered front glass for long-term outdoor use.

  • Source: 80W UV LED

    Other: Output: 4,637 mW with 40° lens; 22,862 mW with 15° lens; wavelength 365nm with no visible light spectrum

    Source life expectancy: 6,000hr

    Beam angle: (on-board) 40° - (opt) 15°

    Lens diameter: 172mm / 6.77''

    Lens type: parabolic reflector in combination with HD Fresnel lens

    Additional optics: (opt) 15°

    Other: possible to mount lens both on the internal side and on the external side

  • Colour mixing: UV

  • Protocols: DMX512, RDM, CRMX (optional)

    DMX channels: 1 / 2 / 3 / 4 channel

    Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

    Master/Slave: for synchronised operation of more units linked in a chain
