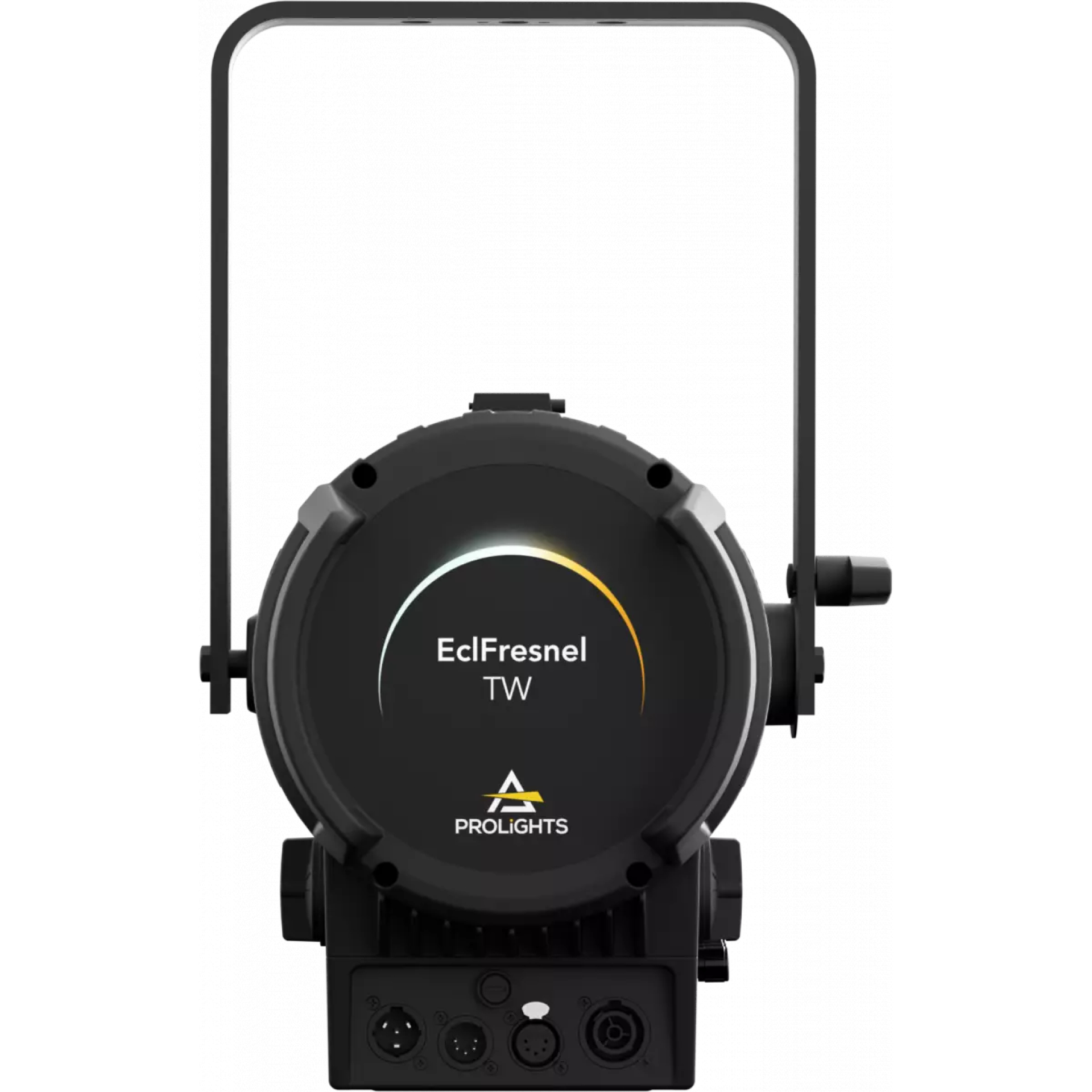

PROLIGHTS EclFresnel TW - back
PROLIGHTS EclFresnel TU - back

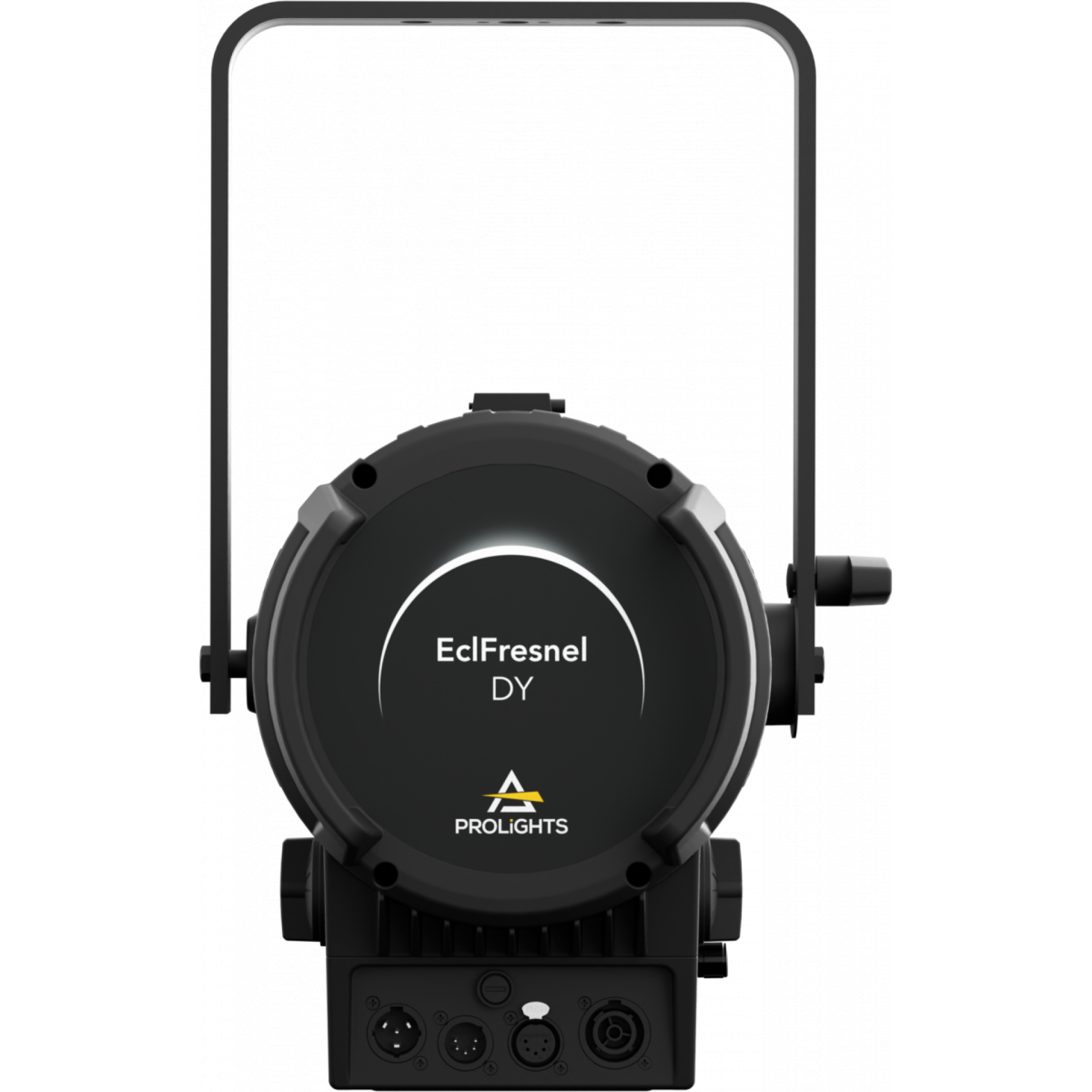

PROLIGHTS EclFresnel DY - back

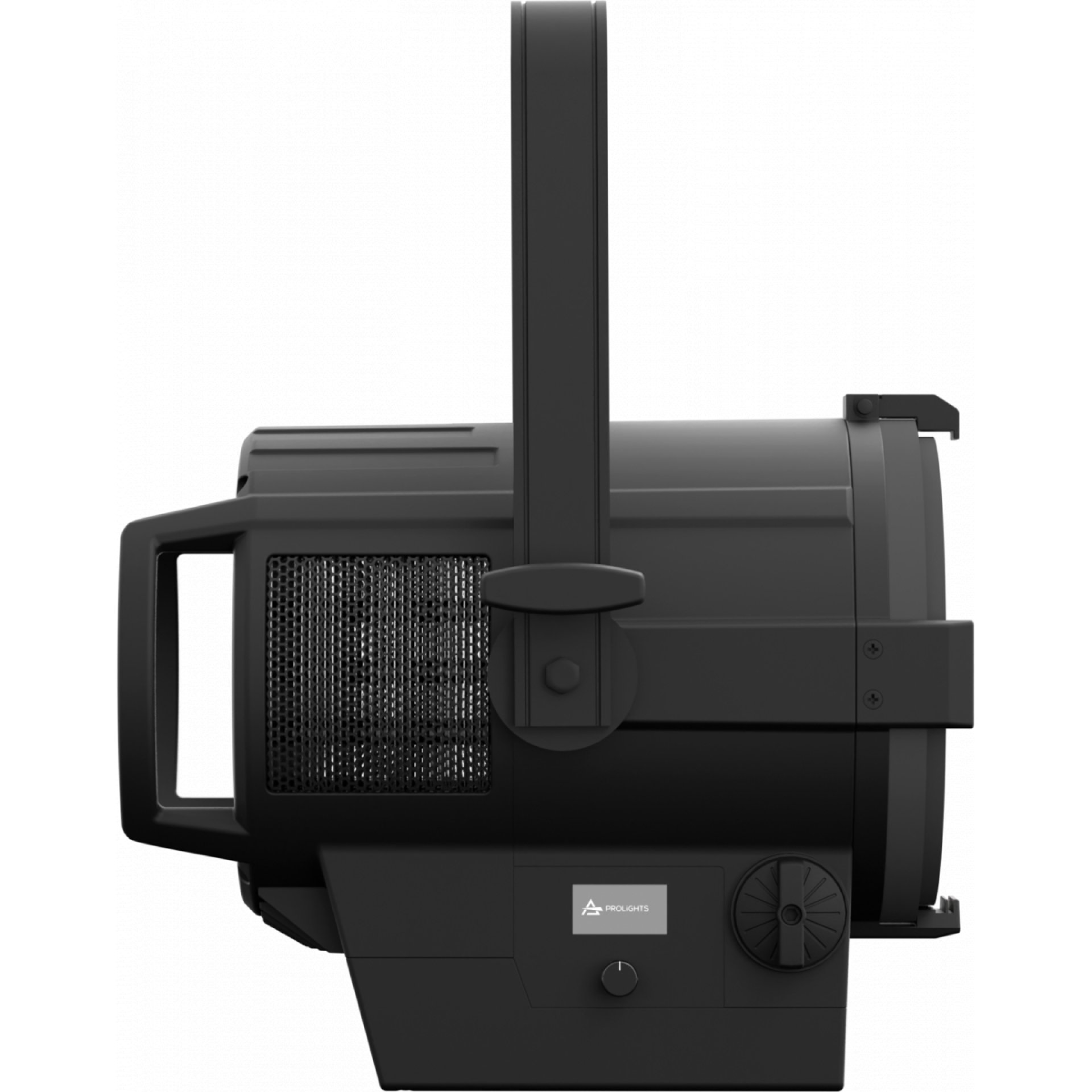

PROLIGHTS EclFresnel - side

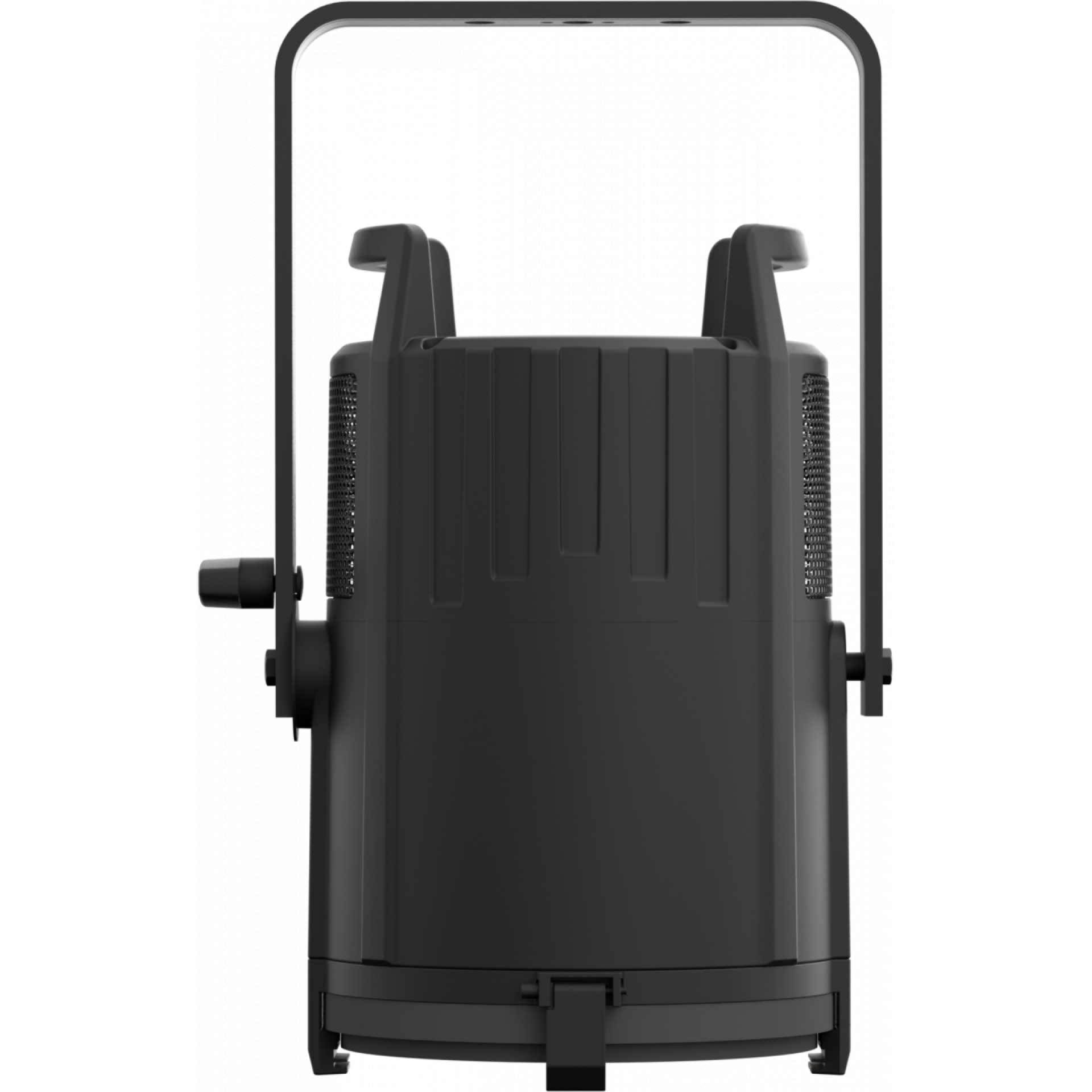

PROLIGHTS EclFresnel - top
PROLIGHTS EclFresnel TU

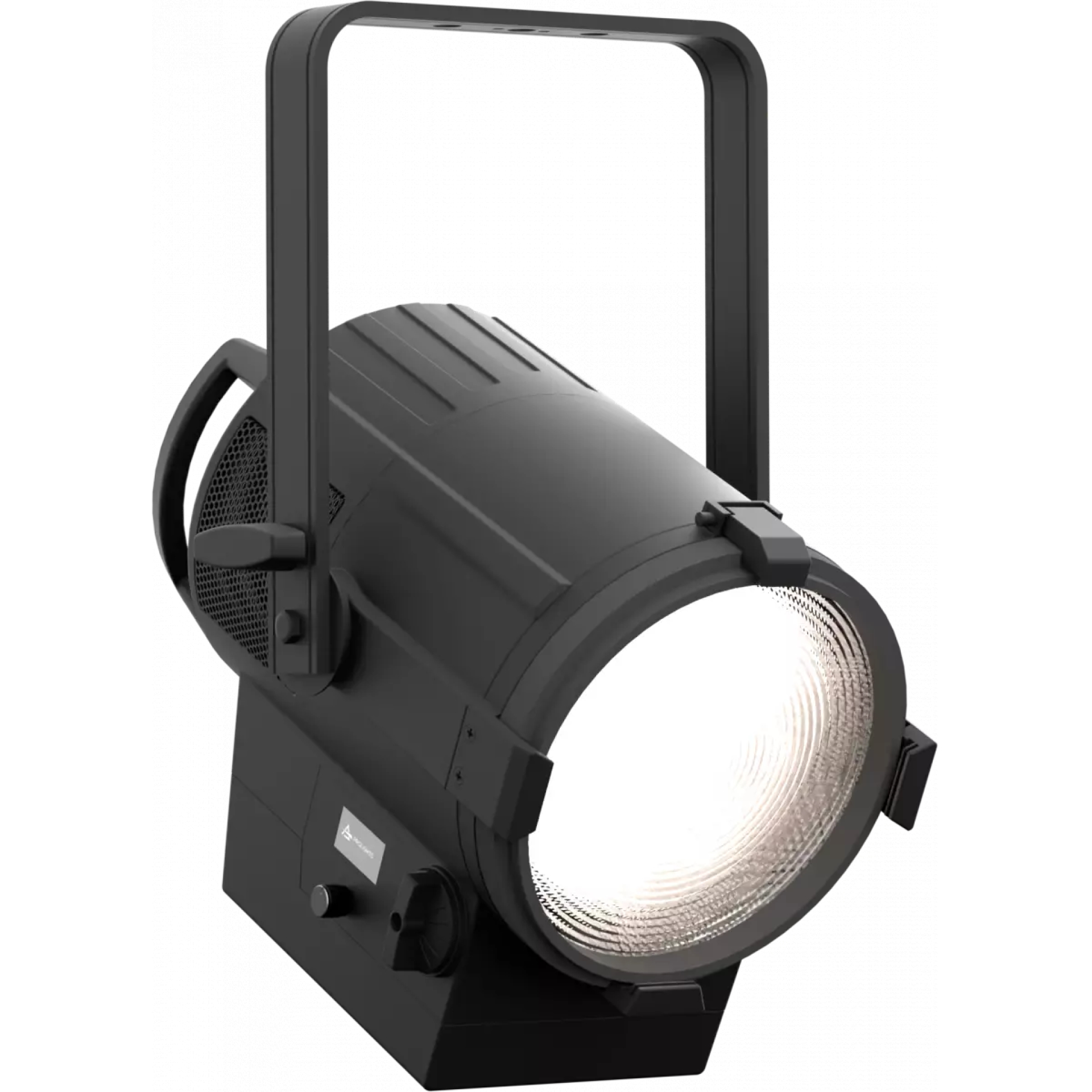

PROLIGHTS EclFresnel DY
PROLIGHTS EclFresnel TW - back
PROLIGHTS EclFresnel TU - back
PROLIGHTS EclFresnel DY - back
PROLIGHTS EclFresnel - side
PROLIGHTS EclFresnel - top

EclFresnel Range

Key Features:

  • High colour rendition sources for lighting faces and objects naturally
  • Silent operation for studio and stage use
  • HD dimming and functional barndoors
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclFresnel Range

PROLIGHTS EclFresnel LED range are a proper LED replacement for a standard tungsten 1K Fresnel. Featuring the output characteristics of a traditional Fresnel, with beam control from functional barndoors, and a powerful source that focuses on outstanding colour rendition the EclFresnel adds all the advantages of LED to the Fresnel.

Product Variants

PROLIGHTS EclFresnel TU
EclFresnel TU
  • Colour Temperature: 3,200K
  • Beam angle: 17° - 42° Zoom
  • Pole Op version available (PROECLIPSEFRESNELPTU)

Enquiry Form

PROLIGHTS EclFresnel DY
EclFresnel DY
  • Colour Temperature: 5,600K
  • Beam angle: 17° - 42° Zoom
  • Pole Op version available (PROECLIPSEFRESNELPDY)

Enquiry Form

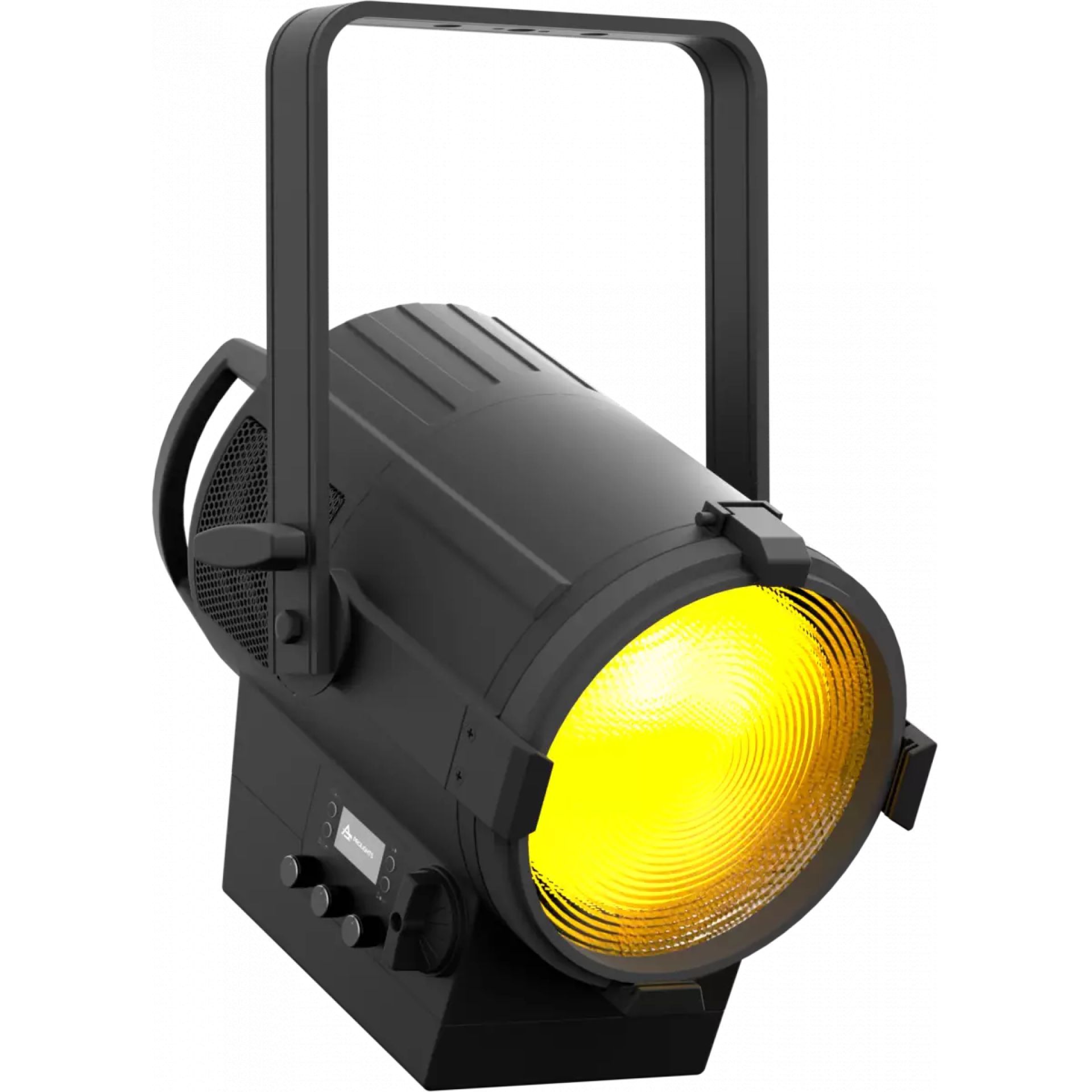

PROLIGHTS EclFresnel TW
EclFresnel TW
  • 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • Beam angle: 17° - 57° Zoom
  • Pole Op version available (PROECLIPSEFRESNELPTW)

Enquiry Form

  • Fixed 3,200K (TU) and 5,600K (DY) versions available with HD dimming

    TW version features 2,800K- 10,000K plus 6 colour mixing with HD dimming

    Fresnel zoom lens

  • Source: 230W high power white LED (TU & DY), 260W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime) (TW)

    CCT: (TU) 3,200K; (DY) 5,600K; (TW) 2,800K ~ 10,000K

    Luminous flux 17°: (TU) 10,842 lm; (DY) 12,546 lm; (TW) 4,653 @ full

    Luminous flux 42°: (TU) 13,320 lm; (DY) 15,623 lm @ full

    Luminous flux 57°: (TW) 7,896 @ full

    Lux 17°: (TU) 3,728 lux; (DY) 4,260 lux; (TW) 1,678 lux @ 5m full

    Lux 42°: (TU) 1,019 lux; (DY) 1,182 lux @ 5m full

    Lux 57°: (TW) 344 lux @ 5m full

    CRI: (TU) >98; (DY) >95; (TW) 90 @ 3,200K; 89 @ 5,600K

    Source life expectancy: >50,000 hr

    Zoom: (TU & DY) 17° – 42° half peak angle; (TW) 17° – 57° half peak angle

    Lens diameter: 200mm

  • Colour mixing: white (TU & DY)

    Colour mixing: tunable white + colour (TW)

    CCT: CCT control, + / – green correction, tungsten emulation (TW)

    White presets: 2,800K – 10,000K (TW)

    Colour wheel: virtual colour wheel with macros (TW)

    Macros: several pre-build macros with adjustable speed (TW)

    Static mode (TW): selection of static colour

    Static mode (TU & DY): selection of static dimmer

    Manual mode (TW): manual adjustment of intensity, CT, colour correction from knob

    Manual mode (TU & DY): manual adjust of dimmer through menu and knob

    Auto mode: built-in programs with execution speed adjustment

    Special features (TW): linear crossfade channel from any white to any colour; virtual CTO on colours

  • Protocols: DMX512, RDM, rotatory knob

    DMX channels TU & DY: ch1: 1 / 2 – ch2: 2 / 3 / 5 channel

    DMX channels TW: 1 / 2 / 5-1 / 5-2 / 7 / 9 / 12 / 13 / 16 / 19 / 21 channel

    RDM: RDM for remote monitoring and settings

    Display: graphic user interface

    Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included

    Master/slave: for synchronised operation of more units linked in a chain

    Other: 16bit control of dimmer (TU, DY & TW) and colour (TW)

EclFresnel Range - Variant Downloads
