EclFresnel CT+S Fresnel

EclFresnel CT+S Fresnel

PROECLFRCTPSBK

Key Features:

200W 6 colour LED Fresnel with 150mm/6'' glass lens

9-73° manual zoom system

High quality CCT reproduction and advanced colour control

New UI with 2.4'' display and 4 backlit pushable encoder

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclFresnel CT+S Fresnel

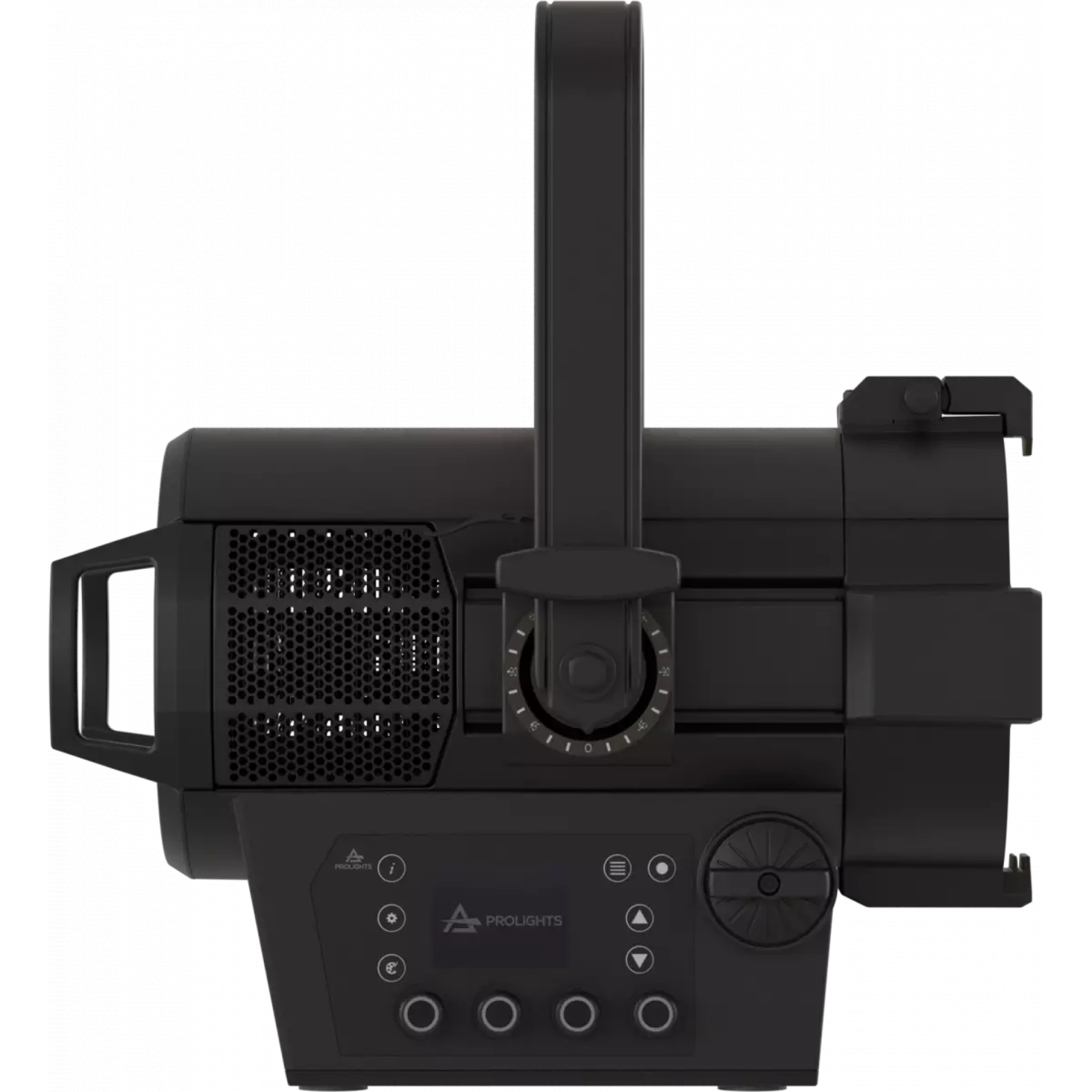

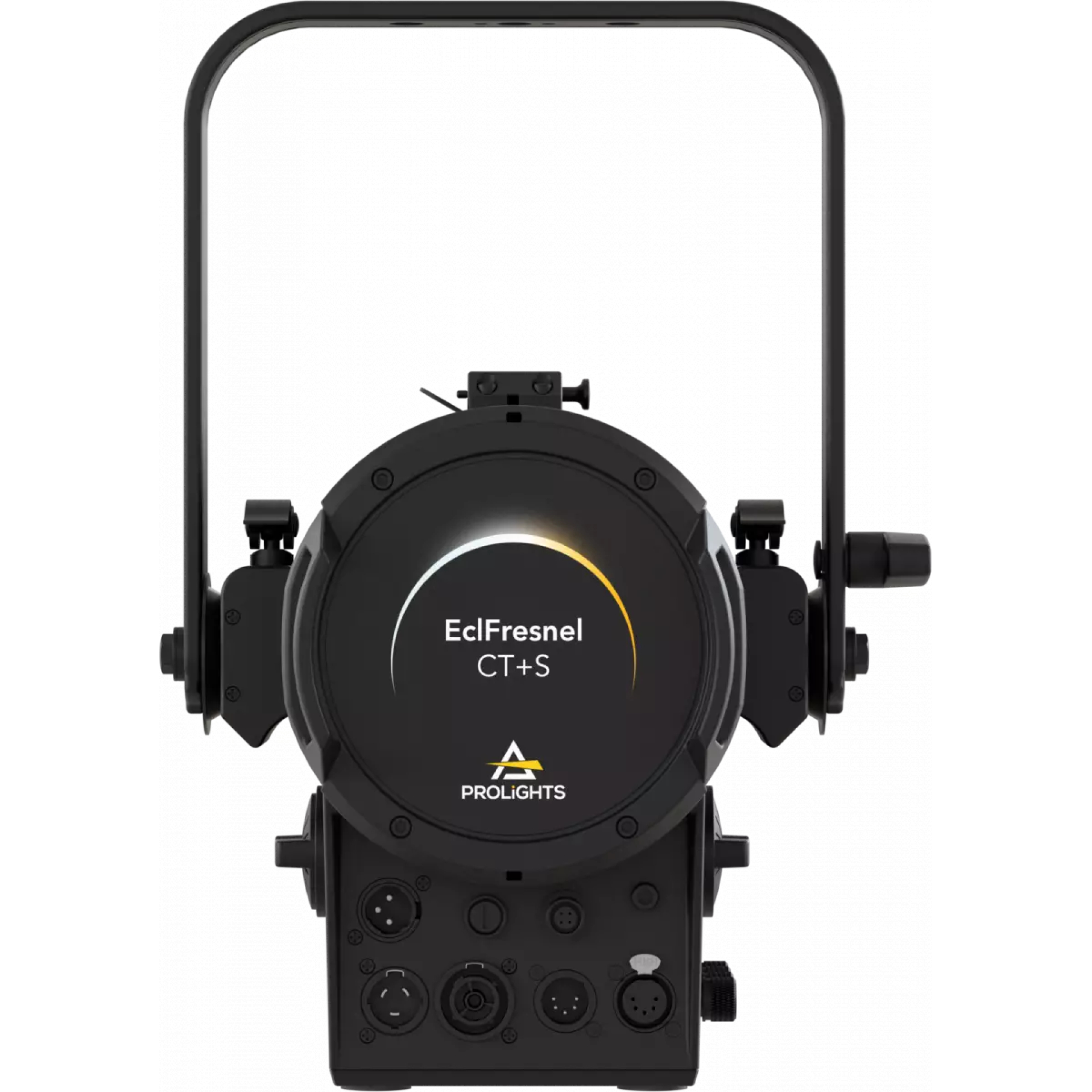

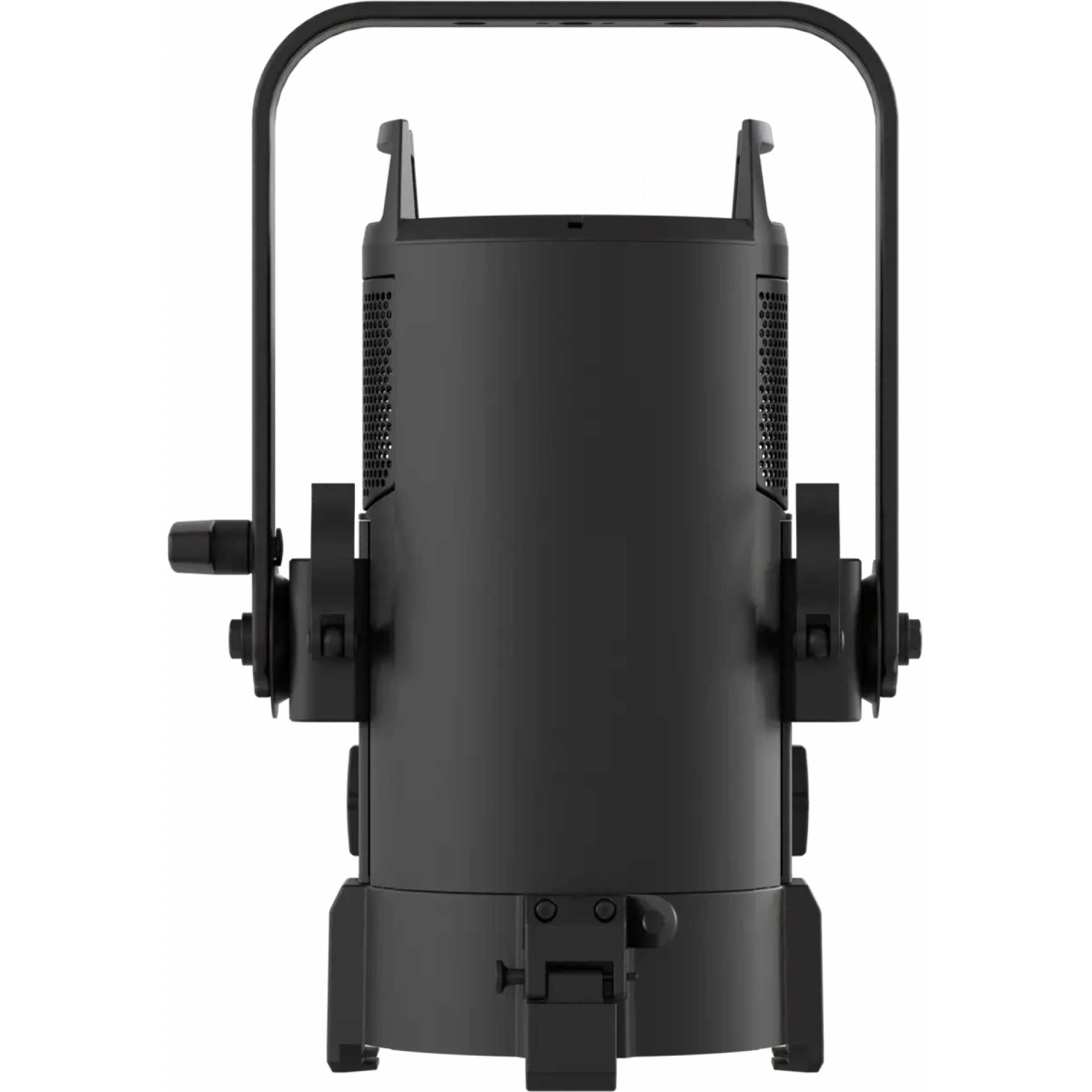

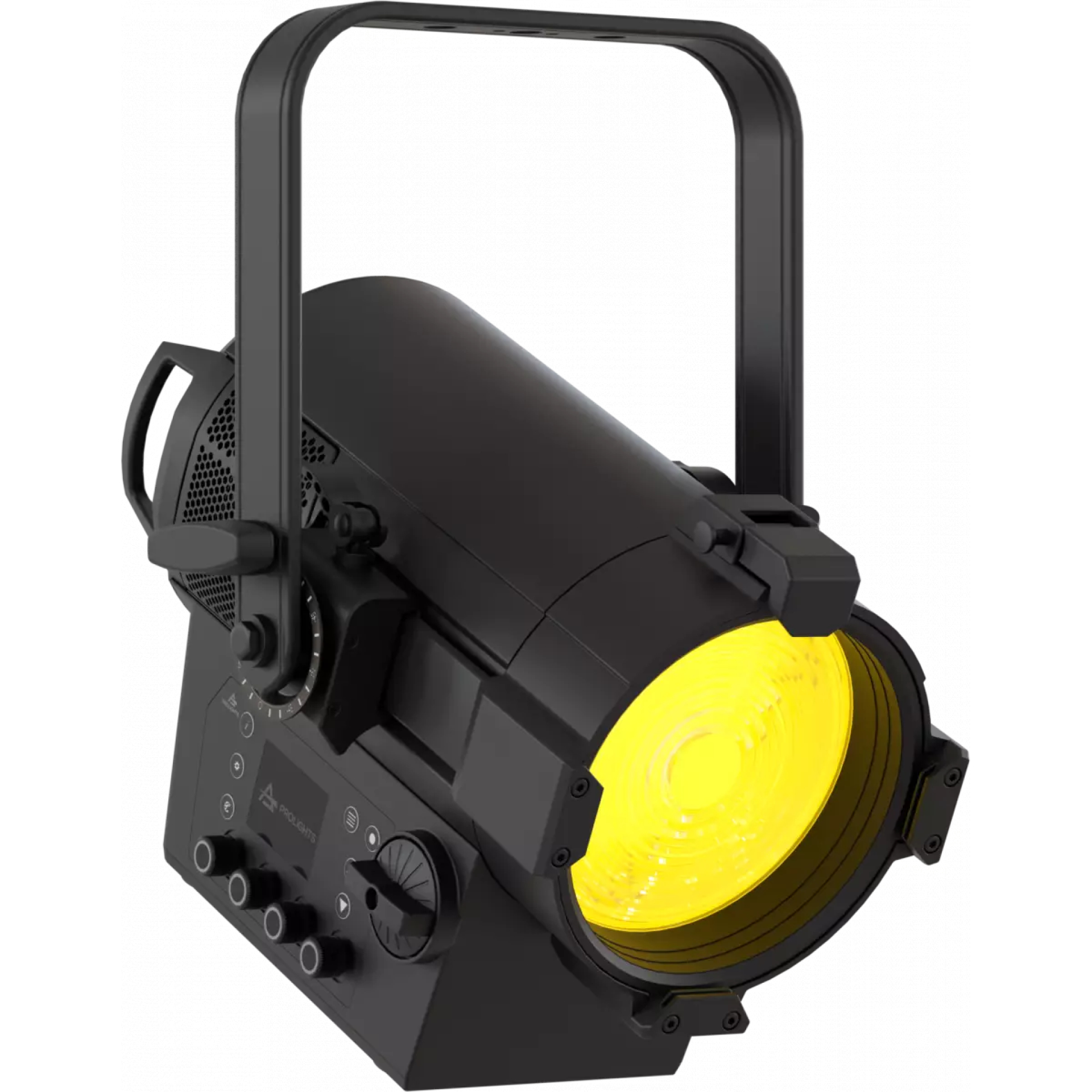

EclFresnel CT+S is a 200W LED Fresnel, engineered with a new 6 colour light source and a 150mm / 6'' glass Fresnel lens.

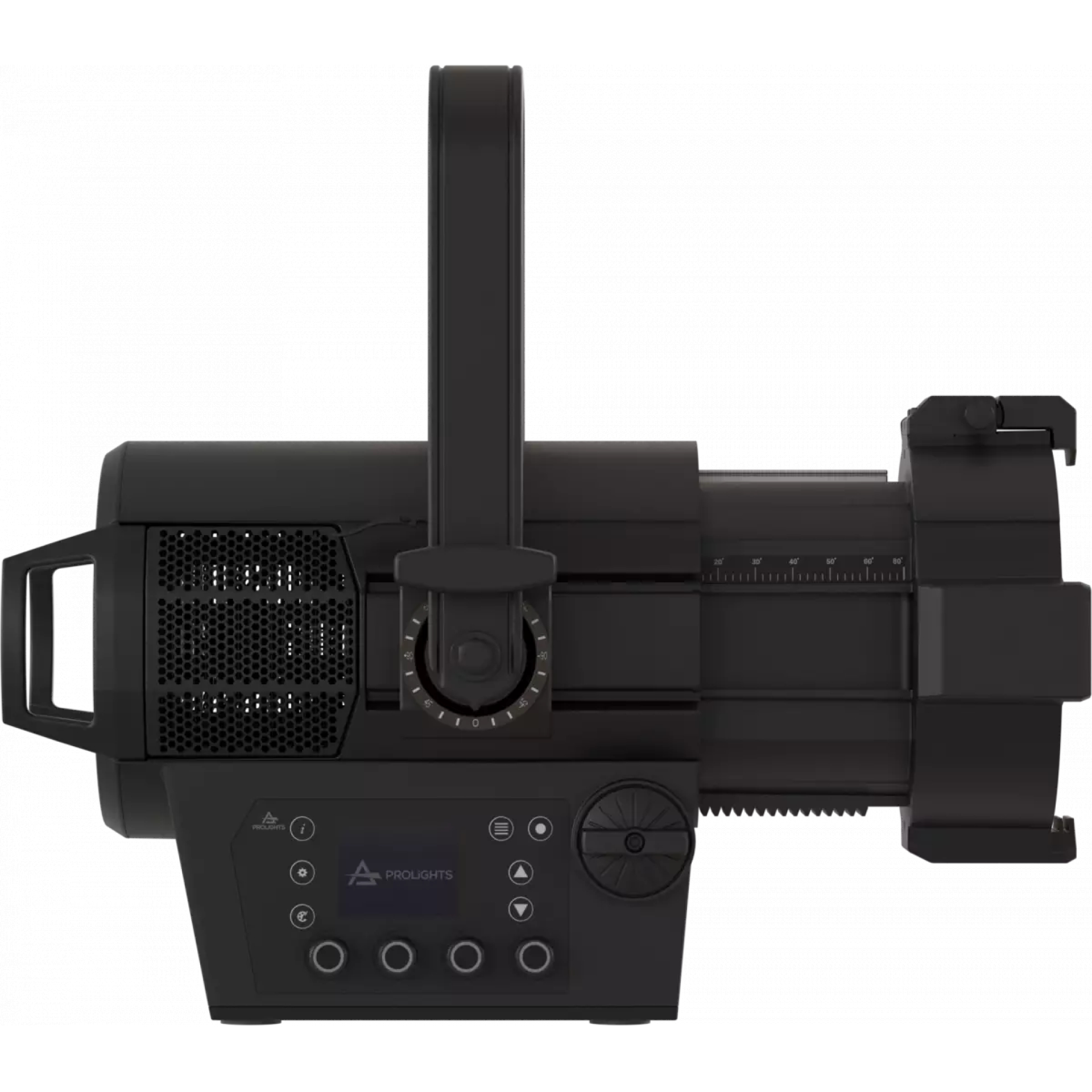

The newly designed optical system allows for a greater zoom range from 9° to 73°.

The Spektra calibrated light source delivers consistency and a higher luminous flux in both colour and white.

The EclFresnel CT+ range has a new UI offering an enhanced user experience when it comes to the control of the light. It has a more intuitive stand alone operation through a larger display, backlight encoders and features advanced wired and wireless connectivity.

Its silent operation means it is a workhorse fixture for the broadcast, film and theatre sectors.

- Source: 200W 6 colour LEDs source
- Luminous flux: (9.7°) 1,922lm; (73.5°) 4,795lm @ 4,000K
- Lux: (9.7°) 2,270lx; (73.5°) 286lx @ 5m @ 4,000K
- CRI: 96.6 @ 3,200K; 97 @ 5,600K
- Source life expectancy: > 50,000hr
- Zoom: 9.7° - 73.5° manual
- Lens diameter: 150mm / 6''
- Lens type: Fresnel glass lens with AR coating
- Glass Fresnel lens providing a classic light fall-off
- Additional optics: PC lens available as accessory
- Other: spigot, barndoor and gel frame included

- Colour control: XY, CCT, RGBW, Gel with Source Emulation, Tungsten emulation, HSI, User preset
- Colour mixing: 6 colour LEDs source
- CCT: Linear CCT adjustment from 1,800K - 20,000K

- Protocols: DMX512, RDM, CRMX
- Stand alone: 4 pushable RGB backlit encoder
- Wireless control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (LumenRadio) and W-DMX (Wireless DMX), Bluetooth capable
- RDM: RDM for remote monitoring and settings
- Display: 2.4'' colour display
- Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO) not included
- Master/Slave: for synchronised operation of more units linked in a chain
