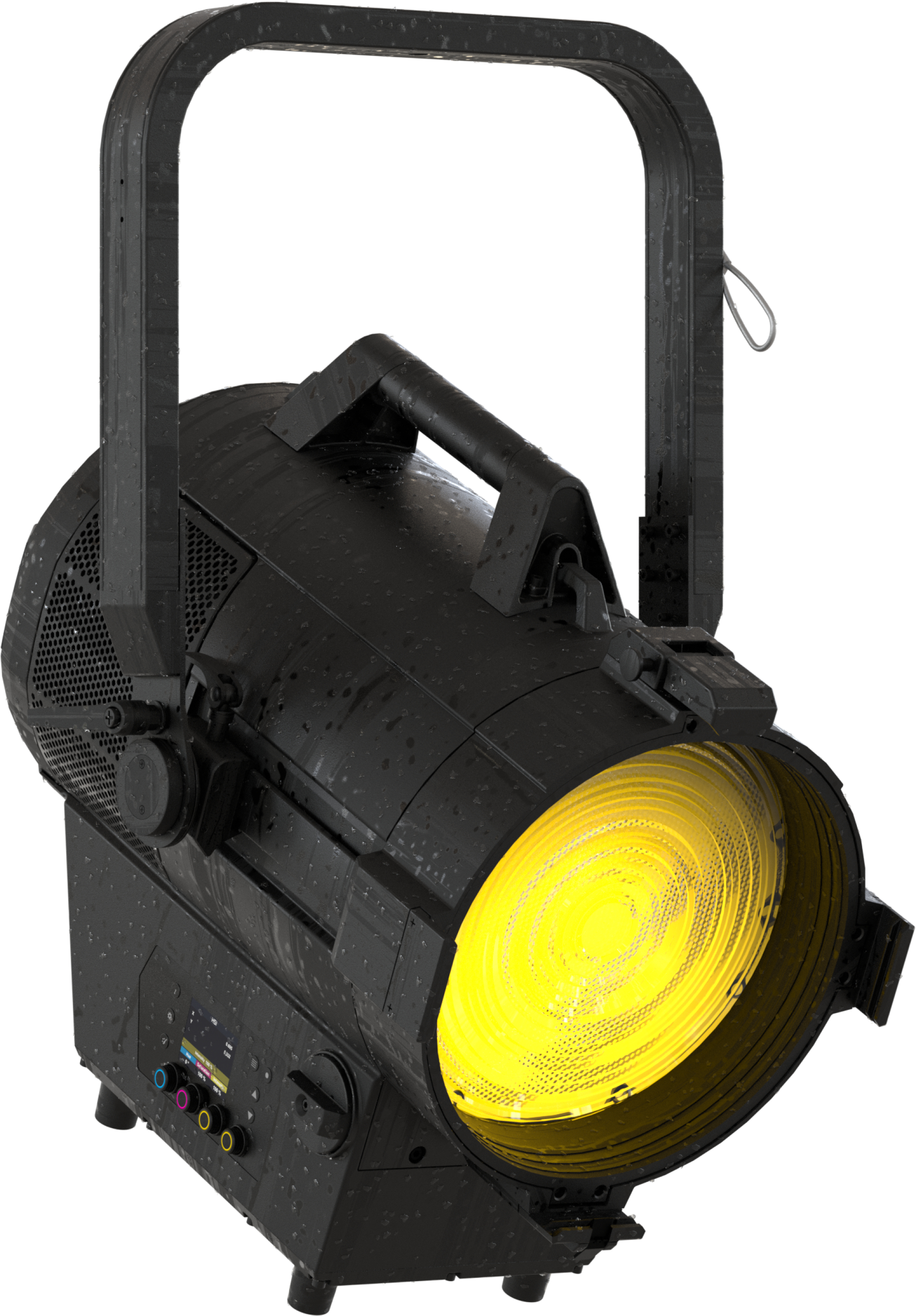

EclFresnel CT+ XLIP

EclFresnel CT+ XLIP

Key Features:

  • 1500W (driven @1200 W) 6 color LED Fresnel
  • 300mm/12'' glass lens with 10-90° manual zoom
  • IP65 for indoor and outdoor use
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclFresnel CT+ XLIP

The EclFresnel CT+ XLIP stands out as a bright IP65-rated Fresnel hard source, crafted to replace traditional 5K Tungsten and 2.5K HMI lighting in film sets and large-scale indoor and outdoor setups.

At the heart of this fixture is a robust 1500W (driven @1200 W) LED source, featuring 6 colour emitters.

Its design with integrated power supply simplifies installation and wiring for both on-location use and permanent installations.

EclFresnel CT+ XLIP boasts a 300mm (12 inches) glass Fresnel lens, offering an impressive zoom range from 10° to 90° and 44.000 fixture lumens. This design maintains high efficiency even at narrow beam angles, ensuring a bright output at long throw projection.

For jobs that demand maximum punch, the fixture also accepts optional 30° and 60° open‑face reflector lenses, boosting luminous flux while preserving homogeneous colour mixing

Powered by Spektra Os, this luminaire guarantees light consistency, delivering a higher luminous flux across colours and whites. This results in a broader colour space and a richer light spectrum, achieving exceptional values in CRI, TLCI, SSI, and TM30 indices, meeting the highest professional lighting requirements.

Enhanced with a more powerful processing unit, the EclFresnel CT+ range offers an unparalleled user experience. It provides refined control over light and colour, complemented by more intuitive standalone operations. This is achieved through a larger display, backlit encoders, and advanced connectivity options, both wired and wireless.

EclFresnel CT+ also operates silently, making it an essential, durable workhorse for large film sets, theatres, and studio applications.

  • Source: 1'500W 6 colour LEDs source (driven @1'200W)

    Luminous flux: (10°) 22'322 lm - (90°) 43'642 lm @4.000 K

    Lux: (10°) 18'113 lx - (90°) 1'485lx @5m @4.000 K

    CRI: 95 @3.200K; 98 @5.600K

    Zoom range: 10° - 90° manual

    Lens diameter: 12'' / 300mm / 0.47''

    Lens type: Fresnel glass lens with AR coating

    Lens effect: Glass Fresnel lens providing a classic light fall-off

    Other: spigot, barndoor and gel frame included

  • Colour control: XY, CCT, Gel with Source Emulation, Tungsten emulation, HSI, User preset

    Colour mixing: 6 colour LEDs source

    CCT: Linear CCT adjustment from 1.850 K-20.000K

  • Protocols: DMX512, RDM, CRMX

    Stand alone: 4 pushable RGB backlit encoder

    Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable

    RDM: RDM for remote monitoring and settings

    Display: 2.8'' colour display

    Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)

    Master/Slave: for synchronised operation of more units linked in a chain

EclFresnel CT+ XLIP - Downloads
Download
