EclFresnel CT+L Fresnel

EclFresnel CT+L Fresnel

PROECLFRCTPLBK

Key Features:

600W 6 colour LED Fresnel with 250mm/10'' glass lens

10-77° manual zoom system

High quality CCT reproduction and advanced colour control

New UI with 2.8'' display and 4 backlit pushable encoder

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclFresnel CT+L Fresnel

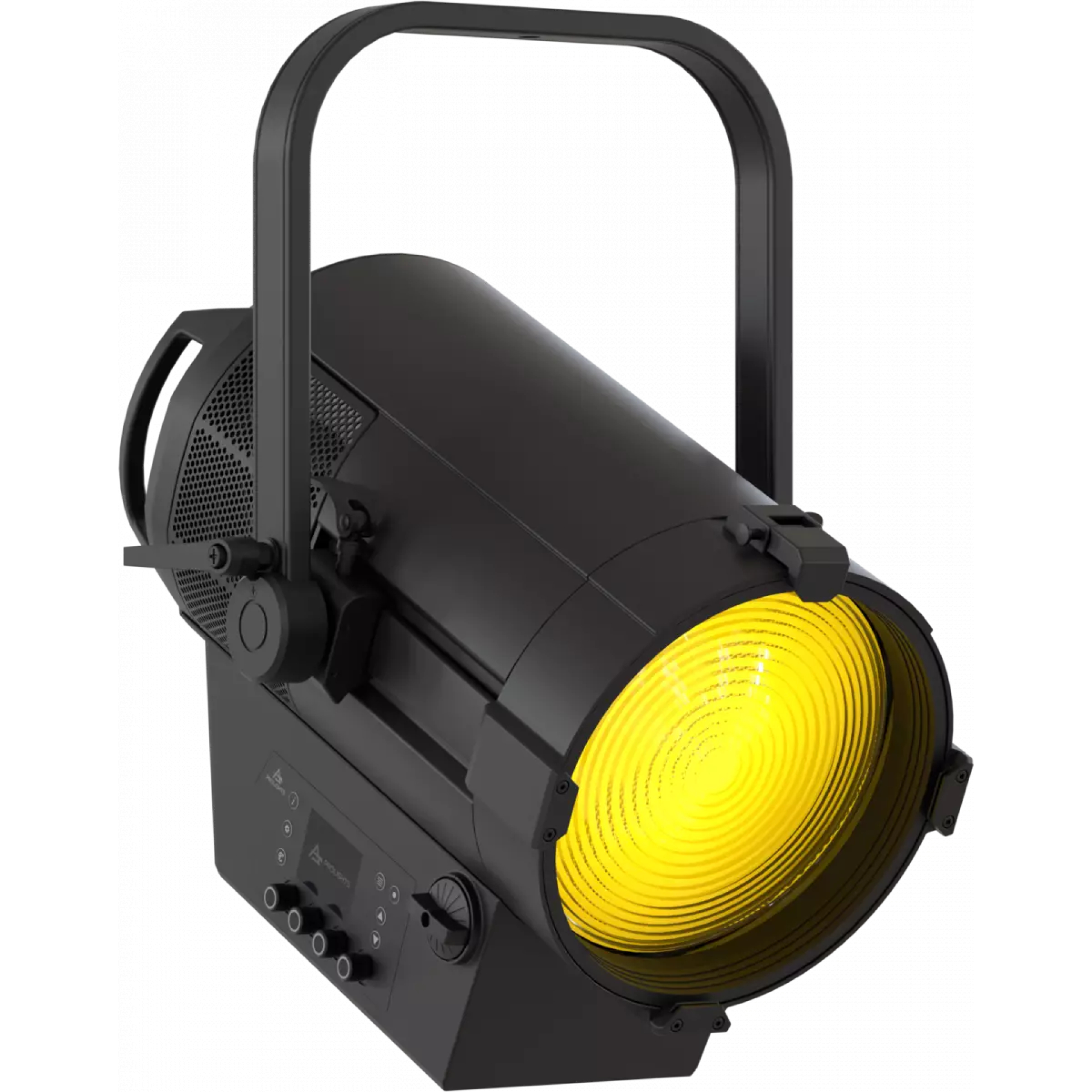

EclFresnel CT+L is a 600W LED Fresnel, engineered with a new 6 colour light source and a 250mm / 10'' glass Fresnel lens.

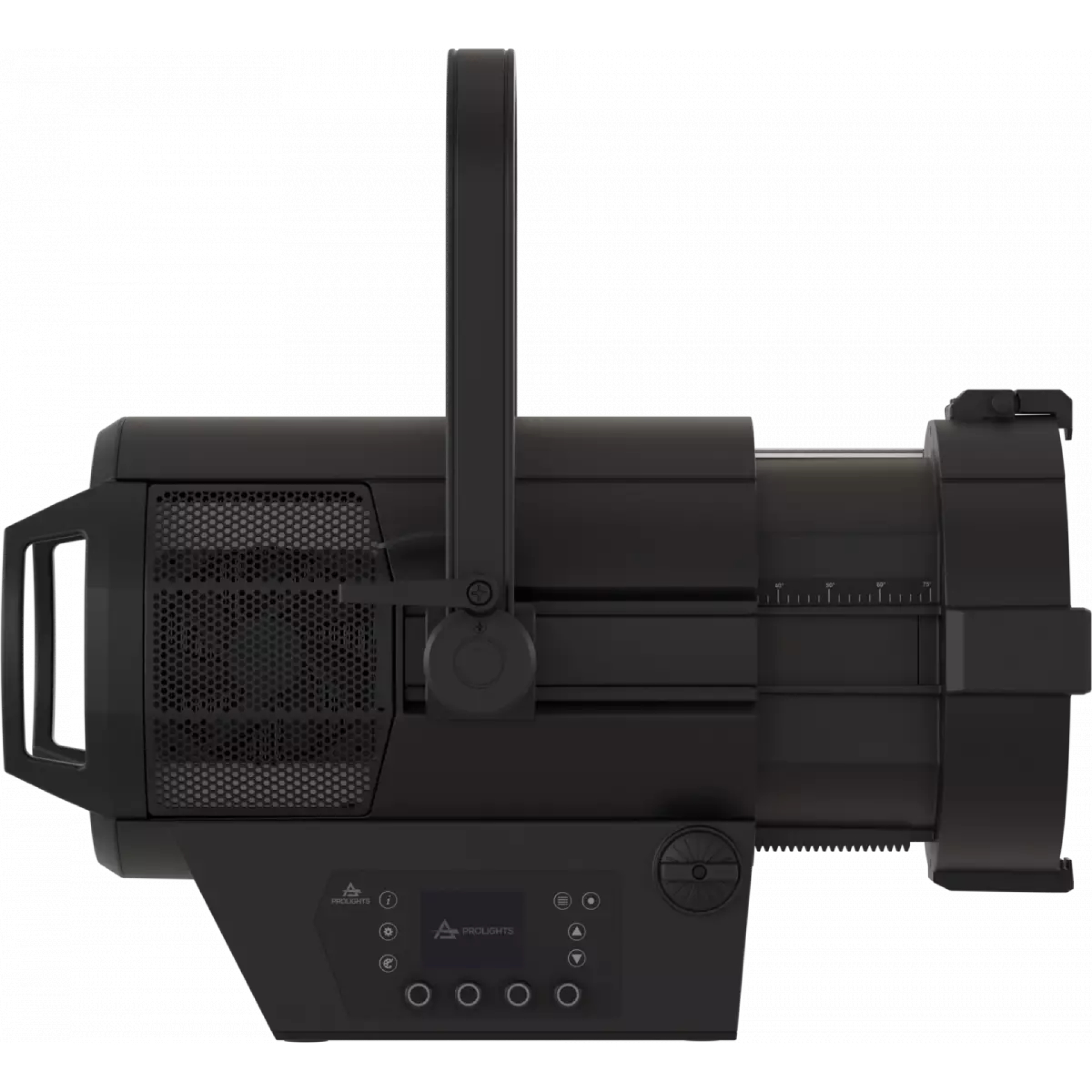

The newly designed optical system allows for a greater zoom range from 10° to 77°.

The Spektra calibrated light source delivers consistency and a higher luminous flux in both colour and white.

The EclFresnel CT+ range has a new UI offering an enhanced user experience when it comes to the control of the light. It has a more intuitive stand alone operation through a larger display, backlight encoders and features advanced wired and wireless connectivity.

Its silent operation means it is a workhorse fixture for the broadcast, film and theatre sectors.

Source: 600W 6 colour LEDs source Luminous flux: (10°) 5,859lm; (77°) 13,814lm @ 4,000K Lux: (10°) 6,085lx; (77°) 732lx @ 5m @ 4,000K CRI: 97.6 @ 3,200K; 97.5 @ 5,600K Source life expectancy: > 50,000hr Zoom: 10° - 77° manual Lens diameter: 250mm / 10'' Lens type: Fresnel glass lens with AR coating Glass Fresnel lens providing a classic light fall-off Additional optics: PC lens available as accessory Other: spigot, barndoor and gel frame included

Colour control: XY, CCT, RGBW, Gel with Source Emulation, Tungsten emulation, HSI, User preset Colour mixing: 6 colour LEDs source CCT: Linear CCT adjustment from 1,800K - 20,000K

Protocols: DMX512, RDM, CRMX Stand alone: 4 pushable RGB backlit encoder Wireless control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (LumenRadio) and W-DMX (Wireless DMX), Bluetooth capable RDM: RDM for remote monitoring and settings Display: 2.8'' colour display Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO) not included Master/Slave: for synchronised operation of more units linked in a chain
