EclFresnel CT+XS Fresnel

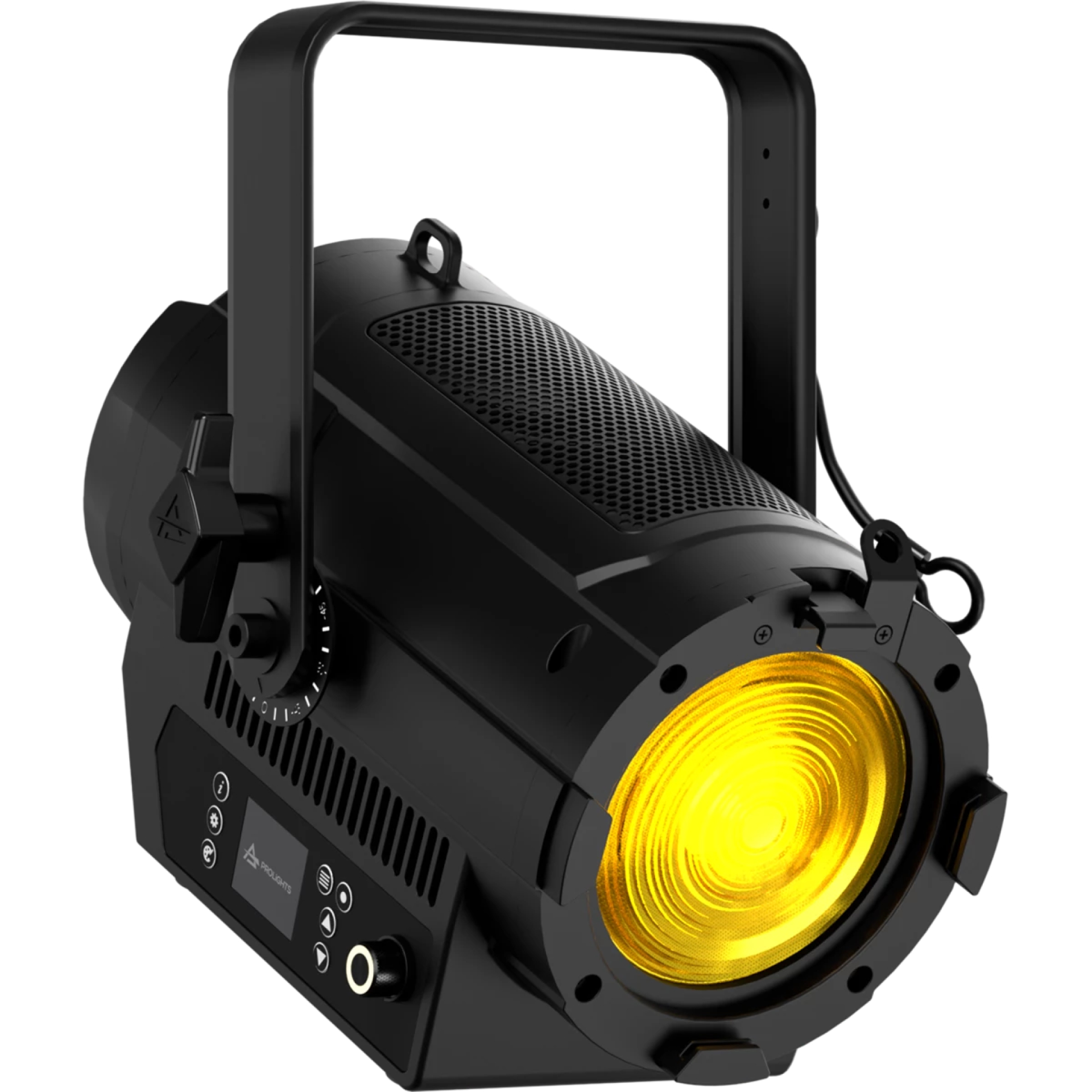

PROLIGHTS EclFresnel CT+XS - front view

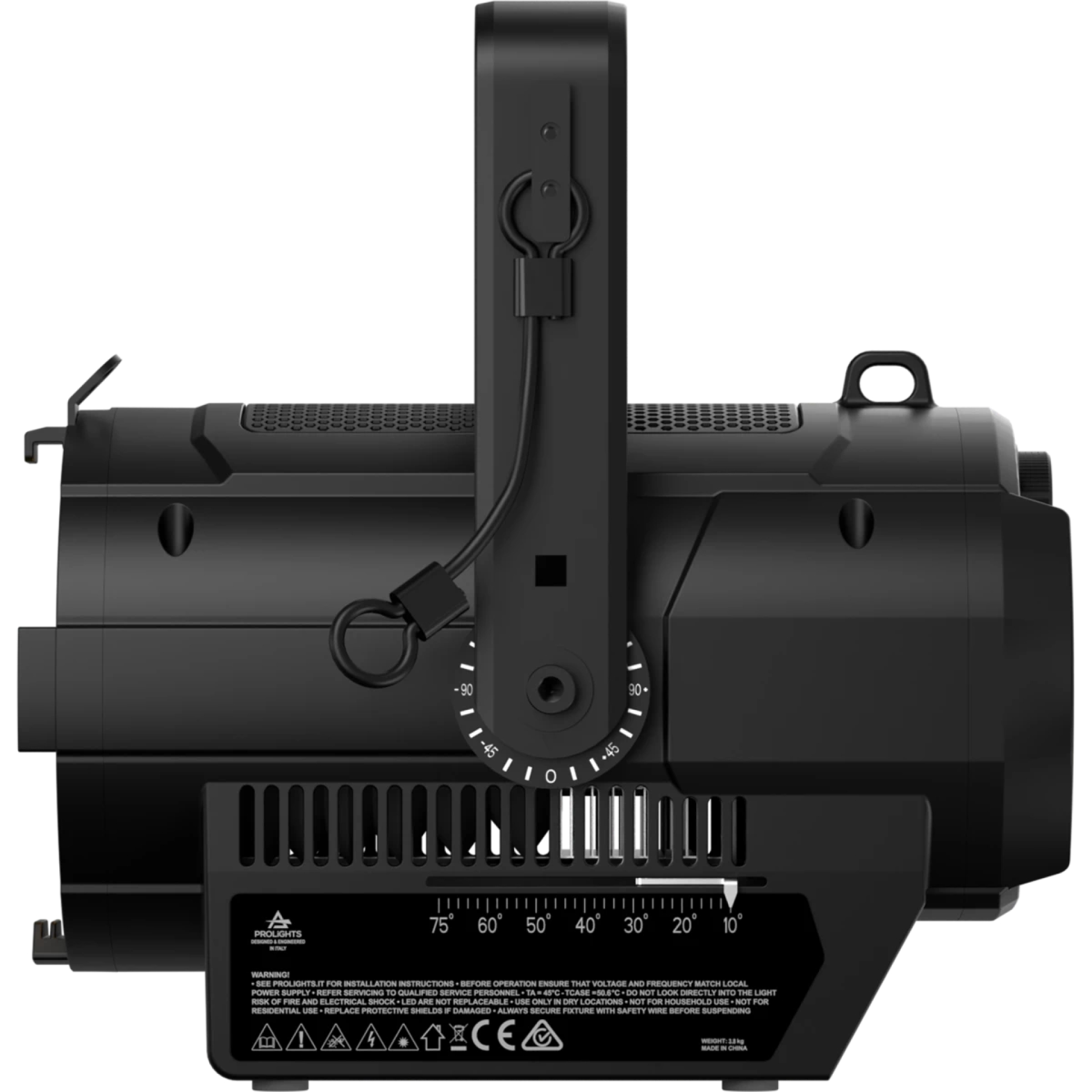

PROLIGHTS EclFresnel CT+XS - left side view

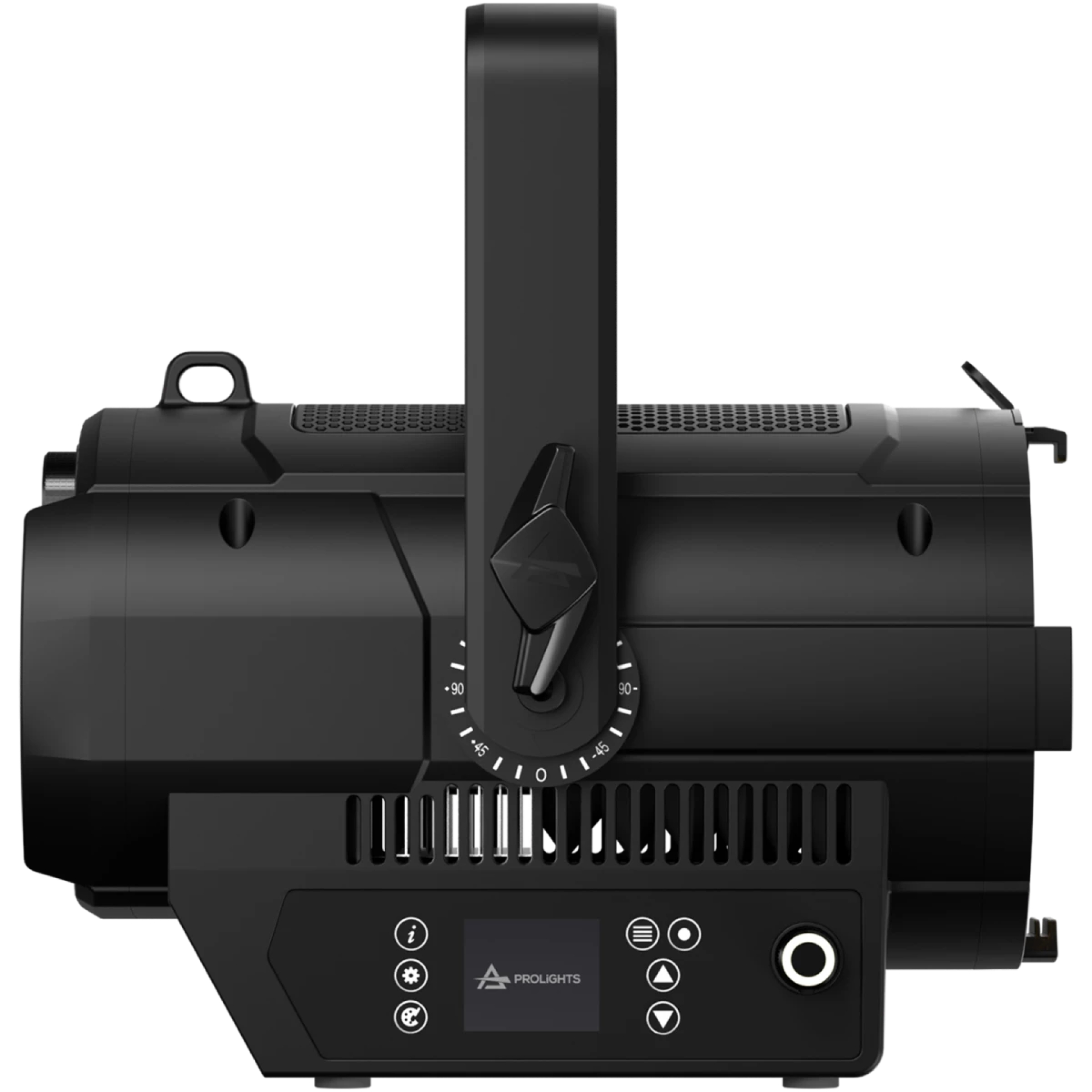

PROLIGHTS EclFresnel CT+XS - right side view

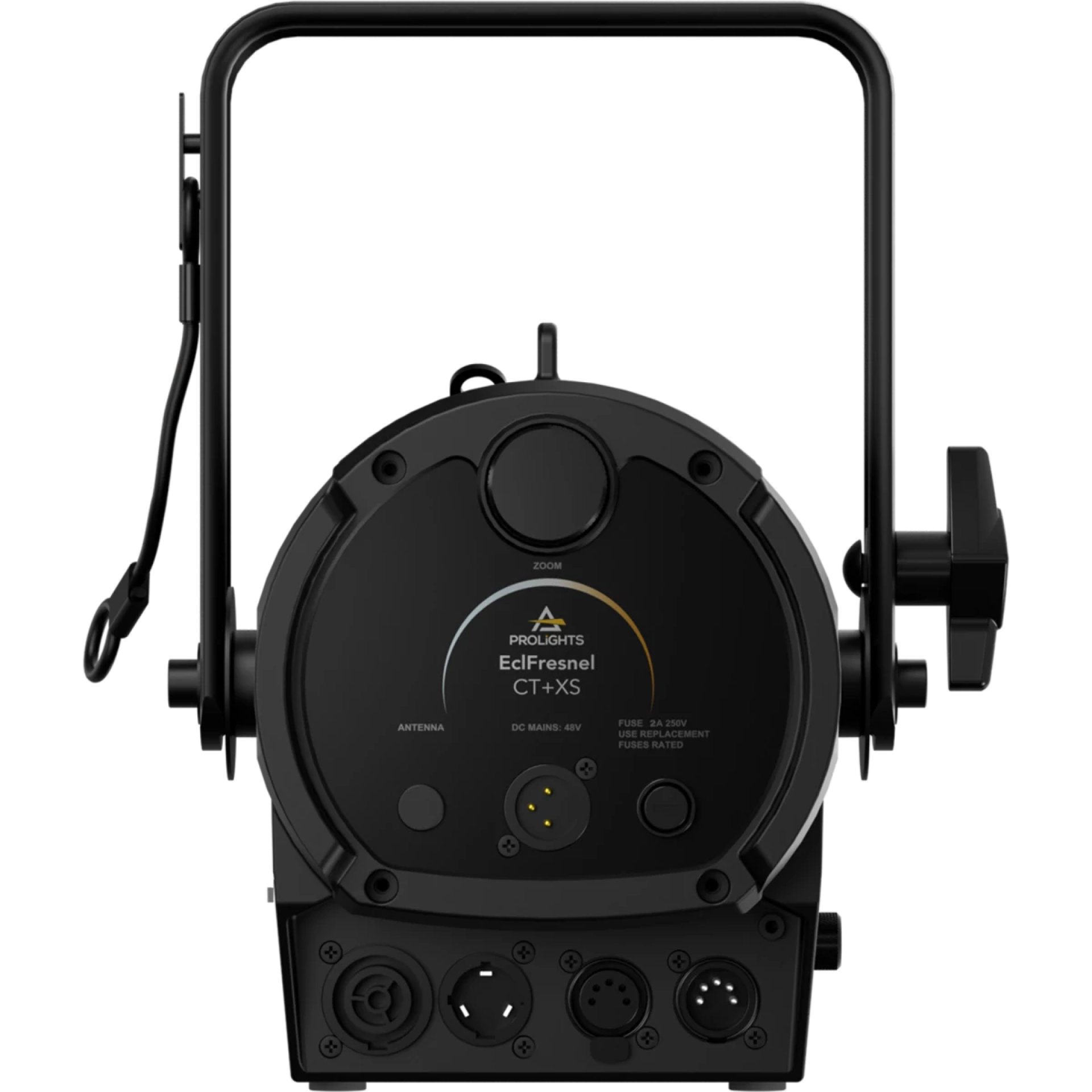

PROLIGHTS EclFresnel CT+XS - back view

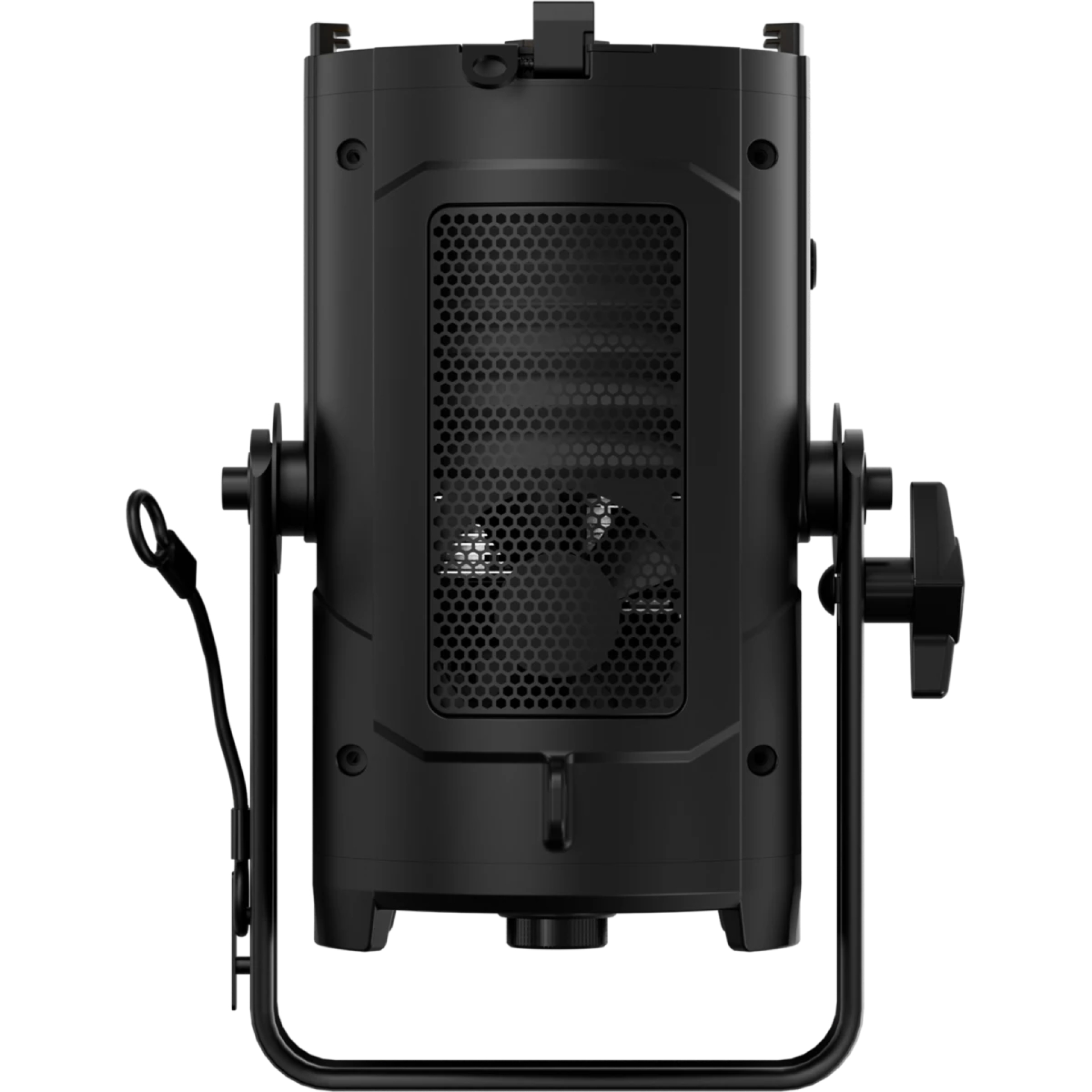

PROLIGHTS EclFresnel CT+XS - top view
PROLIGHTS EclFresnel CT+XS - left side view
PROLIGHTS EclFresnel CT+XS - right side view
PROLIGHTS EclFresnel CT+XS - back view
PROLIGHTS EclFresnel CT+XS - top view

EclFresnel CT+XS Fresnel

PROECLFRCTPXSBK

Key Features:

  • 200W 6 colour LED Fresnel with 150mm/6'' glass lens
  • 9-73° manual zoom system
  • High quality CCT reproduction and advanced colour control
  • New UI with 2.4'' display and 4 backlit pushable encoder
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclFresnel CT+XS Fresnel

EclFresnel CT+XS is a compact 120W LED Fresnel, outputting 3700 lm and engineered with a 6-colour light source and a 130mm / 5'' Fresnel lens designed to replace the classic 300W Tungsten Fresnels.

The newly designed optical system provides internal zoom from 10° to 75°, maintaining high efficiency at any beam angle without any change to the luminaire's physical size throughout the zoom range. An optional PC lens kit is also available to achieve its specific light distribution.

The Spektra algorithm delivers consistency with the other sizes of EclFresnels, higher luminous flux in both colours and whites CCT keeping a broader colour space and richer light spectrum to achieve unprecedented values of CRI, TLCI and TM30.

The EclFresnel CT+ also performs silently, allowing it to be an indispensable workhorse for broadcast, theatre and corporate applications.

  • Source: 120W 6 colour LEDs source

    Luminous flux: (11.3°) 2,437 lm; (74.7°) 3,669 @ full

    Lux: (11.3°) 2,309 lx; (74.7°) 218lx @ 5m full

    CRI: 97.7 @ 3200K; 94.5 @ 5600K

    R9: 96.5 @ 3200K; 95.4 @ 5600K

    TLCI: 87 @ 3200K; 92 @ 5600K

    TM30 Rf: > 94 @ 3200K; > 91 @ 5600K

    TM30 Rg: < 101 @3200K; < 105 @ 5600K

    Source life expectancy: > 50,000 hrs (L70B10 @Ta 25° C / 77° F)

    Zoom range: 10°-75° manual

    Lens diameter: 5'' / 130mm / 0.2''

    Lens type: PMMA lens

    Additional optics: PC lens available as accessory

    Other: barndoor and gel frame included

  • Spektra OS: unmatched color precision and consistency

    Colour control: XY, CCT, RGBW, Gel with Source Emulation, Tungsten emulation, HSI, User preset

    Colour mixing: 6 colour LEDs source

    CCT: Linear CCT adjustment from 1850K-20000K

  • Protocols: DMX512, RDM, CRMX (optional)

    Stand Alone: 1 push encoder

    DMX channels: From 1 to 34 channel

    Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable

    RDM: RDM for remote monitoring and settings

    Display: 2.4" Color display

    Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)

    Master/Slave: for synchronised operation of more units linked in a chain

EclFresnel CT+XS Fresnel - Downloads
PROLIGHTS EclFresnel CT+ S Spec Sheet
Download

You might like...

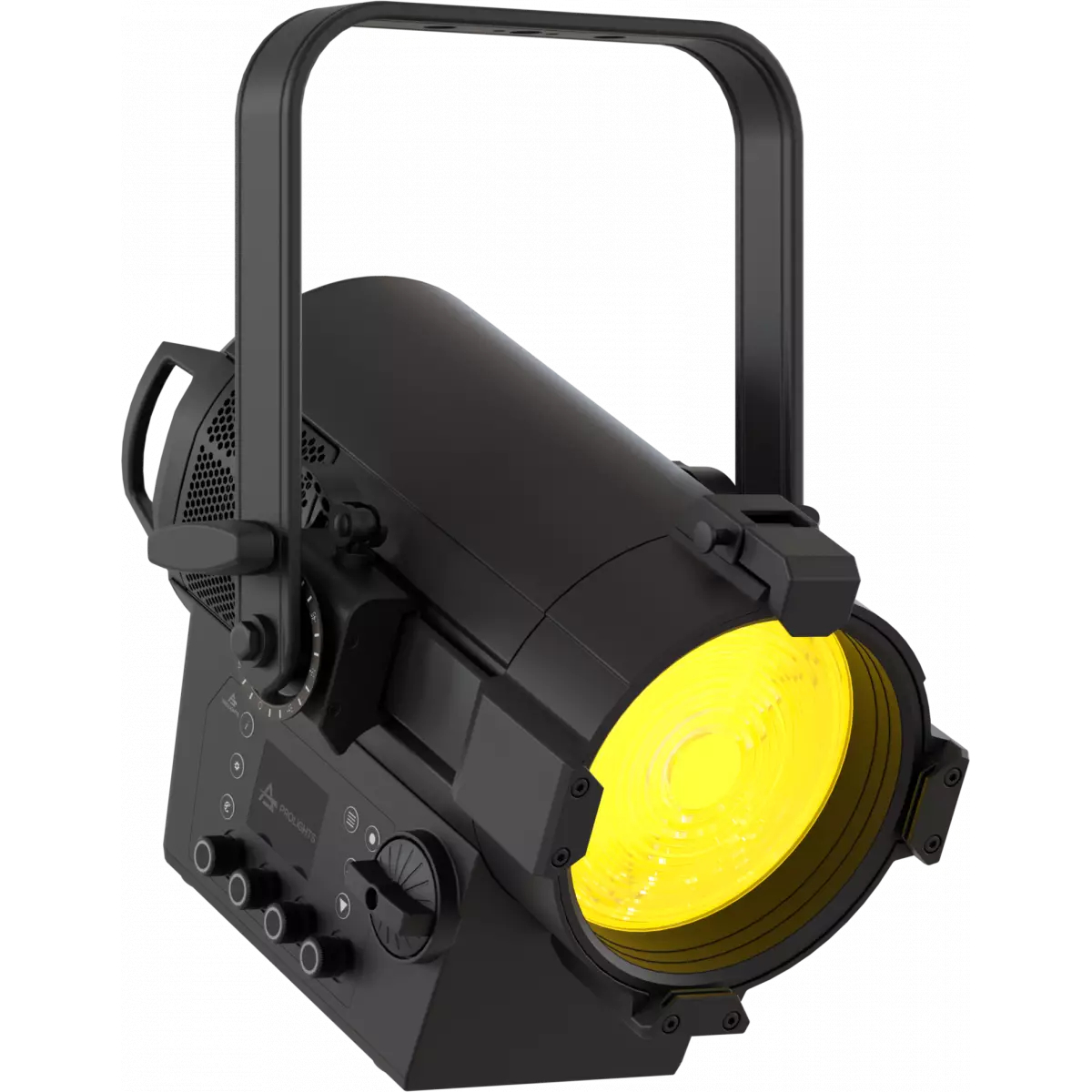

PROLIGHTS EclFresnel CT+ S - front PROLIGHTS LIGHTING
