EclFresnel Jr Range

Key Features:

  • TU (3,200K), DY (5,600K) and TW (2,800K-10,000K) versions available with HD dimming
  • Battery ready, compatible with industry standard external batteries (optional)
  • Silent operation for studio and stage use
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclFresnel Jr Range

The EclFresnel Jr is the LED replacement for a standard tungsten 650W Fresnel. Featuring the output characteristics of the traditional Fresnel, with beam control from functional barn doors and a powerful source that focuses on outstanding colour rendering. The EclFresnel Jr adds all the advantages of LED to the Fresnel.

Product Variants

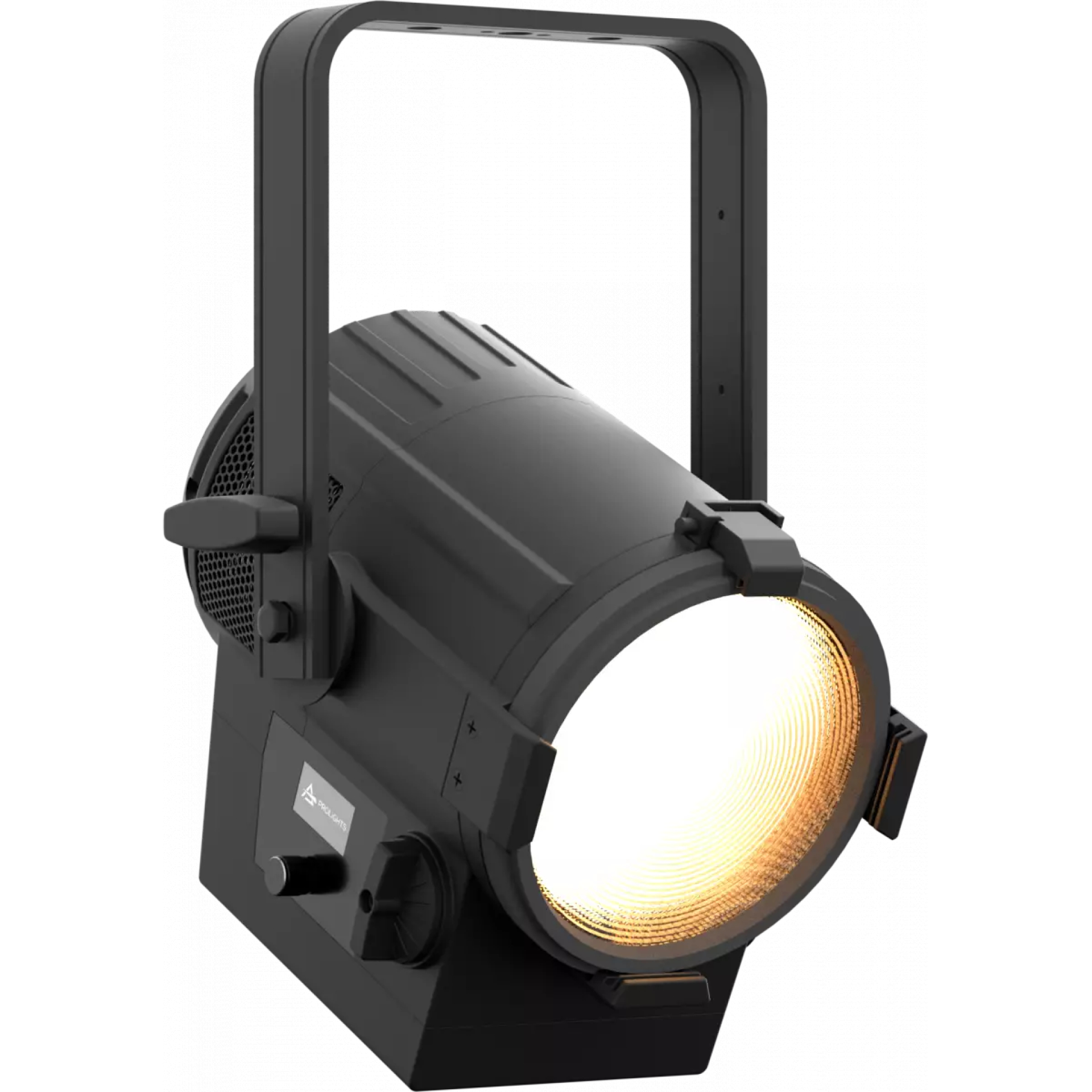

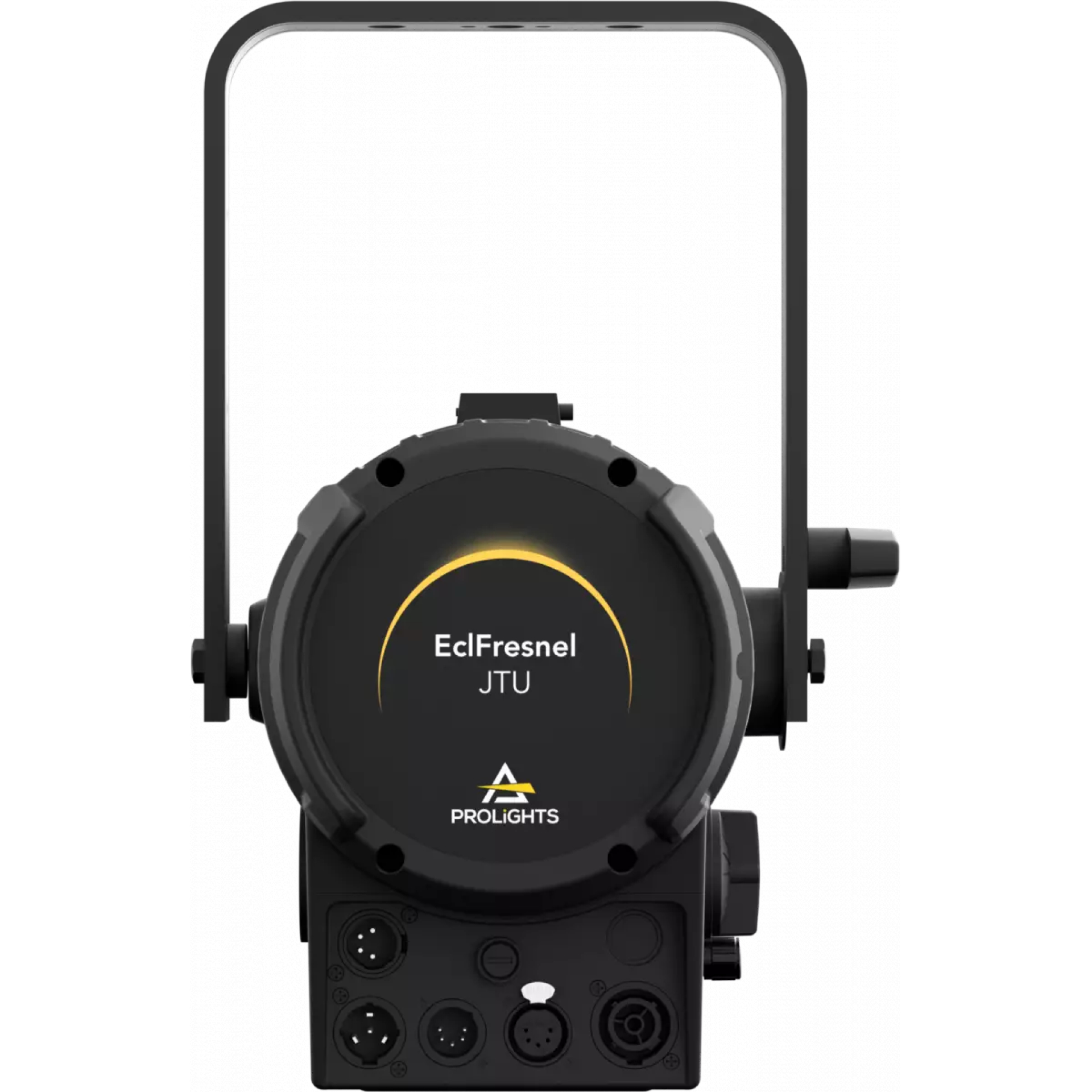

PROLIGHTS EclFresnel Jr TU
EclFresnel JrTU
  • Colour Temperature: 3,000K
  • Beam angle: 16° to 57°
  • Pole Op version available (PROECLIPSEFRESNELJPTU)

Enquiry Form

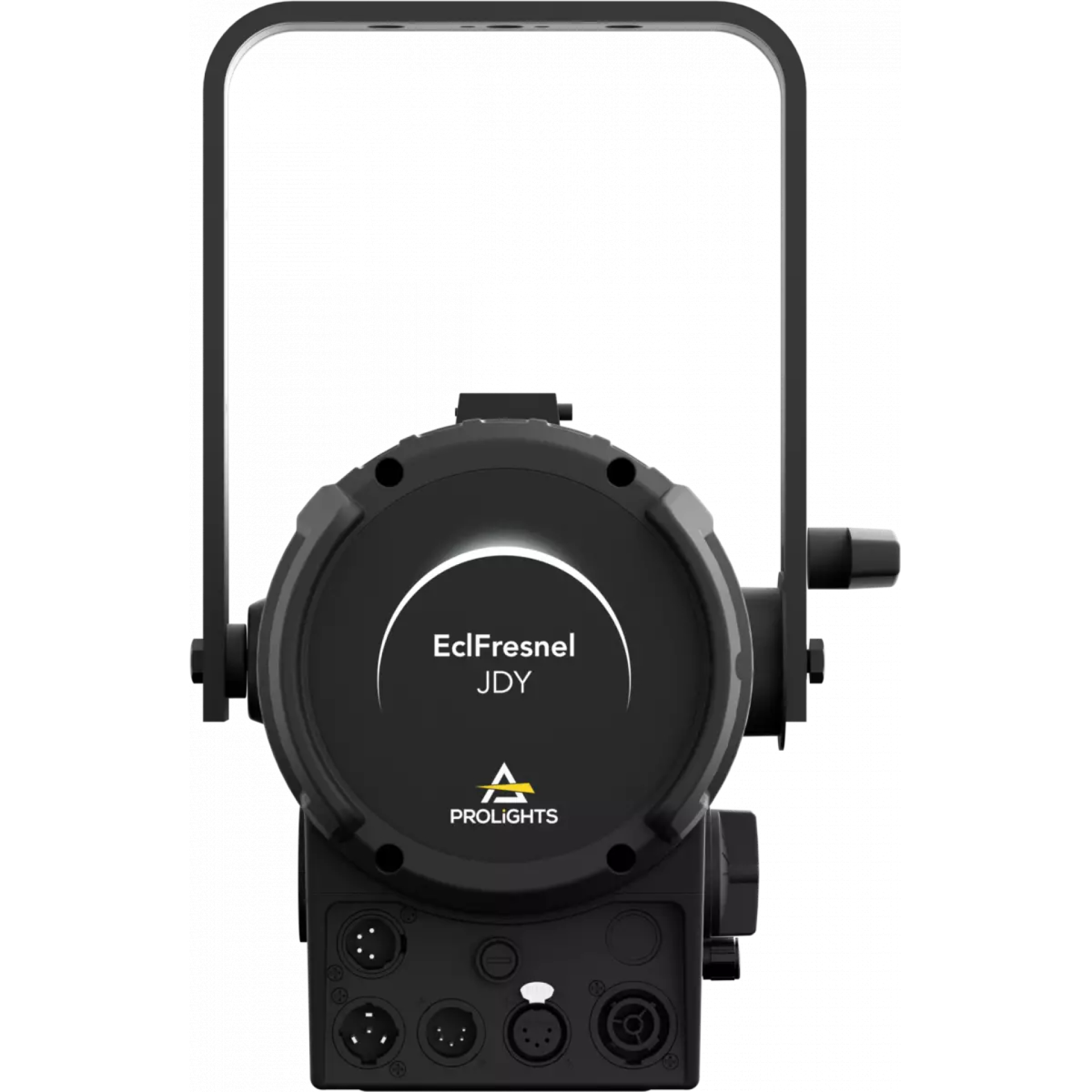

PROLIGHTS EclFresnel Jr DY
EclFresnel JrDY
  • Colour Temperature: 5,600K
  • Beam angle: 16° to 57°
  • Pole Op version available (PROECLIPSEFRESNELJPDY)

Enquiry Form

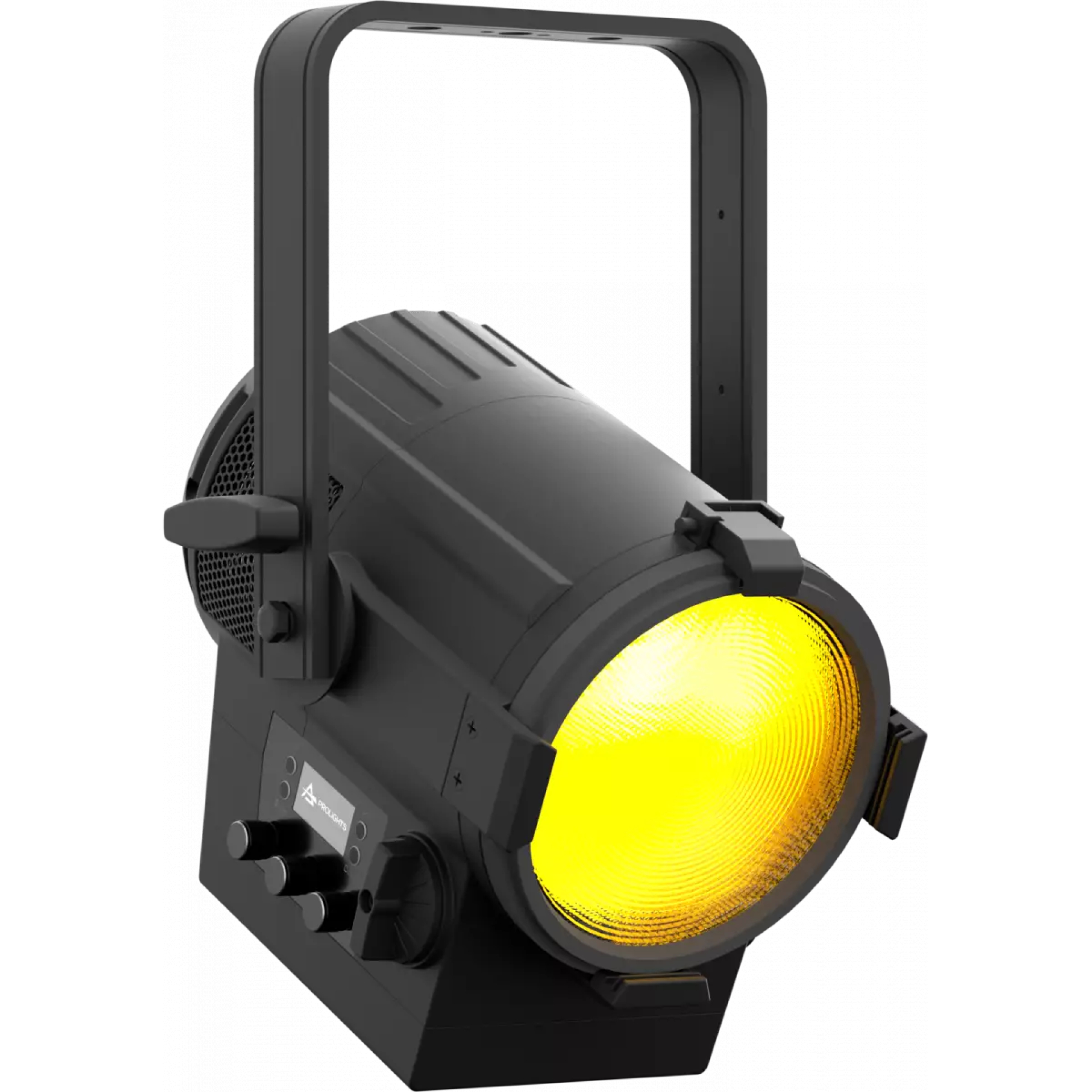

PROLIGHTS EclFresnel Jr TW
EclFresnel JrTW
  • 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • Beam angle: 15.5° to 55°
  • Pole Op version available (PROECLIPSEFRESNELJPTW)

Enquiry Form

  • Source (TU & DY): 70W high-power white LED

    Source (TW): 130W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)

    CCT: (TU) 3,000K; (DY) 5,600K; (TW) 2,800K – 10,000K

    Luminous flux: (TU) (16°) 2,859 lm; (57°) 4,631 lm @ full

    Luminous flux: (DY) (16°) 3,656 lm ; (57°) 5,911 lm @ full

    Luminous flux (TW): (15.5°) 1,610 lm; (55°) 2’952 lm @ full

    Lux (TU): (16°) 1,293 lx; (57°) 205 lx @ 5m full

    Lux (DY): (16°) 1,624 lx; (57°) 254 lx @ 5m full

    Lux (TW): (15.5°) 709 lx; (55°) 145lx @ 5m full

    CRI: (TU) >97; (DY) >90; (TW) 91 @ 3,200K; 92 @ 5,600K

    Source life expectancy: > 50,000 hr

    Zoom: 16° – 57° half peak angle (TU & DY)

    Zoom: 15.5° – 55° half peak angle (TW)

    Lens diameter: 150mm

    Lens type: Fresnel zoom lens

  • Colour mixing: tunable white + colour (TW)

    CCT: CCT control, + / – green correction, tungsten emulation (TW)

    White presets: 2,800K – 10,000K (TW)

    Colour wheel: virtual colour wheel with macros (TW)

    Macros: several pre-built macros with adjustable speed (TW)

    Static mode: selection of static colour

    Manual mode: manual adjust of dimmer through menu and knob (TU & DY)

    Manual mode: manual adjustment of intensity, CT, colour correction from knob (TW)

    Auto mode: built-in programs with execution speed adjustment

    Special features: linear crossfade channel from any white to any colour; virtual CTO on colours (TW)

  • Protocols: DMX512, RDM, rotatory knob

    DMX channels: 1 / 2-1 / 2-2 / 3 / 5 channel

    DMX channels: 1 / 2 / 5-1 / 5-2 / 7 / 9 / 12 / 13 / 16 / 19 / 21 channel

    RDM: RDM ready for remote monitoring and settings

    Display: graphic user interface

    Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included

    Other: 16bit control of dimmer and colour

EclFresnel Jr Range - Variant Downloads
