PixLite R4D-S long range pixel receiver
PixLite R4D-S long range pixel receiver
PixLite R4D-S long range pixel receiver
PixLite R4D-S long range pixel receiver
PixLite R4D-S long range pixel receiver
PixLite R4D-S long range pixel receiver

PixLite R4D-S long range pixel receiver

Key Features:

  • Industrial grade fault protection
  • Receives data up to 300+m from PixLite T8-S
  • Din-rail and wall mountable
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

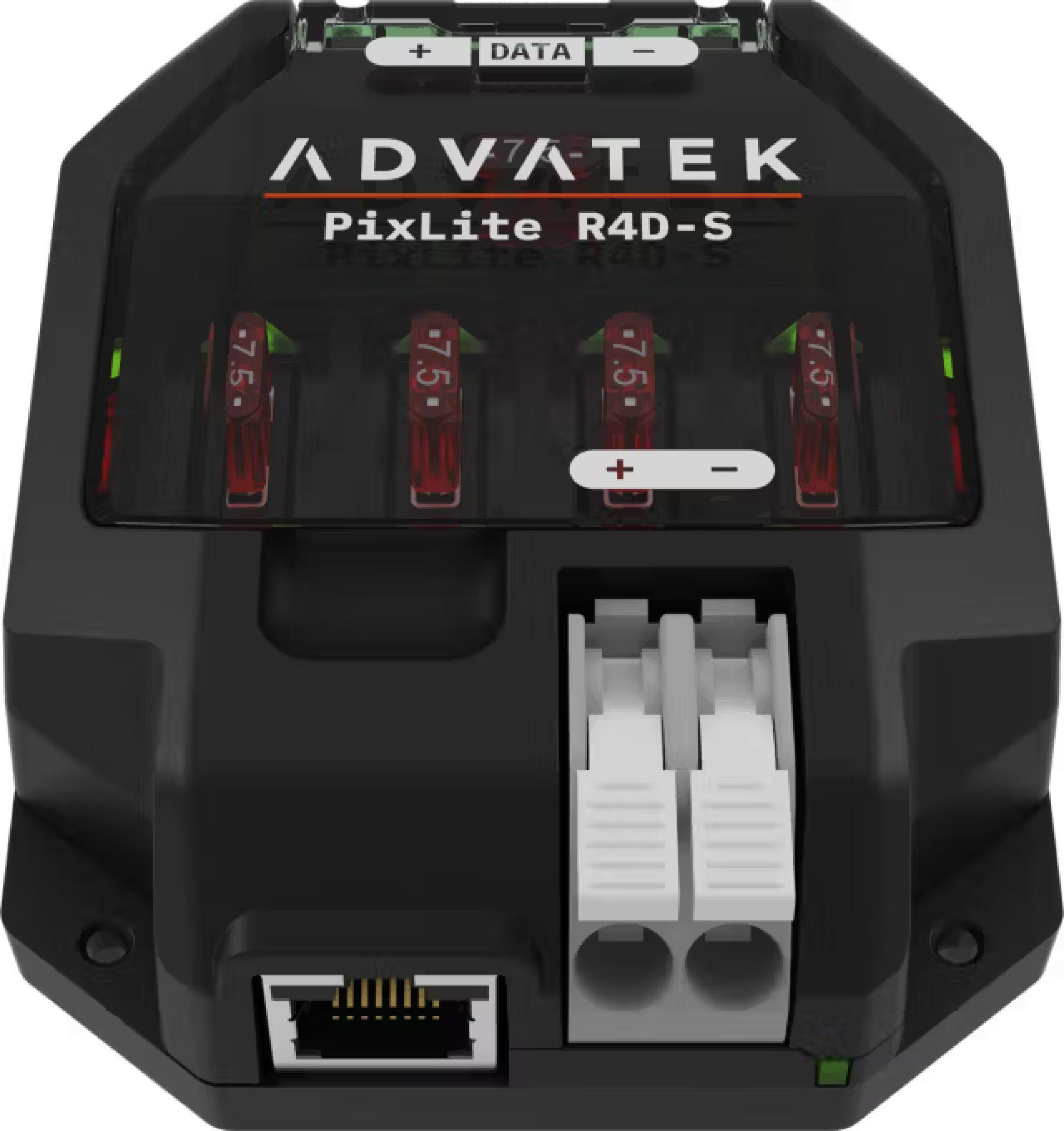

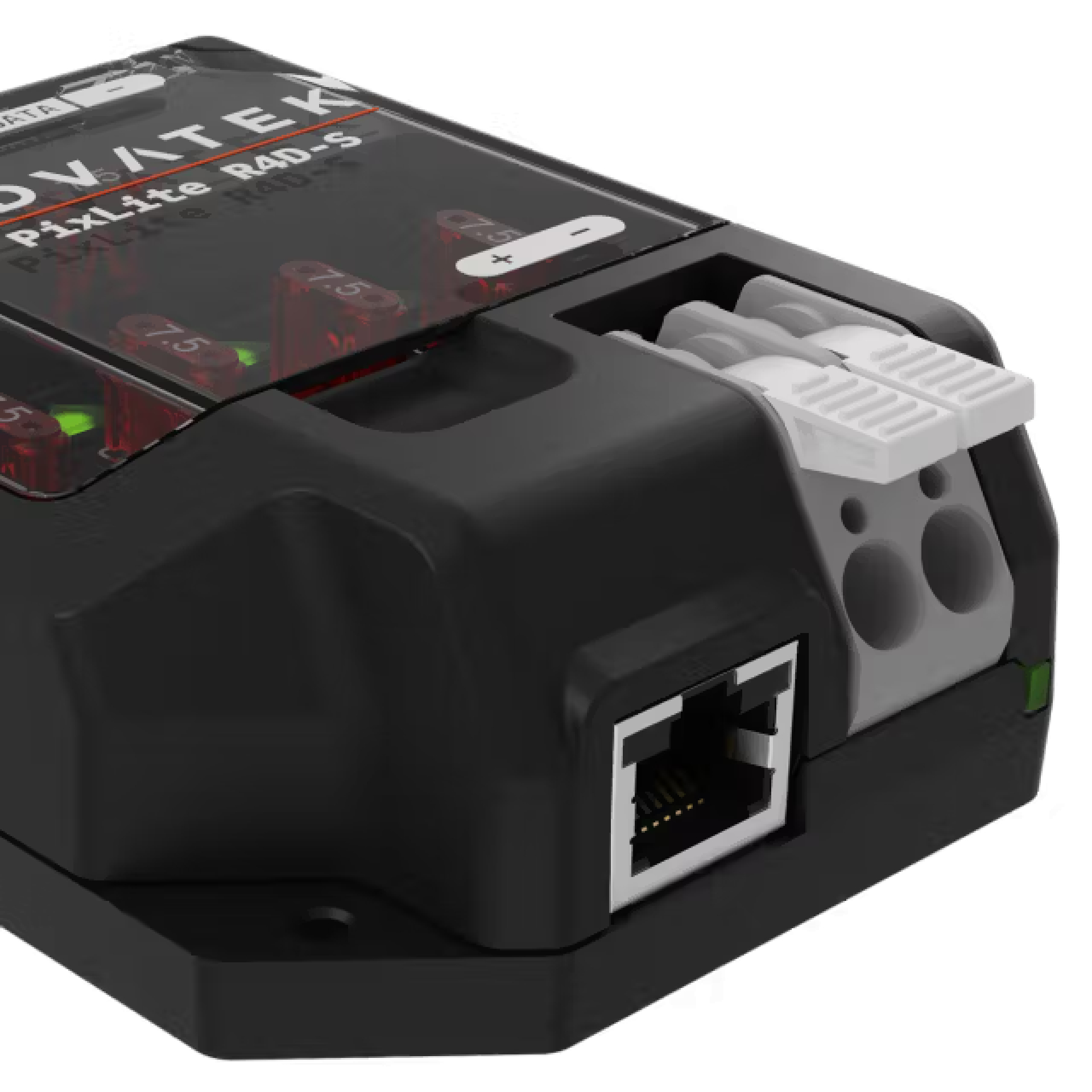

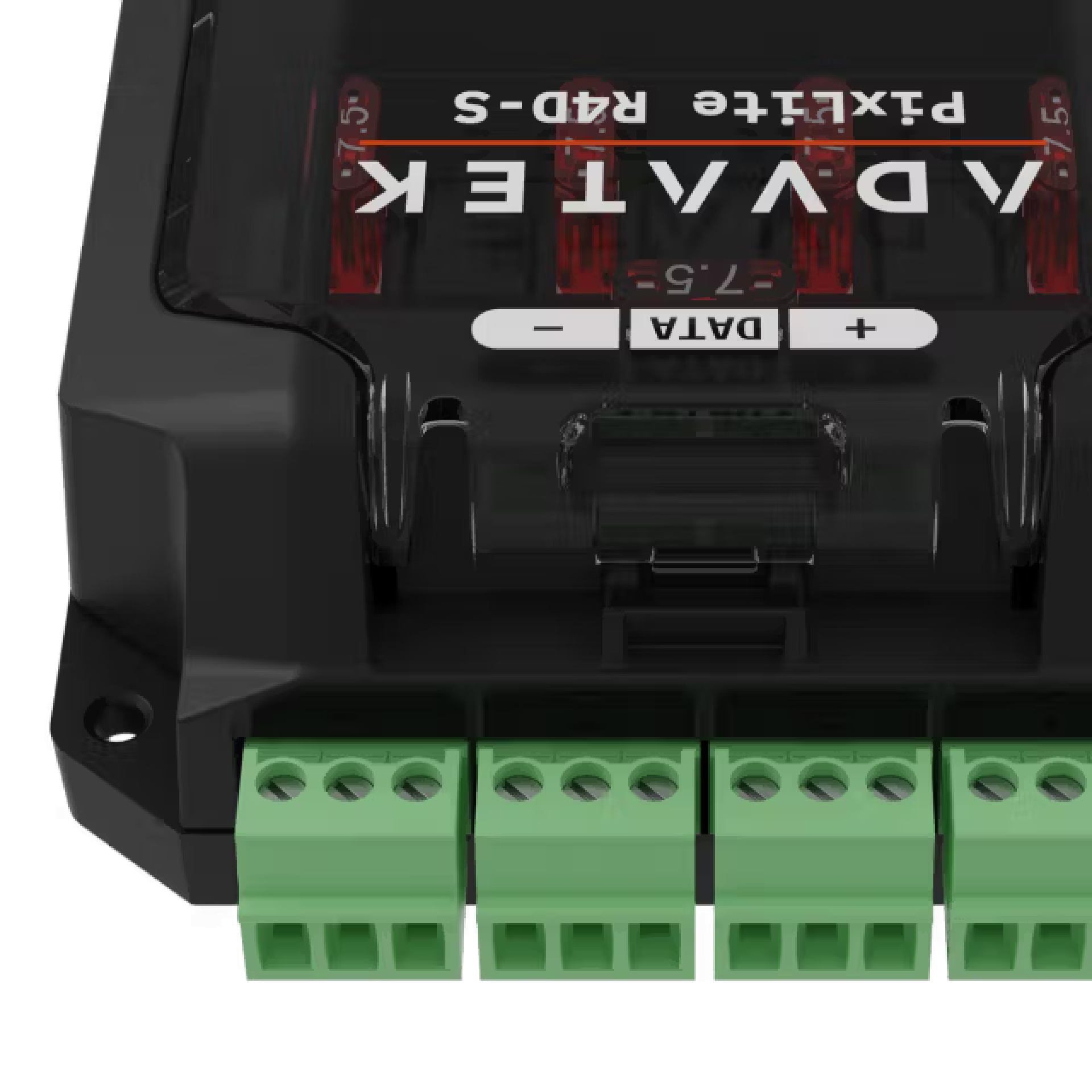

PixLite R4D-S long range pixel receiver

Designed to bring sizable projects to life, this pixel control receiver works together with the T8-S Mk3 transmitter to drive up to 2,040 RGB pixels for larger-scale installations.

For professionals looking to make that ‘peace of mind’ purchase, it has to be the PixLite® R4D-S. This controller ensures that installing and running complex, long-distance displays is easy — every time.

When used in tandem with the PixLite® T8-S Mk3 controller, the PixLite® R4D-S serves as the receiver of differential pixel data, converting it into a pixel ready signal. A long-distance capability is all you need to open up a broad range of possibilities and make unforgettable displays possible.

The PixLite® R4D-S Receiver features industrial strength fault protection on all inputs and pixel outputs, making it far less prone to failure over time. While short circuit and ESD protection, as well as protection against common DC voltage levels, provides safety for commercial and industrial installations.

Each output also includes a 7.5A mini blade fuse which helps protect the LEDs and power supply, keeping the installation safe. A built-in spare fuse ensures there is always a quick replacement on hand.

  • Sleek design with flip lid access to all fuses

    Compact form factor

PixLite R4D-S long range pixel receiver - Downloads
Download
