Astra Beam120IP

Astra Beam120IP

PROASTRABEAM120IP

Key Features:

  • IP65 Beam moving light equipped with a 120W white Laser source
  • 0.6° beam angle for long throw applications
  • 360° X&Y, CMY, 1x color wheel, 13 rotating and 29 fix gobos, 4 prisms, 2 frost
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Astra Beam120IP

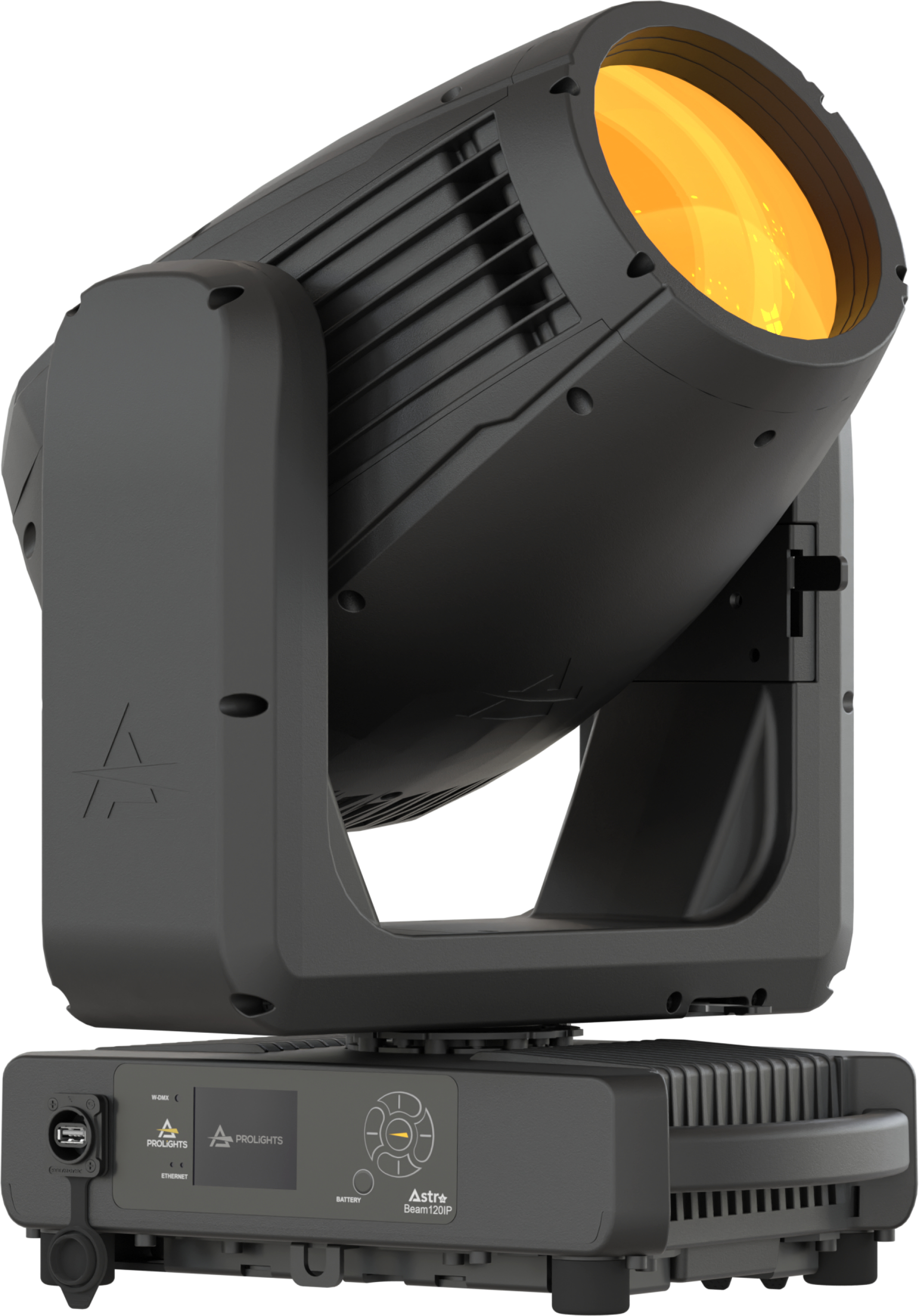

Astra Beam120IP stands as a formidable IP-rated pure beam moving head, leveraging a 120W phosphor laser source to cast intense white light.

Designed for both indoor and outdoor large stage applications, its power and versatility are unmatched.

This moving head's advanced phosphor laser source, characterized by a notably small light-emitting surface, works in tandem with a custom-engineered optical system. The result is a striking 0.6° fat, parallel beam that excels in long throw aerial effects, offering unparalleled intensity and contrast.

The Astra Beam120IP is not just about raw power; it's a hub of creative potential. Its comprehensive feature set enables limitless colour possibilities and visual effects. This includes linear CMY colour mixing, a colour wheel, one rotating gobo wheel, one static gobo wheels and one animation wheel. The unit also boasts four prisms, dual frost filters, and infinite Pan & Tilt rotation, further expanding its capacity for effect possibilities.

  • Source: 120W Phosphor Laser source

    CCT: 7'000K

    Lux: 204'167lx @15 m full

    Source life expectancy: > 12.000 h

    Beam angle: 0,6°

    Lens diameter: 143mm / 5.63''

    Lens type: HD anti-reflection lenses with achromatic coating

    Focus: motorised

  • Colour mixing: linear CMY

    Colour wheel: open + 24 colour filters

    Control resolution: 16-bit dimmer

    Animation wheel: animation wheel with CW and CCW rotation

    Rotating gobos: 13 rotating gobos + open, interchangeable, indexing

    Gobo size: outer: 8,4 mm - image: 4 mm - thickness: 0,3 mm

    Fixed gobos: 29 fixed gobos + open

    FX generator: prisms overlap for spectacular aerial effects

    Circular prism: (prism wheel 1) 16f and 6f (prism wheel 2) 8f with bi-directional rotation, indexing, interchangeable

    Linear prism: (prism wheel 1) 6f (prism wheel 2) 4f and 6f with bi-directional rotation, indexing, interchangeable

    Rotating prism wheel: 2 indipendent wheels with 3 prisms each

    Frost: dual frost filter, soft-edge and heavy

  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX

    Protocols: DMX512, RDM, ArtNet, sACN, CRMX

    DMX channels: 32channel

    Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: LCD high resolution colour display with autoflip

    Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included) or via USB pen drive

    EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
