D244N Variable Friction Arm
Avenger D244N Variable Friction Arm - Spigot 1
Avenger D244N Variable Friction Arm - Spigot 2
Avenger D244N Variable Friction Arm - closed
Avenger D244N Variable Friction Arm - right view
Avenger D244N Variable Friction Arm - T Knob
Avenger D244N Variable Friction Arm - Spigot 2
Avenger D244N Variable Friction Arm - closed
Avenger D244N Variable Friction Arm - right view
Avenger D244N Variable Friction Arm - T Knob

D244N Variable Friction Arm

MA244N

Key Features:

  • Articulated 53cm/20.87'' arm w/large T-Knob to lock all 3 points
  • Load capacity: 3kg/ 6.6 lbs
  • 16mm / 5/8'' stud on each end with female threaded receivers
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

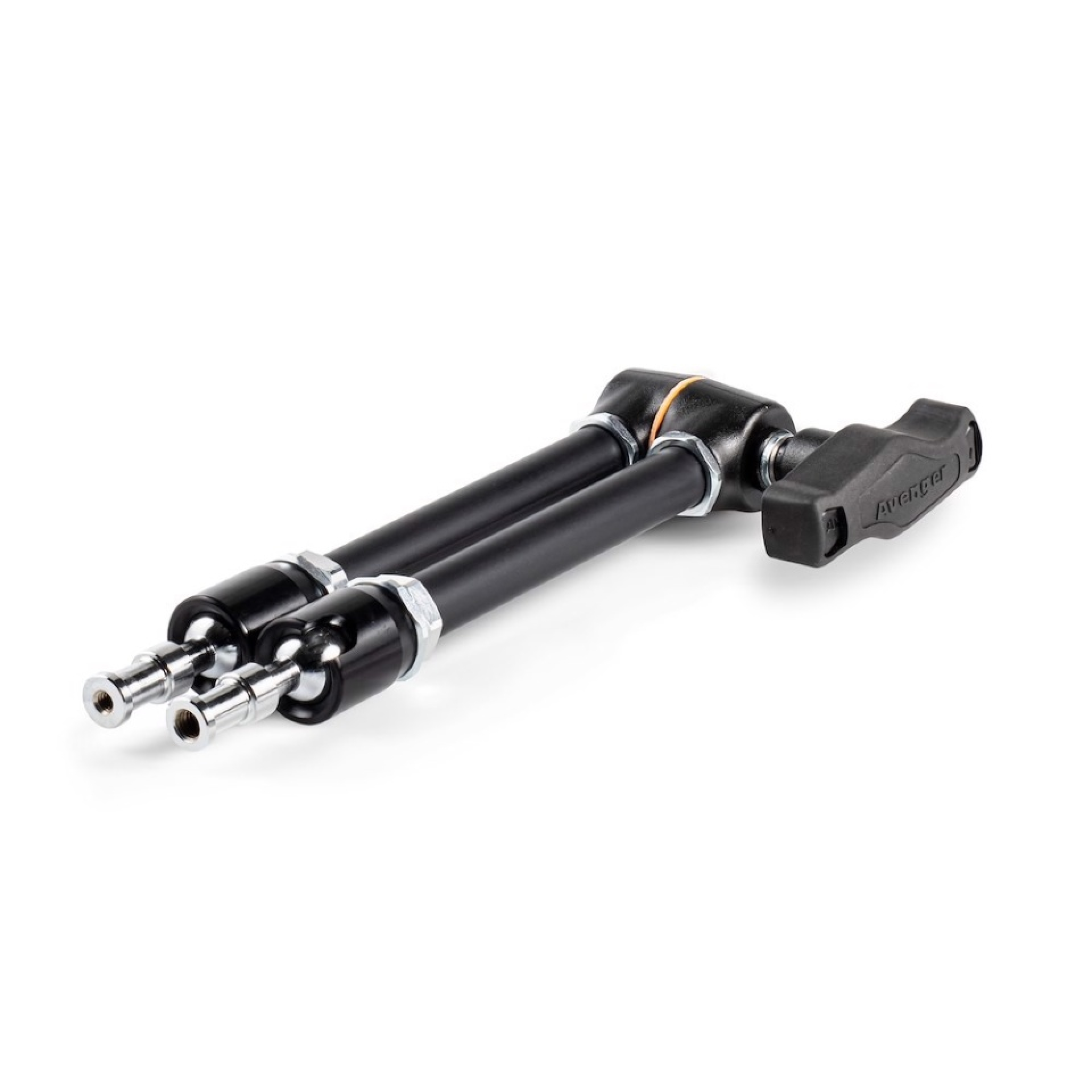

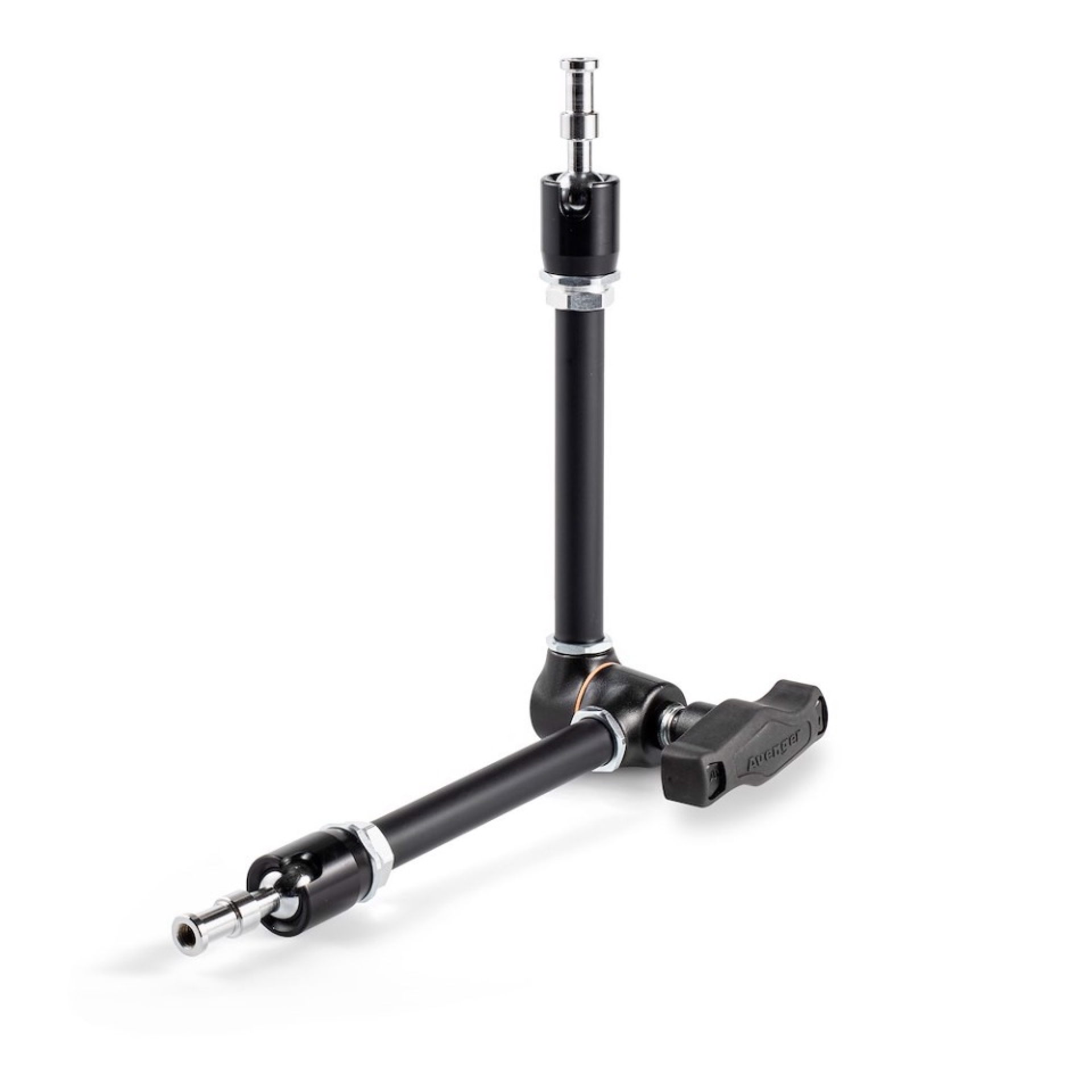

D244N Variable Friction Arm


Friction Arm with T-Knob Black, Dual 16mm / 5/8in Spigots

The Avenger D244N Variable Friction Arm with large locking T-Knob is one of the most popular arms made by Avenger. Often called a Magic Arm™ the D244N is used for lights, camera and audio applications and is the industry standard for most remote rigging applications.

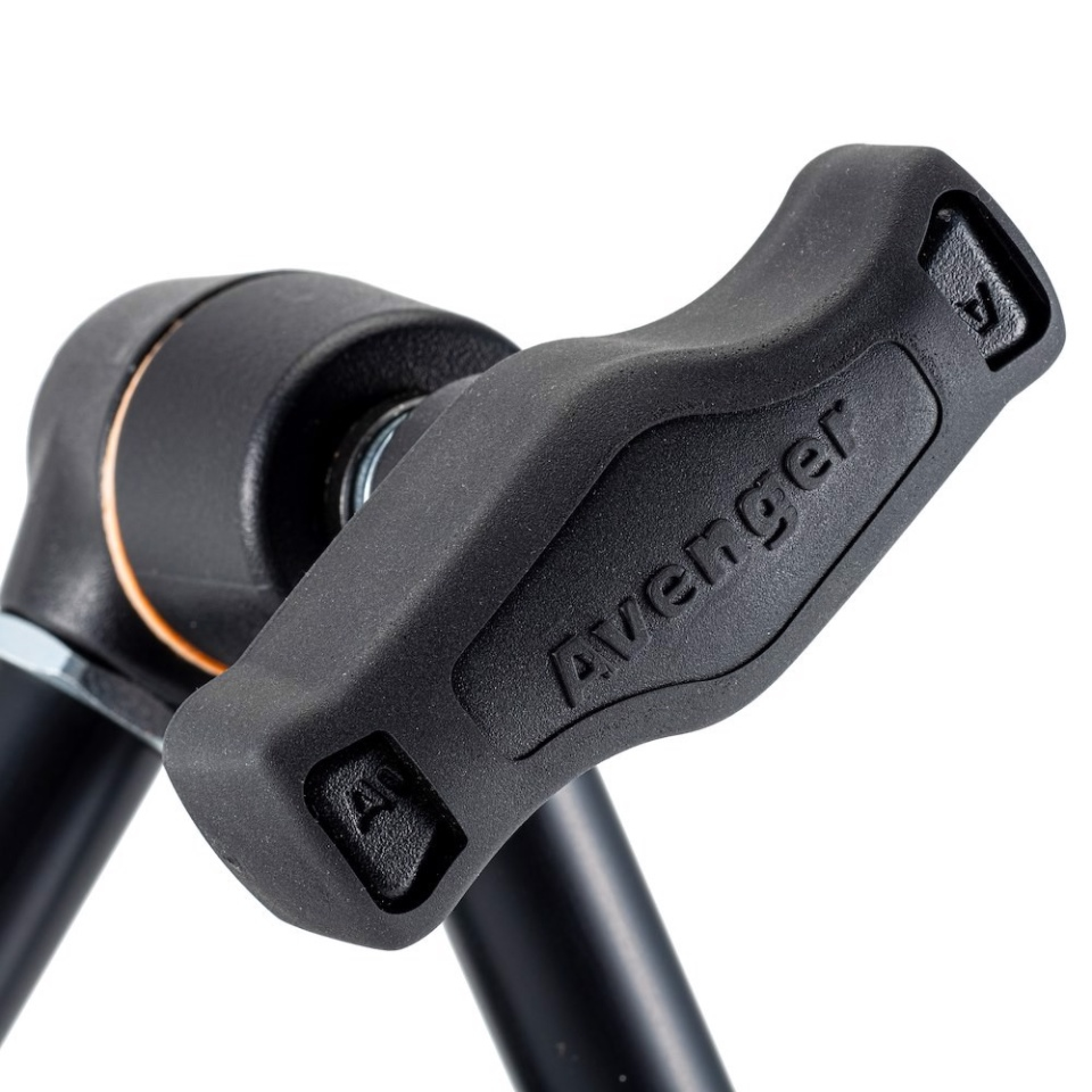

The D244N Variable Friction Arm uses a central friction locking handle to lock all 3 points of the arm in place. The length of the arm is 53cm/20.87 inch and is capable of holding loads up to 3kg/6.6lb. Typically the D244N arm is mounted on to a Super Clamp™ or a gravity cast Super Clamp™ but you can also mount it to light stands and other accessories such as wall plates by using the baby 16 mm/ 5/8 inch pin on either end of the arm.

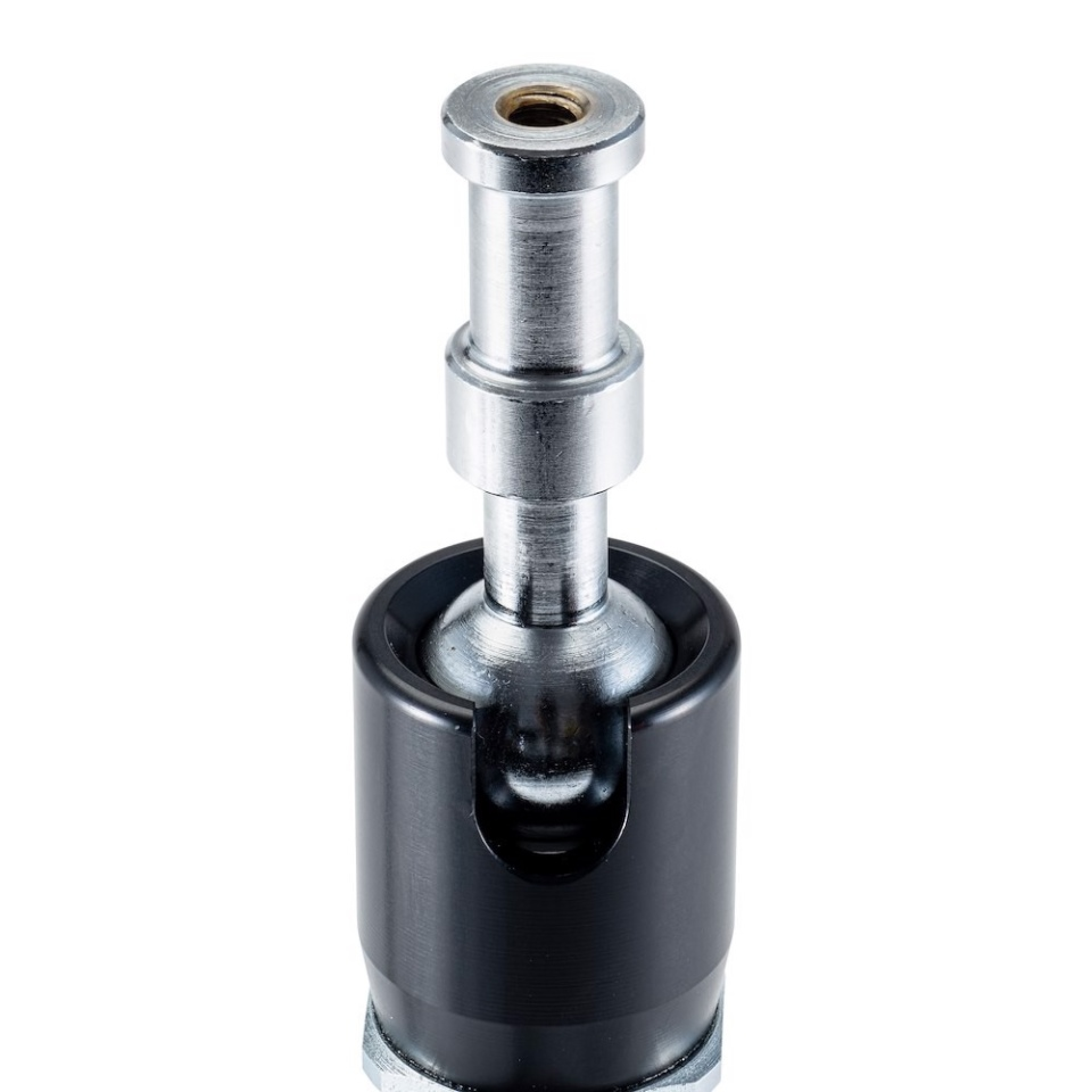

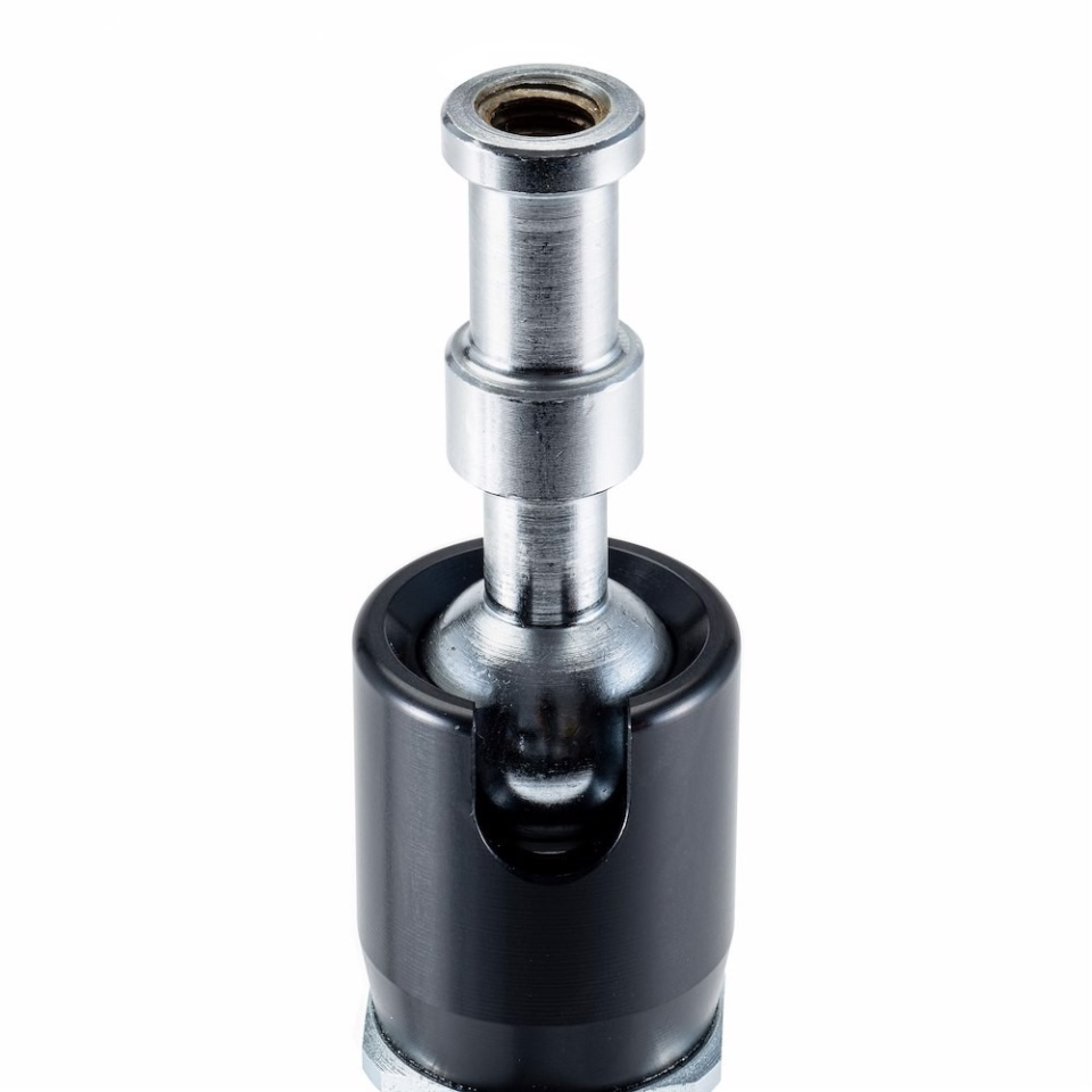

The baby pins on each end of the arms also have a 9.53mm / 3/8 inch thread receiver or a 6.35mm / 1/4 inch threaded receiver.

Recommended Accessories: C1575B, C1550, 125, 147, C155, FF3276, 014-14, 014-38, F301, F831TH

  • Weight: 1.056kg

    Payload: 3kg

    Arm Length: 53cm
