C345BK Black Barrel Clamp

MAC345BK

Key Features:

Made from gravity cast aluminium in black finish

Jaws clamp down on pipes ranging from 42-52mm / 1.65-2.04''

Includes safety cable with pin to secure junior pins in socket

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

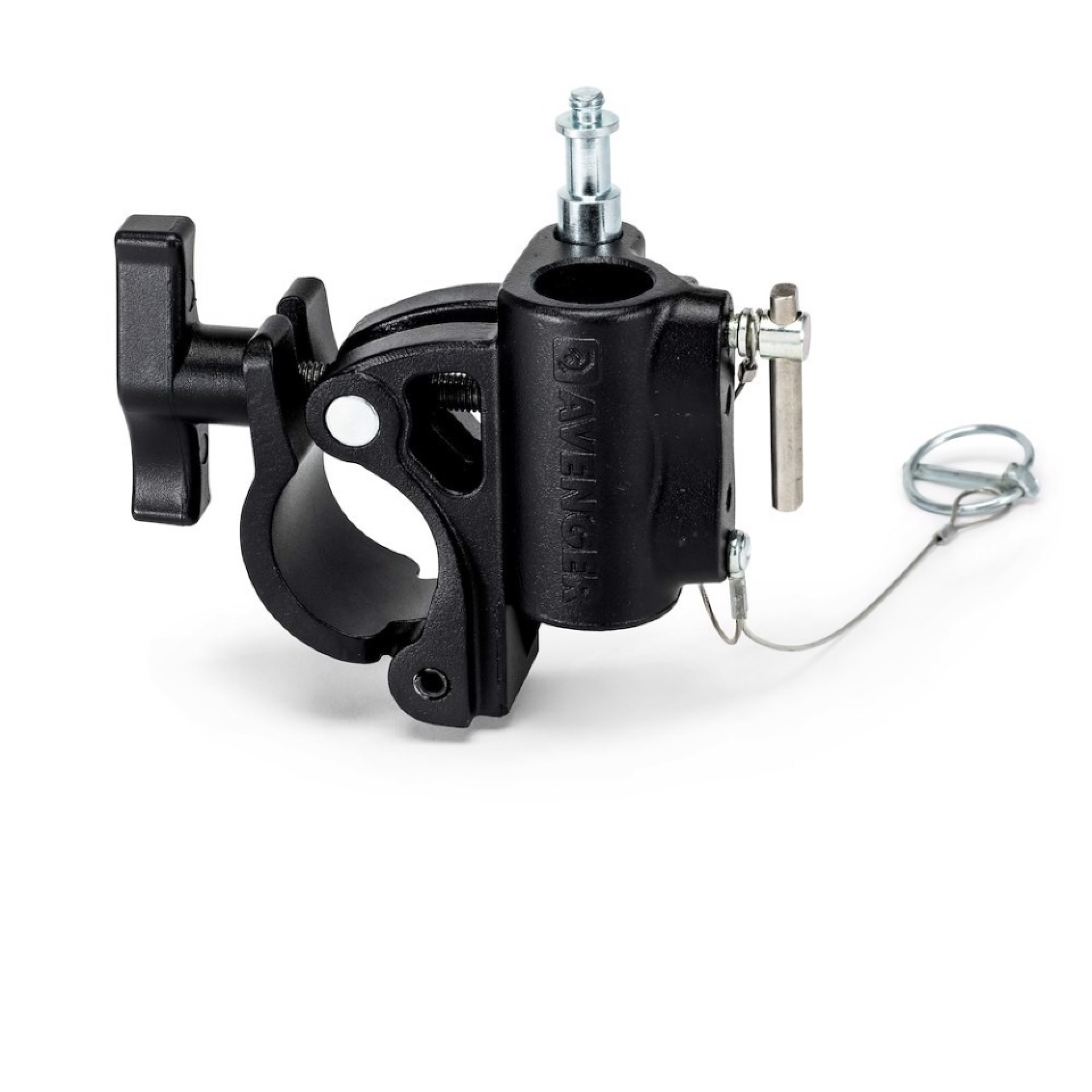

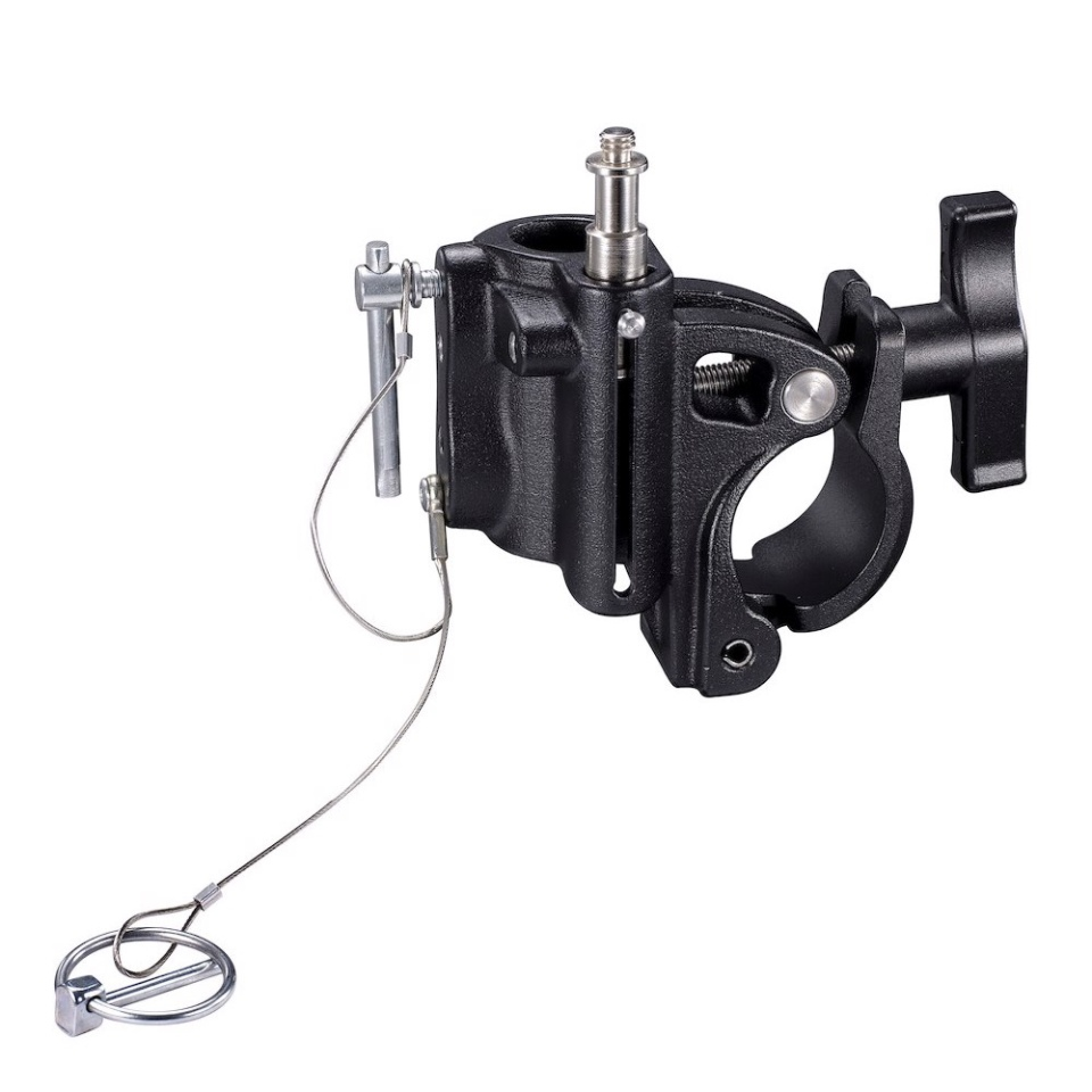

C345BK Black Barrel Clamp

Barrel Clamp, Black with T-Knob 42-52mm/1.65-2.04'' Ø

The Avenger C345BK Barrel Clamp in black is made with gravity cast aluminium, has a built in 28mm / 1 1/8 inch junior receiver, a 16mm / 5/8 inch baby pin with a 1/4'' threaded top and a16 mm / 5/8 inch receiver.

This barrel clamp is capable of mounting pipes or tubes ranging from 42 - 52mm / 1.65 - 2.05 inch and easily locks into place using a T-Knob.

The baby attachment can support loads up to 40kg / 88.2lb while the junior receiver can take capacities up to 300kg / 661.4lb.

The C345-1 includes a safety cable with locking pin to secure attachments that are mounted in the junior receiver.

Recommended Accessories: C155, C155-01, C155-02 E200, FF3276, A2029, C590, C626, C590

Weight: 0.95kg

Attachment 01: 1 1/8" (28mm) socket - Payload 300kg, 5/8" (16mm) socket - Payload 40kg, 5/8" (16mm) stud - Payload 40kg

Length: 3cm

Clamp Range - Max. (Round Tube): 52mm
