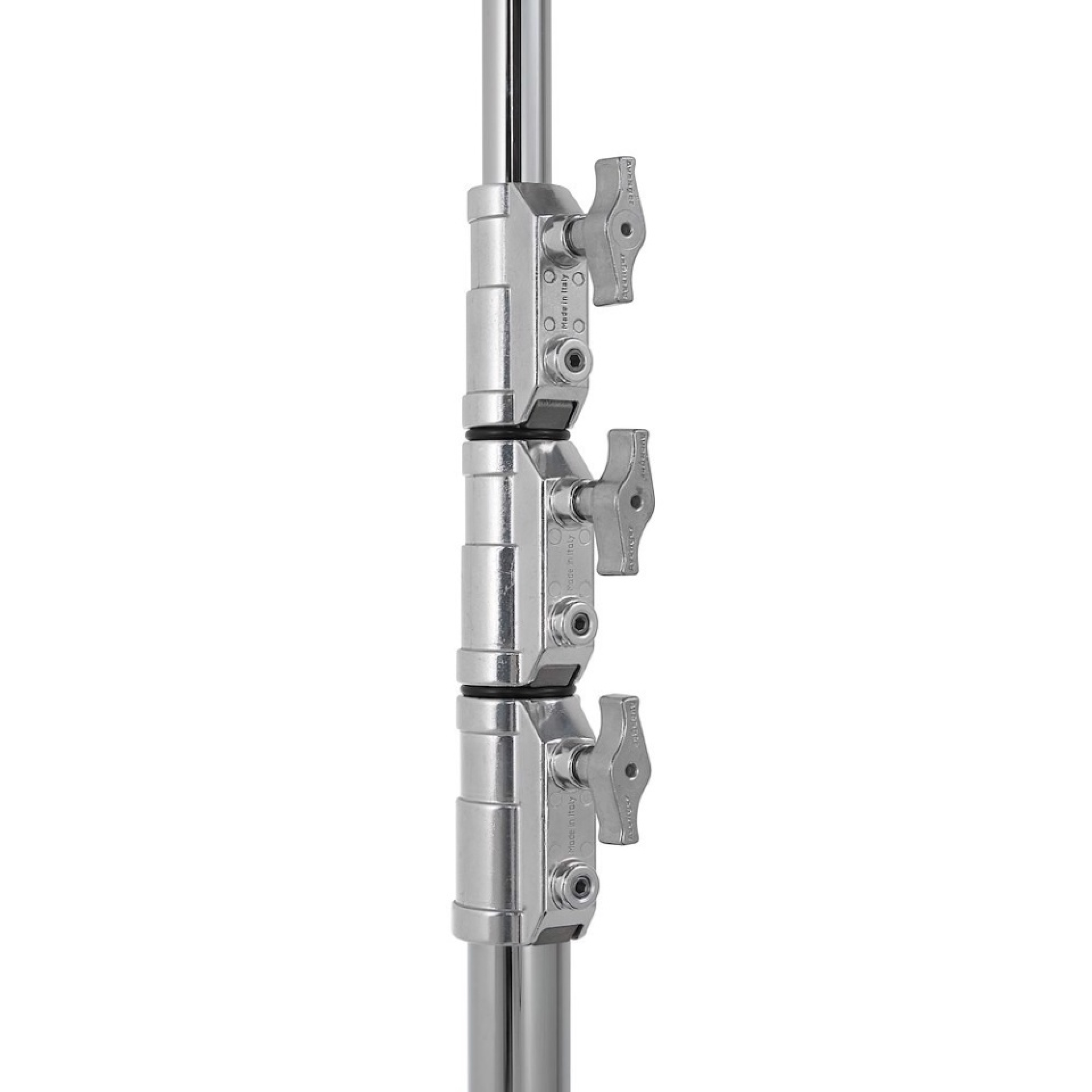

Avenger A3056CS Overhead Stand - sections locked
Avenger A3056CS Overhead Stand - mount
Avenger A3056CS Overhead Stand - sections unlocked
Avenger A3056CS Overhead Stand - base detail
Avenger A3056CS Overhead Stand - closed
Avenger A3056CS Overhead Stand - foot detail
Avenger A3056CS Overhead Stand - sections locked
Avenger A3056CS Overhead Stand - mount
Avenger A3056CS Overhead Stand - sections unlocked
Avenger A3056CS Overhead Stand - base detail

A3056CS Overhead Stand

MAA3056CS

Key Features:

  • Wide base with 2 levelling legs without wheels
  • Mobile column with double locking T-knobs on the spider castings
  • 4 sections, 3 risers. Ø: 45, 40, 35, 30mm. Leg Ø: 25 x 25mm
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

A3056CS Overhead Stand


Overhead Steel 56 CS Large Wide Base 3R 560cm/18.3'

Avenger overhead stands are built in chrome steel, incorporate a dual purpose head that has a 4 1/2 inch grip head and 28mm / 1 1/8 inch receiver. The style of these stands are nicknamed ''Mombo Combo''.

The Avenger A3056CS is a 4 section, 3 riser stand and is very popular in supporting overhead frames, Avenger fold away frames, butterflies and butterfly pipe kits. Capable of reaching a max height of 557cm / 219.3 inch, this stand is also capable of holding up to 40kg / 88.2lbs.

Braked wheels A9000N are not included with this stand and can be easily ordered and attached if needed. A wide base of 196cm / 77.2 inch and 1 levelling leg is standard on this overhead stand.

Recommended Accessories: H2012, H2008, H1200M, 087WBK, H2000M, E200, H9000, H2512, G200-1

  • Weight: 16.8kg

    Min Height: 199cm

    Maximum Height: 557cm

    Payload: 40kg

    Top Attachment: 1 1/8″ (28mm) socket, Grip Head size 115mm
