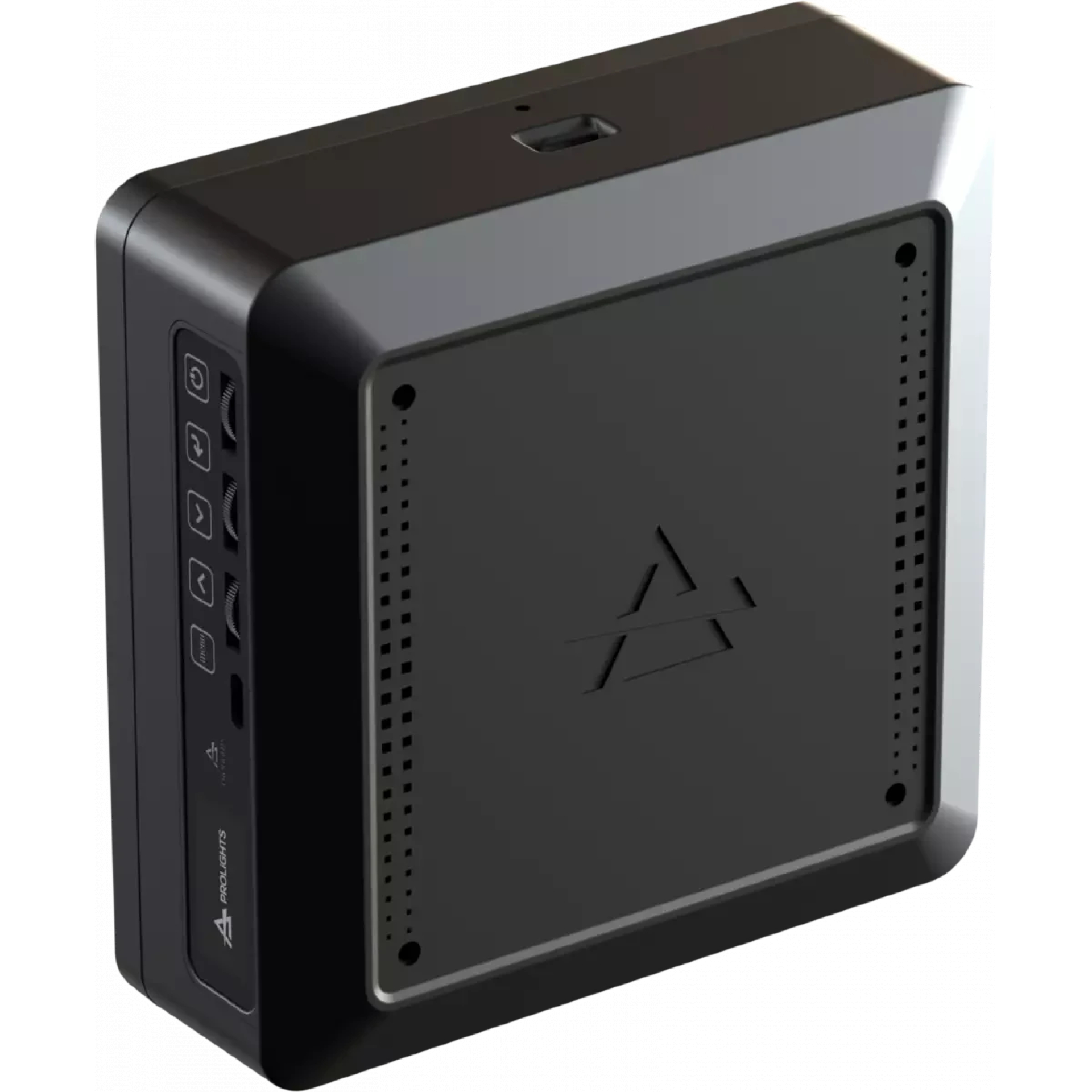

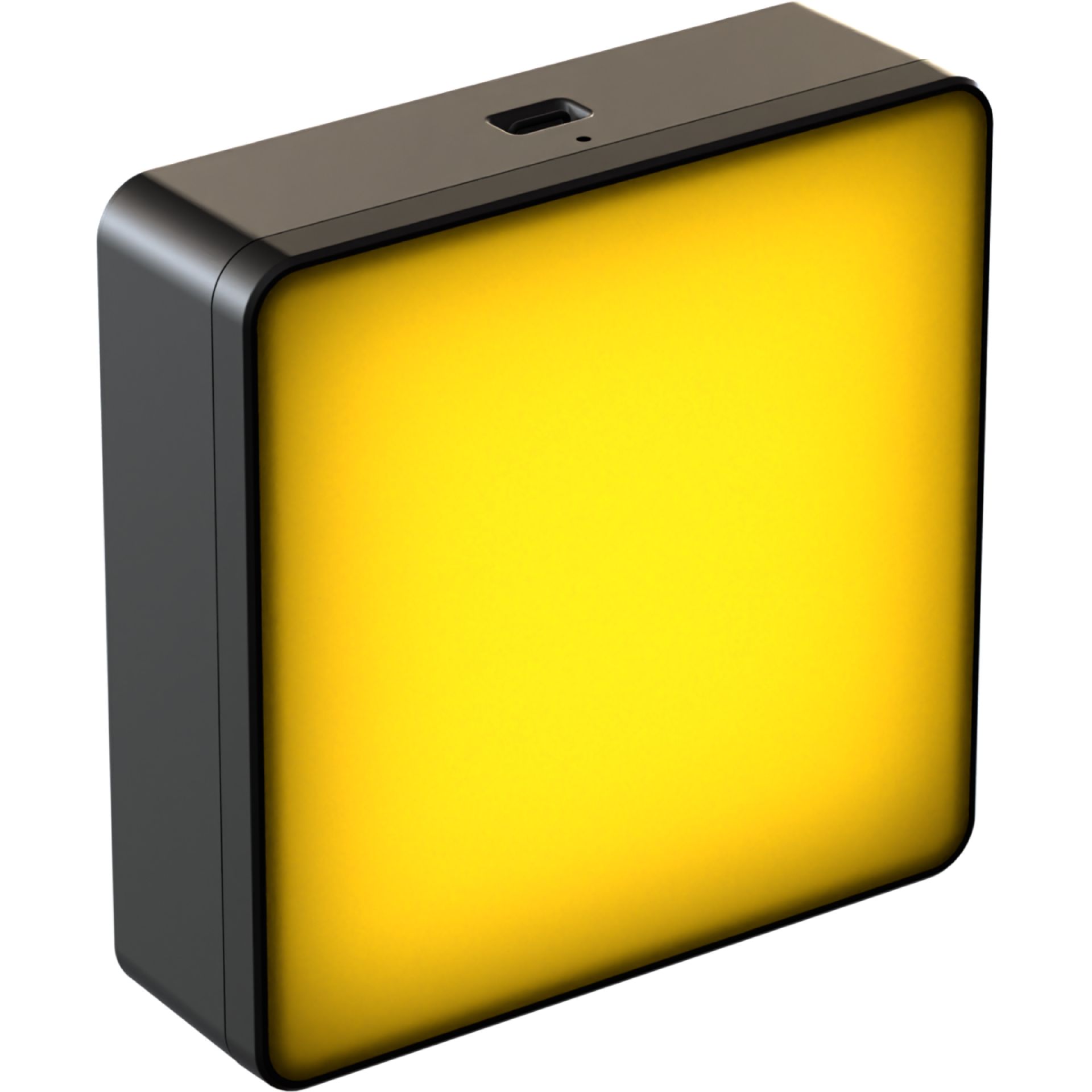

The PROLIGHTS EclNanoPanel TWC is the smallest member of the successful EclPanel range, containing all the outstanding features of the larger format soft lights in a compact-sized, battery-operated luminaire, with a surprisingly powerful 1,800 lumen output.
PROECLNPTWCPACK
Compact-sized soft light, with wireless control (CRMX and W-DMX) and battery-powered.
This compact-sized fixture has the same colour technology as the other soft lights, producing rich colours, high-quality white tones, colour gel matching, and on-board pixel cinema effects.
The EclNanoPanel TWC has 3 precision encoders, with multiple Stand Alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.
Each of the 4 sections is controlled individually or simultaneously, allowing you to play customizable, cinematic effects on-board through its built-in engine or from a console.
EclNanoPanel brings ultimate colour control: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, Source emulation and industry-standard Colour gels.
There are multiple, magnetized beam-shaping optical accessories available, including barn doors, diffusers, etc, and on-board threads for easy mounting on stands or camera rigs.
The fixture is controlled from its on-board user interface, or via the built-in Wireless DMX/RDM transceiver (CRMX and W-DMX).

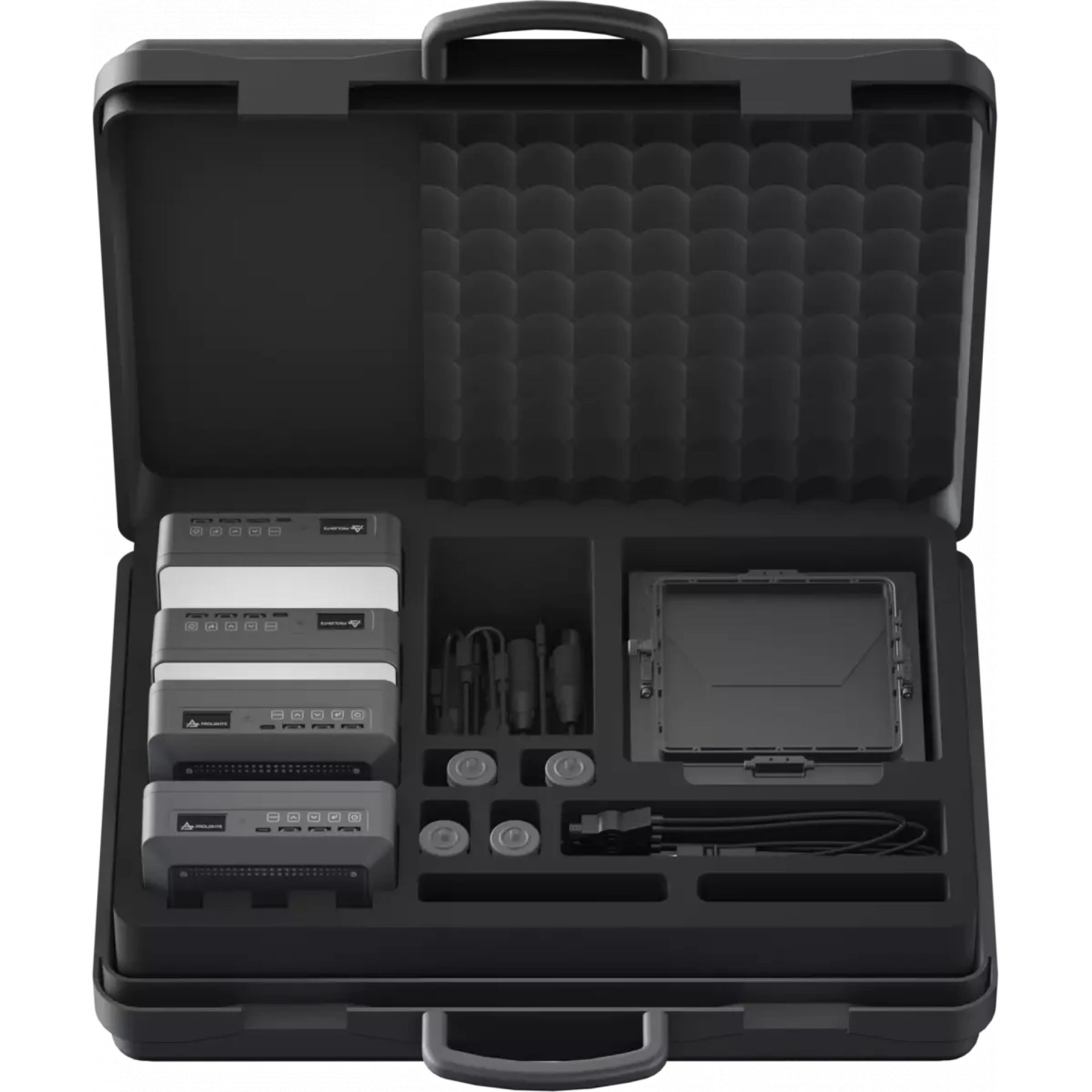

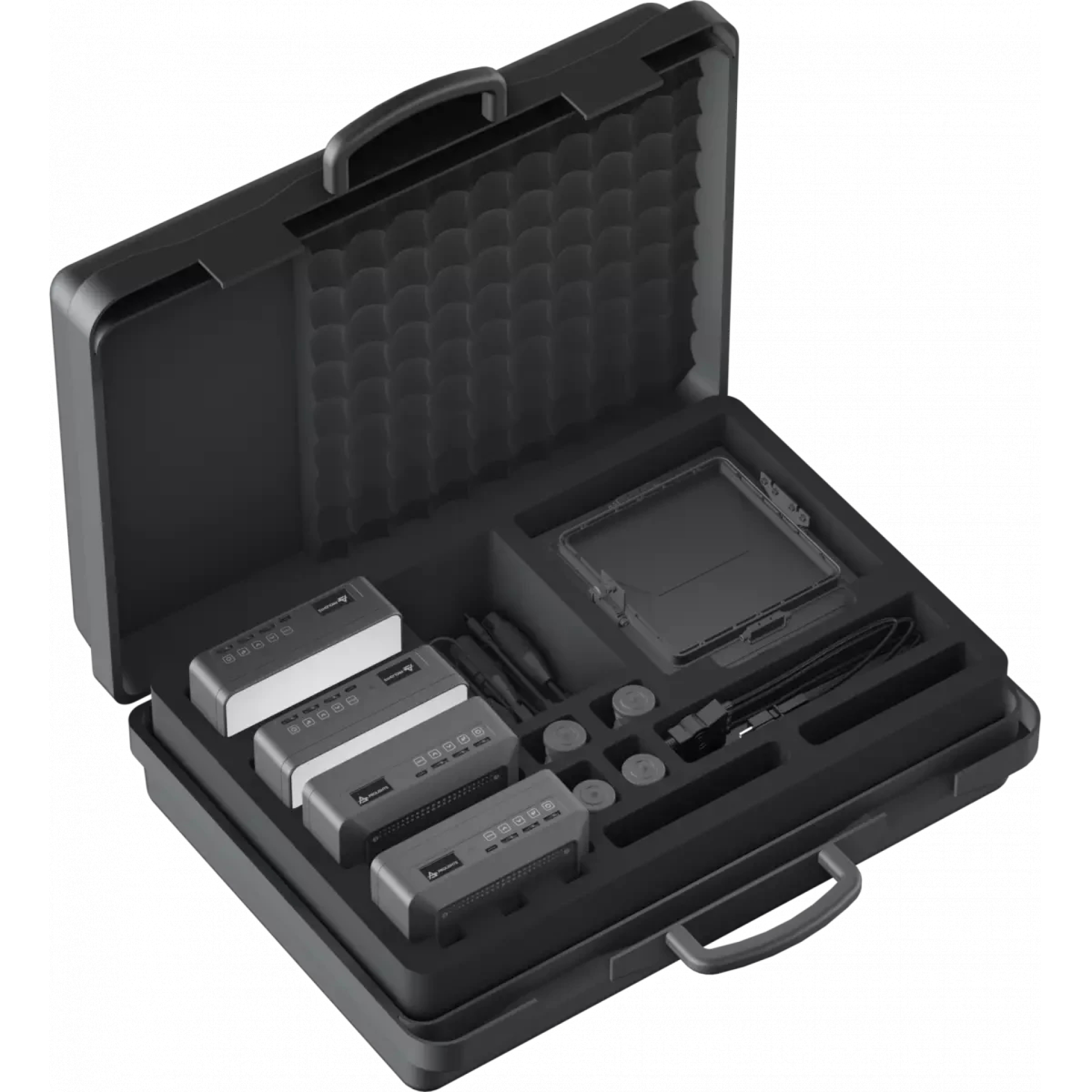

The pack includes:

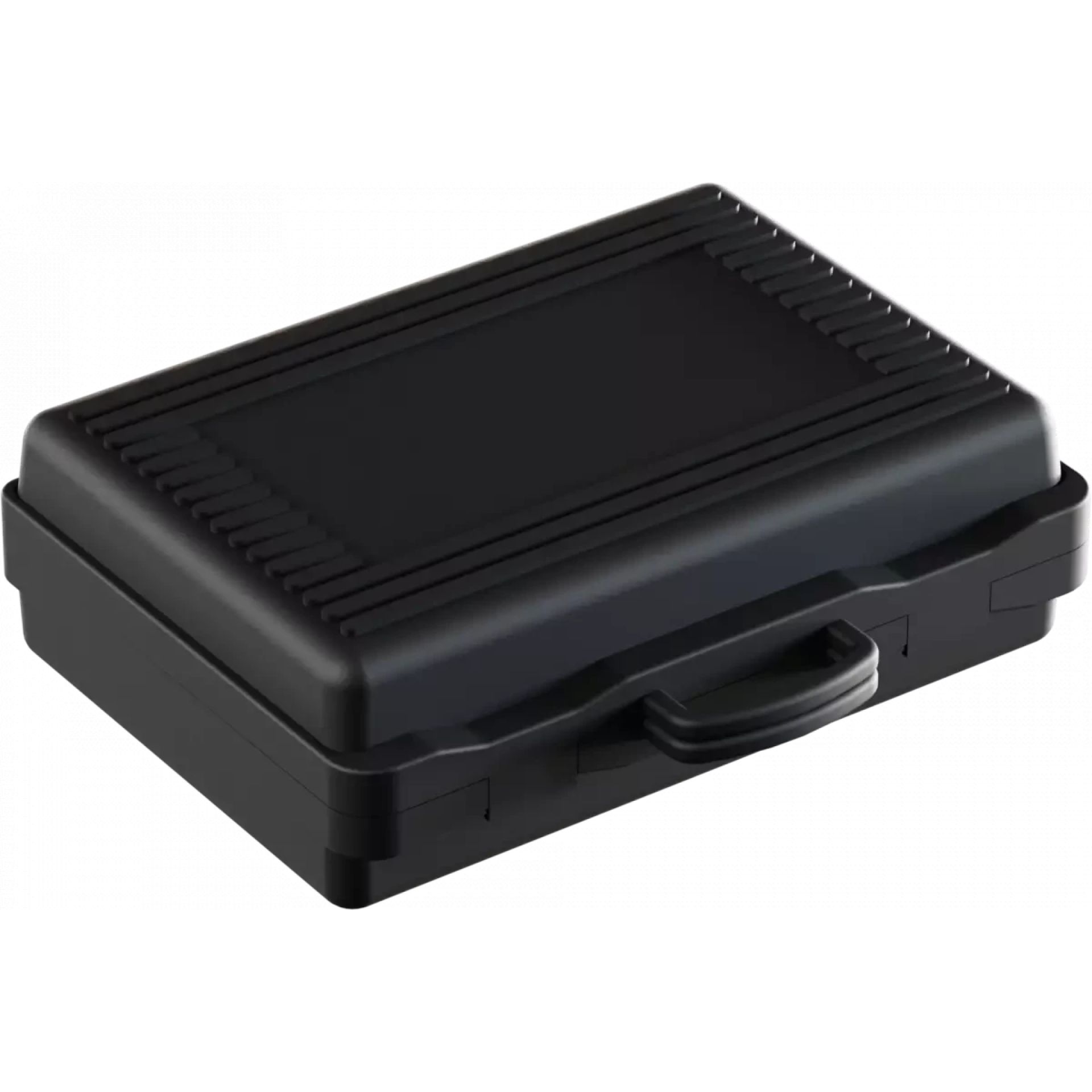

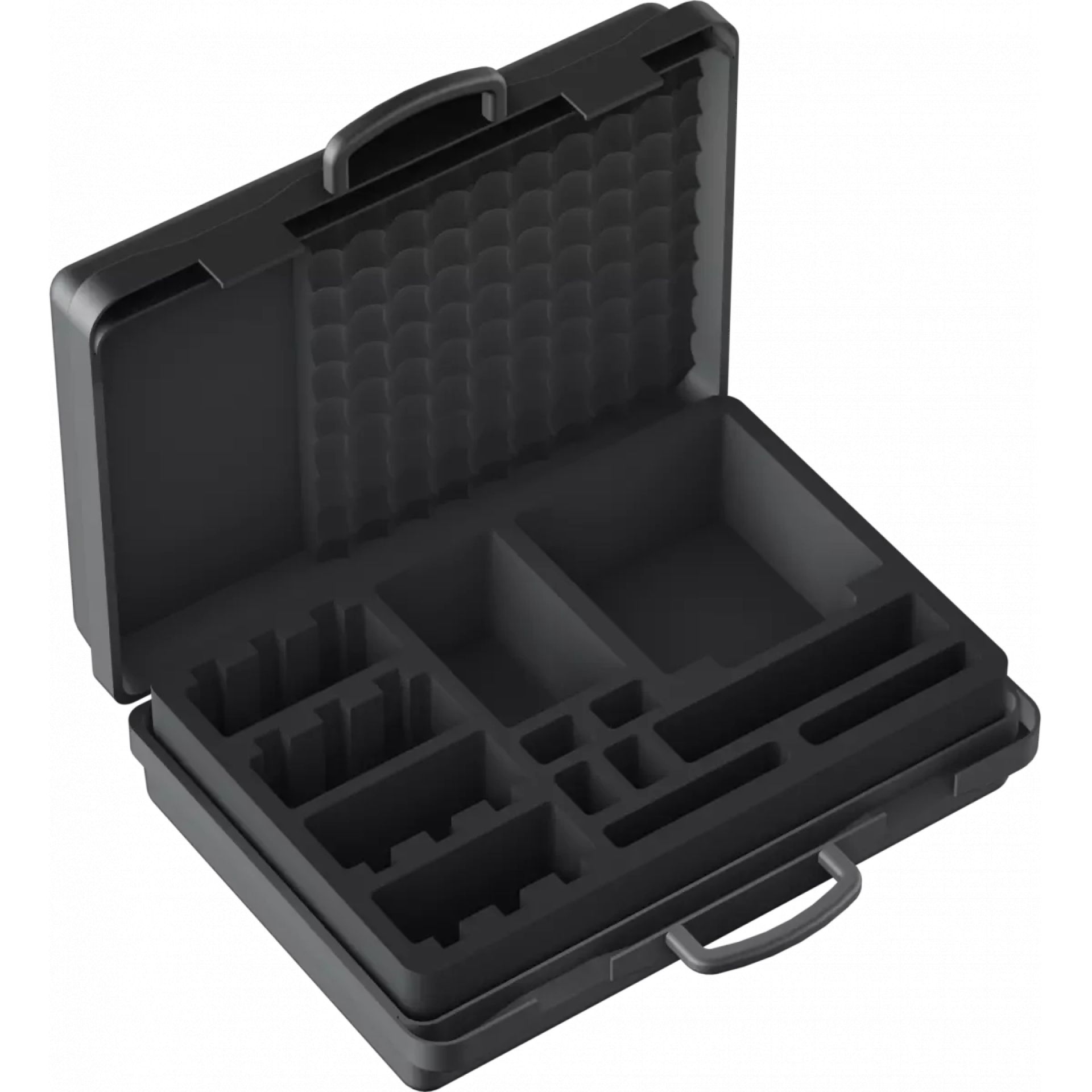

1 x ABS case
4 x ECLNANOPANELTWC (includes: ENPTWCFILTERLD on-board)
1 x 4-way charger
4 x position articulated joint (ENPTWCPAJ)
4 x barndoors (ENPTWCBD)
4 x Y Cable from XLR 5P male, XLR 5P female and USB-C female to USB-C male (ENPTWCYCABLE)
1 x User Manual
Features
Compact-sized soft light, with wireless control (CRMX and W-DMX) and battery-powered
30W RGB + Warm White LED source, surprisingly powerful 1,800 lumen output.
Magnetized beam-shaping optical accessories are available
LIGHT SOURCE
Source: 30W RGB + Warm White
Luminous flux: 1'829 @3.200 K with LD filter
Lux: 690lx @1 m
CRI: 94,6 @3.200 K; 94,9 @5.600 K
R9: 97,1 @3.200 K; 96 @5.600 K
TLCI: 92 @5.600 K
TM30 Rf: 97,7 @3.200 K; 89,3 @5.600 K
TM30 Rg: 102,5 @3.200 K; 102,3 @5.600 K
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 105°
Field angle: 159°
Lens type: magnetic light density diffusion panel (interchangeable)
Additional optics: see available accessories
COLOUR SYSTEM
Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
Colour mixing: RGB + Warm White
CCT: CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
White presets: 2,800 K - 10,000K
Colour wheel: virtual colour wheel with macros
Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer, colours
Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
FX generator: 4 controllable sections
Static mode: selection of static colour
Manual mode: manual adjustment of intensity, CT, colour correction from knob
Auto mode: built-in programs with execution speed adjustment
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
Body: aluminium die-casting
Body colour: black
CONTROL
Protocols: CRMX+W-DMX, DMX512, RDM
Stand Alone: selectable mode through 3 rotatory knobs
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1+ENPTWCYCABLE) not included
IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: 0° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 36.000 Hz
ELECTRICAL
Max power consumption: 32 W
Mains power supply: DC 12V
Power factor: >0,97
BATTERY
Battery: 11.1V lithium
Estimated battery life: (selectable) 2 h - 6 h - 8 h - 12 h - 18h
Re-charge connection: USB type C
Re-charge time: 2,5h/max
Battery status: shown on display
PHYSICAL
IP rating: 20
Cooling: passive cooling and fan-free
Suspension and fixing: M5 and 1/4'' threaded insert for easy installation
Adaptors: USB type C to XLR connectors
Low Voltage DC connector: USB type C
Dimensions (WxHxD): 150x150x69.5mm / 5.91''x5.91''x2.74''
Weight: 1,2kg / 2.65lbs
CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
1 x ECLNANOPANELTWC
1 x battery charger
User Manual
