1100W, 125 dB SPL peak @ 1 m, portable PA system with a 5-channel digital mixer, 12-inch subwoofer, 1.5-inch x10 line array speaker, Bluetooth input, SPX digital reverbs, Priority Ducker, and 1-knob EQ and multiband comp for master output.
More Practical. More Professional. More Powerful.

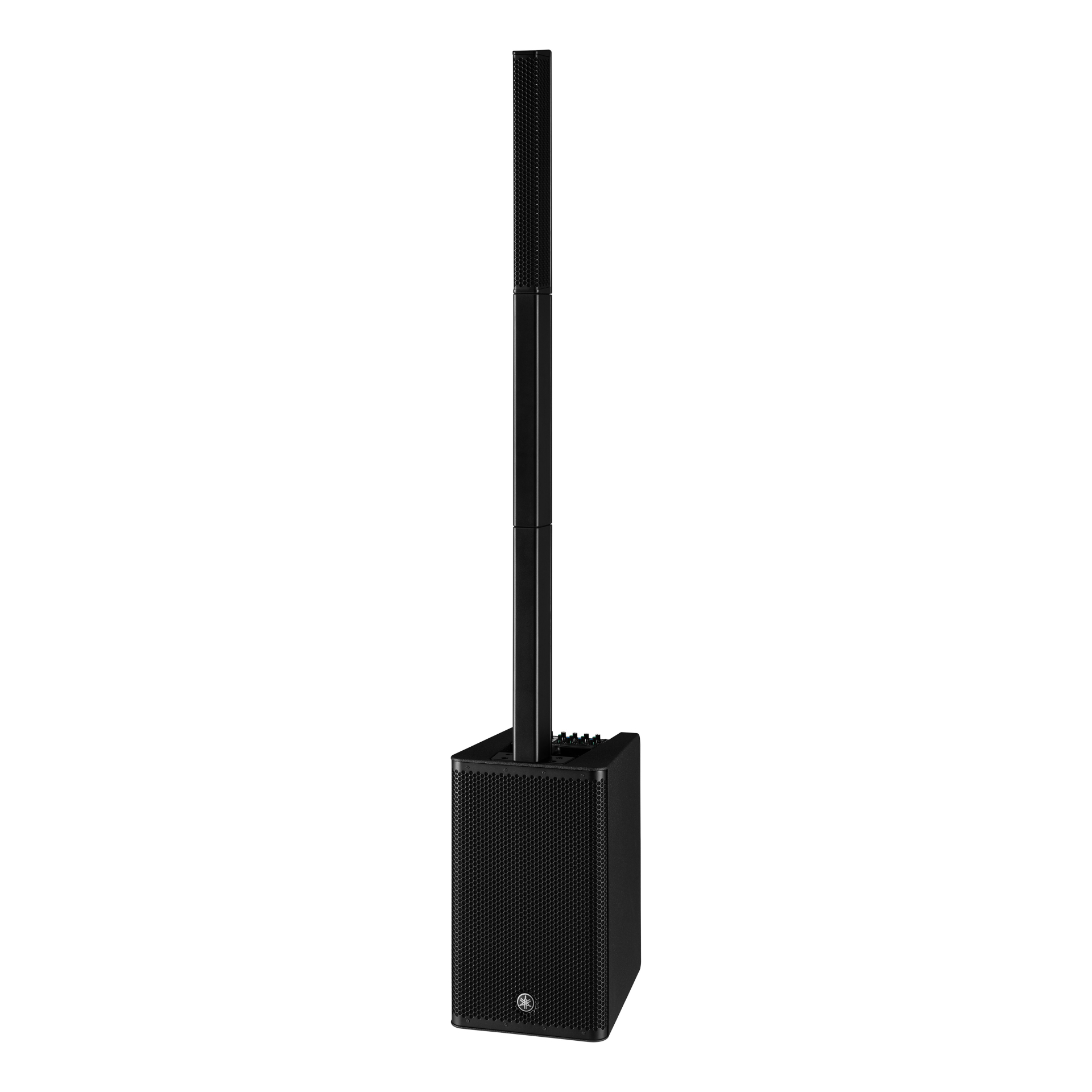

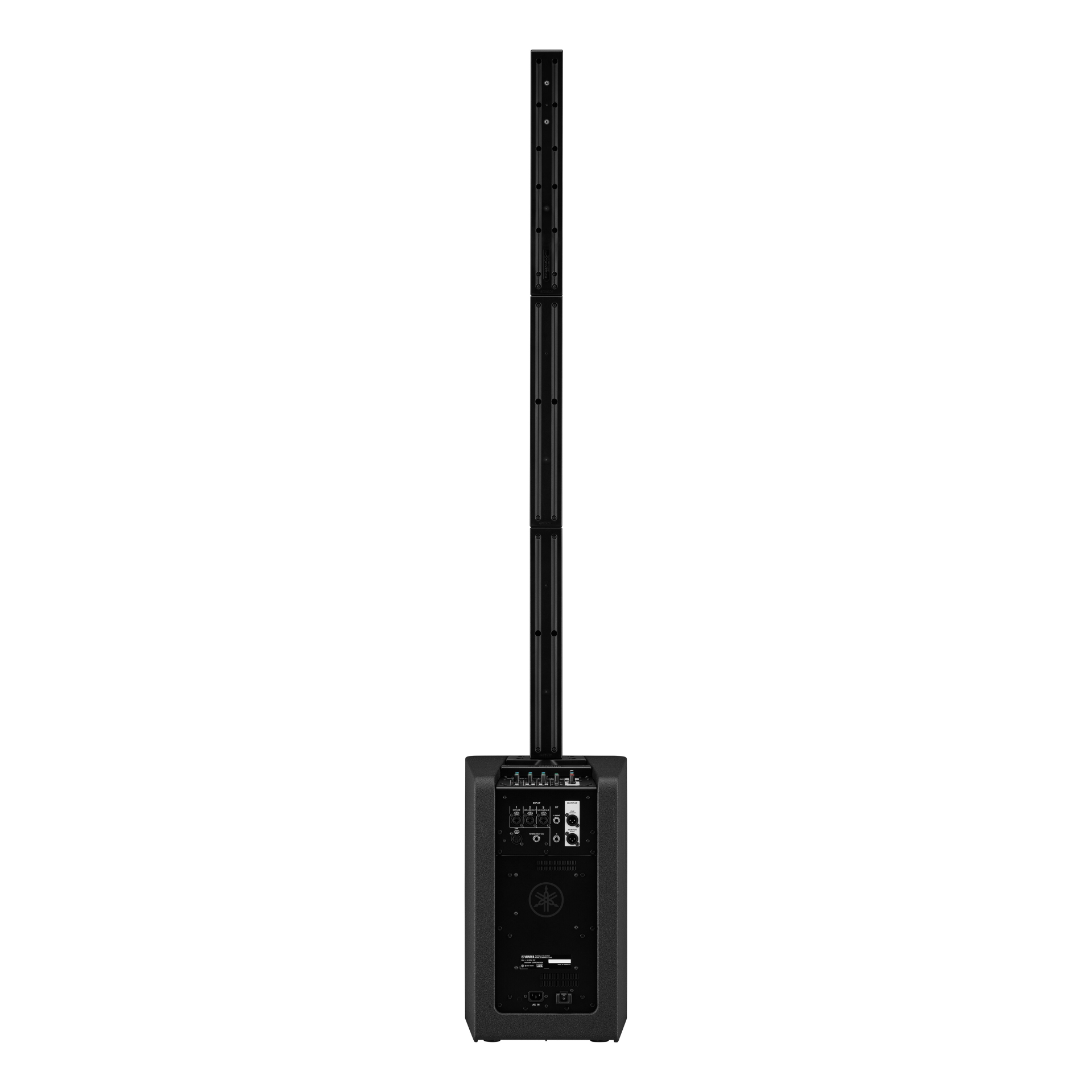

The STAGEPAS 1K mkII is an all-in-one portable PA system that lets you quickly and easily transform any location into your stage, delivering professional-level audio performance with a simple setup that lets aspiring artists focus on their music and get the most out of their performances. With an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII offers the same combination of lightweight cabinet design, professional mixing functions, and simple operability that has elevated the STAGEPAS all-in-one package above other portable PAs. By combining a concert-quality mixer and speaker, we have raised the bar for portable PA by drawing on Yamaha’s decades of experience and know-how in producing innovative, professional audio equipment at every stage of music engineering and production.
Simple setup and simple control allow you to focus on your performance
The STAGEPAS 1K mkII comes equipped with a wealth of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE, which allows you to adjust optimised compression settings like “Speech” or “Music” to match various applications. All adjustments can be done simply with one knob, making the perfect mix fast and easy without a complex workflow and letting you focus on your performance.
Best-in-Class Compact Power
A 1100 W amplifier drives the array speaker with 10 small-diameter 1.5-inch units and a class-leading 12-inch subwoofer. The impressive 170° horizontal and 30° vertical coverage delivers consistent performance over long distances, projecting uniform, high-quality sound from front to back across the audience.
Compact yet powerful package
Despite its lightweight and compact cabinet construction, the STAGEPAS 1K mkII features a high-output 1100 W amplifier powering a high-frequency array speaker system with 10 x 1.5-inch drivers and a large 12-inch subwoofer, producing best-in-class sound pressure levels of up to 125 dB SPL. An impressive 170° horizontal and 30° vertical coverage delivers clear, high-quality sound consistently throughout a wide listening area.
J-curve slim line array
The high-frequency speaker array is comprised of 10 x 1.5-inch small diameter speakers. By adopting a J-curve array configuration, the high-frequency unit achieves coverage of 170° horizontal and 30° vertical. With such a long, 10-driver array design the STAEGEPAS 1K mkII can deliver clear, high quality sound consistently over longer distances from the front to the rear of the audience.
1100W power output
Biggest in the class 12-inch subwoofer for low frequency
1.5-inch x10 slim line array speaker for high frequency

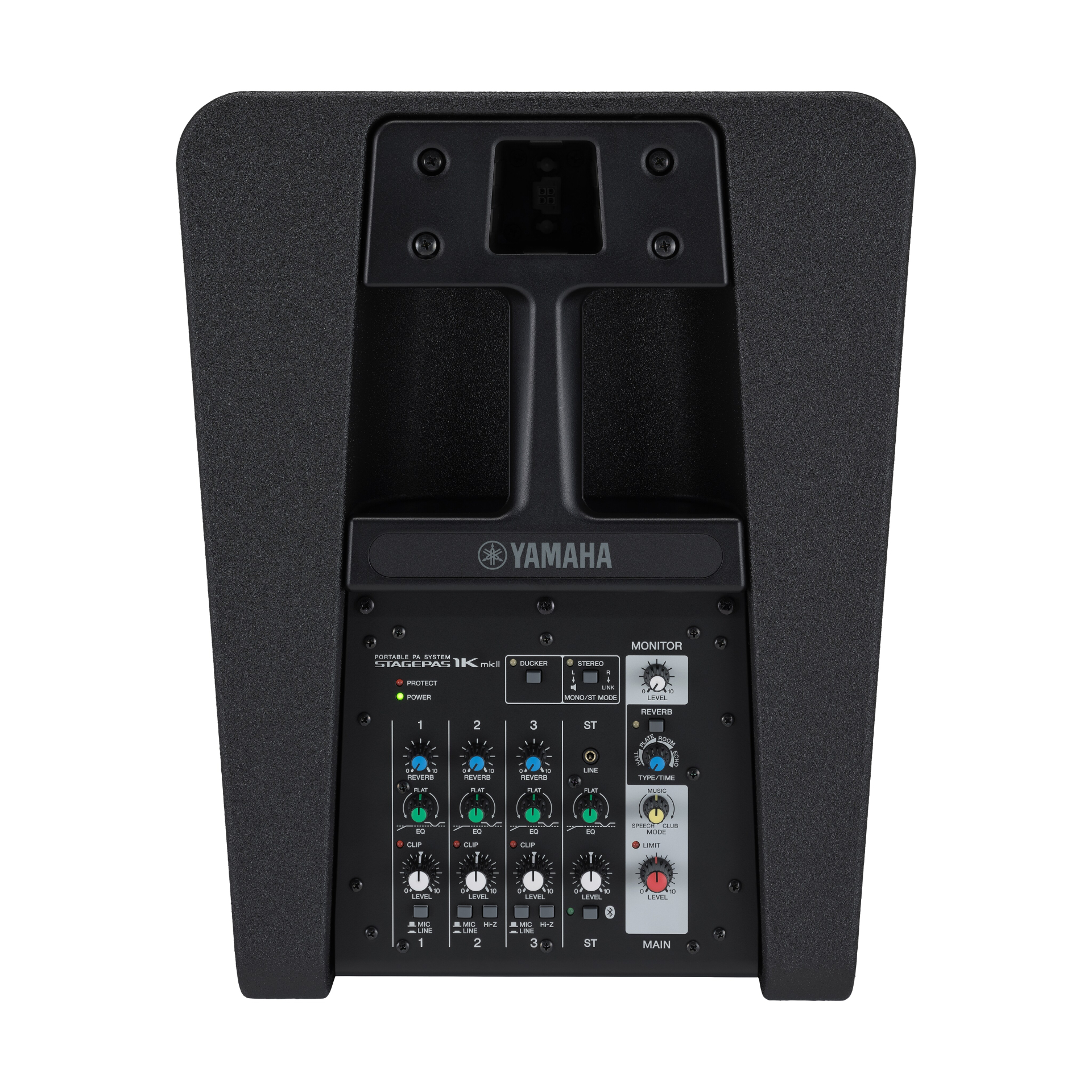

Digital mixer (3 mono mic/line + 1 stereo line)
Multi band comp “MODE” for master output
1-knob EQ per channel
High resolution SPX digital reverb (4 types, parameter control)
Priority Ducker for stereo channel
4 band PEQ per channel via remote control APP “STAEGPAS Controller”
