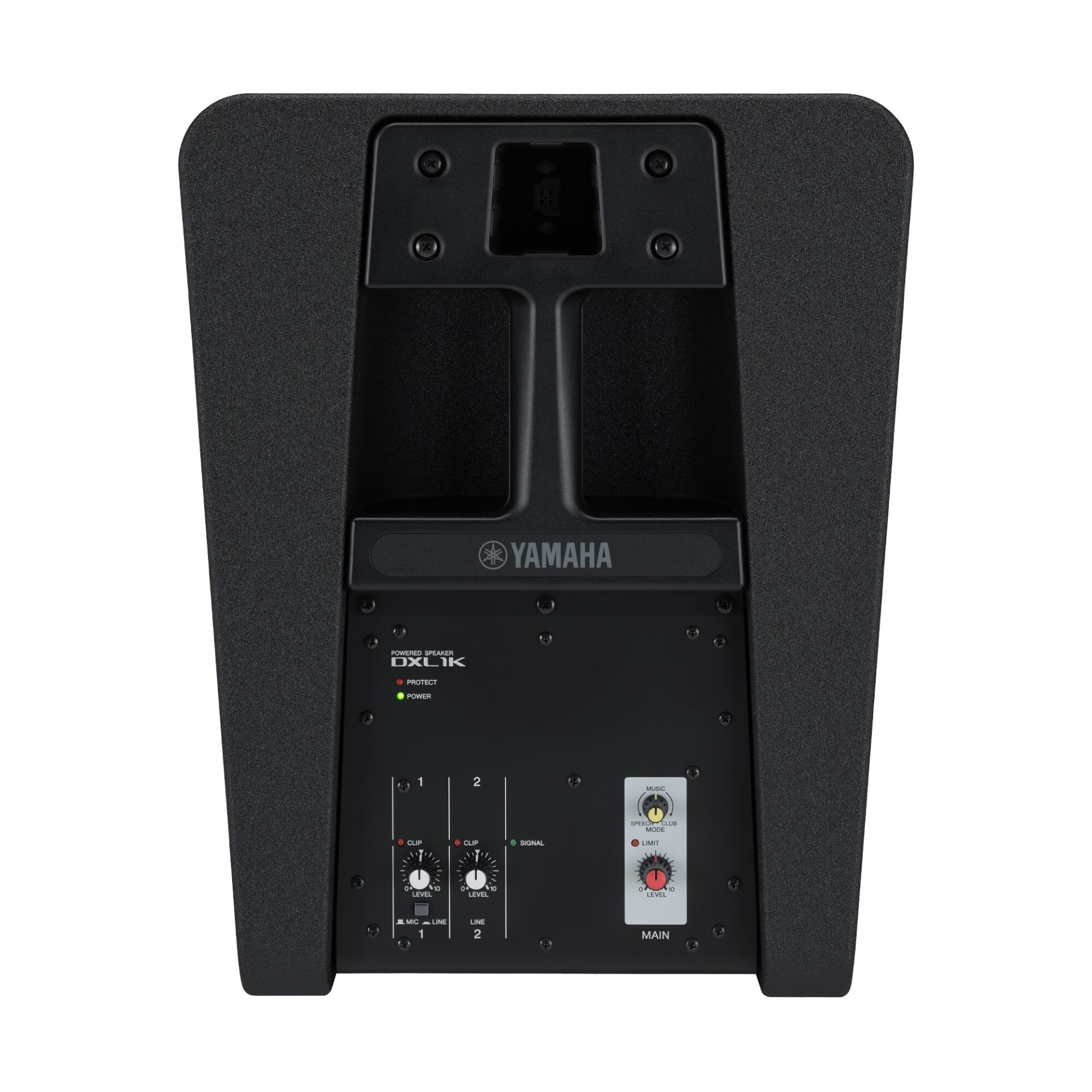

Yamaha DXL1K Powered Column Loudspeaker

Key Features:

1100W power output

Easy-to-use 2-Channel Mixer

Link in/out for expanding system

Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

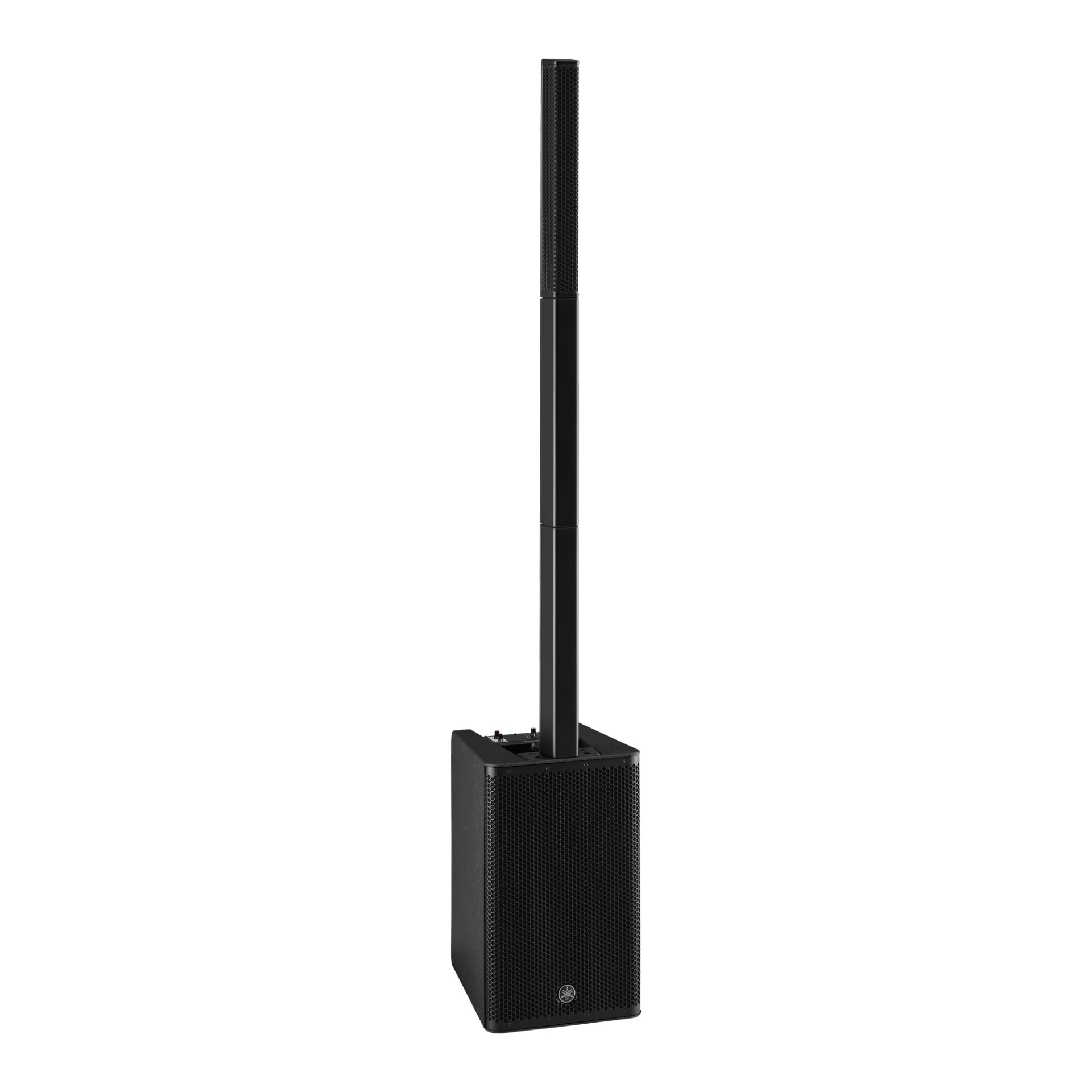

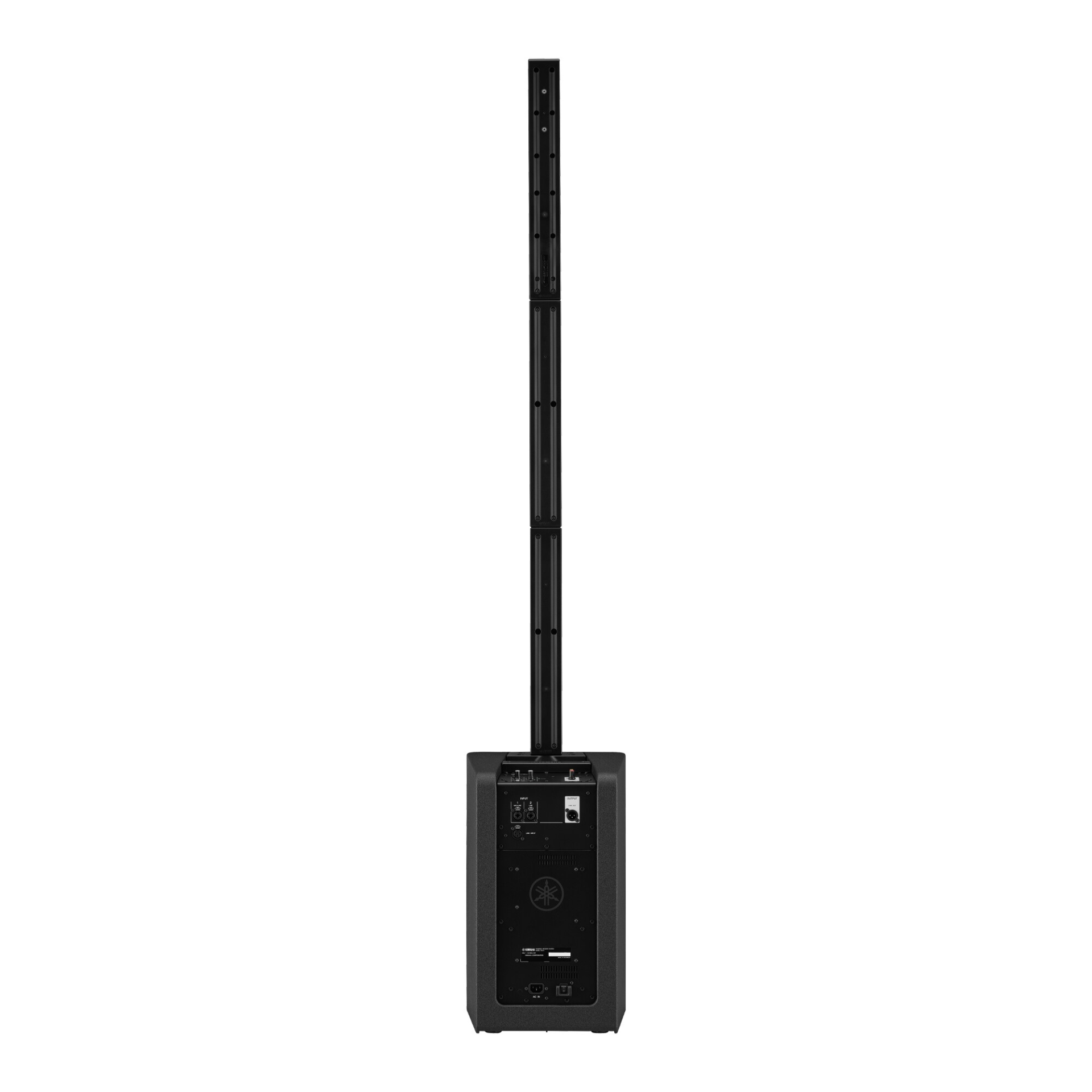

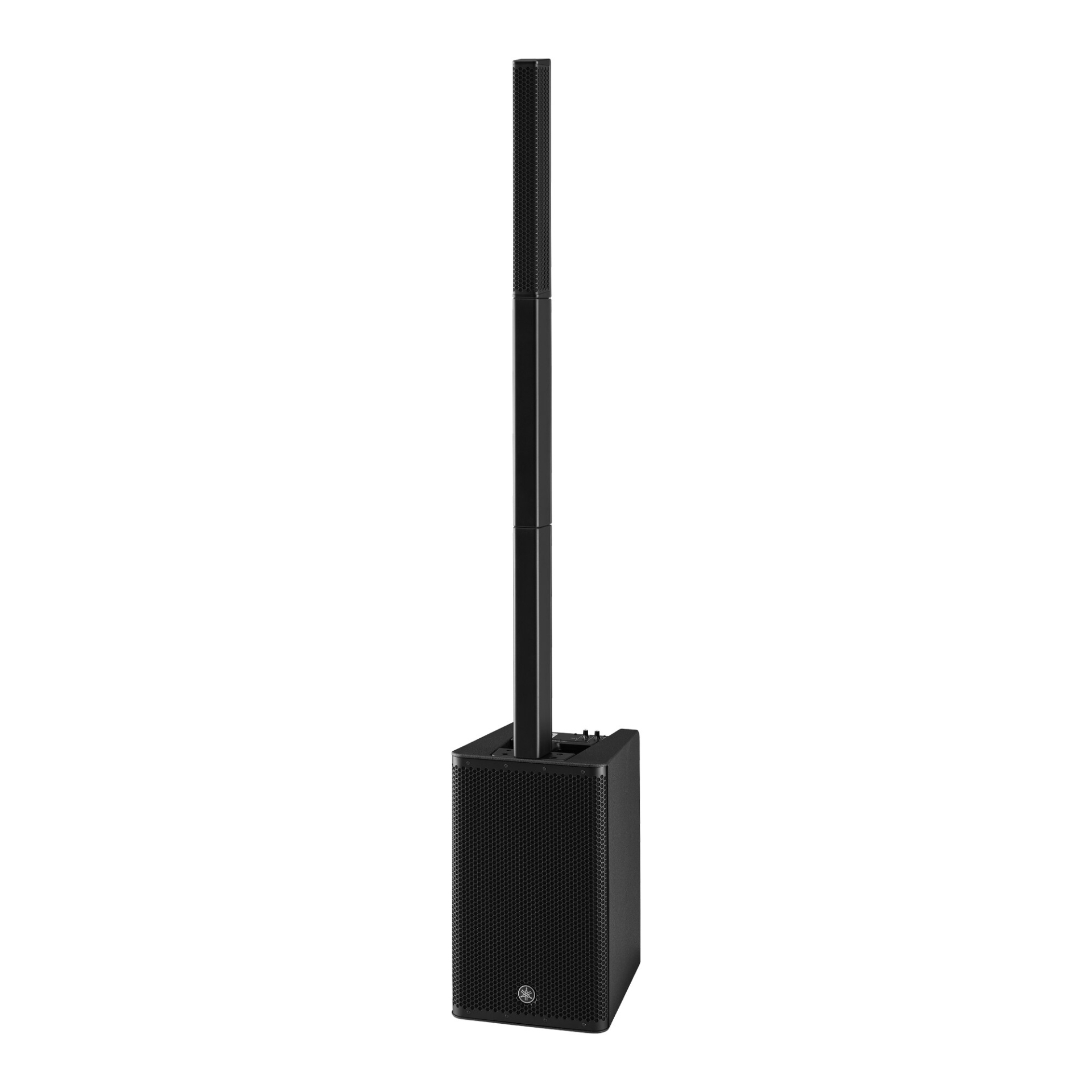

Yamaha DXL1K Powered Column Loudspeaker

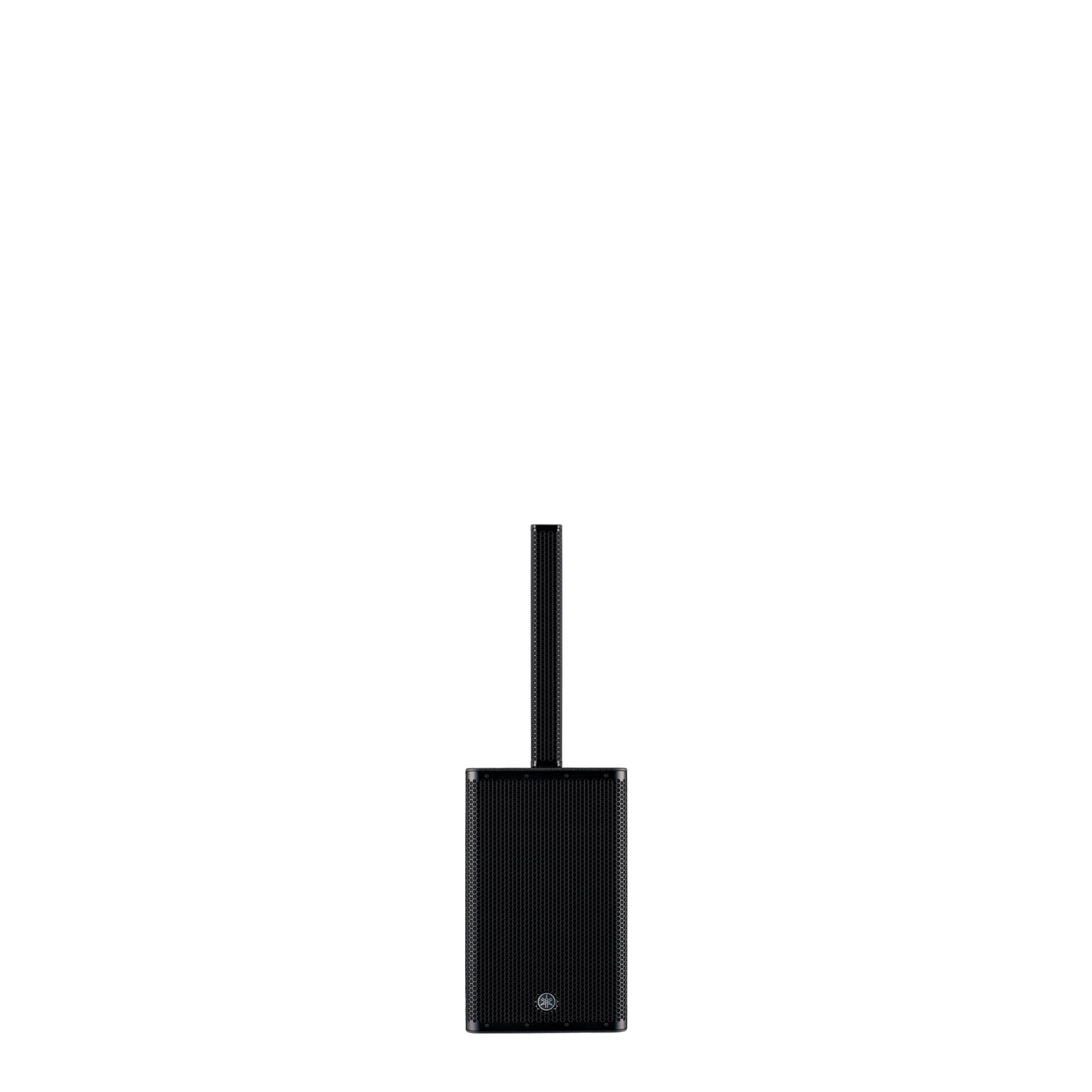

The DXL1K is a column-type powered speaker with a slim body and powerful sound. It can be used as the main speaker in a compact PA system, and is also perfect for use as an extension of a STAGEPAS 1K mkII system.

The DXL1K is a column-type powered speaker with a powerful 125dB SPL peak@1m sound output that belies its extremely portable slim body (a dedicated carrying cart is sold separately).

The combination of an easy setup procedure that only requires the line-array speaker to be attached to the top of the subwoofer cabinet, with the system expandability offered by the Link function, allows the DXL1K to be used in combination with a compact mixer or with the fully compatible STAGEPAS 1K mkII, creating a simple, compact, and high-quality PA system.

- 1100W power output
- Biggest in the class 12-inch subwoofer for low frequency
- 1.5-inch x10 slim line array speaker for high frequency
- Easy-to-use 2-Channel Mixer
- Link in/out for expanding system
- Dedicated cover included
- Optional dolly (DL-SP1K) for more portability

Compact yet Powerful
Despite its lightweight and compact cabinet construction, the DXL1K features a high-output 1100 W amplifier powering a high-frequency array speaker system with 10 x 1.5-inch drivers and a large 12-inch subwoofer, producing best-in-class sound pressure levels of up to 125 dB SPL.
Offering an impressive 170° horizontal and 30° vertical coverage, the DXL1K delivers clear, high-quality sound consistently throughout a wide area.
J-Curve Slim Line Array
The high-frequency speaker array comprises 10 small-diameter 1.5-inch speakers. By adopting a J-curve array configuration, the high-frequency unit achieves vertical coverage of 30 ° across a span of 170 °. With such a long, 10-driver array design, the DXL1K can deliver clear, high-quality sound consistently over longer distances, projecting uniform, high-quality sound from the front to the rear of the audience.
Class-leading 12-inch “compact” subwoofer
The subwoofer features a 12-inch speaker unit which is hardly “compact,” and actually the largest in its class. Despite housing the largest 12-inch speaker in its class, the DXL1K boasts the smallest cabinet on the market for a subwoofer of this size and power.
By incorporating Yamaha’s own Twisted Flare Port™ technology to reduce port wind noise that can occur with compact bass-reflex subwoofers, the low-end output is maximised, producing very deep, powerful, distortion-free bass.
1100W amplifier
Also at the top of its class for output power, the 1100W Class-D amplifier module delivers an impressive 125 dB SPL from the deceptively compact speaker cabinet. And just as importantly, we’ve leveraged Yamaha’s decades-long experience as a manufacturer of professional PA products and innovator of related technologies to ensure that with great power comes great stability, and that the DXL1K maintains the same accurate, superior-quality sound even at high output.
High-grade polyurea coating
The subwoofer's lightweight ABS cabinet features a high-grade polyurea coating to prevent wear and tear during transport. It is light enough to make the system extremely portable, but also rugged and scratch-resistant enough to withstand harsh performance environments.
Superior Utility and Portability
The DXL1K fills a wide area with high-quality, uniform sound, and it's lightweight enough for anyone to carry, simple to set up in about one minute, and durable enough to withstand harsh environments.
Simple setup
Simply affix the 2 spacers and speaker unit to the subwoofer, and setup is essentially done, with no cables, speaker stand, or additional gear required beyond the main unit. Everything you need is included.
Expandable STAGEPAS systems
Linking a DXL1K and STAGEPAS 1K mkII provides greater coverage area and increased output power for large-scale performances. Both stereo and mono playback are supported, and when the STAGEPAS 1K mkII is set to mono, you can still use the inputs of the DXL1K and STAGEPAS 1K mkII (up to five mono inputs plus one stereo input).

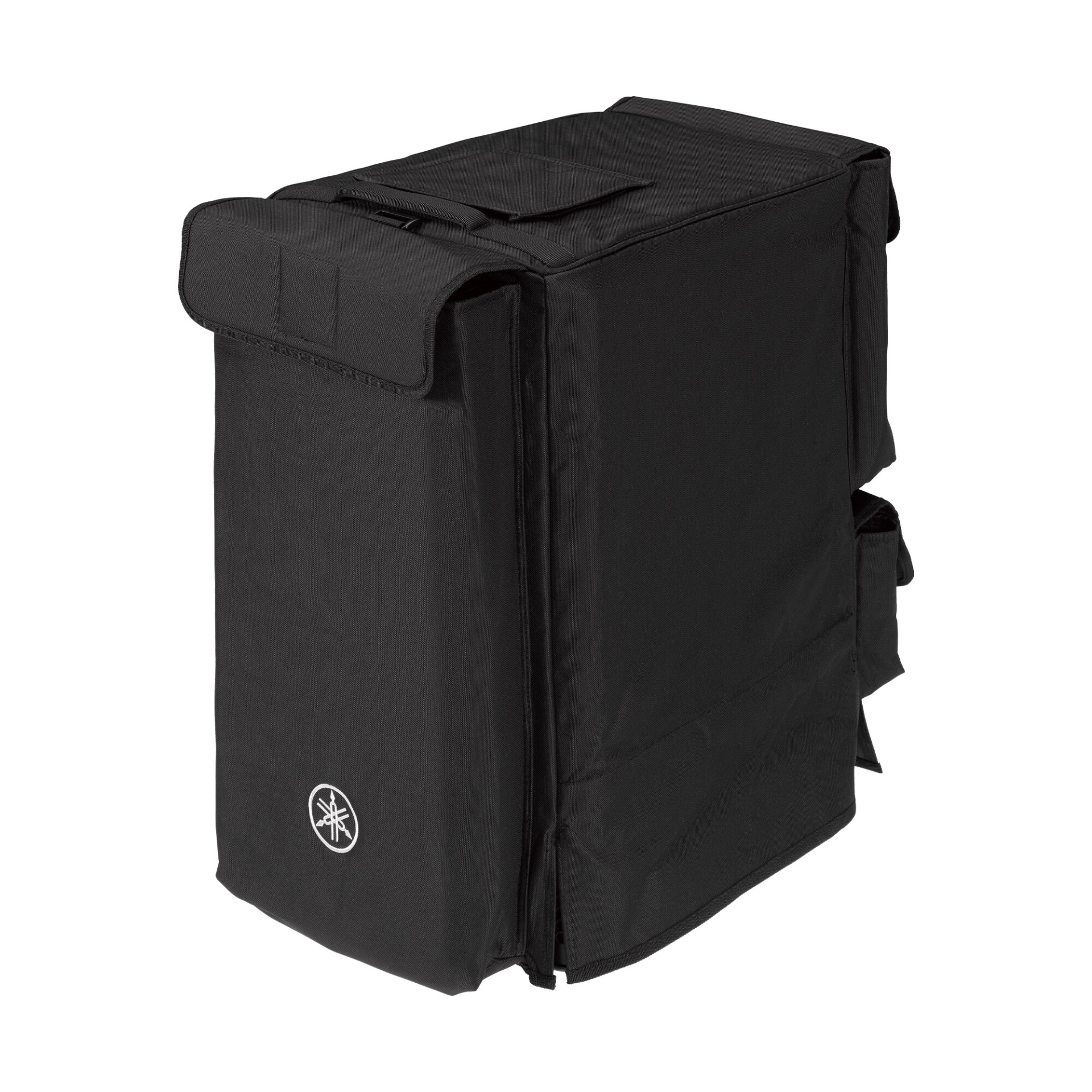

Fitted cover included
The DXL1K comes with its own cover, which, in addition to protecting the unit, includes pouches for both spacers and the speaker array, plus extra storage for accessories to further streamline setup and teardown.
