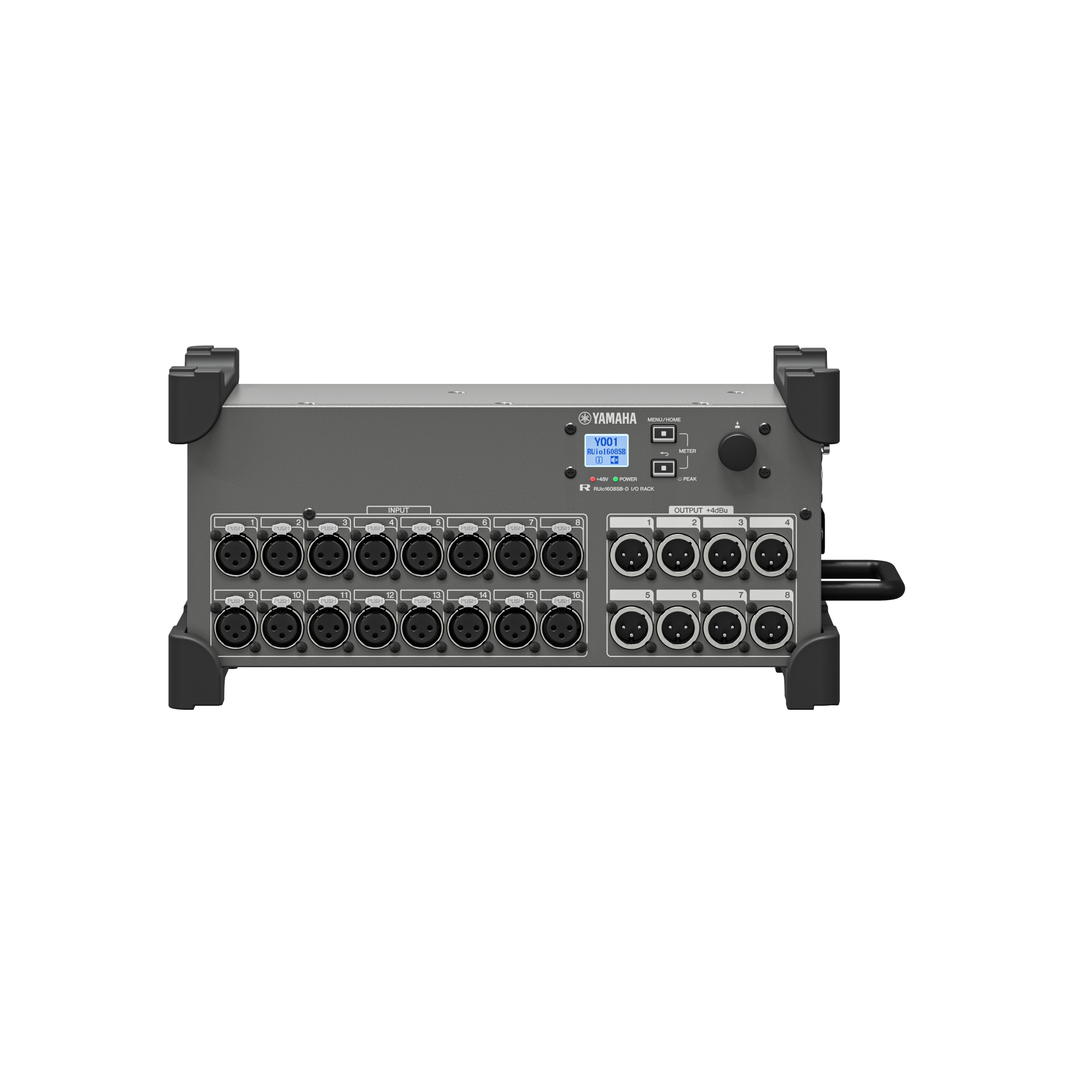

Yamaha RUio1608SBD with bumper
RIO3224-D3

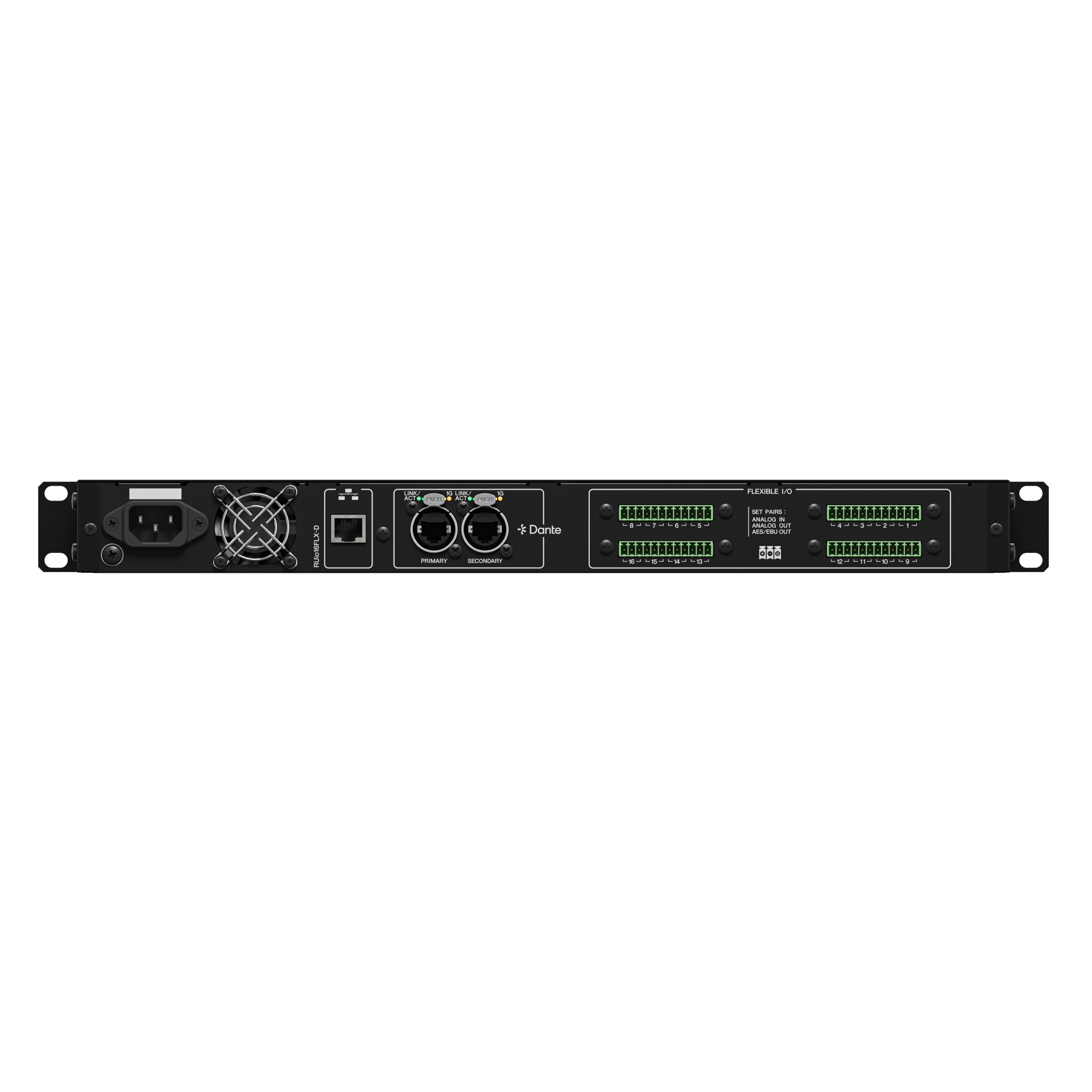

Yamaha RUio16FLX-D rear

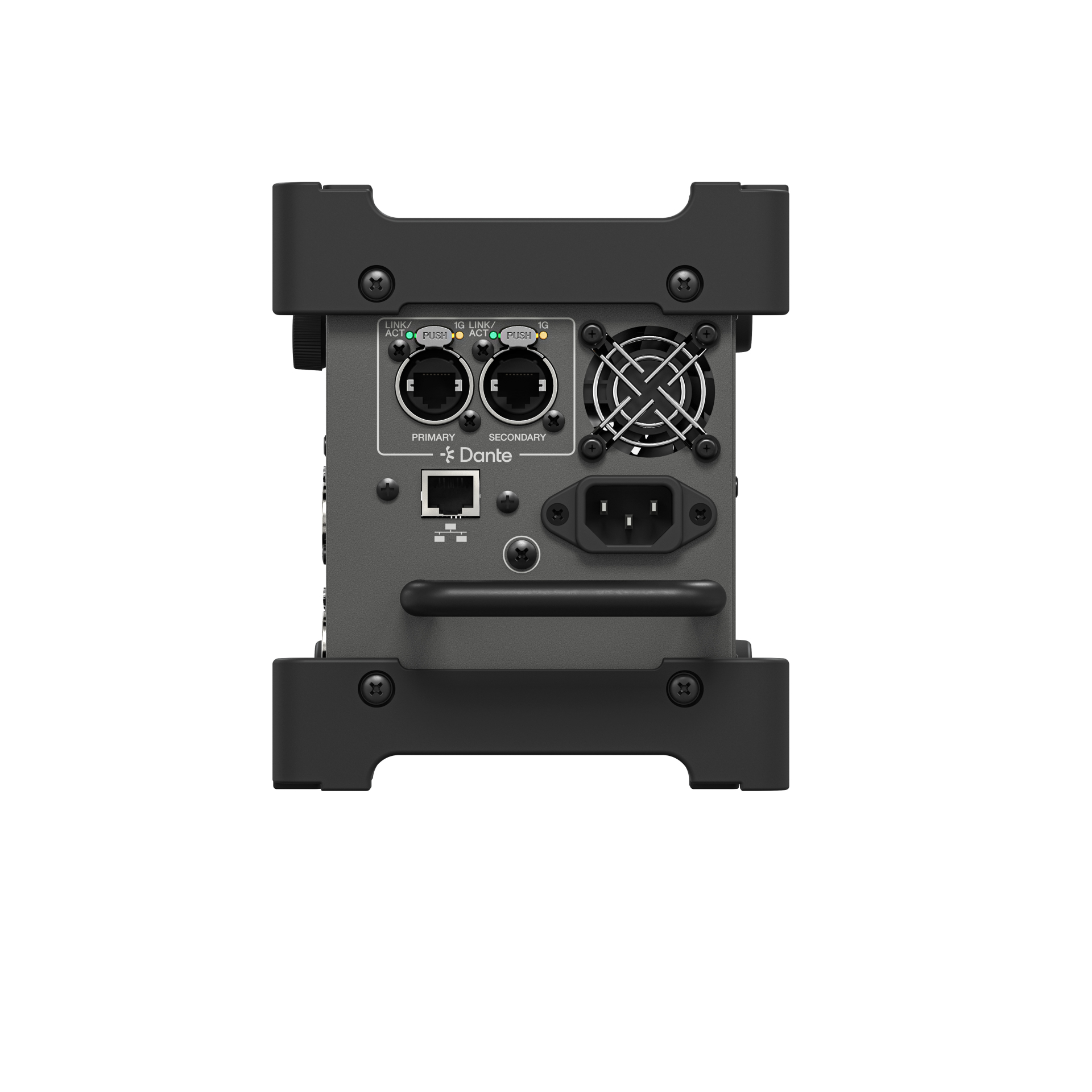

Yamaha RUio1608SBD side

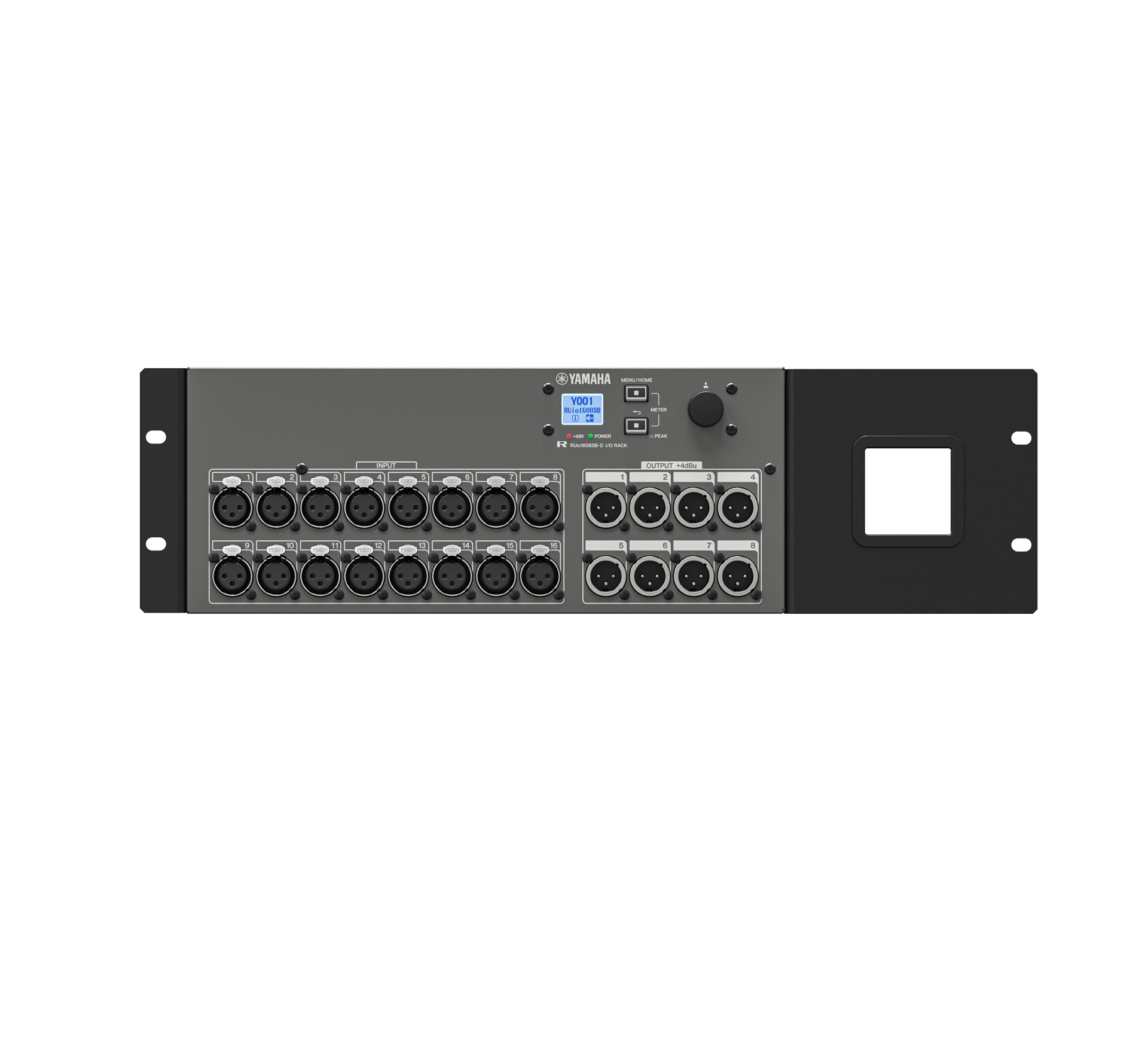

Yamaha RUio1608SBD without bumper

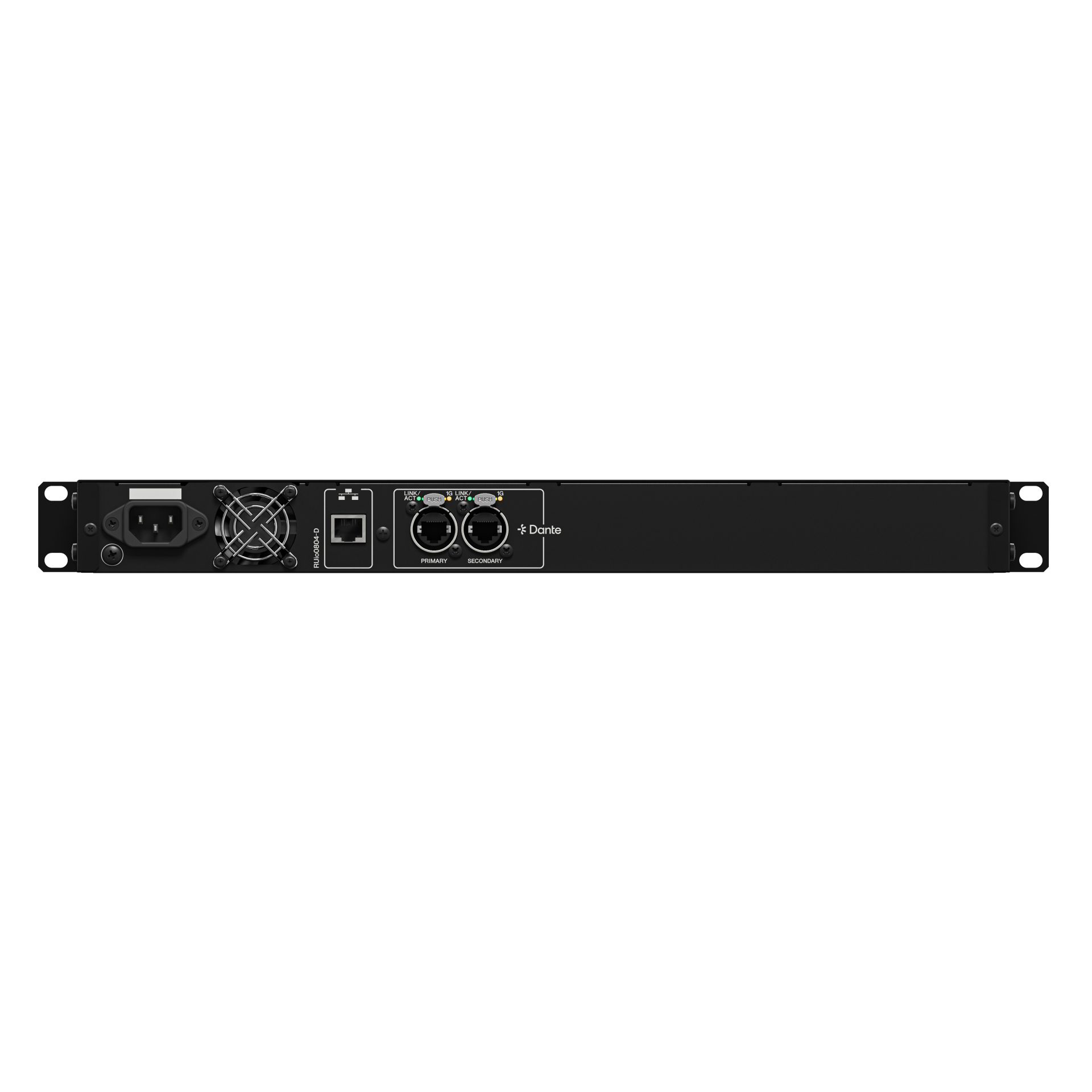

Yamaha RUio0804D rear
RIO3224-D3
Yamaha RUio16FLX-D rear
Yamaha RUio1608SBD side
Yamaha RUio1608SBD without bumper
Yamaha RUio0804D rear

Yamaha I/O Stage Boxes

Key Features:

  • Fully compatible with DM7, DM5, QL and CL Digital Mixers
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Yamaha I/O Stage Boxes

Yamaha's Dante-compatible stage box range delivers flexible I/O expansion for digital mixers and processors, from compact touring rigs to full-scale installations. The RUio1608SB-D leads the line with 16 analogue inputs and 8 outputs in a rugged, stage-ready chassis, with an optional rack-mount kit for added flexibility. The RUio0804-D offers a smaller 1U option for portable setups, the RUio16FLX-D adds configurable I/O with AES/EBU support, and the Rio3224-D3 and Rio1608-D3 bring redundant power and extra connectivity for larger installations. Whatever the scale, there's a Dante-networked stage box to fit the system.

Product Variants

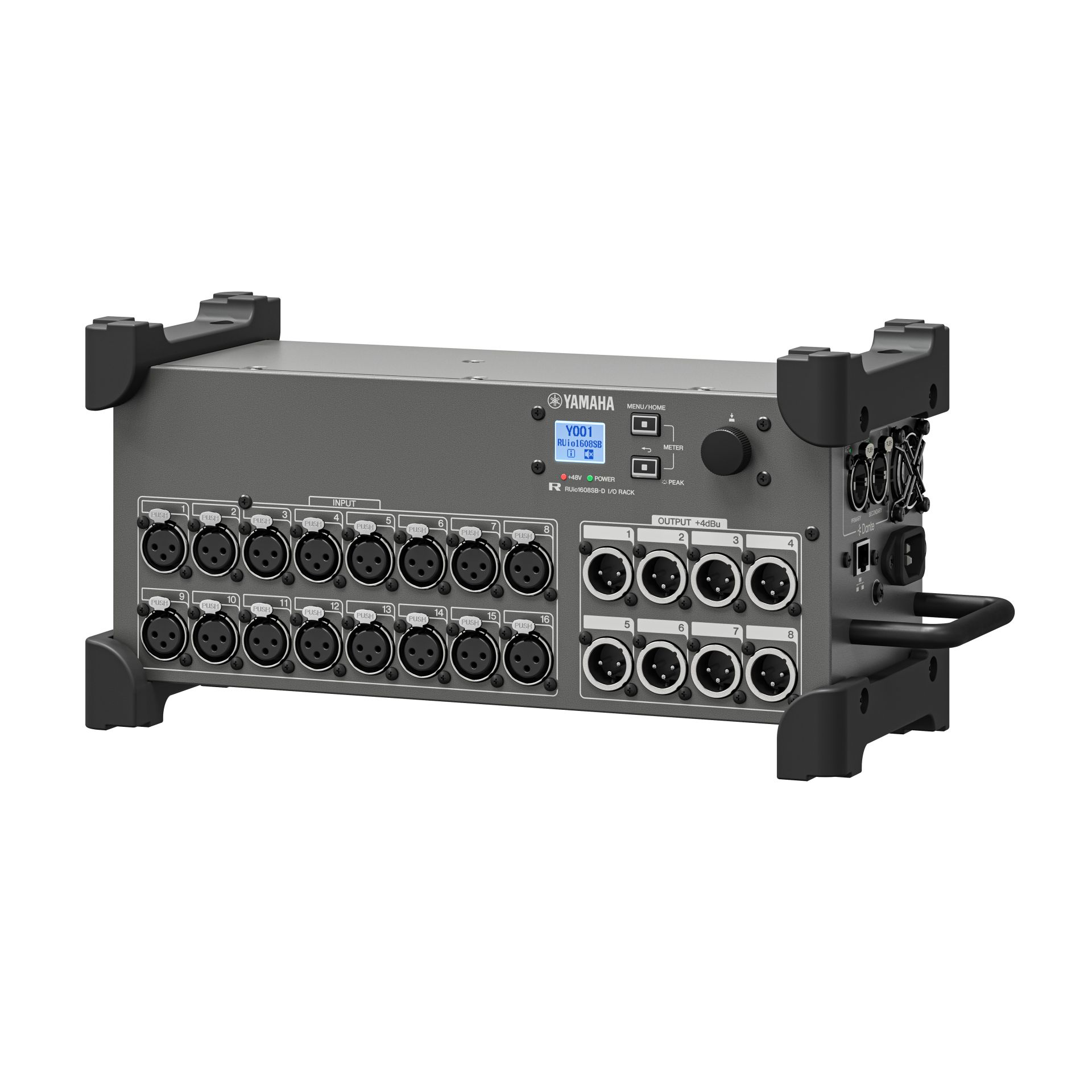

Yamaha RUio1608SBD Stage Box
RUio1608SBD
  • Local I/O: 16 Mic/Line inputs, 8 outputs
  • Dante primary / secundary
  • Sampling frequency: 96 kHz / 48 kHz
  • 3rd port for control
  • Comprehensive display and local control of settings
  • 19" with optional RK-SB1608SB-D
  • Included: Power cord

Enquiry Form

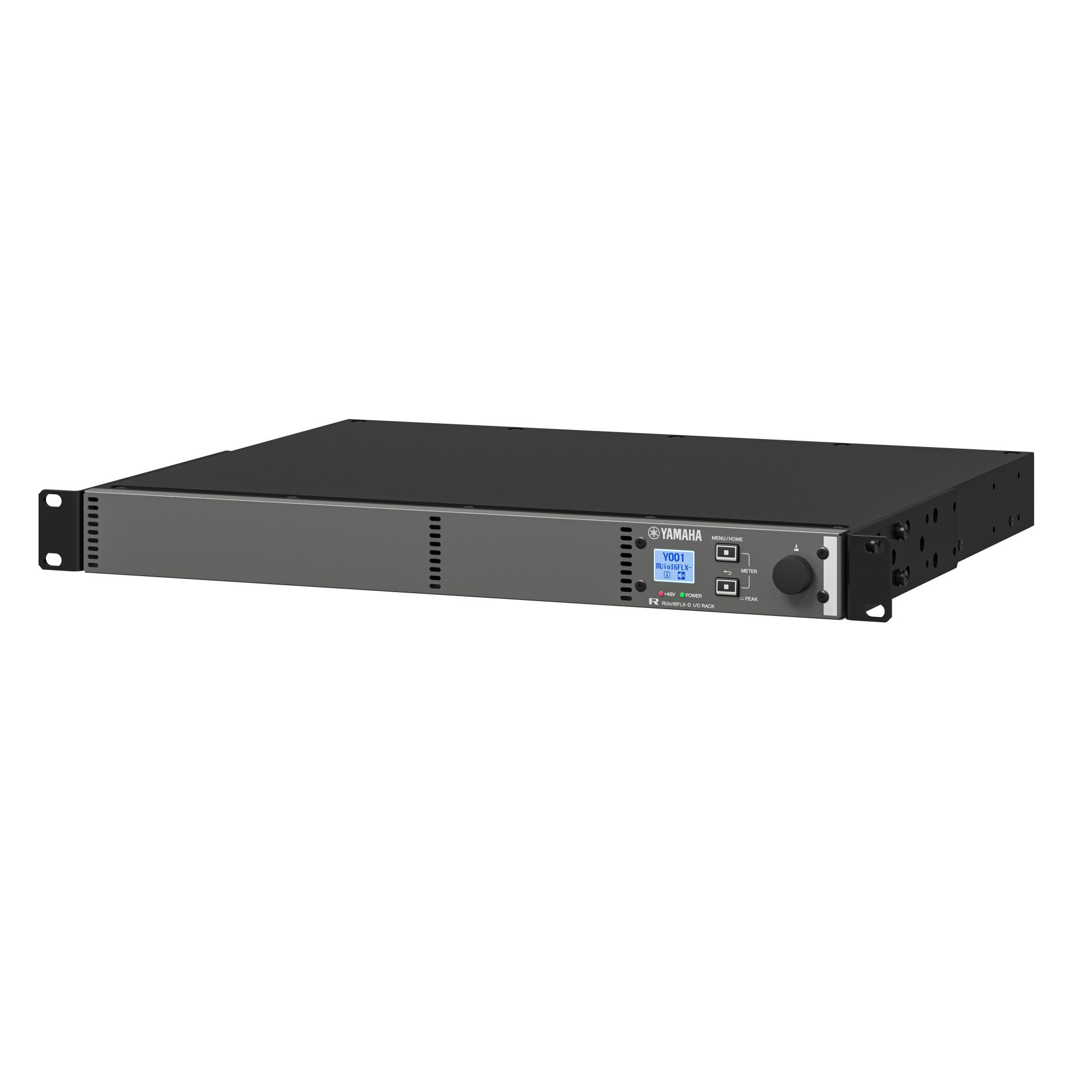

Yamaha RUio16FLX-D Stage Box
RUio16FLX-D
  • Local I/O: 16 connections
  • Selectable per connection pair: Mic/Line input, output or AES output
  • Dante primary / secundary
  • Sampling frequency: 96 kHz / 48 kHz
  • 3rd port for control
  • Comprehensive display and local control of settings
  • Included: Power cord, euroblocks

Enquiry Form

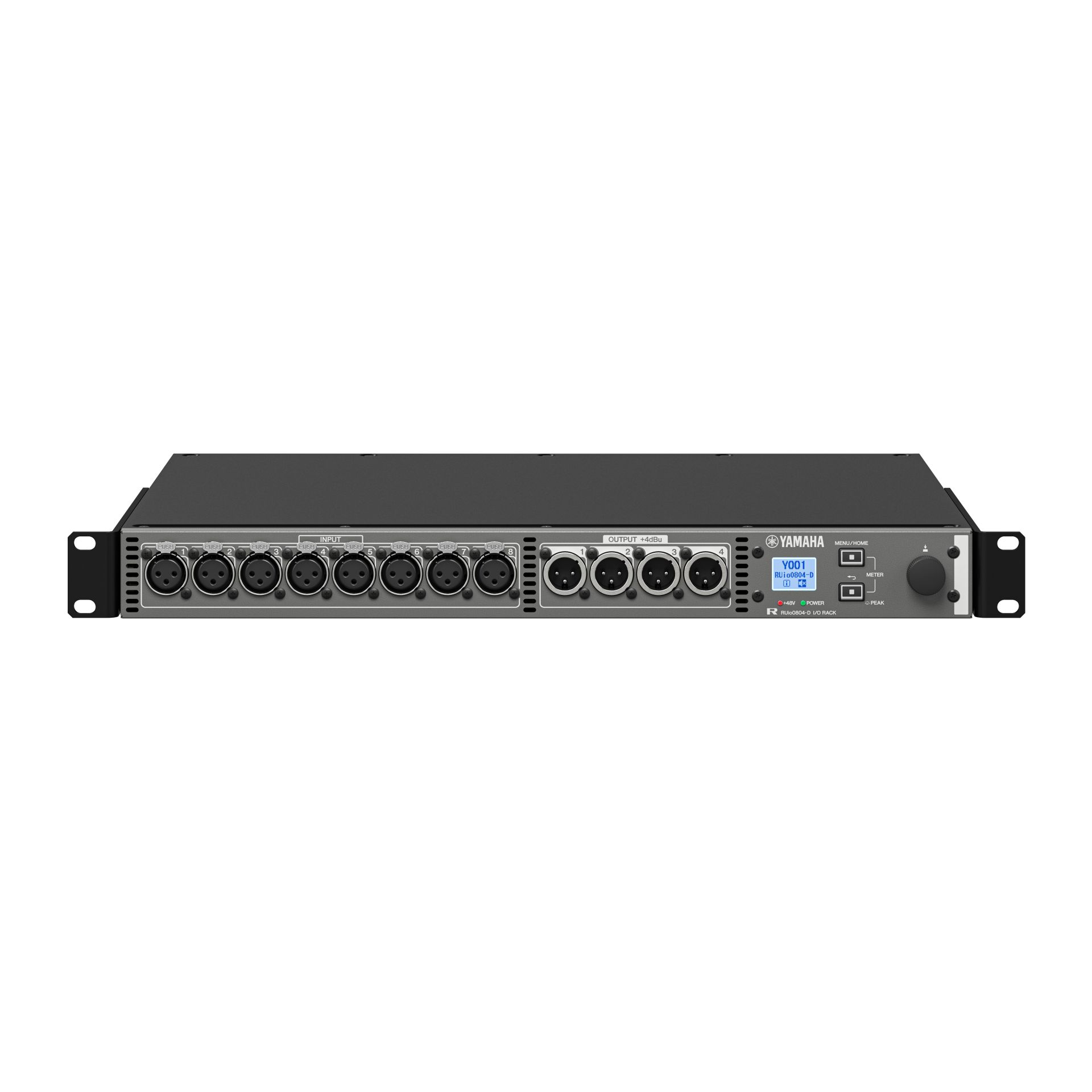

Yamaha RUio0804D
RUio0804D
  • Local I/O: 8 Mic/Line inputs, 4 outputs
  • Dante primary / secundary
  • Sampling frequency: 96 kHz / 48 kHz
  • 3rd port for control
  • Comprehensive display and local control of settings
  • Included: Power cord

Enquiry Form

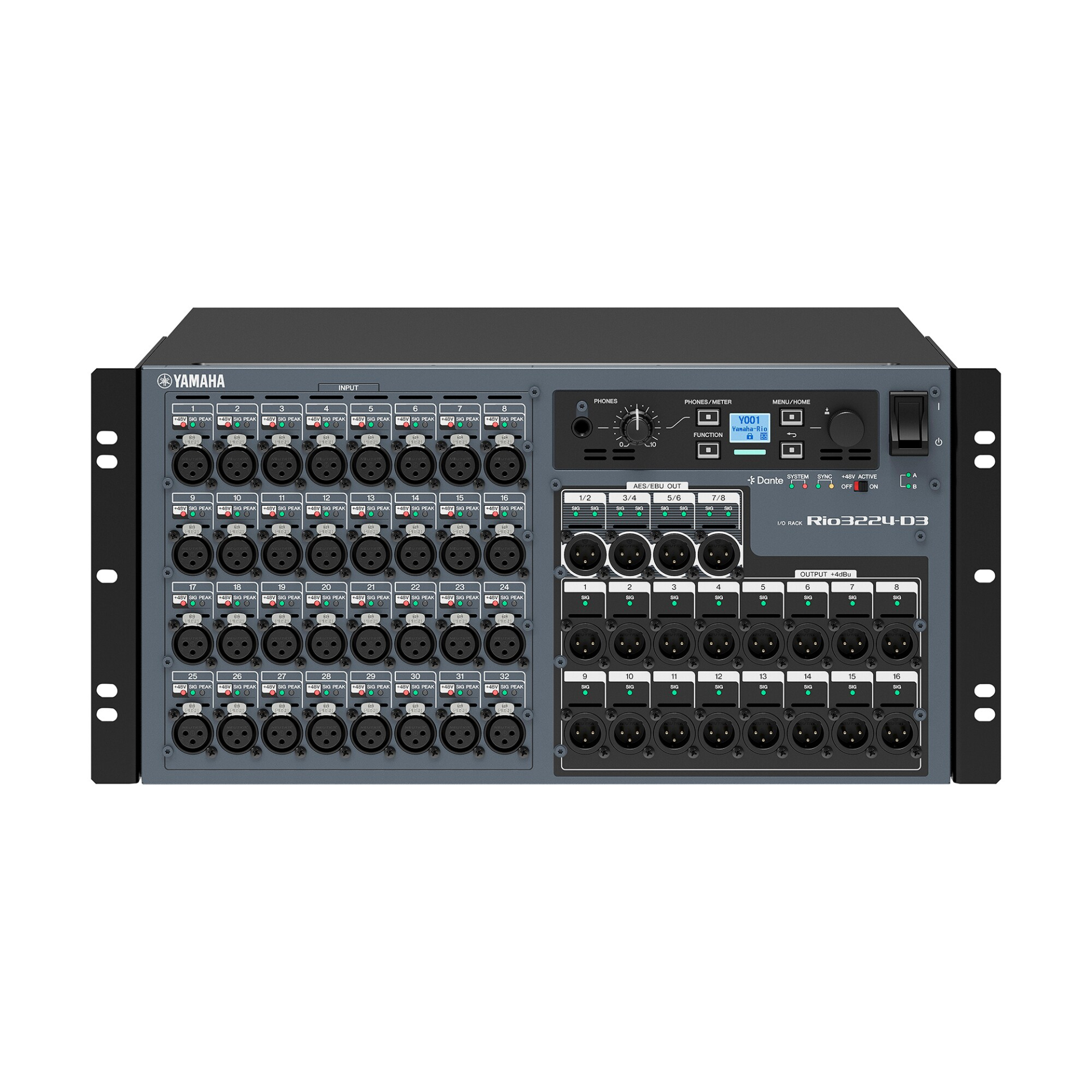

RIO3224-D3
Rio3224-D3 I/O Rack
  • 32 analog inputs and 16 outputs, and 8 digital outputs.
  • Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
  • Comprehensive display and local control of gain and other parameters.
  • Dual power supply units are built in for high reliability.
  • Power consumption: 120W
  • Dimensions (WxHxD): 480 x 220 x 368mm (18.9″ x 8.7″ x 14.5″)
  • Net Weight: 13.5 kg (29.8 lbs)

Enquiry Form

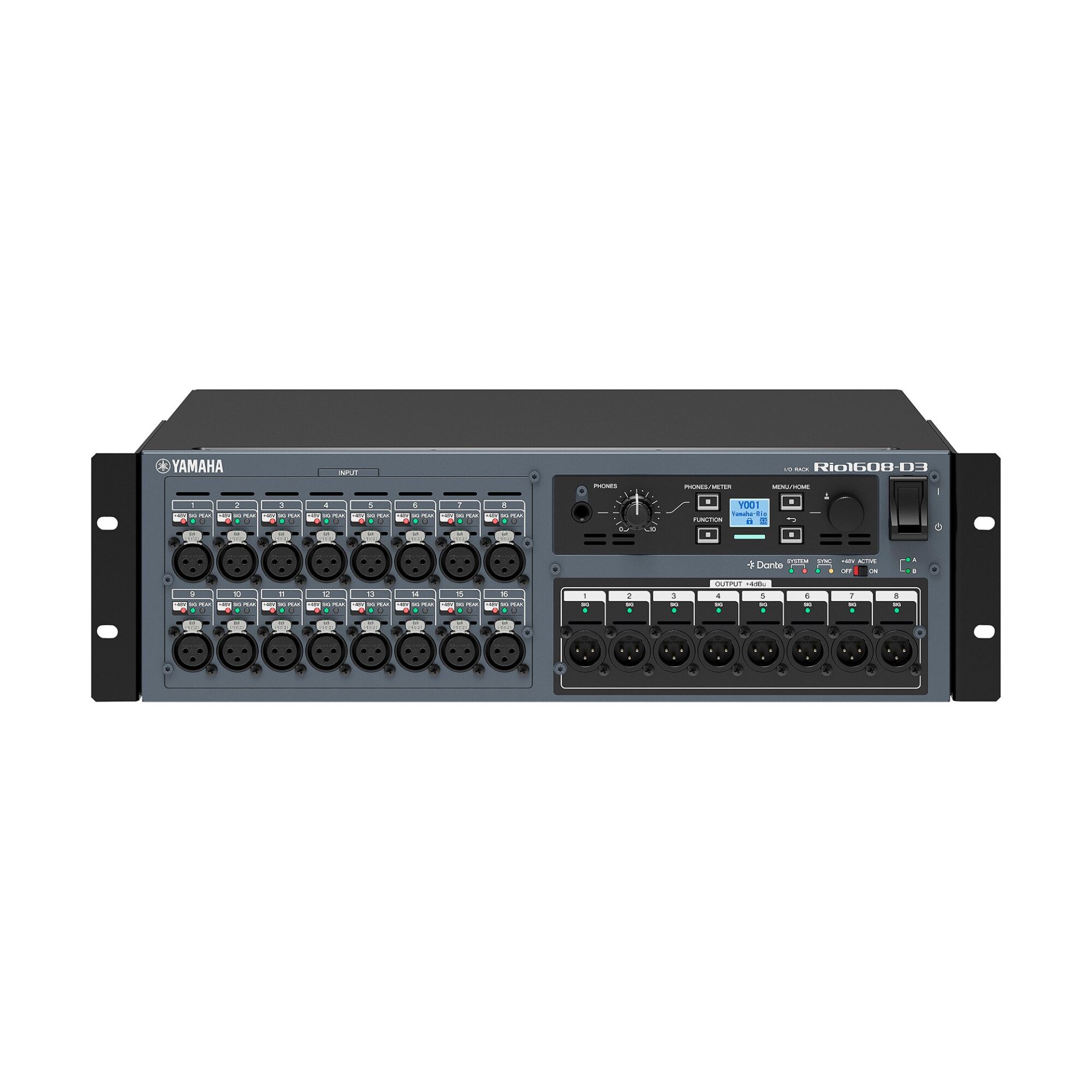

Yamaha RIO1608-D3
Rio1608-D3 I/O Rack
  • Analog I/O: 16 inputs / 8 outputs
  • Dante: 10 receive / 16 transmit channels
  • Comprehensive display and local control of gain, delay and other parameters.
  • Dual power supply units are built in for high reliability.
  • Onboard headphone socket
  • Power consumption: 60 W
  • Dimensions (WxHxD): 480 x 132 x 370 mm (18.9” x 5.2” x 14.6”)
  • Net Weight: 9.4 kg (20.7 lb)

Enquiry Form

Ruio1608SB-D

The Dante-compatible RUio1608SB-D is a compact I/O stagebox featuring 16 analog inputs and 8 analog outputs. Designed for seamless integration with Yamaha digital mixers and processors, its rugged construction makes it ideal for on-stage deployment, while an optional rack-mount kit provides additional installation flexibility.

RUio0804-D

The Dante-compatible RUio0804-D is a compact 1U I/O stagebox featuring 8 analog inputs and 4 analog outputs. Designed for seamless integration with Yamaha digital mixers and processors, it provides a portable and flexible solution for expanding system connectivity.

RUio16FLX-D

The Dante-compatible RUio16FLX-D provides 16 channels of either analog input, analog output, or AES/EBU output so you can easily configure systems for use with Yamaha digital mixers and processors. Source channels can be selected in groups of two, and flexible support is provided for I/O expansion.

Rio3224-D3

This Dante-compatible unit features 32 analog inputs, 16 analog outputs, and 8 digital AES/EBU outputs, enabling flexible system configuration with Yamaha digital mixers and processors. The Rio3224-D3 is housed in a sleek, sturdy chassis and features a redundant power supply that ensures serious reliability, while the newly added headphone socket and output delay provide additional versatility.

Rio1608-D3

This Dante-compatible unit features 16 analog inputs and 8 analog outputs, enabling flexible system configuration with Yamaha digital mixers and processors. The Rio1608-D3 is housed in a sleek, sturdy chassis and features a redundant power supply that ensures serious reliability, while the newly added headphone socket and output delay provide additional versatility.

Yamaha I/O Stage Boxes - Variant Downloads
