Yamaha DBR Powered Speaker Series

Key Features:

  • 2-way, Bi-amp powered speaker, Bass-reflex type
  • Custom Designed Transducer
  • Easy-to-use Onboard 2-Channel Mixer
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Yamaha DBR Powered Speaker Series

Wherever your music takes you, DBR Series loudspeakers deliver powerful, high-quality sound with unmatched transport and setup efficiency. The most portable powered loudspeakers Yamaha offers, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP, amplifier, and speaker technologies developed for the professional DSR Series and DXR Series lineups, delivering high-resolution sound at any output level.

Product Variants

yamaha-dbr-powered-speaker-series-dbr15

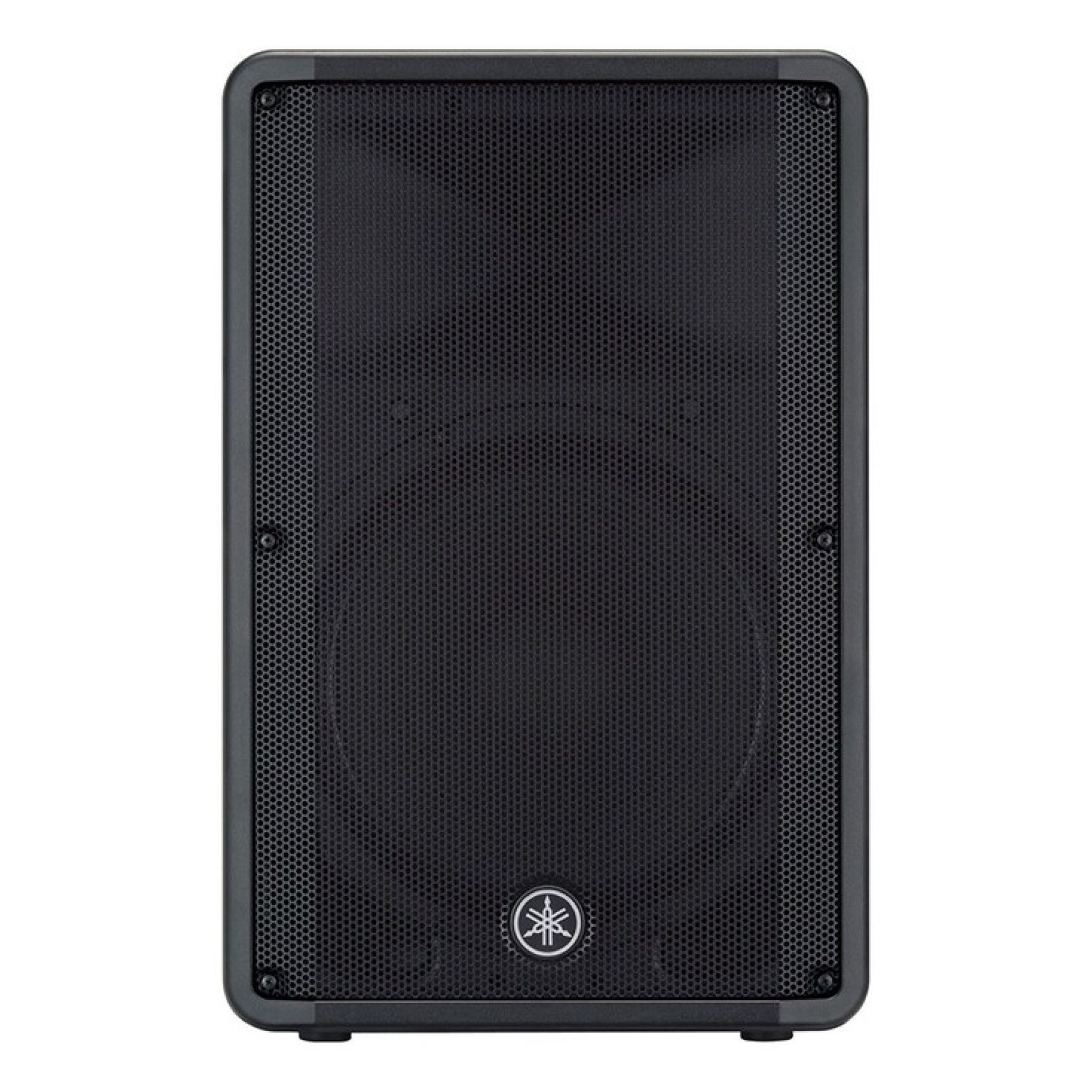

DBR15
  • 2-way, Bi-amp powered speaker, Bass-reflex type
  • 50Hz – 20kHz
  • H90° V60°
  • LF: Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite
  • HF: Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
  • Output: Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
  • 132dB SPL

Enquiry Form

yamaha-dbr-powered-speaker-series-dbr12
DBR12
  • 2-way, Bi-amp powered speaker, Bass-reflex type
  • 52Hz – 20kHz
  • H90° V60°
  • Diameter:12" cone, Voice Coil:2", Magnet:Ferrite
  • Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
  • Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
  • 131dB SPL

Enquiry Form

yamaha-dbr-powered-speaker-series-dbr10

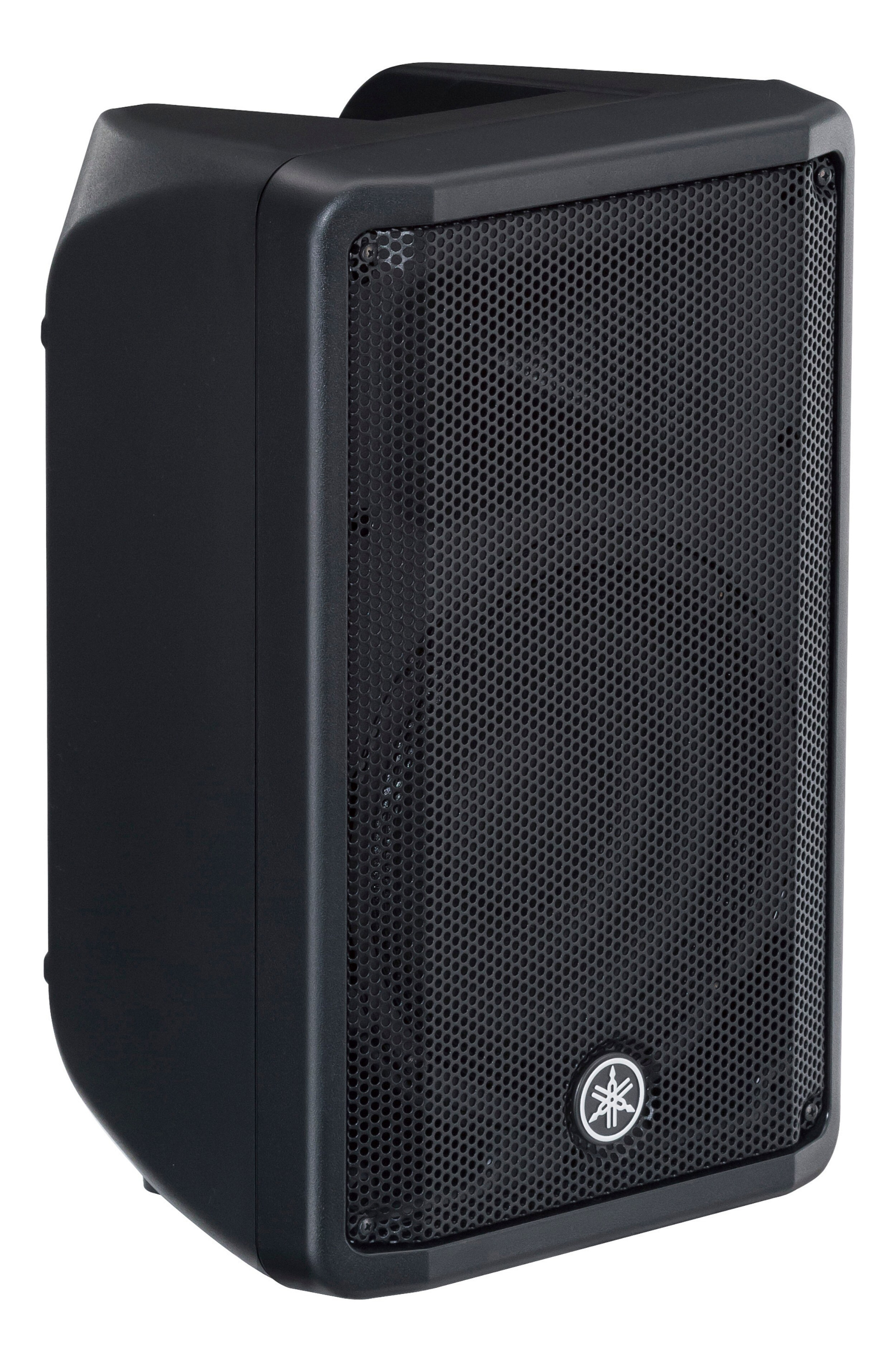

DBR10
  • 2-way, Bi-amp powered speaker, Bass-reflex type
  • 55Hz – 20kHz
  • H90° V60°
  • Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
  • Diaphragm:1", Type: 1" throat compression driver, Magnet:Ferrite
  • Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
  • 129dB SPL

Enquiry Form

Comprising 10”, 12” and 15” models, each DBR loudspeaker is housed in a newly designed, durable, lightweight cabinet optimised for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, DBR Series speakers will take your performance to the next level.

High-Efficiency 1000W Class-D Amplifiers

DBR's lightweight, high-performance Class-D amplifier can produce up to 1000W* of power, achieving an SPL of 132dB with remarkable clarity and dynamic range.

*DBR10 has an output level of 700W.

Custom-Designed Transducer

The high-power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver* produces accurate mid-range and high frequencies.

*DBR10 features a 1" compression driver.

A Rugged, Highly Portable Cabinet

DBR Series speakers feature a compact, lightweight, durable plastic cabinet that offers the highest portability of all Yamaha powered speakers. The sleek steel grille boosts cabinet durability and protects the internal components, while newly designed ergonomic handles make transport and setup easier.

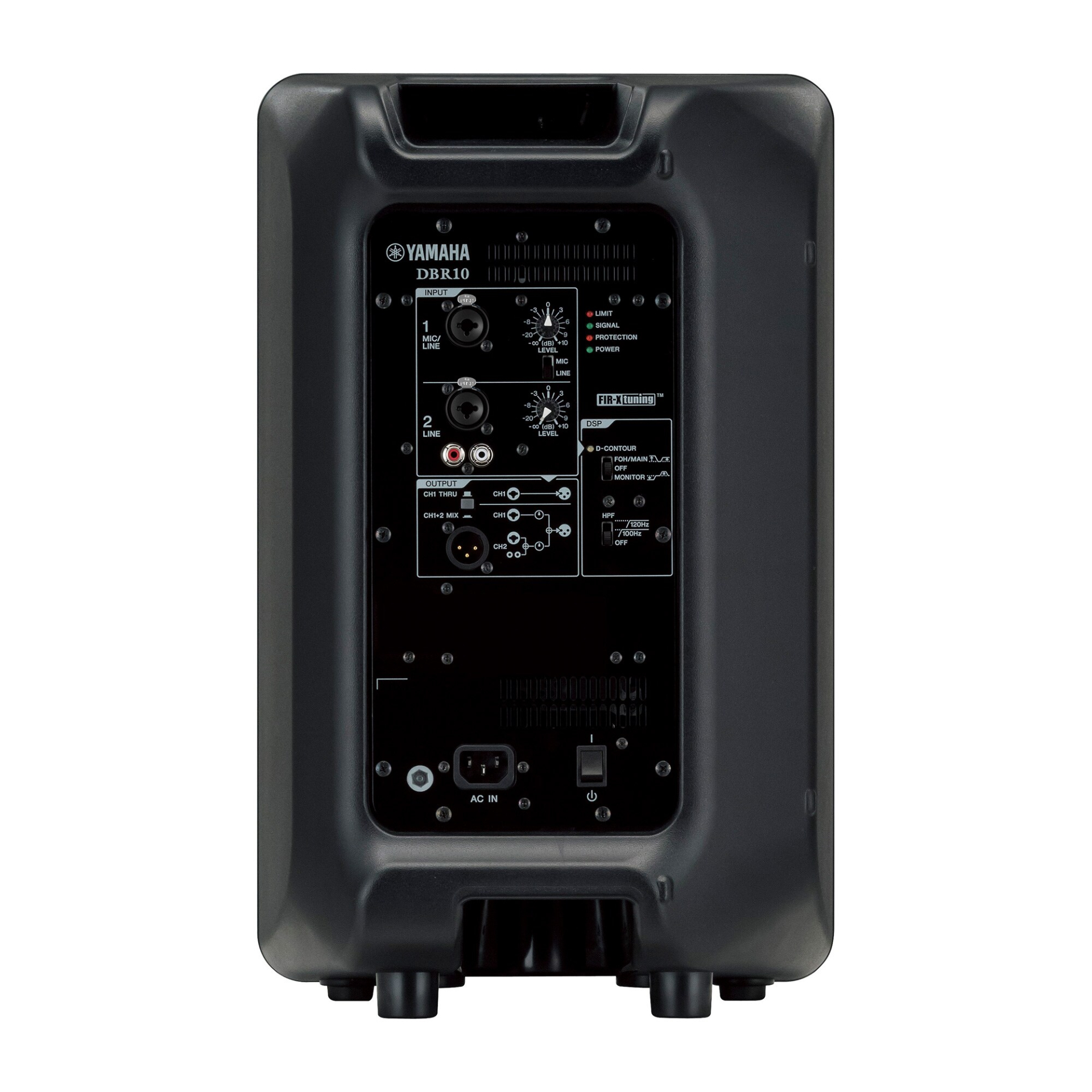

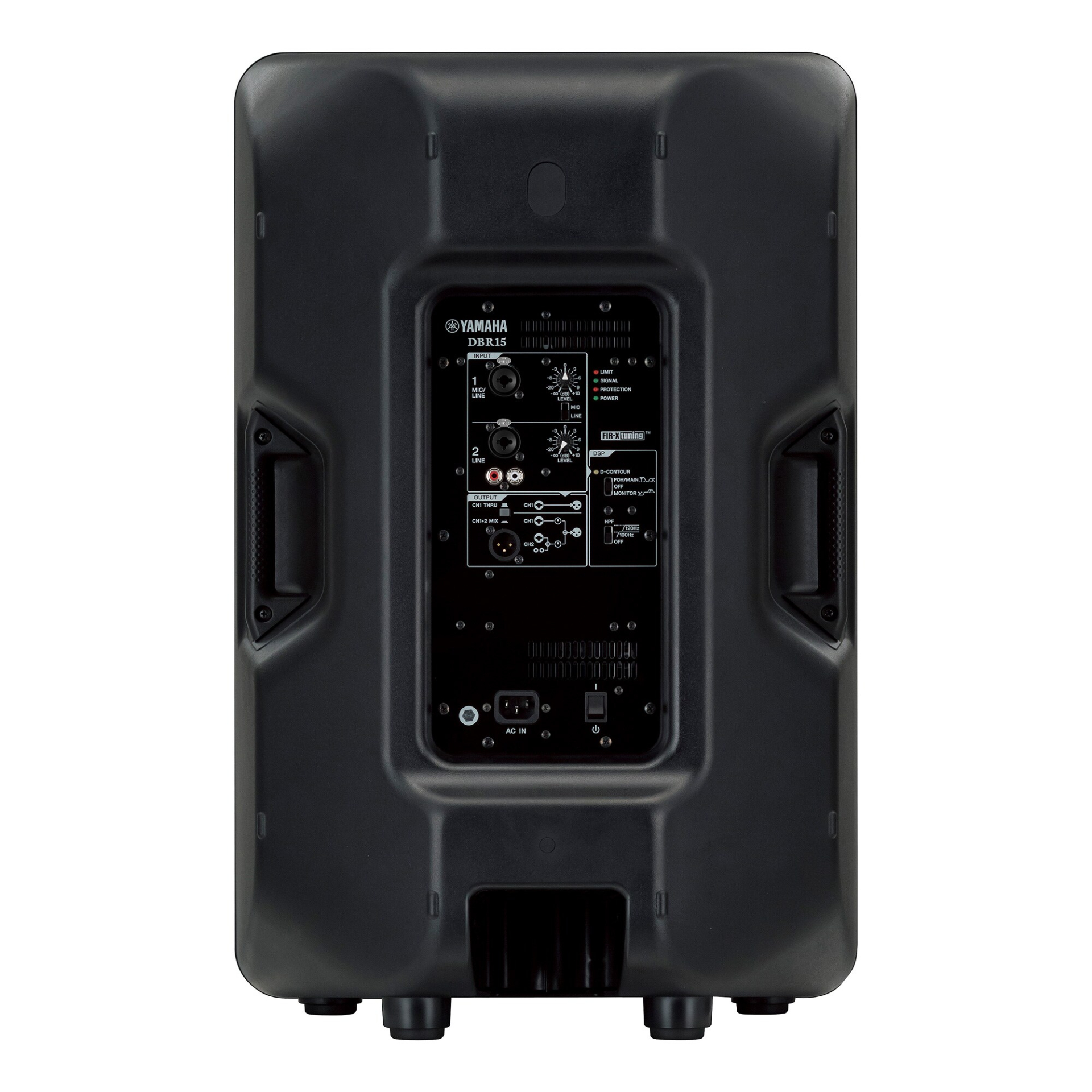

Easy-to-use Onboard 2-Channel Mixer

DBR Series speakers have two input channels. CH1 has a combo jack that accepts both XLR and TRS phone, allowing mic- or line-level input signals. CH2 offers two input options: a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer lets you select either CH1+2 MIX to mix the signals from CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

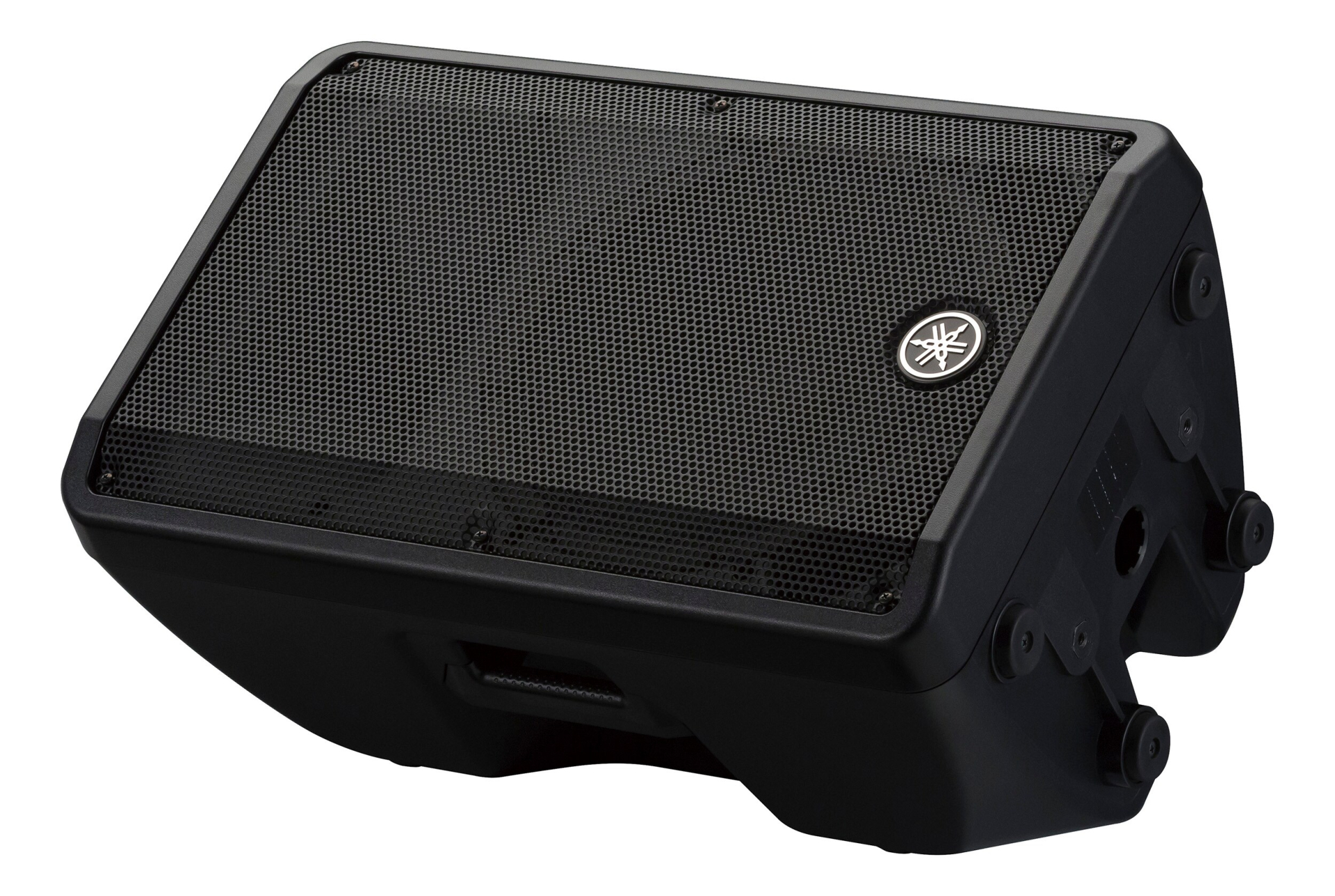

Smart Enclosure Design for Floor Monitoring

DBR Series speakers feature an optimised 50 ° wedge angle for floor monitoring. In addition, the DBR12 and DBR15's symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

Rigging Points for Installation Applications

DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardised eye-bolts.

*Speaker brackets and eye-bolts are not included.

Functional Speaker Cover

The functional speaker covers protect your speakers from unfavourable weather conditions during outdoor performances, dusty warehouse storage, or the rigours of road transport.

- Trilaminar fabric of durable polyester, with inner PVC coat and cushion inside for impact suppression

- Front mesh allows sound reinforcement with the cover as well as ensures amp cooling

- Rear roof allows easy access to the rear panel with the cover on

- Handle slit allows easy access to the handles for carriage

- Cable pocket provides additional space for carrying cables

*NOTE: The covers do NOT guarantee water-drip protection.
