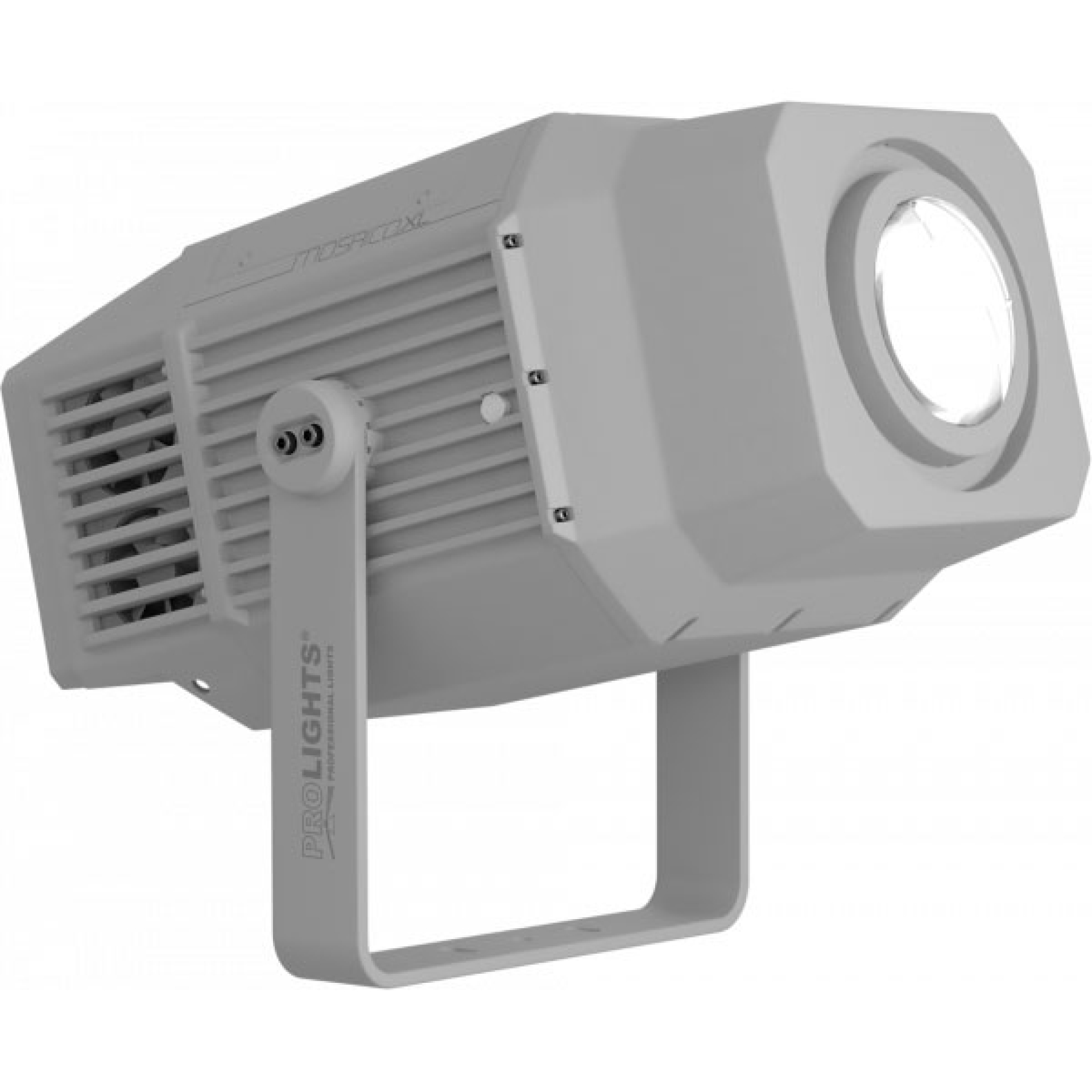

PROLIGHTS Mosaico XL

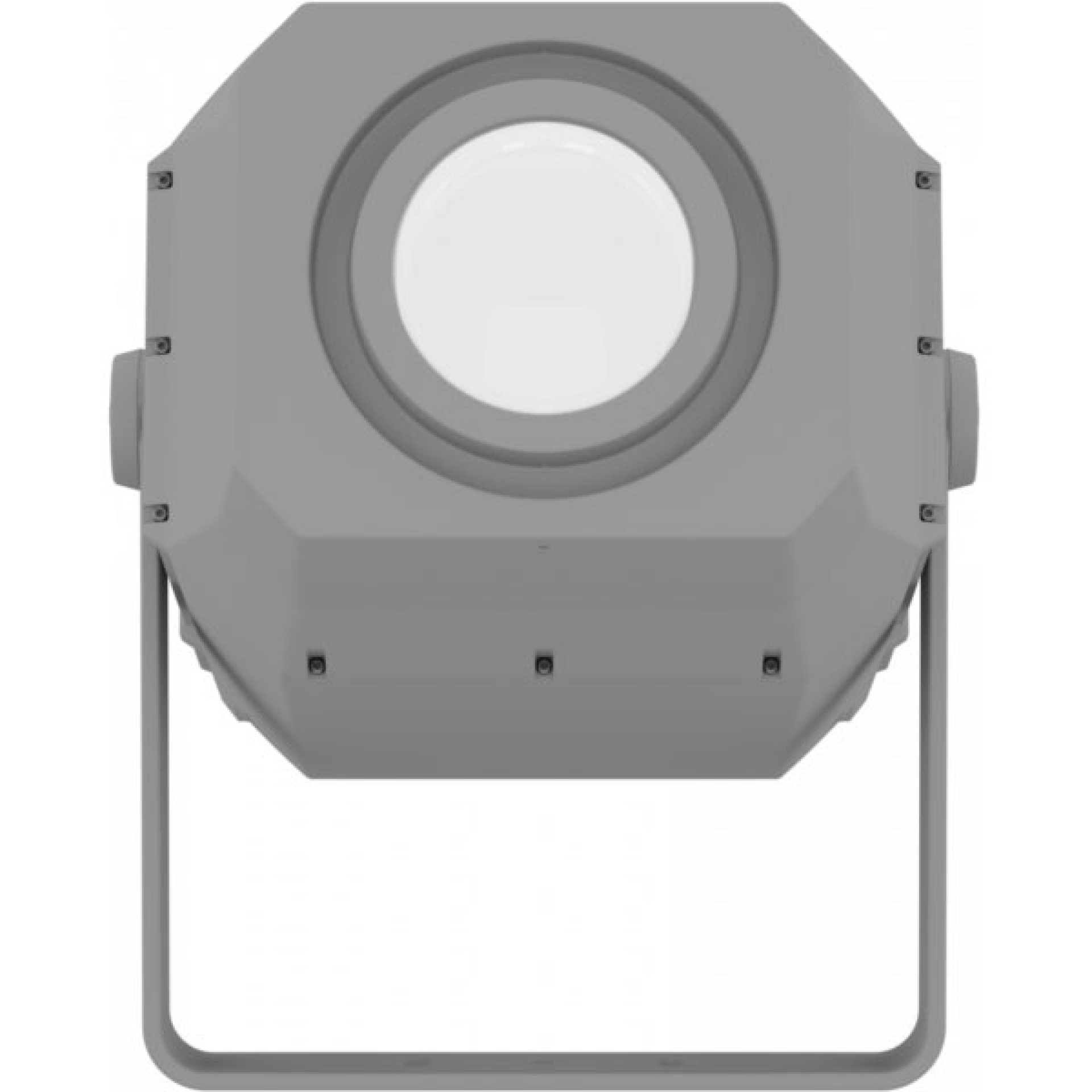

PROLIGHTS Mosaico XL - front view

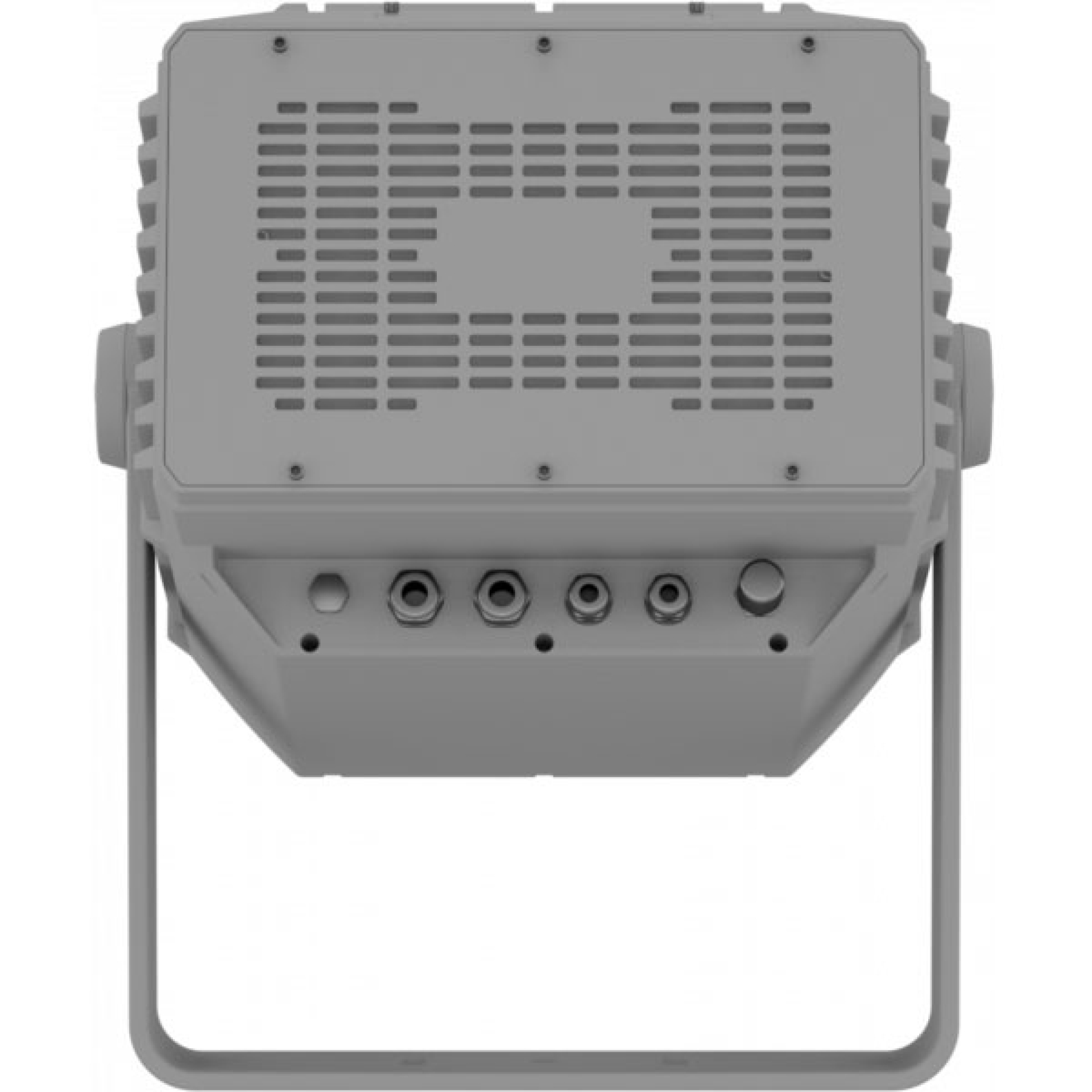

PROLIGHTS Mosaico XL - rear view

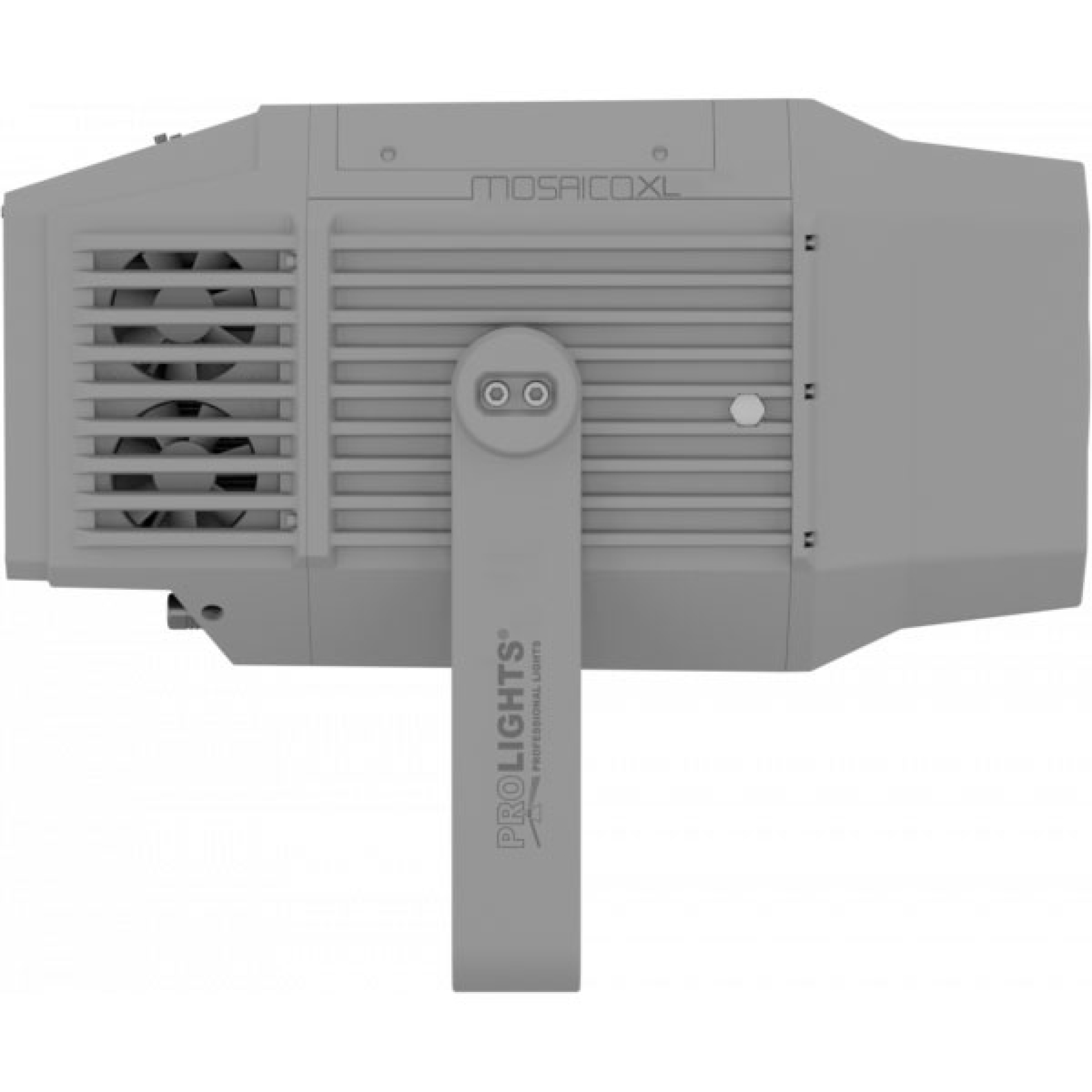

PROLIGHTS Mosaico XL - side view
PROLIGHTS Mosaico XL - front view
PROLIGHTS Mosaico XL - rear view
PROLIGHTS Mosaico XL - side view

Mosaico XL

PROMOSAICOXL

Key Features:

  • IP66 construction
  • 540W White LED engine with 6,000K CT delivering 14,500 lumens output
  • Extensive feature set
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Mosaico XL

PROLIGHTS Mosaico XL is an extremely bright, long-throw, IP66 LED fixture for projecting textures, images or logos onto buildings and landscapes.

Built in a durable, die-cast, IP66 housing, the Mosaico XL delivers a powerful 17,000 lumens of output with an exceptional 5° to 50° motorised zoom. A full set of effects offer a wide range of creative options including CMY colour mixing, full framing shutters, 7 indexable rotating gobos and an animation wheel.

  • Source: 540W high-power white LED

    CT: 6,000K

    Luminous flux: (6.6°) 8,812lm; (50°) 14,253lm

    Lux: (6.6°) 33,138lx; (50°) 1,138lx @ 5m full

    Source life expectancy: >30,000hr

    Zoom: 6.6° – 50° motorised linear zoom

    Lens diameter: 119mm

    Lens type: high-quality glass lens optics

    Focus: motorised

  • Colour mixing: linear CMY

    CTC: linear 3,000K – 6,000K

    Colour wheel: 6 colour filters

    Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system

    Animation wheel: animation wheel with CW and CCW rotation

    Rotating gobos: 7 rotating gobos + open, interchangeable, indexing

    Gobo size (BW): outer: 26.9mm; image: 20.5mm

    Gobo size (Color): outer: 26.9mm; image: 20.5mm

    Circular prism: 4f with bi-directional rotation, indexing

    Frost: dual frost filter system, soft-edge linear frost filter, hard edge linear frost filter

    Iris: 5 ~ 100% motorised linear iris

  • Protocols: DMX512, RDM, W-DMX, stand alone programmer and playback

    DMX channels: 28 / 30 / 35 / 44 channel

    Wireless control: included, wireless solution receiver

    RDM: RDM for remote monitoring and settings

    Display: black OLED touch display

    Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

    Master/Slave: for synchronised operation of more units linked in a chain

You might like...

PROLIGHTS Mosaico FX100FC - grey
Product - LIGHTING
Mosaico FX100FC
    • 100W RGBW / FC LED
    • 15°, 30°, 50° and 70° available optics (not included), Image or Effects optimized
    • DMX, CRMX Wireless and local stand alone control
Find out more
PROLIGHTS Mosaico L
Product - LIGHTING
Mosaico L
    • IP66 for long-lasting installations, with minimal maintenance needed
    • 7°- 49° linear zoom system, for both near and long throw installation
    • 300W White LED engine (8,000K), with up to 11,700 lumen output
Find out more

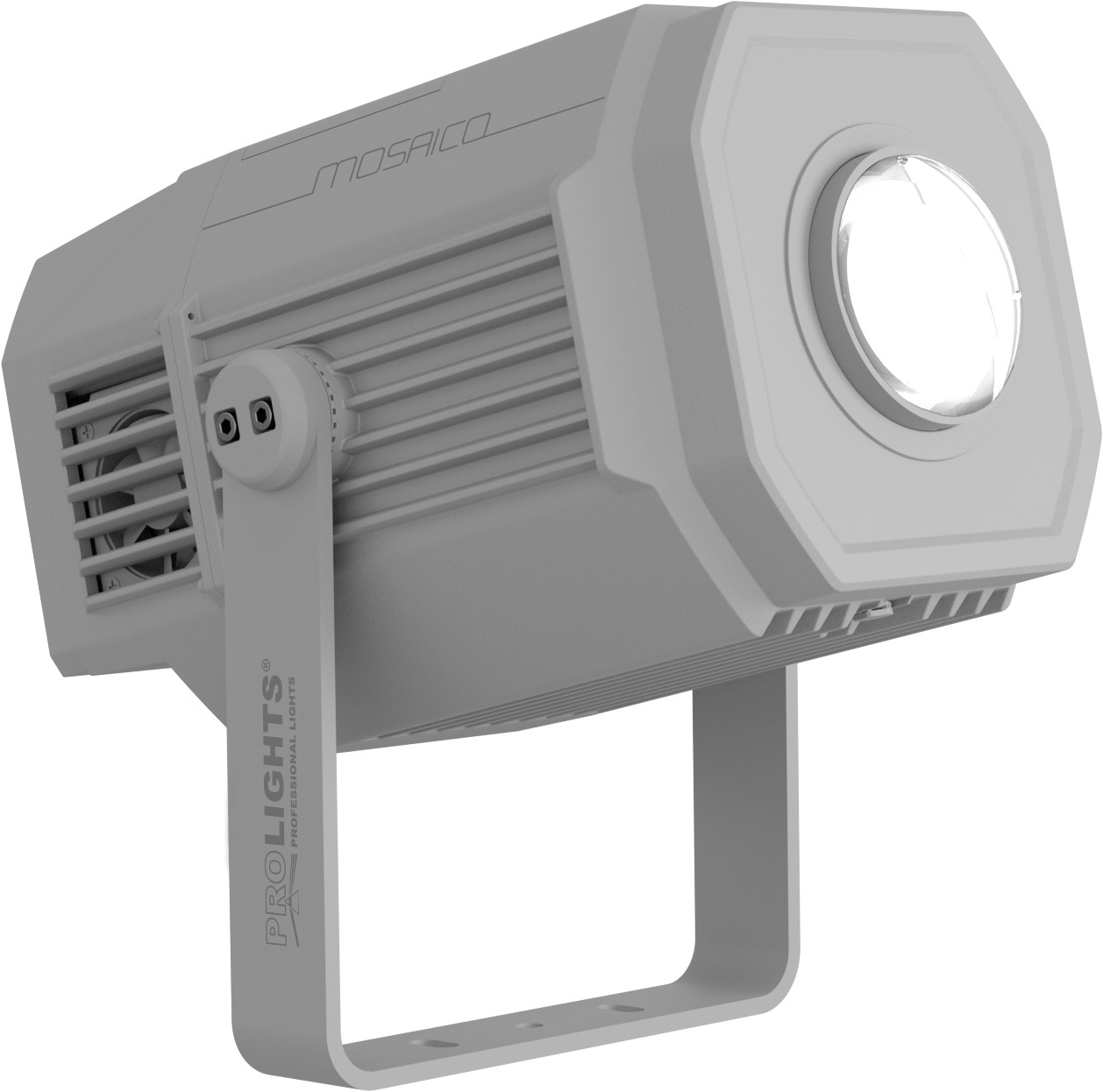

PROLIGHTS Mosaico LED Image Projector
