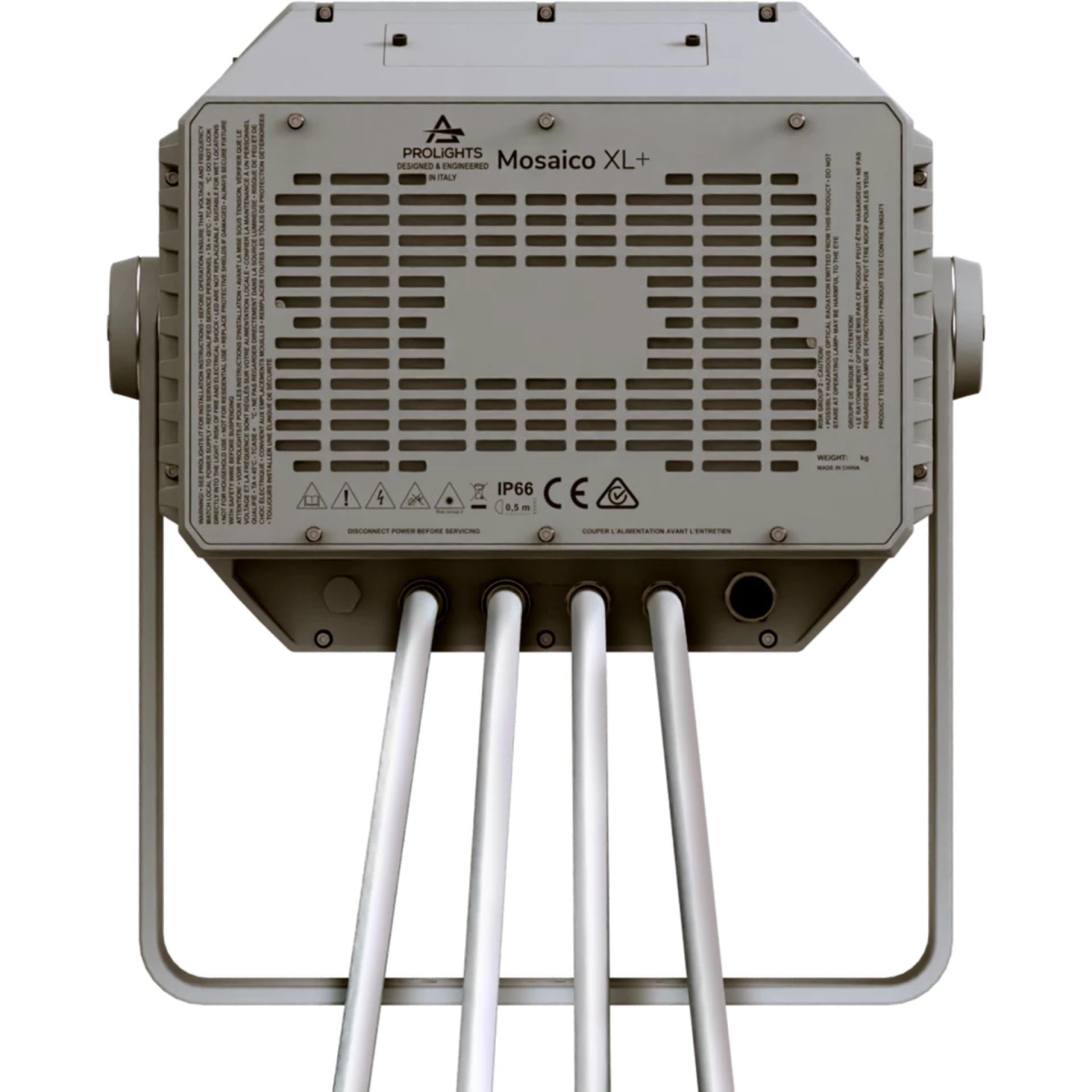

PROLIGHTS Mosaico XL+ back view

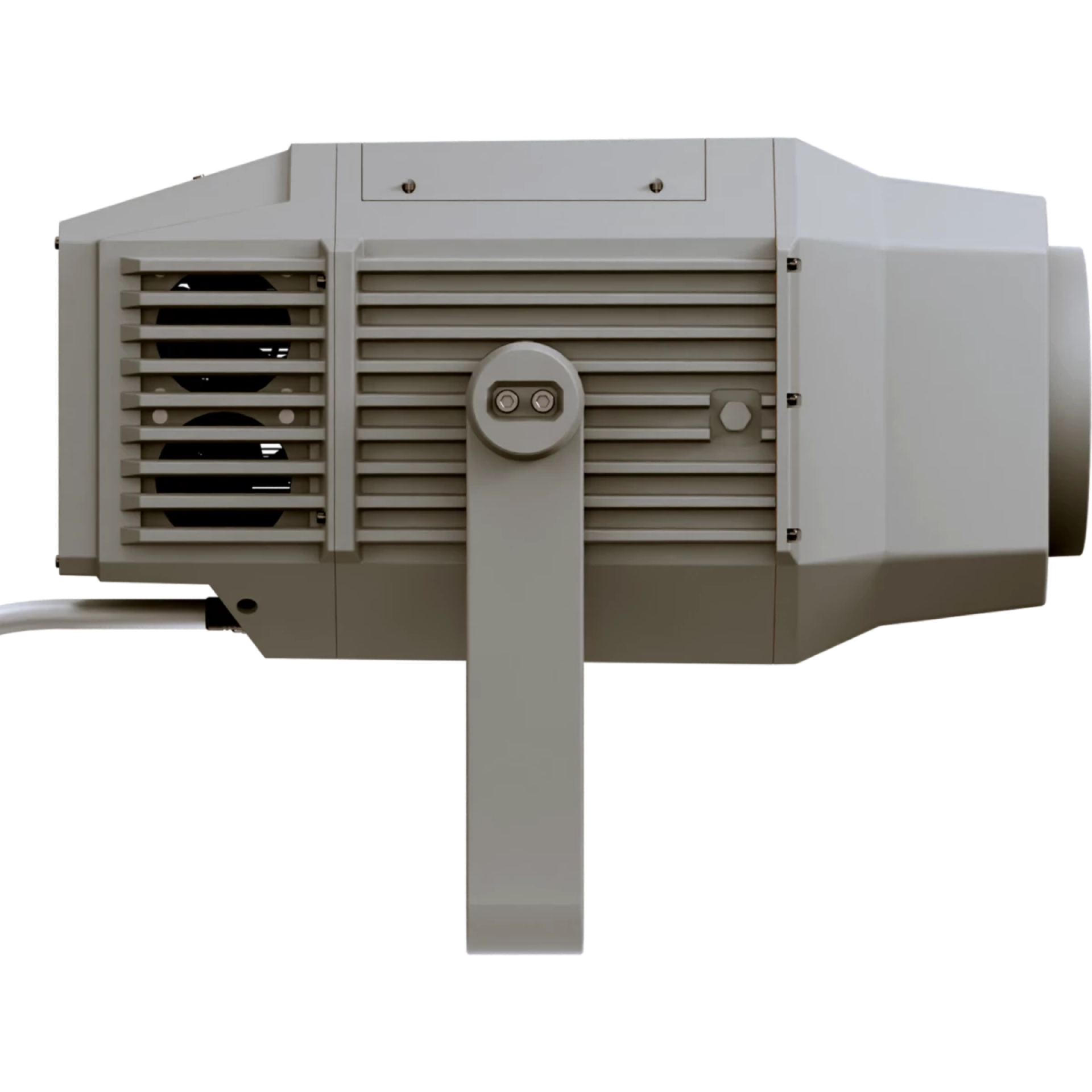

PROLIGHTS Mosaico XL+ side view

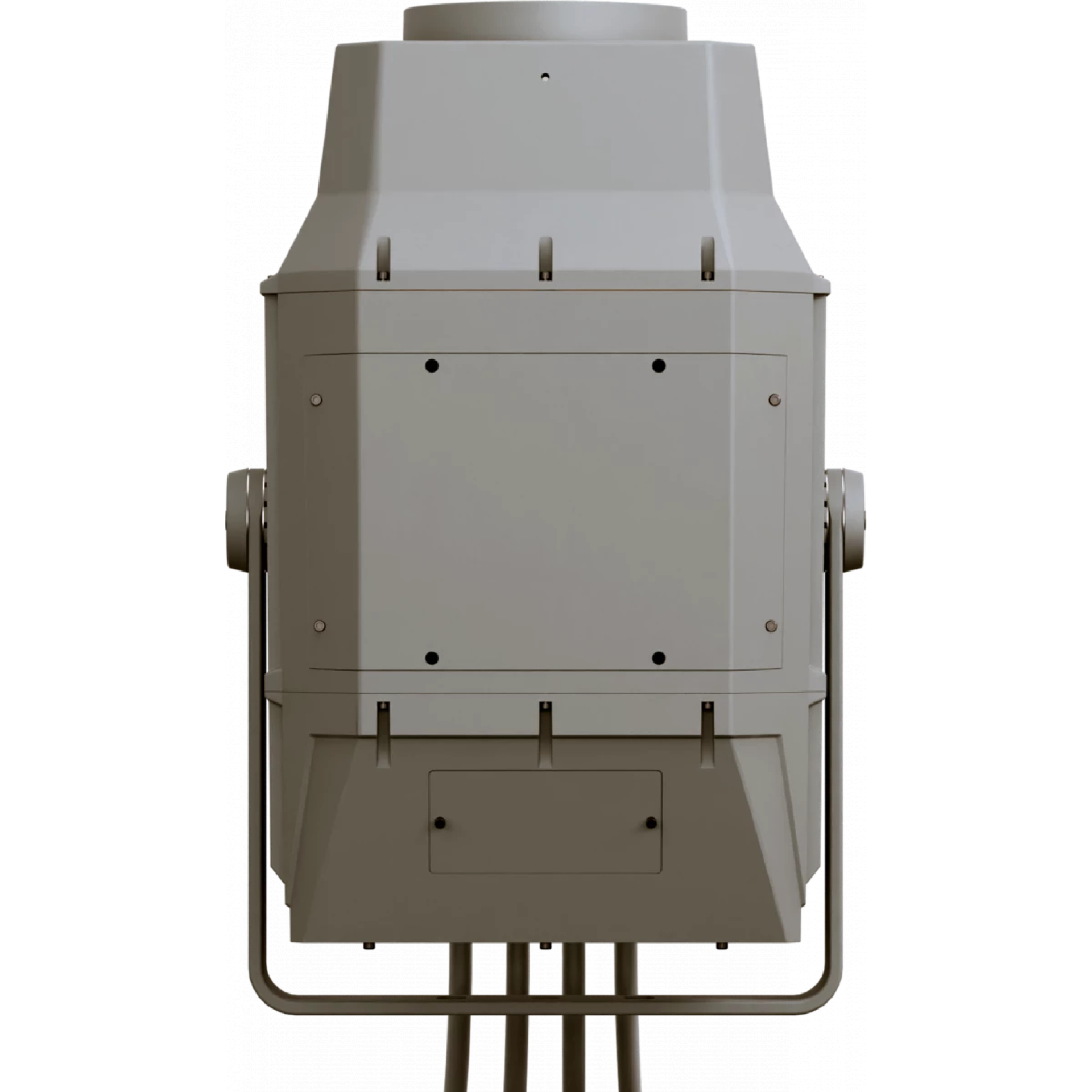

PROLIGHTS Mosaico XL+ top view

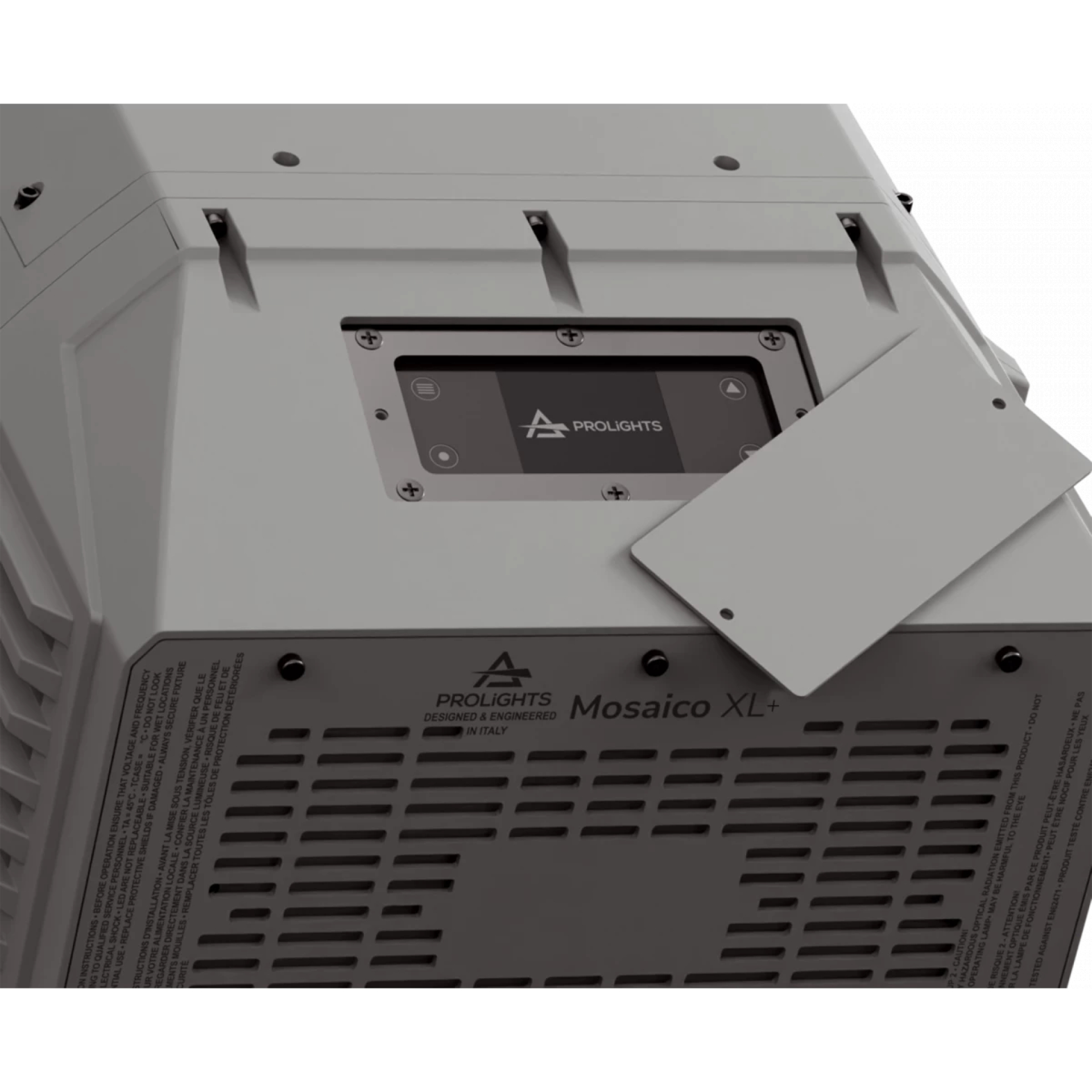

PROLIGHTS Mosaico XL+ screen cover
PROLIGHTS Mosaico XL+ side view
PROLIGHTS Mosaico XL+ top view
PROLIGHTS Mosaico XL+ screen cover

Mosaico XL+

PROMOSAICOXLPLUS

Key Features:

  • IP66 allowing long-lasting installation with minimal maintenance
  • Equipped with 6°- 50° linear zoom system to for both near and long throw installation
  • 600W White LED engine with 6.300 K CT delivering 23'600 lumens output
  • Extensive feature set including CMY and linear CTO, shutter frame and animation wheel
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Mosaico XL+

Mosaico XL+ is an extremely powerful outdoor LED image projector for long-range projection of textures, images and logos onto buildings and landscapes.

Built in a durable IP66 die-cast housing, the Mosaico XL+ offers a phenomenal output of 23,600 lumens and an extensive set of features including linear CMY+CTO colour mixing system and profile to precisely shape the projection area. The exceptional zoom ranges from 6° to 50° allowing this fixture to be installed at any distance making it versatile in both near-field and long-throw installations, awesome for static and animated facade building lighting.

  • Source: 600W high-power white LED

    CCT: 6,300

    Luminous flux: (6.8°) 17,404 lm; (52.1°) 23,570 lm @ full

    Lux: (6.8°) 59,962 lx; (52.1°) 1,454lx @ 5m full

    Source life expectancy: > 20,000 hr

    Zoom range: 6.8° - 52.1° motorised linear zoom

    Lens diameter: 135mm / 5.31''

    Lens type: high-quality glass lens optics

    Focus: motorised

  • Colour mixing: linear CMY

    CCT: linear CTO correction 3000K ~ 6000K

    Colour wheel: open + 6 interchangeable colour filters

    Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system

    Animation wheel: animation wheel with CW and CCW rotation

    Rotating gobos: 7 rotating gobos + open, interchangeable, indexing

    Gobo size (BW): outer: 26.9 mm - image: 20.5 mm

    Gobo size (Color): outer: 26.9 mm - image: 20.5 mm

    Circular prism: 4f with bi-directional rotation, indexing

    Frost: dual frost filter, soft-edge and heavy

    Iris: 5 ~ 100% motorised iris

  • Protocols: DMX512, RDM, CRMX

    Stand Alone: Stand Alone programmer and playback

    DMX channels: 28 / 30 / 35 / 44 channel

    Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: black OLED touch display

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

    Master/Slave: for synchronised operation of more units linked in a chain
