Mosaico Jr

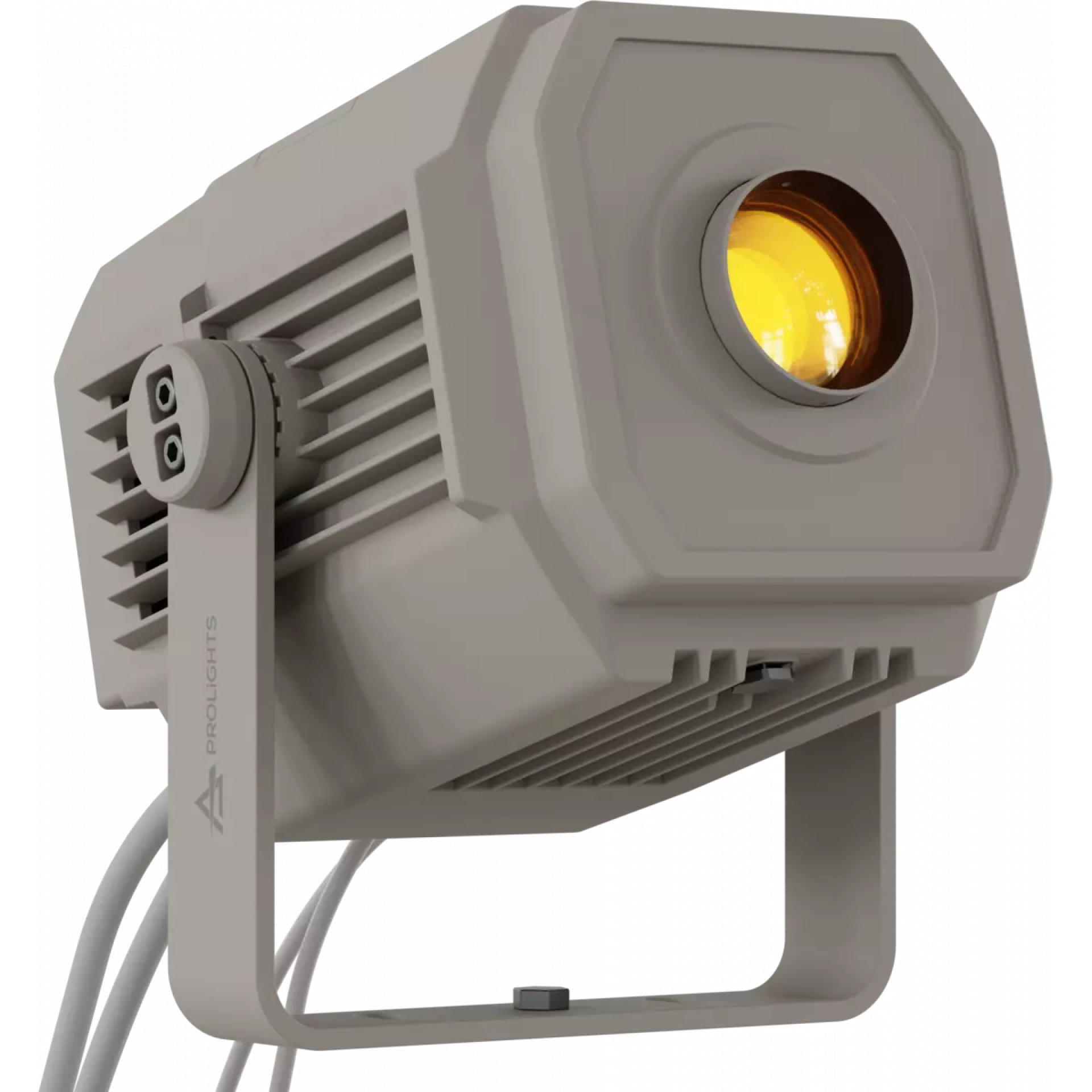

PROLIGHTS Mosaico Jr image projector

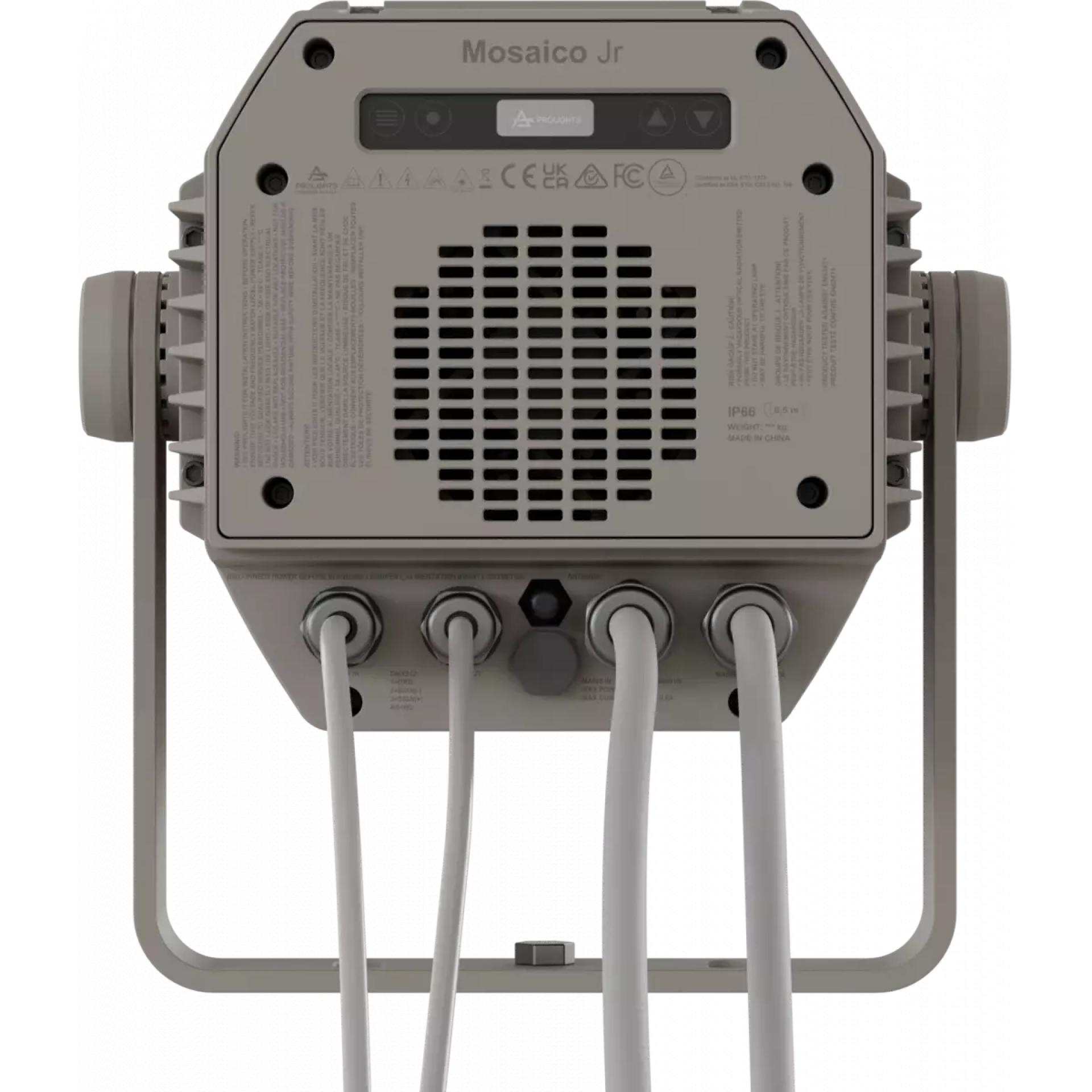

PROLIGHTS Mosaico Jr Rear

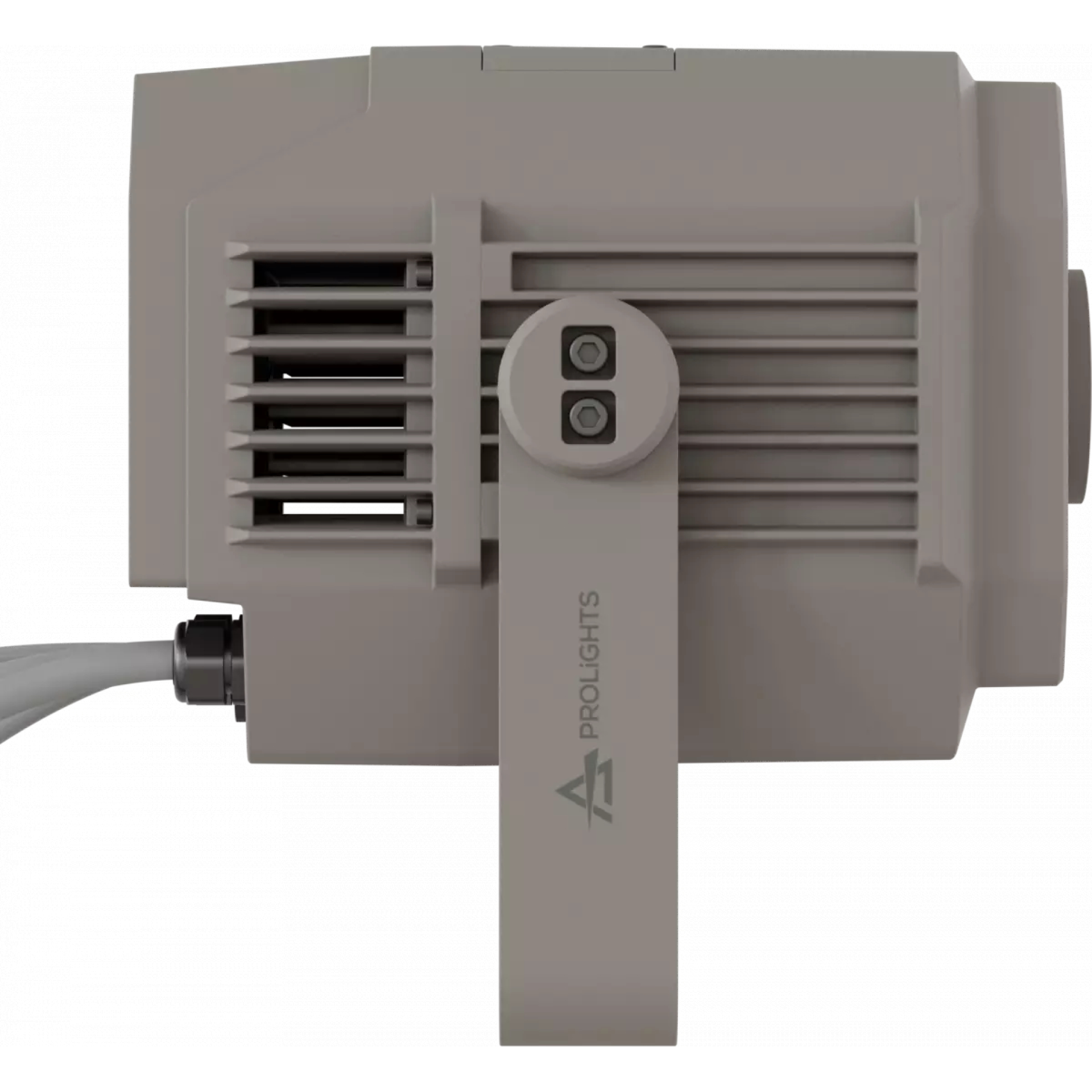

PROLIGHTS Mosaico Jr side

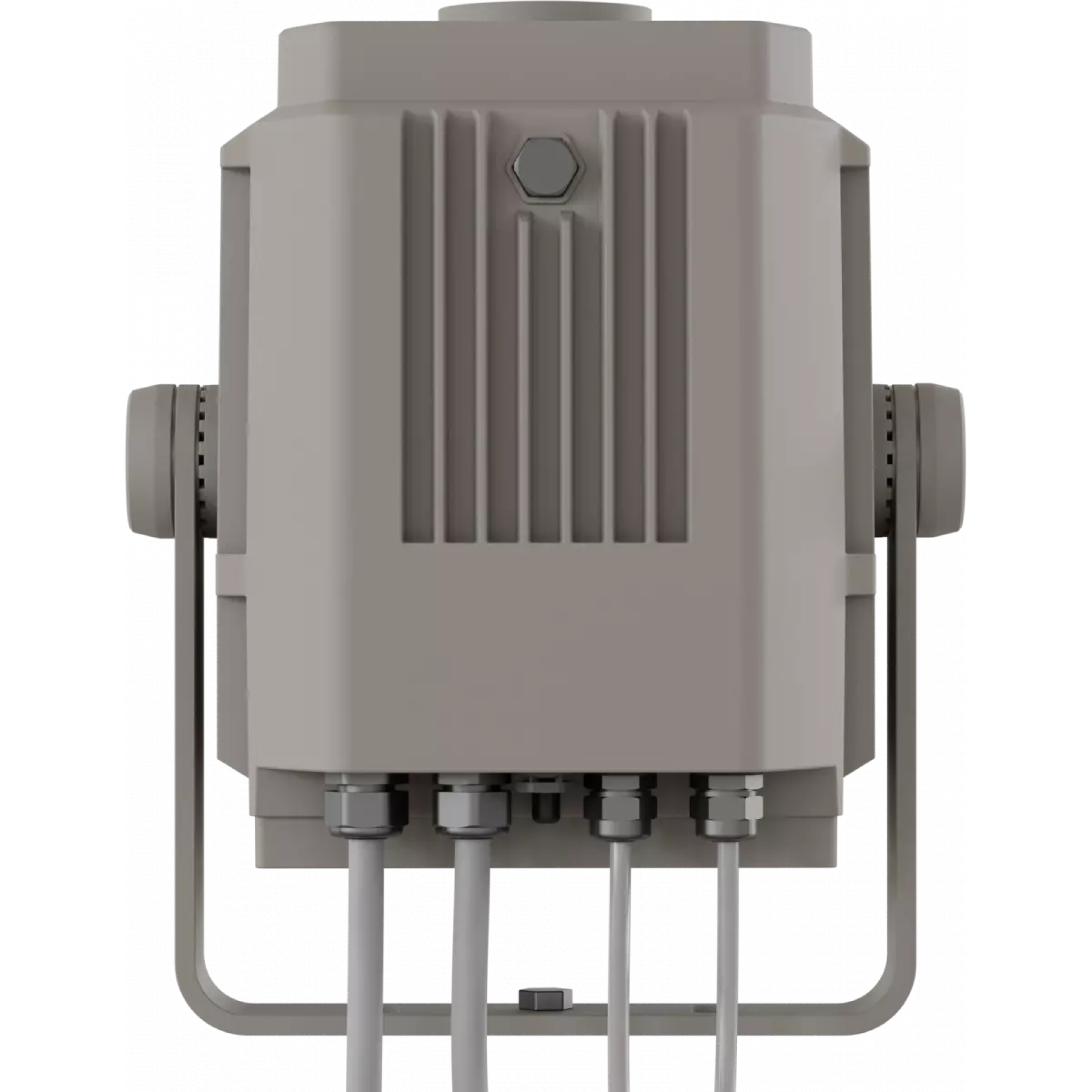

PROLIGHTS Mosaico Jr top
PROLIGHTS Mosaico Jr Rear
PROLIGHTS Mosaico Jr side
PROLIGHTS Mosaico Jr top

Mosaico Jr

PROMOSAICOJR

Key Features:

  • IP66 construction
  • Small size allows for mounting anywhere
  • 14.7° to 45° onboard zoom ranges
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Mosaico Jr


The PROLIGHTS Mosaico Jr is a compact exterior LED image projector designed for the projection of logos, images and textures onto commercial buildings, hotels and city facades.

The small size allows for mounting anywhere without any impact on the surrounding environment or architecture. The onboard zoom ranges from 14.7° to 45° allowing for an extensive user-flexibility, from projecting crisp and accurate logos to textured projections.

    • Source: 70W White LED
    • CCT: 7.000
    • Luminous flux: (14.7°) 2'595 lm - (45°) 2'628lm
    • Lux: (14.7°) 1'927 lx - (45°) 294lx @5 m full
    • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
    • Zoom: 14,7° - 45° motorised linear zoom
    • Lens diameter: 63mm / 2.48''
    • Lens type: high-quality glass lens optics
    • Focus: motorised
    • Colour wheel: 7 colour filters
    • Rotating gobos: 7 rotating gobos + open, indexing
    • Gobo size (BW): gobo Ø 15,8 mm - img Ø 12,5 mm
    • Gobo size (Color): gobo Ø 15,8 mm - img Ø 9 mm
    • Auto mode: built-in programs with execution speed adjustment
    • Protocols: DMX512, RDM, W-DMX, Stand Alone programmer and playback
    • DMX channels: 8 / 14channel
    • Wireless Control: included, wireless solution receiver
    • RDM: RDM for remote monitoring and settings
    • Display: Graphic User Interface
    • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave: for synchronised operation of more units linked in a chain
Mosaico Jr - Downloads
PROLIGHTS Mosaico Jr image projector spec sheet
