Mosaico FX100FC

Mosaico FX100FC

Key Features:

100W RGBW / FC LED

15°, 30°, 50° and 70° available optics (not included), Image or Effects optimized

DMX, CRMX Wireless and local stand alone control

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Mosaico FX100FC

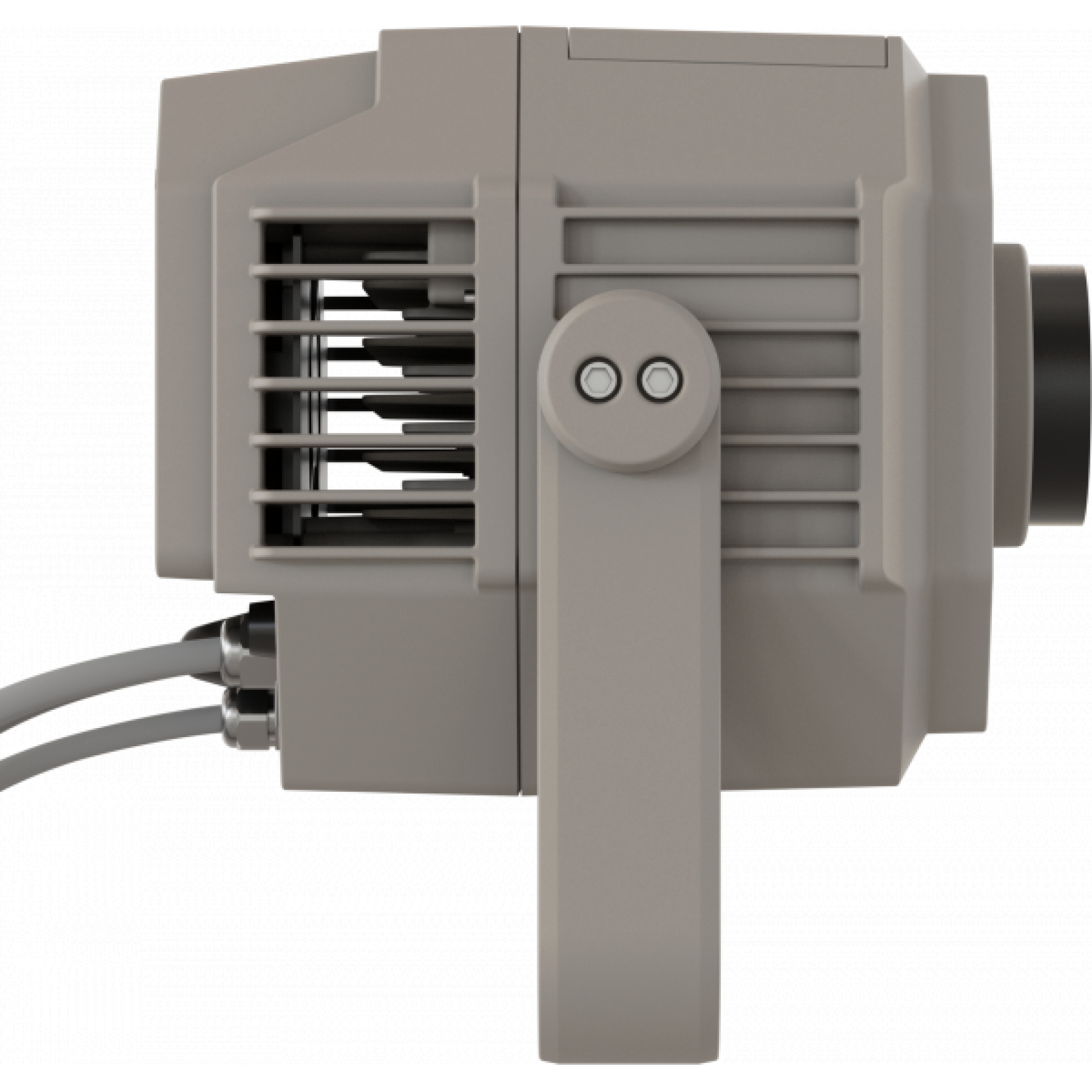

The PROLIGHTS Mosaico FX100FC is a 100W RGBW full colour LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape.

Product Variants

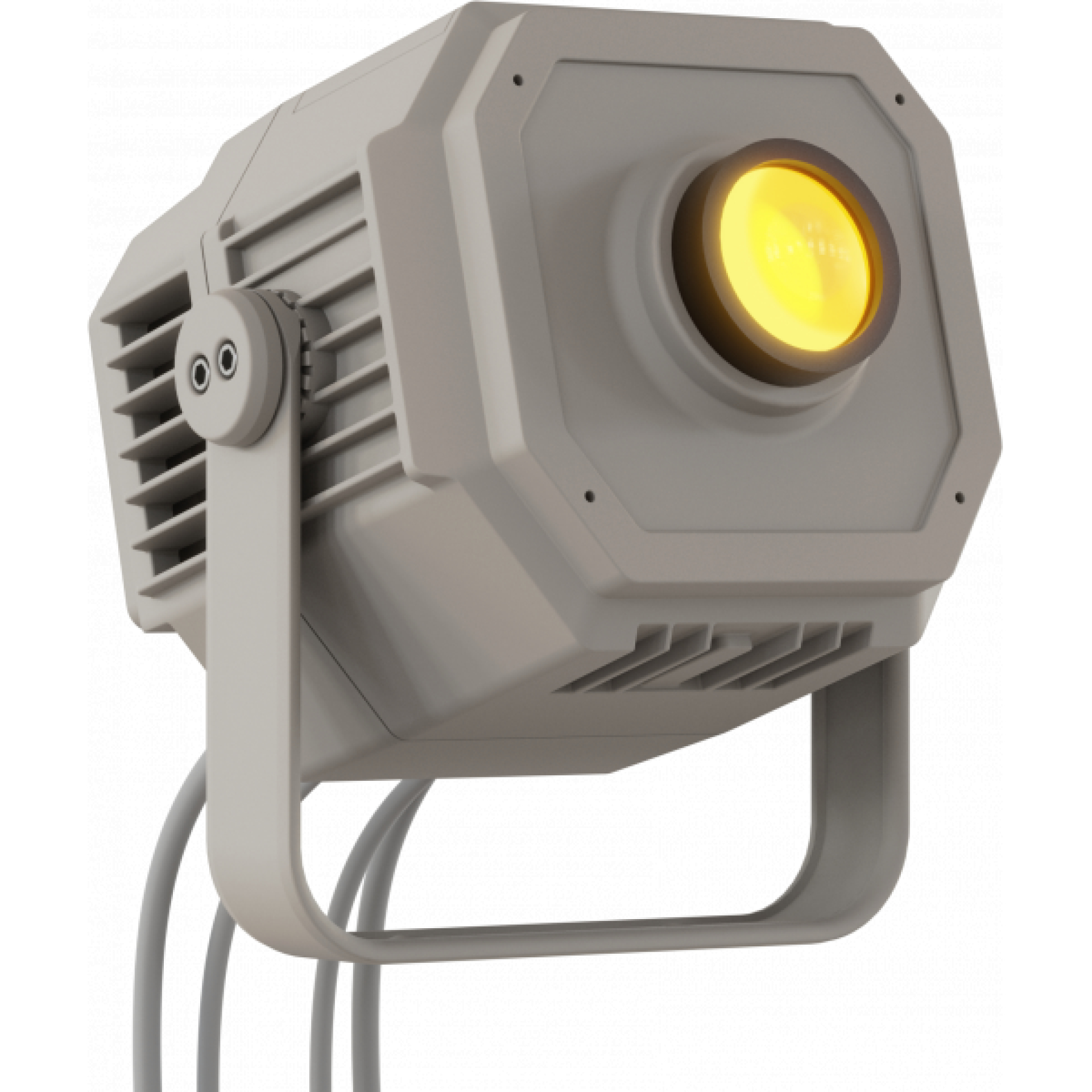

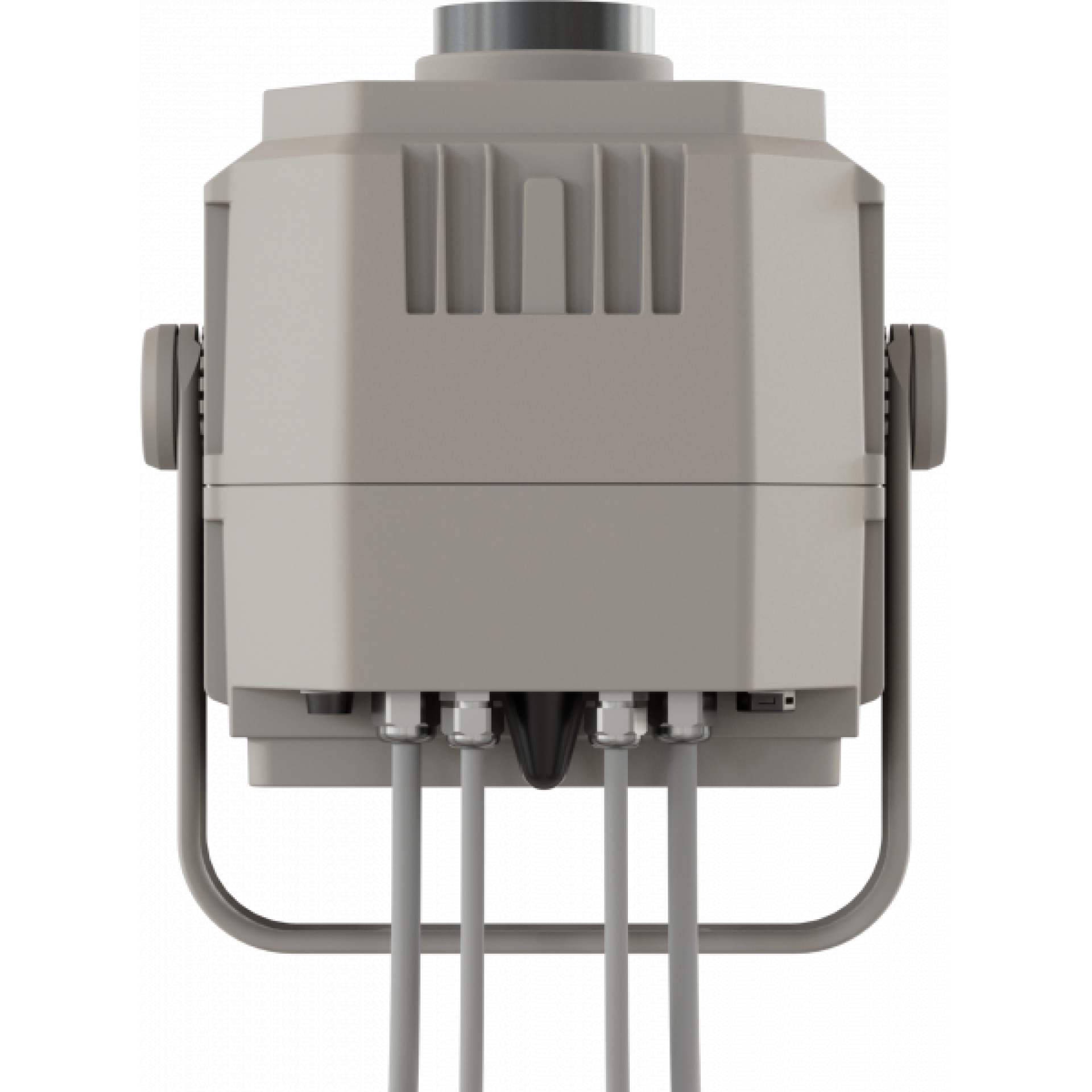

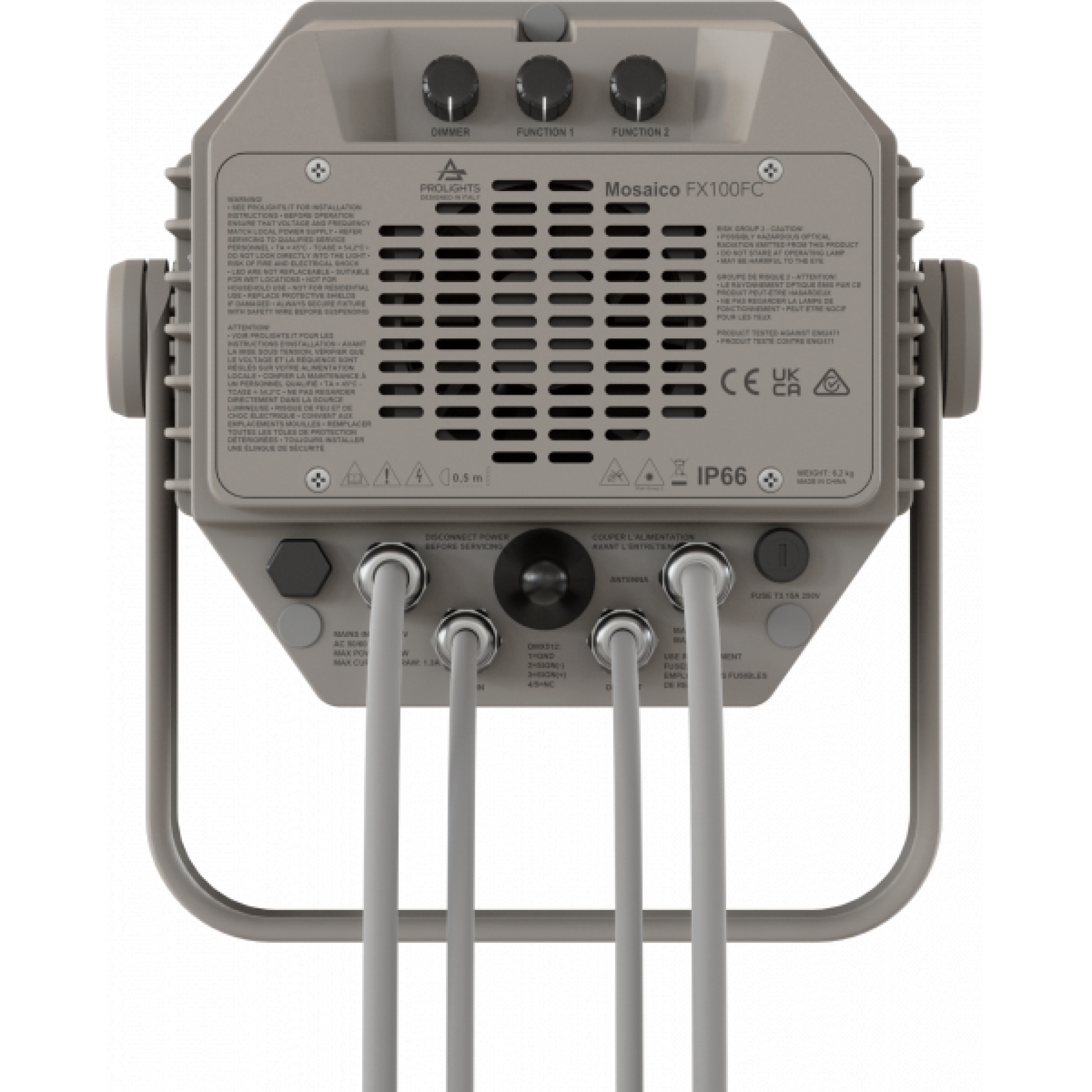

Mosaico FX100FC

Unit colour: Grey

Enquiry Form

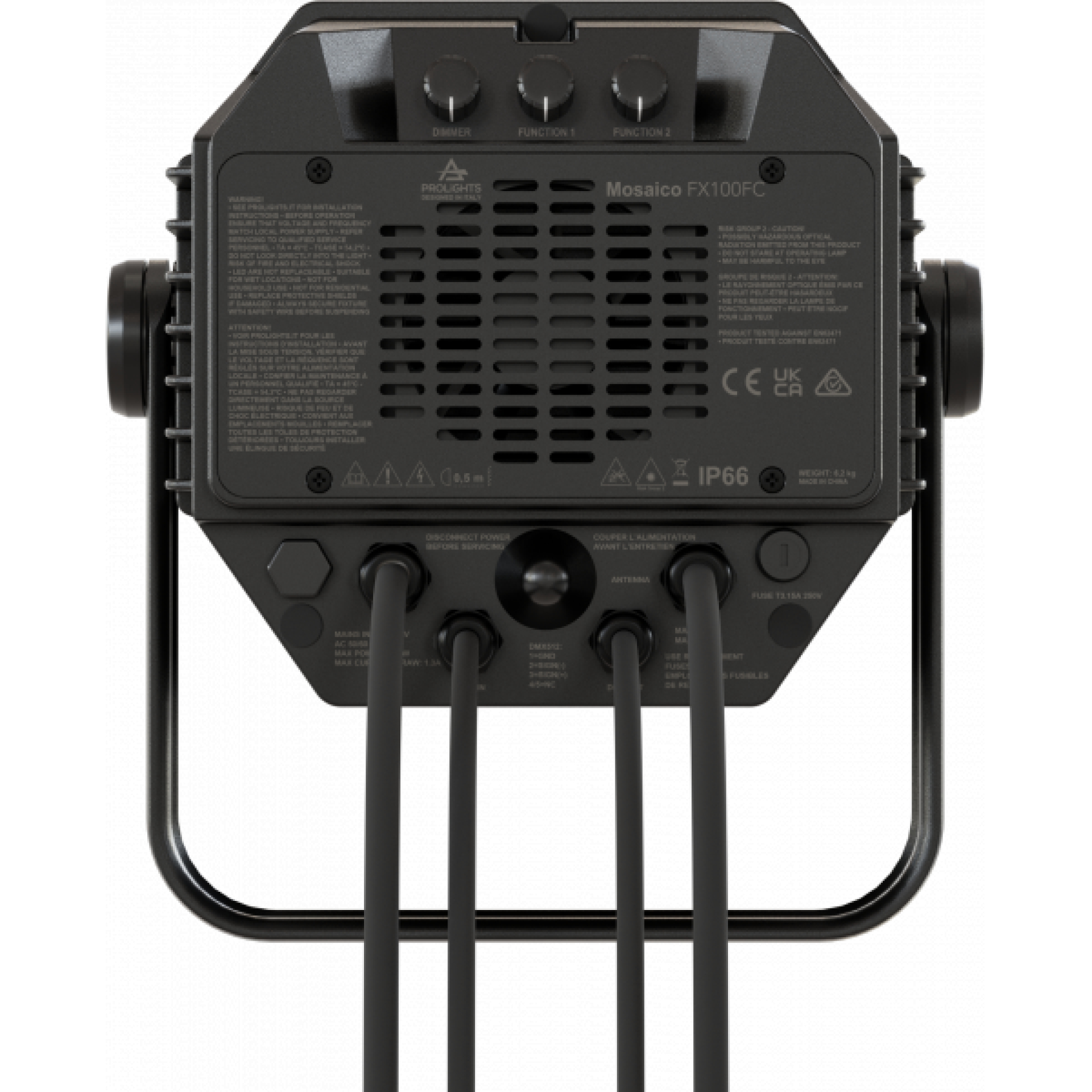

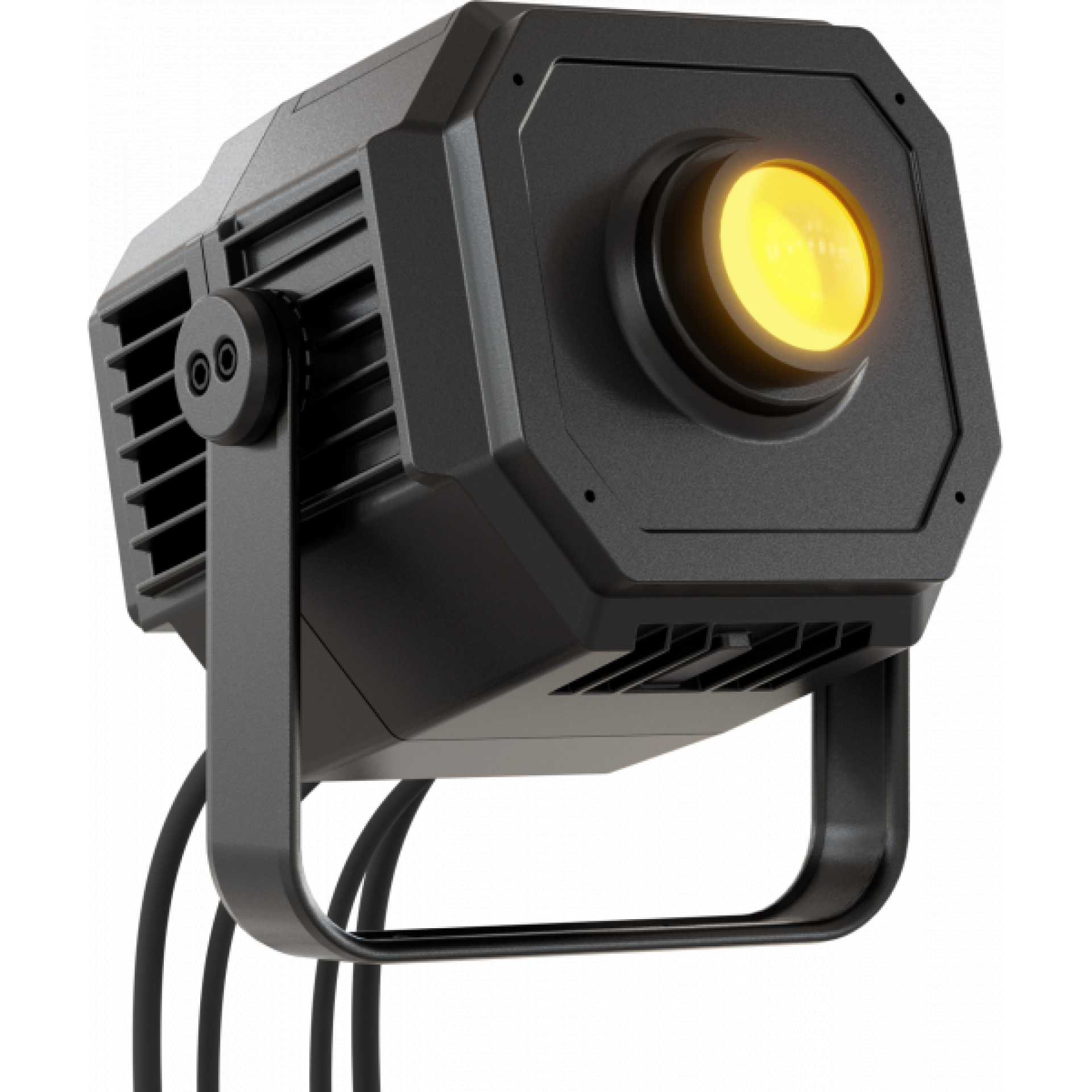

Mosaico FX100FC

Unit colour: Black

Enquiry Form

Mosaico FX100FC is supplied with two controllable effect wheels on board made in structured glass material to animate your projection, with linear motion control for creating reflected water, blowing fire or northern lights effects. The kit also contains one indexable gobo holder and a colour holder with a magnetic attachment.

Mosaico FX100FC is compatible with a wide range of high definition optics, each optimized for the required application (animation or image projection): 15°, 30°, 50° and 70°. This unit can be controlled via DMX, both wired and wireless and also easily operated locally through the simplified stand alone operations.

Please note that Mosaico FX100FC does not ship with a lens or other images or colours. Choose from the available lenses when ordering to meet your design requirements.

- Source: 100W RGBW / FC LED
- Luminous flux: (15°) 1,212lm; (30° WT) 1,214lm; (30° GB) 1,132lm; (50° WT) 1,340lm; (50° GB) 896lm; (70°) 960lm @ full
- Lux: (15°) 633 lx; (30° WT) 392lx; (30° GB)0 165lx; (50° WT) 179lx; (50° GB) 74lx; (70°) 92lx @ 5m full
- Source life expectancy: > 30,000hr (L70B10 @Ta 25° C / 77° F)
- Optics: interchangeable - see available accessories
- Focus: manual

- Colour wheel: available as accessory
- Other: included 1 static holder with magnetic positioning
- Control resolution: 16-bit dimmer, colours
- Gobo size (BW): outer: 26.9mm; image: 22mm
- Gobo size (colour): outer: 26.9mm; image: 20.5mm
- Fixed gobos: Fix gobo wheel available as accessory
- Static mode: selection of static dimmer, colors and effects rotation mode
- Other: included 1 static gobo holder with manual indexing gear and magnetic assembly
- Other: 2 rotating wheels with magnetic mounting (structured glass included, color/gobo/animation and other wheels available as optional accessories)

- Protocols: DMX512, RDM, CRMX + WDMX, 3 push encoder
- Stand alone: 3 push encoder
- DMX channels: 13 channel
- Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (LumenRadio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: user interface through DATAMASTER external coder (not included)
- Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
- Master/Slave: for synchronised operation of more units linked in a chain
