EclPendant SVW

Key Features:

House light with 50W Variable White LED source with passive cooling

Enquire

Enquiry Form

First Name ^*

Surname ^*

Email ^*

Company Name

Country ^*

Are you an existing customer? ^*

Yes No

Phone ^*

How can we help?

Privacy Policy ^*

Please confirm you've read and agree with our privacy policy.

Call us today on

+44 (0)1494 446000

EclPendant SVW

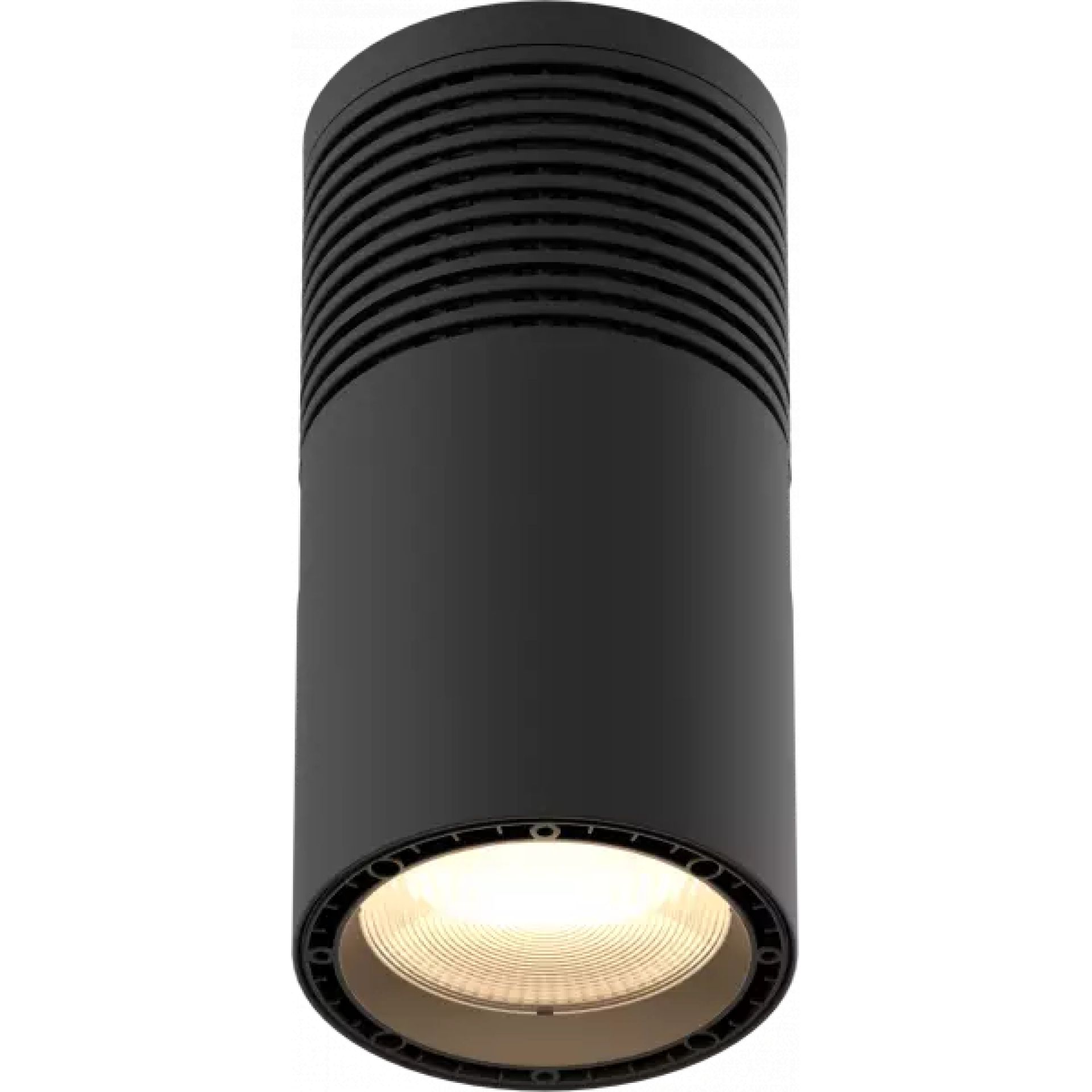

The PROLIGHTS EclPendant S merges elegant design with cutting-edge, eco-friendly technology, ensuring optimal illumination for any venue.

Product Variants

EclPendant SVW - Black

Black model

Enquiry Form

First Name ^*

Surname ^*

Email ^*

Company Name

Country ^*

Are you an existing customer? ^*

Yes No

Phone ^*

How can we help?

Privacy Policy ^*

Please confirm you've read and agree with our privacy policy.

EclPendant SVW - White

White model

Enquiry Form

First Name ^*

Surname ^*

Email ^*

Company Name

Country ^*

Are you an existing customer? ^*

Yes No

Phone ^*

How can we help?

Privacy Policy ^*

Please confirm you've read and agree with our privacy policy.

This series of pendant lights offers a diverse range of LED sources, including options in RGB + Warm White, Variable White and single colour (3000K, 4000K and 5600K), each featuring a 50 Watt LED that provides high-quality light output, uniform colour, and remarkable durability.

Completed by a wide range of optics, accessories, and versatile mounting solutions, the EclPendant S adapts to various installation needs. Mounting alternatives include pendant, surface, stem, wall, adjustable bracket, and recessed options. It can be directly wired to mains power (100-240 VAC or 48 VDC) and integrates seamlessly with control protocols like DMX + RDM and DALI, thanks to its accessible terminal blocks.

User-friendly settings are manageable via the unit's onboard GUI, enhancing its functionality. The fixture's wide array of optics and accessories is designed for utmost flexibility and precision, allowing easy on-site changes without complications.

Notably, the EclPendant S features a fan-free thermal design, ensuring quiet operation while delivering consistent and robust lumen output throughout its extended lifespan.

- Source: 50W Variable White LED
- Source CCT: 2700K - 6500KK
- Luminous flux: (2700K) 2,751 lm; (6500K) 3,580 lm; (full) 3230
- Lux: (2700K) 651 lx; (6500K) 850 lx; (full) 768lx @ 5m
- CRI: 96.8 @ 2700K; 96.1 @ 6500K; 95.8 @ full
- R9: 97.9 @ 2700K; 95.2 @ 6500K; 82.7 @ full
- TLCI: 98 @ 2700K; 96 @ 6500K; 98 @ full
- TM30 Rf: 95.2 @ 2700K; 90.3 @ 6500K; 92.3 @ full
- TM30 Rg: 102.3 @ 2700K; 99.3 @ 6500K; 102.1 @ full
- Source life expectancy: > 50,000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle: 20°
- Field angle: 40°
- Lens diameter: 100mm / 4"
- Lens type: Fresnel lens
- Other: see available accessories

- Colour mixing: tunable white
- CCT: linear CCT control
- Colour wheel: built-in white presets
- Macros: several pre-built macros with adjustable speed
- Static mode: selection of static dimmer and color temperature
- Manual mode: manual adjustment of dimmer and strobe
- Auto mode: built-in programs with execution speed adjustment

- Supported Protocols: DALI Type8, DMX512, RDM, CRMX (optional)
- DMX channels: 1 / 2 / 5 / 9 / 13 channel
- RDM: for remote addressing and parameter configuration
- Display: Graphic User Interface
- Other: 16bit control of dimmer and colour
