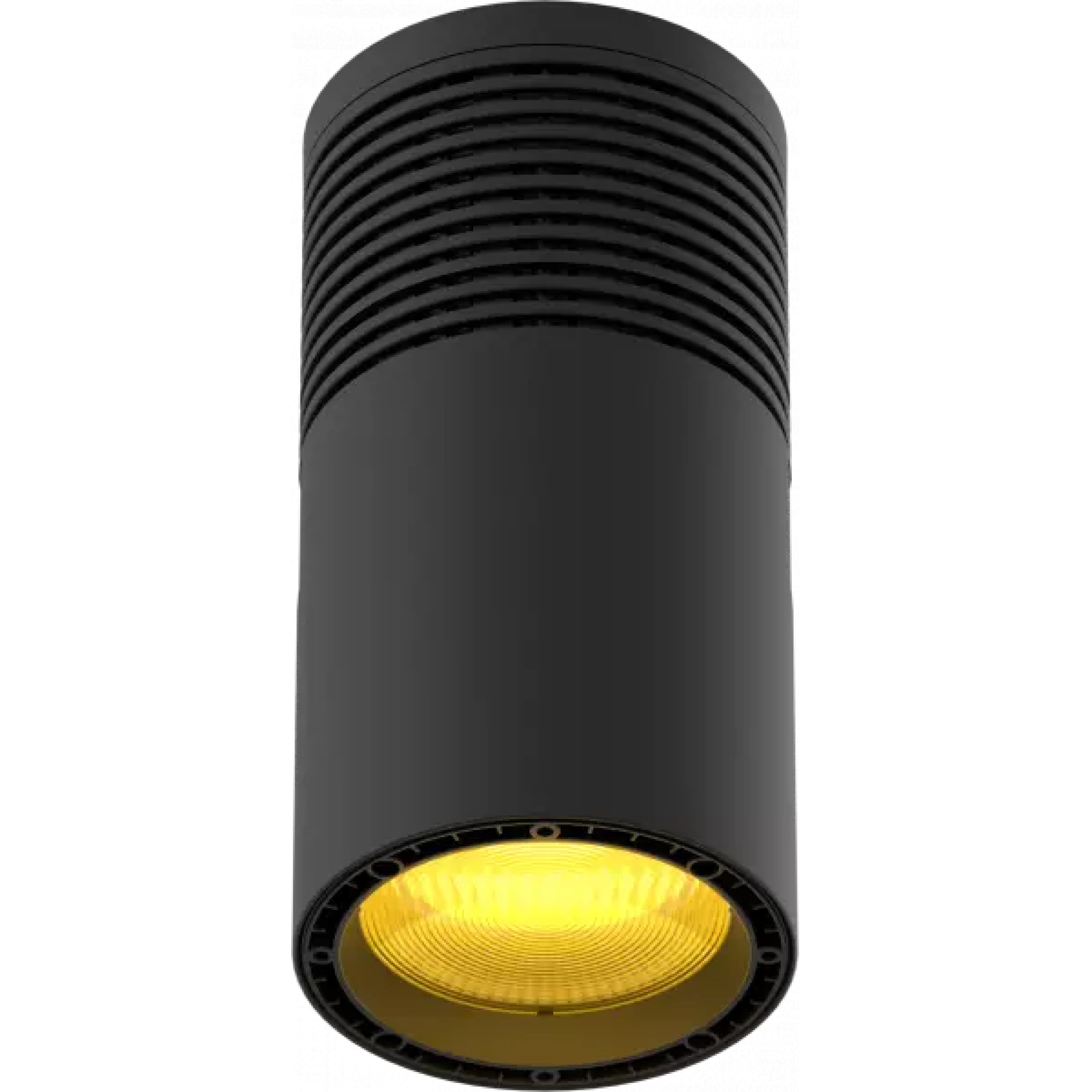

The EclPendant S merges elegant design with cutting-edge, eco-friendly technology, ensuring optimal illumination for any venue.
Product Variants
EclPendant SFC - Black
Black model
Enquiry Form
EclPendant SFC - White
White model
Enquiry Form
This series of pendant lights offers a diverse range of LED sources, including options in RGB + Warm White, Variable White and single colour (3000K, 4000K and 5600K), each featuring a 50 Watt LED that provides high-quality light output, uniform colour, and remarkable durability.
Completed by a wide range of optics, accessories, and versatile mounting solutions, the EclPendant S adapts to various installation needs. Mounting alternatives include pendant, surface, stem, wall, adjustable bracket, and recessed options. It can be directly wired to mains power (100-240 VAC or 48 VDC) and integrates seamlessly with control protocols like DMX + RDM and DALI, thanks to its accessible terminal blocks.
User-friendly settings are manageable via the unit's onboard GUI, enhancing its functionality. The fixture's wide array of optics and accessories is designed for utmost flexibility and precision, allowing easy on-site changes without complications.
Notably, the EclPendant S features a fan-free thermal design, ensuring quiet operation while delivering consistent and robust lumen output throughout its extended lifespan.
Source: 50W RGB + Warm White LEDs
Source CCT: 2800K - 10000K; WW LED: 3200K
Luminous flux: 2,637 @ full
Lux: 513lx @ 5m full
CRI: 92.3 @ full; 93.2 @ 3200K; 92.8 @ 5600K
R9: 97.1 @ full; 96.2 @ 3200K; 92.5 @ 5600K
TLCI: 91 @ full; 80 @ 3200K; 89 @ 5600K
Source life expectancy: > 50,000 hrs (L70B10 @Ta 25° C / 77° F)
Beam angle: 20°
Field angle: 40°
Lens diameter: 100mm / 4"
Lens type: Fresnel lens
Other: see available accessories
CCT: CCT control, + / - green correction, tungsten emulation
Colour wheel: gel filters included
Macros: several pre-built macros with adjustable speed
Static mode: selection of static dimmer, colors and color temperature
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
Supported Protocols: DALI Type8, DMX512, RDM, CRMX (optional)
DMX channels: UNO / DUO / Basic / Standard / Extendedch
RDM: for remote addressing and parameter configuration
