EclPendant Range

Key Features:

  • High-quality light output
  • Consistent colour temperature
  • Unmatched durability
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclPendant Range


The PROLIGHTS EclPendant House Light Range is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly. This innovative series of pendant lights come with a wide selection of LED sources, a full range of optics, accessories, mounting options and control.

Product Variants

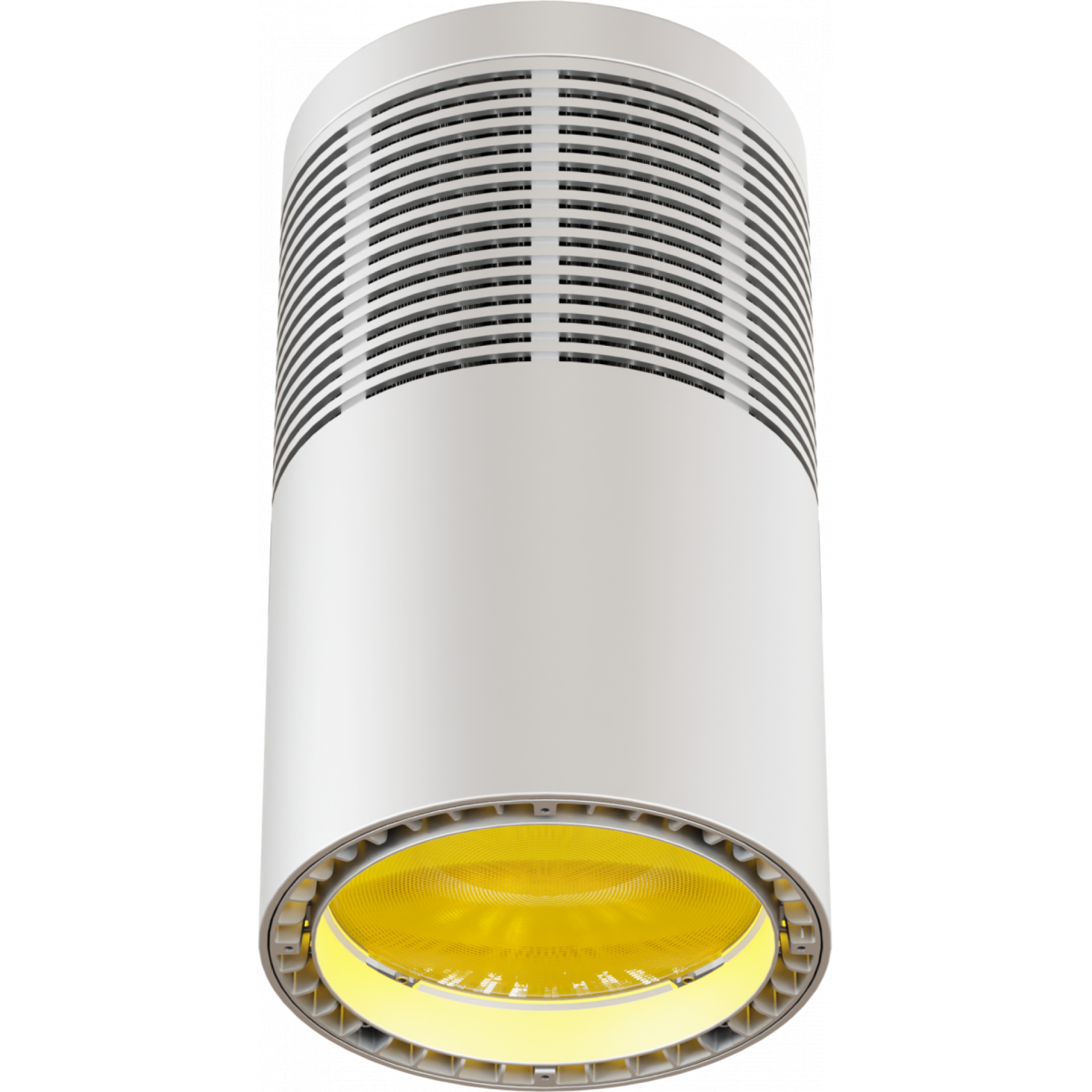

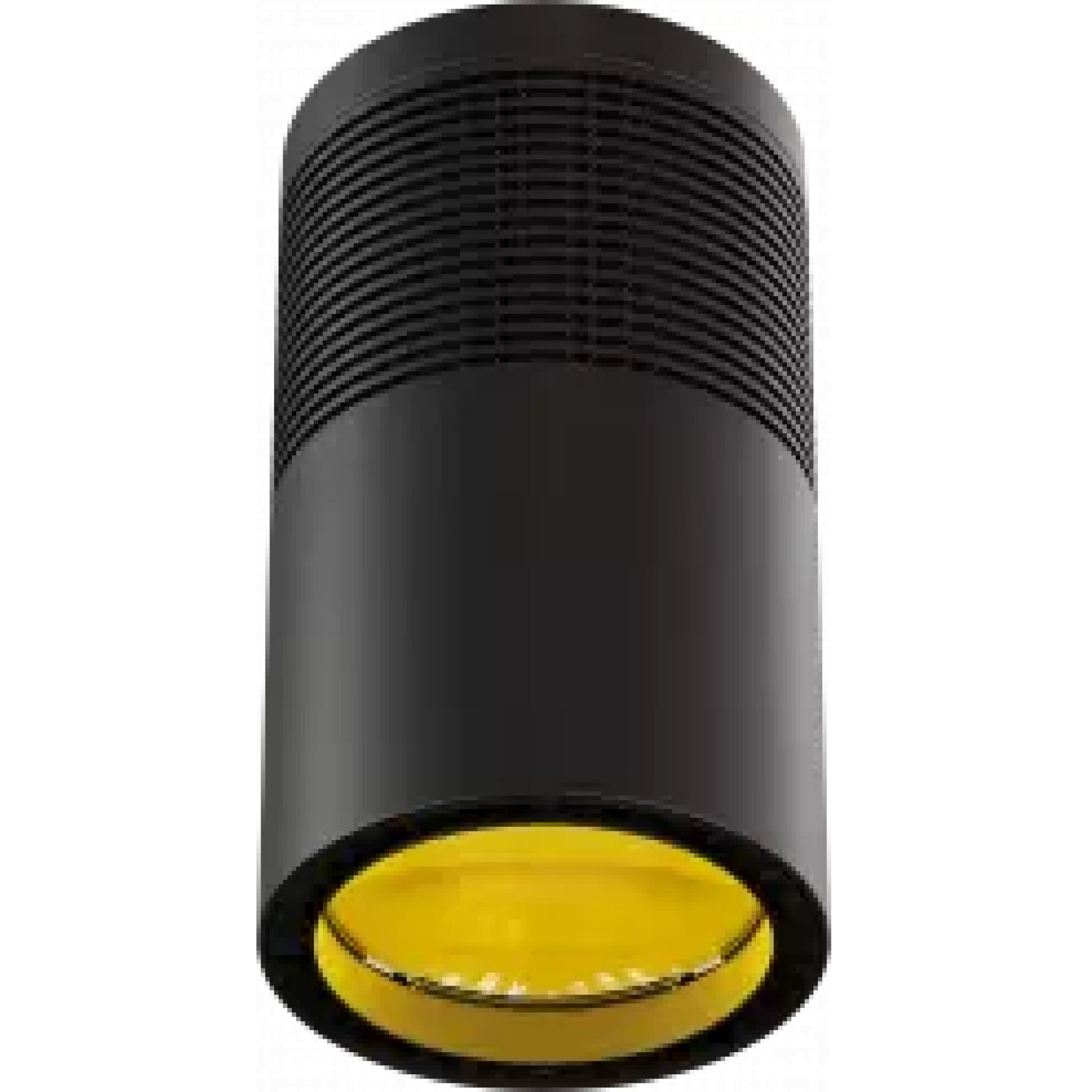

PROLIGHTS EclPendant FC
EclPendant FC
  • 200W RGBWW LEDs
  • CRI: 94.1 @ 3,200K; 94.6 @ 5,600K

Enquiry Form

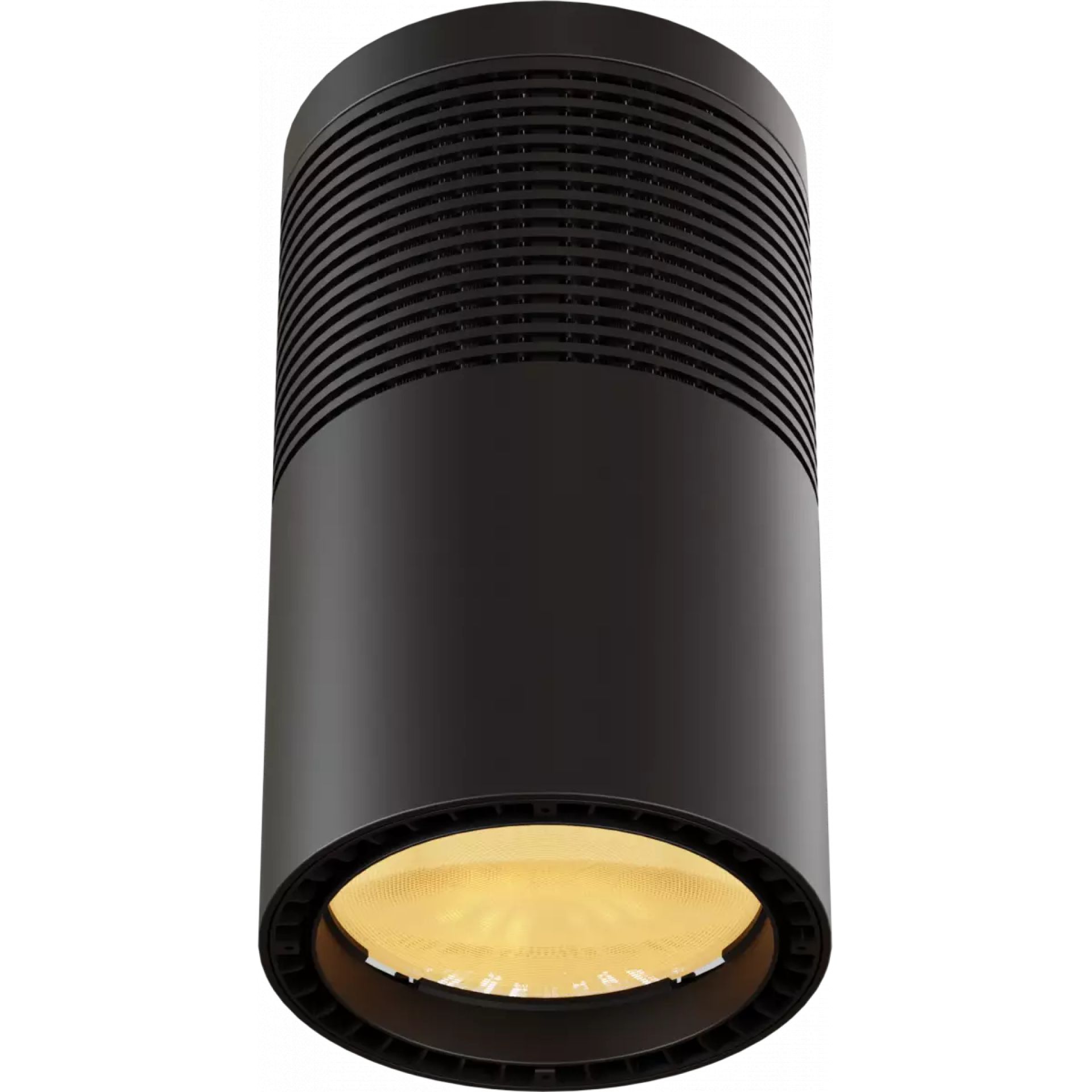

PROLIGHTS EclPendant TU
EclPendant TU
  • 200W COB LED
  • CRI: > 96

Enquiry Form

PROLIGHTS EclPendant NW
EclPendant NW
  • 200W COB LED
  • CRI: > 96

Enquiry Form

PROLIGHTS EclPendant DY
EclPendant DY
  • 200W COB LED
  • CRI: > 94

Enquiry Form

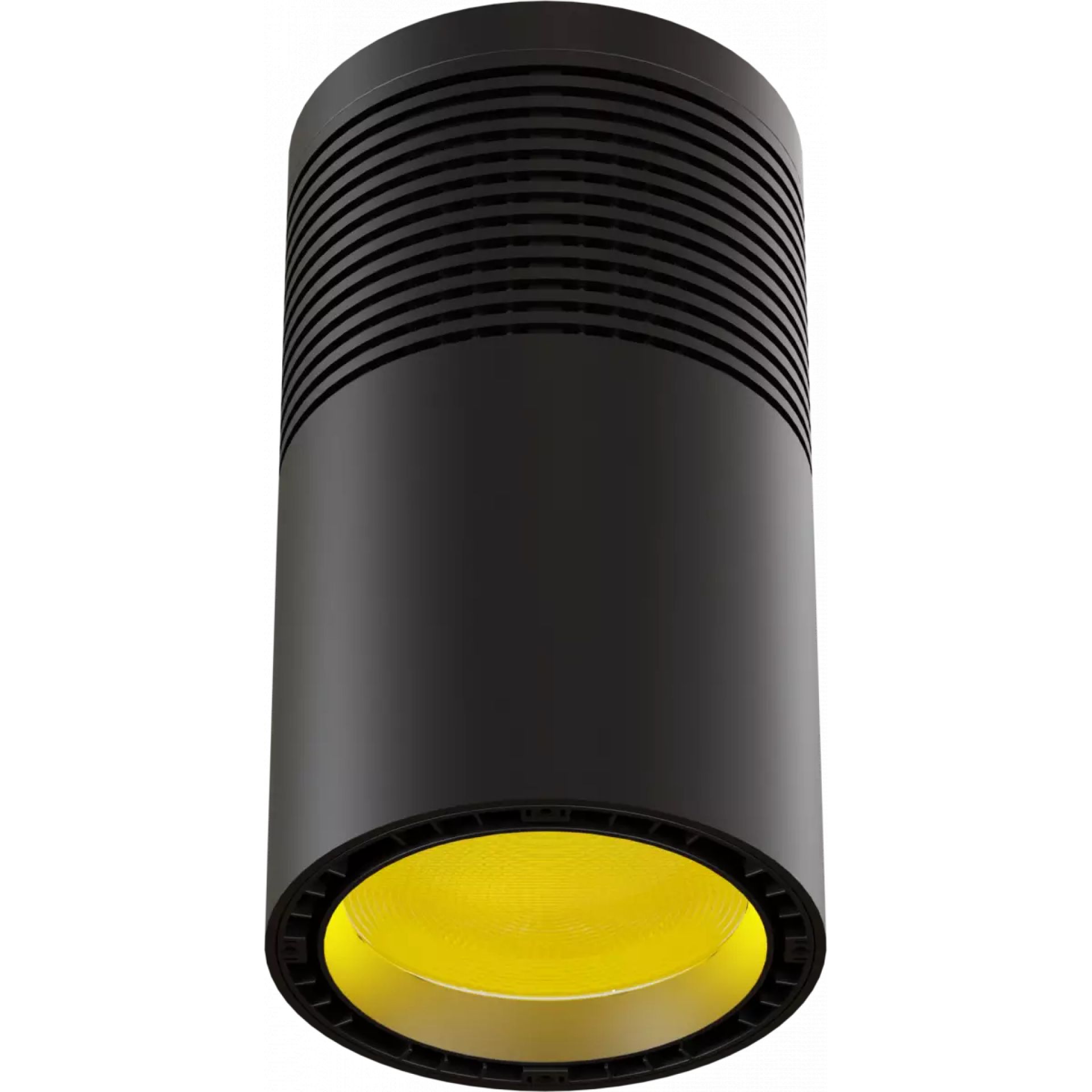

PROLIGHTS EclPendant JrFC
EclPendant JrFC
  • 100W RGBWW LEDs
  • CRI: 94.5 @ 3,200K; 94.8 @ 5,600K

Enquiry Form

PROLIGHTS EclPendant Jr TU
EclPendant Jr TU
  • CRI: > 96
  • 100W COB LED

Enquiry Form

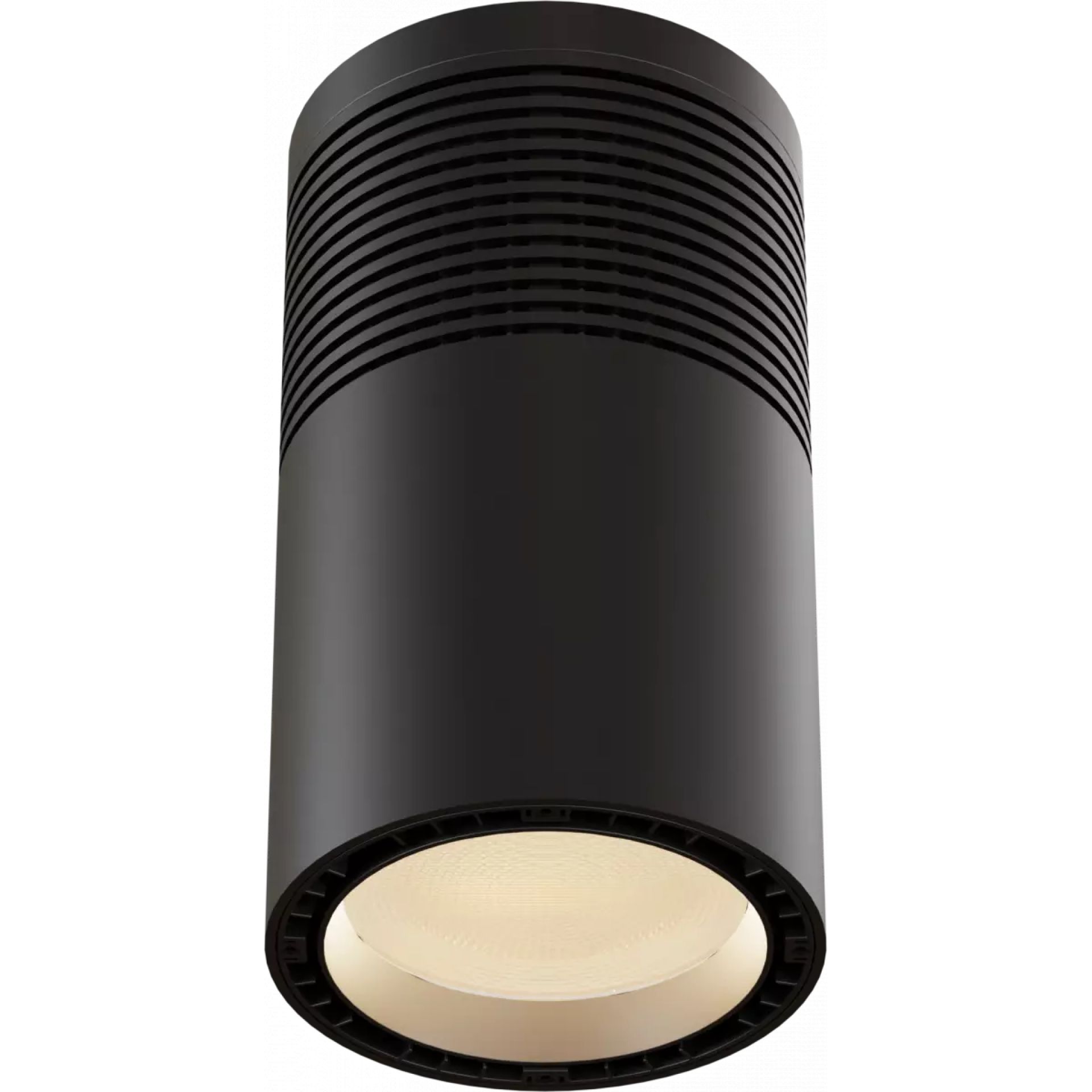

PROLIGHTS EclPendant Jr NW
EclPendant Jr NW
  • CRI: > 96
  • 100W COB LED

Enquiry Form

PROLIGHTS EclPendant Jr DY
EclPendant Jr DY
  • CRI: > 94
  • 100W COB LED

Enquiry Form

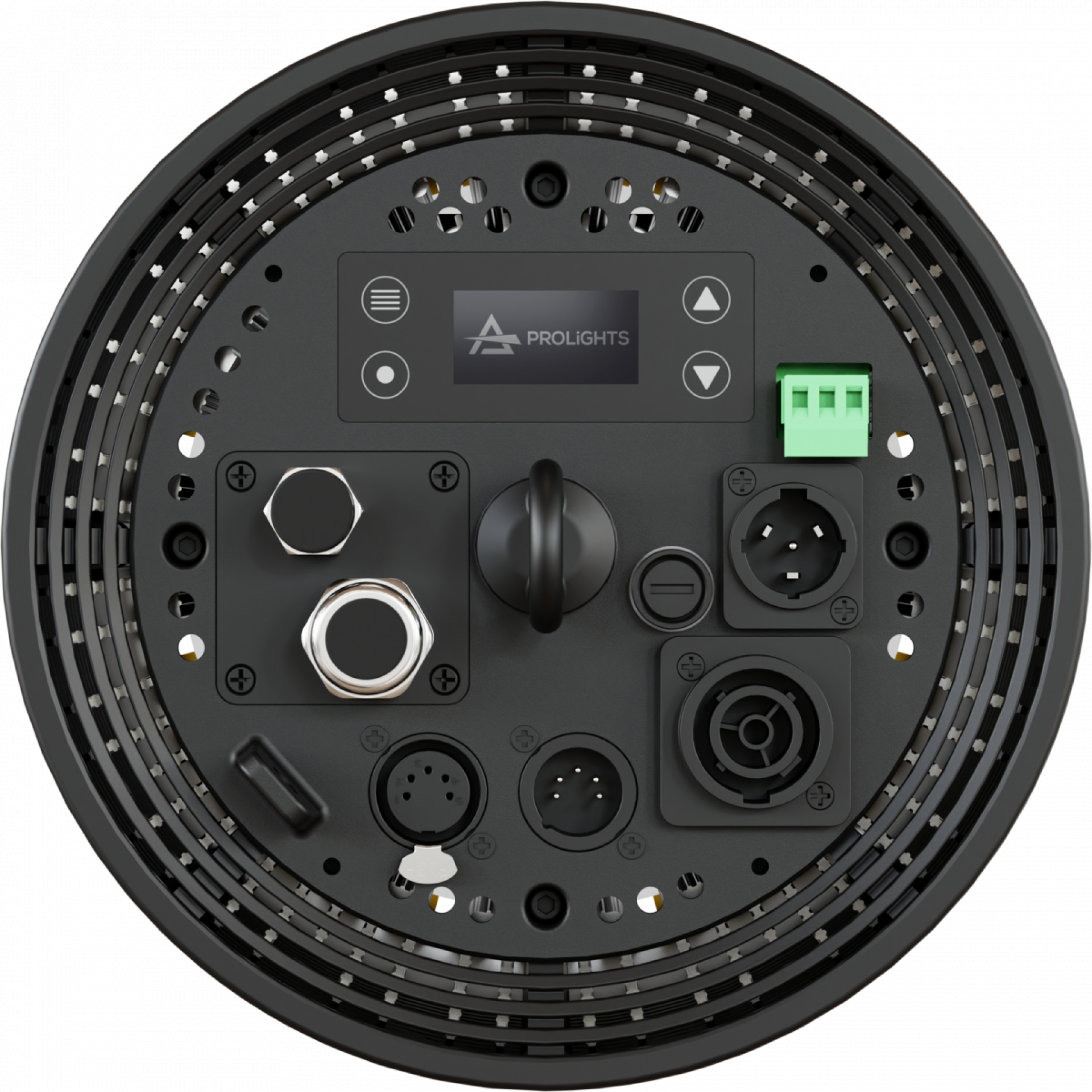

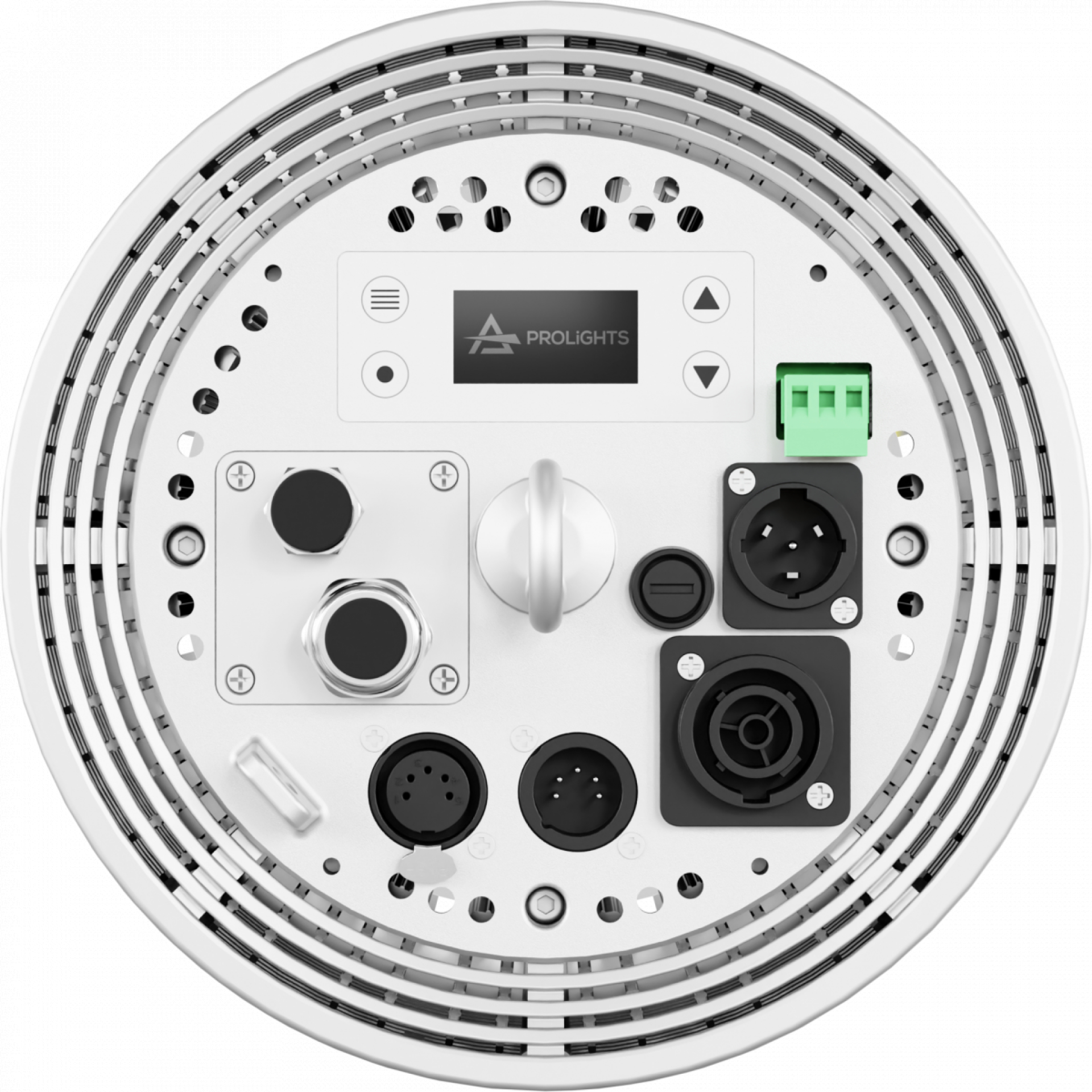

The EclPendant House Light Range was made for several uses – its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It’s also possible to wire the EclPendant series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections. The optics and accessories are all easily changeable.

  • Luminous flux: (TU) 11,233lm; (NW) 14,165lm; (DY) 13,646lm @ full

    Luminous flux: (Jr TU) 6,948lm; (Jr NW) 7,401lm; (Jr DY) 7,706lm @ full

    Luminous flux: (FC) 10,168lm @ full

    Luminous flux: (JrFC) 5,099lm @ full

    Lux: (TU) 2,761lx; (NW) 2,92 lx; (DY) 3,181lx @ 5m full

    Lux: (Jr TU) 1,372lx: (Jr NW) 1,524lx; (Jr DY) 1,600lx @ 5m full

    Lux: (FC) 1,757lx @ 5m full

    Lux: (JrFC) 794lx @ 5m full

    Source life expectancy: > 50,000 hrs (L70B10 @Ta 25° C / 77° F)

    Beam angle: 20°

    Field angle: 40°

    Lens diameter: 157mm (FC / TU / NW / DY); 122mm (JrFC / Jr TU / Jr NW / Jr DY)

    Lens type: Fresnel lens

  • Colour mixing: RGB + Warm White (FC & JrFC)

    CCT: CCT control, + / - green correction, tungsten emulation (FC & JrFC)

    Colour wheel: gel filters included (FC & JrFC)

    Macros: several pre-built macros with adjustable speed (FC & JrFC)

    Static mode: selection of static dimmer, colors and color temperature

    Manual mode: manual adjustment of colour

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: DALI Type8, DMX512, RDM, CRMX

    DMX channels: UNO / DUO / Basic / Standard / Extendedchannel

    Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (LumenRadio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

    Other: 16bit control of dimmer and colour

EclPendant Range - Variant Downloads

You might like...

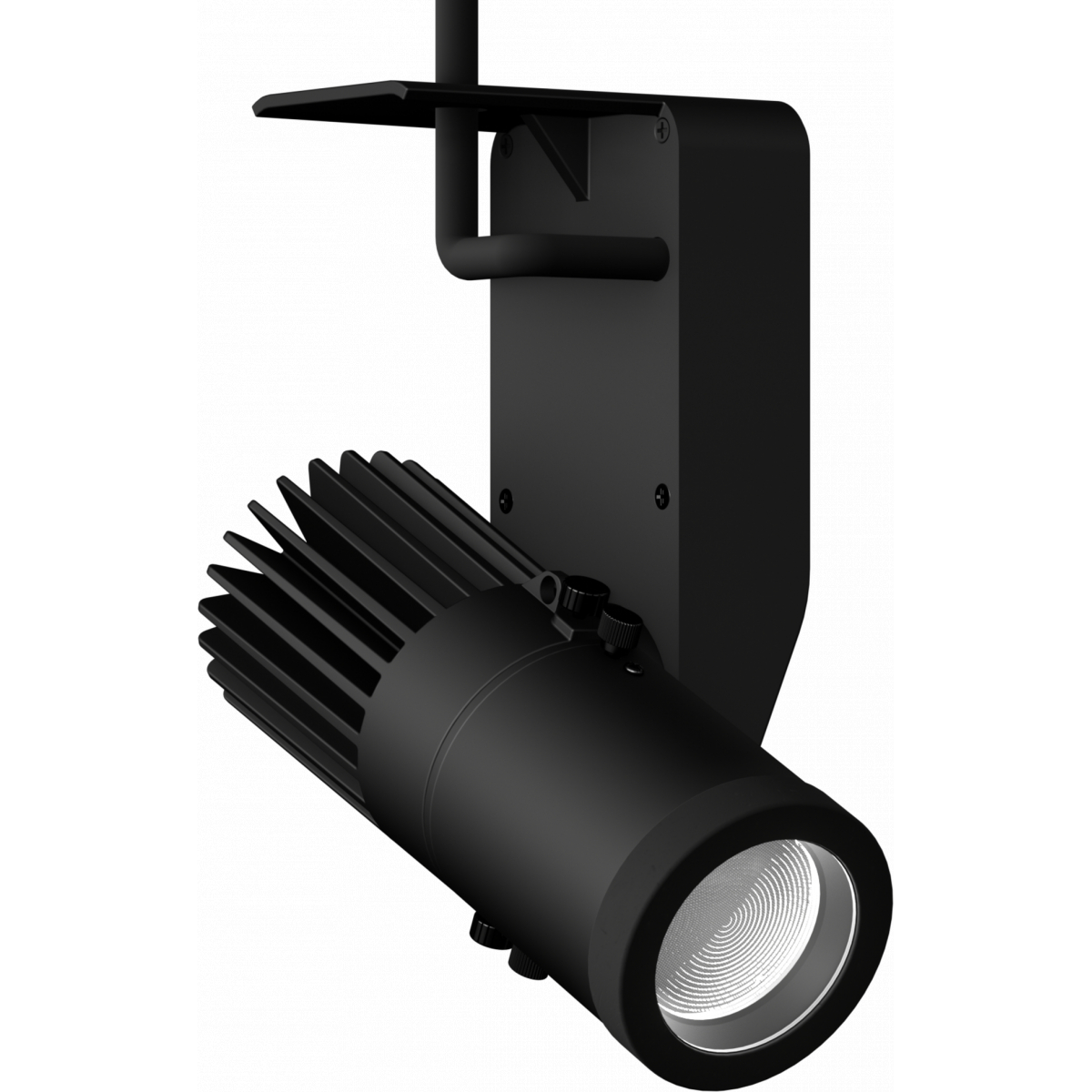

PROLIGHTS EclMini CC Front view
Product - LIGHTING
EclMini CC
    • 18W High-CRI White LED available in 2,700K, 3,000K, 4,000K, 5,600K versions, black and white housing
    • Constant Current version, connects to an external PSU and driver (max 500 mA/36V)
    • Multiple lens options: 19° / 26° / 36° / 50° profile or zoomable 15-30° or 25-50° wash optics

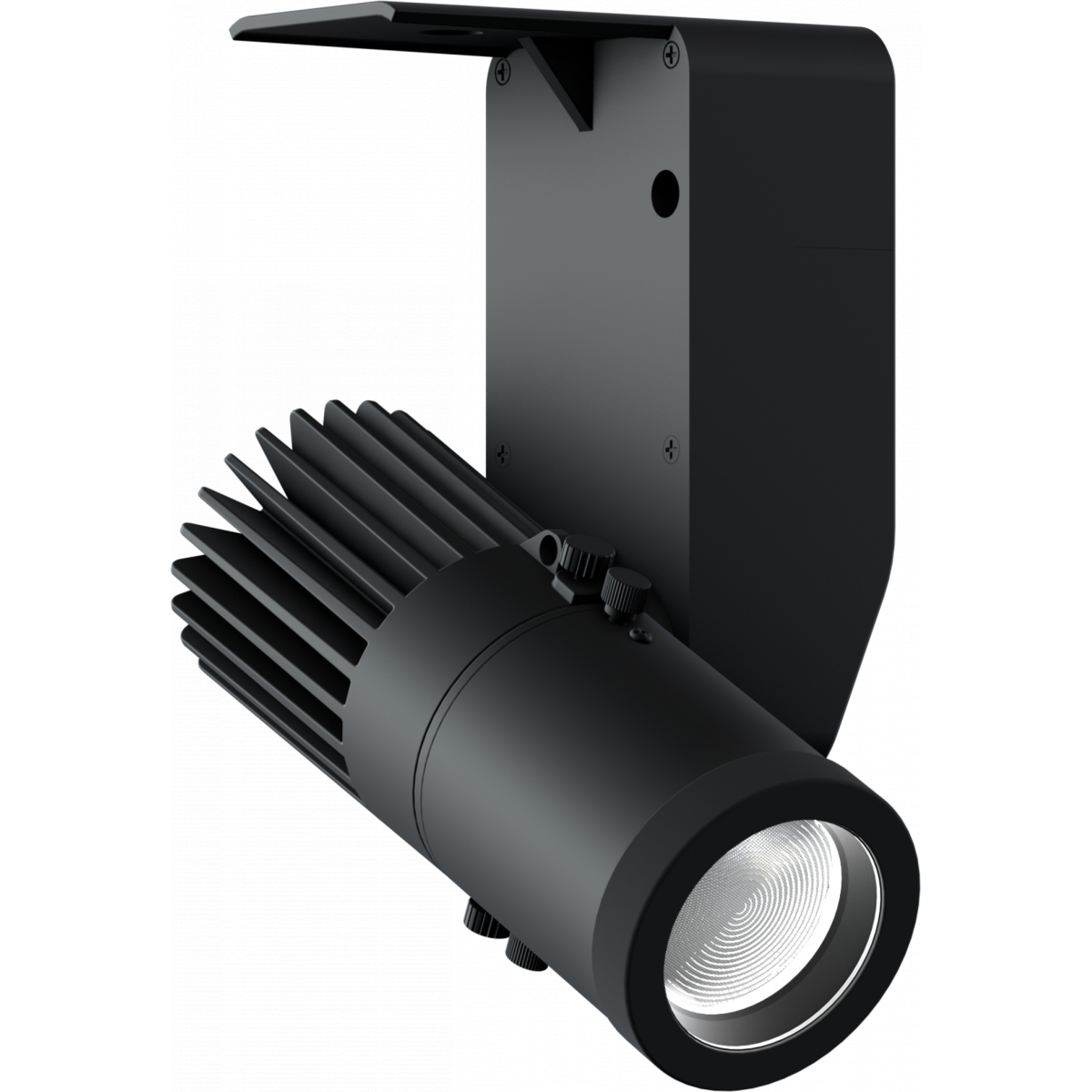

PROLIGHTS EclMini DAT - Daylight white
Product - LIGHTING
EclMini DAT
    • 18W High-CRI White LED available in 2,700K, 3,000K, 4,000K, 5,600K versions, black and white housing
    • Data control through RDM, DMX, DALI Type 6 and local knob dimming
    • Multiple lens options: 19° / 26° / 36° / 50° profile or zoomable 15°-30° or 25°-50° wash optics

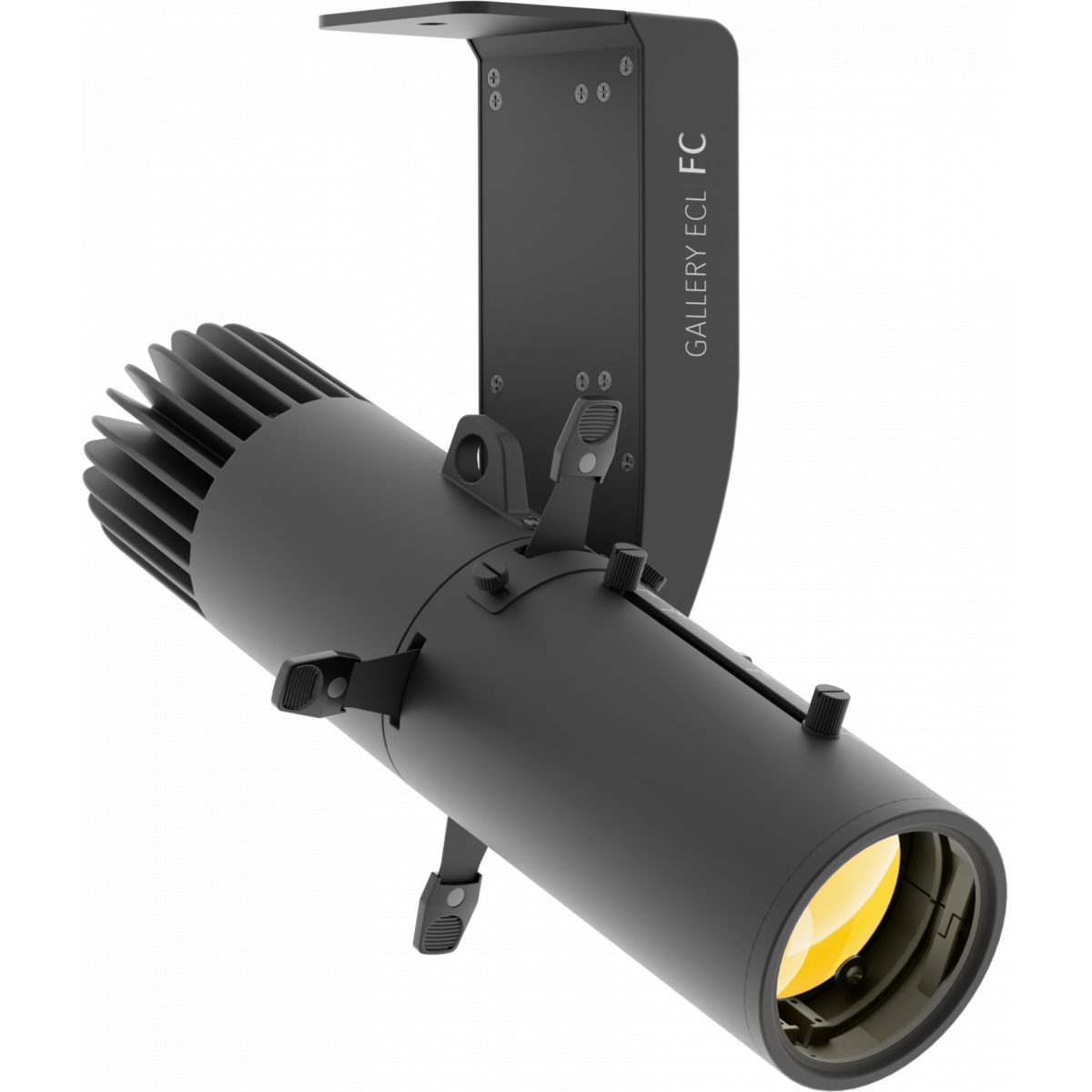

PROLIGHTS EclGalleryProfile - FC
