EclFresnel FWXSVW

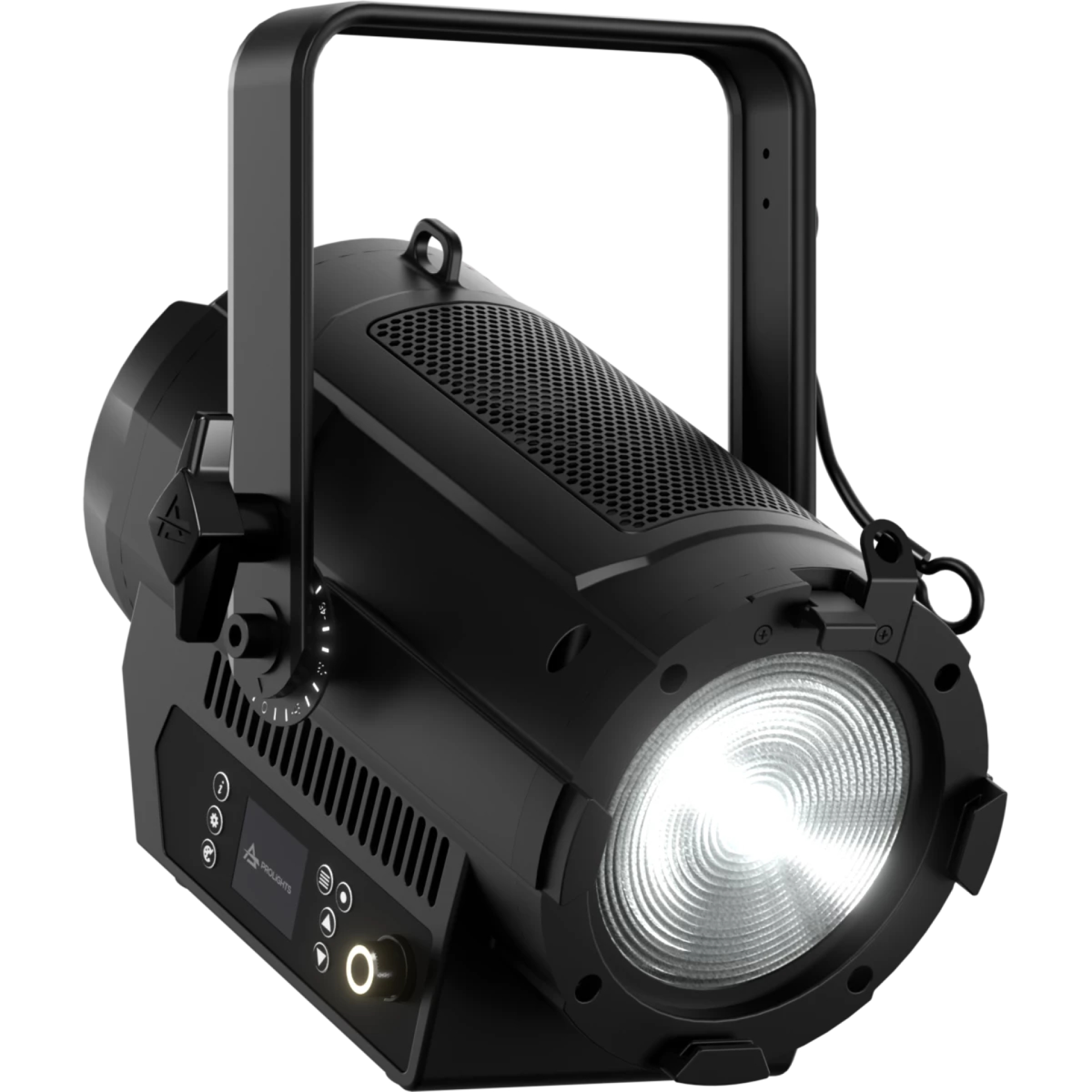

PROLIGHTS EclFresnel FWXSVW - front

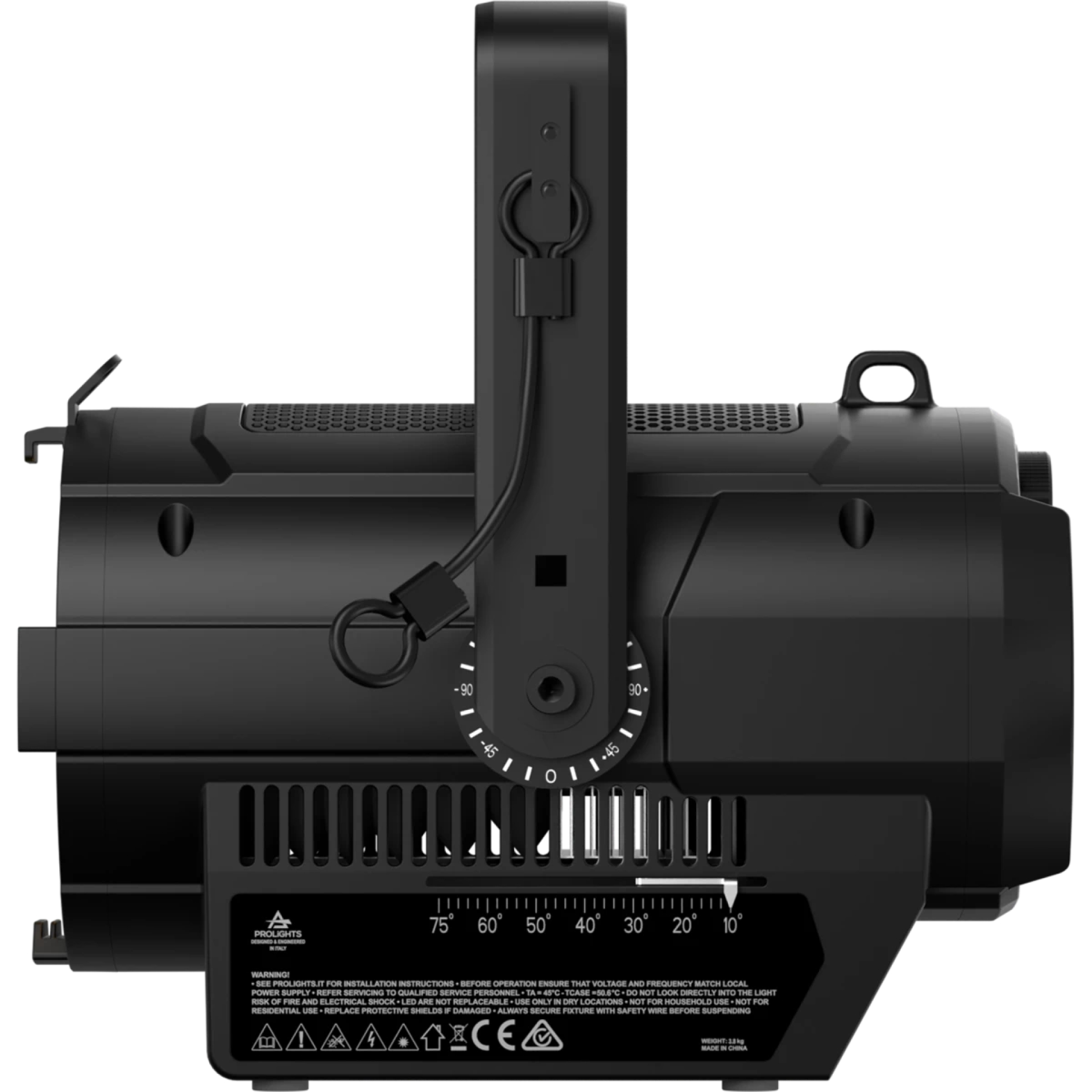

PROLIGHTS EclFresnel FWXSVW - left side

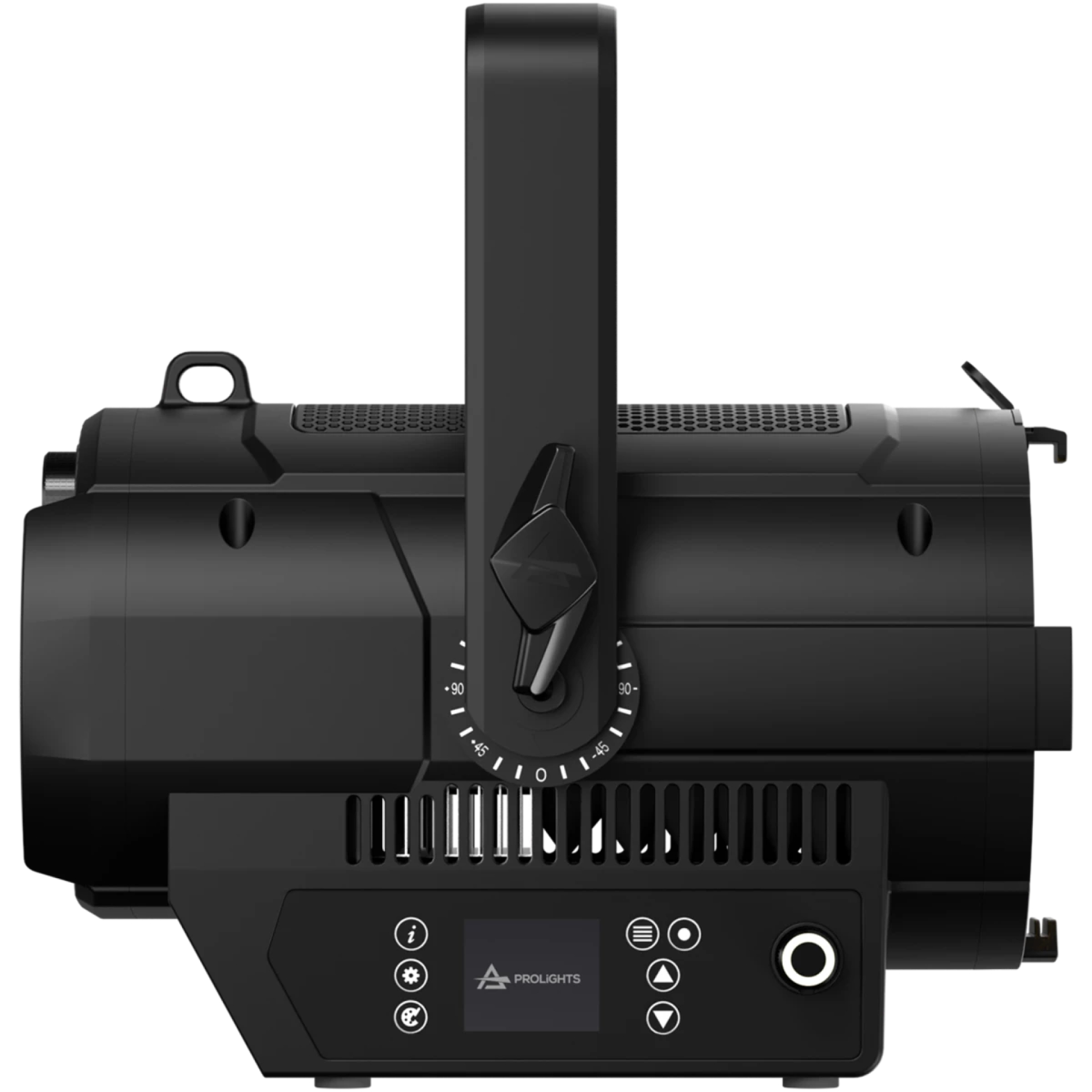

PROLIGHTS EclFresnel FWXSVW - right side

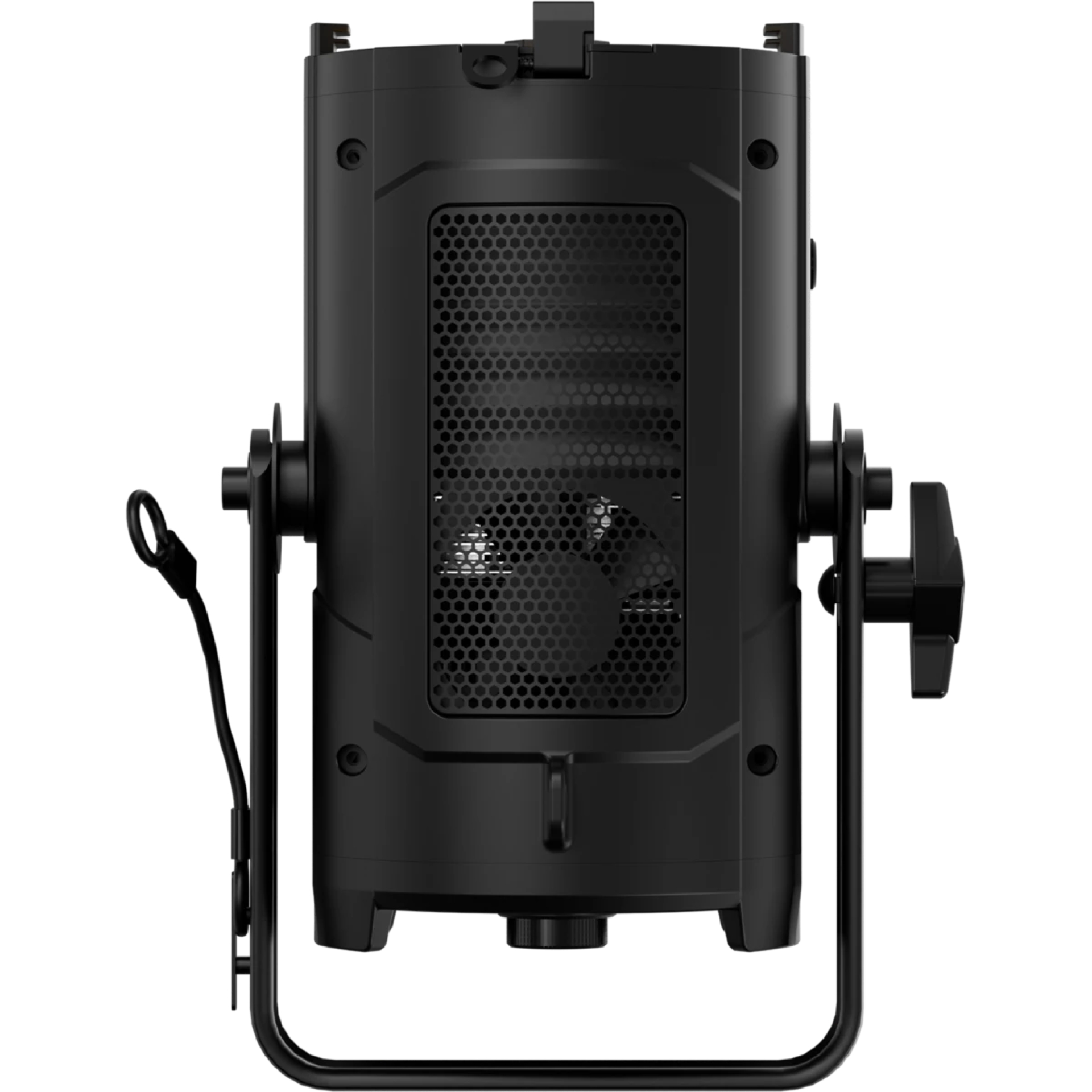

PROLIGHTS EclFresnel FWXSVW - top

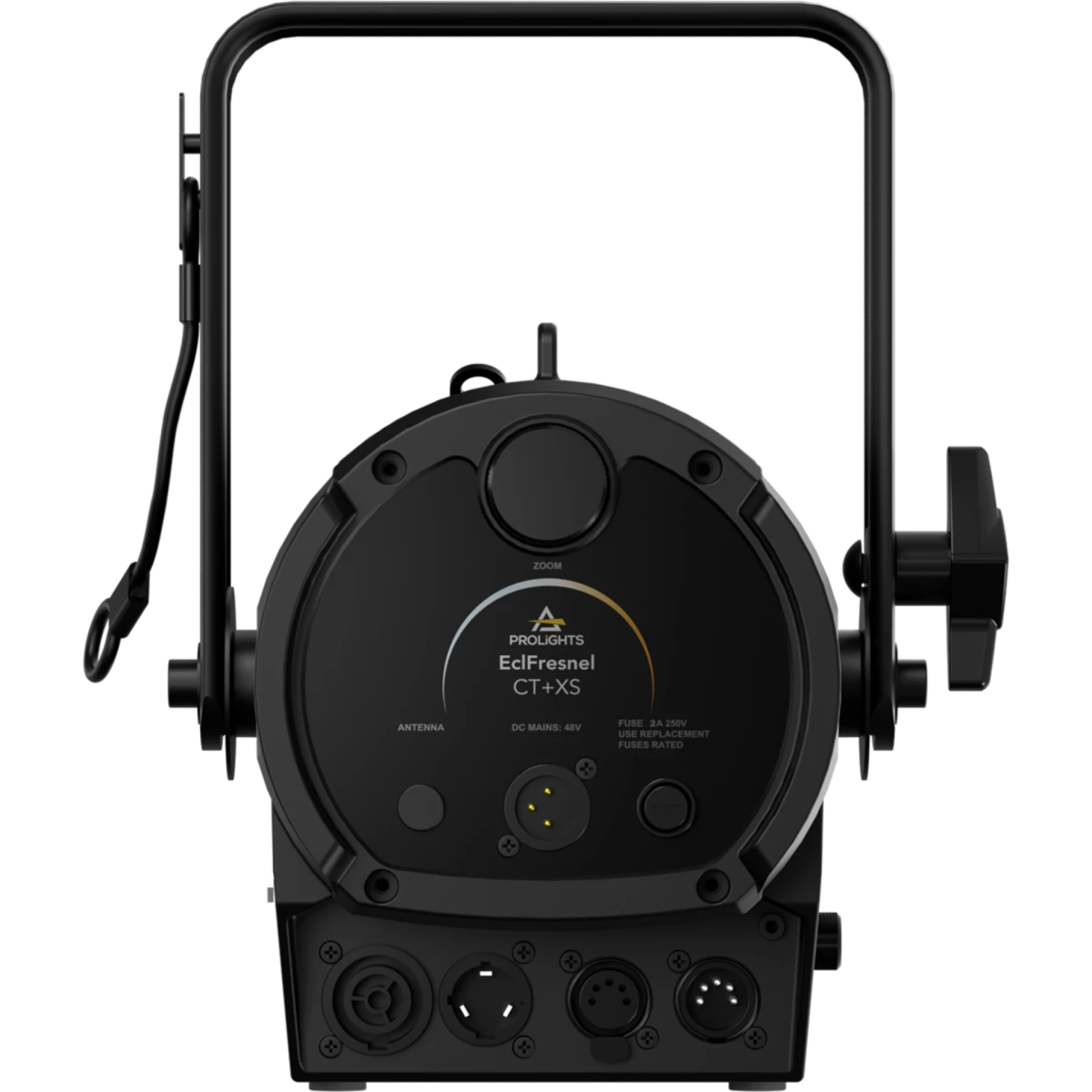

PROLIGHTS EclFresnel FWXSVW - back
PROLIGHTS EclFresnel FWXSVW - left side
PROLIGHTS EclFresnel FWXSVW - right side
PROLIGHTS EclFresnel FWXSVW - top
PROLIGHTS EclFresnel FWXSVW - back

EclFresnel FWXSVW

PROECLFRFWXSVWBK

Key Features:

  • 120W Variable White LED Fresnel, provides 5.900 lm
  • 10-56° Internal zoom system, 130mm/5'' Fresnel lens
  • High value in CRI up to 96, and consistent CCT reproduction across the range
  • CRI: 95.2 @ 3200K; 93.8 @ 5600K: R9: 95.1 @ 3200K; 98.7 @ 5600K
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclFresnel FWXSVW

EclFresnel FWXSVW is a compact 120W LED Fresnel, outputting 5,900 lm and engineered with Variable White light source and a 130mm / 5'' Fresnel lens designed to replace the classic 300W tungsten Fresnels.

The newly designed optical system provides internal zoom from 10° to 56°, maintaining high efficiency at any beam angle, without any change to the luminaire's physical size throughout the zoom range.

The LED source  has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30.

The EclFresnel FWXSVW also performs silently, allowing it to be an indispensable workhorse for Broadcast, Theatre and coorporate applications.

  • Source: 120W Variable White LED

    Luminous flux: (9.8°) 3,175 lm; (55.8°) 5,897 lm @ full

    Lux: (9.8°) 4,233 lx; (55.8°) 440lx @ 5m full

    CRI: 95.2 @ 3200K; 93.8 @ 5600K

    R9: 95.1 @ 3200K; 98.7 @ 5600K

    TLCI: 92 @ 3200K; 97 @ 5600K

    TM30 Rf: 91.8 @ 3200K; 92.3 @ 5600K

    TM30 Rg: 107 @ 3200K; 104.8 @ 5600K

    Source life expectancy: > 50,000 hrs (L70B10 @Ta 25° C / 77° F)

    Zoom range: 10°-56° manual

    Lens diameter: 5'' / 130mm / 0.2''

    Lens type: PMMA lens

    Other: barndoor and gel frame included

  • Colour mixing: tunable white

    CCT control range from 2800K to 6500K

  • Supported Protocols: DMX512, RDM, CRMX (optional)

    DMX channels: From 1 to 14 channels

    Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable

    RDM: for remote addressing and parameter configuration

    Display: 2.4'' Color display

    Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)

    Stand Alone: 1 push encoder

    Master/Slave: for synchronised operation of more units linked in a chain
