EclExpo Flood300IPVW

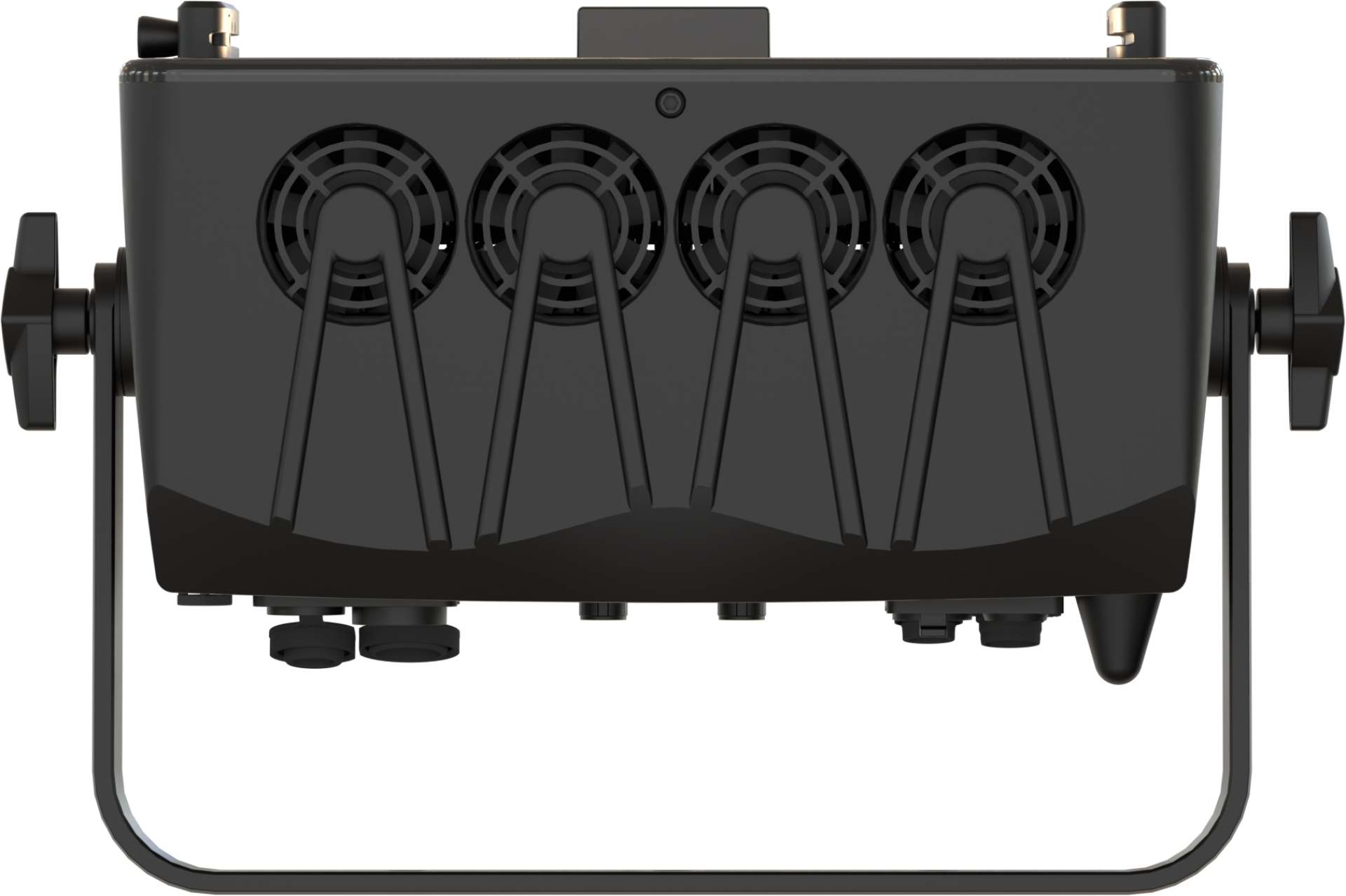

PROLIGHTS EclExpo Flood300IPVW - top view

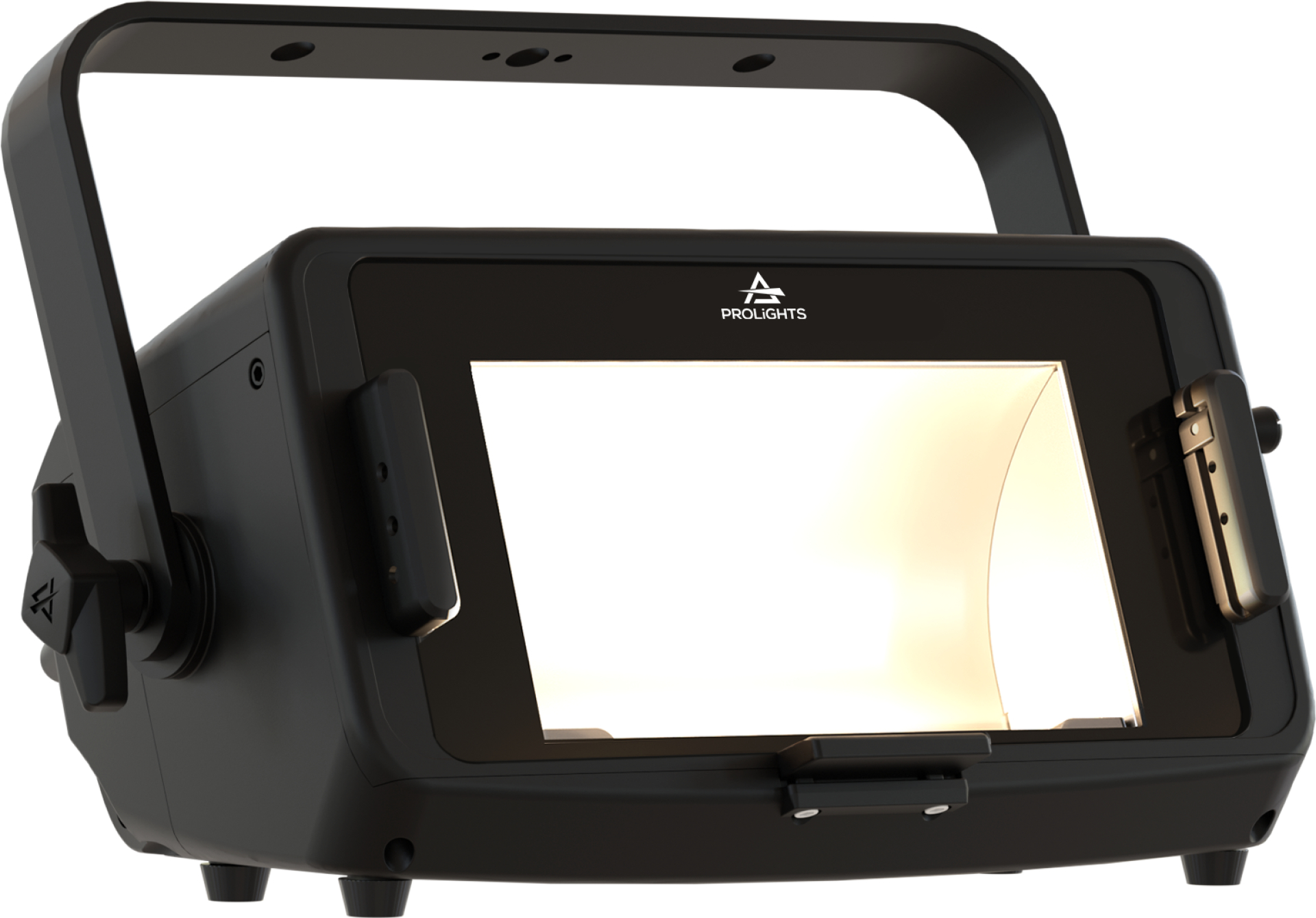

PROLIGHTS EclExpo Flood300IPVW - front yoke up

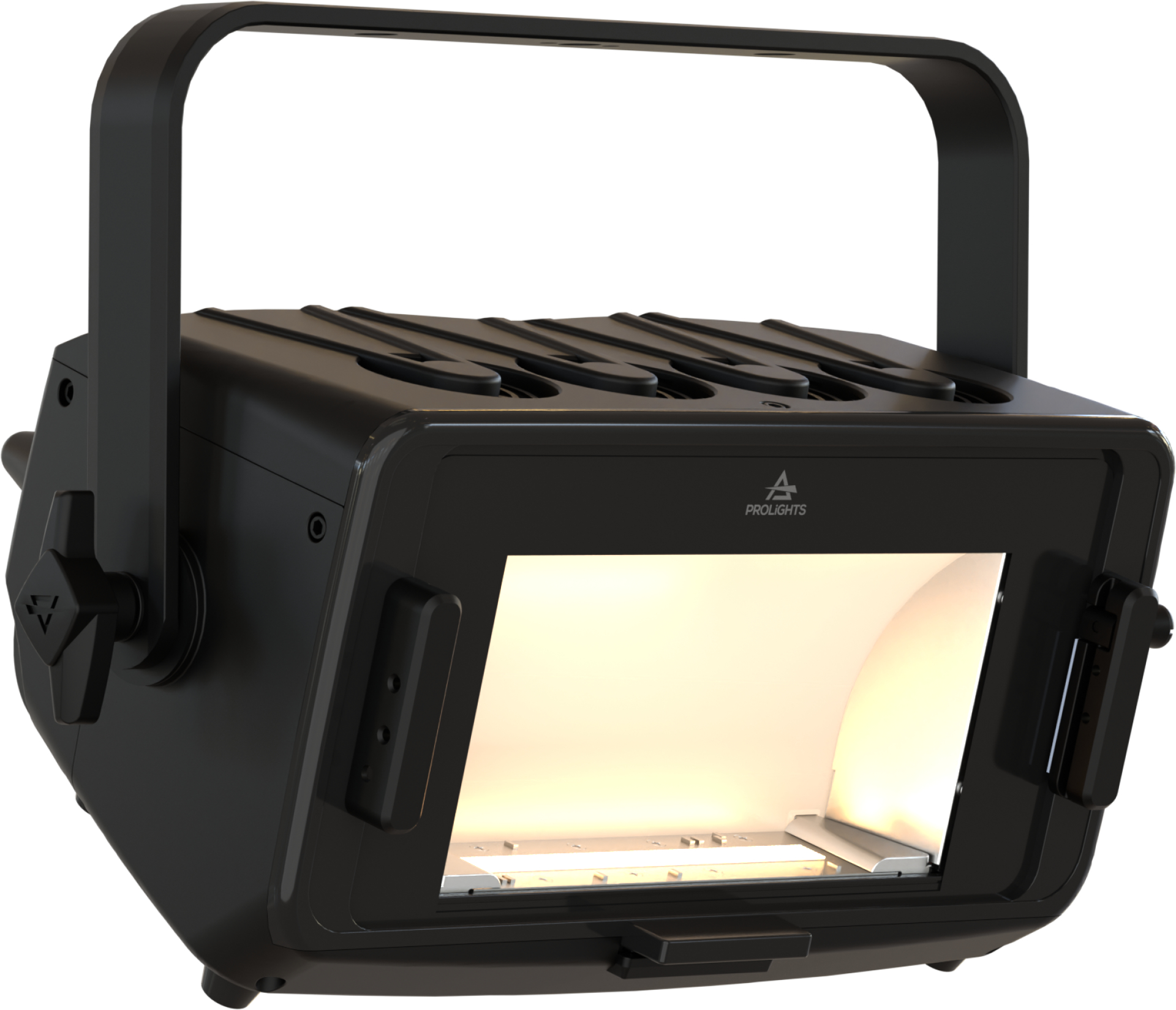

PROLIGHTS EclExpo Flood300IPVW - front pointing down

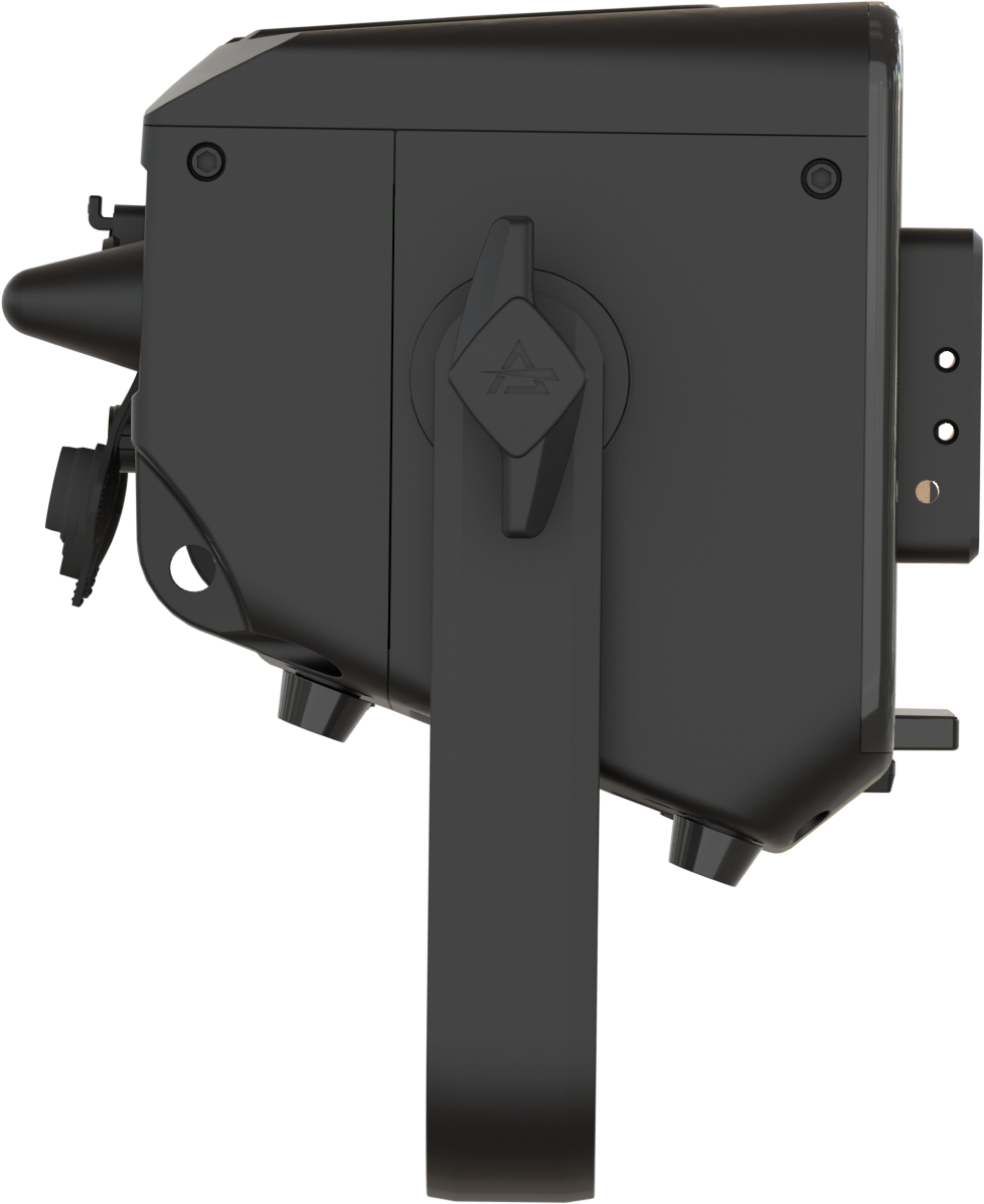

PROLIGHTS EclExpo Flood300IPVW - side view

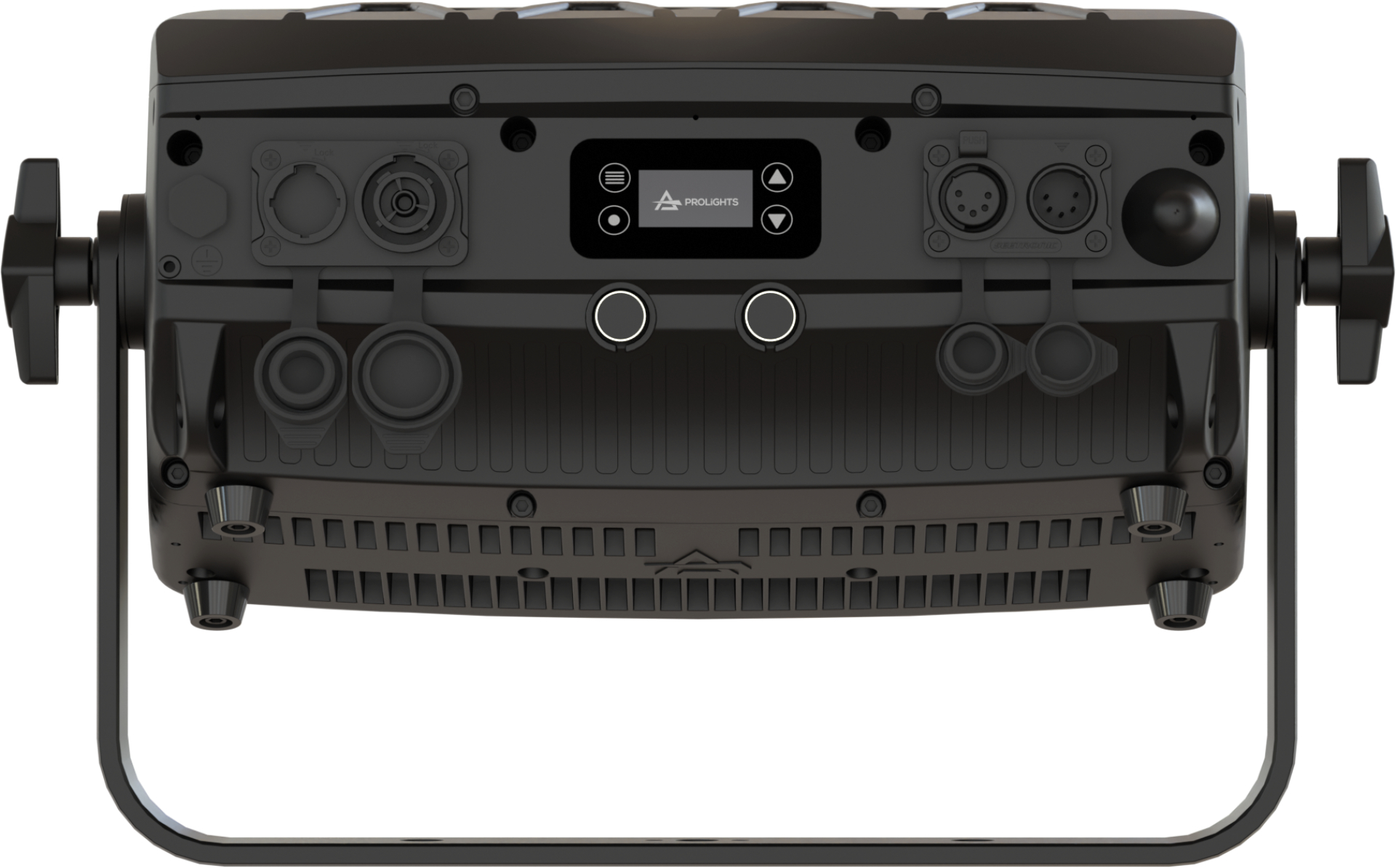

PROLIGHTS EclExpo Flood300IPVW - back view
PROLIGHTS EclExpo Flood300IPVW - front yoke up
PROLIGHTS EclExpo Flood300IPVW - front pointing down
PROLIGHTS EclExpo Flood300IPVW - side view
PROLIGHTS EclExpo Flood300IPVW - back view

EclExpo Flood300IPVW

PROECLEXPOFL300IPVW

Key Features:

  • IP65 water and dust resistant
  • 300W Variable White LED source, from 2,700K to 6,500K
  • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclExpo Flood300IPVW

The EclExpo Flood300IPVW is an IP65 high power LED Floodlight designed for indoor and outdoor installations, and is a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.

Combined with a reflector, it has a wide asymmetric beam angle of 100° (horizontal) x 60° (vertical) of indirect light emission.

This unit is incredibly user-friendly, using remote control via DMX and RDM, on-board W-DMX + CRMX or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT, colours and dimmer settings.

Its unique design and performance set a new standard for outdoor exhibition floodlights.

  • Source: 300W Variable White LED

    CCT: 2700K - 6500K

    Luminous flux: @ 2700K 12,235 lm; @ 6500K 15,961 lm; @ full 20,291

    Lux: @ 2700K 124 lx; @ 6500K 163 lx; @ full 207lx @ 5m

    CRI: 96.1 @ 2700K; 93.2 @6500K; 92.6 @ full

    R9: 97 @ 2700K; 80.2 @ 6500K; 73.2 @ full

    TLCI: 97 @2700K; 94 @ 6500K; 98 @ full

    TM30 Rf: > 93.9 @ 2700K; > 88.9 @ 6500K; > 91.1 @ full

    TM30 Rg: < 101.2 @ 2700K; < 99.5 @ 6500K; < 101.9 @ full

    Source life expectancy: > 30,000 hrs (L70B10 @Ta 25°C / 77°F)

    Optics: asymmetrical beam reflector in pure aluminium 99.6%

    Beam angle: (H) 100° x (V) 60°

  • Colour mixing: tunable white

    CCT: CCT control through dedicated DMX channel

    White presets: 2700K - 6500K

    Colour wheel: built-in white presets

    Control Resolution: 16-bit dimmer

    Static mode: selection of static dimmer and color temperature

    Manual mode: manual adjustment of intensity and CT from knob

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: DMX512, RDM, CRMX

    Stand Alone: 2 rotatory knobs

    DMX channels: 1 / 2 / 3 / 5 / 11 channel

    Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

    Master/Slave: for synchronised operation of more units linked in a chain
