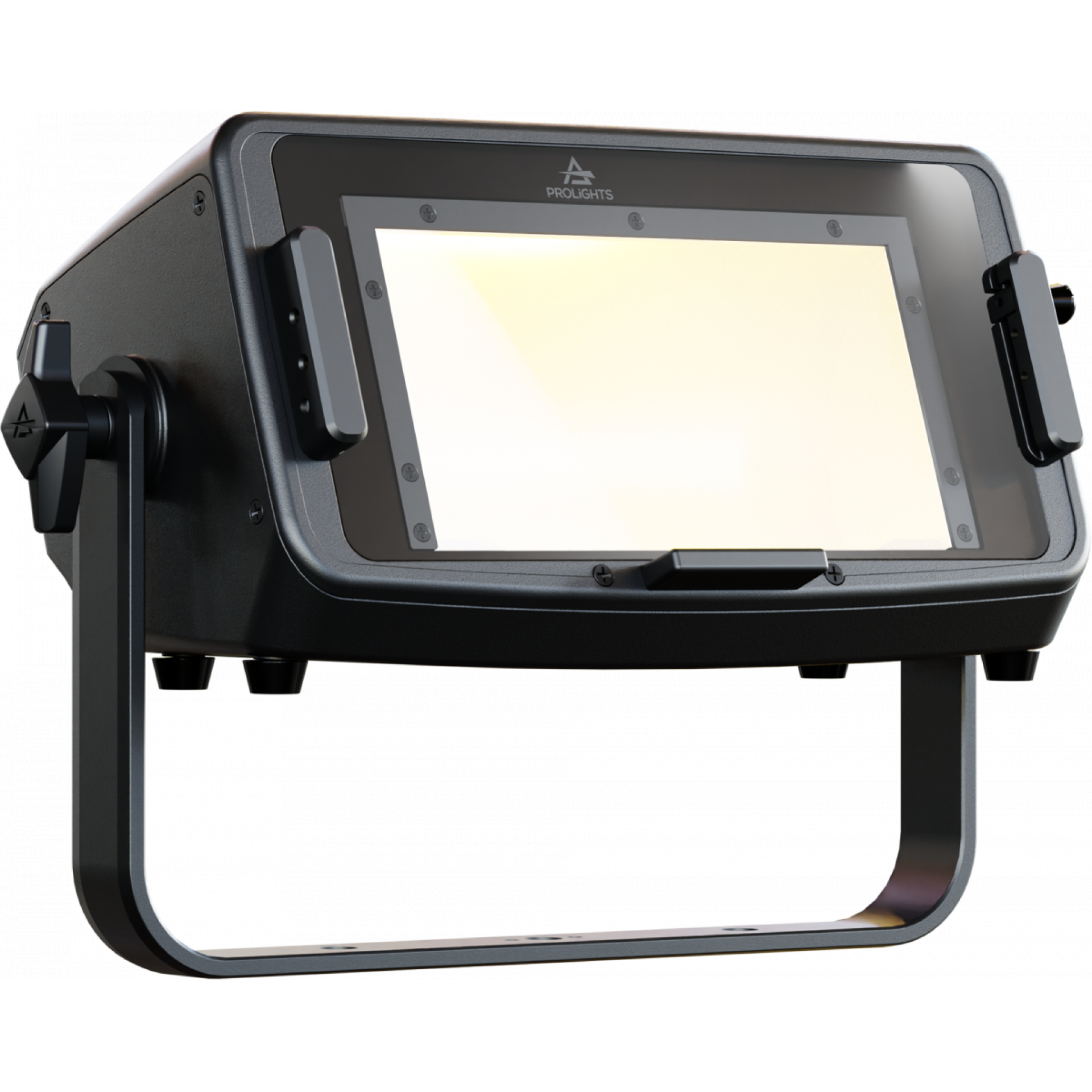

PROLIGHTS EclExpo Flood300FC - yoke down
PROLIGHTS EclExpo Flood300FC
PROLIGHTS EclExpo Flood300FC
PROLIGHTS EclExpo Flood300FC
PROLIGHTS EclExpo Flood300FC
PROLIGHTS EclExpo Flood300FC
PROLIGHTS EclExpo Flood300FC
PROLIGHTS EclExpo Flood300FC
PROLIGHTS EclExpo Flood300FC

EclExpo Flood300FC

Key Features:

  • 300W RGB + Warm White LED
  • Asymmetrical beam reflector in pure aluminium 99.6%
  • XLR5 in/through for DMX/RDM control and communication
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclExpo Flood300FC


The PROLIGHTS EclExpo Flood300FC is a full spectrum high power LED floodlight, designed for exhibitions and showrooms, as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.

The EclExpo Flood300FC has a calibrated 300W RGB + Warm White LED source, ensuring high-quality white reproduction across the entire CCT with high CRI and TM30 and advanced control over colours. Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

This unit is incredibly user-friendly, using remote control via DMX and RDM (optional W-DMX + CRMX), or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT, colours and dimmer settings.

Its unique design and performance set a new standard for exhibition floodlights.

  • Source: 300W RGB + Warm White LED

    Luminous flux: 10,197lm @ 3,200K

    Lux: 119lx @ 5m

    CRI: 93.6 @ 5,600K

    R9: 95.2 @ 5,600K

    TLCI: 93 @ 5,600K

    TM30 Rf: 91.7 @ 5,600K

    TM30 Rg: 105,3 @ 5,600K

    Source life expectancy: > 20,000hr

    Optics: asymmetrical beam reflector in pure aluminium 99.6%

    Beam angle: (H) 100° x (V) 60°

    Additional optics: 5° smooth filter on-board

  • Colour mixing: RGB + Warm White

    CCT: CCT control, + / - green correction, tungsten emulation

    White presets: 2,800K - 10,000K

    Colour wheel: built-in white presets

    Control Resolution: 16-bit dimmer

    Static mode: selection of static dimmer, colors and color temperature

    Manual mode: manual adjustment of intensity, CT, colour correction from knob

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: DMX512, RDM, CRMX

    Stand Alone: 2 rotatory knobs

    DMX channels: 1/2/5/9/10/12/18 channel

    Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

    Master/Slave: for synchronised operation of more units linked in a chain

EclExpo Flood300FC - Downloads
Eclexpo flood300fc spec sheet
