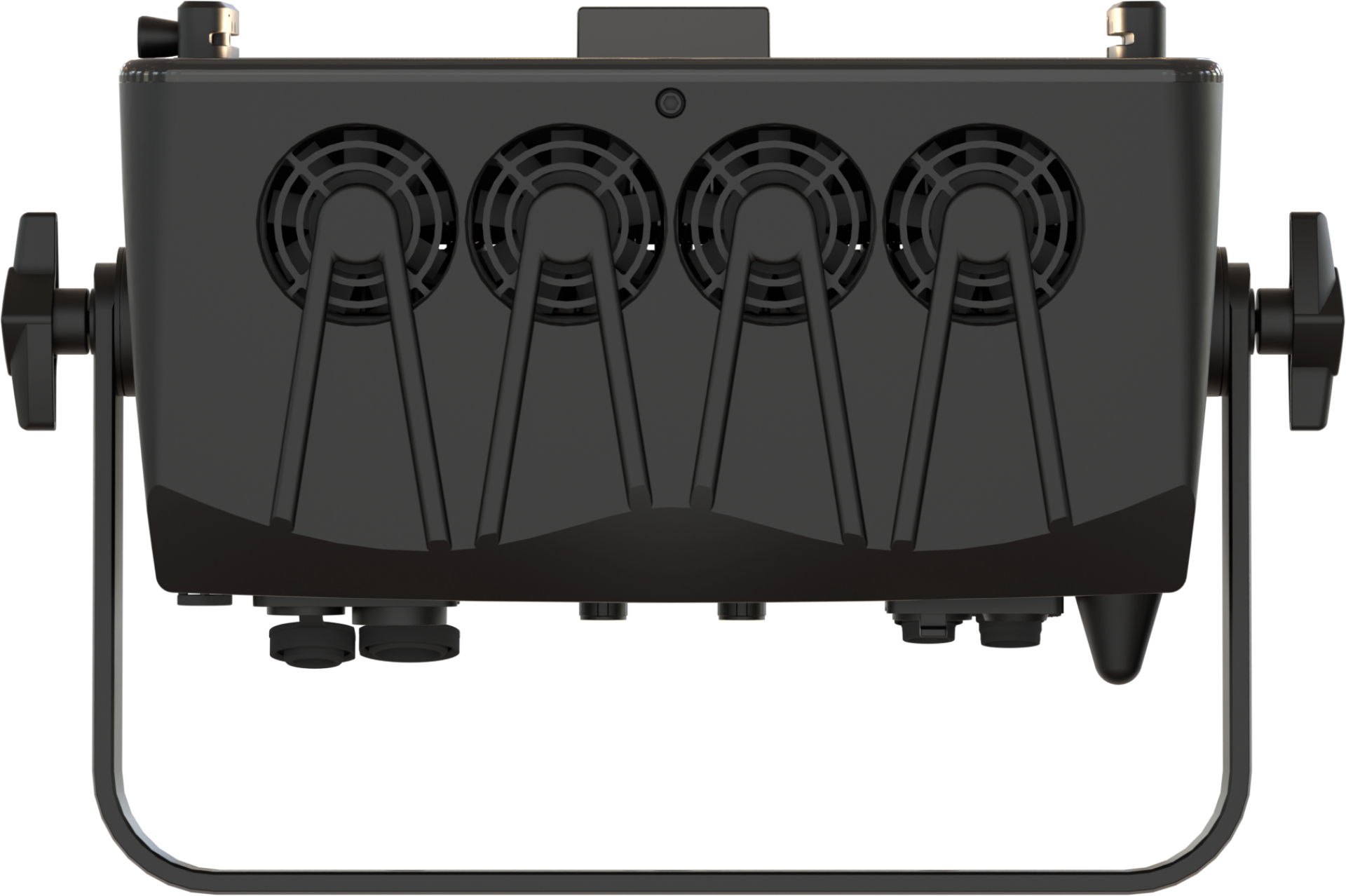

PROLIGHTS EclExpo Flood300IPFC - top view

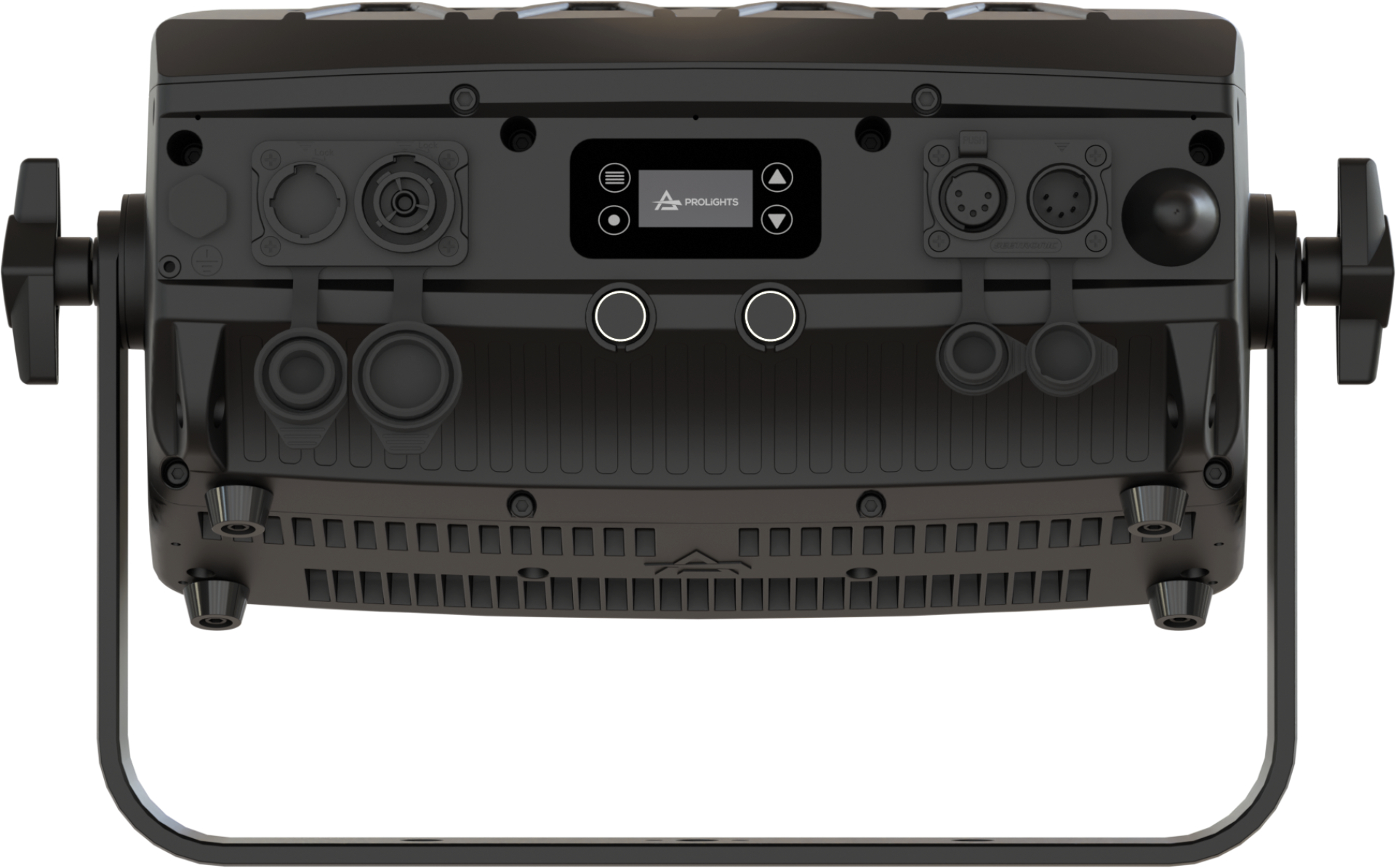

PROLIGHTS EclExpo Flood300IPFC - back view

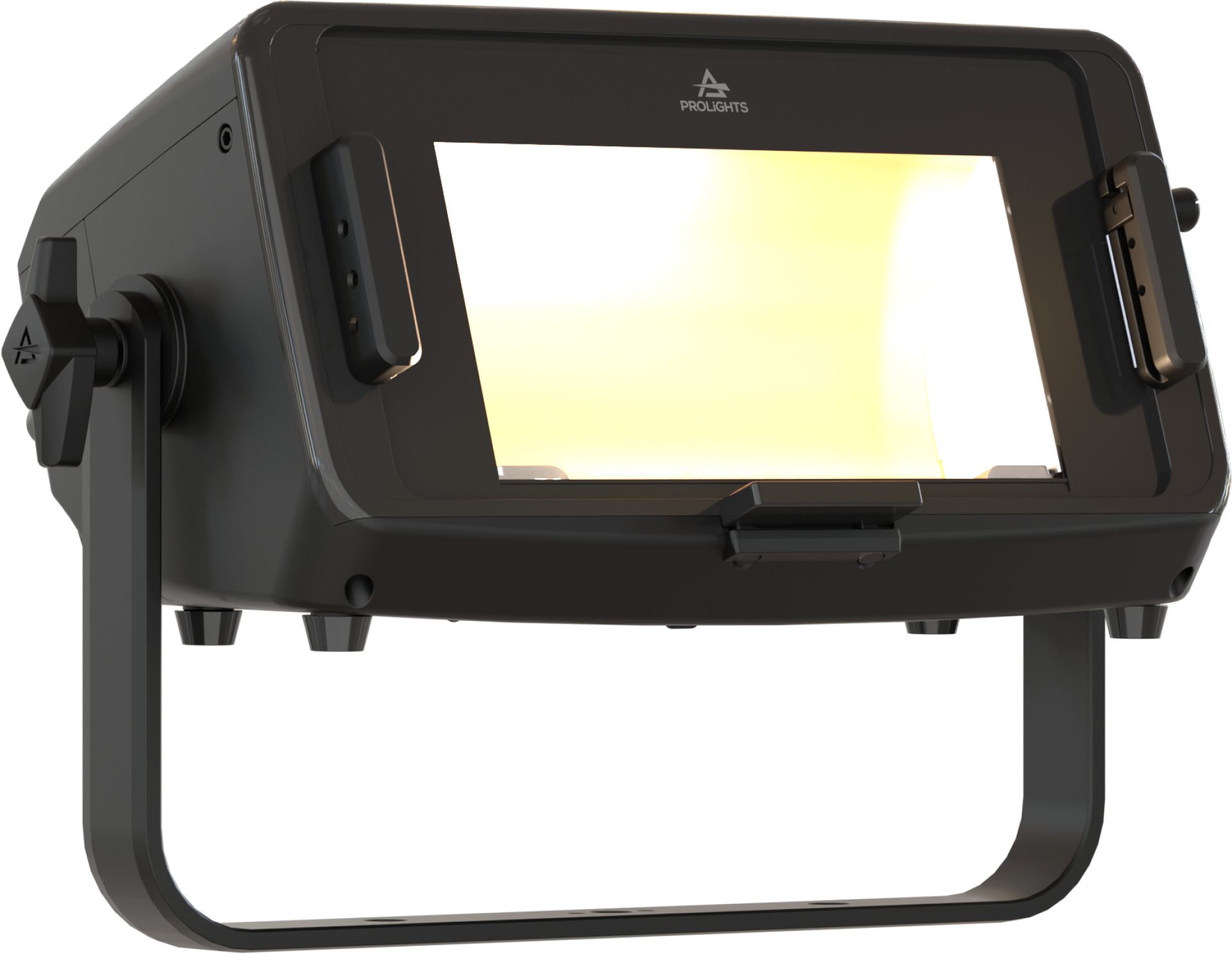

PROLIGHTS EclExpo Flood300IPFC - front view yoke down

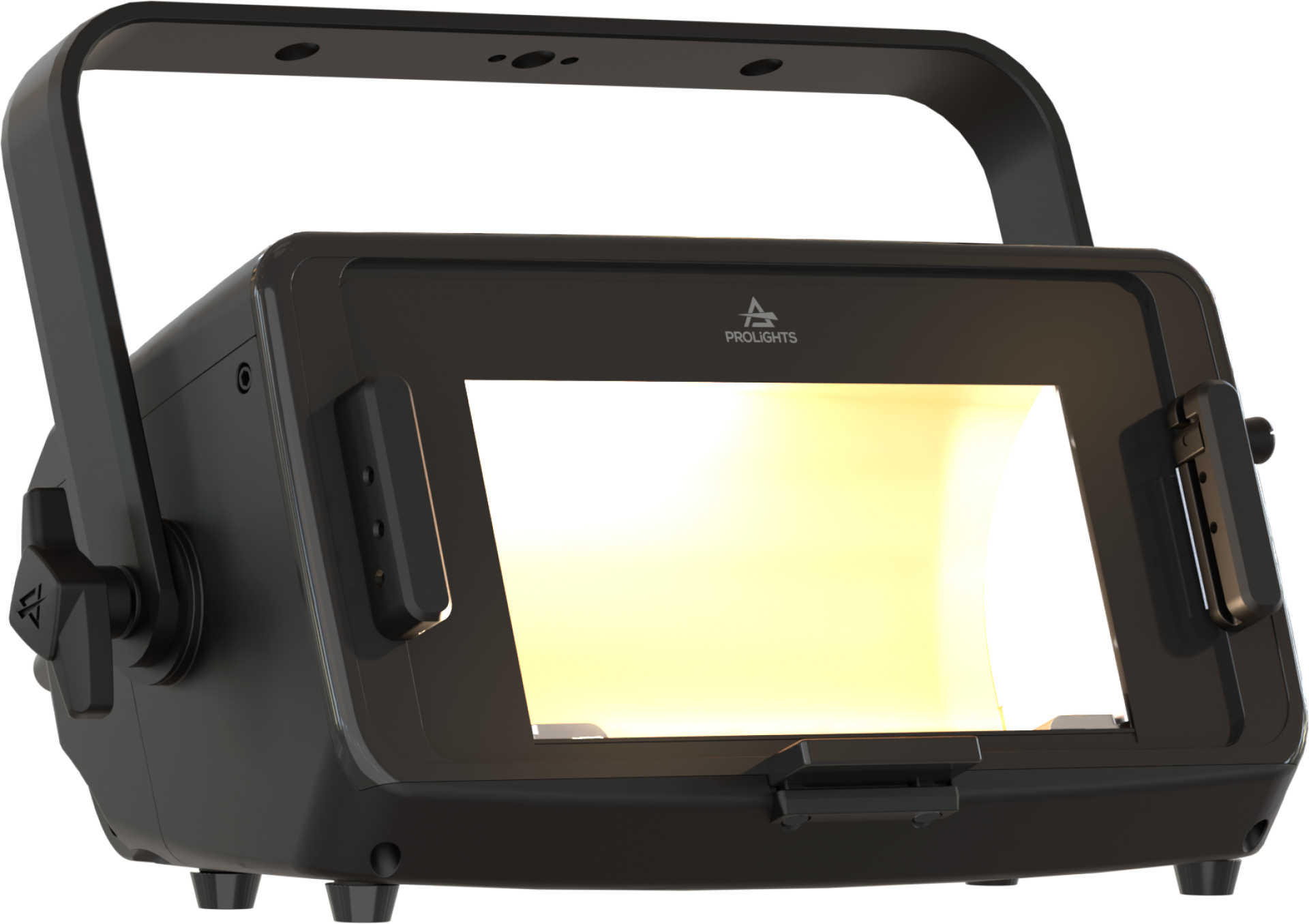

PROLIGHTS EclExpo Flood300IPFC - front view yoke up

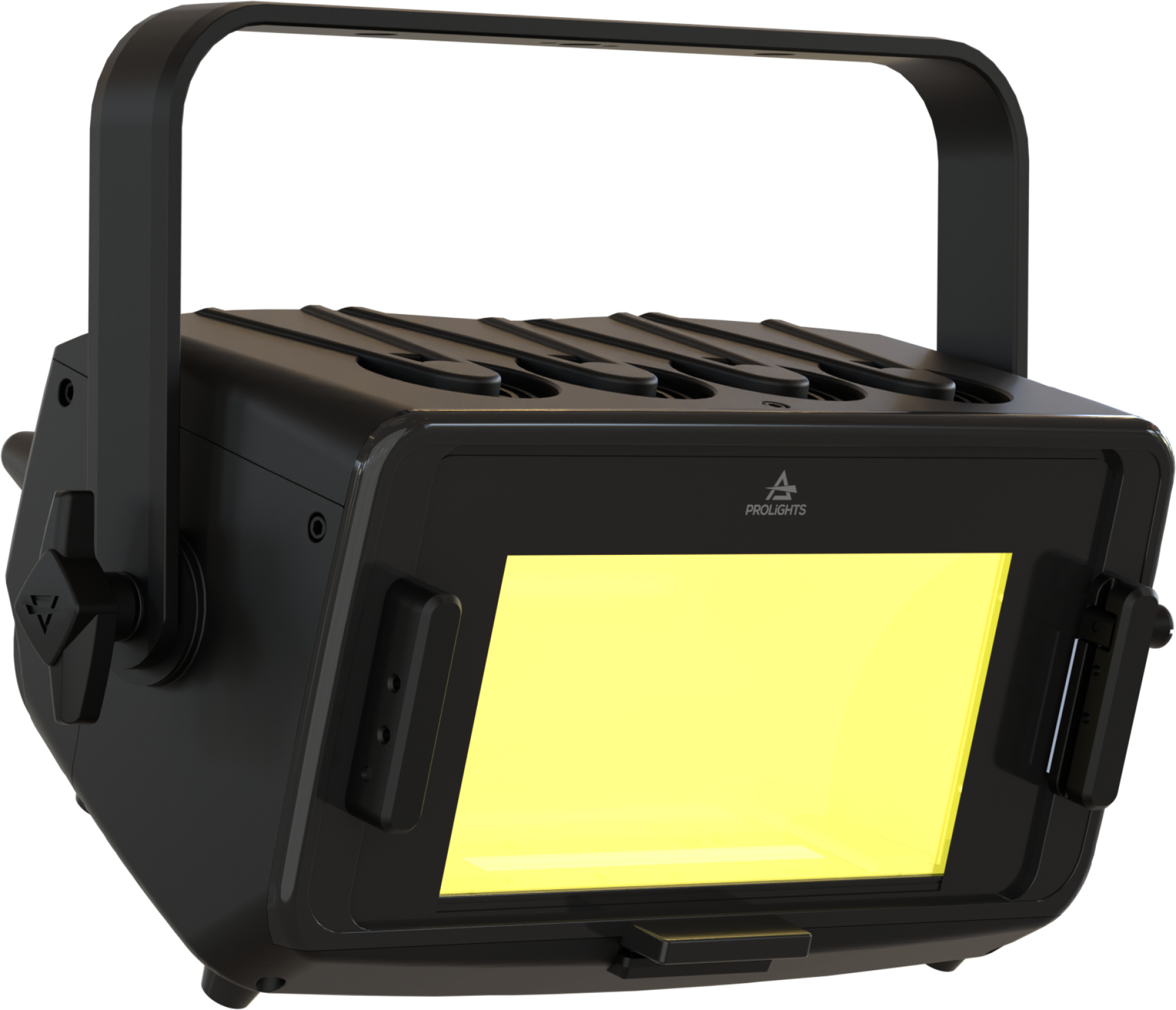

PROLIGHTS EclExpo Flood300IPFC - front pointing down

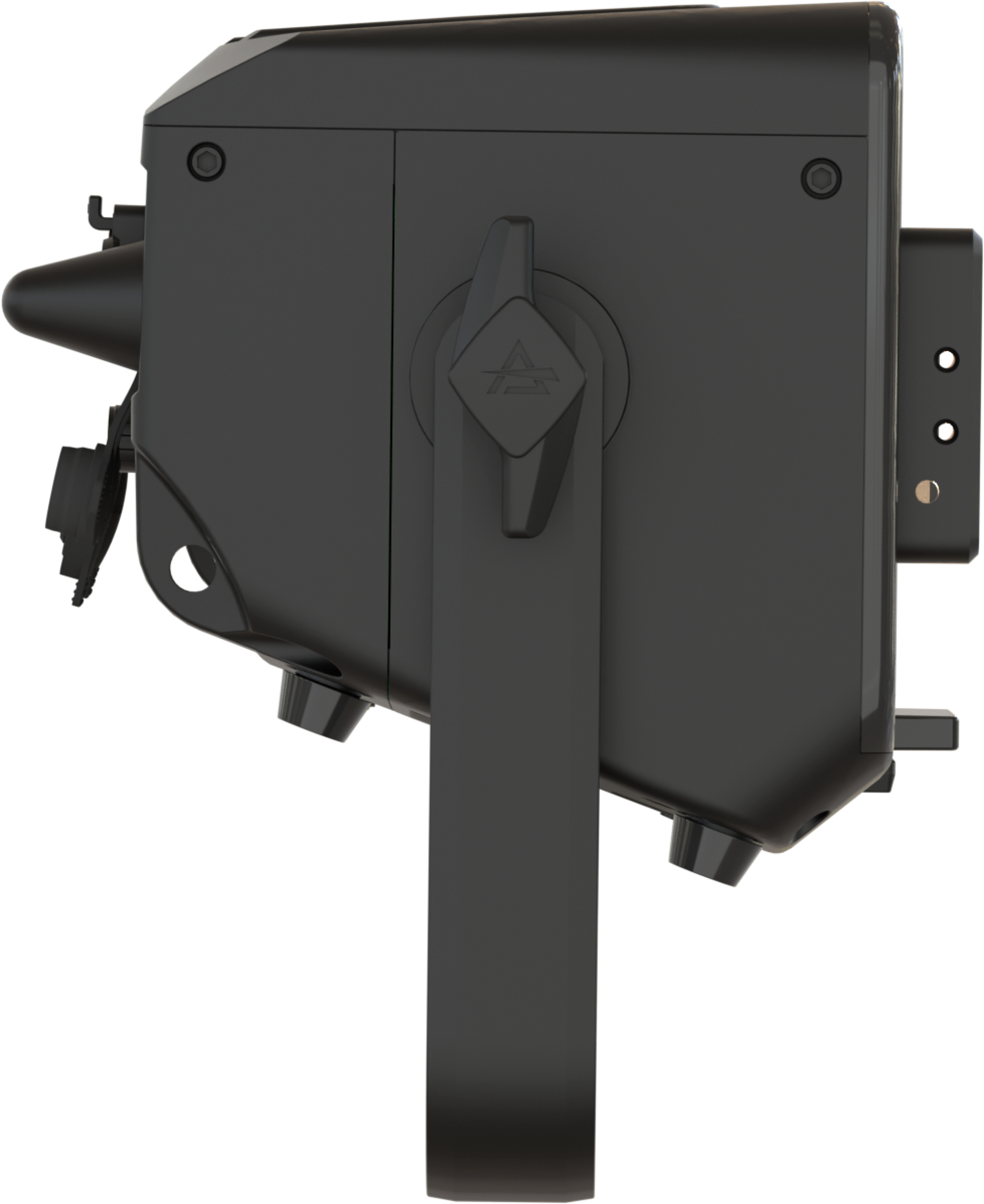

PROLIGHTS EclExpo Flood300IPFC - side view
PROLIGHTS EclExpo Flood300IPFC - back view
PROLIGHTS EclExpo Flood300IPFC - front view yoke down
PROLIGHTS EclExpo Flood300IPFC - front view yoke up
PROLIGHTS EclExpo Flood300IPFC - front pointing down
PROLIGHTS EclExpo Flood300IPFC - side view

EclExpo Flood300IPFC

PROECLEXPOFL300IPFC

Key Features:

  • IP65 water and dust resistant
  • 300W calibrated RGB+WarmWhite source, with high CRI and TM30
  • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclExpo Flood300IPFC

The EclExpo Flood300IPFC is an IP65 high power LED floodlight designed for indoor or outdoor and is a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.

Combined with a reflector, it has a wide asymmetric beam angle of 100° (horizontal) x 60° (vertical) of indirect light emission.

This unit is incredibly user-friendly, using remote control via DMX and RDM, on-board W-DMX + CRMX or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT, colours and dimmer settings.

Its unique design and performance set a new standard for outdoor exhibition floodlights.

  • Source: 300W RGB + Warm White LED

    Luminous flux: 13,865 @ 3200K

    Luminous flux: 13,607 @ 5600K

    Lux: 202lx @ 5m 3200K

    Lux: 195lx @ 5m 5600K

    CRI: 93.2 @ 5600K

    R9: 97.3 @ 5600K

    TLCI: 92 @ 5600K

    TM30 Rf: 90.6 @ 5600K

    TM30 Rg: 104.9 @ 5600K

    Source life expectancy: > 30,000 hrs (L70B10 @Ta 25° C / 77° F)

    Optics: asymmetrical beam reflector in pure aluminium 99.6%

    Beam angle: (H) 100° x (V) 60°

    Additional optics: 5° smooth filter on-board

  • Colour mixing: RGB + Warm White

    CCT: CCT control, + / - green correction, tungsten emulation

    White presets: 2800K - 10000K

    Colour wheel: built-in white presets

    Control Resolution: 16-bit dimmer

    Static mode: selection of static dimmer, colors and color temperature

    Manual mode: manual adjustment of intensity, CT, colour correction from knob

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: DMX512, RDM, CRMX

    Stand Alone: 2 rotatory knobs

    DMX channels: 1/2/5/9/10/12/18 channel

    Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

    Master/Slave: for synchronised operation of more units linked in a chain

You might like...

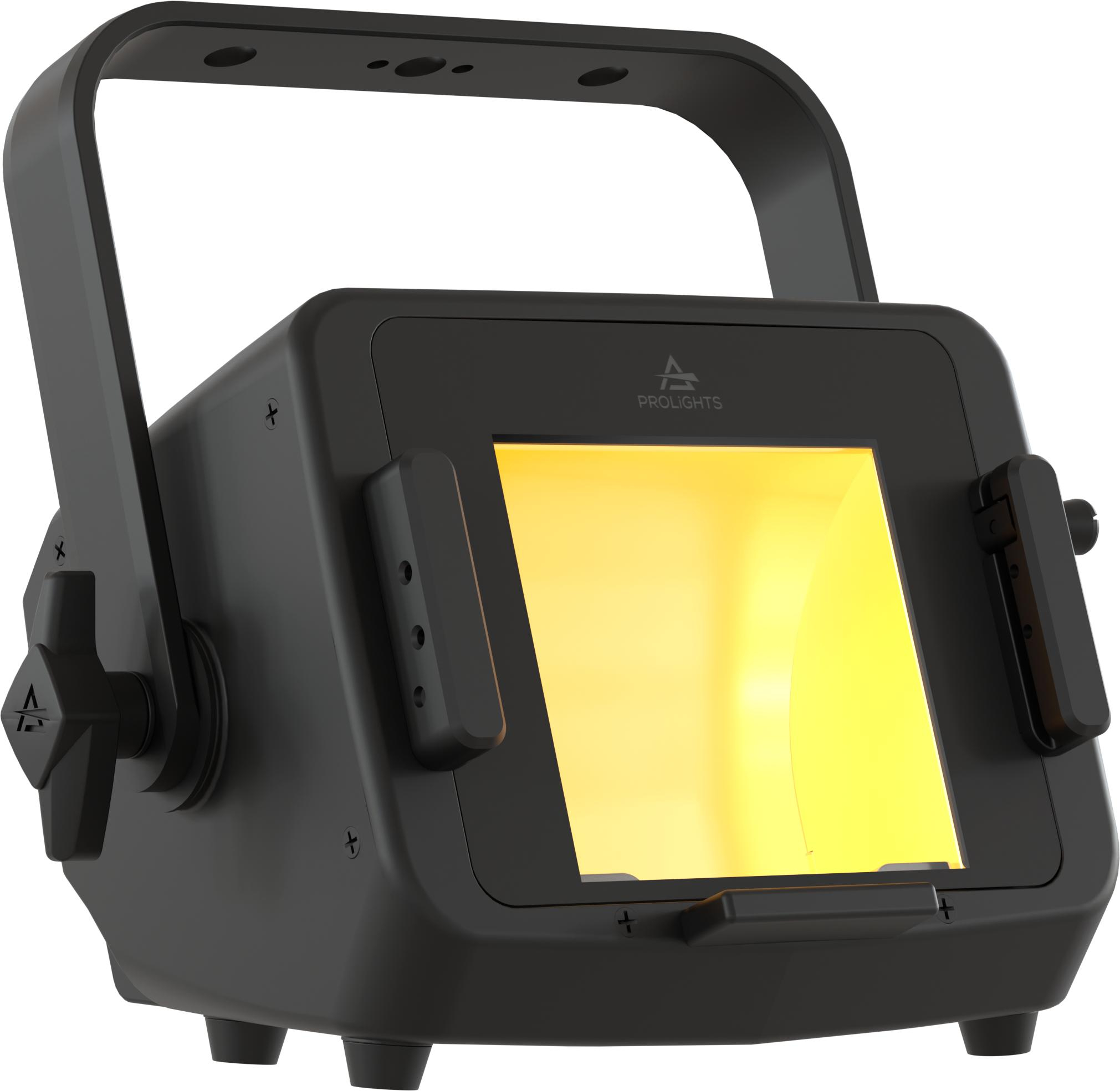

PROLIGHTS EclExpo Flood150FC PROLIGHTS LIGHTING
Product - LIGHTING
EclExpo Flood150FC
    • 150W calibrated RGB+WarmWhite source
    • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
    • XLR 5pin in/through for DMX/RDM control and communication
Find out more
PROLIGHTS EclExpo Flood150VW PROLIGHTS LIGHTING
Product - LIGHTING
EclExpo Flood150VW
    • 150W Variable White LED source, from 2,700K to 6,500K
    • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
    • XLR 5pin in/through for DMX/RDM control and communication
Find out more

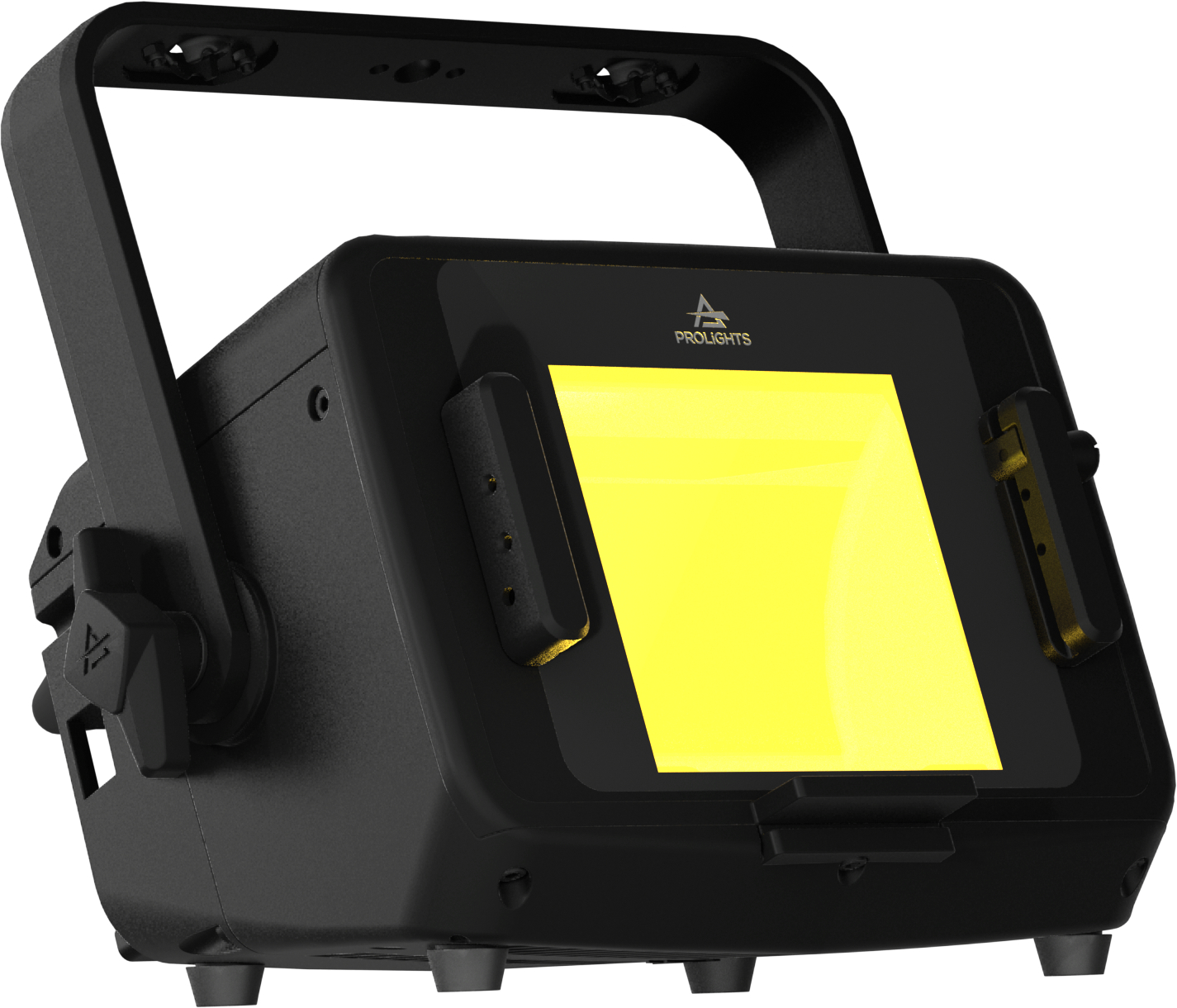

PROLIGHTS EclExpo Flood150IPFC - front view yoke up PROLIGHTS LIGHTING
Product - LIGHTING
EclExpo Flood150IPFC
    • IP65 water and dust resistant
    • 150W calibrated RGB+WarmWhite source, with high CRI and TM30
    • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
Find out more
PROLIGHTS EclExpo Flood150IPVW - front view yoke up PROLIGHTS LIGHTING
Product - LIGHTING
EclExpo Flood150IPVW
    • IP65 water and dust resistant
    • 150W Variable White LED source, from 2700K to 6500K
    • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
Find out more
PROLIGHTS EclExpo Flood300FC - yoke down PROLIGHTS LIGHTING
Product - LIGHTING
EclExpo Flood300FC
    • 300W RGB + Warm White LED
    • Asymmetrical beam reflector in pure aluminium 99.6%
    • XLR5 in/through for DMX/RDM control and communication
Find out more

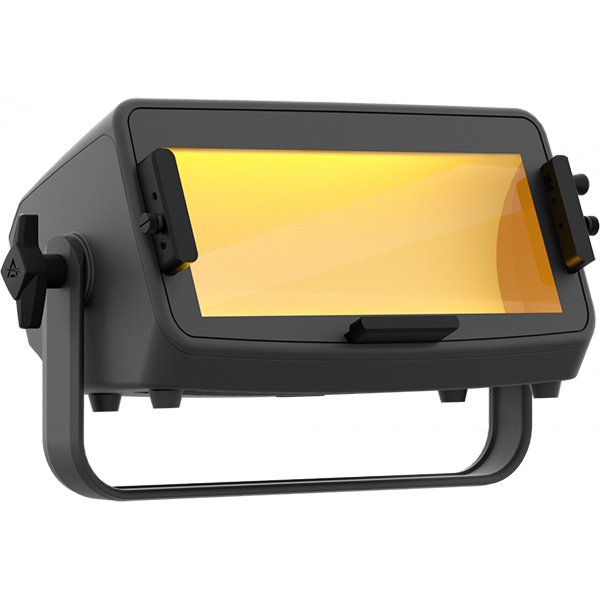

Prolights ECLExpo Flood Light 300VW PROLIGHTS LIGHTING
Product - LIGHTING
EclExpo Flood300VW
    • 300W Variable White LED source, from 2,700K to 6,500K
    • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
    • XLR 5 pin in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs
Find out more

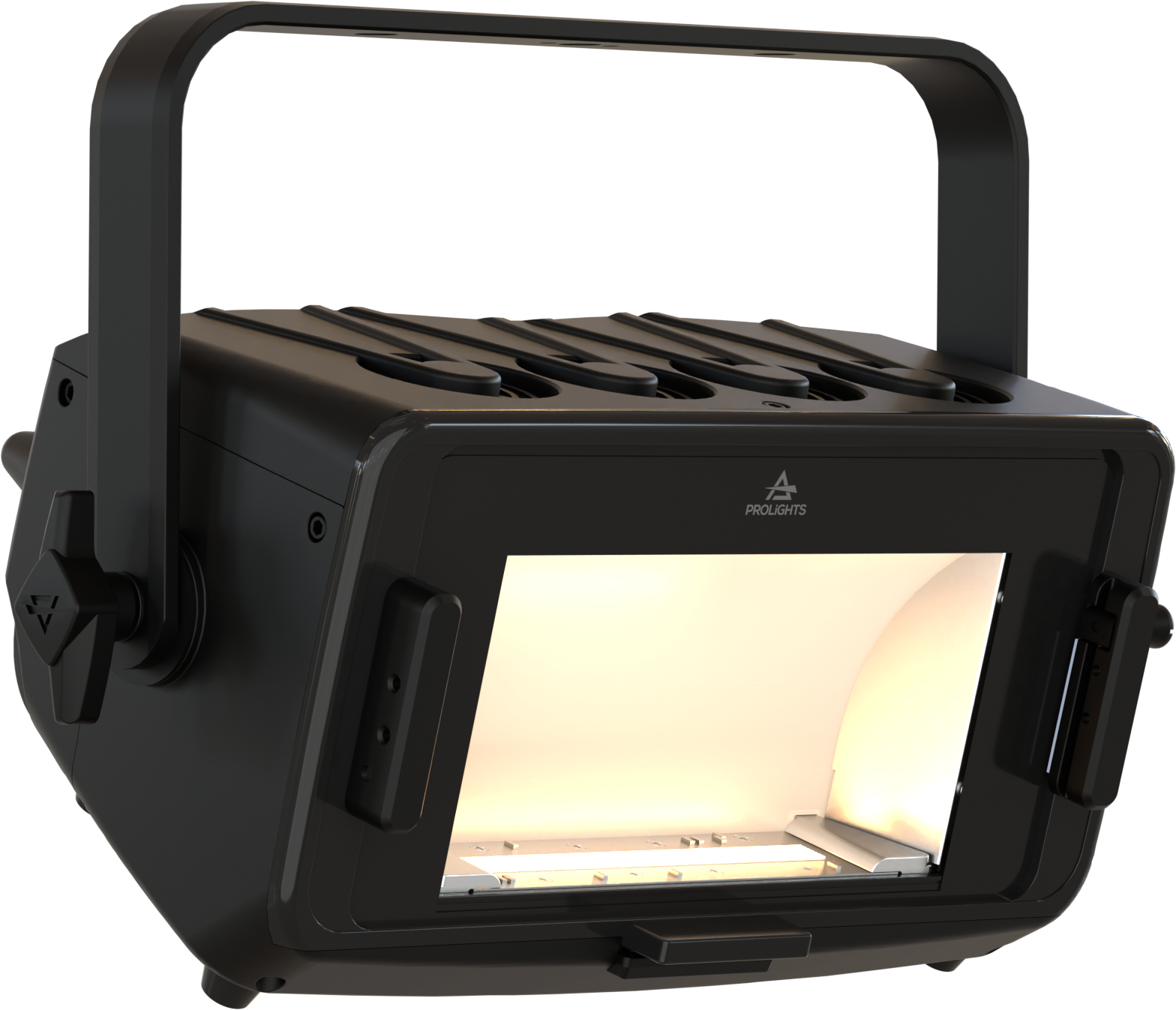

PROLIGHTS EclExpo Flood300IPVW - front pointing down PROLIGHTS LIGHTING
