EclExpo Flood150VW

EclExpo Flood150VW

PROECLEXPOFL150VW

Key Features:

150W Variable White LED source, from 2,700K to 6,500K

Asymmetric beam angle of 100° (horizontal) x 60° (vertical)

XLR 5pin in/through for DMX/RDM control and communication

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclExpo Flood150VW

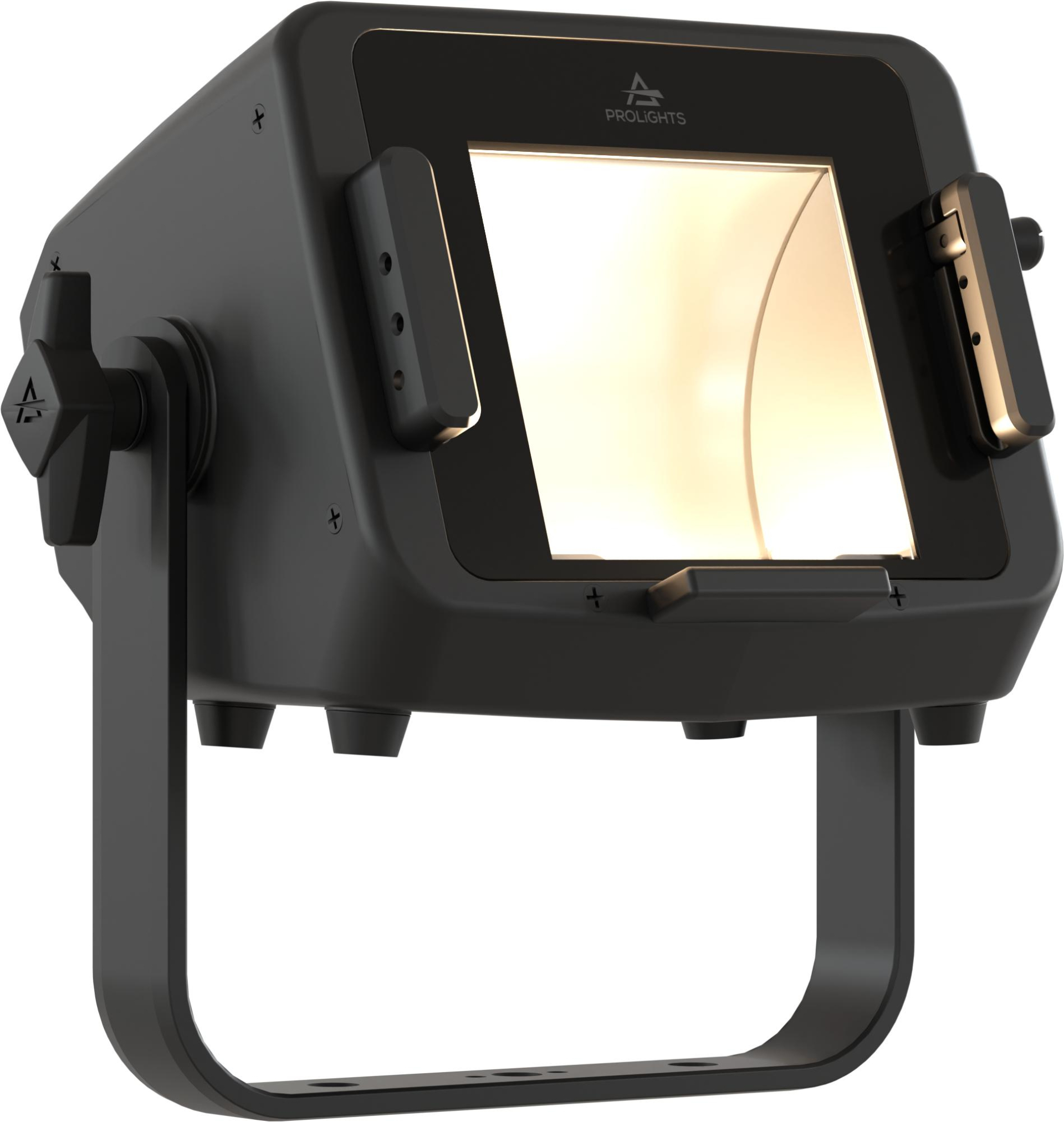

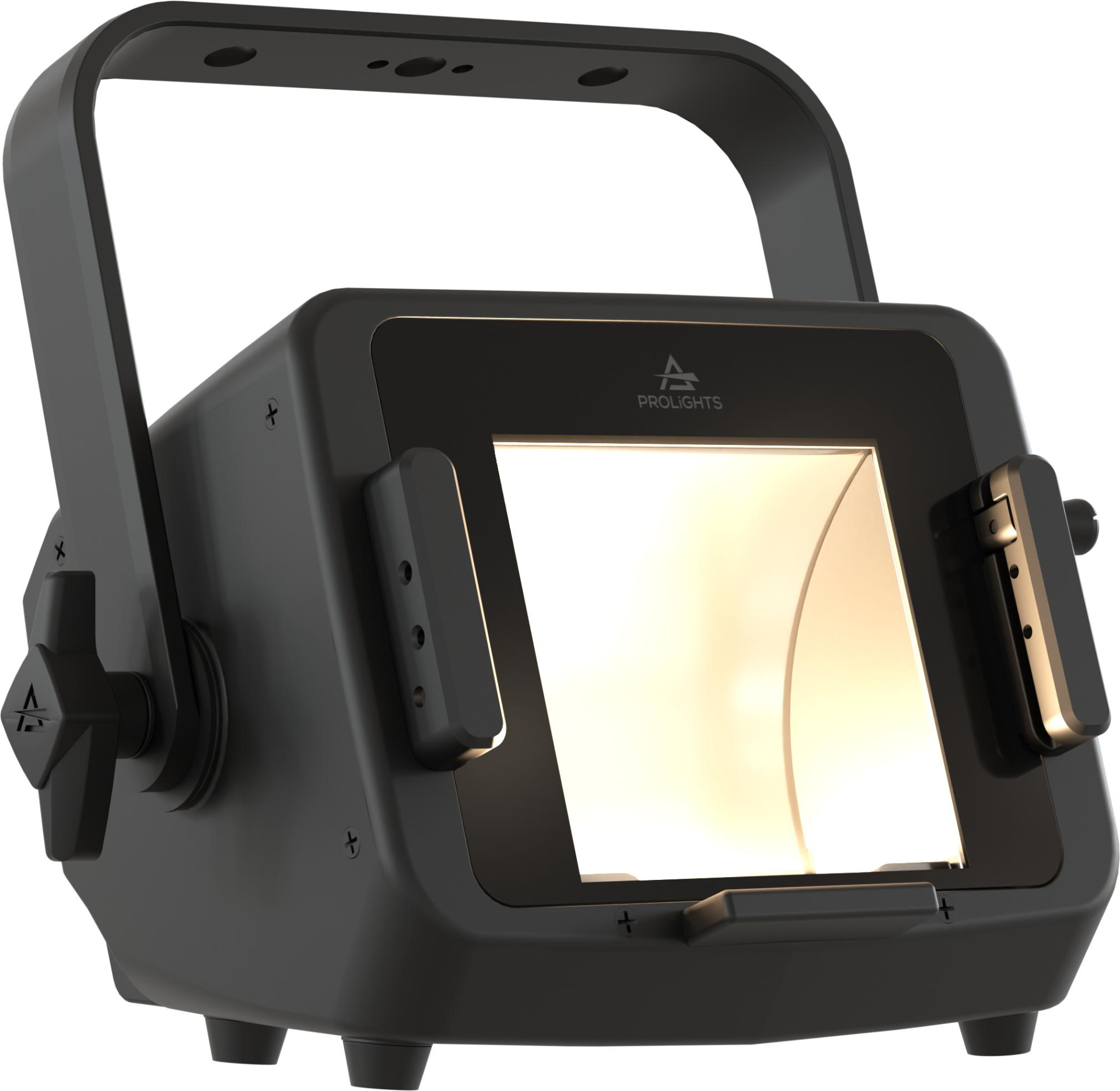

The PROLIGHTS EclExpo Flood150VW is a compact, bright, and versatile floodlight that is designed to be a substitute for traditional CDM, HMI, and tungsten small floods in tradeshows, theatres, or as a work light.

Just like its classic predecessors, but with a custom LED source, this unit features a linear light source combined with a reflector, which ensures a wide coverage of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

Source: 150W Variable White LED

CCT: 2.700 K – 6.500 K

Luminous flux: @2.700K 6’956 lm; @6.500K 9’733 lm; @full 8’598lm

Lux: @2.700K 72 lx; @6.500K 99 lx; @full 91lx @5 m

CRI: 95,1 @2.700 K; 95,3 @6.500 K; 94.4 @full

R9: 95 @2.700 K; 88.4 @6.500 K; 80,7 @full

TLCI: 97 @2.700 K; 96 @6.500 K; 98 @full

TM30 Rf: > 94 @2.700 K; > 90 @6.500 K; > 92 @full

TM30 Rg: < 101 @2.700 K; < 99 @6.500 K; < 102 @full

Source life expectancy: > 20.000 h

Optics: asymmetrical beam reflector in pure aluminium 99,6%

Beam angle: (H) 100° x (V) 60°

Colour mixing: tunable white

CCT: CCT control through dedicated DMX channel

White presets: 2.700 K – 6.500K

Colour wheel: built-in white presets

Control Resolution: 16-bit dimmer

Static mode: selection of static dimmer and color temperature

Manual mode: manual adjustment of intensity and CT from knob

Auto mode: built-in programs with execution speed adjustment

Protocols: DMX512, RDM, CRMX

Stand Alone: 2 rotatory knobs

DMX channels: 1 / 2 / 3 / 5 / 11 channel

Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

RDM: RDM for remote monitoring and settings

Display: Graphic User Interface

Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
