Astra Profile500LTIP

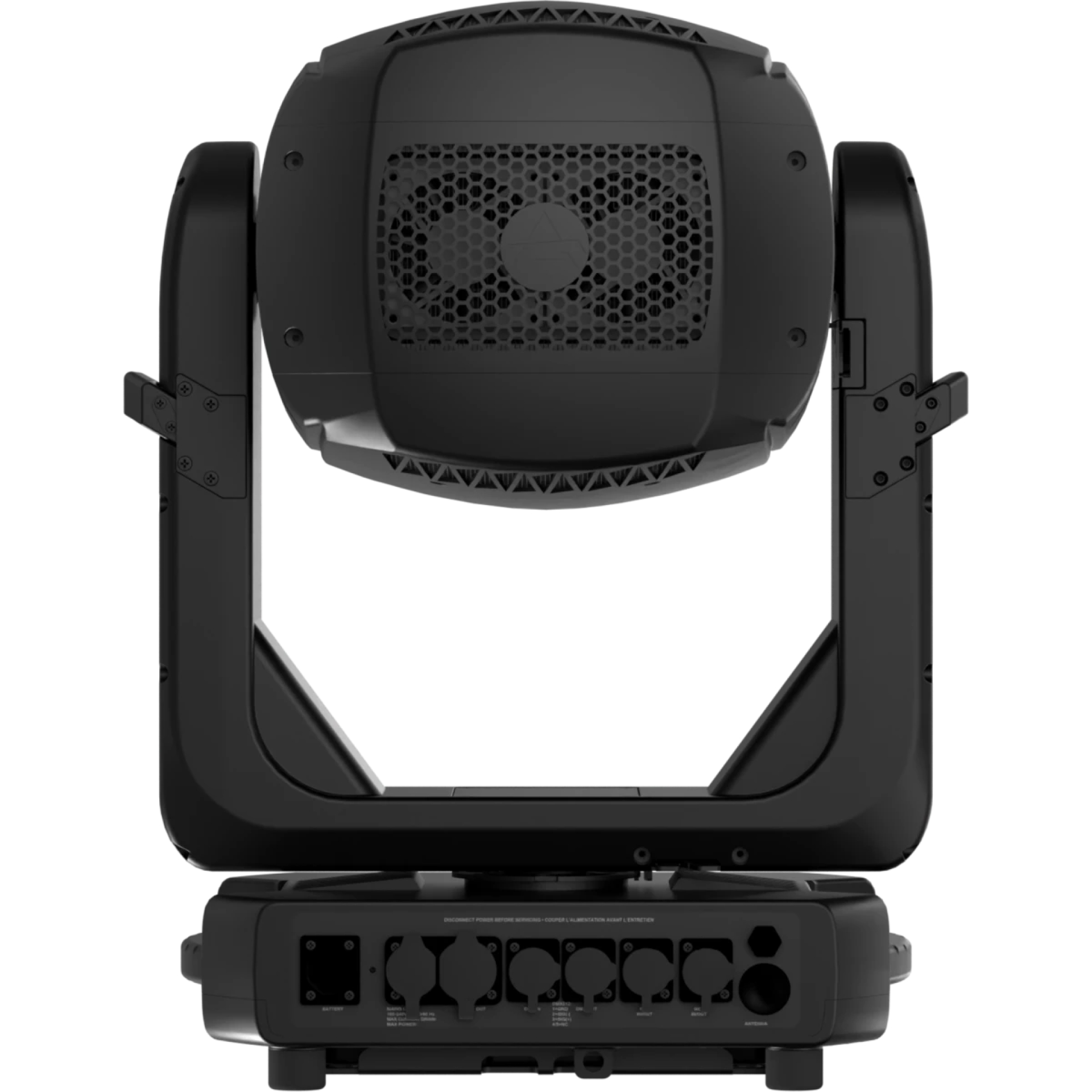

PROLIGHTS Astra Profile500LTIP - back

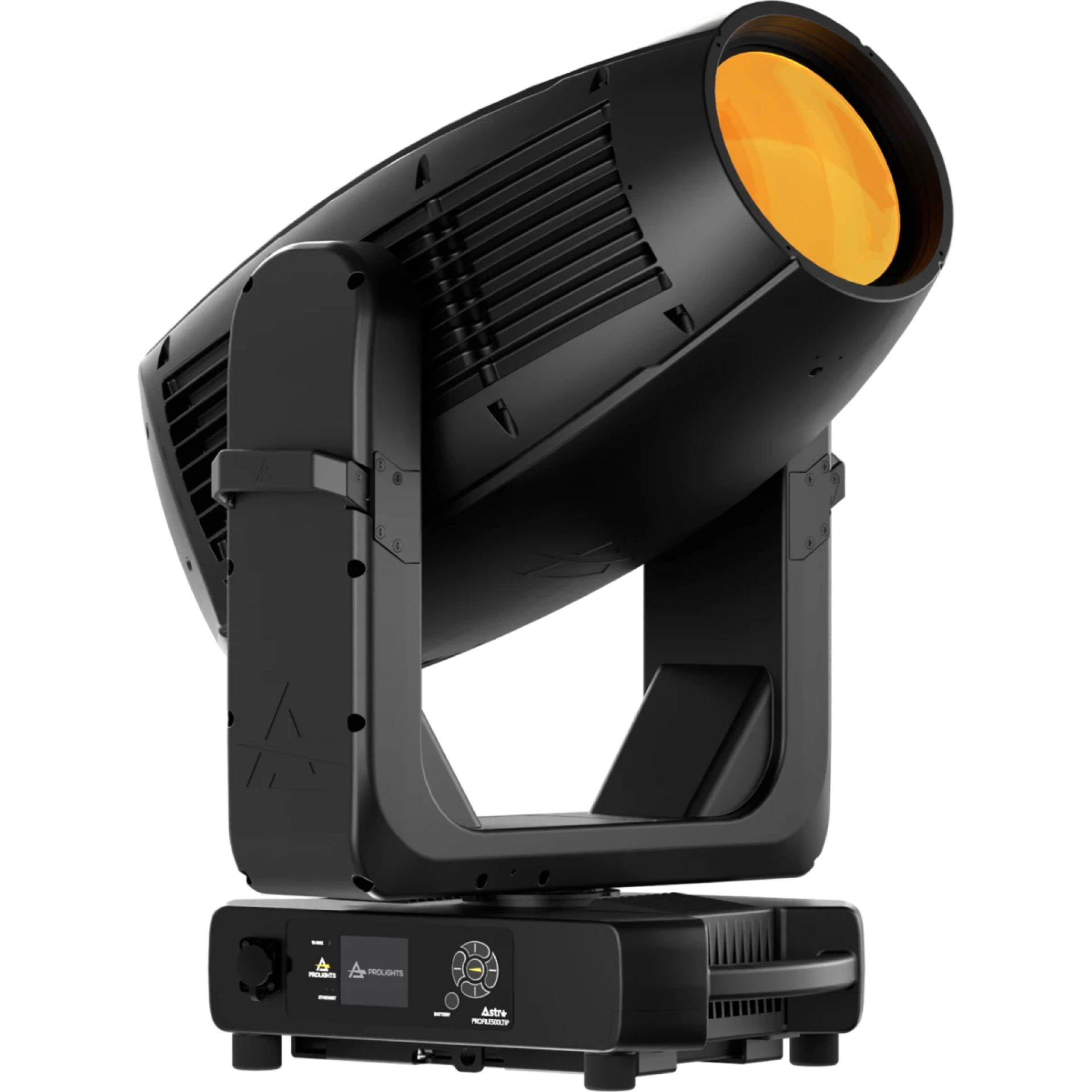

PROLIGHTS Astra Profile500LTIP - front

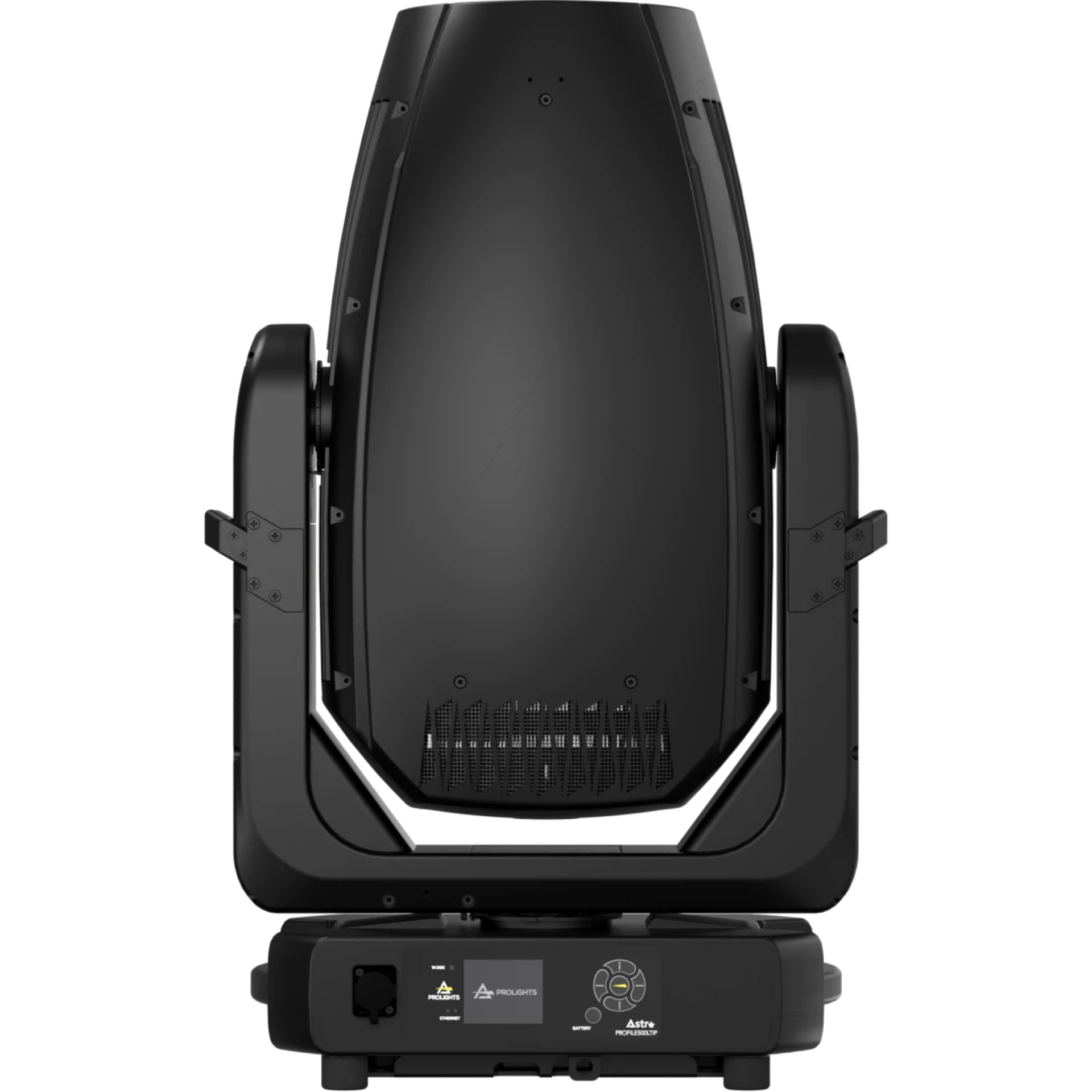

PROLIGHTS Astra Profile500LTIP - pointing up

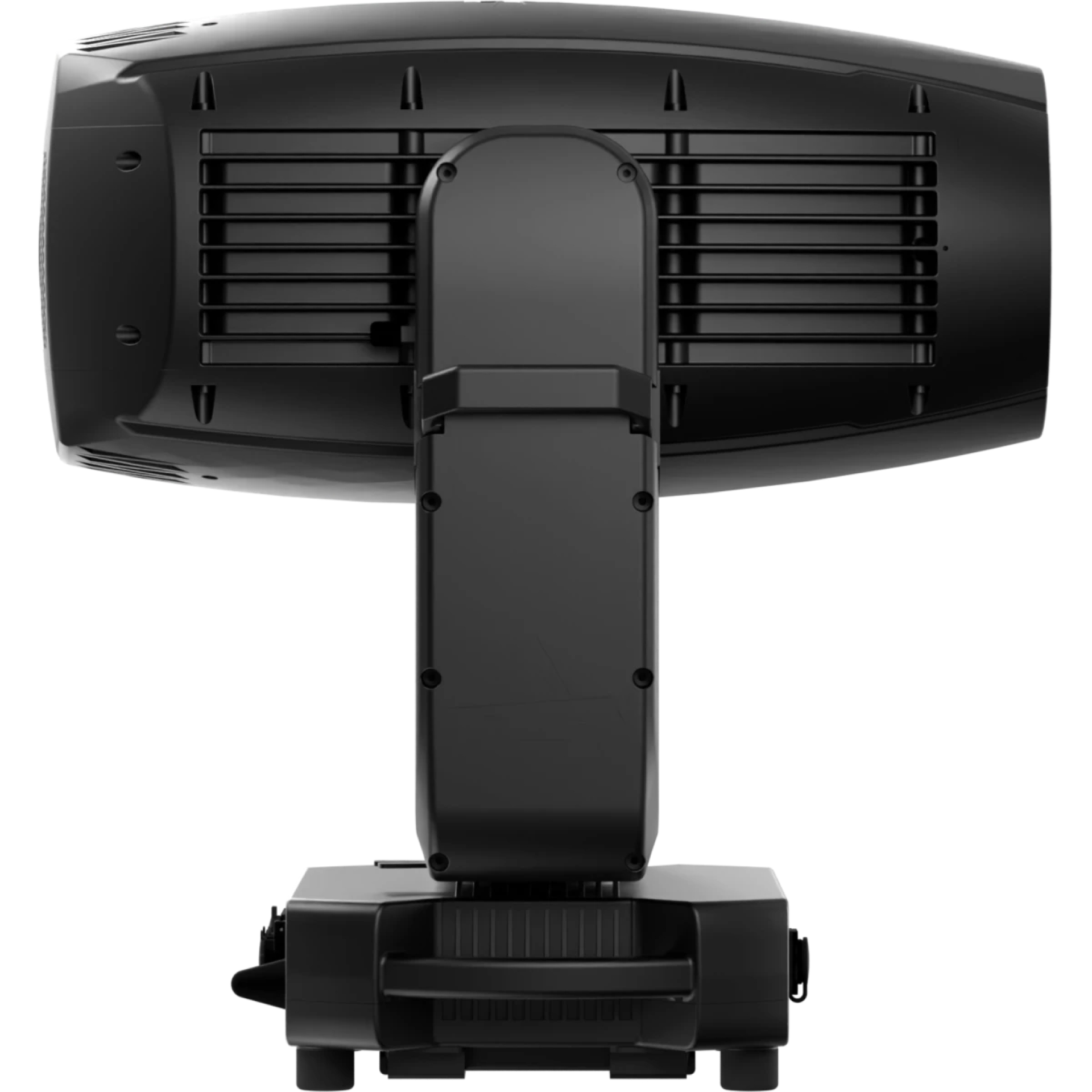

PROLIGHTS Astra Profile500LTIP - side
PROLIGHTS Astra Profile500LTIP - front
PROLIGHTS Astra Profile500LTIP - pointing up
PROLIGHTS Astra Profile500LTIP - side

Astra Profile500LTIP

PROASTRAPROF500LTIP

Key Features:

  • 500W white LED source, 6500K, 25,000 lm (goniometer)
  • 156mm front lens with fast 4°-50° zoom
  • CMY+CTO colour mixing, one colour wheel, 4 framing shutters, 1 rotating gobo wheel, 1 fixed gobo wheel, 1 animation wheel, 2 frost, 2 prisms, iris
  • IP65 construction for reliable outdoor use
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Astra Profile500LTIP

The Astra Profile500LTIP is a high-power, versatile long throw IP65 LED moving profile, designed to deliver exceptional brightness and robust performance in both indoor and outdoor environments.

Featuring a 500W white LED source at 6,500K, it produces a stunning 25,000 lumen output (goniometer), providing arena level output.

The 156mm front lens combined with a custom designed long throw lens, projects a fat, even beam with fast zoom from from 4° to 50°, maintaining sharp projections and uniform beam quality across the entire zoom range.

Astra Profile500LTIP offers precise beam shaping with four framing shutters, each with independent plane rotation and full curtain capability. Additional creative tools include a linear CMY system, linear CTO system, one colour wheel, a rotating gobo wheel with seven gobos, an animation wheel, a frost and two overlapping linear prisms for dynamic aerial effects.

Housed in a die-cast magnesium alloy body with full IP65 construction for outdoor use, Astra Profile500LTIP is designed for reliability in any environment but is lightweight. With fast pan and tilt movement and internal features, high-resolution control, and integrated CRMX wireless connectivity plus Ethernet-based protocols, it ensures fast setup and flexible operation for live events and concerts, theatre and broadcast, corporate productions, and outdoor shows.

  • Source: 500W White LED

    CCT: 6500K

    Luminous flux: (4.2°) 15,370 lm; (50.1°) 24,649 lm @ full

    Lux: (4.2°) 121,742 lx; (50,1°) 1,924lx

    CRI: > 70 (CCT 5600K and CRI > 90 with filter on colour wheel)

    Source life expectancy: > 50,000 hrs (L70B10 @Ta 25° C / 77° F)

    Zoom range: 4.2° - 50.1° motorised linear zoom

    Lens diameter: 156mm / 6.14''

    Lens type: HD anti-reflection lenses with achromatic coating

    Focus: motorised

  • Colour mixing: CMY colour system on 3 gradually fading colour wheels

    CCT: linear CTO correction 2700K ~ 6500K

    Colour wheel: open + high CRI filter + 5 colour colour filters

    Control Resolution: 16-bit dimmer

    Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system

    Animation wheel: animation wheel with CW and CCW rotation

    Rotating gobos: 7 rotating gobos + open, interchangeable, indexing

    Gobo size: outer: 25mm; image: 20mm; thickness: up to 3mm

    Fixed gobos: 8 fixed gobos + open

    FX generator: 2 prisms overlap for spectacular aerial effects

    Circular prism: 4f with bi-directional rotation

    Linear prism: 6f with bi-directional rotation

    Frost: dual soft-edge and heavy with one interchangeable element

    Iris: 5 - 100% motorised iris

  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX

    DMX channels: 43 channel

    Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive

    EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
