Astra Profile600IP

PROASTRAPROFILE600IP

Key Features:

7° to 62° linear zoom

4-layer motorised framing shutters

IP65 LED moving profile with a 600W long life LED source (6,500K)

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Astra Profile600IP

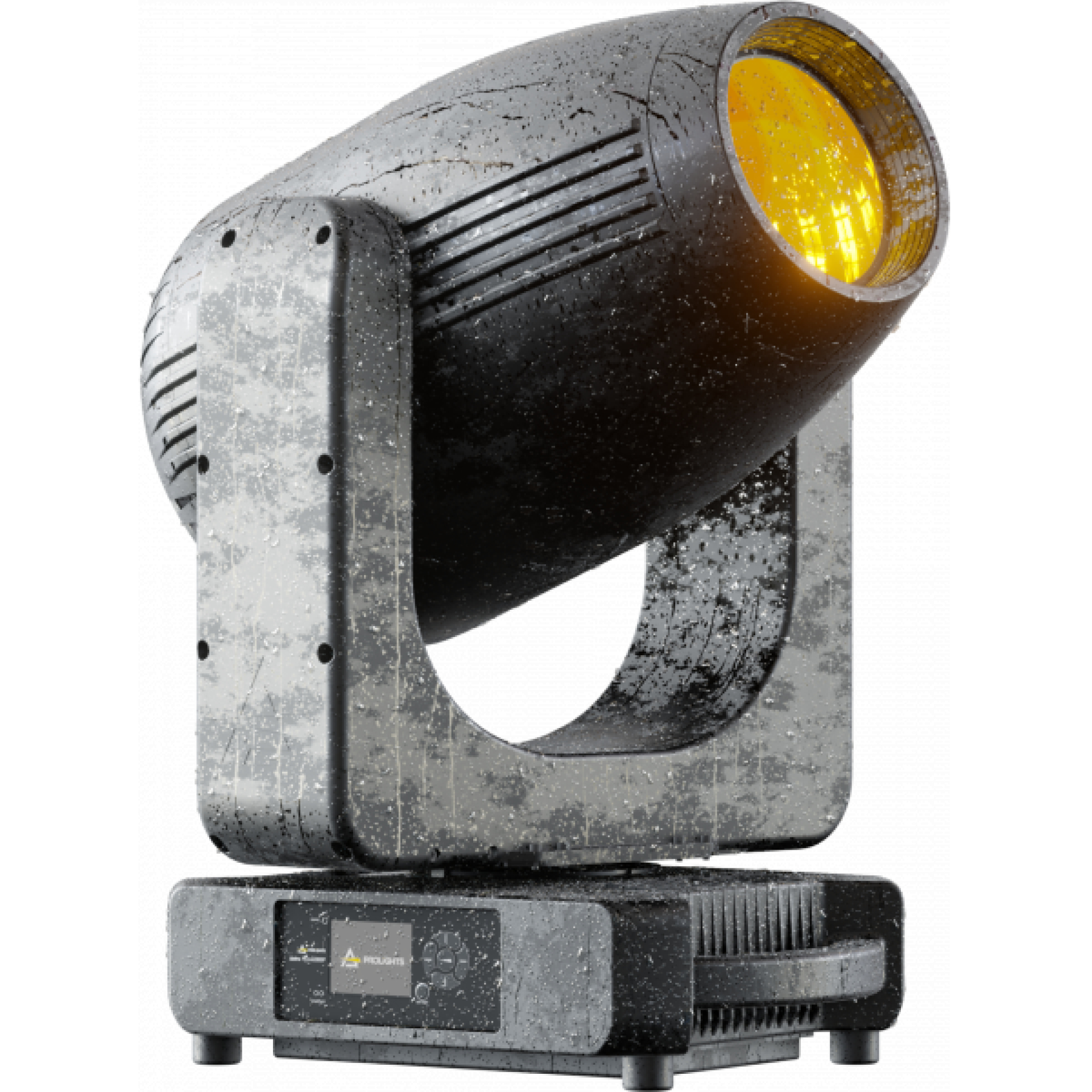

The Astra Profile600IP is a bright, waterproofed (IP65) LED profile moving light, designed for any large-scale touring applications and exterior installations.

Despite its waterproof exterior, this unit is tremendously bright and offers a superior evenness compared to other fixtures in the same class.

Its light source delivers a pure white light emission at 6,500K, reaching 21,200 lumens whilst achieving a flat field beam projection.

The Astra Profile600IP’s optical system moves linearly from 7° to 62°, and it’s equipped with a brand-new 600W LED source

The extensive feature set of the Astra Profile600IP includes a 4-layer motorized framing system, linear CMY and CTO, 5,600K high CRI filter, colour and gobo wheels, frost filter, prism, and an iris.

Source: 600W White LED

CCT: 6,500K

Luminous flux: (7°) 14,877lm - (62°) 21,200lm

Lux: (7°) 57,569 lx - (62°) 1,144lx @ 5m

CRI: > 70 (CCT 5,600K and CRI > 90 with high CRI filter on color wheel)

Source life expectancy: > 30,000hr

Zoom: 7° - 62° motorised linear zoom

Lens diameter: 150mm / 5.91''

Lens type: HD anti-reflection lenses with achromatic coating

Focus: motorised

Colour mixing: linear CMY

CCT: linear CTO correction 2,700K ~ 6,500K

Colour wheel: open + 5,600K high CRI filter + 6 colour filters

Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system

Animation wheel: animation wheel with CW and CCW rotation

Rotating gobos: 7 rotating gobos + open, interchangeable, indexing

Gobo size: outer: 29.9mm - image: 22mm - thickness: 1.1mm

Circular prism: 4f with bi-directional rotation, indexing

Frost: linear 0 - 100% frost filter

Iris: 5 - 100% motorised iris

Protocols: DMX512, RDM, ArtNet, sACN, W-DMX + CRMX

DMX channels: 29 / 39 / 54 channel

Wireless control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

RDM: RDM for remote monitoring and settings

Display: Graphic User Interface

Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included

Other: 16bit control of dimmer and colour
