Astra Profile300LTIP

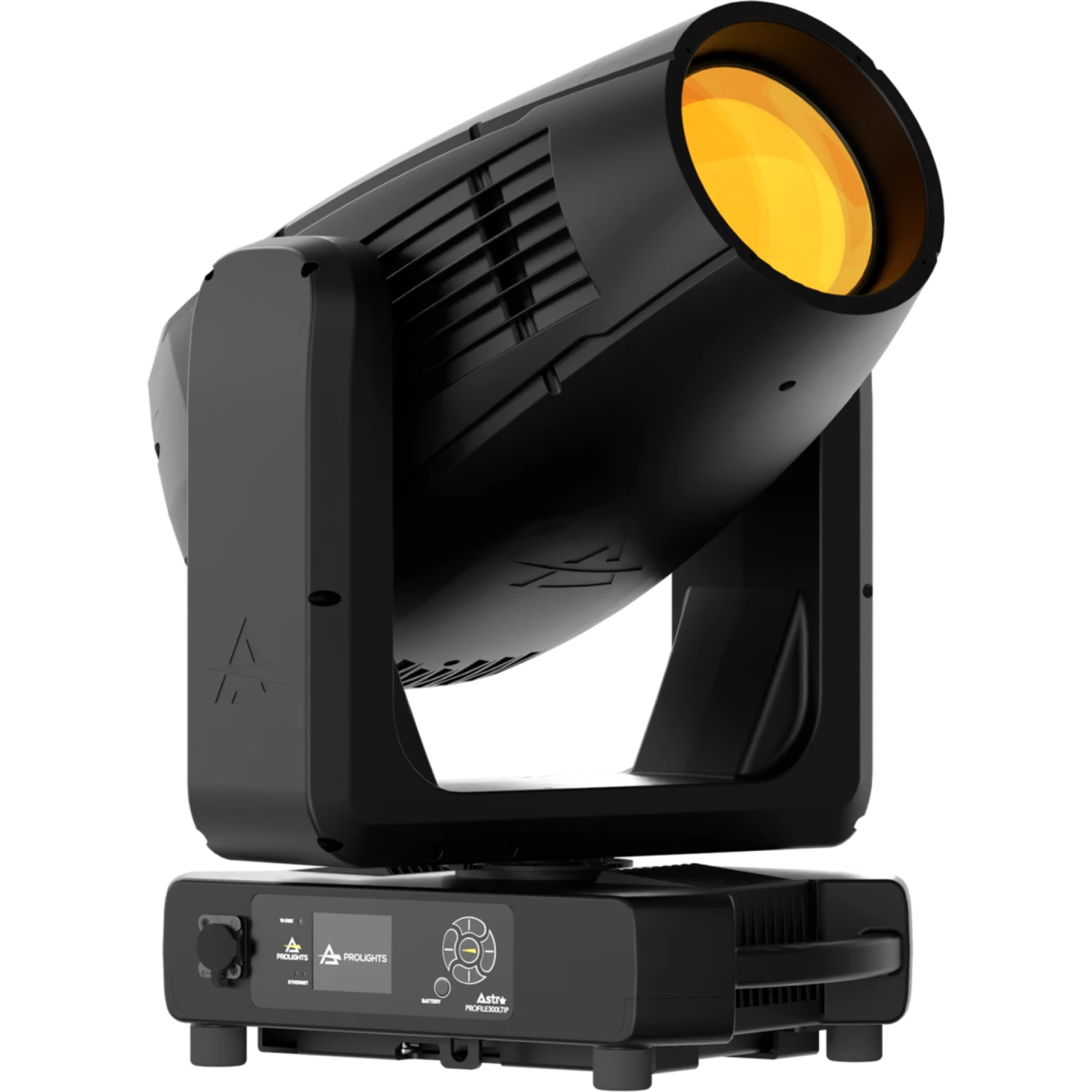

PROLIGHTS Astra Profile300LTIP - front

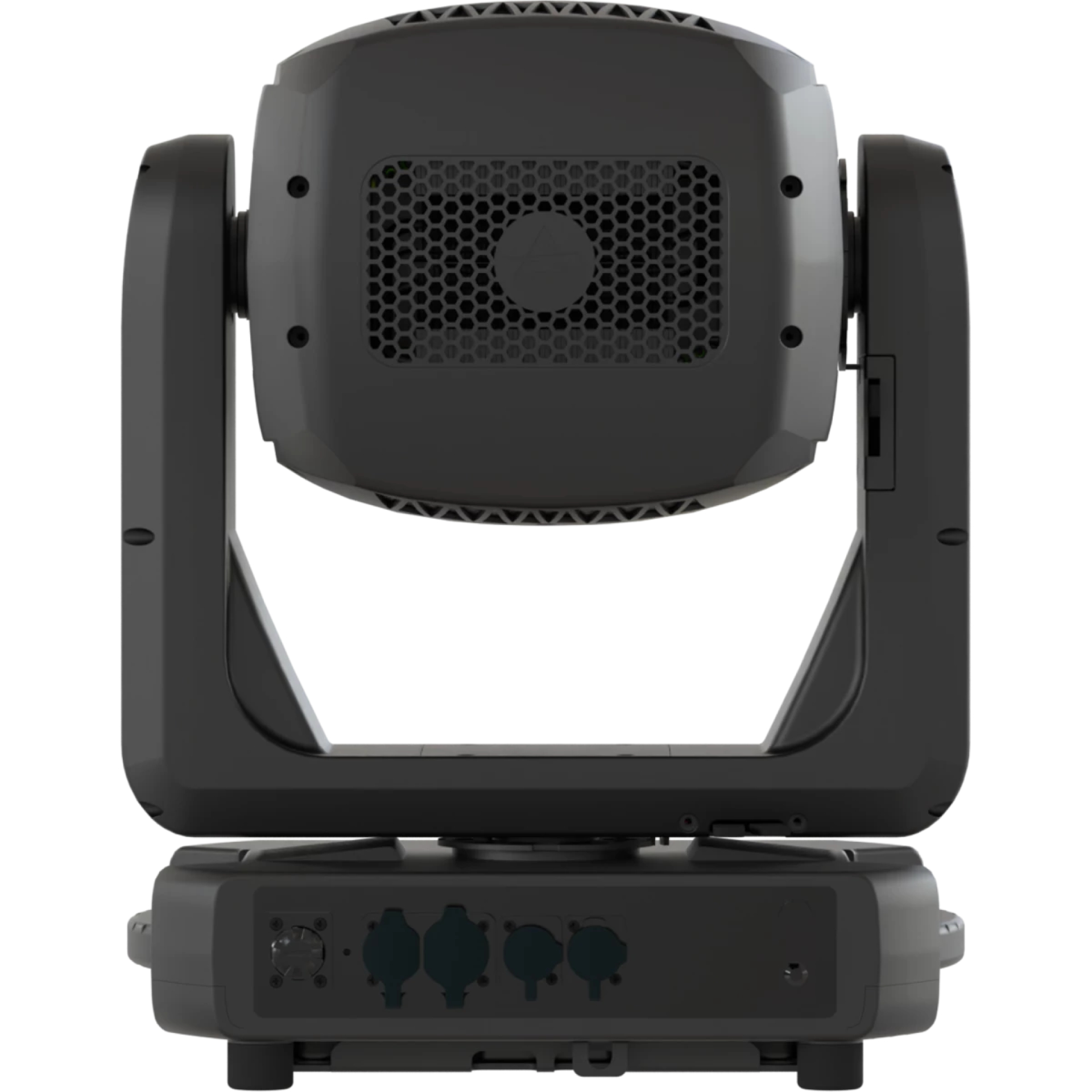

PROLIGHTS Astra Profile300LTIP - back

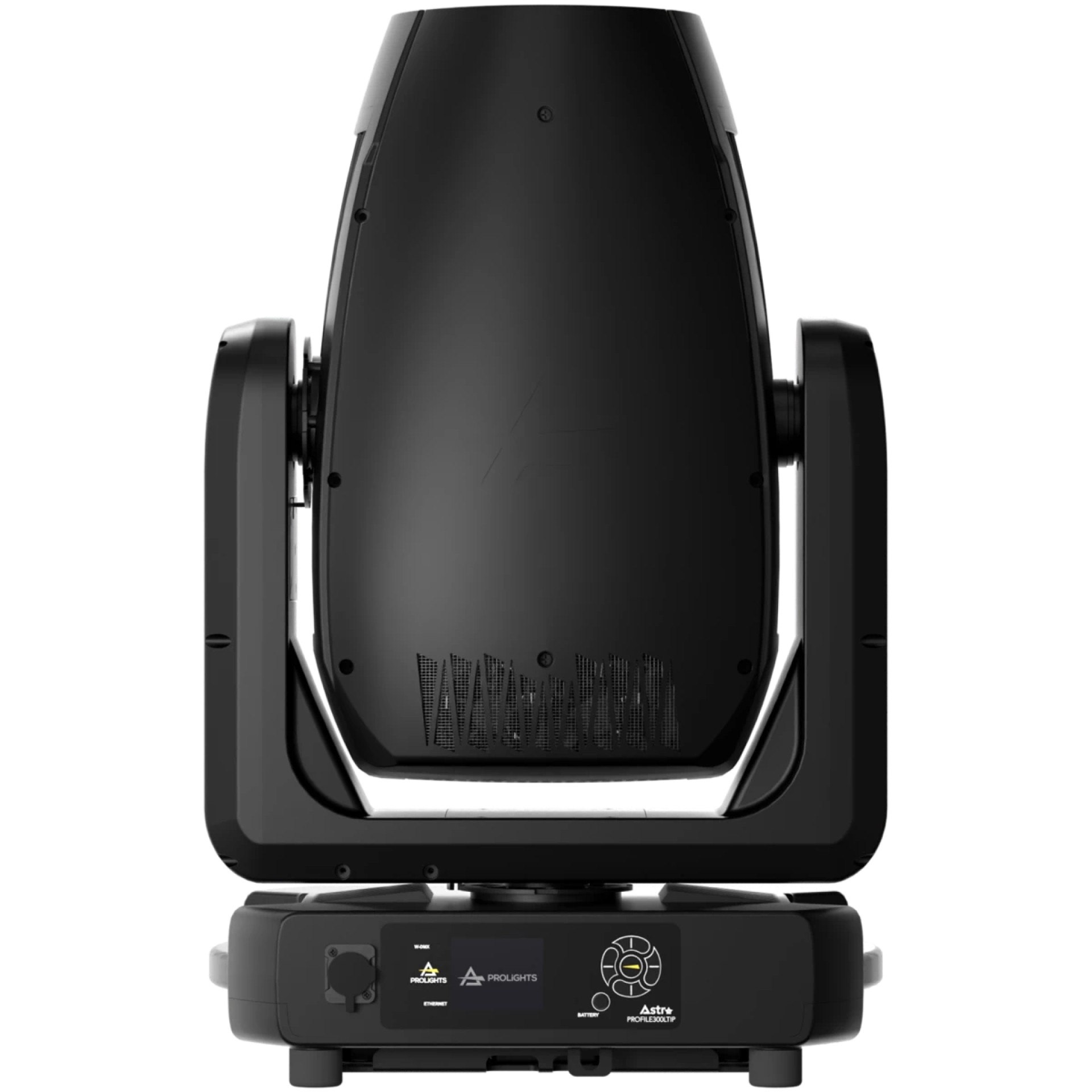

PROLIGHTS Astra Profile300LTIP - pointing up

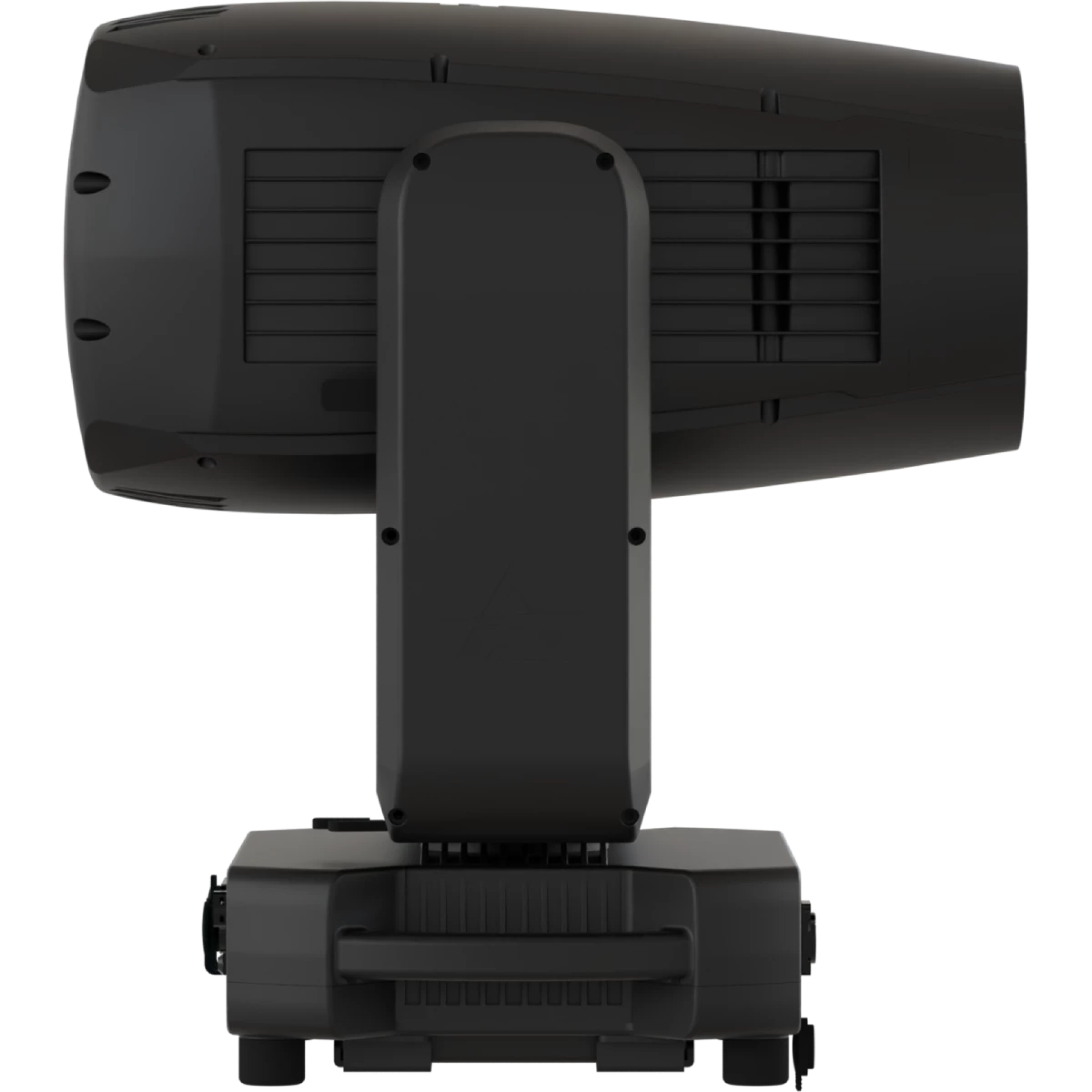

PROLIGHTS Astra Profile300LTIP - side
PROLIGHTS Astra Profile300LTIP - back
PROLIGHTS Astra Profile300LTIP - pointing up
PROLIGHTS Astra Profile300LTIP - side

Astra Profile300LTIP

PROASTRAPROF300LTIP

Key Features:

  • 300W white LED source, 6500K, 12,000 lm (goniometer)
  • 135mm front lens with fast 4°-44° zoom
  • CMY+CTO colour mixing, 12 color filters, 4 framing shutters, 1 rotating gobo wheel, 1 animation wheel, 1 frost, 2 prisms
  • IP65 construction for reliable outdoor use
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Astra Profile300LTIP

Astra Profile300LTIP is a compact, versatile long throw and IP65-rated LED moving profile, engineered to deliver bright and reliable performance in any indoor or outdoor environment.

Featuring a 300W white LED source at 6500K, it pushes an impressive 12,000 lumen output, ensuring exceptional brightness across small rigs or larger stages.

The 135mm front lens, combined with a custom designed long throw lens, projects a fat, even beam with fast zoom from from 4° to 44°, maintaining sharp projections and uniform beam quality across the entire zoom range.

Astra Profile300LTIP offers precise beam shaping with four framing shutters, each with independent plane rotation and full curtain capability. Additional creative tools include a linear CMY system, linear CTO system, 12 colour filters, a rotating gobo wheel with seven gobos, an animation wheel, a frost and two overlapping linear prisms for dynamic aerial effects.

Built with a die-cast magnesium alloy housing and a fully IP65-rated construction for outdoor use in a 26kg package, Astra Profile300LTIP is engineered to perform reliably in demanding environments. With fast pan and tilt movements, high-resolution control, and optional CRMX connectivity, it is a versatile solution for live events, concerts, theatre, broadcast and corporate productions.

  • Source: 300W high-power white LED

    CCT: 6500K

    Luminous flux: (3.9°) 8,313 lm; (44.1°) 12,065 lm @ full

    Lux: (3.9°) 88,597 lx; (44.1°) 1,333lx @ 5m full

    Source life expectancy: > 50,000 hrs (L70B10 @Ta 25° C / 77° F)

    Zoom range: 3.9° - 44.1° motorised linear zoom

    Lens diameter: 135mm / 5.31''

    Lens type: HD anti-reflection lenses with achromatic coating

    Focus: motorised

  • Colour mixing: CMY colour system on 3 gradually fading colour wheels

    CCT: linear CTO correction 2700K ~ 6500K

    Colour wheel: 12 dichroic filters on 4 independent colour wheels

    Control Resolution: 16-bit dimmer

    Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system

    Animation wheel: animation wheel with CW and CCW rotation

    Rotating gobos: 7 rotating gobos + open, interchangeable, indexing

    Gobo size: 20mm; image diameter: 16mm; thick: up to 3mm

    FX generator: 2 prisms overlap for spectacular aerial effects

    Circular prism: 4f with bi-directional rotation, indexing, interchangeable

    Linear prism: 4f with bi-directional rotation, indexing, interchangeable

    Frost: linear 0-100% light interchangeable

  • Protocols: DMX512, RDM, CRMX (optional)

    DMX channels: 42 channel

    Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive
