Astra Profile1200IP

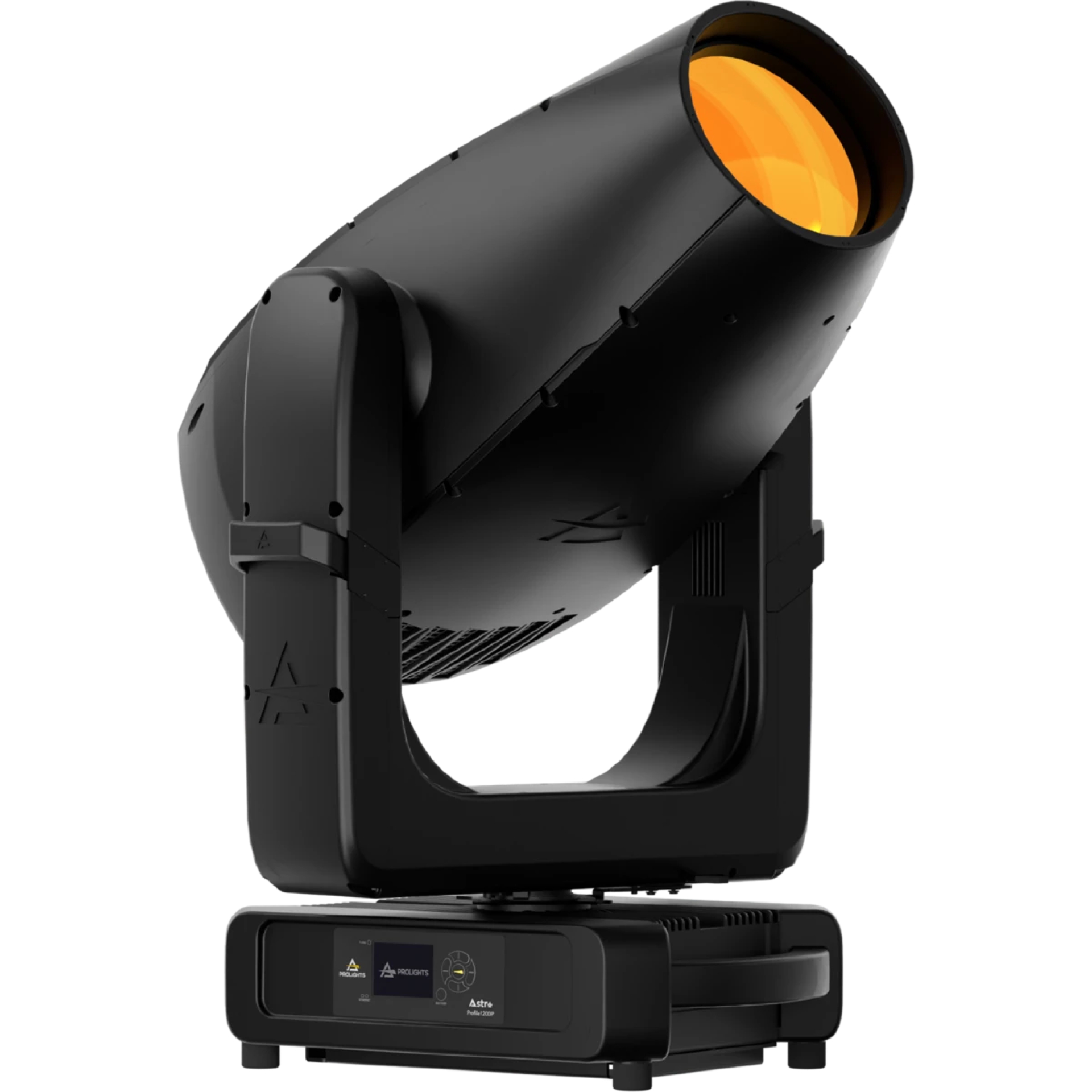

PROLIGHTS Astra Profile1200IP angled view

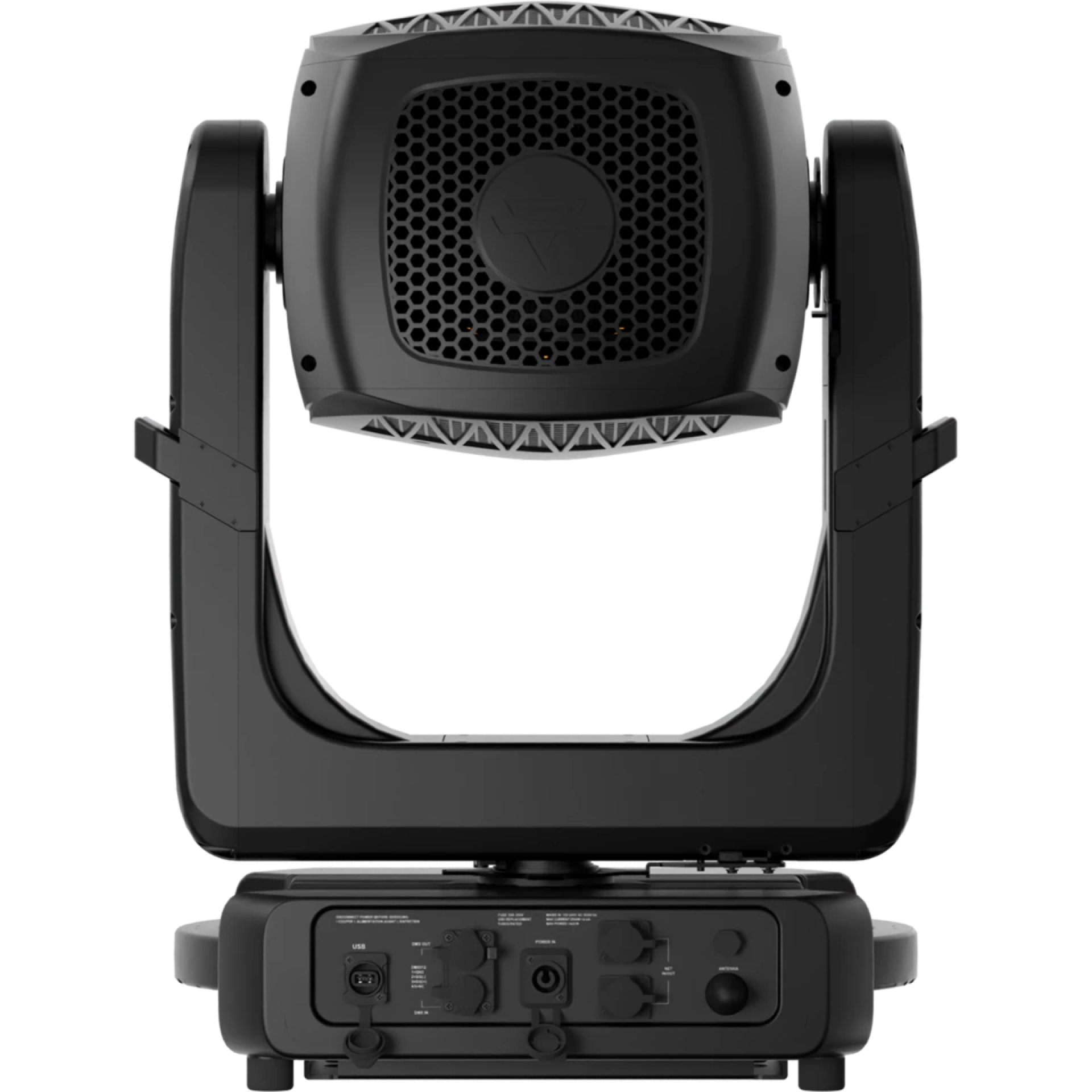

PROLIGHTS Astra Profile1200IP back view

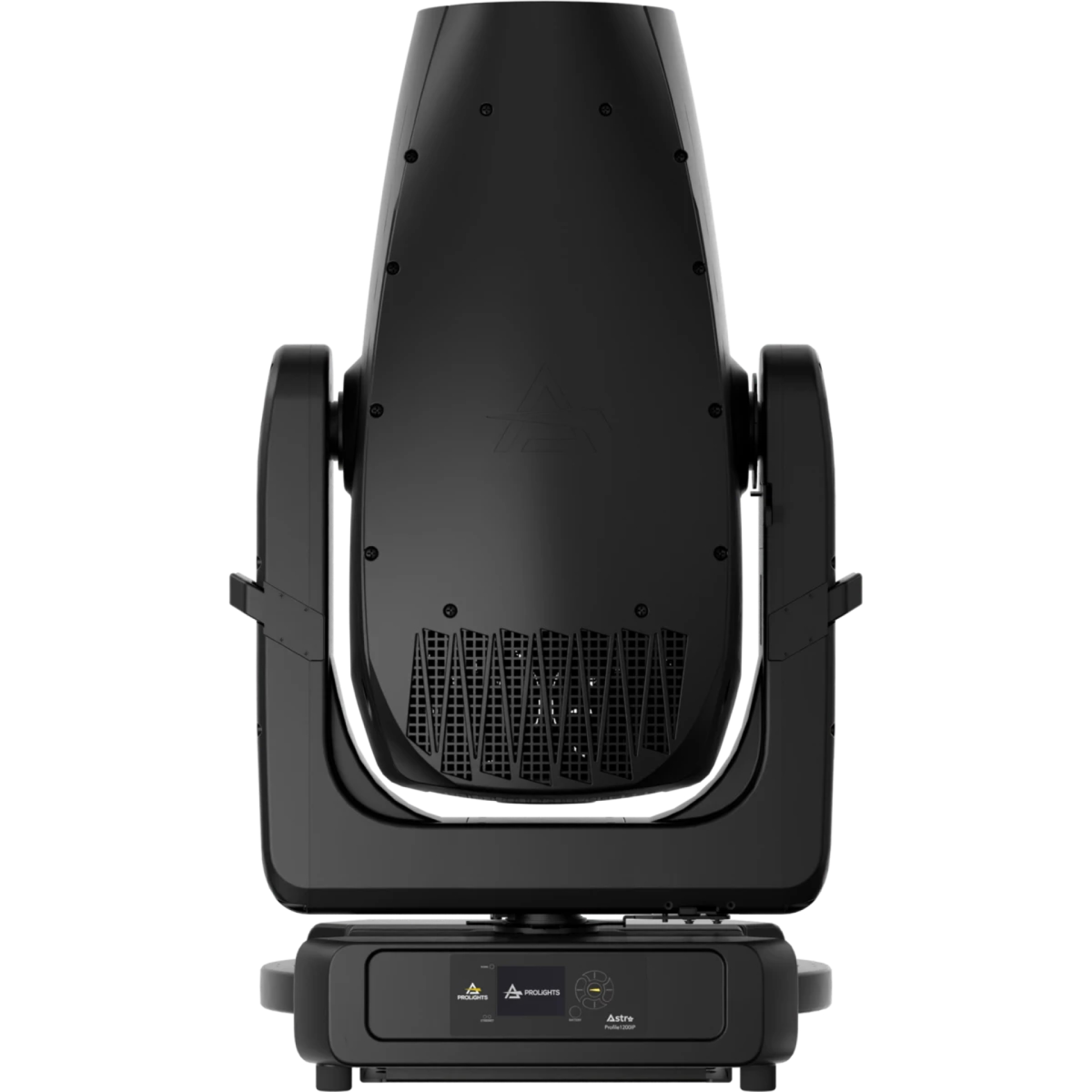

PROLIGHTS Astra Profile1200IP pointing up

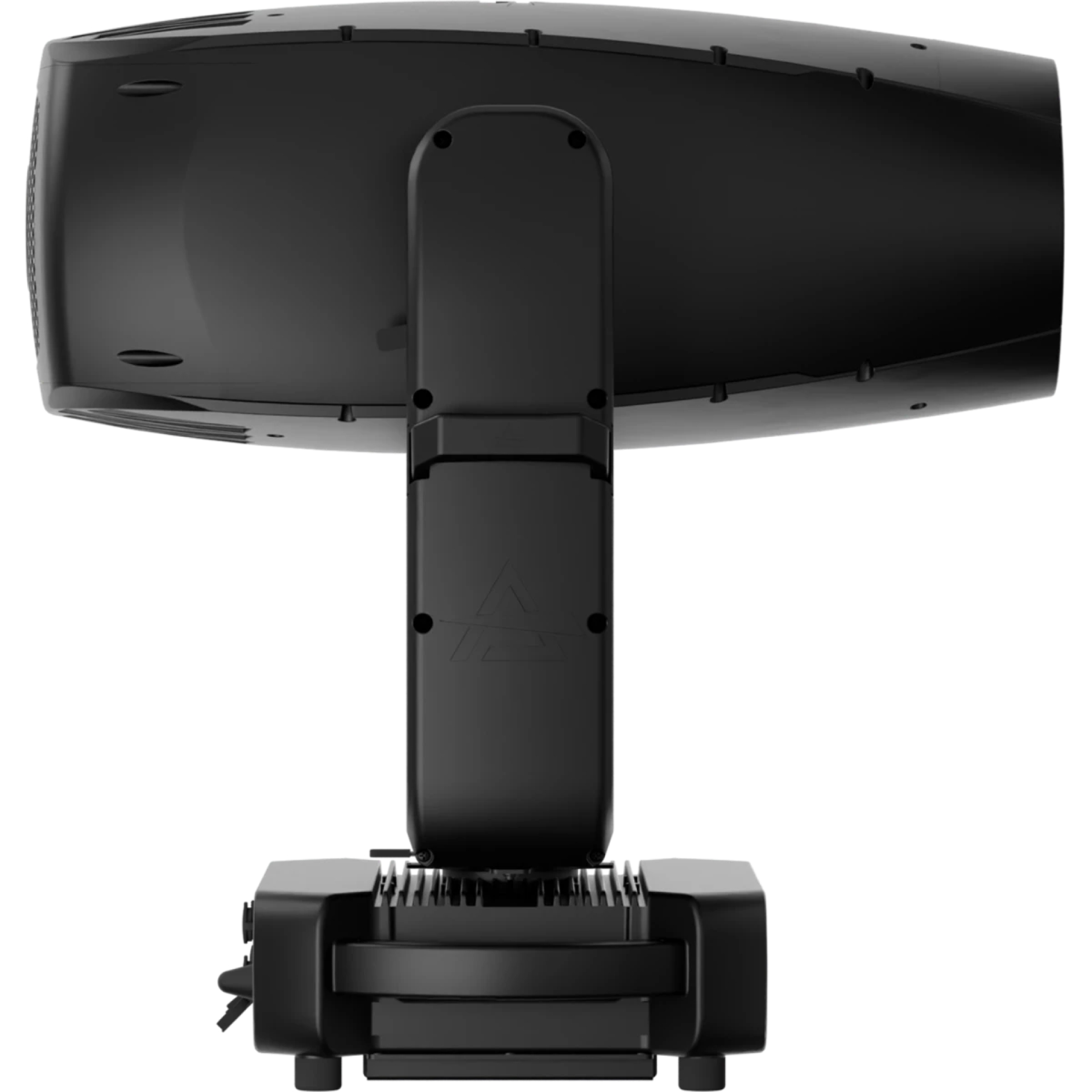

PROLIGHTS Astra Profile1200IP side view
PROLIGHTS Astra Profile1200IP back view
PROLIGHTS Astra Profile1200IP pointing up
PROLIGHTS Astra Profile1200IP side view

Astra Profile1200IP

PROASTRAPROFILE1200IP

Key Features:

  • 1200W white LED source 7000K, 54,000 lumen output
  • CMY+CTO colour mixing, one colour wheel, 2 rotating gobo wheels, 4 framing shutters, 1 animation wheel, 2 frost, 2 prisms, iris
  • IP65
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Astra Profile1200IP

The Astra Profile1200IP is an advanced, large format IP65 LED moving profile, engineered to be bright and offer robust performance under any indoor and outdoor conditions.

This unit boasts a stunning 54,000 lumen (fixture output with goniometer), ensuring exceptional brightness.

The large 185mm front lens projects a full and consistent beam of light, adjustable from 5° to 50° via its motorised zoom system and precision internal optics being an ideal for use as key light.

The Astra Profile1200IP's comprehensive features include linear CMY+CTO color mixing and a dedicated color wheel, dual rotating gobo wheels and a 4-layer framing shutter system on individual planes and capable of producing a curtain effect. Additionally the effect section includes an animation wheel, dual frost filters, dual prism, and a motorised iris, enhancing its flexibility and creative potential.

For seamless integration and user convenience, the Astra Profile1200IP is equipped with CRMX wireless connectivity and supports multiple ethernet protocols, making it a versatile and user-friendly choice for various settings.

  • Source: 1,400W white LED (driven @ 1,200W)

    CCT: 7000K

    Luminous flux: (5.4°) 21,906lm; (50.9°) 54,599lm @ full

    Lux: (5.4°) 125,003lx; (50.9°) 4,008lx @ 5m full

    CRI: > 70 (CRI > 90 with high CRI filter on colour wheel)

    Source life expectancy: > 50,000 hrs (L70B10 @Ta 25°C / 77°F)

    Zoom range: 5.4° - 51° motorised linear zoom

    Lens diameter: 185mm / 7.28''

    Lens type: HD anti-reflection lenses with achromatic coating

    Focus: motorised

  • Colour mixing: linear CMY

    CCT: linear CTO correction 2700K ~ 7000K

    Colour wheel: open + High CRI filter + 5 colour filters

    Control Resolution: 16-bit dimmer

    Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system

    Animation wheel: animation wheel with CW and CCW rotation

    Rotating gobos: 6 rotating gobos + open, interchangeable, indexing

    Gobo size: preliminary data: outer: 30mm - image: 25mm - thickness: 1.1mm

    Rotating gobos: 6 rotating gobos + open, interchangeable, indexing

    Gobo size: preliminary data: outer: 30mm - image: 25mm - thickness: 1.1mm

    FX generator: prisms overlap for spectacular aerial effects

    Circular prism: 4f with bi-directional rotation, indexing

  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX

    DMX channels: 45 channel

    Wireless control: included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive

    EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
