Air 6Pix

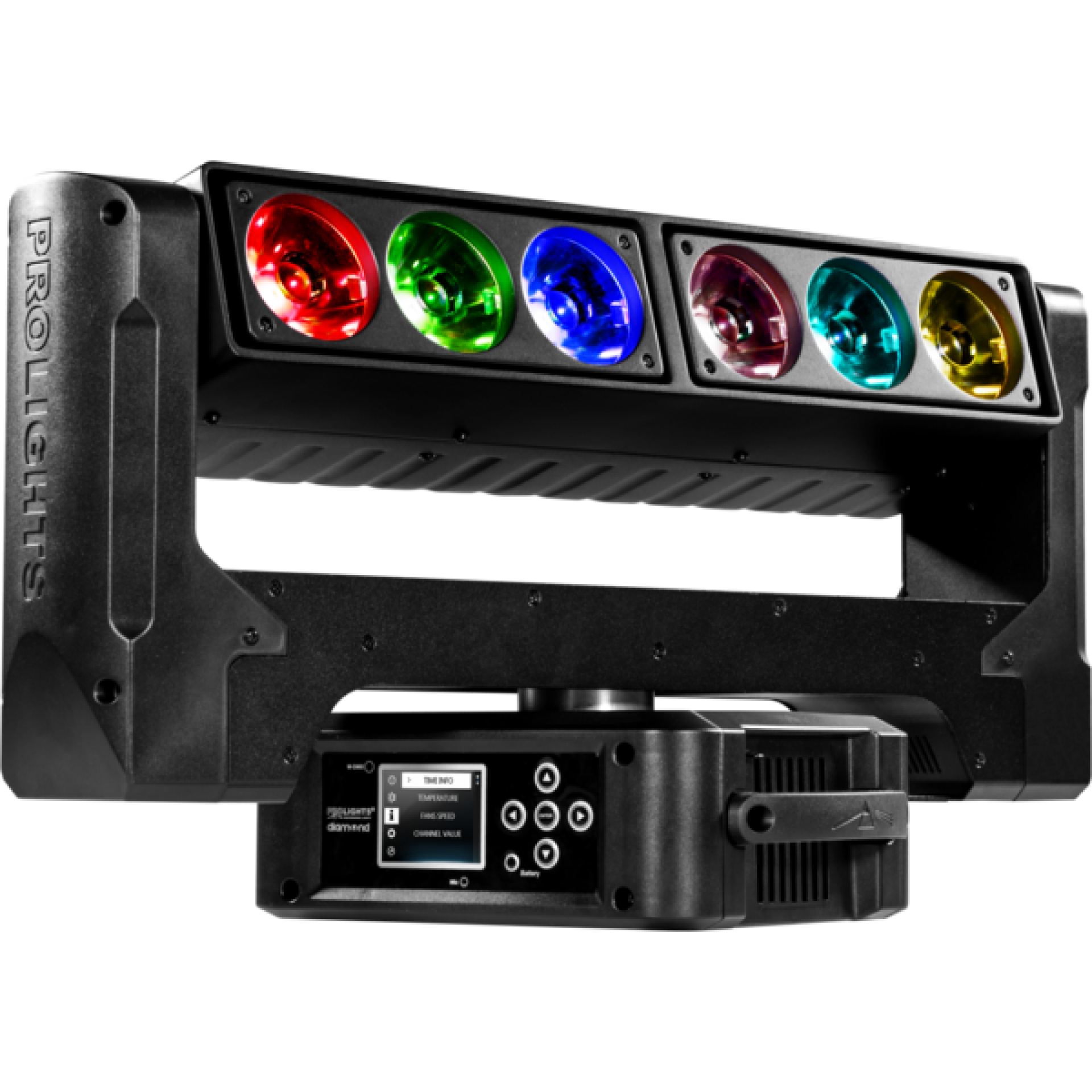

PROLIGHTS cLED Moving Batten

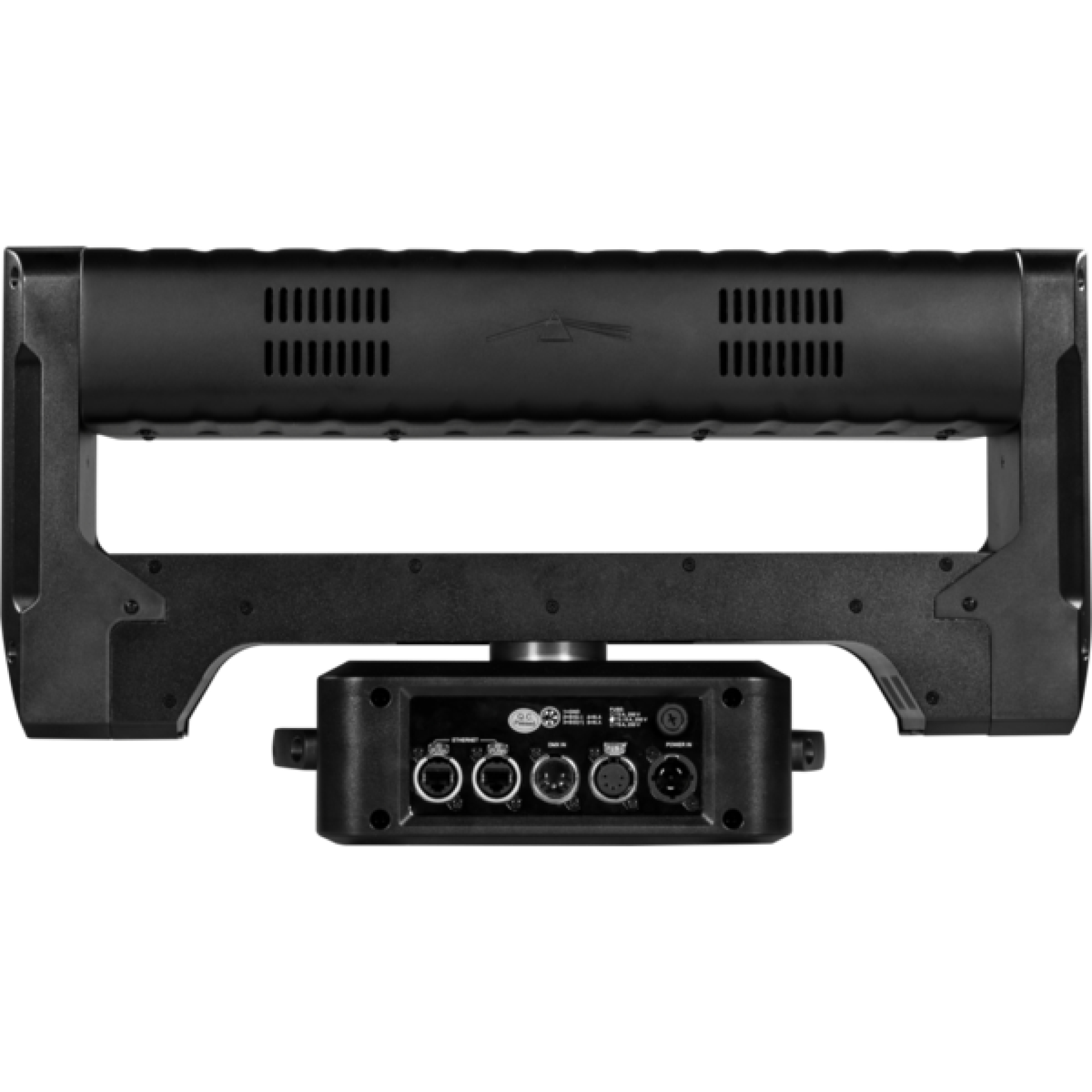

PROLIGHTS Air 6Pix Moving Batten Light - rear view
PROLIGHTS Air 6Pix Moving Batten Light - rear view

Air 6Pix

Key Features:

  • 6 x 40W RGBW LED with 67mm lenses, 4.5° beam
  • Infinite pan and tilt rotation
  • Individual pixel control
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Air 6Pix

The PROLIGHTS Air 6Pix is a LED moving batten luminaire designed to deliver a powerful blade of beams. Each of the 4.5° RGBW LED pixels are individually controllable, and both sides pivot to create classic ACL “fan” and “knot” looks. With infinite rotation of both pan and tilt, the only limit is the designer's imagination...

  • Source: 6x40W RGBW LEDs

    Lux: 23,560lux @3m full

    Source life expectancy: >50,000 hr

    Beam angle: 4,5°

    Lens diameter: 67mm / 2.64''

  • Colour mixing: RGBW / FC

    CCT: CCT control through dedicated DMX channel

    White presets: 2.800 K ~ 9.000K

    Colour wheel: virtual colour wheel with macros

    Macros: several pre-built pixel macros with adjustable speed

    Pixel patterns: pre-programmed dynamic and static patterns

    FX generator: adjustable foreground/background colour, index, speed, direction

    Special features: pivot angle - 5° to + 15°

  • Protocols: DMX512, RDM, Art-Net

    DMX channels: 23 / 25 / 49channel

    Pixel control: pixel2pixel control

    Wireless Control: optional, wireless solution receiver

    RDM: RDM for remote monitoring and settings

    Display: LCD high resolution colour display

    Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included

    Hibernation: power safe mode when lost DMX

    Master/Slave: for synchronised operation of more units linked in a chain

You might like...

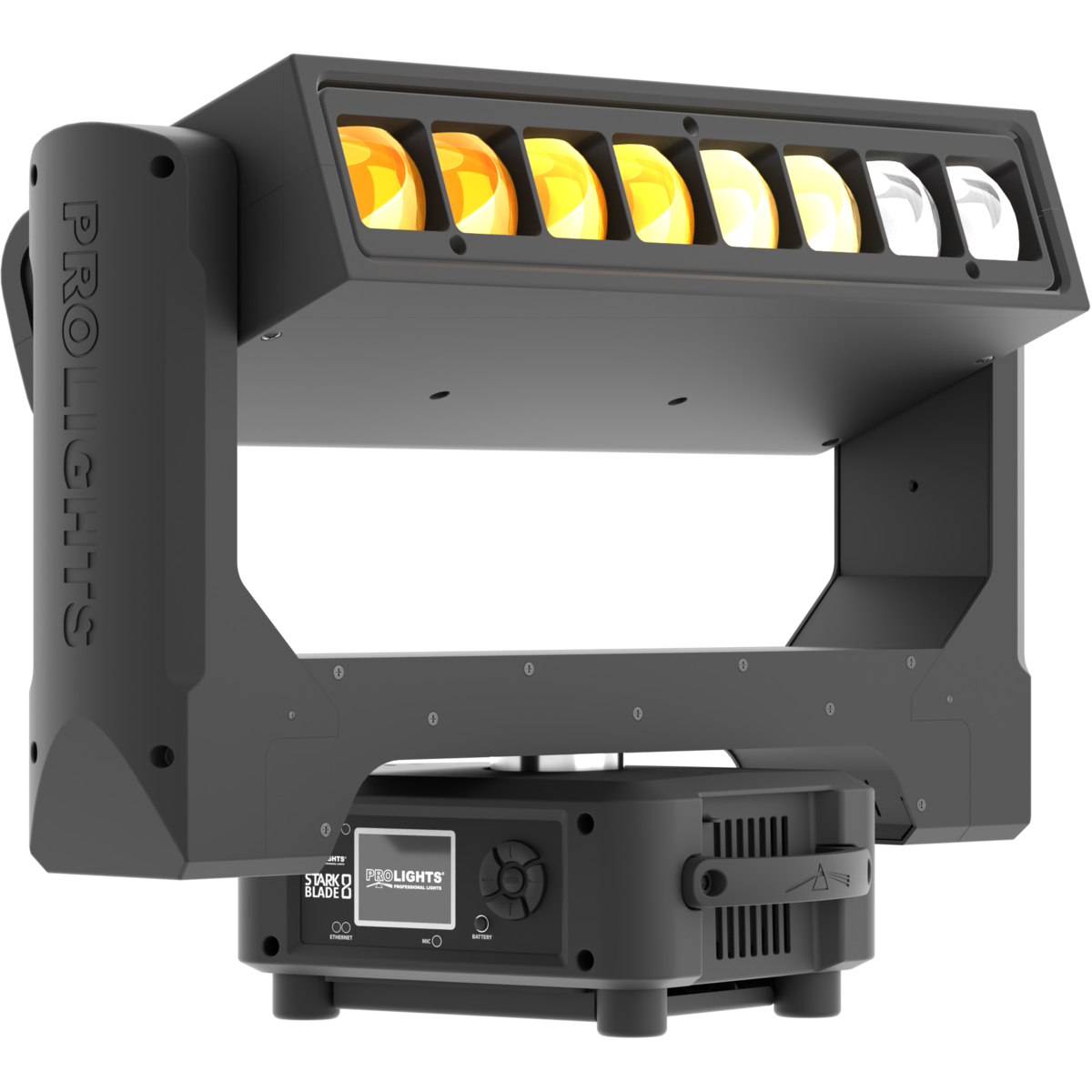

PROLIGHTS Stark Blade8
