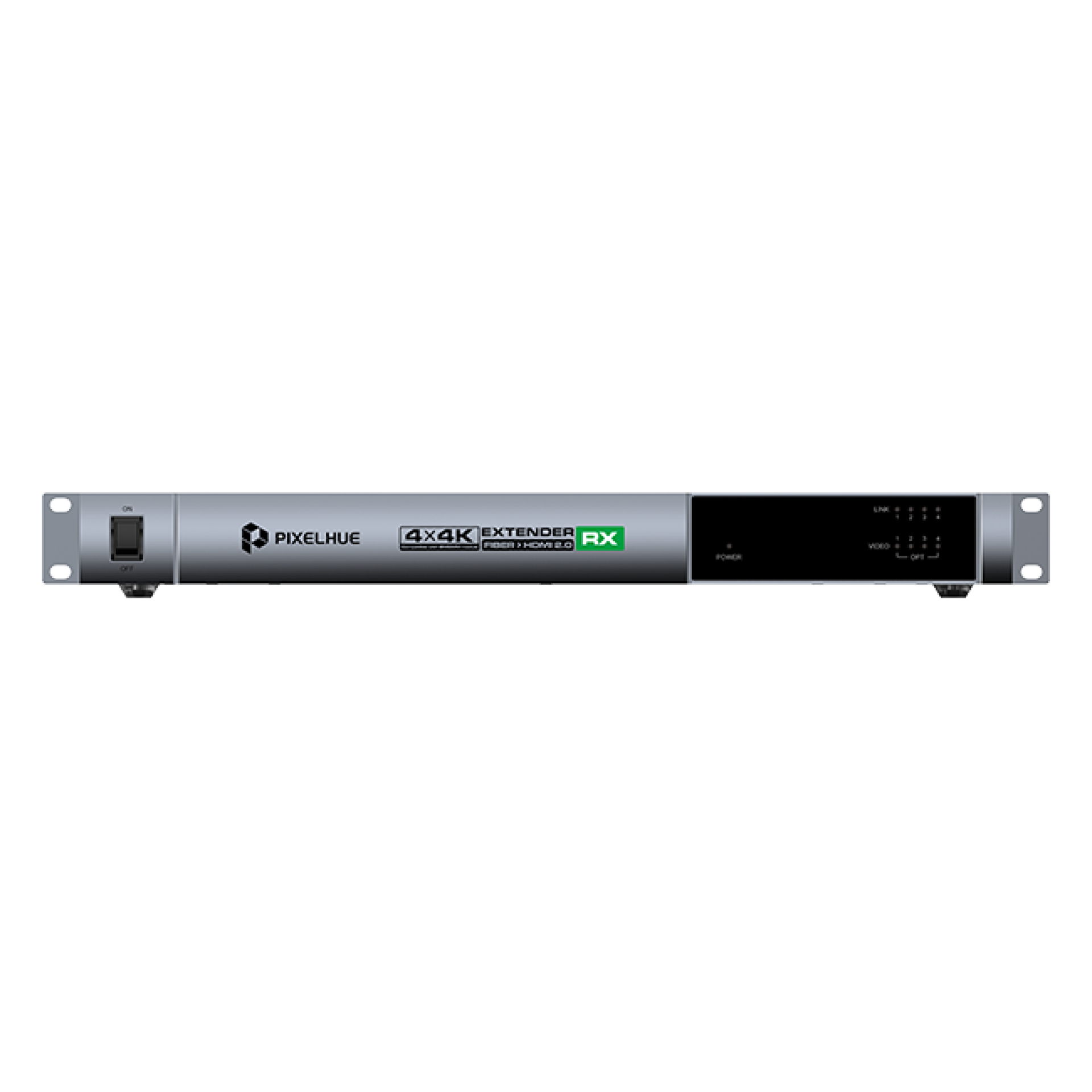

PIXELHUE EP4 Pro - front

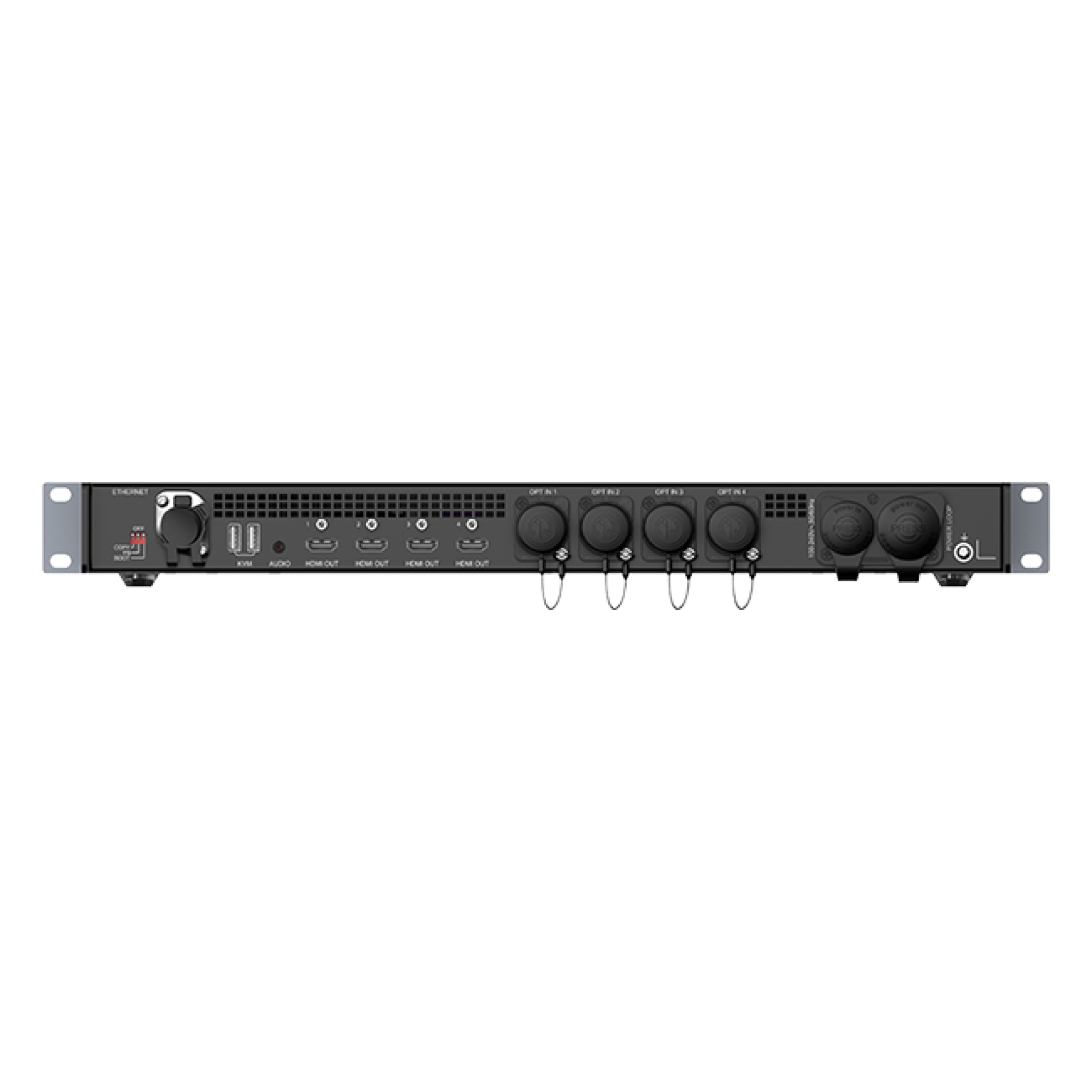

PIXELHUE EP4 Pro - back view, ports closed

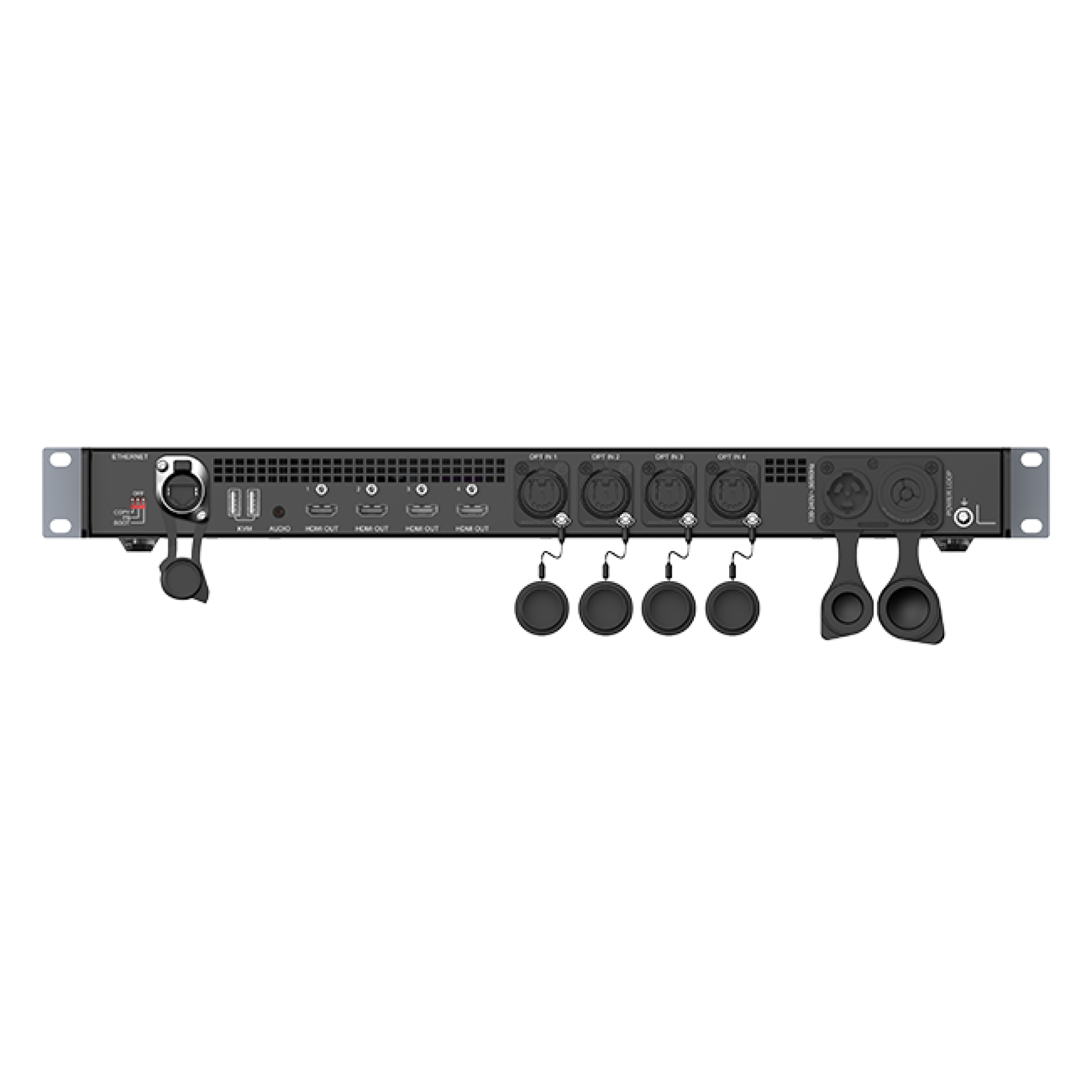

PIXELHUE EP4 Pro - back view, ports open

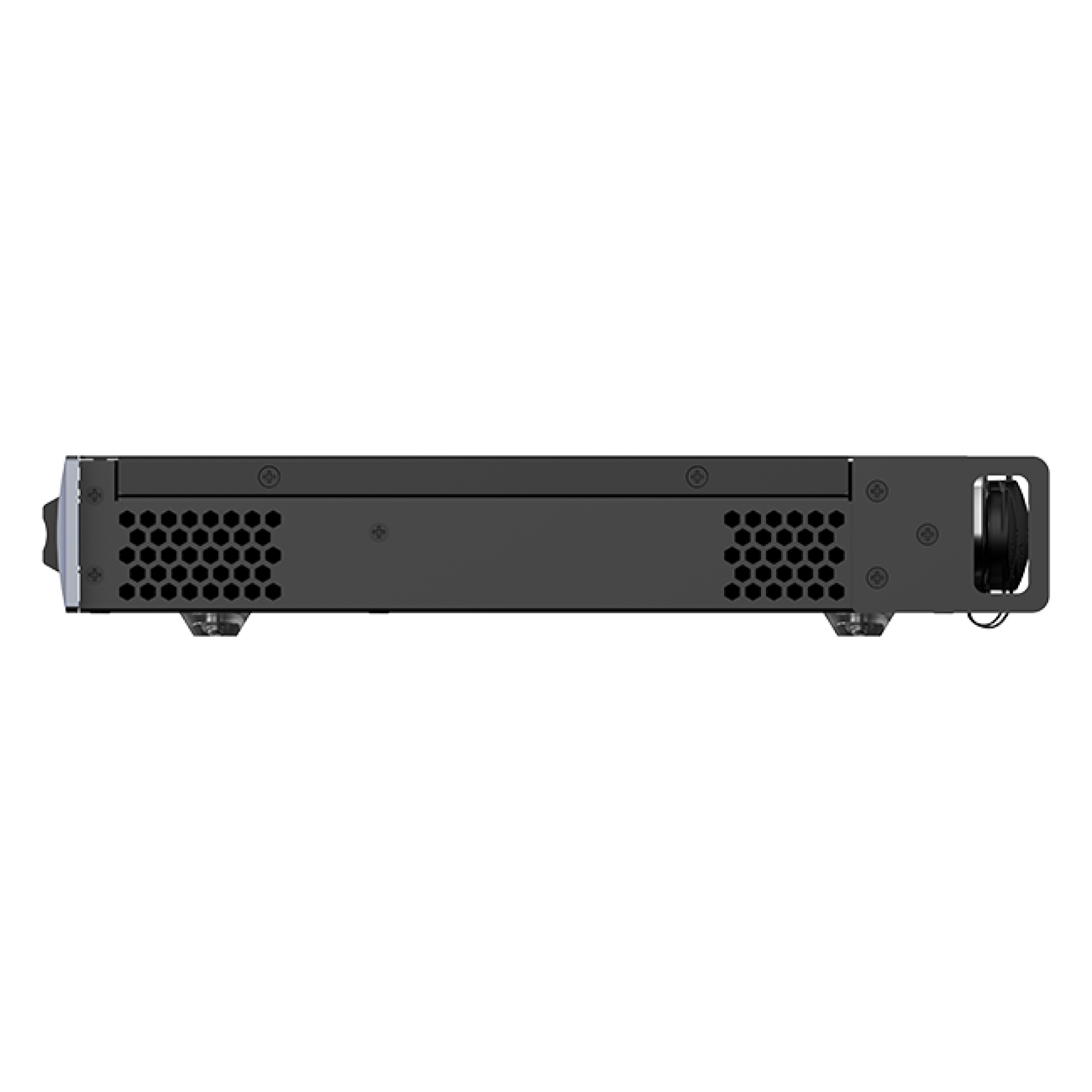

PIXELHUE EP4 Pro - left hand side

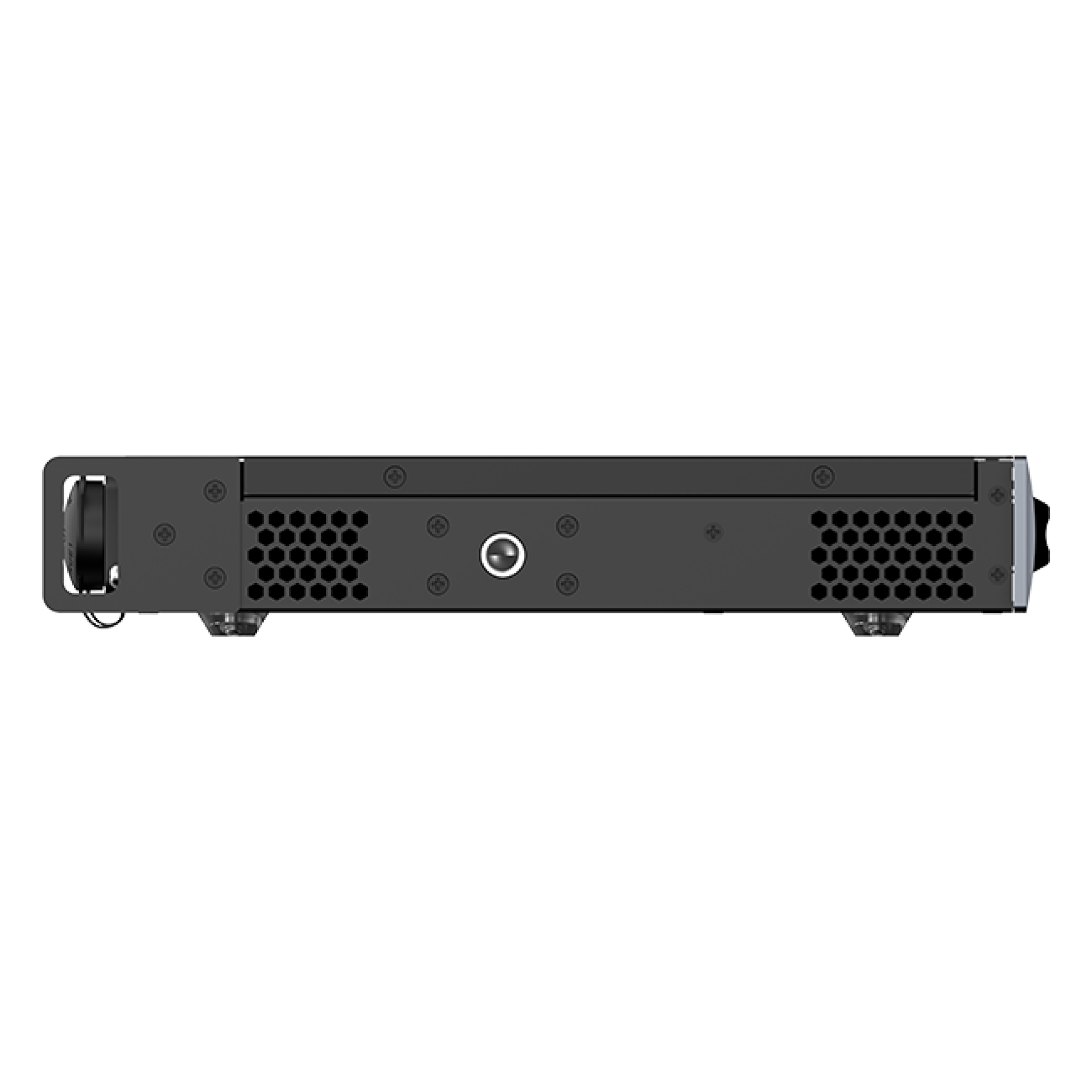

PIXELHUE EP4 Pro - right hand side

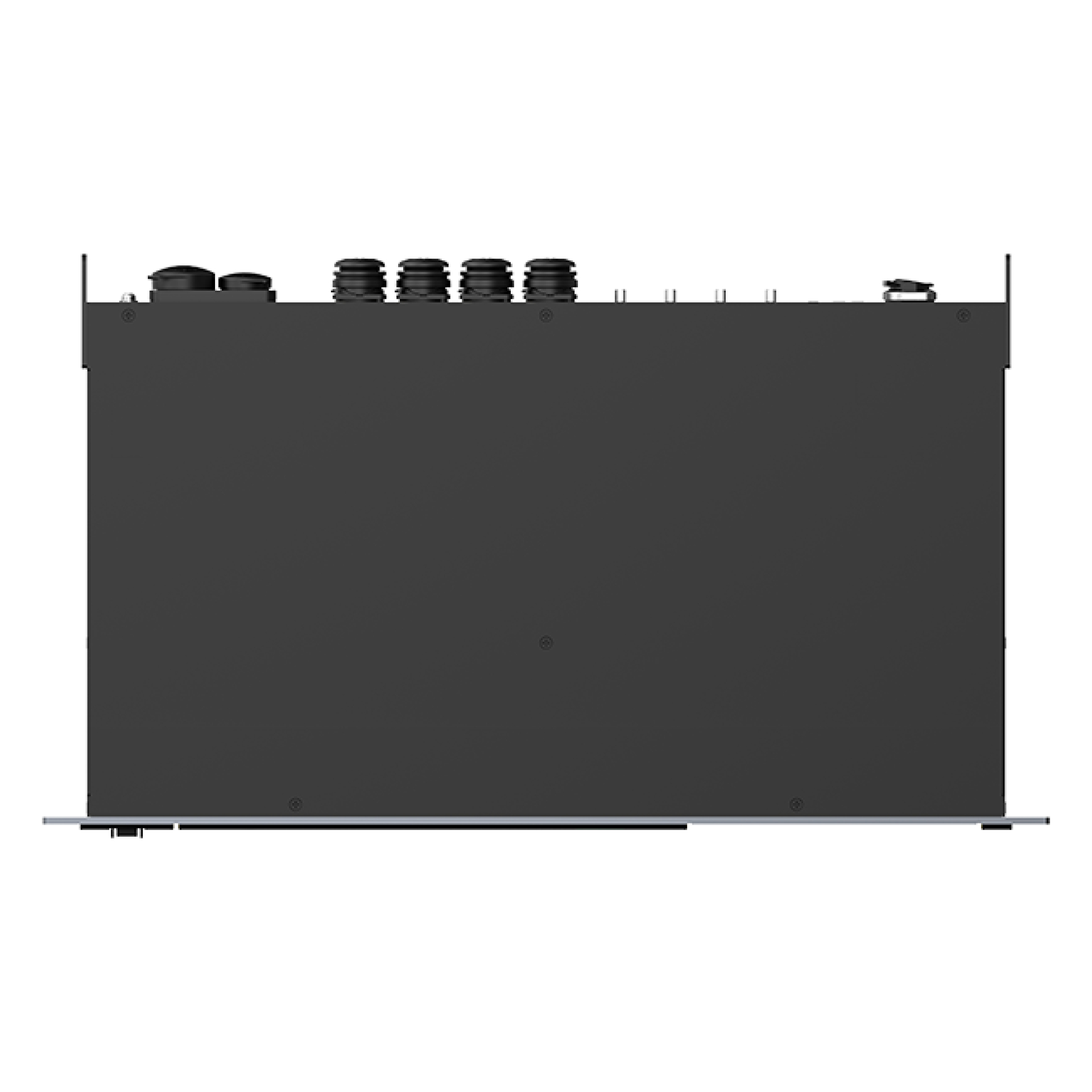

PIXELHUE EP4 Pro - top view
PIXELHUE EP4 Pro - back view, ports closed
PIXELHUE EP4 Pro - back view, ports open
PIXELHUE EP4 Pro - left hand side
PIXELHUE EP4 Pro - right hand side
PIXELHUE EP4 Pro - top view

EP4T/R Pro Fibre Extender

Key Features:

  • Ultra-HD lossless transmission
  • Supports 8-bit/10-bit/12-bit transmission
  • Integrated etherCON, opticalCON, and powerCON connectors
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

EP4T/R Pro Fibre Extender

The PIXELHUE EP4R Pro fibre extender includes advanced, rugged and reliable Neutrik fibre optic connections to achieve lossless, long-distance transmission of audio and video signals. Built for the live event industry, it effectively addresses redeployment reliability issues and signal degradation.

Product Variants

EP4R-PRO-M
  • EP4 Pro Receiver, Multi-mode

Enquiry Form

EP4T-PRO-M
  • EP4 Pro Transmitter, Multi-mode

Enquiry Form

EP4R-PRO-S
  • EP4 Pro Receiver, Single-mode

Enquiry Form

EP4T-PRO-S
  • EP4 Pro Transmitter, Single-mode

Enquiry Form

Featuring lossless compression technology, the EP4R Pro ensures optimal video signal quality, delivering a clear, detailed visual experience. Its compact design and straightforward installation offer plug-and-play convenience, eliminating the need for complex setup. This allows users to effortlessly extend audio and video signals to their desired location.

The PIXELHUE EP4R Pro is versatile extender that can be used in a few different ways;

  • Ultra-HD lossless transmission

    Supports 8-bit/10-bit/12-bit transmission

    Advanced encoding technology. Optimizes video signals, ensuring clear and smooth image quality during transmission

    − 8-bit 4:4:4, max 4096×2160@60Hz

    − 10-bit 4:4:4, max 4096×2160@30Hz

    − 12-bit 4:2:2, max 4096×2160@60Hz

    Long-distance transmission

    Transmit video signals over long distances via optical fiber without concerns about signal degradation.

    Neutrik etherCON for firmware update

    Integrated etherCON and opticalCON, plus powerCON connectors for professional-grade connectivity

    Input source copy function

    Embedded audio input support

    3D passthrough

    HDR support

    Zero latency video transmission

    KVM

    Support remote control of multi-platform PC hosts via KVM roaming

    Ethernet signal passthrough via DIP switch

    Clear signal indicators for easy device status monitoring

    Simple operation, plug and play

    HDCP-encrypted video transmission

    24/7 operation

EP4T/R Pro Fibre Extender - Downloads
EP4R Pro Fibre Extender Specs
Download
EP4T Pro Fibre Extender Specs
Download
