Pixelhue Q8 Switcher is high-performance multi-screen management system designed for easy management of multiple layers and displays for shows or visual management systems.
Pixelhue Q8, designed for easy management of multiple displays for shows or visual management systems. The Q8 is designed with 48 4K simultaneous inputs and 16 4K simultaneous outputs, where any of the outputs can be programmed as AUX outputs for comfort monitors or relays. The Q8 also boast 2 4K multi-viewer outputs, a redundant power supply, Dante and genlock synchronisation.
A single input card for the Q8 has 12 4K connections; 4x HDMI 2.0, 4x DP 1.2, 4x 12G-SDI. Where the card supports 8 4K/60Hz simultaneous inputs, meaning that fully populated Q8 gives access to 48 4K inputs simultaneously.
A single output card for the Q8 has 12 4K connections; 4x HDMI 2.0, 4x 12G-SDI, 4x Fibre OPT. Where each output card supports up to 8 4K mix layers.
The Q8 can be easily controlled via the 7-inch LCD front panel, U5 or U5 Pro controllers, web GUI or Stream Deck allowing operators easy access to high performing features such as output splicing, format conversion, mapping, geometry/colour correction, Chroma and Luma keying.

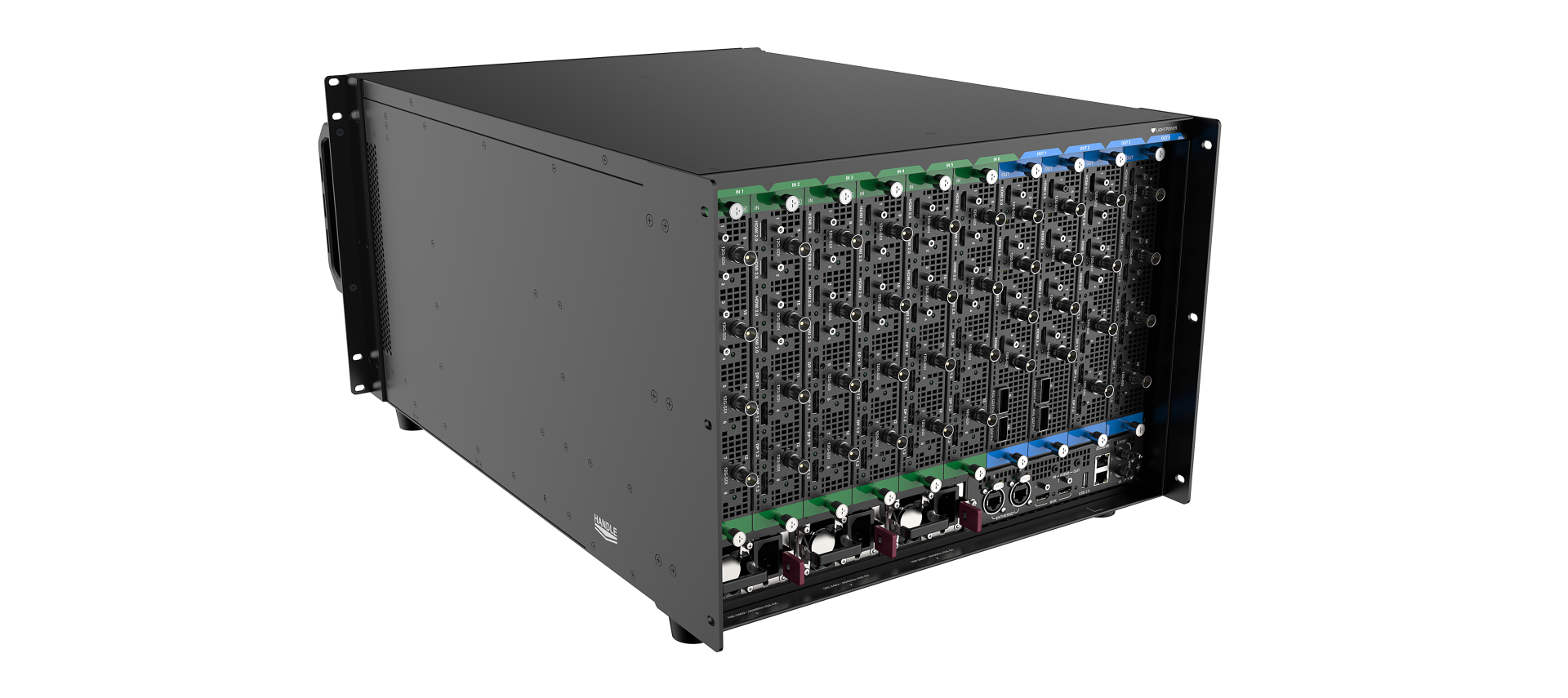

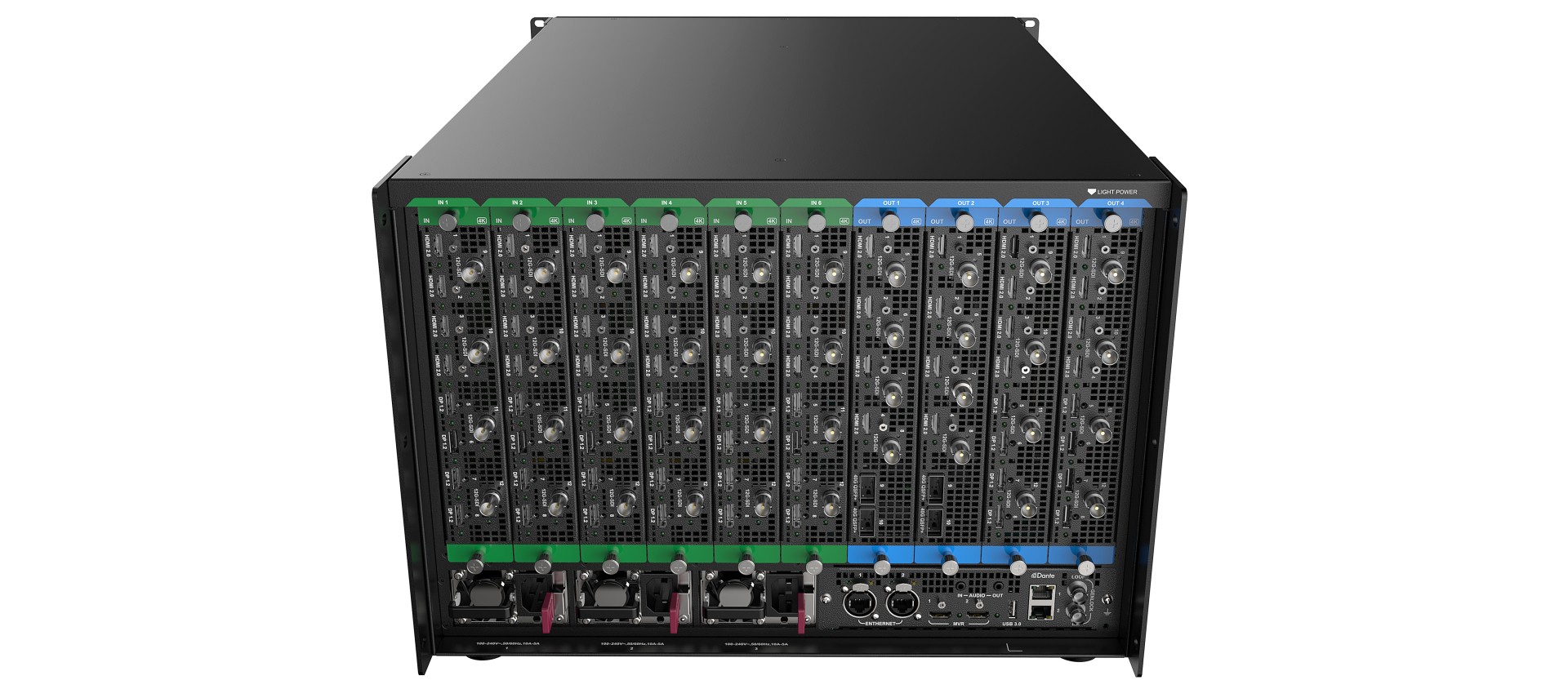

Up to 6x input cards with up to 72x 4K input connectors and up to 48x 4K concurrent inputs
Up to 4x output cards with up to 48x 4K output connectors and up to 16x 4K concurrent outputs
A maximum of 32x 4K mixing layers (true seamless transitions)
Multiple different connectors on each input or output card, such as HDMI 2.0, DP 1.2 and 12G-SDI
Built-in *VPU function allows layer resources of one output card to be used by another output card
*Two Q8 devices linkable for input source sharing and uniform output mosaic and management
48kHz 64x64 Dante™ audio networking hardware and support
Very easy to control via event controller and PixelFlow
Device backup, input backup and output card backup, seamless switching from primary to backup

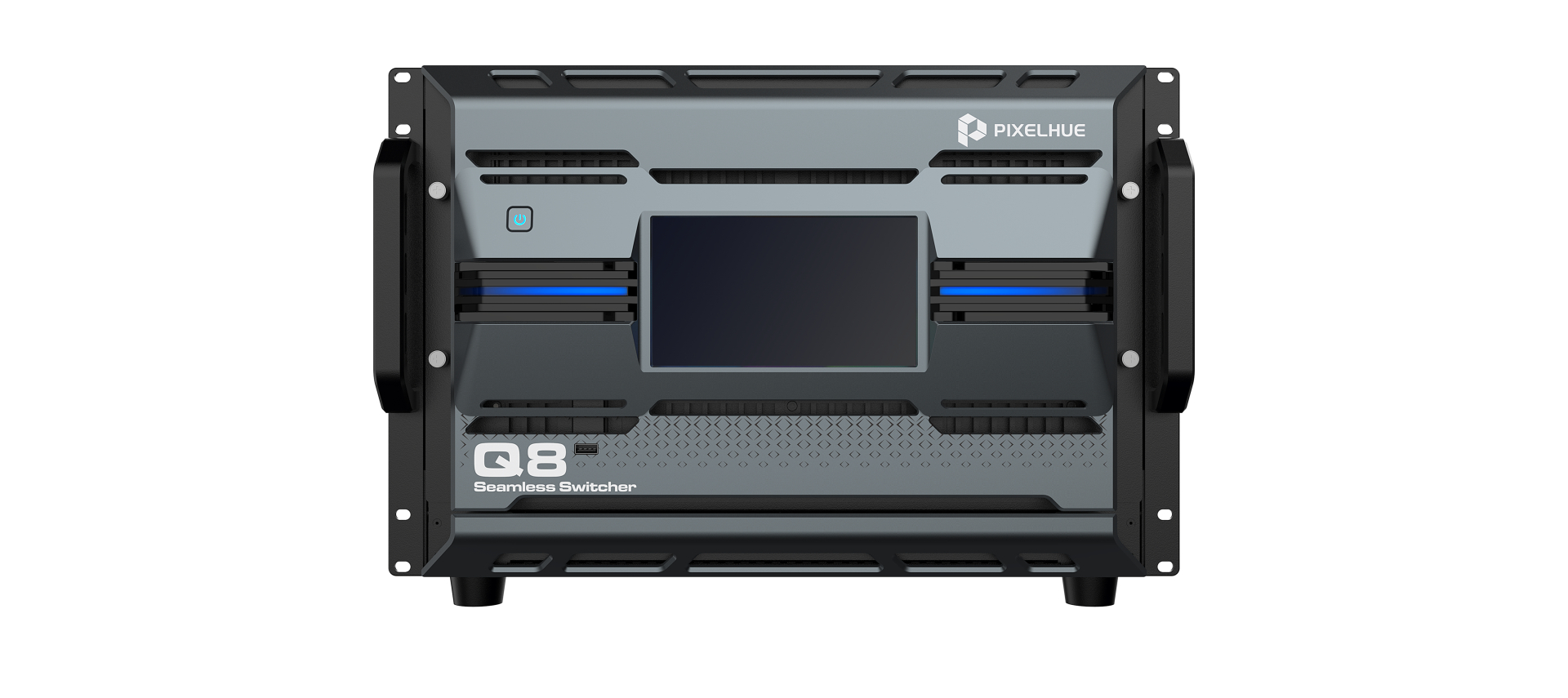

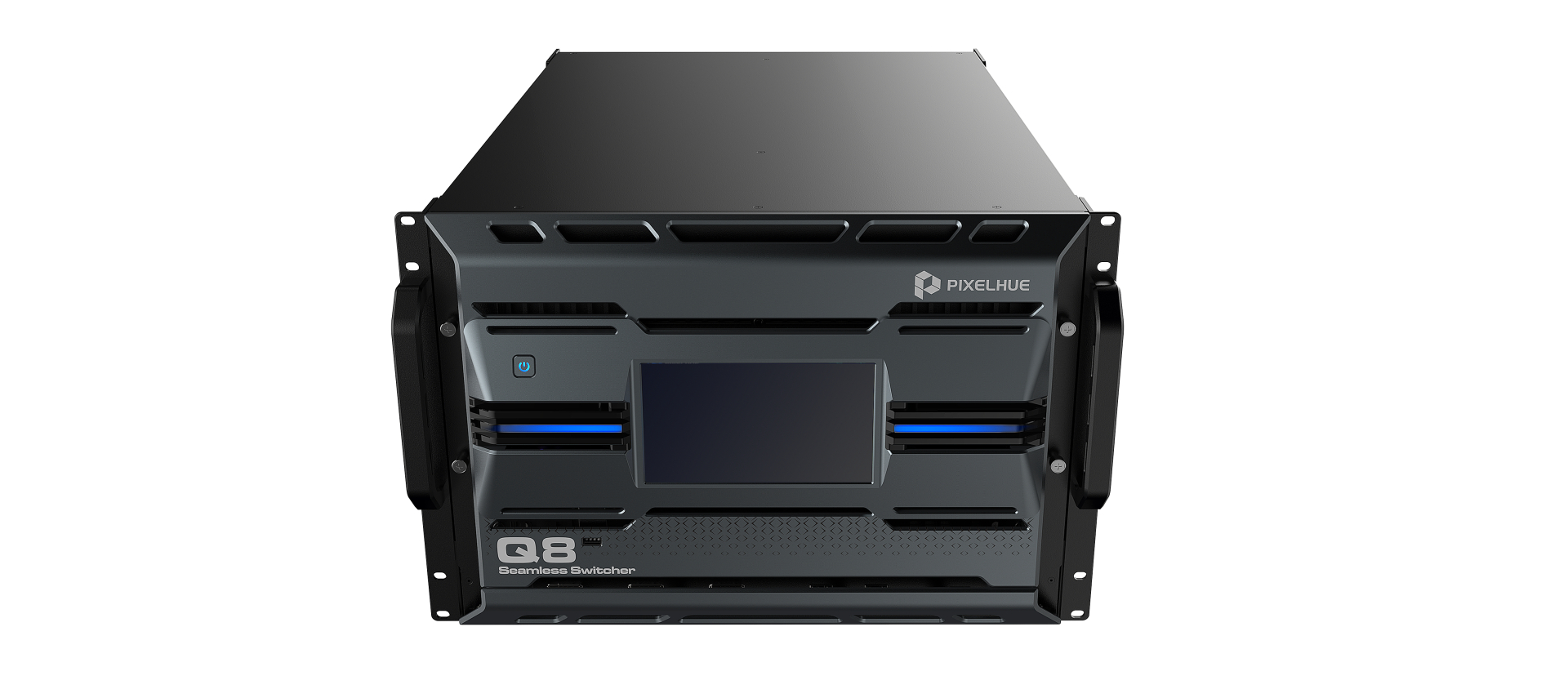

7" touchscreen on the front panel, support for real-time device status monitoring
Optical copying output supported, 10km long-distance signal transmission over single-mode optical fiber
4:4:4 4K@60Hz 10-bit internal processing
Cross-connector layer within a card does not occupy extra resources, full screen roaming
Flexible layer features, including mask, border, flipping, copying and mirroring
Still image management
Luma key and chroma key for input
Sync with input and external bi-level or tri-level Genlock signal
Live input view in PixelFlow
Custom timing and frame rate on outputs
AOI function
Input EDID management
Custom layout of output connectors
Output connector copying to quickly offer multiple same sources for backend devices
Output mapping to enable easier screen configuration
Batch change of resolutions and frame rates of output connectors
HDCP 1.3, HDCP 1.4 and HDCP 2.2 for full-link content protection
Multiple backup modes, device diagnostics, project file import and export, log export and 2+1 power backup for super stability and reliability
