MX30 LED Display Controller

Key Features:

  • Fine grayscale
  • More realistic color
  • Higher contrast ratio

Enquiry Form

Call us today on

+44 (0)113 255 7666

MX30 LED Display Controller

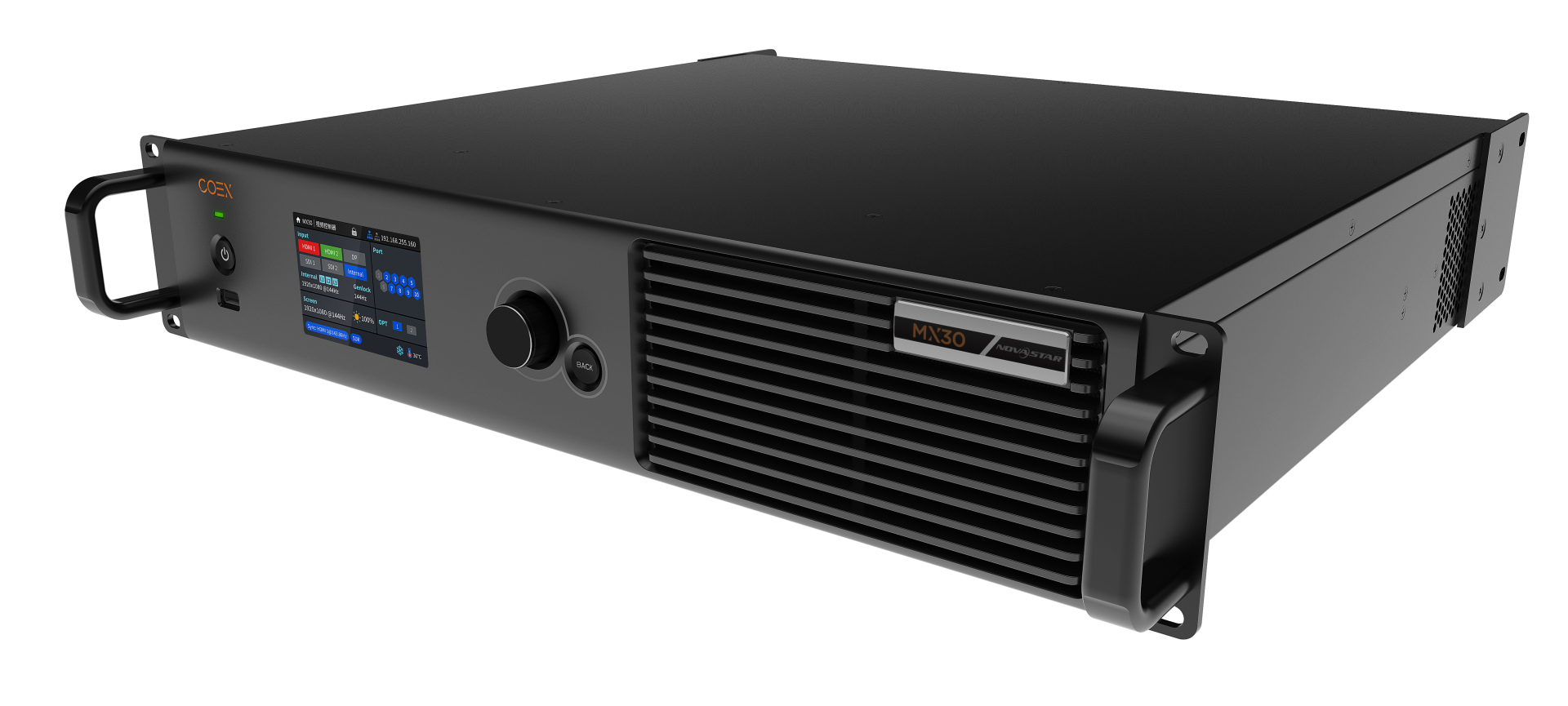

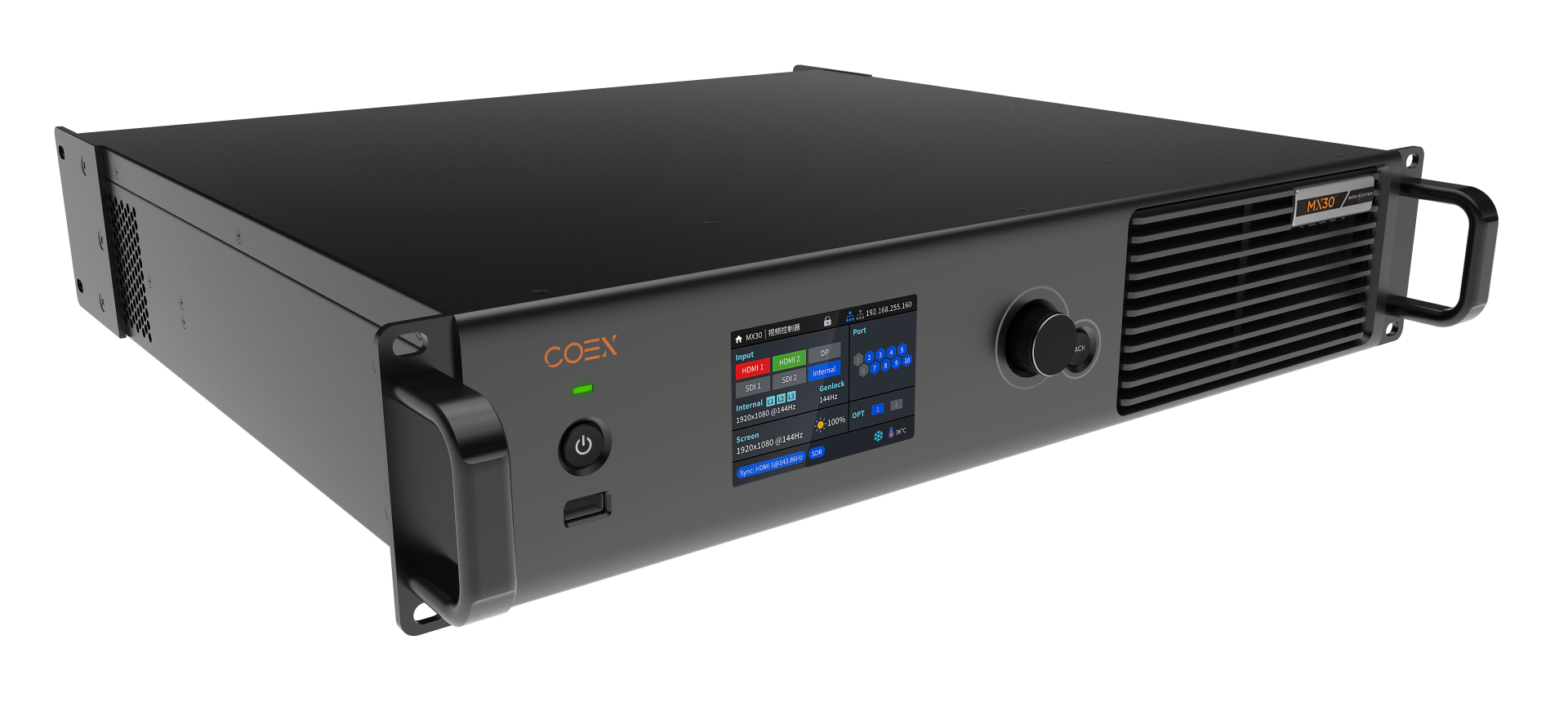

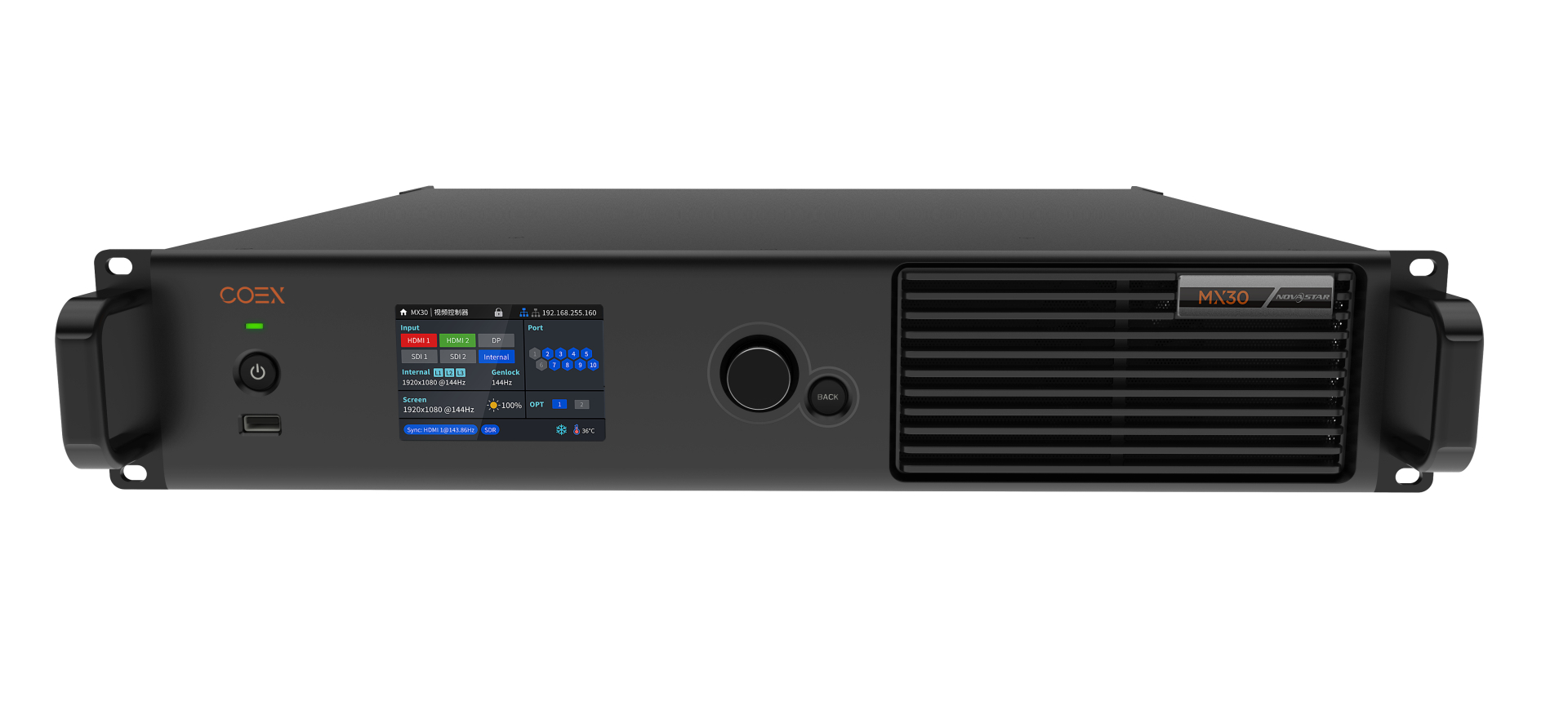

The NovaStar MX30 is an all-in-one LED display controller.

This controller integrates video processing and video control into one box and offers rich video input connectors (HDMI 2.0, HDMI 1.4, DP 1.1 and 3G-SDI), 10x Ethernet output ports and 2x 10G optical ports. It can also work with the brand-new software VMP (Vision Management Platform) to provide a better operation and control experience.

  • 3 independent layers

    Support 4 image scaling modes: custom, pixel to pixel, snap to canvas and fill screen.

    14Ch Color Correction

    Full Grayscale Calibration


    Supports low latency

    Supports additional latency, 0 to 2 frames of latency can be added at the controller.

    Frame rate adaptive, various video input frame rates, including decimal frame rates.

    Two working modes, All-In-One Controller and Send-Only Controller working modes.

    Display system monitoring

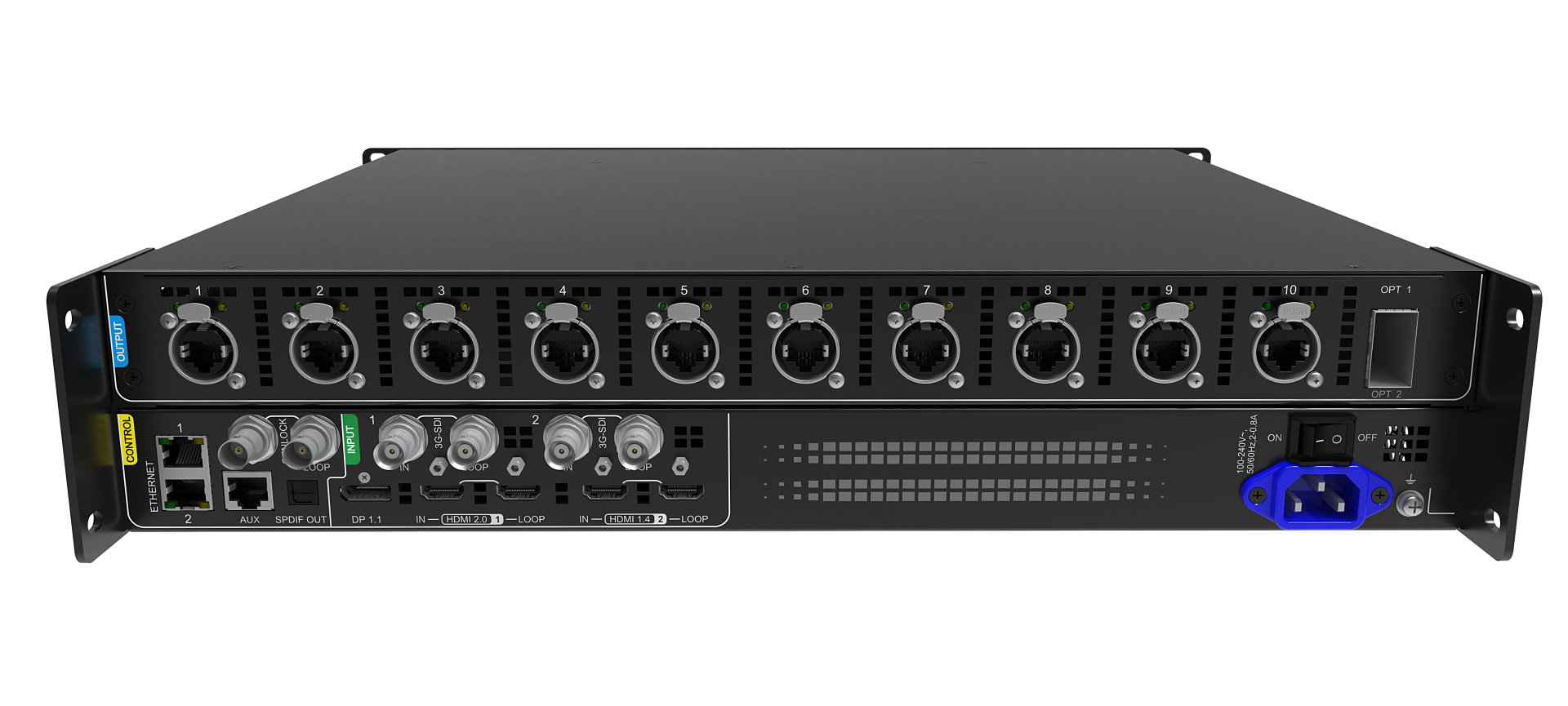

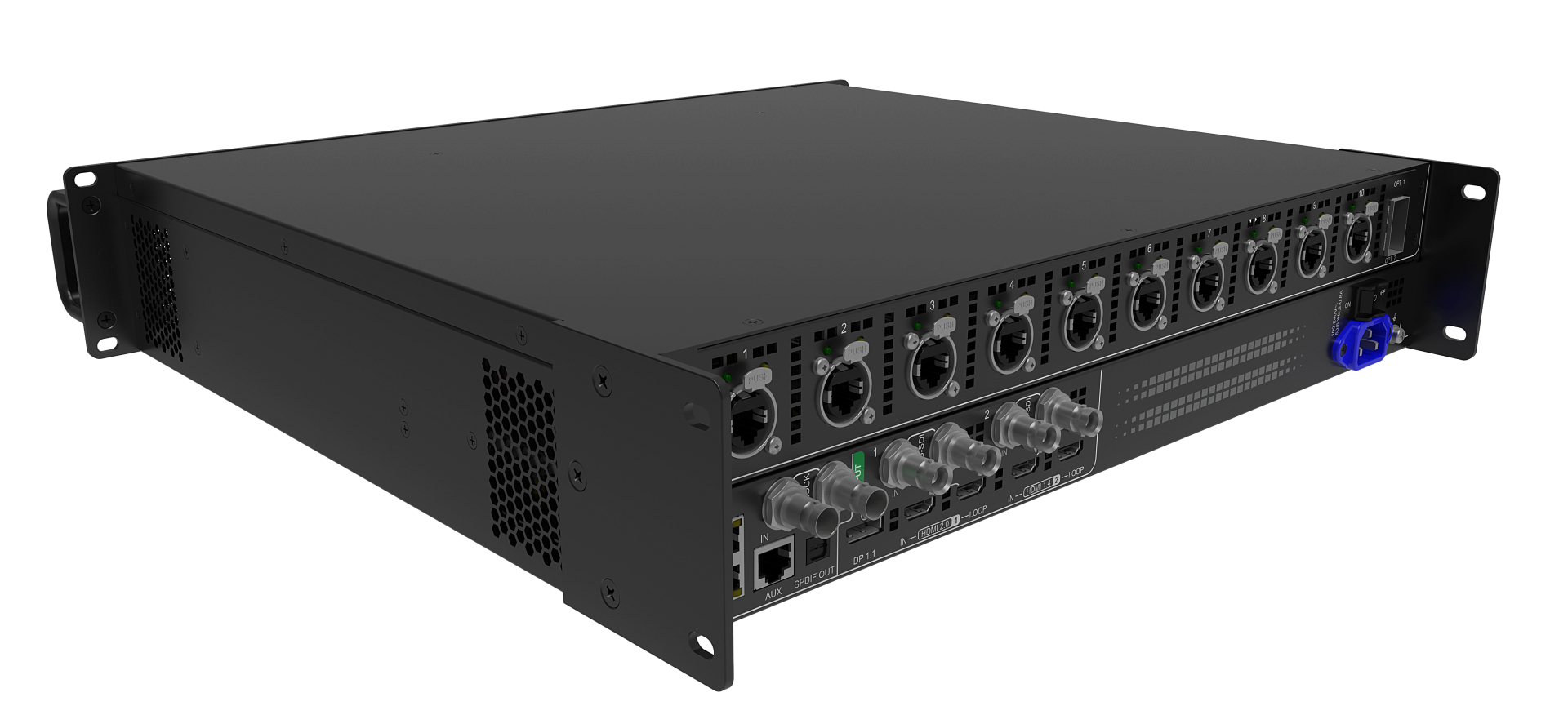

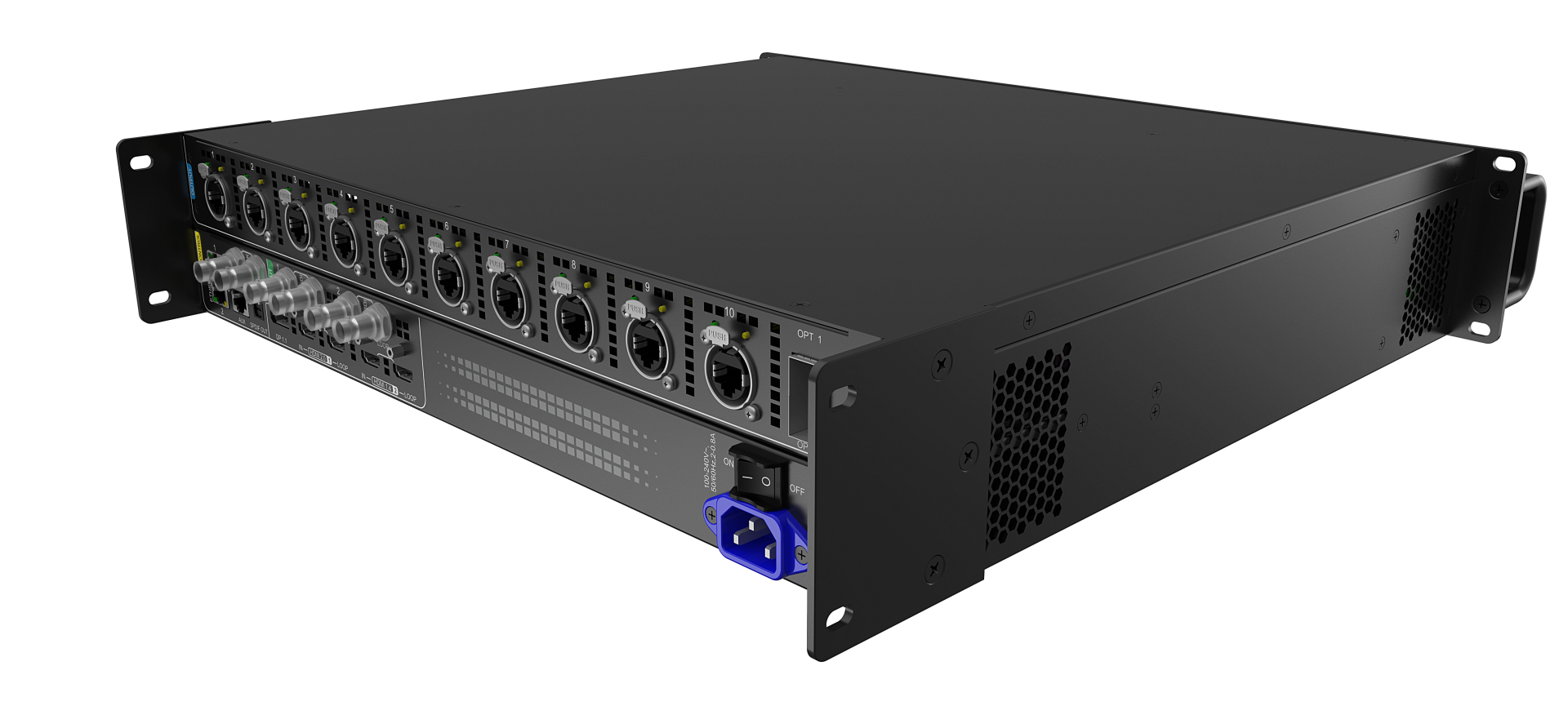

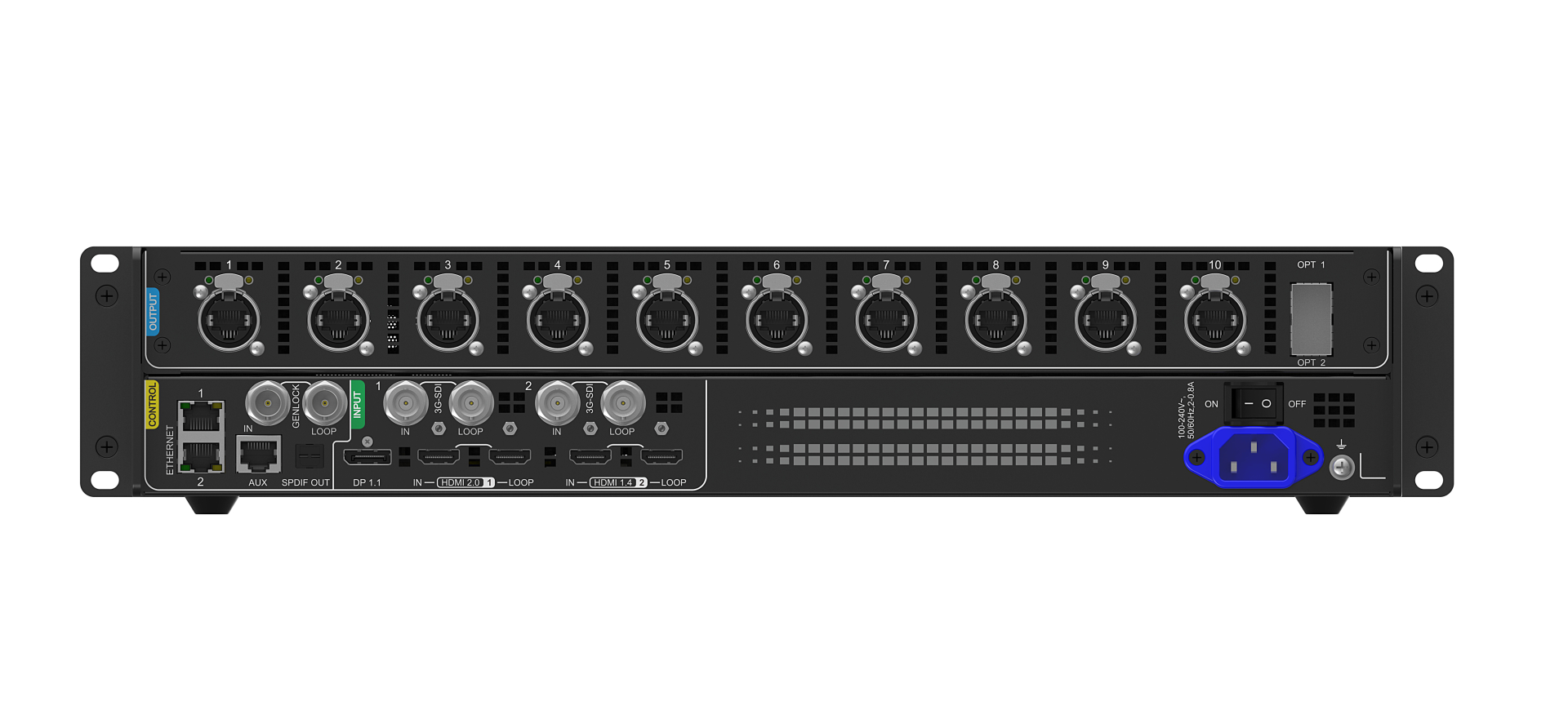

  • 1x HDMI 2.0 (with loop through)

    1x HDMI 1.4 (with loop through)

    1x DP 1.1

    2x 3G-SDI (with loop through)

    10-bit and 8-bit video inputs

  • 10x Gigabit Ethernet ports, load capacity up to 6.5 million pixels

    2x 10G optical ports

    1x SPDIF digital audio port

  • 1x Genlock signal input (with loop through)

    2x Ethernet control ports

    1x Auxiliary port

MX30 LED Display Controller - Downloads
NovaStar MX30 Specs
