Muse Fresnel70CT+

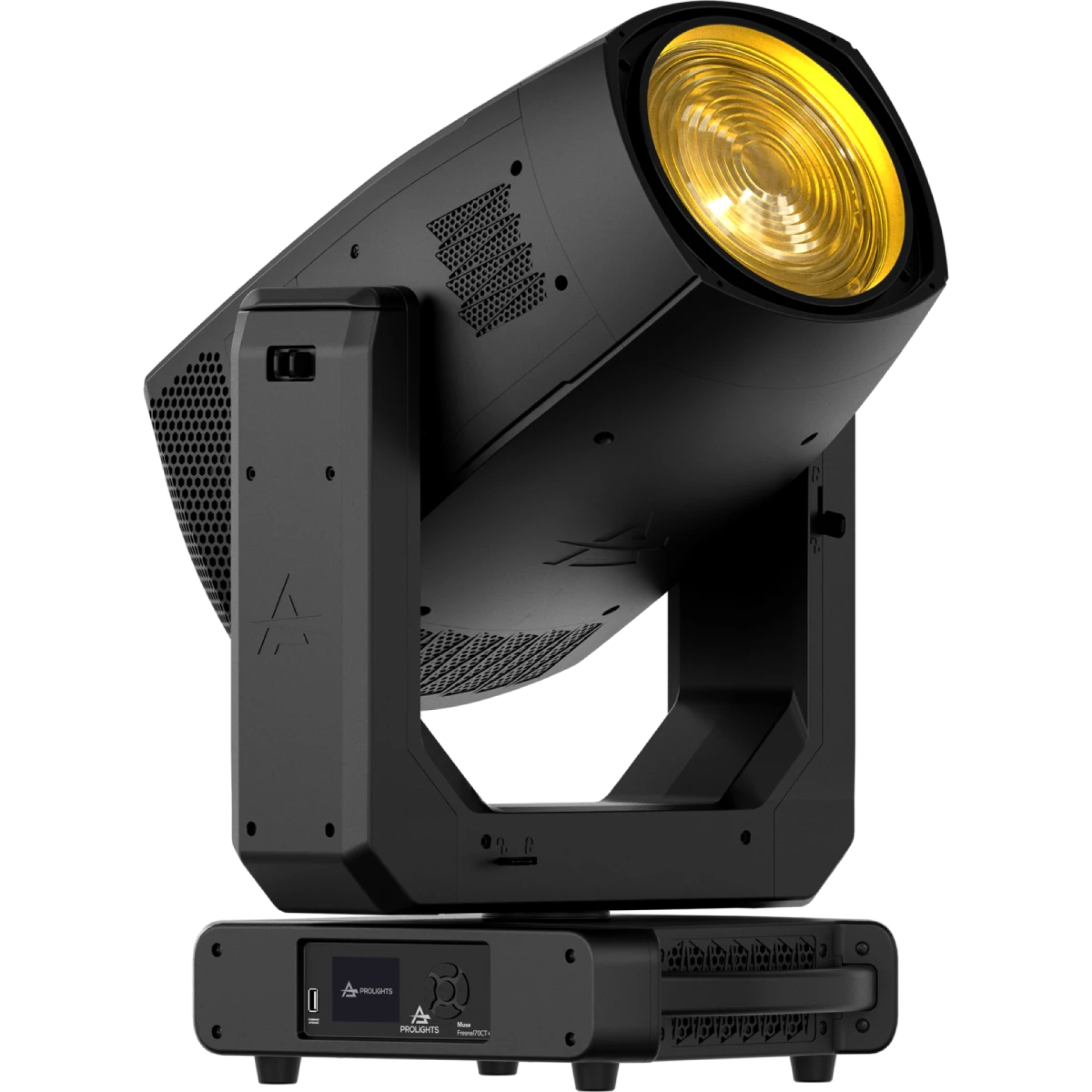

PROLIGHTS Muse Fresnel70CT+ angled view

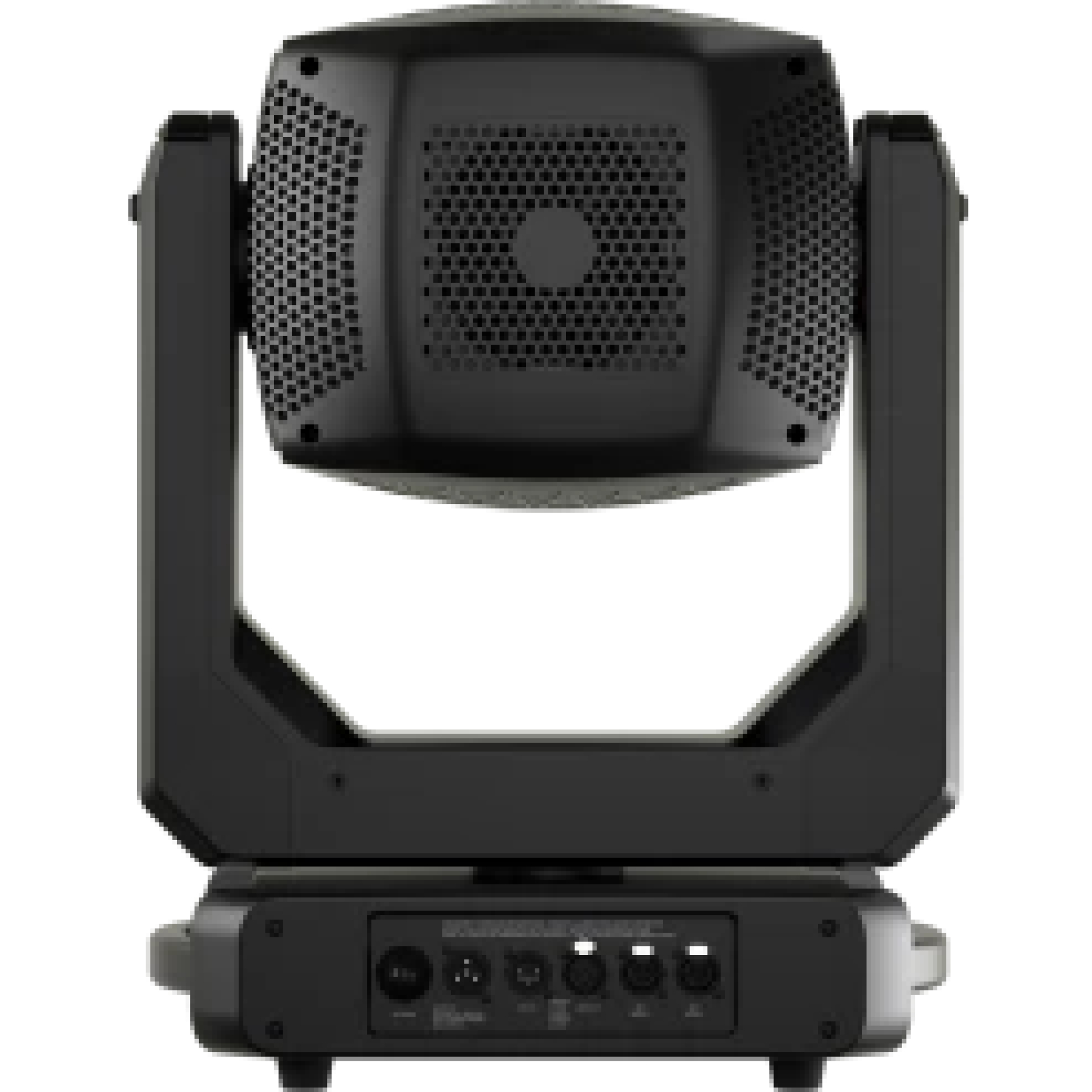

PROLIGHTS Muse Fresnel70CT+ back view

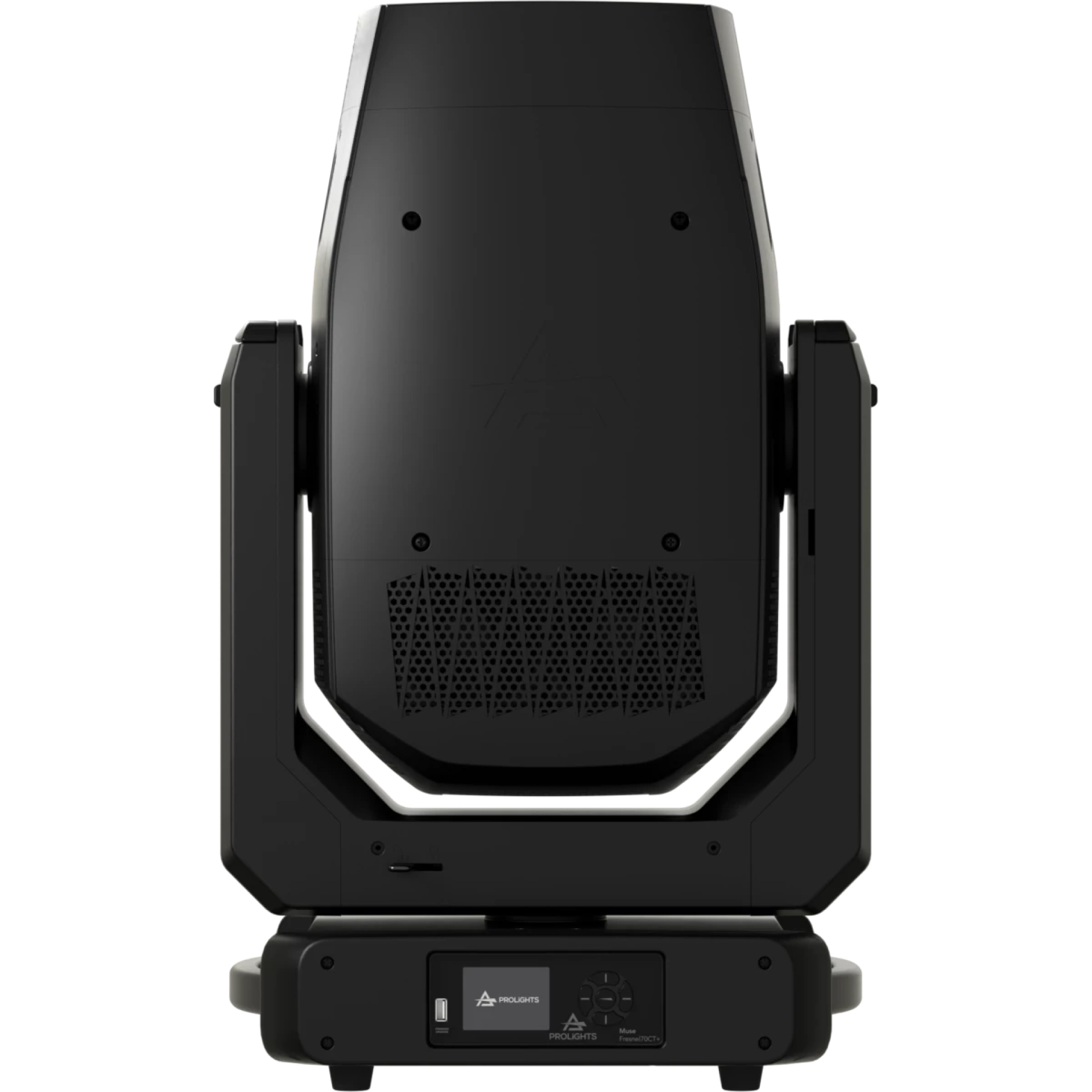

PROLIGHTS Muse Fresnel70CT+ pointing up

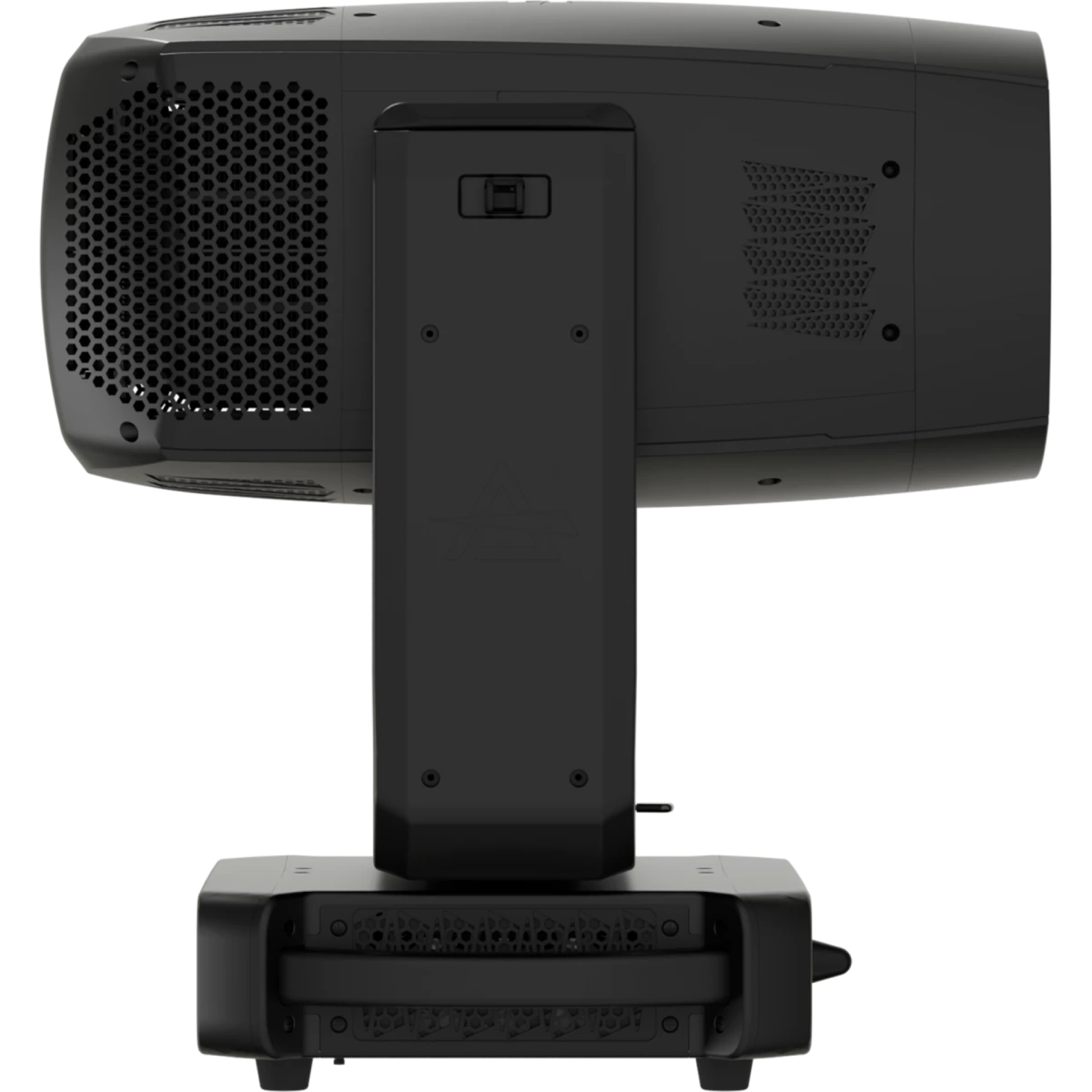

PROLIGHTS Muse Fresnel70CT+ side view
PROLIGHTS Muse Fresnel70CT+ back view
PROLIGHTS Muse Fresnel70CT+ pointing up
PROLIGHTS Muse Fresnel70CT+ side view

Muse Fresnel70CT+

PROMUSEP70CTP

Key Features:

  • 1000W 6-colour LED source, with 200mm Fresnel lens and up to 29,000 lm
  • Authentic Fresnel behaviour with single clean shadow, natural fall-off and motorised 10°-60° zoom
  • Advanced beam shaping with 4-blade framing system, indexed rotating ovaliser, frost, iris and colour wheel
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Muse Fresnel70CT+

The Muse Fresnel70CT+ is a purpose-designed moving Fresnel, engineered from the ground up rather than adapted from a profile platform. It is an ideal moving key light for theatre and TV applications. Drawing on the optical tray of the PROLIGHTS static LED Fresnel range, it combines a 1,500 W-rated 6-colour LED engine, operated at 1,000 W to ensure consistent output over time and boosted colors , with a 200 mm (8") Fresnel lens, delivering up to 29,000 lm.

The result on stage is authentic Fresnel behaviour: a single, clean shadow with a clear cut and the natural fall-off of an 8 kW tungsten unit - only here, every feature is remote. A motorised 10°-60° zoom, a 4-blade internal framing system with blade swivel and module rotation, an indexed rotating ovaliser, linear frost and a motorised iris give complete control over beam shape, all working in combination.

Colour is driven by Spektra OS, so the fixture works seamlessly alongside the Muse Profile70CT+ and the PROLIGHTS CT+ static range, for consistent colour across the rig. A linear CCT channel from 2200K to 15000K, plus/minus green tint, gel and tungsten emulation, and a dedicated 5-filter colour wheel extend the palette beyond the native gamut.

Light quality is engineered for camera and key-light work, with CRI up to 99, R9 up to 97 and TLCI up to 97, 16-bit dimming and a choice of dimming curves. Absolute encoders on pan and tilt allow reset without movement - ideal when rigged inside a limited set.

With Silent and Fan-Off modes, full connectivity - DMX, RDM, Art-Net, sACN and built-in CRMX, plus the EtherFlow pass-through Ethernet switch - and a compact 29 kg body, the Muse Fresnel70CT+ delivers the power, precision and refinement demanded by high-end theatre, TV and film productions.

  • Source: 1000W 6 colour LED source

    Luminous flux: (10.2°) 27,753lm; (27.3°) 28,256lm; (60.3°) 28,609lm @ full

    Lux: (10.2°) 33,767lx; (27.3°) 6,355lx; (60.3°) 1,750lx @ 5m full

    CRI: 98.8 @ 3200K; 97.2 @ 5600K

    R9: 97.1 @ 3200K; 96.4 @ 5600K

    TLCI: 93 @ 3200K; 97 @ 5600K

    TM30 Rf: 95 @ 3200K; 94 @ 5600K

    TM30 Rg: 100 @ 3200K; 101 @ 5600K

    Source life expectancy: > 50,000 hrs (L70B10 @Ta 25° C / 77° F)

    Zoom range: 10° - 60° motorised linear zoom

    Lens diameter: 200mm / 8''

    Lens type: AR-coated glass Fresnel lens providing a classic soft light fall-off

    Focus: motorised 16-bit

  • Spektra OS: unmatched color precision and consistency

    Colour control: XY, CCT, RGB, CMY, Gel Filters

    CCT: linear control from 2200K to 15000K with color-to-CCT linear crossfade

    Tungsten Emulation: dimming with warm color shift simulation

    Tint correction: ± green correction adjustment

    Colour wheel: 5 colour filters + open

    Control Resolution: 16-bit dimmer and color control

    Shutter system: 4 shutter blades with position and ±25° angle adjustment, ±60° rotation of the complete framing system

    FX generator: ovalizer filter motorized with indexing and rotation

    Frost: linear 0-100%

    Iris: 5 - 100% motorised iris

  • Supported Protocols: DMX512, RDM, ArtNet, sACN (IGMP v2), CRMX

    DMX channels: 35 / 40 / 41 / 46 channels

    RDM: for remote addressing and parameter configuration

    Display: 2.4" colour display
