EclProfile FWHPVW

EclProfile FWHPVW

PROECLFWHPVWBK

Key Features:

Linear white CCT from 2700K to 6500K

CRI and R9 up to 98

Silent operation, compatible with industry standard accessories

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

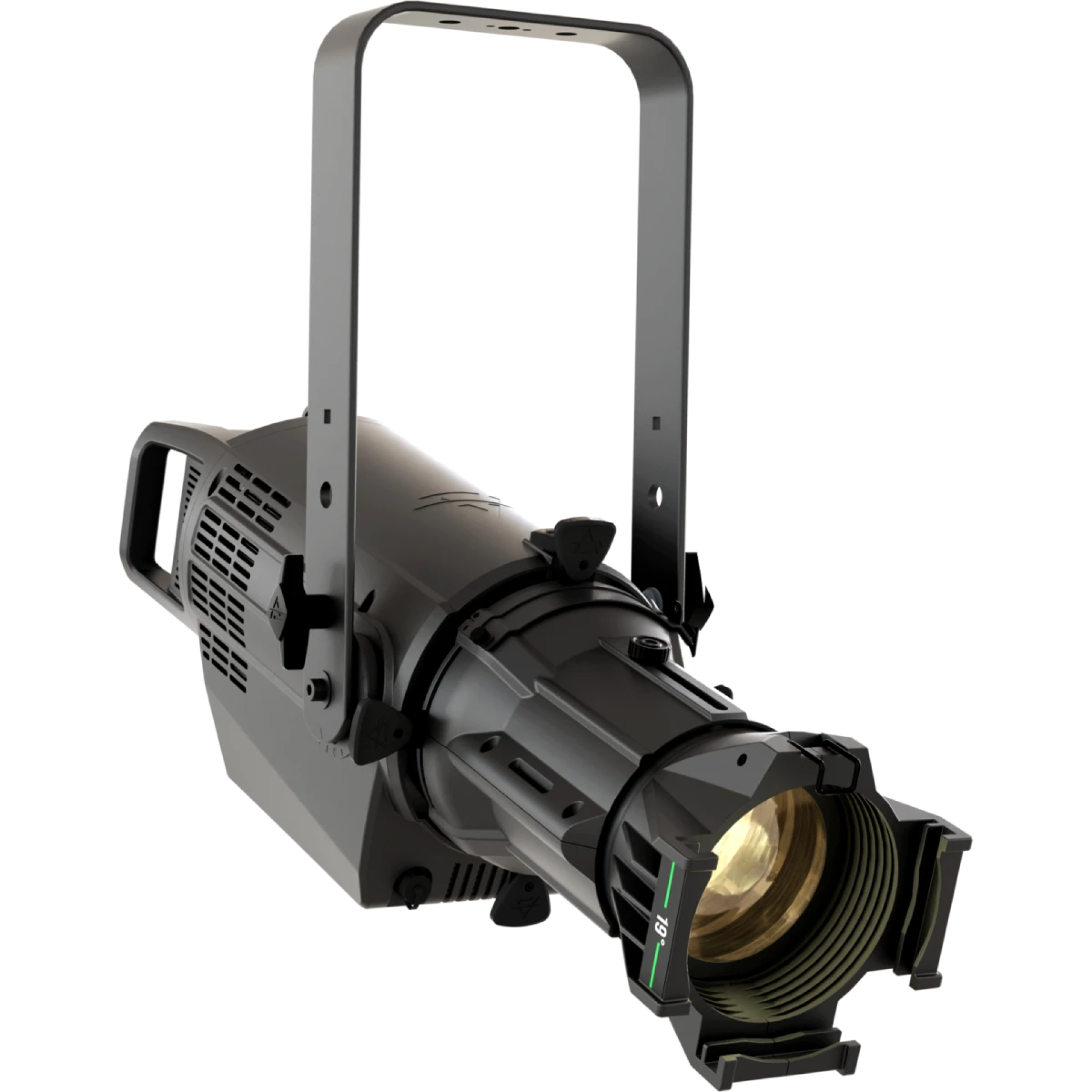

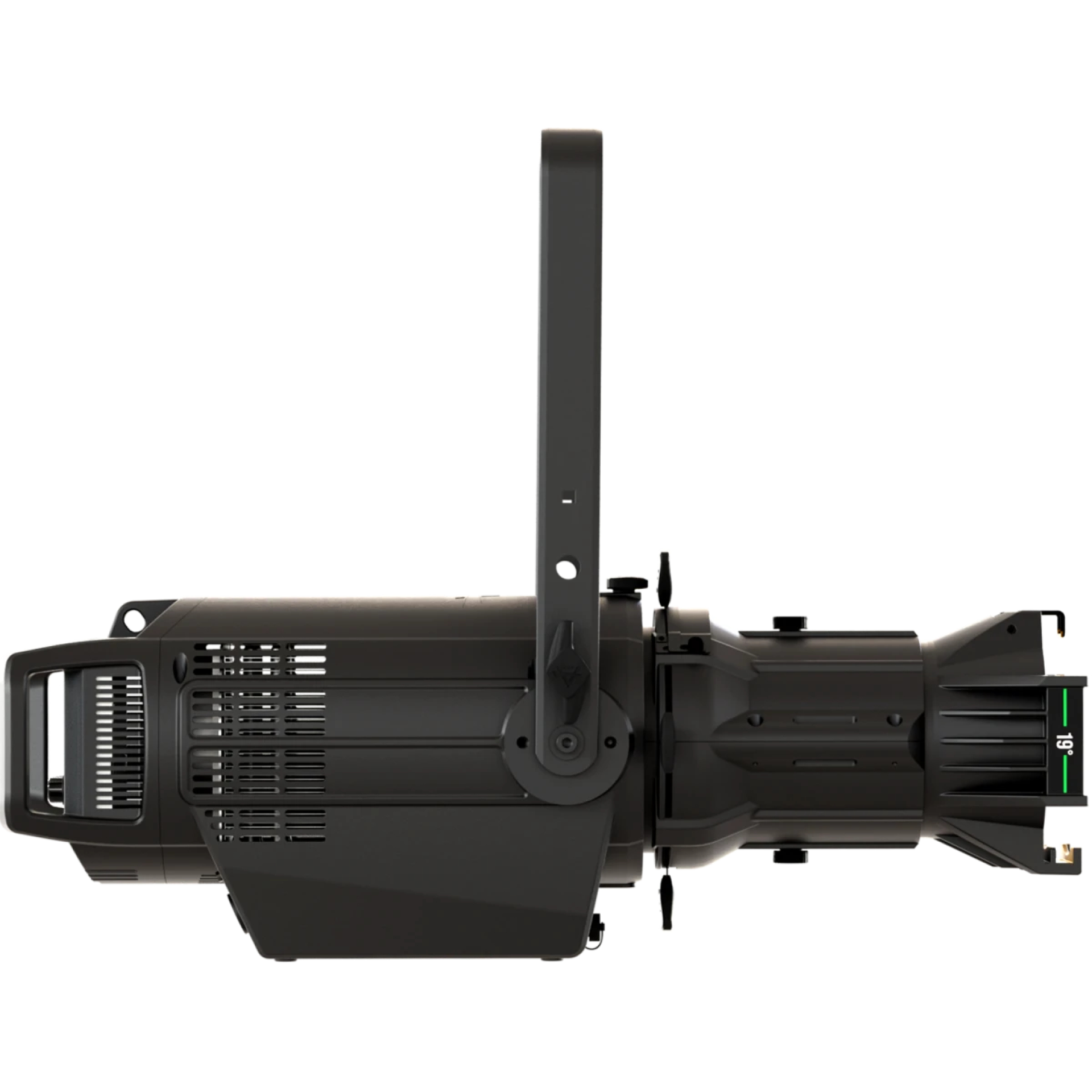

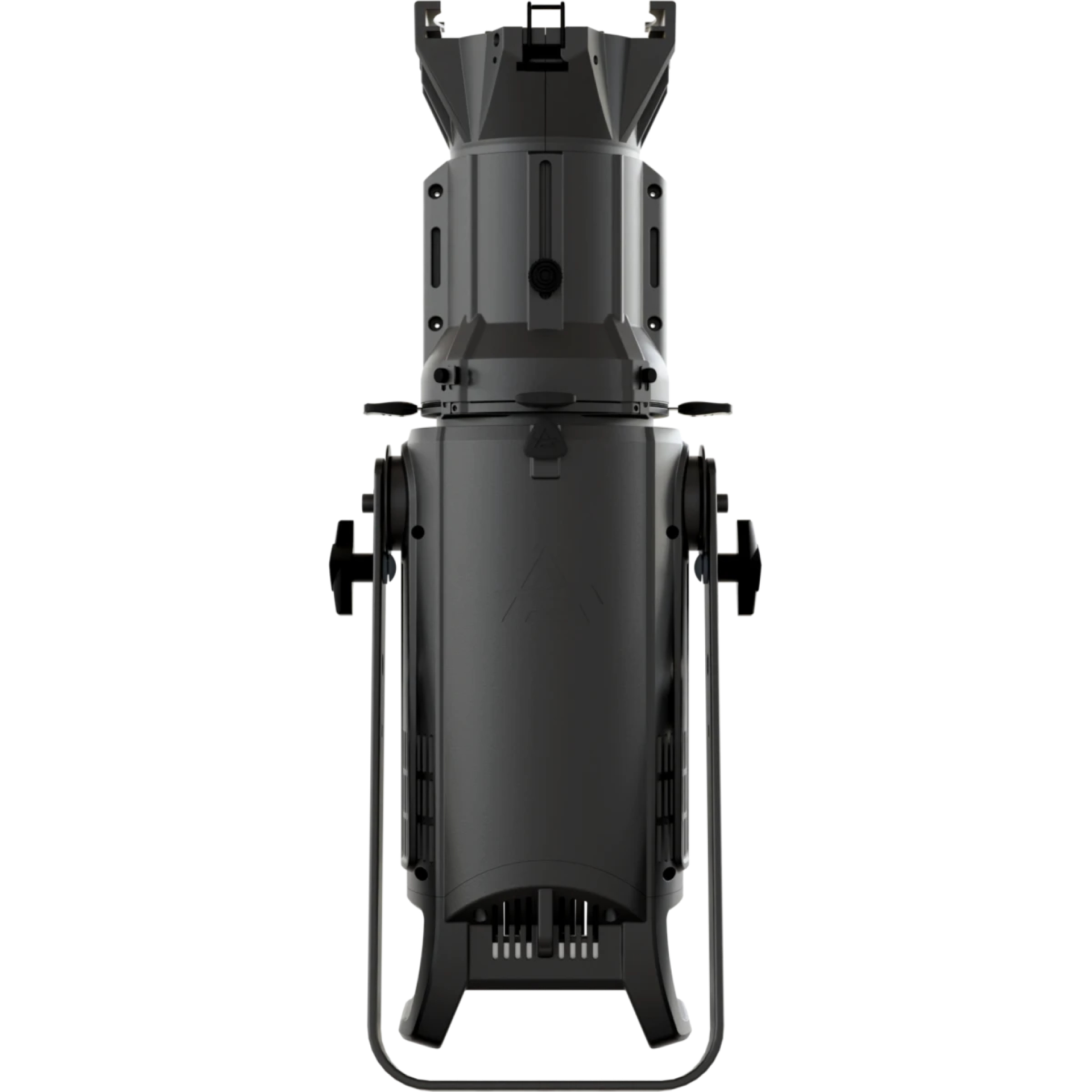

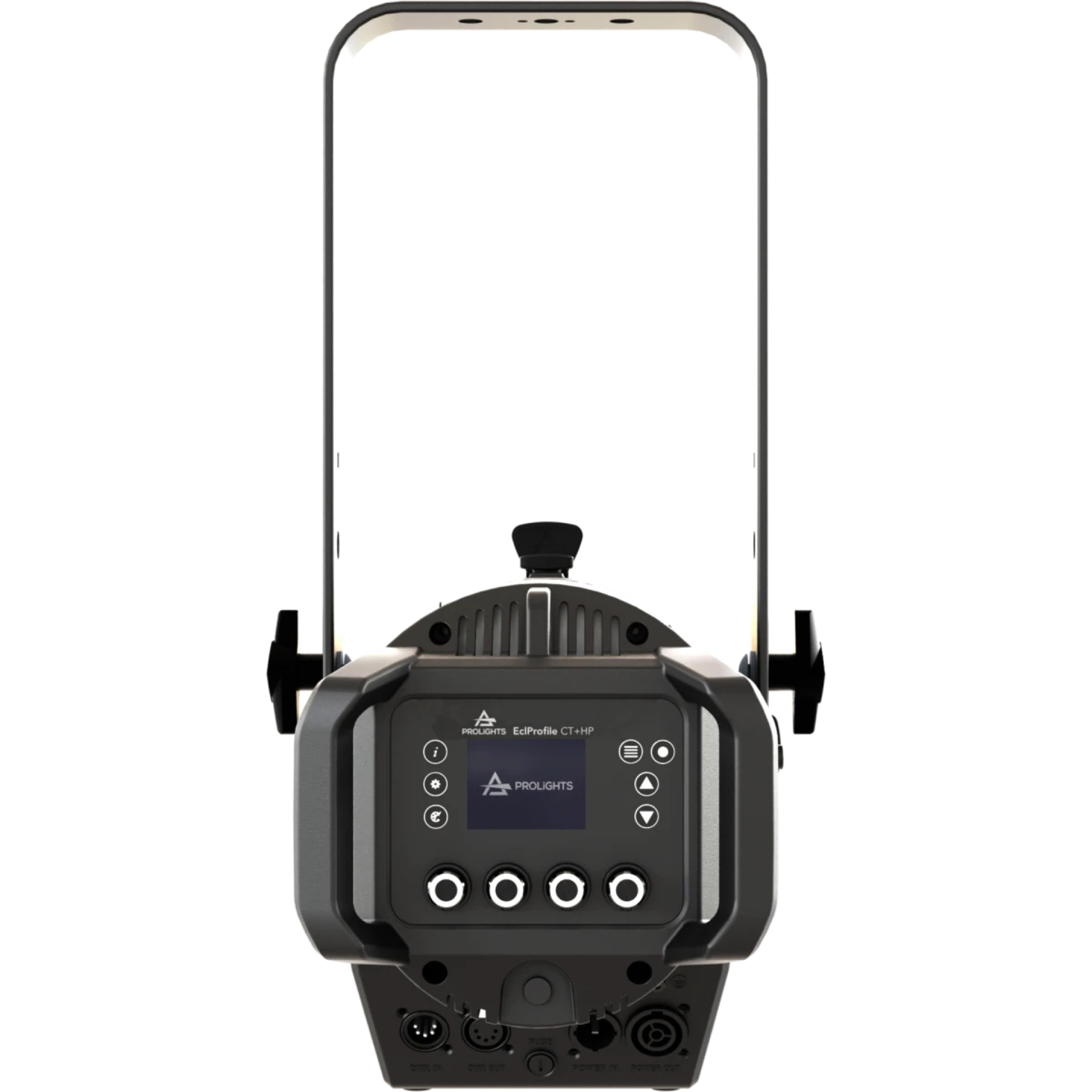

EclProfile FWHPVW

The PROLIGHTS EclProfile FWHPVW is a true workhorse for white light applications. It features a 450W LED engine delivering an impressive 16,600 lm output.

The Variable White source provides excellent colour rendering for outstanding light quality and easy operation in broadcast studios and exhibitions/expos. Designed for long throw distances and higher trim heights, the FWHP is an ideal replacement for traditional HPL 750 W and 2 kW tungsten ellipsoidals, excelling in large venues.

EclProfile FWHP delivers precise CCT reproduction with a user-friendly interface. The enhanced 2.4-inch display, paired with four RGB-backlit, push-to-select encoders, provides fast and intuitive control across multiple operating modes ensuring consistent and efficient operation for professionals.

Despite its increased output, the fixture maintains the compact footprint of its predecessor and remains compatible with industry-standard fixed and zoom optics, including PRL and PRLZ lenses. This enables seamless integration into existing inventories, making it a versatile and cost-effective solution for a wide range of lighting requirements.

- Source: 450W Variable White LED
- Colour mixing: tunable white
- CCT: CCT control range from 2.800K to 6.500K
- Luminous flux: (19°) 13,419 lm; (26°) 16,662 lm; (50°) 15,037 lm; @ 5600K
- Lux: (19°) 6,667 lx; (26°) 4,537 lx; (50°) 1,236lx @ 5m 5600K
- CRI: up to 98
- R9: up to 98
- TLCI: up to 99
- TM30 Rf: 96 @ 3200K; 96 @ 5600K
- TM30 Rg: 103 @ 3200K; 102 @ 5600K
- Source life expectancy: > 50,000 hr
- Lens type: high-quality glass lens optics
- Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
- Focus: manual
- Other: see available accessories

- Rotating gobos: optional
- Gobo size: B, outer: 86mm - image: 64.5mm - thickness: 1.1mm
- Special features: 4 fan modes available and output management

- Protocols: DMX512, RDM, CRMX (optional)
- Stand Alone: 4 pushable RGB backlit encoder
- DMX channels: from 1 channel to 16 channel
- Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) through dedicated software
- Master/Slave: for synchronised operation of more units linked in a chain
