EclProfile FWHPIPVW

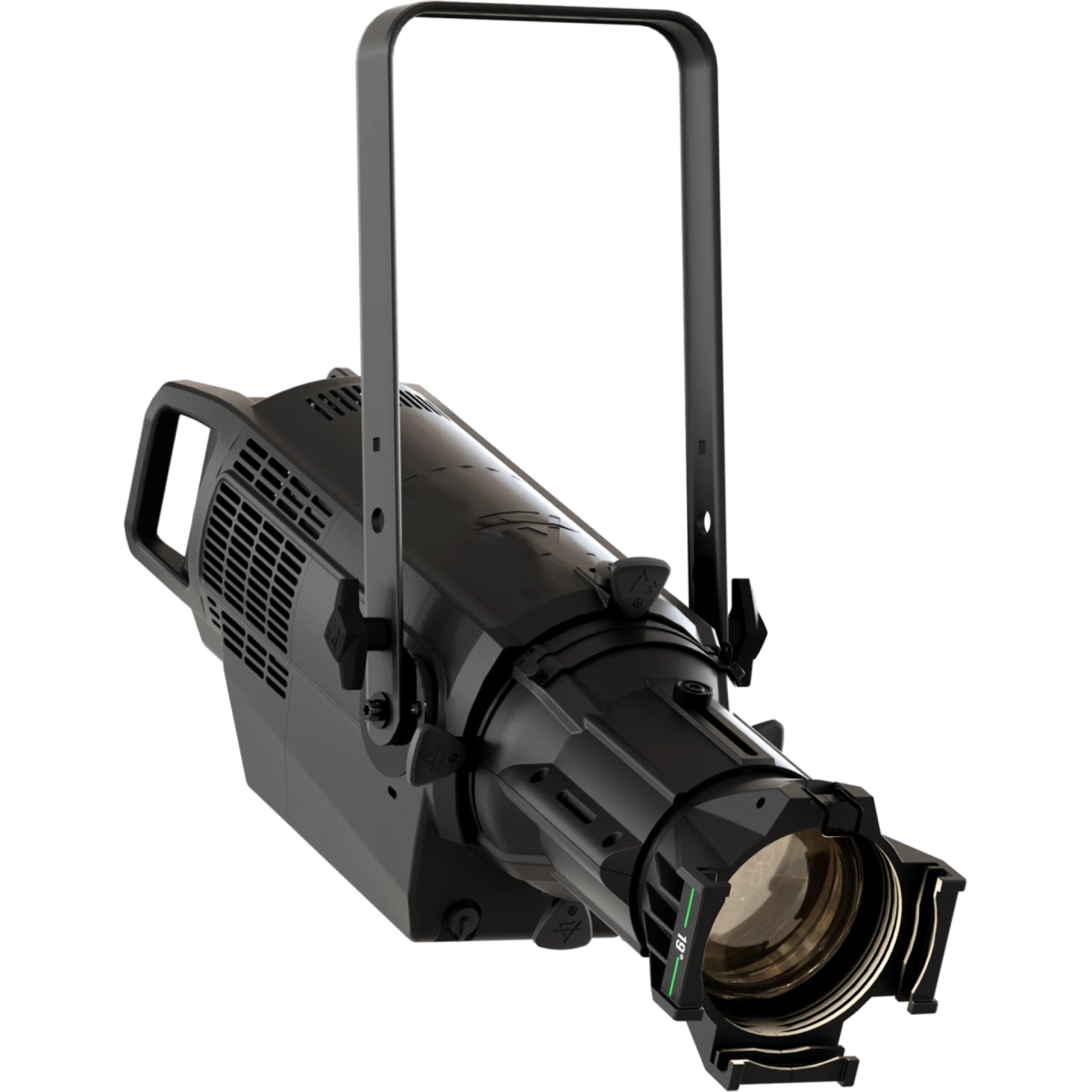

PROLIGHTS EclProfile FWHPIPVW - front

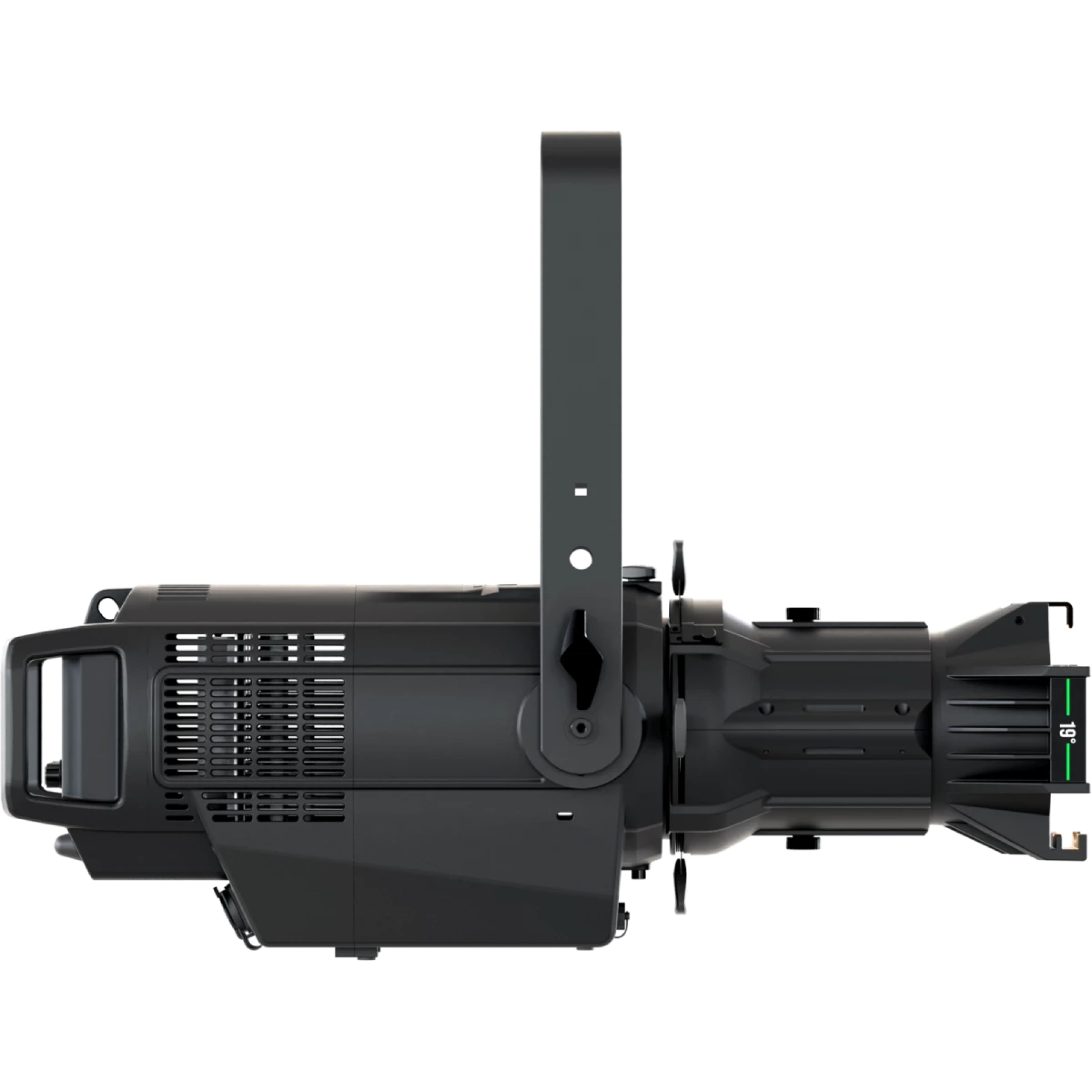

PROLIGHTS EclProfile FWHPIPVW - side

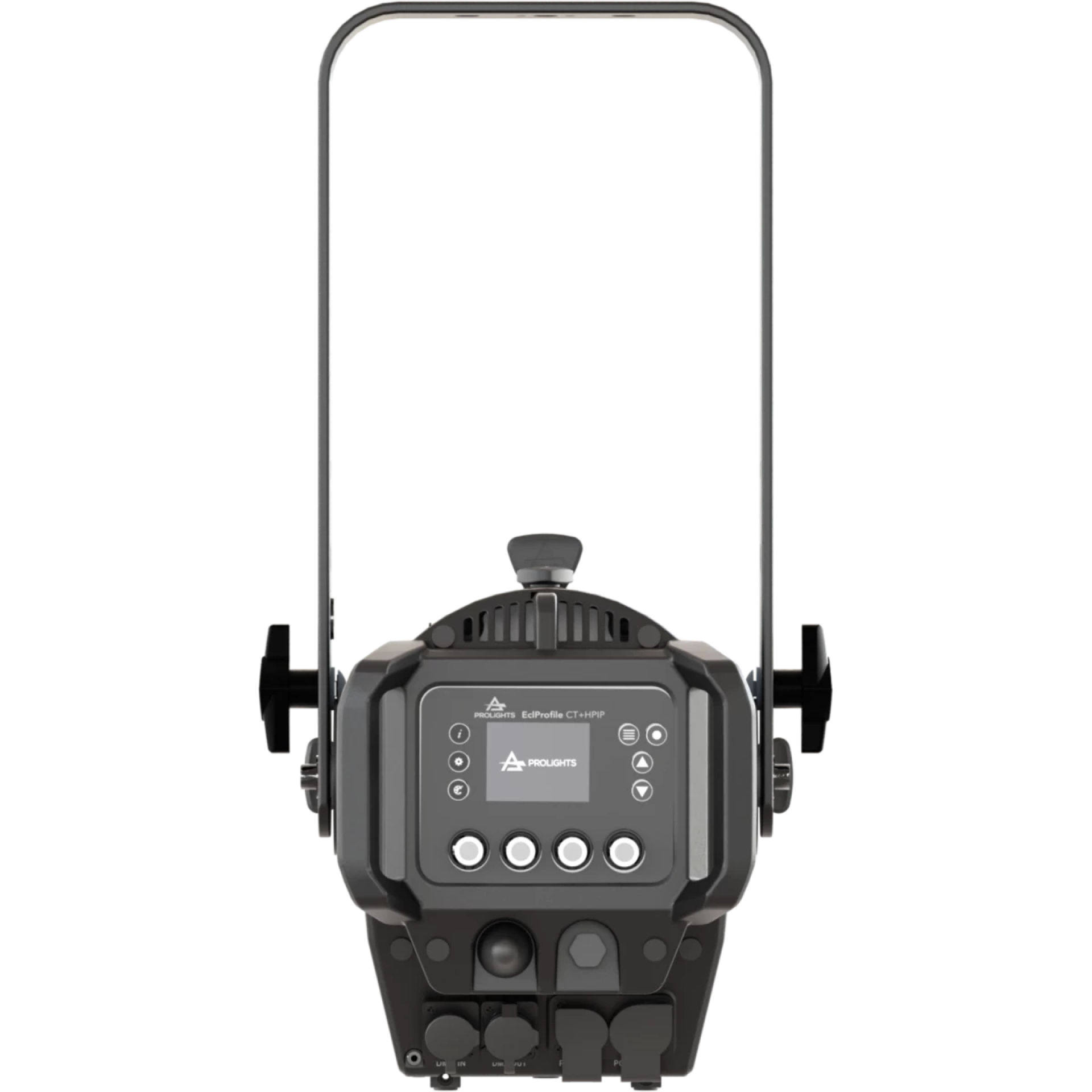

PROLIGHTS EclProfile FWHPIPVW - back

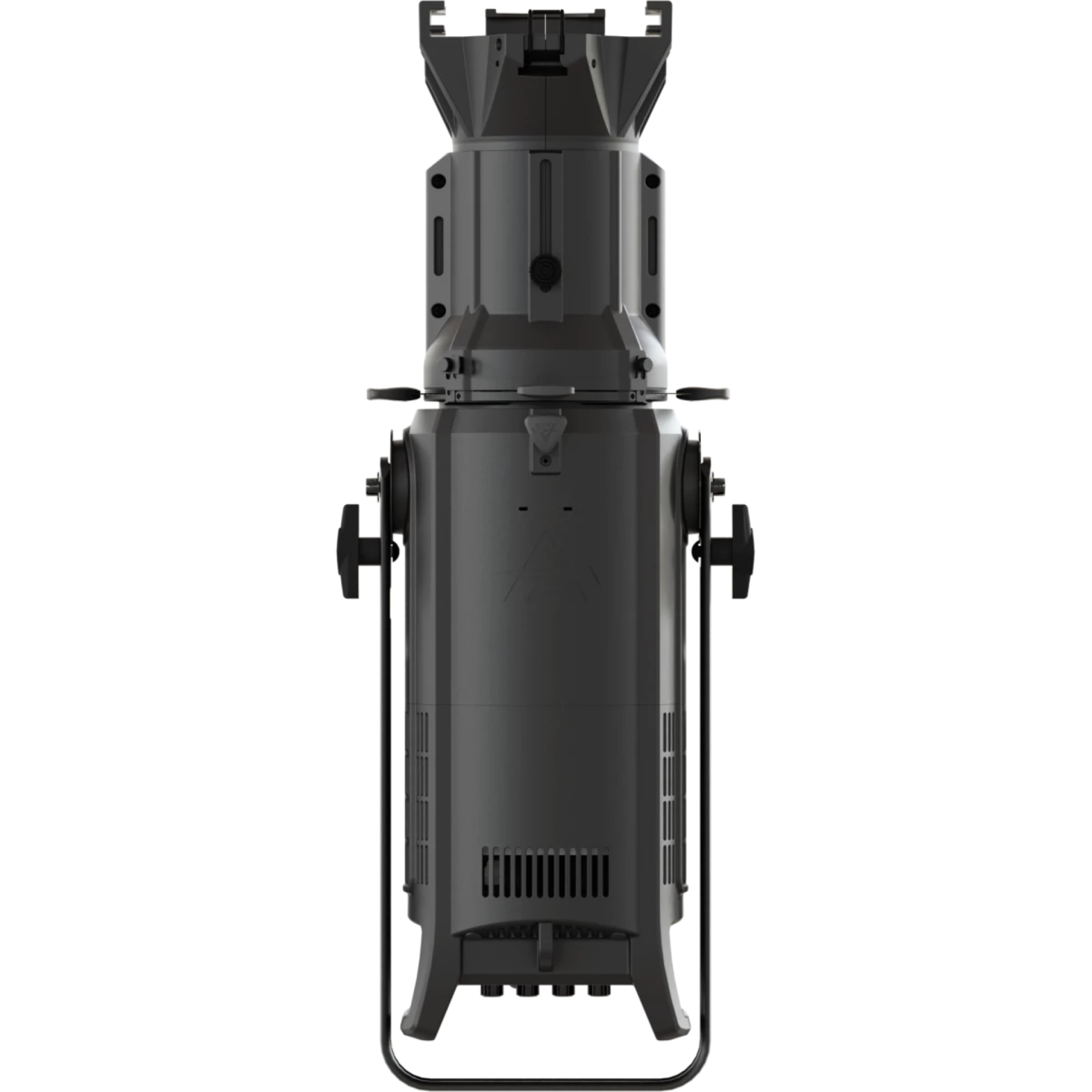

PROLIGHTS EclProfile FWHPIPVW - top

PROLIGHTS EclProfile FWHPIPVW - side

PROLIGHTS EclProfile FWHPIPVW - back

PROLIGHTS EclProfile FWHPIPVW - top

EclProfile FWHPIPVW

PROECLFWHPIPVWBK

Key Features:

Linear white CCT from 2700K to 6500K

CRI and R9 up to 98

Silent operation, compatible with industry standard accessories

IP65-rated for outdoor use

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclProfile FWHPIPVW

The PROLIGHTS EclProfile FWHPIPVW is a true workhorse for white light applications. It features a 450W LED engine delivering an impressive 16,600 lm output.

The Variable White source provides excellent colour rendering for outstanding light quality and easy operation in broadcast studios, exhibitions/expos, and outdoor applications. Thanks to its IP65-rated housing, the fixture is suitable for outdoor use and challenging environmental conditions.

Designed for long throw distances and higher trim heights, the ECLProfile FWHPIPVW is an ideal replacement for traditional HPL 750W and 2kW tungsten ellipsoidals, excelling in large venues and outdoor productions.

ECLProfile FWHPIPVW delivers precise CCT reproduction with a user-friendly interface. The enhanced 2.4-inch display, paired with four RGB-backlit, push-to-select encoders, provides fast and intuitive control across multiple operating modes ensuring consistent and efficient operation for professionals, even in outdoor environments.

Despite its increased output and IP65 construction, the fixture maintains the compact footprint of its predecessor and remains compatible with industry-standard fixed and zoom optics, including PRL and PRLZ lenses. This enables seamless integration into existing inventories, making it a versatile and cost-effective solution for a wide range of indoor and outdoor lighting requirements.

Source: 450W Variable White LED

Colour mixing: tunable white

CCT: CCT control range from 2800K to 6500K

Luminous flux: (19°) 13,419 lm; (26°) 16,662 lm; (50°) 15,037 lm @ 5600K

Lux: (19°) 6,667 lx; (26°) 4,537 lx; (50°) 1,236lx @ 5m 5600K

CRI: up to 98

R9: up to 98

TLCI: up to 99

TM30 Rf: 96 @ 3200K; 96 @ 5600K

TM30 Rg: 103 @ 3200K; 102 @ 5600K

Source life expectancy: > 50,000 hr

Lens type: high-quality glass lens optics

Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°

Focus: manual

Other: see available accessories

Rotating gobos: optional, see available accessories

Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm

Special features: 4 fan modes available and output management

Protocols: DMX512, RDM, CRMX

Stand Alone: 4 pushable RGB backlit encoder

DMX channels: from 1 channel to 16 channel

Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable

RDM: RDM for remote monitoring and settings

Display: Graphic User Interface

Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) through dedicated software

Master/Slave: for synchronised operation of more units linked in a chain

You might like...

PROLIGHTS EclProfile FWHPIPVW - front

PROLIGHTS LIGHTING

Product - LIGHTING

EclProfile FWHPIPVW

Linear white CCT from 2700K to 6500K

CRI and R9 up to 98

Silent operation, compatible with industry standard accessories

IP65-rated for outdoor use

PROLIGHTS EclProfile CT+

PROLIGHTS LIGHTING

Product - LIGHTING

EclProfile CT+ Range

Linear white CCT from 2,800K to 10,000K with CRI up to 97

RGB / CMY / HSI 3 ch colours control of the six colours LED array

Industry standard colour gels matching, tungsten emulation on dimming, tint control (+/- green)

PROLIGHTS EclProfile FS

PROLIGHTS LIGHTING

Product - LIGHTING

EclProfile FS

RGB + Lime LED ellipsoidal with HD dimming and extensive colour palette

High definition optics for sharp focus and gobo projection

Accepts industry standard accessories

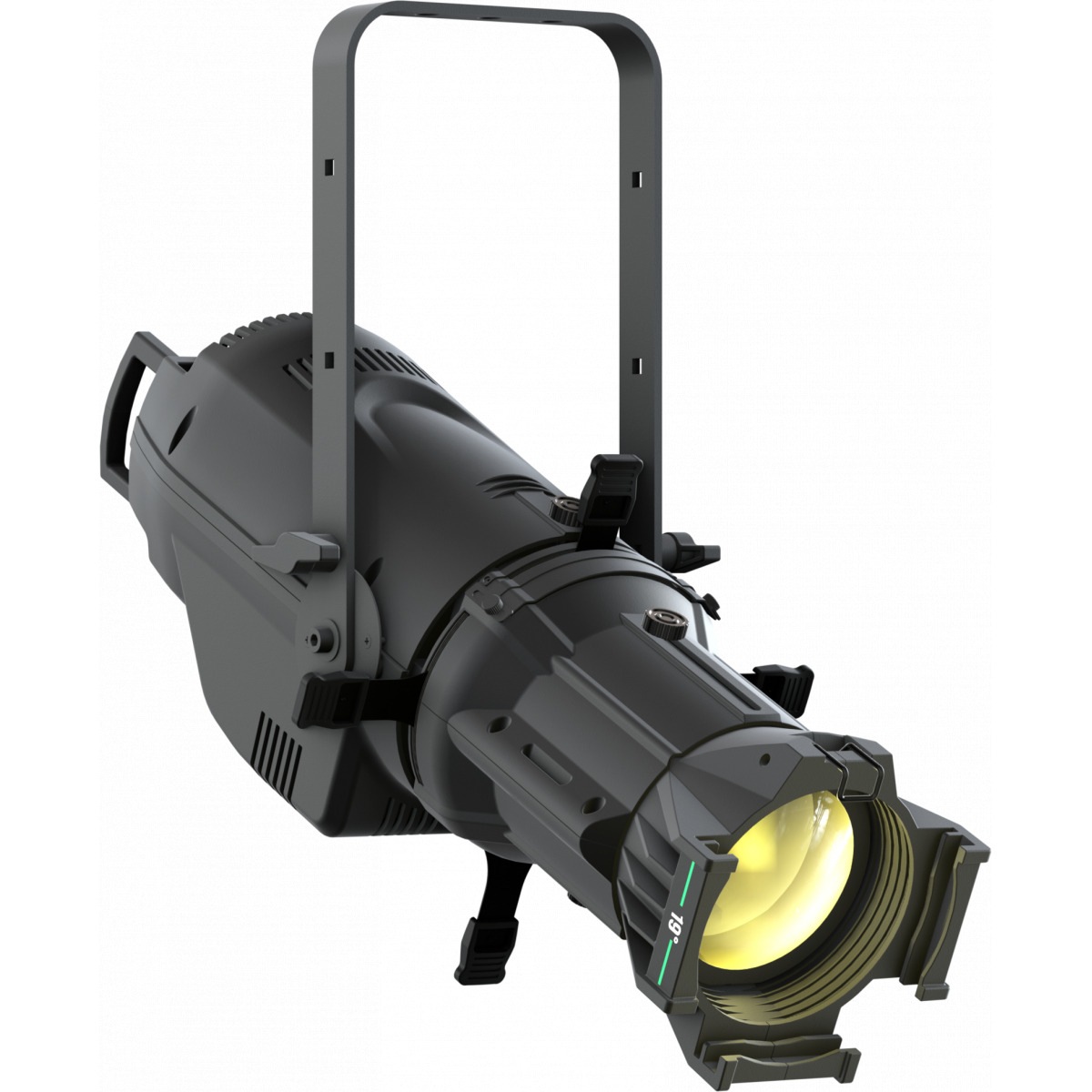

PROLIGHTS EclProfile FWVW - front
