EclGalleryProfile Range

Key Features:

  • LED source in multiple variants: Tungsten, Neutral, Daylight or RGBW
  • Built in linear zoom and full shuttering
  • Wireless DMX control and optional track adapters for easy implementation
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclGalleryProfile Range

The PROLIGHTS EclGalleryProfile LED range feature a compact design with a sharp beam, linear zoom and full shuttering, making them the ideal luminaire for commercial or product lighting.

Product Variants

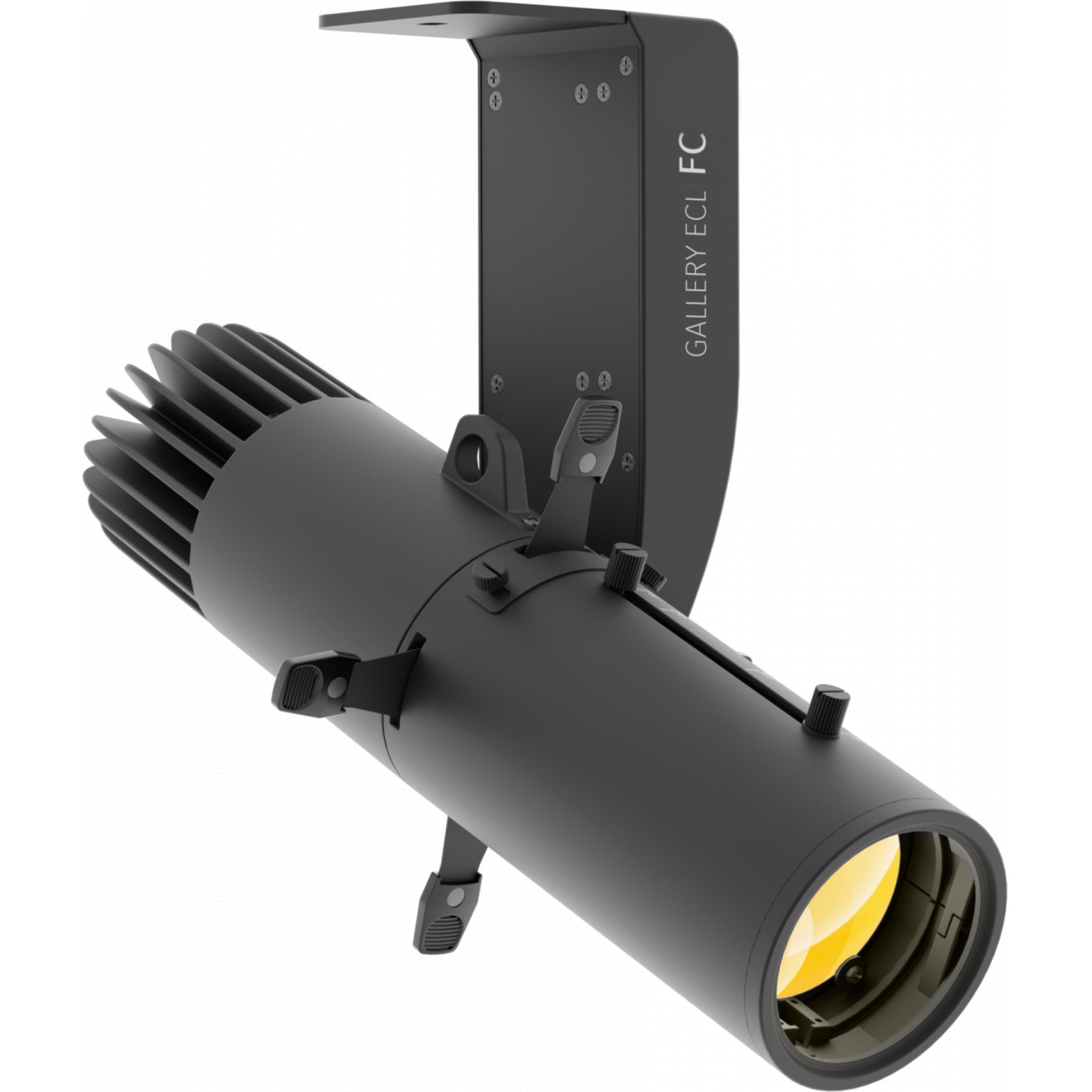

PROLIGHTS EclGalleryProfile - FC
EclGalleryProfile FC
  • RGBW/FC
  • 1x60W LED
  • Beam angle: 20° to 37° Zoom

Enquiry Form

PROLIGHTS EclGalleryProfile - daylight white
EclGalleryProfile DY
  • Daylight white
  • 1x35W LED
  • Beam angle: 16° to 36° Zoom

Enquiry Form

PROLIGHTS EclGalleryProfile - neutral white
EclGalleryProfile NW
  • Neutral white
  • 1x35W LED
  • Beam angle: 16° to 36° Zoom

Enquiry Form

PROLIGHTS EclGalleryProfile - neutral white
EclGalleryProfile TU
  • Tungsten white
  • 1x35W LED
  • Beam angle: 16° to 36° Zoom

Enquiry Form

The EclGalleryProfile range is available in RGBW full colour, tungsten, neutral and daylight white variants.

The fixture is fitted with electronics and a PSU on board, allowing easy implementation on lighting tracks.

  • Source: 35W high-power white LED

    CCT: (TU) 3,200K; (NW) 4,000K; (DY) 5,000

    Luminous flux: (16°) (TU) 1,887lm; (NW) 1,947lm; (DY) 2,095lm @ full

    Luminous flux: (36°) (TU) 2,150lm; (NW) 2,236lm; (DY) 2,425lm @ full

    Lux: (16°) (TU) 1,209lx; (NW) 1,324lx; (DY) 1,782lx @ 5m full

    Lux: (36°) (TU) 371lx; (NW) 367lx; (DY) 455lx @ 5m full

    CRI: (TU) >90 - (NW) > 89 - (DY) >80

    Source life expectancy: > 70,000hr (L70B10 @ Ta 25° C / 77° F)

    Zoom: 16° - 36° manual

    Lens type: high-quality glass lens optics

    Focus: manual

    Other: accessory gobo holder for images and texture projection

  • Source: 60W RGBW Osram LED

    Luminous flux: (20°) 663lm - (37°) 635lm @ full

    Lux: (20°) 264lx - (37°) 93lx @ 5m full

    Source life expectancy: > 50,000hr (L70B10 @Ta 25° C / 77° F)

    Zoom: 20° ~ 37° manual

    Lens type: high-quality glass lens optics

    Focus: manual

    Other: accessory gobo holder for images and texture projection

  • Colour mixing: RGBW / FC (FC)

    CCT: CCT control through dedicated DMX channel (FC)

    White presets: 2,800K ~ 10,000K (FC)

    Colour wheel: virtual colour wheel with macros (FC)

    Gobo size: E, outer: 37.3mm - image: 26mm - thickness: 1.1 mm

    Static mode: selection of static colour (FC)

    Manual mode: manual adjustment of colour

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: W-DMX

    DMX channels: 4 / 6 / 11 channel (FC)

    DMX channels: 1 / 3 channel (TU / NW / DY)

    Wireless Control: included, wireless solution receiver

    Display: Graphic User Interface

EclGalleryProfile Range - Variant Downloads

You might like...

PROLIGHTS EclDisplay CC - black body - plain front
Product - LIGHTING
EclDisplay CC Range
    • Constant current version for connection to external PSU and driver
    • Multiple lens options: zoomable profile or wash optics
    • Body colour available in black, white and custom RAL
Find out more

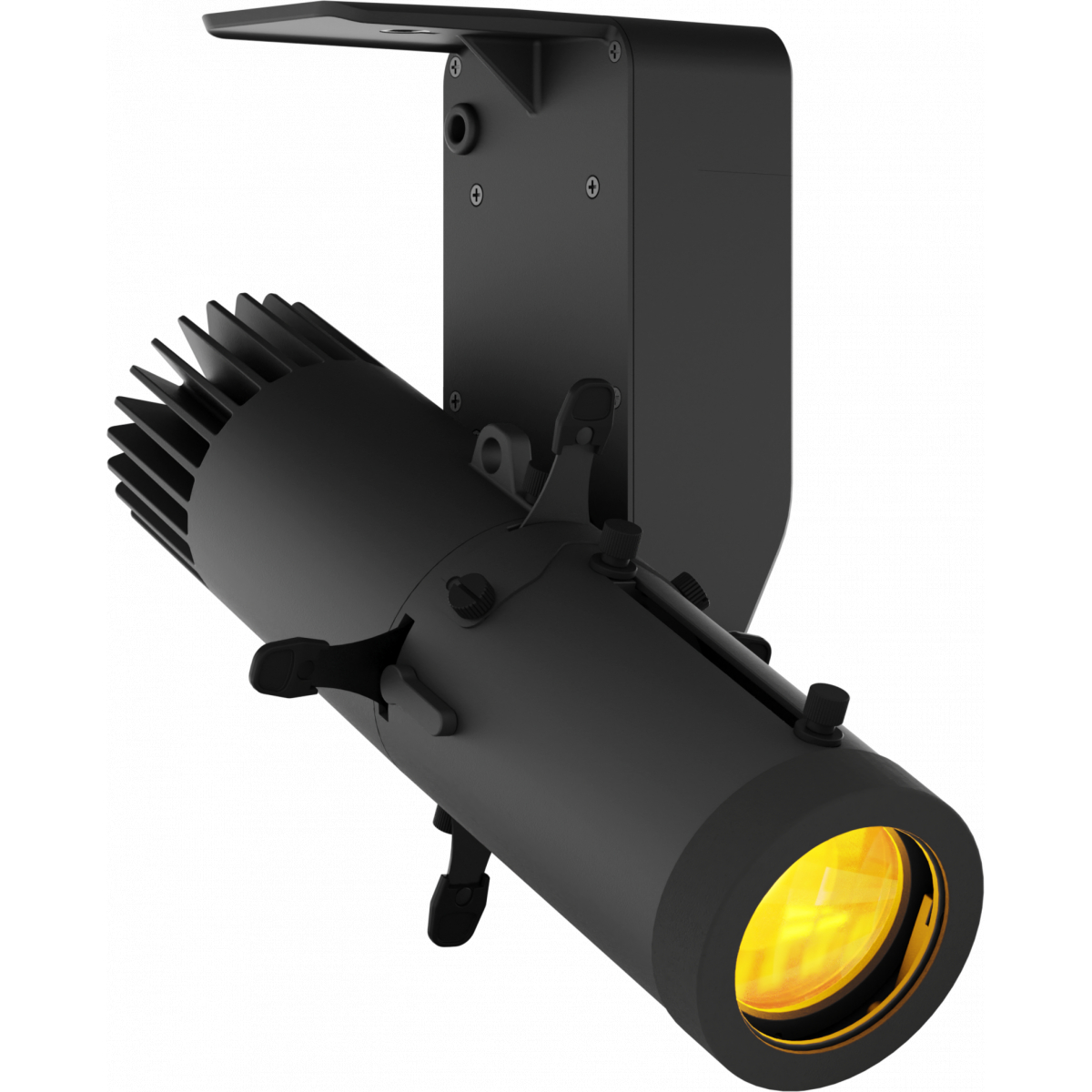

PROLIGHTS EclDisplay DAT - black body
Product - LIGHTING
EclDisplay DAT Range
    • Data control through RDM, DMX, DALI and local knob dimming
    • Multiple lens options: zoomable profile or wash optics
    • Body colour available in black, white and custom RAL
Find out more

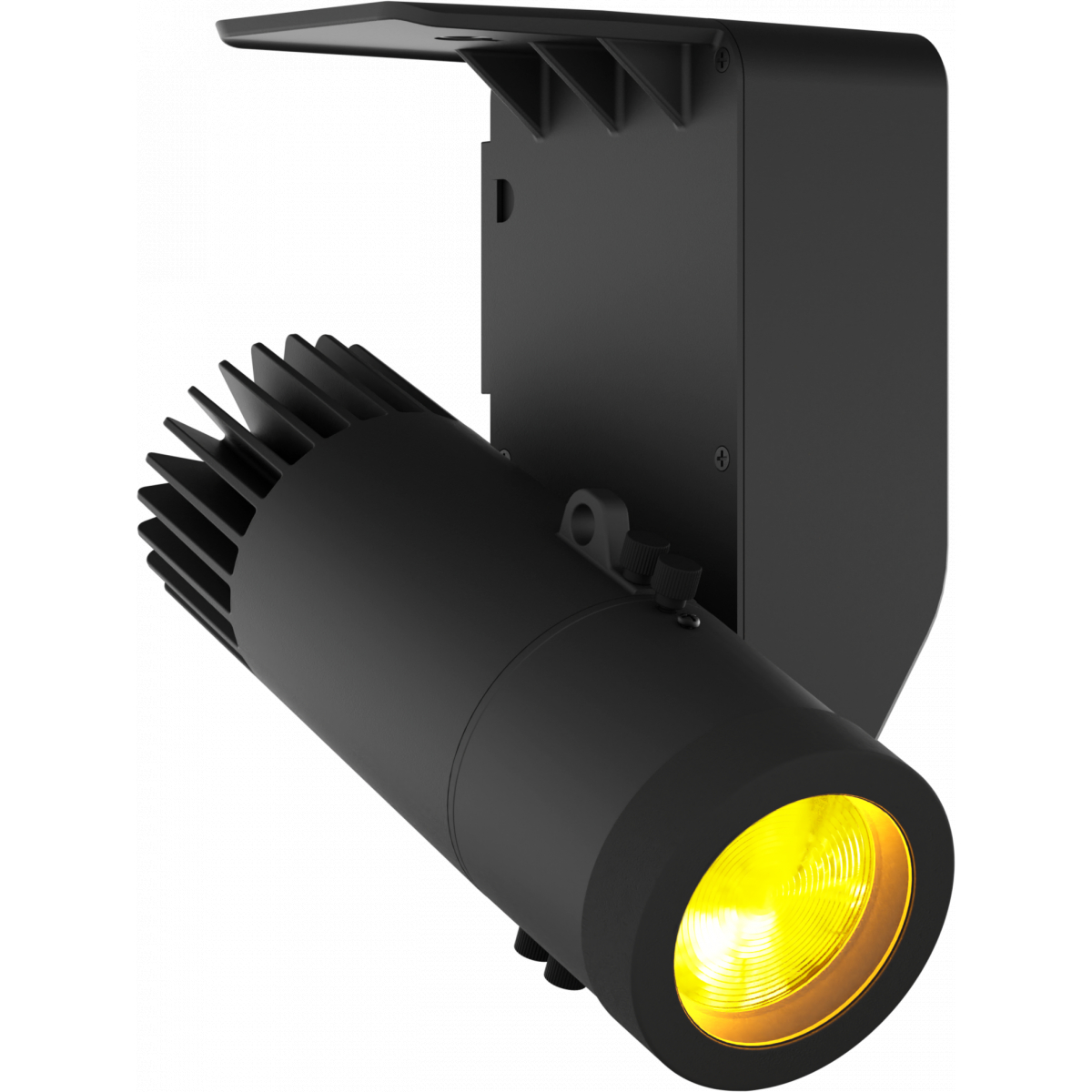

PROLIGHTS EclDisplay UN - black body - plain front
