EclMini CC

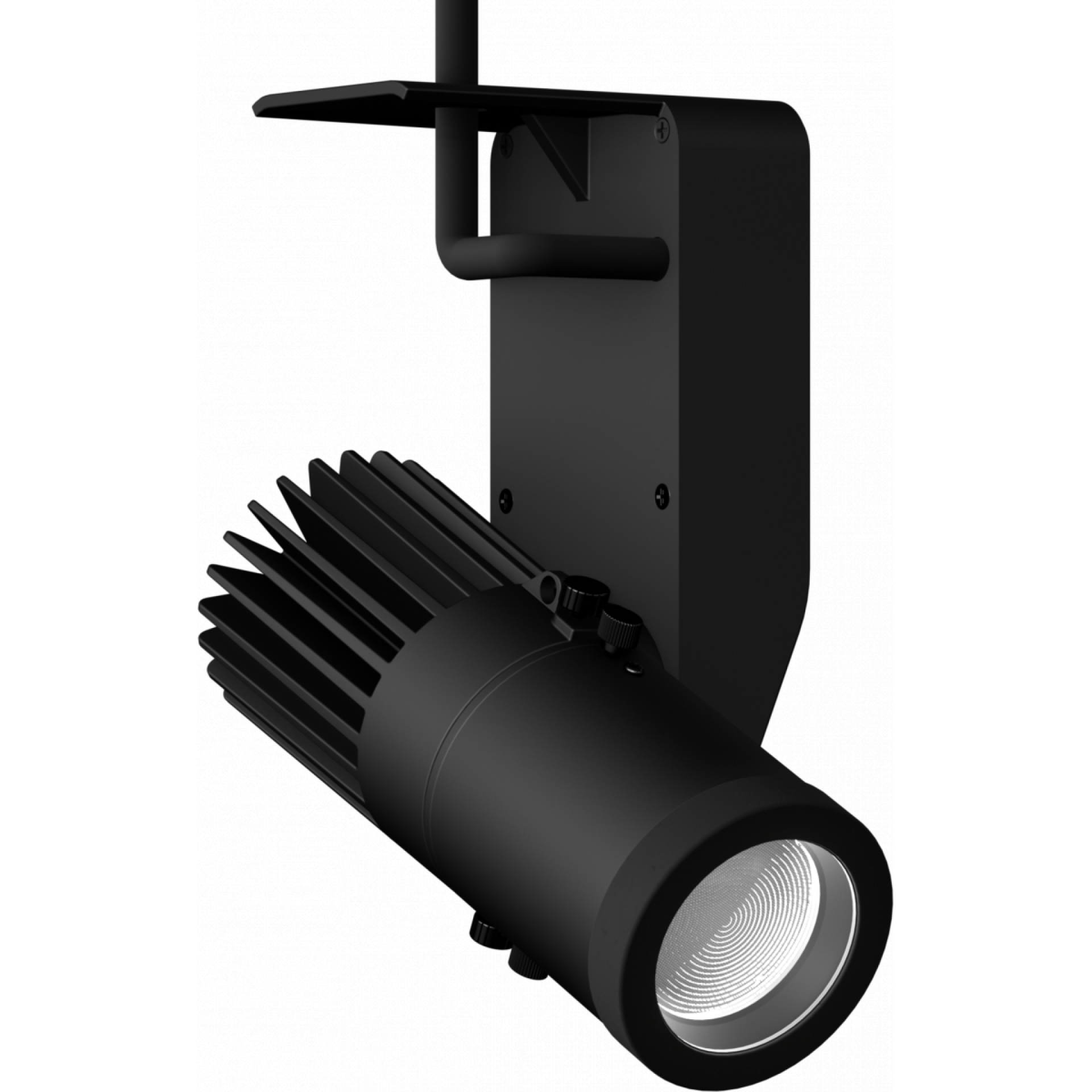

PROLIGHTS EclMini CC Front view

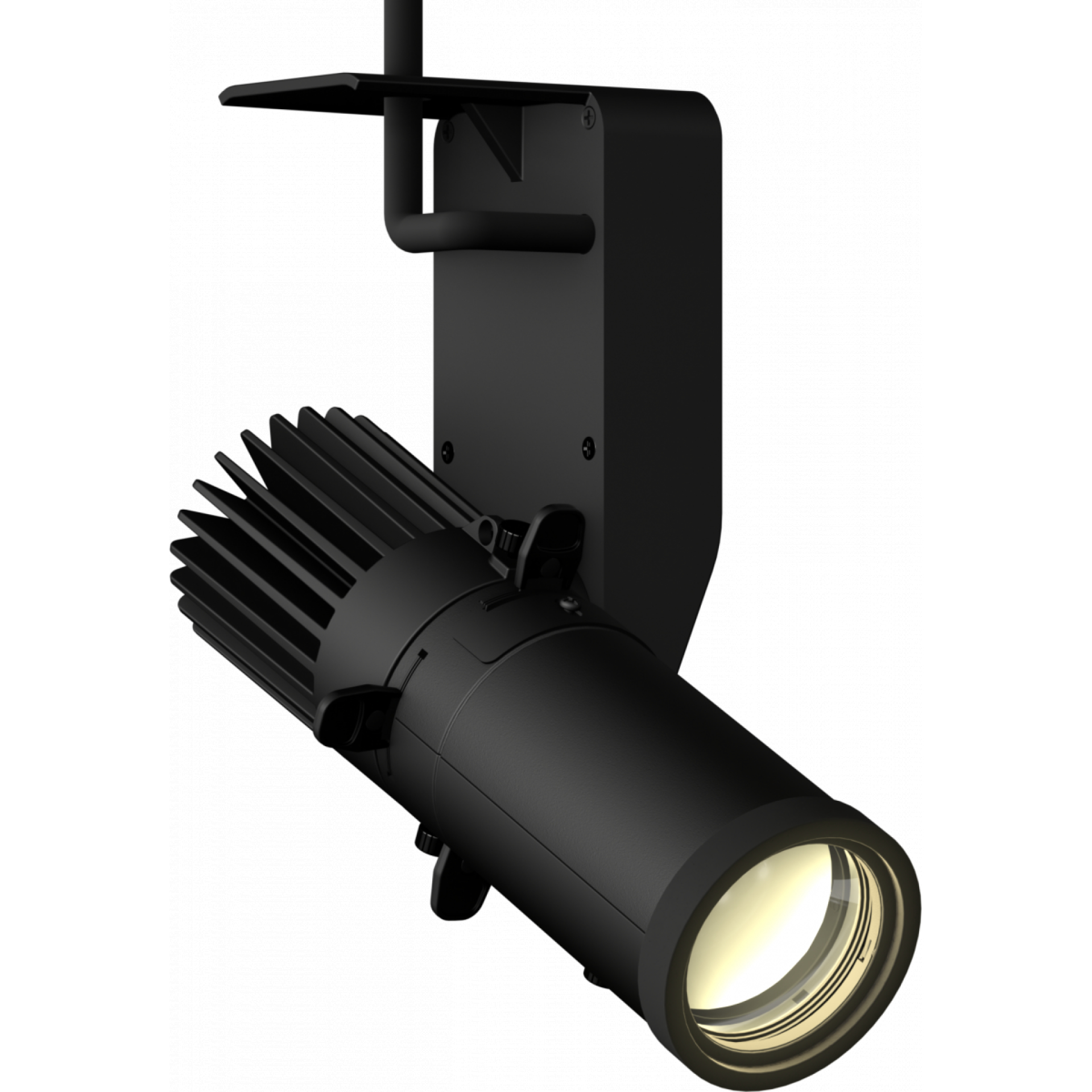

PROLIGHTS EclMini CC Front view tungsten white

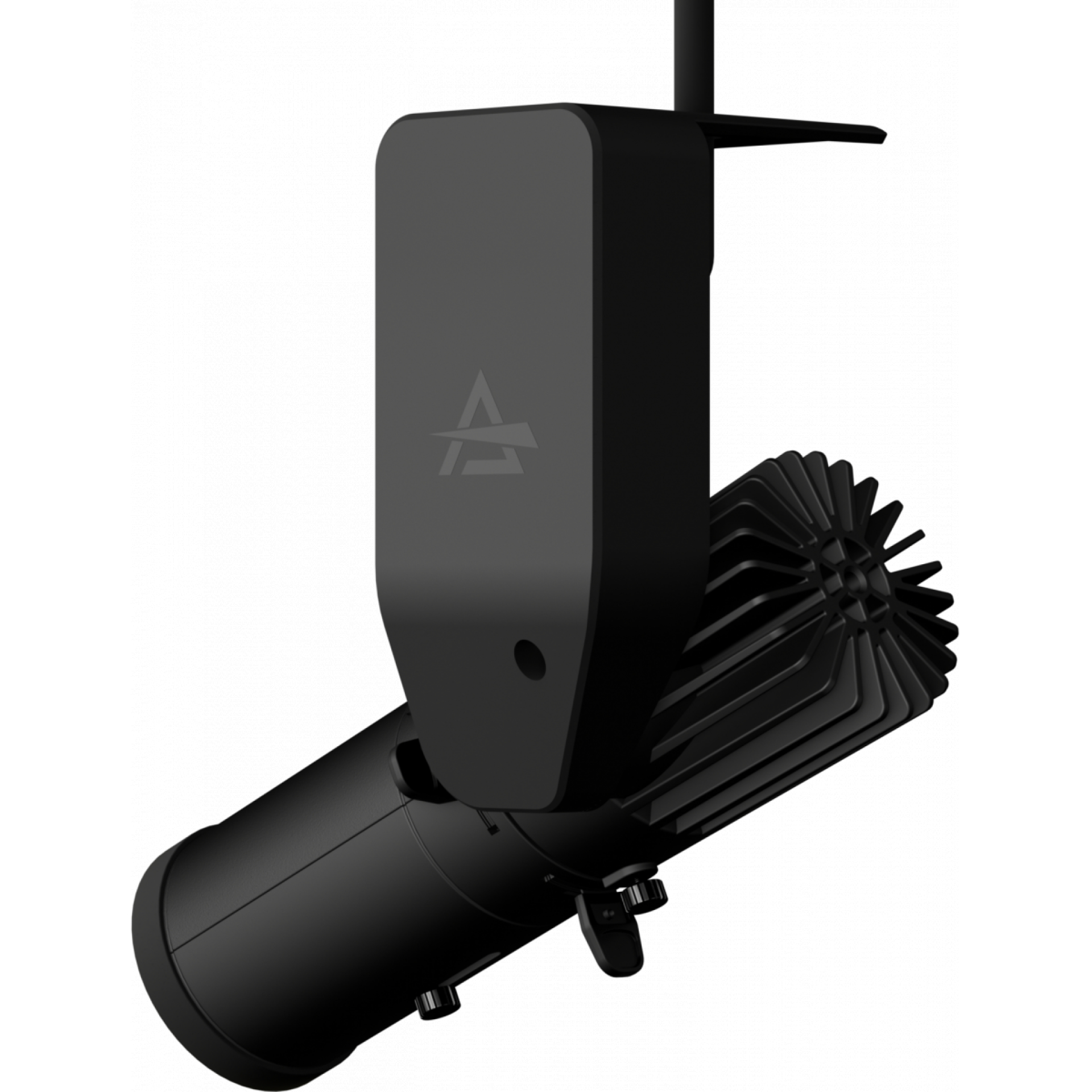

PROLIGHTS EclMini CC tilted - back view

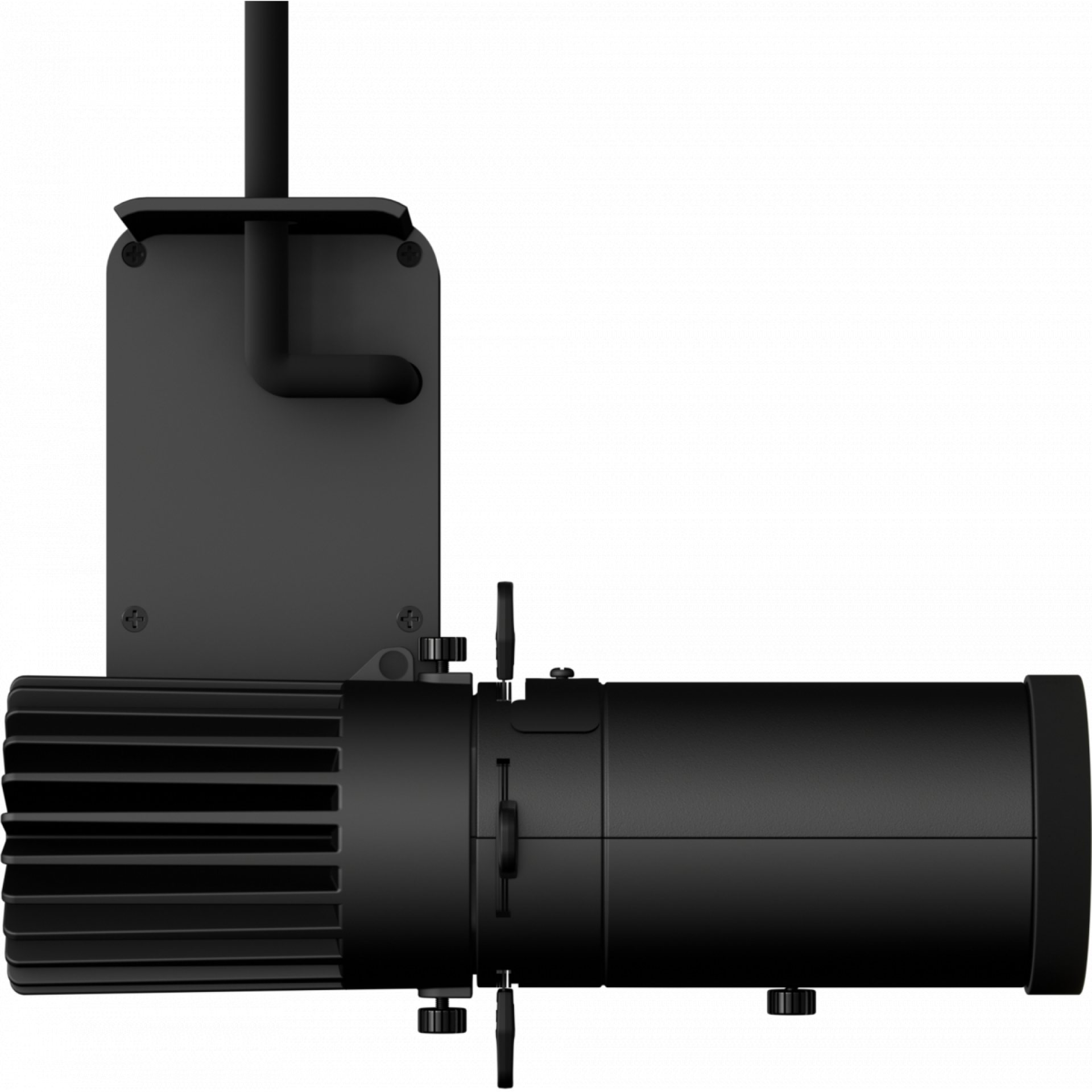

PROLIGHTS EclMini CC - side view

PROLIGHTS EclMini CC Front view tungsten white

PROLIGHTS EclMini CC tilted - back view

PROLIGHTS EclMini CC - side view

EclMini CC

Key Features:

18W High-CRI White LED available in 2,700K, 3,000K, 4,000K, 5,600K versions, black and white housing

Constant Current version, connects to an external PSU and driver (max 500 mA/36V)

Multiple lens options: 19° / 26° / 36° / 50° profile or zoomable 15-30° or 25-50° wash optics

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclMini CC

The PROLIGHTS EclMini CC is a 18W White LED gallery light, constant current. The fixture connects to an external PSU and driver.

Source: 18W White COB LED

CCT: 2,700K; 3,000K; 4000K; 5,600K

Luminous flux: (3,000K) (19°) 1,134lm; (26°) 1,130lm; (36°) 1,144lm; (50°) 1,105lm

Luminous flux: (5,600K) (19°) 1,230lm; (26°) 1,250lm; (36°) 1,251lm; (50°) 1,212lm @ full

CRI: 93 @ 2,700K; 92 @ 3,000K; 89 @ 4,000K; 93 @ 5,600K

Source life expectancy: > 50.000hr (L70B10 @Ta 25° C / 77° F)

Optics: (profile lens – optional) 19°, 26°, 36°, 50°

Zoom: (wash lens – optional) 15° ~ 30° or 25° ~ 50°

360° lens rotation – optional 360° rotating barndoors and gel frame holder

Other: (profile lens – optional) gobo holder size E, outer: 37.3 mm; image: 24mm; thickness: 1.1 mm

EclMini CC - Downloads

PROLIGHTS EclMini CC Spec Sheet
