EclPanel TWCJr

EclPanel TWCJr

PROECLPANELTWCJR

Key Features:

370W RGB + Warm White LED source (driven @ 220W)

4 section pixel control and built-in lighting effects for cinema applications

Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

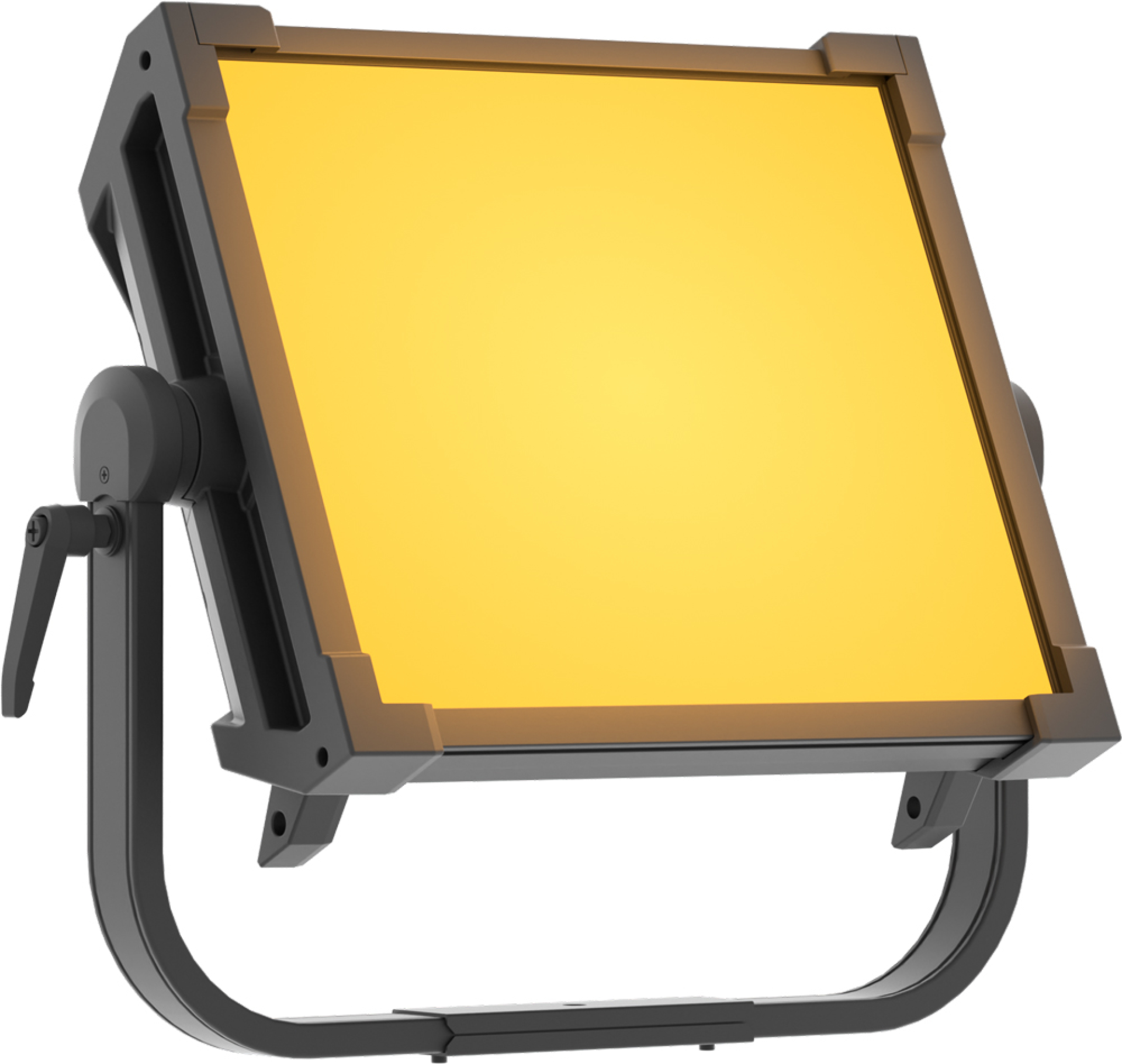

EclPanel TWCJr

The PROLIGHTS EclPanel TWCJr is a compact 1x1 LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the EclPanel TWCJr comes with a full range of white reproductions – from daylight through to tungsten tones – reaching a superior light quality with high CRI, TLCI and TM-30.

The EclPanel TWCJr allows for quick and accurate local adjustment of light through 3 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on board pixel cinema effects. The unit can also be controlled on a per-section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk. Both methods provide eye-candy, with the appealing and modern front looks and cinematic special effects. The unit is designed with an onboard driver and built-in power supply and, being lightweight, the EclPanel TWCJr offers easy rigging and cabling making it the perfect lighting tool for every location.

- Source: 370W RGB + Warm White LEDs (driven @ 220W)
- Luminous flux: 17,109 lm @ 4,000K with LD filter
- Lux: 265lx @ 4000K, @ 5m
- Source life expectancy: > 50,000 hr
- Beam angle: 102°
- Field angle: 158°
- Lens type: medium density diffusion panel (interchangeable)
- Additional optics: see available accessories

- Colour control: XY, CCT, RGBW, gel, HSI, source emulation, colour macros, CTO on colours
- Colour mixing: RGB + Warm White
- CCT: CCT control range from 2.200K to 15.000K, + / – green correction, tungsten emulation
- White presets: 2,800K – 10,000K with 28K resolution
- Colour wheel: virtual colour wheel with macros
- Macros: gels library on-board
- Control resolution: 16-bit dimmer, colours
- Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
- Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

- Protocols: DMX512, RDM, W-DMX, rotatory knob
- Stand alone: selectable mode through 3 rotatory knobs
- Pixel control: 4 section control
- Wireless control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (LumenRadio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: graphic user interface
- Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
