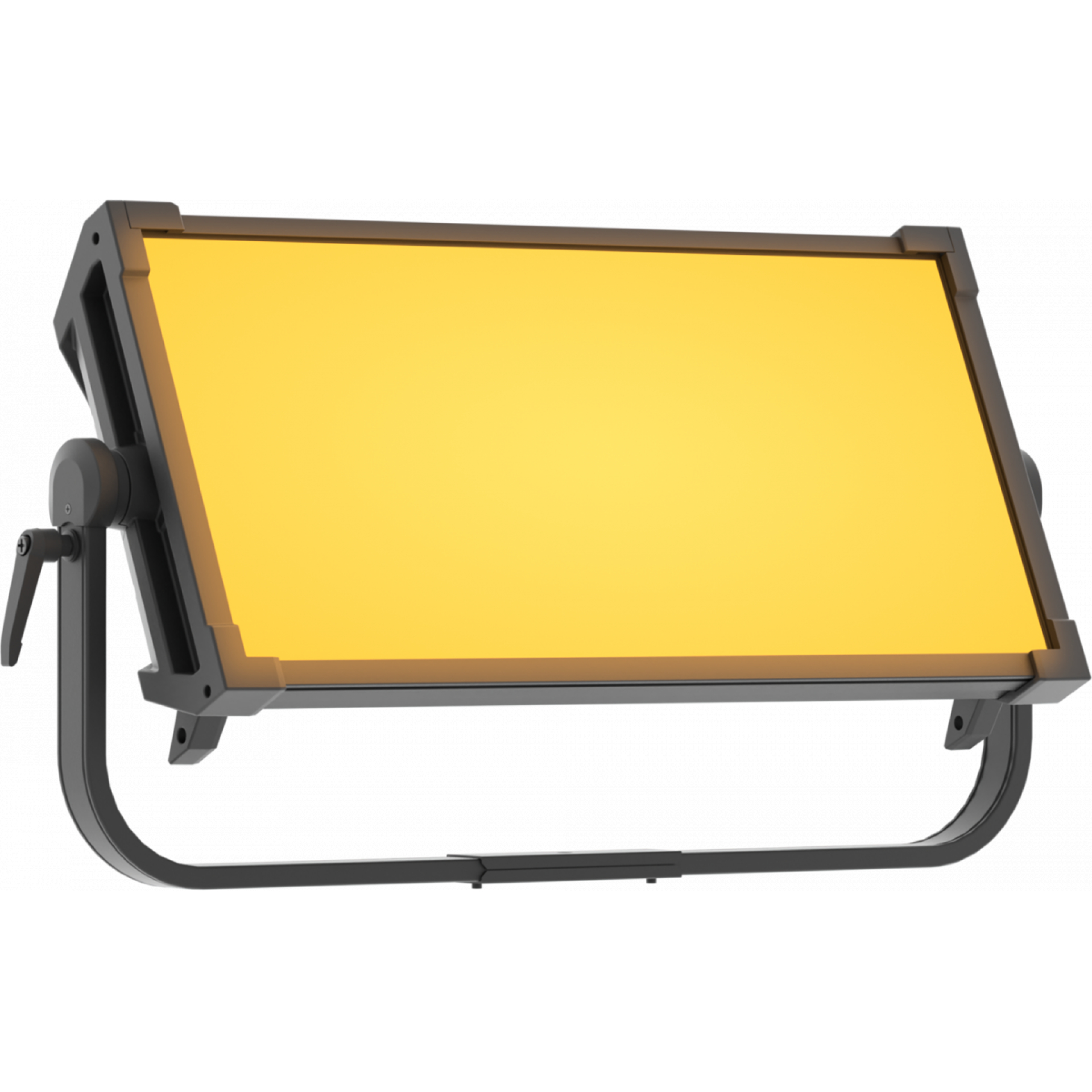

PROLIGHTS EclPanel TWC

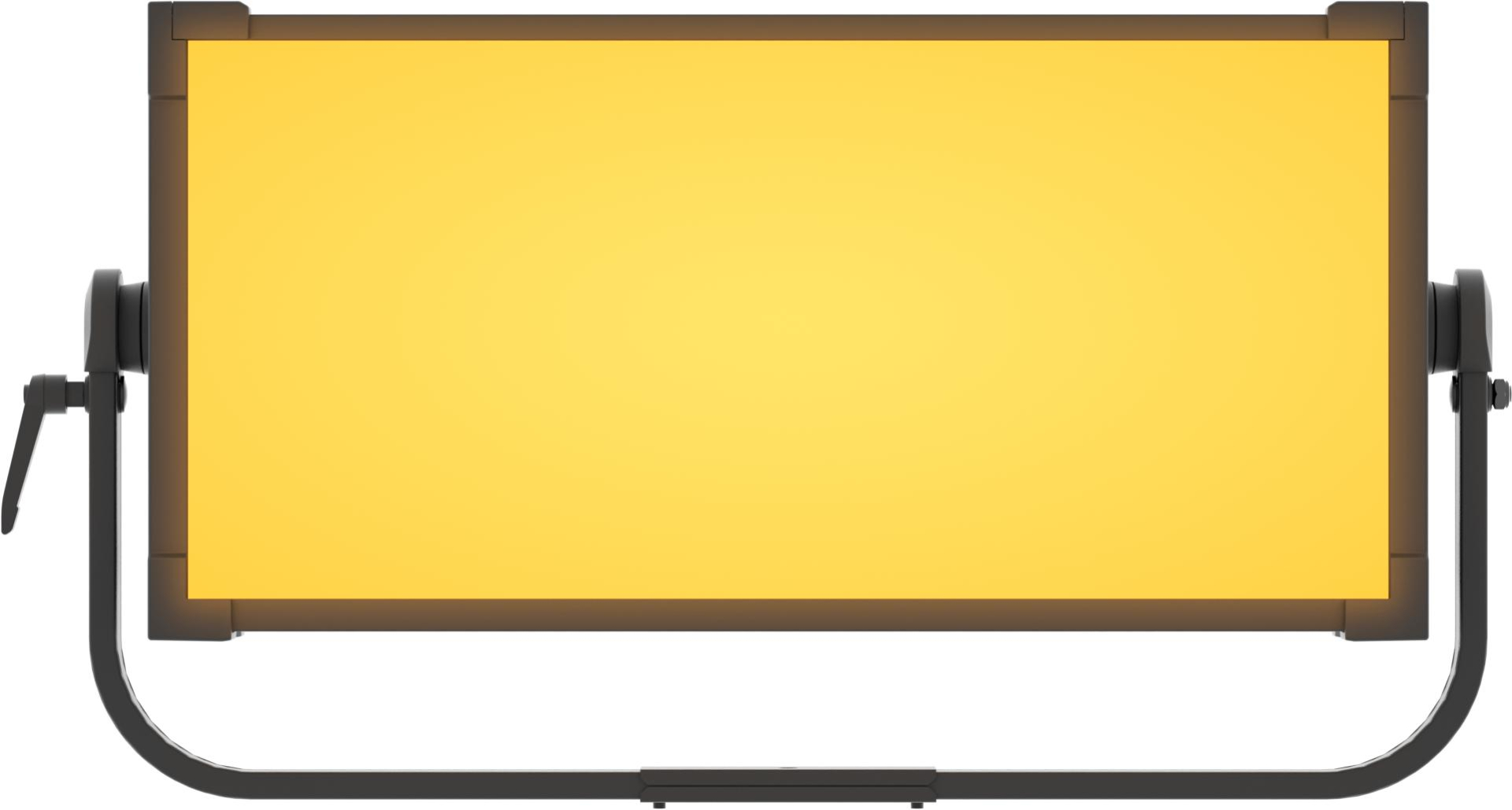

PROLIGHTS EclPanel TWC - front

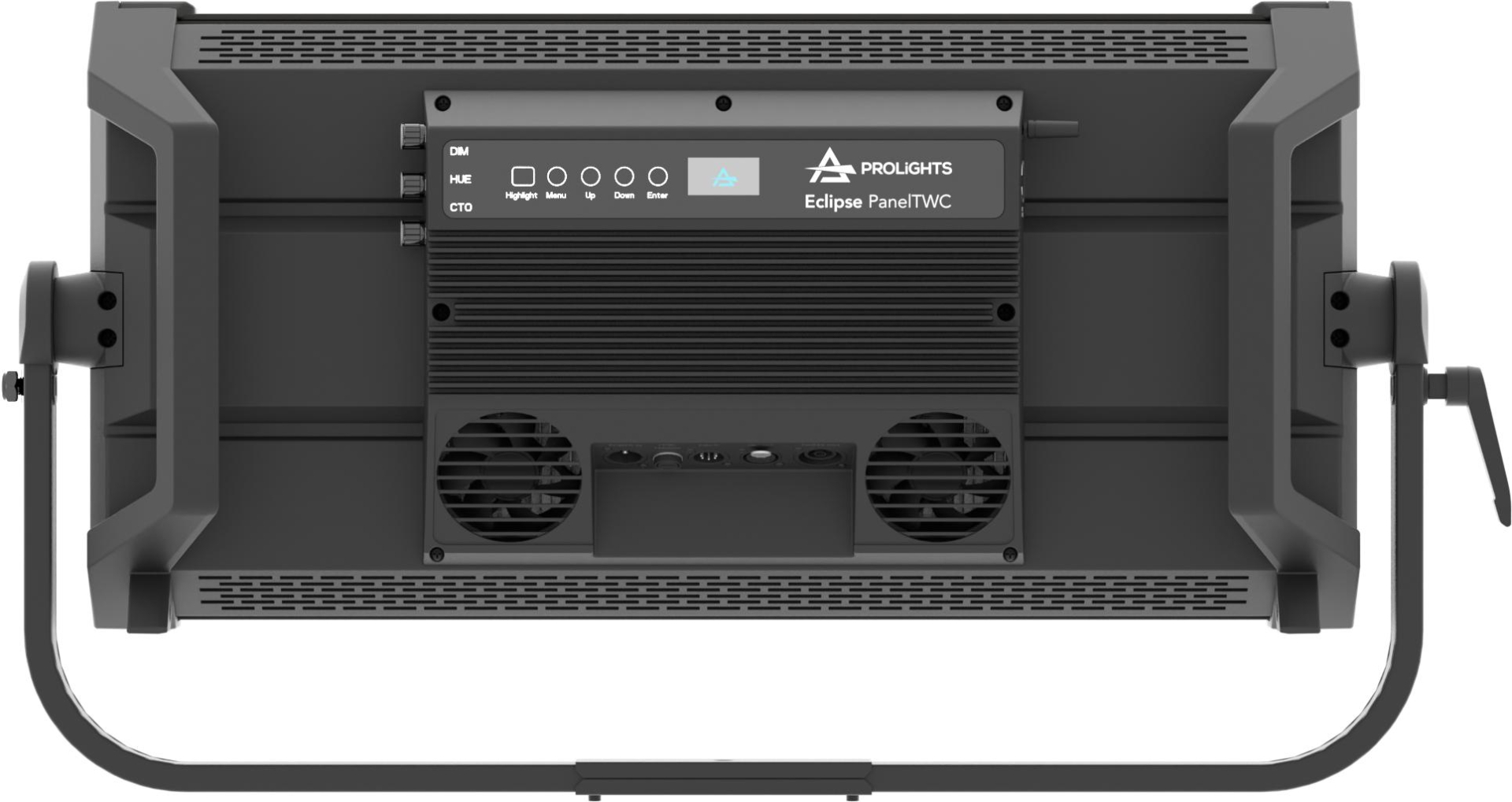

PROLIGHTS EclPanel TWC - back

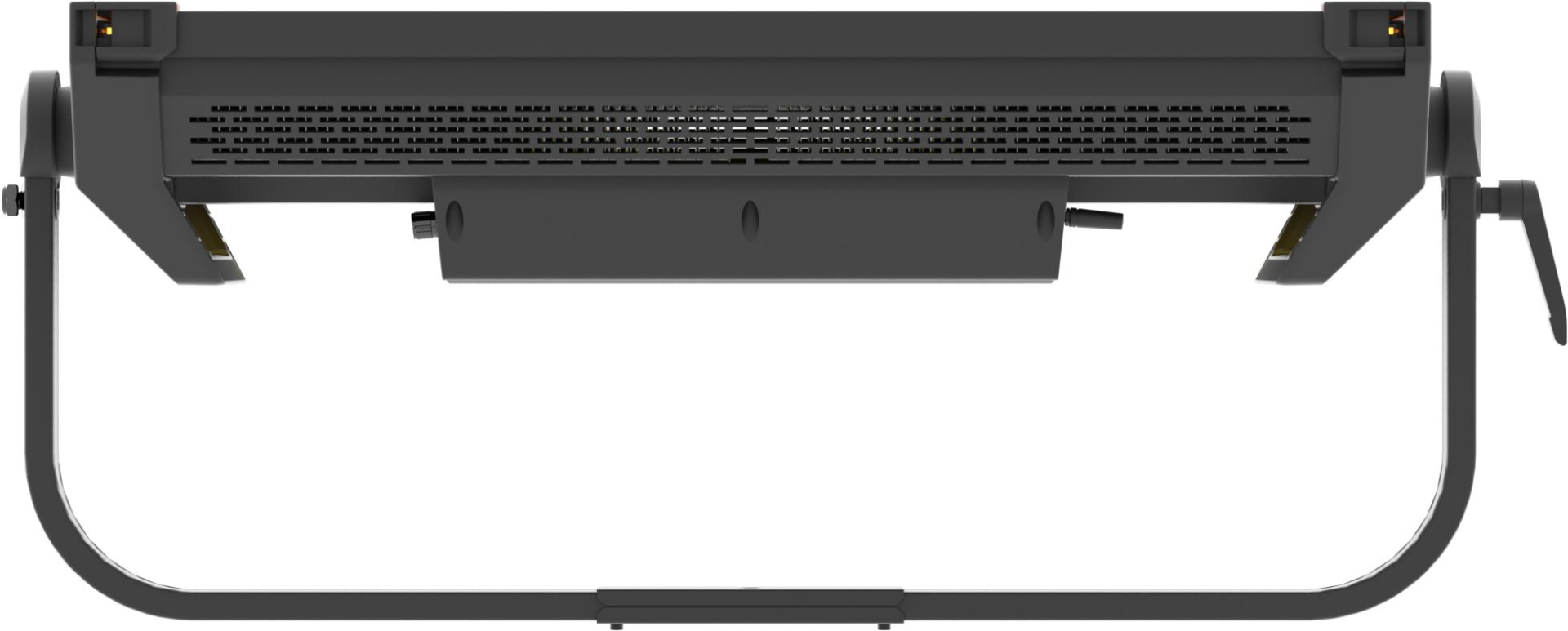

PROLIGHTS EclPanel TWC - pointing up

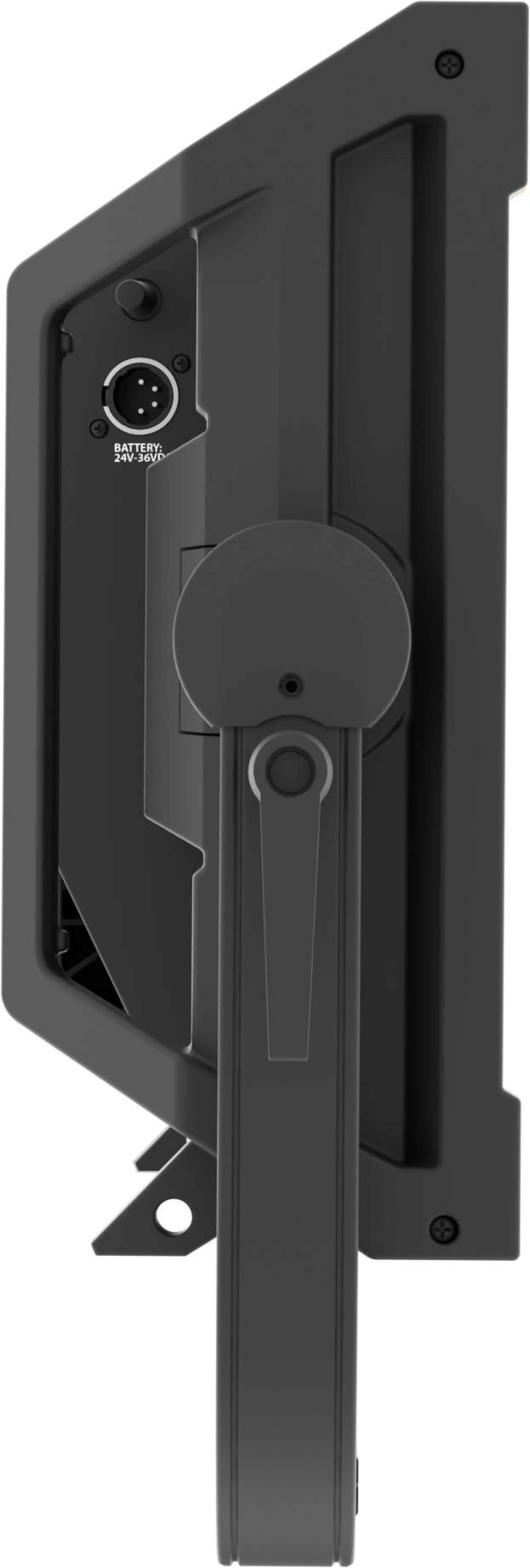

PROLIGHTS EclPanel TWC - side
PROLIGHTS EclPanel TWC - front
PROLIGHTS EclPanel TWC - back
PROLIGHTS EclPanel TWC - pointing up
PROLIGHTS EclPanel TWC - side

EclPanel TWC

PROECLPANELTWC800

Key Features:

  • 740W RGB + Warm White Led source (driven @430W)
  • 8 section pixel control and built-in lighting effects for Cinema applications
  • Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclPanel TWC

The PROLIGHTS EclPanel TWC is a compact 2x1 LED soft light that provides a beautiful, wide source of soft and precise colours. In addition, the EclPanel TWC comes with a full range of white reproductions - from daylight through to tungsten, reaching a superior light quality with high CRI, TLCI and TM-30.

The EclPanel TWC allows for quick and accurate local adjustment of light through 3 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on board pixel cinema effects. The unit can also be controlled on a per-section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk. Both methods provide eye-candy, with the appealing and modern front looks and cinematic special effects. The unit is designed with an onboard driver and built-in power supply and, being lightweight, the EclPanel TWC offers easy rigging and cabling making it the perfect lighting tool for every location.

  • Source: 740W RGB + Warm White LEDs (driven @ 430W)

    Luminous flux: 34,236 lm @ 4.000K with MD filter

    Lux: 517 lx @ 4000K @ 5m

    CRI: 94.6 @ 3,200K; 95.5 @ 5,600K

    Source life expectancy: > 50,000hr

    Beam angle: 102°

    Field angle: 159°

    Lens type: medium density diffusion panel (interchangeable)

    Additional optics: see available accessories

  • Colour control: XY, CCT, RGBW, gel, HSI, source emulation, colour macros, CTO on colours

    Colour mixing: RGB + Warm White

    CCT: CCT control range from 2,200K to 15,000K, + / – green correction, tungsten emulation

    White presets: 2,800K – 10,000K with 28K resolution

    Colour wheel: virtual colour wheel with macros

    Macros: gels library on-board

    Control resolution: 16-bit dimmer, colours

    Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns

    Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

  • Protocols: DMX512, RDM, W-DMX, rotatory knob

    Stand alone: selectable mode through 3 rotatory knobs

    Pixel control: 8 section control

    Wireless control: integrated, CRMX + WDMX TRX

    RDM: RDM for remote monitoring and settings

    Display: graphic user interface

    Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
